BRUKSANVISNING LA-220 V2 Lauten Audio

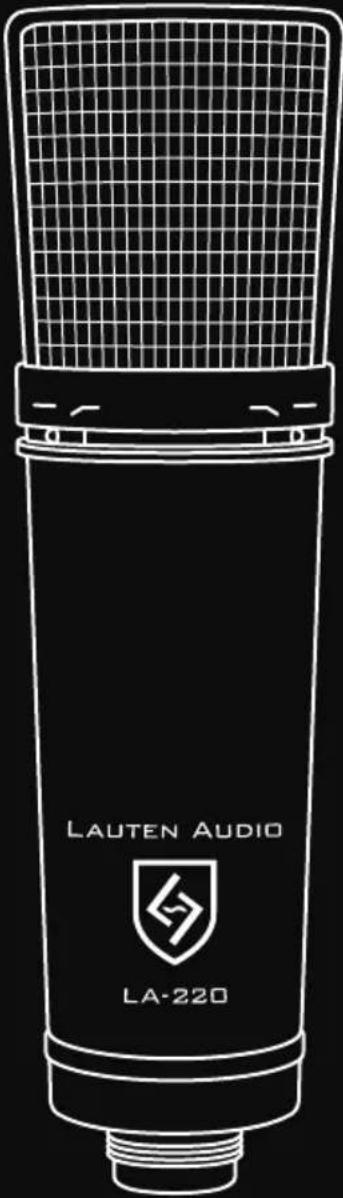

LA-220
QUICK START GUIDE
EXTEND YOUR WARRANTY FREE!
Your new LA-220 comes with a 1 year warranty. Want to double it? Register your new microphone within 30 days of purchase at: LautenAudio.com/Register
CAPSULE
32mm custom-crafted, hand-tuned transducer designed explicitly for modern recording.
NOTE: Use a pop filter for vocal recording to protect the capsule from moisture and debris.
LOW-FREQUENCY SOUND SHAPING
The flat setting allows the full low-frequency extension of a sound to be captured.
The 120Hz setting reduces low frequencies and mud while increasing clarity.
+48V
PHANTOM POWER
Your LA-220 requires 48 Volts of Phantom Power to work.
SPL & DYNAMIC RANGE
Your LA-220 is able to withstand up to 130dB of SPL and provides 120dB+ of dynamic range to ensure optimal performance on any sound source.
HIGH-FREQUENCY SOUND SHAPING
The flat setting is modern and bright, but never harsh.
The 12kHz setting is classy and warm, like a vintage microphone.
LA-220 APPLICATIONS
MODERN VOCALS
HP Flat / LP Flat
ACOUSTIC GUITAR
HP 120Hz / LP Flat
CLASSIC VOCALS
HP Flat / LP 12kHz
ELECTRIC GUITAR
HP 120Hz/LP 12kHz
PODCAST
HP Flat / LP 12kHz
DRUM OVERHEADS
HP 120Hz/LP 12kHz
