ATTACHING COAX FOR PR-MODELS

STEP 4. Be sure to unfold tetrapole elements away from boom. Loosen wing nuts on downlead connections. Attach matching transformer ends to the studs between the washers and tighten wing nuts. See Figure 8.

ATTACHING COAX FOR MODEL HD7210P ONLY

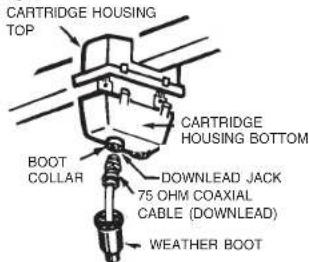

STEP 4. Attach the 75 ohm coaxial downlead to the housing. Slide weather boot over the boot collar. See Figure 9.

ATTACHING ANTENNA TO MAST

Loosen U-bolt nuts. Slide U-bolt over mast. Point small end of antenna toward stations and tighten securely. See Figure 10. Install a second U-bolt for antennas with multiple booms. The 75 ohm coaxial cable download may be secured to mast by taping or by using plastic wire ties.

HOW TO PROVIDE LIGHTNING PROTECTION FOR TV ANTENNA AND SET

Step 1. Mount the grounding block as close as possible to where the 75 ohm coaxial cable downlead enters the house. See Figure 11.

Step 2. The ground wires for both the mast and the downlead should be copper or aluminum wire, number eight (8) or larger. See Figure 11.

Step 3. The downlead wire from the antenna to the grounding block and the mast ground wire should be secured to the house spaced from four (4) to six (6) feet apart. See Figure 11.

NOTE: In the case of a "ground up" antenna installation, it may not be necessary to ground the mast if the mast extends four or more feet into the earth. Consult a TV serviceman for the proper depth in your location.

Fig. 8

Technical line drawing of a mechanical assembly with no visible text or symbols

ATTACH DOWNLEAD/MATCHING TRANSFORMER HERE

Fig. 9

Fig. 10
MAST CLAMP

Fig. 11

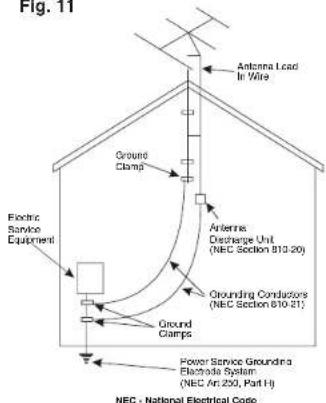

Example of antenna grounding as per National Electrical Code, ANSUNFPA 70

NEC - National Electrical Code
Printed in U.S.A. © Winegard Company 2003 1450172 Rev. 7/04

WINEGARD® High Definition (HD) Platinum Antennas

INSTRUCTIONS

VHF/UHF MODELS

HD7210P, PR-5646, PR-7000, PR-7005, PR-7010, PR-7013, PR-7015, PR-7032, PR-7037, PR-7042 & PR-7052

VHF ONLY

PR-5030, YA-1026, YA-1713, YA-6260 & YA-6713

WARNING

INSTALLATION OF THIS ANTENNA NEAR POWER LINES IS DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.

90 DAY LIMITED WARRANTY

Winegard Company warrants this Winegard product against any defects in materials or workmanship within 90 (ninety) days from date of purchase. No warranty claim will be honored unless at the time the claim is made, you present proof of purchase to an authorized Winegard dealer (if unknown, please contact Winegard Company, 3000 Kirkwood Street, Burlington, IA 52601-2000, Telephone [phone]).

Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited warranty does not apply if the product is damaged, deteriorates, malfunctions or fails from: misuse, improper installation, abuse, neglect, accident, tampering, modification of the product as originally manufactured by Winegard, usage not in accordance with product instructions or acts of nature such as damage caused by wind, lighting, ice or corrosive environments such as salt spray and acid rain.

The 90 Day Warranty is provided on the condition that the equipment is properly delivered with all handling and freight charges prepaid to your Winegard dealer for return to our factory for repair or replacement. Winegard dealers will arrange for the replacement or repair and return to you without charge the product which failed due to defective material or workmanship.

WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.

The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or otherwise, and Winegard shall not be liable for incidental or consequential damage or commercial loss, or from any other loss or damage except as set forth above.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000

FOR MODELS WITH REFLECTOR BOOMS INSTALLED IN FACTORY

STEP 1. Remove antenna from carton and unfold elements on reflector booms until they lock into place. See Figure 1.

STEP 2. Unfold reflector booms until they lock into place. See Figure 1.

FOR ALL MODELS

STEP 3. Unfold all other elements until they lock into place. Be sure the elements are locked into position and are flat and parallel to each other. See Figure 2.

FOR TWO-PIECE BOOM MODELS

Remove nut and bolt from boom and slide narrow end of boom into end of larger section aligning bolt holes. See Figure 3. Re-install bolt and nut, being sure to tighten securely.

FOR MODELS PR-7042 & PR-7052

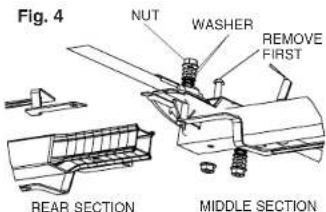

Repeat the step above for attaching front and middle sections. Repeat the same procedure for attaching the rear section to the middle. Then, remove the hex nuts and washers from the top and bottom of the first element holder studs on middle section. See Figure 4. Place the phasing lines from the rear section over the studs, one on top and the other on bottom, and re-attach the washers and hex nuts.

Fig. 1

Fig. 2

Technical line drawing of a mechanical clamp or bracket assembly with a hand holding a tool (no text or symbols)

Fig. 3

FOR MODELS WITH BOOM BRACES

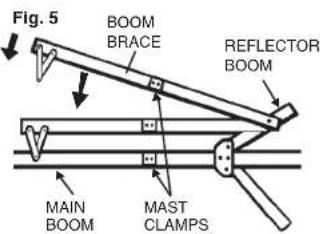

STEP 1. Assemble antenna using previous steps. Lay boom brace on top of antenna with U-bolts on same side. Find the bolt hole in the corner reflector and attach brace with the bolt and nut provided. Swing boom brace down toward the rear. Form a "V" with the metal straps. Bolt the "V" to each side of boom. See Figures 5 and 5A.

Fig. 5A

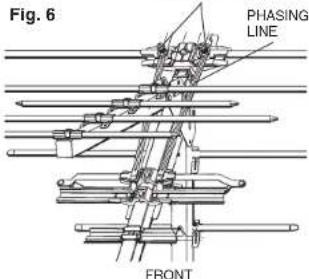

STUD HOLDER

Fig. 7
