BRUKSANVISNING T15 Totolink

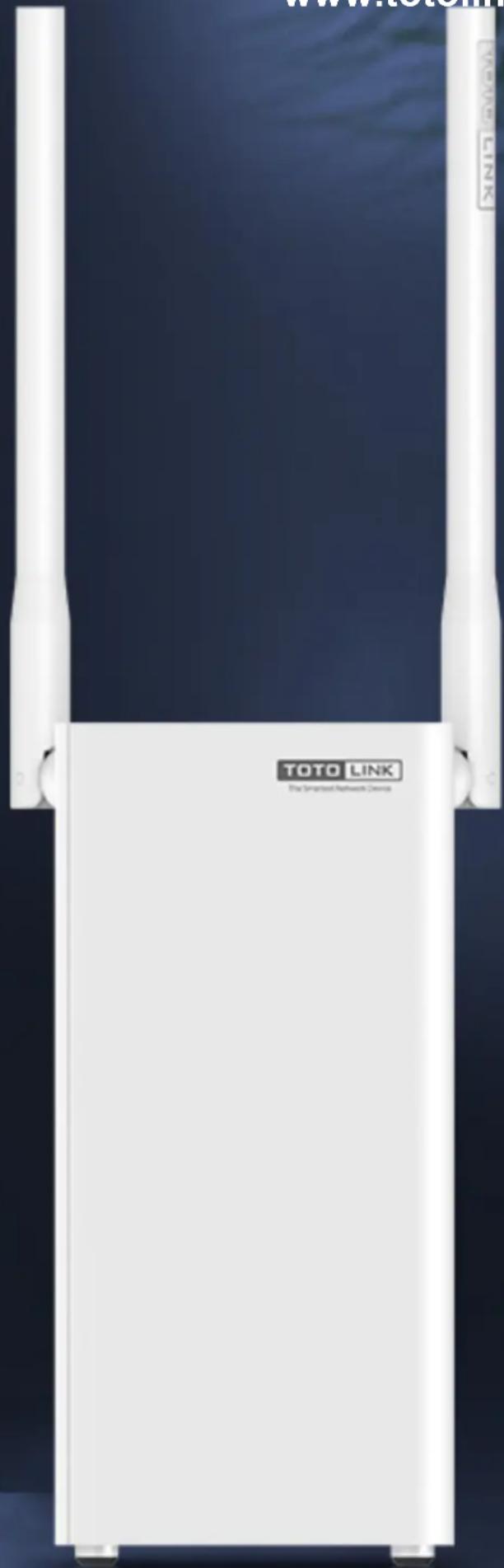

TOTO LINK
The Smartest Network Device
www.totolink.net
AC1300
Wireless Dual Band
Gigabit Mesh Router
T15
Full Gigabit Ethernet
Up to 9 devices
Mesh networking
Seamless Roaming
MU-MIMO
Phone UI for quickly setup
Overview
AC1300
Wireless Dual Band Gigabit Mesh Router
Model No. T15
T15 is a wireless dual band router with full gigabit ports, delivering wireless speed up to 1267Mbps, which easily satisfies the different Internet demands from multiple users at the same time, such as website reading, mailing, streaming media and gaming. With the latest MU-MIMO and beamforming technology, all connected devices to achieve speeds up to 3× faster than standard AC routers. Besides, the advanced Mesh technology brings wider coverage and brings you experience of seamless roaming. T15 greatly improves the bandwidth efficiency and the Wi-Fi experience for the users.
Features
- Complies with the IEEE 802.11ac Wave2 Wi-Fi standard.
- Simultaneous 867Mbps on 5GHz and 400Mbps on 2.4GHz for a total of 1267Mbps.
- Easy Mesh function for easy Wi-Fi extension and seamless roaming.
- MU-MIMO technology allows to transfer data to multiple devices at the same time.
- External 5dBi fixed antennas is perfect for long-distance wireless transmission.
- Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
- Full gigabit ports offer larger capability for data forwarding via cable connection
- Supports DHCP, Static IP, PPPoE broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-PSK/WPA2-PSK security.
- Connects to a secure network easily by using WPS.
- QoS: Bandwidth Control based on IP address.
- Easy setup with phone UI.

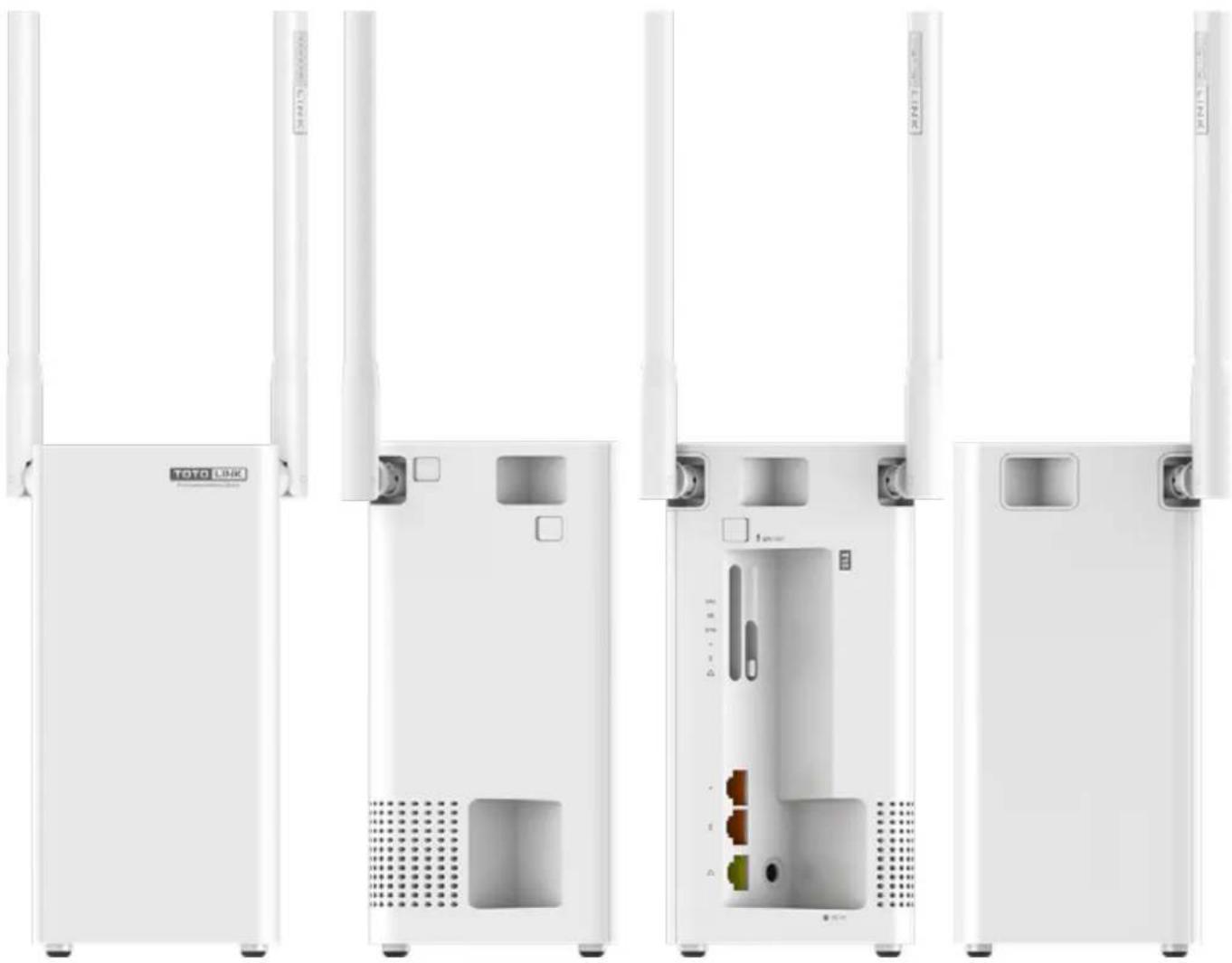

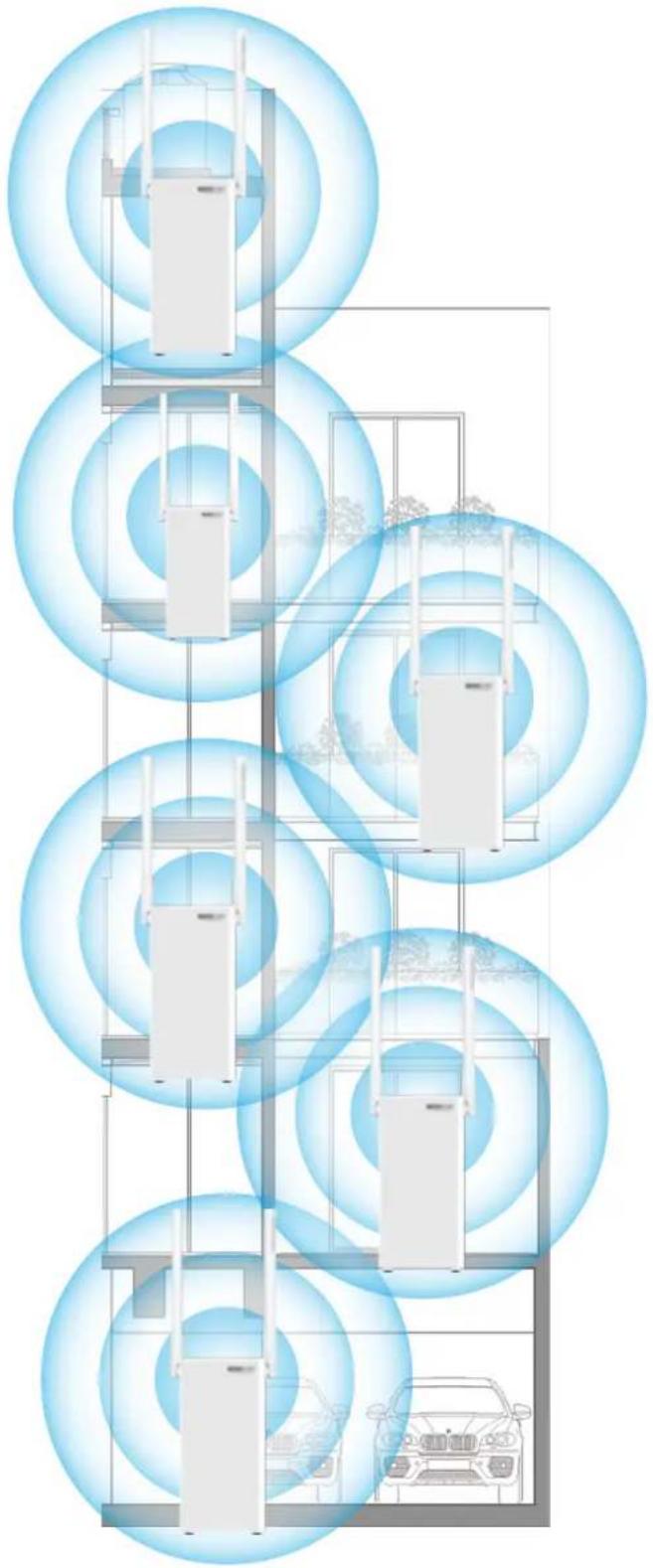

Easy Mesh, Wider Coverage and Seamless Roaming
With advanced Mesh technology, units work together to form a unified network with a single network name.
T15 supports up to 9 devices Mesh networking that can achieve Wi-Fi coverage ranges from 90 m² to 1500 m².
Devices automatically switch between T15 as you move through
your home for the fastest possible speeds.
1267Mbps Ultra-Fast Wi-Fi Speed
T15 complies with the IEEE802.11ac Wave2
Wi-Fi standard, delivers Wi-Fi speeds of up
to 867Mbps on the 5 GHz band and 400Mbps
on the 2.4 GHz band. It is able to work on
2.4G and 5G simultaneously and delivers
speeds up to 1267Mbps, ideal for internet
activities that requires high bandwidth,
such as HD videos and online gaming.
bar
| Category | Value | |---|---| | 802.11n | 802.11n | | 802.11ac | 802.11ac |5GHz
867Mbps
2.4GHz
400Mbps


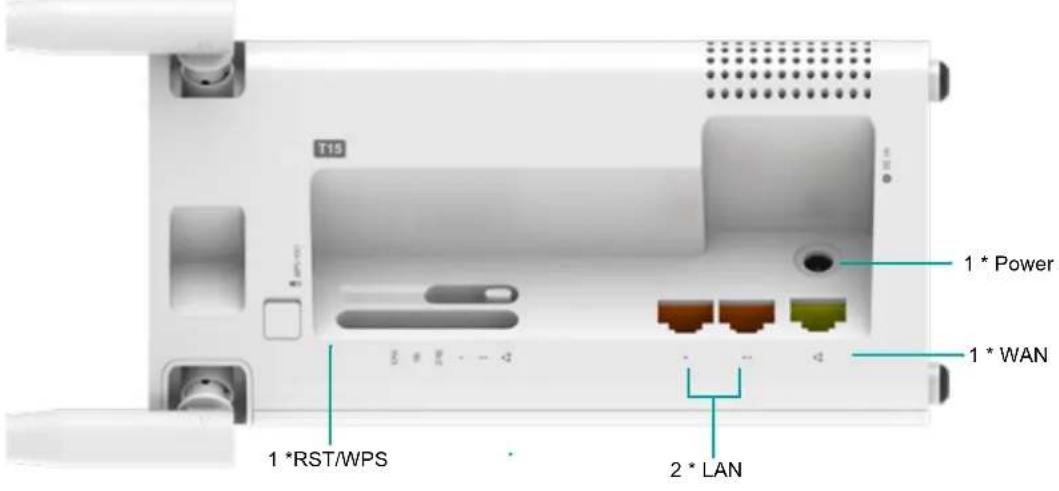

Hardware
| Interface | -2*1000Mbps LAN Ports-1*1000Mbps WAN Port-1*DC Power Port |
| Power Supply | -12VDC/1A |
| Antenna | -2*5dBi fixed external dual band antennas |
| Button | -1*RST/WPS |
| LED Indicator | -1*CPU, 1*2.4GWireless, 1*5GWireless, 2*LAN, 1*WAN |
| Dimensions (L x W x H) | -86 x 86 x 179.5mm (not concluding antennas) |
 |
Wireless
| Standards | - IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a ,IEEE802.11s |
| RF Frequency | - 2.4~2.4835GHz- 5.18~5.825GHz |
| Data Rate | - 2.4GHz: Up to 400Mbps- 5GHz: Up to 867Mbps |
| EIRP | - 2.4GHz < 20dBm- 5GHz < 20dBm |
| Wireless Security | - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Reception Sensitivity | - 2.4G:11b 11M: -85dBm@8% PER11g 54M: -72dBm@10% PER11n HT20 MCS7: -68dBm@10% PERHT40 MCS7: -65dBm@10% PER |
| - 5G: 11a 54M: -72dBm@10% PER11n HT20 MCS7: -68dBm@10% PERHT40 MCS7: -65dBm@10% PER11ac VHT80 MCS9: -55dBm@10% PER |
Specification
Software
| Basic Setting | - Status Summary | - Internet Setup | - Wireless Setup |
| - Firmware Upgrade | - Easy Mesh | ||
| Network | - Internet Setup | - LAN Setup | - DHCP Server Setup |
| Wireless | - Wireless Setup | - Wireless Multi-bridge | |
| - MAC Authentication | - Easy Mesh | ||
| NAT/Routing | - Port Forwarding | - Advanced NAT Setup | |
| - Routing Table | |||
| Firewall | - Firewall | - Net Detector | |
| - Manage Access List | |||
| Utility | - VPN Setup | - DDNS | |
| - WOL | - Host Scan | ||
| - Notice | - IPTV | ||
| - GAMING VPN | |||
| Traffic | - QoS Setup | - Connection Info | |
| - Connection Control | - Wired Port Setup | ||
| - Switch Setup | |||
| System | - System Log | - Admin Setup | |
| - Firmware Upgrade | - Misc Setup |
Others
| Package Contents | - T15 Router * 1- Power Adapter * 1- Ethernet Cable * 1- Quick Installation Guide * 1 |
| Environment | - Operating Temperature: 0°C~50°C (32°F~122°F)- Storage Temperature: -40°C~70°C (-40°F~158°F)- Operating Humidity: 5%~95% non-condensing- Storage Humidity: 5%~95% non-condensing |
