BRUKSANVISNING SN1528DGB Scosche
IN-DASH DIN STEREO INSTALLATION KIT FOR 2008-UP SATURN ASTRA
INTRODUCTION/PRELIMINARY
This premium installation kit is for 2008-Up.Saturn Astra vehicles. Included are all the parts you need to mount your car stereo or CD player into your vehicle's dash. Refer to the individual instruction in this manual to remove your vehicle's factory radio and assemble the kit.
CAUTION
DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIRBAG WIRING - AIRBAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.
NOTES
- See your vehicle's instructions for any special tools your installation might require.
- Read all instructions accompanying your car stereo for proper wiring and mounting instructions.
FACTORY WIRING CODES
For Factory Wiring Codes go to: www.scosche-cars.com
CAR STEREO CONNECTORS
PROVIDE EASY CONNECTION OF YOUR CAR STEREO TO FACTORY WIRING HARNESS.
VWO3B
2003-Up Volkswagen power/speaker connector
VWA3B
2002-Up Volkswagen antenna adapter
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and information pertaining to installation of this kit (SN1528DGB/LGB) in 2008-Up Saturn Astra vehicles. Scosche Industries, Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.
If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3
FACTORY STEREO REMOVAL
2008-UP SATURN ASTRA
- Insert Din removal tool (Scosche GRTB, provided with kit).
- Slide out factory stereo, disconnect harness and remove unit.
MOUNTING THE STEREO
SINGLE DIN INSTALLATION

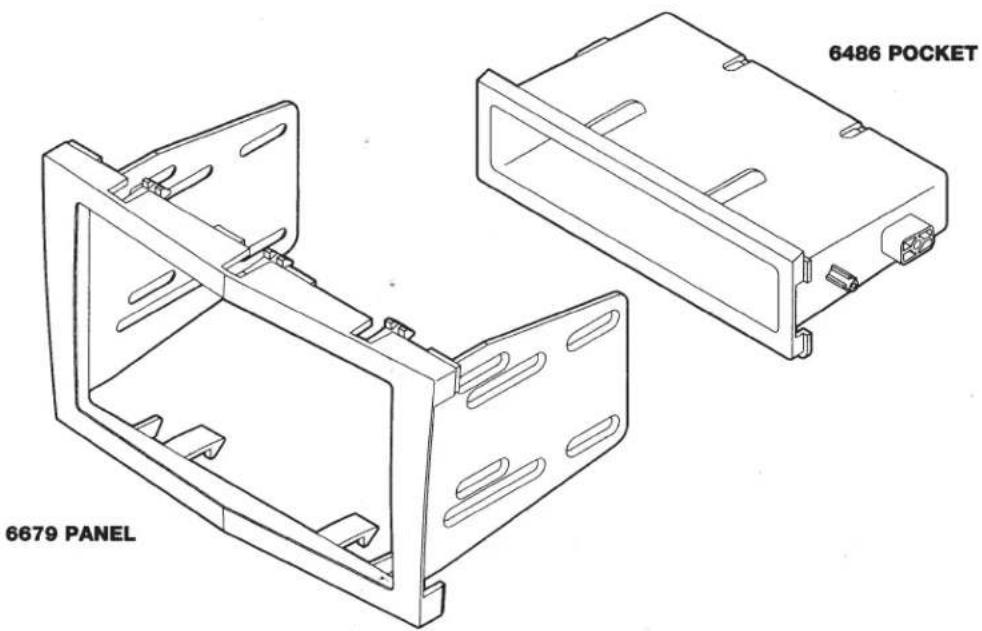

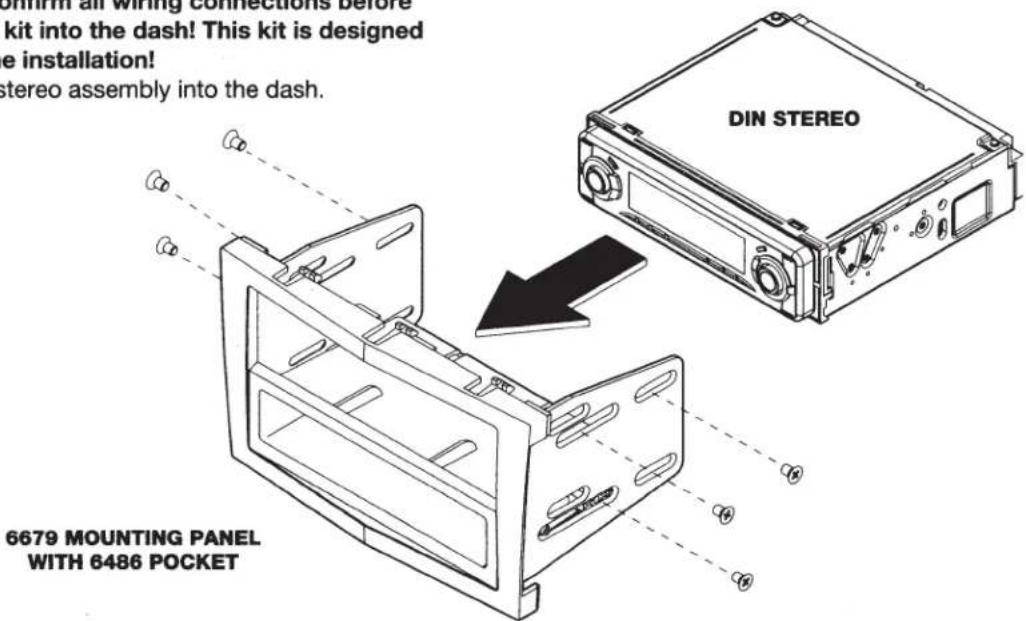

- Line up the 6486 pocket to the 6679 mounting panel and attach using the (2) coarse thread screws supplied with the kit.
- Line up the single din stereo to the 6679 panel and attach using (4) flat head screws supplied with the kit.
- Plug in the stereo harness and antenna.
- Check and confirm all wiring connections before inserting the kit into the dash! This kit is designed for a one-time installation!
- Insert the kit/stereo assembly into the dash.
DOUBLE DIN INSTALLATION

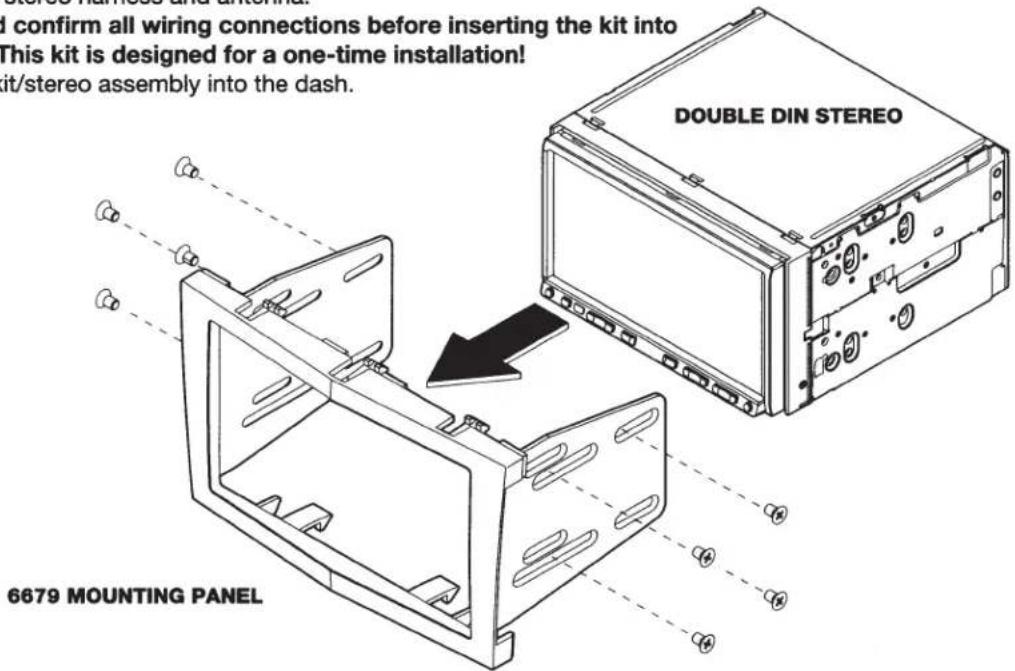

- Line up the double din stereo to the 6679 panel and attach using (8) flat head screws supplied with the kit.
- Plug in the stereo harness and antenna.
- Check and confirm all wiring connections before inserting the kit into the dash! This kit is designed for a one-time installation!
- Insert the kit/stereo assembly into the dash.
