BRUKSANVISNING R-TB8 RetroSound

R-TB8 SUBWOOFER FULL RANGE SPEAKER BOX

USER'S MANUAL

INSTALLATION

Thank you for purchasing a RetroSound® product. Enclosed is some useful information that will maximize the performance. If you have any questions about the use or features of this product, email us at: [e-mail] or call us at 702-483-2222

The information enclosed in this manual is to be used as a guide to assist you with installation and operation of your speakers. This guide does not cover every installation possibility, vehicle, or every aspect of the installation process.

Retro Manufacturing, LLC, or its subsidiaries, assume no responsibility for any installation. This manual may be updated from time to time.

Visit our website for the latest version www.retromanufacturing.com

INSTALLATION

Note: This speaker system comes as a pair. The enclosures are a mirror image of each other, one for the passenger side and one for the driver's side.

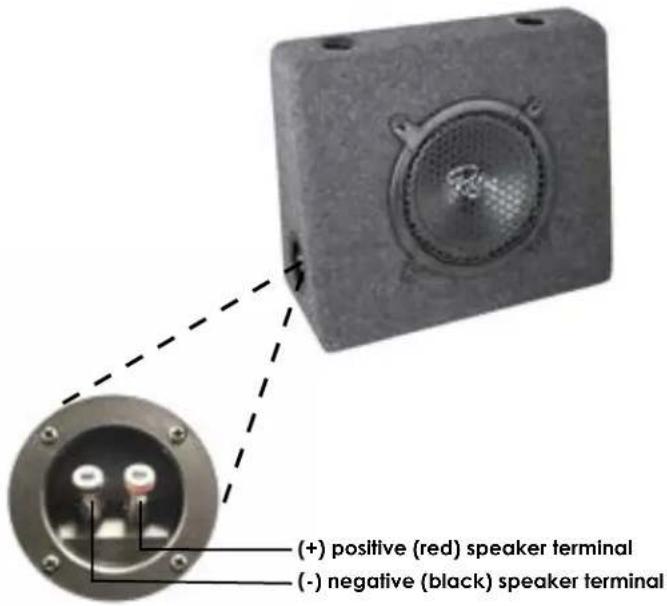

The photo below shows the passenger's side, with the tweeter on the left side of the enclosure. The speaker terminals are designed to accept speaker wire by pushing the terminal inward, and inserting the speaker wire. The red terminal is for the positive speaker wire, and the black terminal is for the negative speaker wire.

SPECIFICATIONS WARRANTY

WARRANTY

General

Dimensions 16.25"W x 13.5"H x 3.75"D1 x 7.5"D2

Dimensions (Subwoofer) 8"

Weight 11.35 LBS (each)

Frequency Response 60-22.00 Hz

Power Handling 175 watts RMS

Impedence 4 ohms

Sensitivity 92 dB

NOTE: All specifications are subject to change without notice.

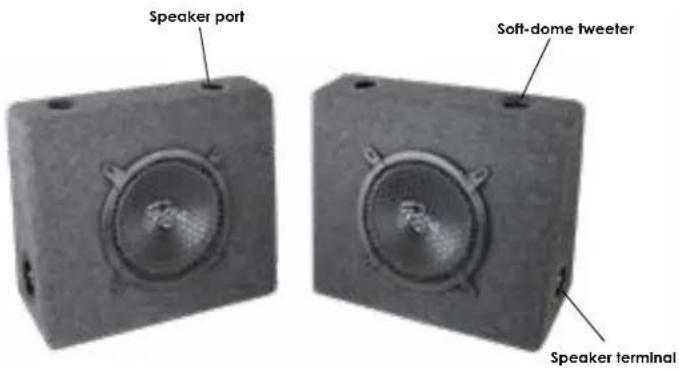

WARNING: To avoid vehicle damage or personal injury you should securely mount the enclosure. Before mounting make sure the speaker port and soft-dome tweeter are not obstructed and the speaker terminals are accessible.

Limited Warranty

If your unit does not work properly because of defects in materials or workmanship, Retro Manufacturing, LLC (collectively referred to as "the warranter") will for the length of the period indicated in the chart below at its option either (a) repair your unit with new or refurbished parts, or (b) replace it with a new or refurbished unit. The warranty period starts with the date of original purchase. The decision to repair or replace will be made by the warranter.

CATEGORIES WARRANTY	WARRANTY
R-T38 One (1) Year

During the warranty period, there will be no charge for parts. You must mail in your unit prepaid during the warranty period. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold "as is."

A purchase receipt or other proof of the original purchase date is required for warranty service.

To handle a warranty issue, contact us at [e-mail] or 702.483.2222 for a Return Authorization (RA) number. All returns and warranty issues must be accompanied by a Return Authorization number. Any product received without a RA number will be refused.

LIMITED WARRANTY-LIMITS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred during shipment, failures which are caused by products not supplied by the warrantor, failures which result from accident, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustment, maladjustment of consumer control, improper maintenance, improper antenna, inadequate signal reception or pickup, power line surge, improper voltage supply, lightning, modification, commercial use (such as use in hotels, offices, restaurants, or other business uses) or rental use of the product, or service by anyone other than Retro Manufacturing, LLC, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY", THE WARRANTER IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS UNIT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for last time, cost of having someone remove or re-install on installed unit if applicable, travel to and from the servicer, and loss of media, data or other memory contents. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this unit develops during or after the warranty period, you may contact your dealer or Metro Manufacturing, LLC.

Retro®

MANUFACTURING

MODERN SOUND FOR YOUR CLASSIC
