Window-Type Air Conditioner

OWNER'S MANUAL

LG

BE01

IMPORTANT

Please read through this manual. It contains valuable information about your air conditioner. This manual may help save time and money by explaining proper product maintenance and preventing improper use.

PRECAUTIONS

Pay close attention to precautions in order to prevent potential hazards and damage from misuse or improper installation. LG is not responsible for any damages caused by misuse of the product.

Models : HWC056JWAA0 LW - 056

Safety Precautions

Safety Precautions....3

About the Controls on the Air Conditioner

Controls....5

Air direction 6

Care and Maintenance .....6

Installation Instructions

Features 7

Installation Instructions......8

Before You Call For Service...

Normal Operation....9

Abnormal Operation .....9

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

CAUTION

• Contact the Authorized Service Center for repair or maintenance of this unit.
• The air conditioner is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.

Line drawing of a cozy room with people relaxing and reading, no text or symbols present

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring of instruction will cause harm or damage, the seriousness is classified by the following indications.

	WARNING	: This symbol indicates the possibility of death or serious injury.
	CAUTION	: This symbol indicates the possibility of injury or damage to properties only.

■ Meanings of symbols used in this manual are as shown below.

				Be sure not do this
				Be sure to follow the instruction

WARNING

Plug in the power plug properly.

- Otherwise, it will cause electric shock or fire due to heat generation.

Do not operate or stop the unit by inserting or pulling out the power plug.

- It will cause electric shock or fire due to heat generation.

Do not damage or use an unspecified power cord.

- It will cause electric shock or fire. - If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Do not modify power cord length or share the outlet with other appliances.

- It will cause electric shock or fire due to heat generation.

Do not operate with wet hand or in damp environment.

- It will cause electric shock.

Do not direct airflow at room occupants only.

• This could damage your health.

Illustration showing a delivery box emitting exhaust smoke with a prohibition symbol and a cartoon character below

CAUTION

When the air filter is to be removed, do not touch the metal parts of the unit.

- It may cause an injury.

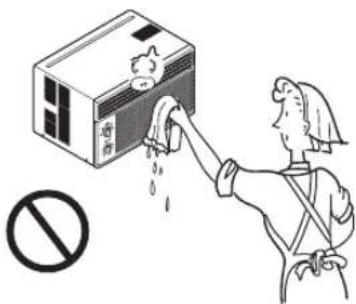

Do not clean the air conditioner with water.

• Water may enter the unit and degrade the insulation. It may cause an electric shock.

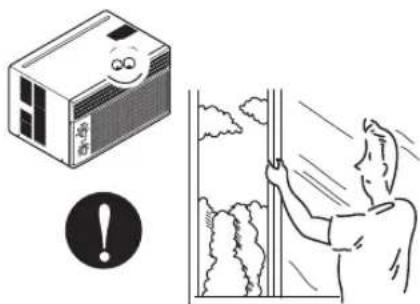

Ventilate well when used together with a stove, etc.

• An oxygen shortage may occur.

Illustration of a person using a microwave oven with a 'no' symbol below (no text or labels)

Illustration showing a person cleaning a washing machine with a prohibition symbol below

Illustration showing a cartoon car with a smiling face, a warning symbol, and a person climbing a ladder (no text or symbols present)

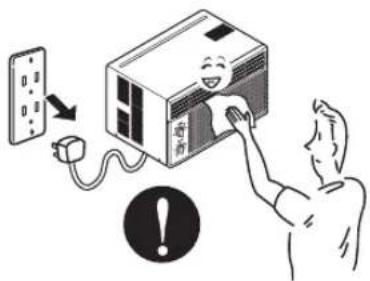

When the unit is to be cleaned, switch off, and turn off the breaker.

- Since the fan rotates at high speed during operation, it may cause an injury.

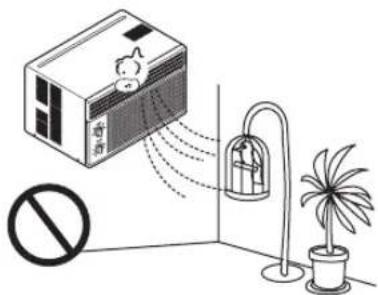

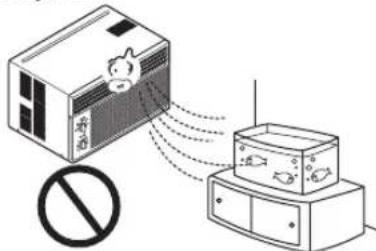

Do not put a pet or house plant where it will be exposed to direct air flow.

• This could injure the pets or plants.

Do not use for special purposes.

- Do not use this air conditioner to preserve precision devices, food, pets, plants, and art objects. It may cause deterioration of quality, etc.

Illustration showing a person using an air conditioner to switch from a wall-mounted panel, with an exclamation mark indicating warning.

Safety warning illustration showing a car accident with a 'No' symbol and a potted plant nearby

Diagram showing a device emitting a box to a cabinet, with a prohibition symbol indicating no prohibition.

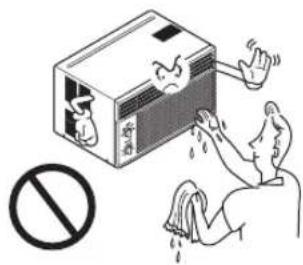

Do not operate switches with wet hands.

- It may cause an electric shock.

Do not apply an insecticide or flammable spray.

Do not put a heater, etc. where is exposed to direct air flow.

- It may cause a fire or deformation of the cabinet.

- It may cause imperfect combustion.

Illustration showing a person cleaning an air conditioner unit with a prohibition symbol below

Illustration showing a distressed air conditioner unit emitting exhaust smoke, with a prohibition symbol and a person emitting smoke.

Safety warning illustration showing a device emitting exhaust smoke with a prohibition symbol below

Controls

	Off:Turns air conditioner off.High Fan:High speed fan operation without cooling.Low Fan:Low speed fan operation without cooling.High Cool:Cooling with high speed fan operation.Low Cool:Cooling with low speed fan operation.
	This automatically controls the temperature of the indoor air.Turn the knob so that the arrow points to the larger marks for greater cooling. Point the arrow to the smaller marks for more moderate cooling.(i.e. the higher the number, the greater the cooling)

Operating Instructions

FOR NORMAL COOLING

1. Turn the Operation switch to the High Cool or the Low Cool setting.
2. Set the Thermostat control to the desired temperature mark 5 (the mid-point is a good starting position). If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer setting, as appropriate.

FOR MAXIMUM COOLING

1. Turn the Operation switch to the High Cool setting.
2. Set the Thermostat control to the largest 7 temperature mark.

FOR QUIETER OPERATION

1. Turn the Operation switch to the Low Cool setting.
2. Set the Thermostat control as needed.

CAUTION

When the air conditioner has been performed its cooling operation and is turned off or set to the fan position, wait at least 3 minutes before resetting to the cooling operation again.

Additional controls and important information.

Air Direction

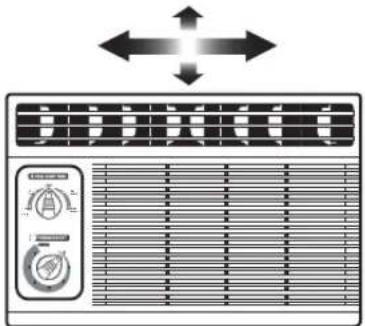

- ADJUSTING THE AIR DIRECTION USING THE HORIZONTAL AND VERTICAL AIR-DEFLECTOR

CONTROL

Using the Control Tabs, the air flow can be directed to the left, right, up, down, straight ahead, or any combination of these directions.

Illustration of an air conditioner unit with fan, grille, and control panel (no text or symbols)

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

• TO CLEAN FILTER

The Air Filter will become dirty as it removes dust from the inside air. It should be washed at least every 2 weeks. If the Air Filter remains full of dust, the air flow will decrease and the cooling capacity will be reduced, possibly damaging the unit.

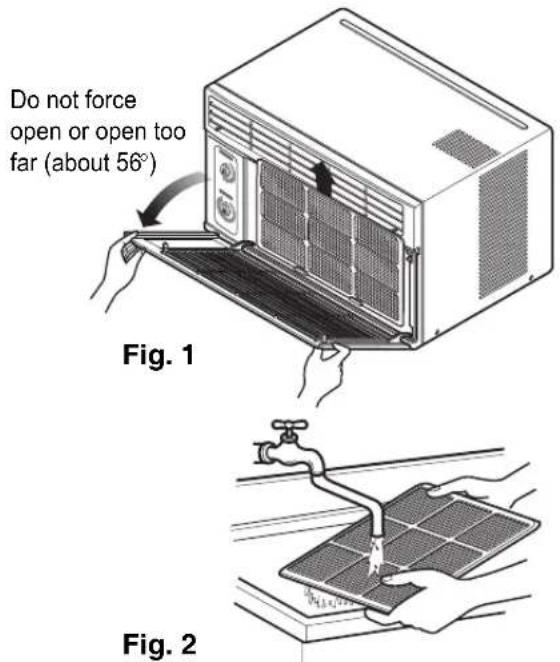

1. Pull the inlet grille forward and pull out the air filter. (Fig. 1)
2. Wash the Air Filter in warm 40°C water. (Fig. 2) Be sure to shake off all the water before replacing the filter.

• CLEANING THE AIR CONDITIONER

The front grille and Inlet grille may be wiped with a cloth dampened in a mild detergent solution. (Fig. 3) The cabinet may be washed with mild soap or detergent and lukewarm water, then polished with a liquid wax used for appliances.

To ensure continued peak efficiency, the condenser coils(outside of unit) should be checked periodically and cleaned if clogged with soot or dirt from the atmosphere.

• HOW TO SECURE THE DRAIN PIPE

In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the DRAIN CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN Fig.4.

Do not force open or open too far (about 56°) Fig. 1 Fig. 2

Fig. 3 ① Hang Push IN PIPE DRAIN CAP

Fig. 4

Learning parts name prior to installation will help you understanding the installation procedure.

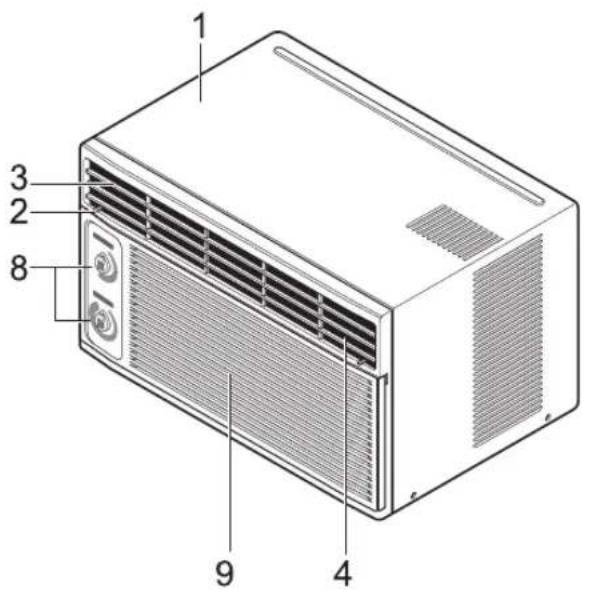

Features

1 2 3 8 9 4

5 7 6

1. CABINET
2. HORIZONTAL AIR DEFLECTOR
3. VERTICAL AIR DEFLECTOR
4. COOL AIR DISCHARGE
5. FRONT GRILLE
6. INLET GRILLE
7. AIR FILTER
8. KNOBS
9. AIR INTAKE

Read completely, then follow step by step.

• The appliance shall be installed in accordance with national wiring regulation.

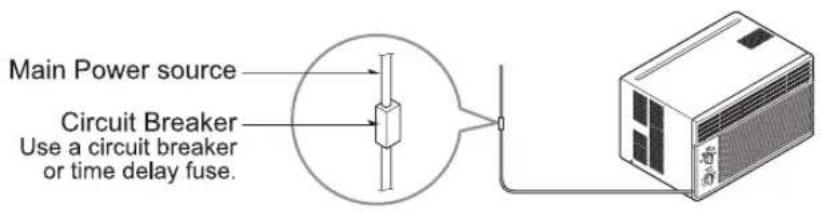

• If a power plug isn't to be used, provide a circuit breaker between power source and the unit, as following picture.

Main Power source Circuit Breaker Use a circuit breaker or time delay fuse.

Select the Best Location

A To prevent vibration and noise, make sure the unit is installed securely and firmly.
B Install the unit where the sunlight does not shine directly on the unit.
C There should be no obstacle, such as a fence or wall, within 50cm from the back of the cabinet because it will prevent heat radiation of the condenser. Restriction of outside air will greatly reduce the cooling efficiency of the air conditioner.

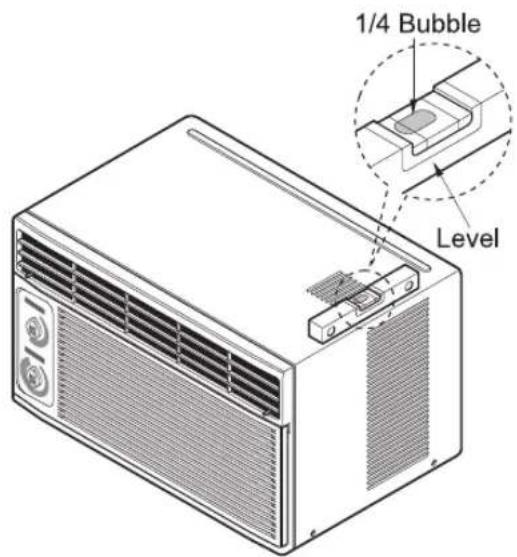

D Install the unit a little obliquely outward not to leak the condensed water into the room (about 5 \~ 10mm or 1/4 bubble with level).

CAUTION: All side louvers of the cabinet must remain exposed to the outside of the structure.

GASKET COOLED AIR AWNING HEAT RADIATION FENCE 70-150cm 5-10mm Over 50cm

1/4 Bubble Level

Troubleshooting Tips Save time and money!

Review the chart below first and you may not need to call for service.

Normal Operation

• You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
• You may hear the thermostat click when the compressor cycles on and off.
• Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
  • The fan may run even when the compressor does not.

Abnormal Operation

Problem	Possible Causes	What To Do
Air conditioner does not start	■ The air conditioner is unplugged.	· Make sure the air conditioner plug is pushed completely into the outlet.
	■ The fuse is blown/circuit breaker is tripped.	· Check the house fuse/circuit breaker box and replace the fuse or reset the breaker.
	■ Power failure.	· If power failure occurs, turn the mode control to Off. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	■ Airflow is restricted.	· Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner.
	■ The THERMOSTAT may not be set high enough.	· Turn the knob to a higher number. The highest setting provides maximum cooling.
	■ The air filter is dirty.	· Clean the filter at least every 2 weeks. See the care and maintenance section.
	■ The room may have been hot.	· When the air conditioner is first turned on you need to allow time for the room to cool down.
	■ Cold air is escaping.	· Check for open furnace floor registers and cold air returns. · Set the air conditioner's vent to the closed position.
	■ Cooling coils have iced up.	· See Air Conditioner Freezing Up below.
Air conditioner freezing up	■ Ice blocks the air flow and stops the air conditioner from cooling the room.	· Set the mode control at the Fan Only or the Turbo Cool with the thermostat at 1 or 2.

NOTE: This product has a lifetime of 7 years from the date of transfer to the user.
