KGN86HI306 - Fryser BOSCH - Gratis bruksanvisning og manual

BRUKSANVISNING KGN86HI306 BOSCH

Serie | 6, Freestanding Fridge-freezer (Bottom freezer), 186 x 86 cm, KGN86HI306

Exterior view of a modern stainless steel refrigerator with two doors (no visible text or symbols)

Included accessories

3 x egg tray
2 x ice cube tray with lid
1 x bottle holder in door tray

Home Connect NoFrost Bottom Freezer with 682 I gross capacity and Vitafresh plus freshness system, provides much more storage capacity and up to two times longer freshness for your food, that also allows you to remotely monitor and control your fridge via the Home Connect app.

• Your vitamin rich fruit and vegetables stay fresh for longer in a climate controlled compartment with extra space.
• Smart Food Management: Handle your fresh produce thanks to the two intelligent cameras in the fridge
  • Home Connect: home appliances with smart connectivity for an easier everyday life.
• XXL capacity: provides lots of space for your food.
• Perfect Fit: The appliance can be positioned right next to side walls and furniture - flexible installation possible

Technical data

Energy Efficiency Class (Regulation (EU) 2017/1369): F

Built-in / Free-standing: Free-standing

Number of compressors: 1

Number of independent cooling systems: 2

Width of the appliance: 860

Depth of the product: 810

Net weight (kg): 110.666

Door panel options: Not possible

Door hinge: Right

Number of Adjustable Shelves in fridge compartment: 2

Shelves for Bottles: Yes

Frost free system: Fridge and freezer

Interior ventilator: No

Reversible Door Hinge: No

Length electrical supply cord (cm): 240

Noise level (dB(A) re 1 pW): 42

Multi-Flow Air Tower: Yes

Fast cooling switch: Yes

Fast freezing switch: No

Temperature Controlled Drawer: No

Humidity Control Drawer: Yes

Number of Door Bins - Refrigerator: 4

Door bin adjustability - Refrigerator: No

Tilt-out door bins in fridge: Yes

Gallon Storage: Yes

Number of Gallon storage: 1

Motorized Shelf: No

Door opened indicator freezer: Yes

Automatic motor-driven ice-maker: No

Connection Rating (W): 100

Current (A): 10

Voltage (V): 220-240

Frequency (Hz): 50

Storage Period in Event of Power Failure (h): 30

Approval certificates: CE, VDE

Door panel options: Not possible

Noise level (dB(A) re 1 pW): 42

Energy Star Qualified: No

Approval certificates: CE, VDE

Plug type: Gardy plug w/ earthing

Required cutout/niche size for installation (in): x >

Dimensions of the packed product (in): 75.78 x 36.22 x 34.56

Net weight (lbs): 244.000

Gross weight (lbs): 261.000

Serie | 6, Freestanding Fridge-freezer (Bottom freezer), 186 x 86 cm, KGN86HI306

Home Connect NoFrost Bottom Freezer with 682 I gross capacity and Vitafresh plus freshness system, provides much more storage capacity and up to two times longer freshness for your food, that also allows you to remotely monitor and control your fridge via the Home Connect app.

Main Characteristics

• Frost free
• Gross capacity, total: 682 l
• Total net capacity: 619 litres
• Energy efficiency class: A++
• Noise level dB(A) re 1 pW: 42
• digital LCD
• Dimensions: H 186 cm x L 86 cm x D 81 cm

Fridge

• Net capacity refrigeration zone: 479 l
• Gross capacity cooling 496 l
• 2 cont.hydrofresh
• 2 Tablet-Chiller temp adjustab
• 3 safety glass shelves of which 2 glass plates extendible
• 3 safety glass shelves of which 2 is height adjustable
• 6 door bins
• 2 dairy compartments
• Supercool function
• Air Fresh Filter
• LED with Soft Start
• Multi Airflow-System
• Breakfast Set
• 1 2-wave bottle rack, plastic
• bottle holder in door tray, egg tray

Freezer

• Net freezer capacity 140 litres
• **** freezer 186 | (-18°C and below)
• Freezing capacity: 20 kg in 24 hours
• Storage time in power failure: 30 Hours
• 2 freezer drawers, incl. 1 Big Box
• Superfreeze Function
• 2 ice cube trays with lid

Comfort and Safety

• HomeConnect: iService Remote, Camera in the appliance, Remote Monitoring and Control
• digital LCD
• Holiday mode
  Economy setting Child lock
• Optical and acoustic warning system
• vertical door handle
• Door right hinged

Technical Information

• Energy efficiency class: A++ (378 kWh per year). Actual energy consumption will depend on how the appliance is used and where it is located.
• Climate Class SN-T
• Height adjustable front feet, roles in the back
• Connected load 100 W
• Rated Voltage 220 - 240 V
• Appliance Dimensions (H x W x D): 186.0 cm x 86 cm x 81 cm
• Appliance Dimensions with Handle (H x W x D): 186.0 cm x 86 cm x 84 cm

Serie | 6, Freestanding Fridge-freezer (Bottom freezer), 186 x 86 cm, KGN86HI306

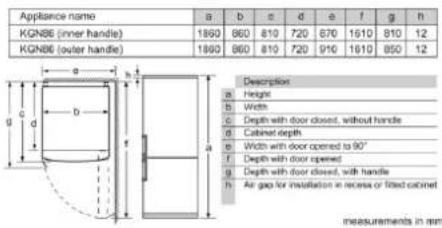

Appliance name KGNB6 (inner handle) KGNB6 (outer handle) a b c d e f g h 1890 860 810 720 670 1610 810 12 860 810 720 910 1610 850 12 a b c d e f g h Description Height Width Depth with door opened, without handle Cabinet depth Width with door opened to 90° Depth with door opened Depth with door closed, with handle Air gap for installation in recess or filled cabinet measurements in mm
