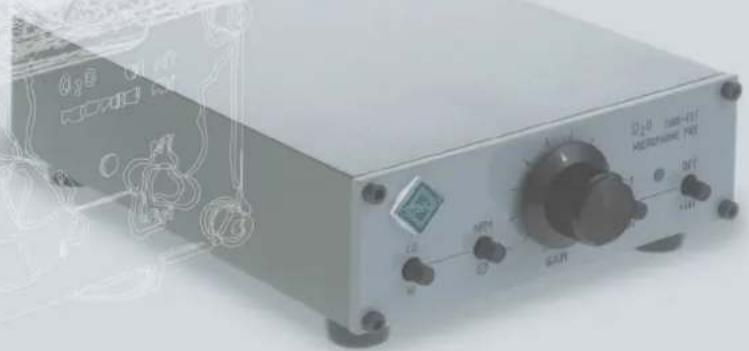

BRUKSANVISNING D2O Mono TRITON
D2O
Low noise microphone preamp
USER GUIDE
Registration Thank you for purchasing a TritonAudio product. To register your product, please go to:
www.tritonaudio.com/product registration
GENERAL DESCRIPTION
Philosophy D2O is a low noise, discrete, stereo microphone preamp. It is a further development of the famous German V series preamps of the 40's and 50's, widely recognized as one of the best sounding preamps.
Operation To avoid unwanted noises please consider the following rules of use:
Switch of phantom power before disconnecting the microphone.
Turn down the gain before switching on phantom power.
When connecting D_2O to a channel/device with phantom power, make sure phantom power is turned off on the recieving channel/device.
In case the clipping indicator lights up, use the supplied Airhead attenuator, it plugs in between microphone and preamp.
Layout
USER GUIDE

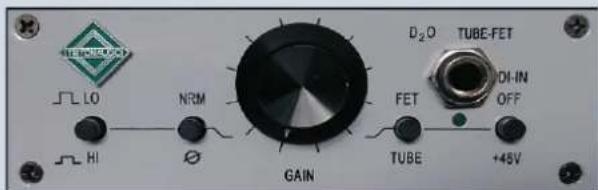

Features
Microphone input + DI input
Switchable transformer ratio / input impedance (Hi-Lo)
Switchable all jFet / Jfet-Tube signal path
Stepped attenuator
Lundahl 1571 microphone input transformer
Phase reverse switch
Phantom power
Overload indicator
Specifications
Gain: Fet: 70dB / Tube-Fet: 60 dB / DI: 20 - 30dB
EIN: -127dB
Headroom: 31 dB
Input impedance: 2.25KOhm / 6.25KOhm / DI-1MOhm
Output impedance 100 Ohm
H/W/D: 44mm, 128mm, 168mm
PSU: 24VAC external supply
