BRUKSANVISNING SHM-SD2 Auray
auray™
AUDIO ACCESSORIES

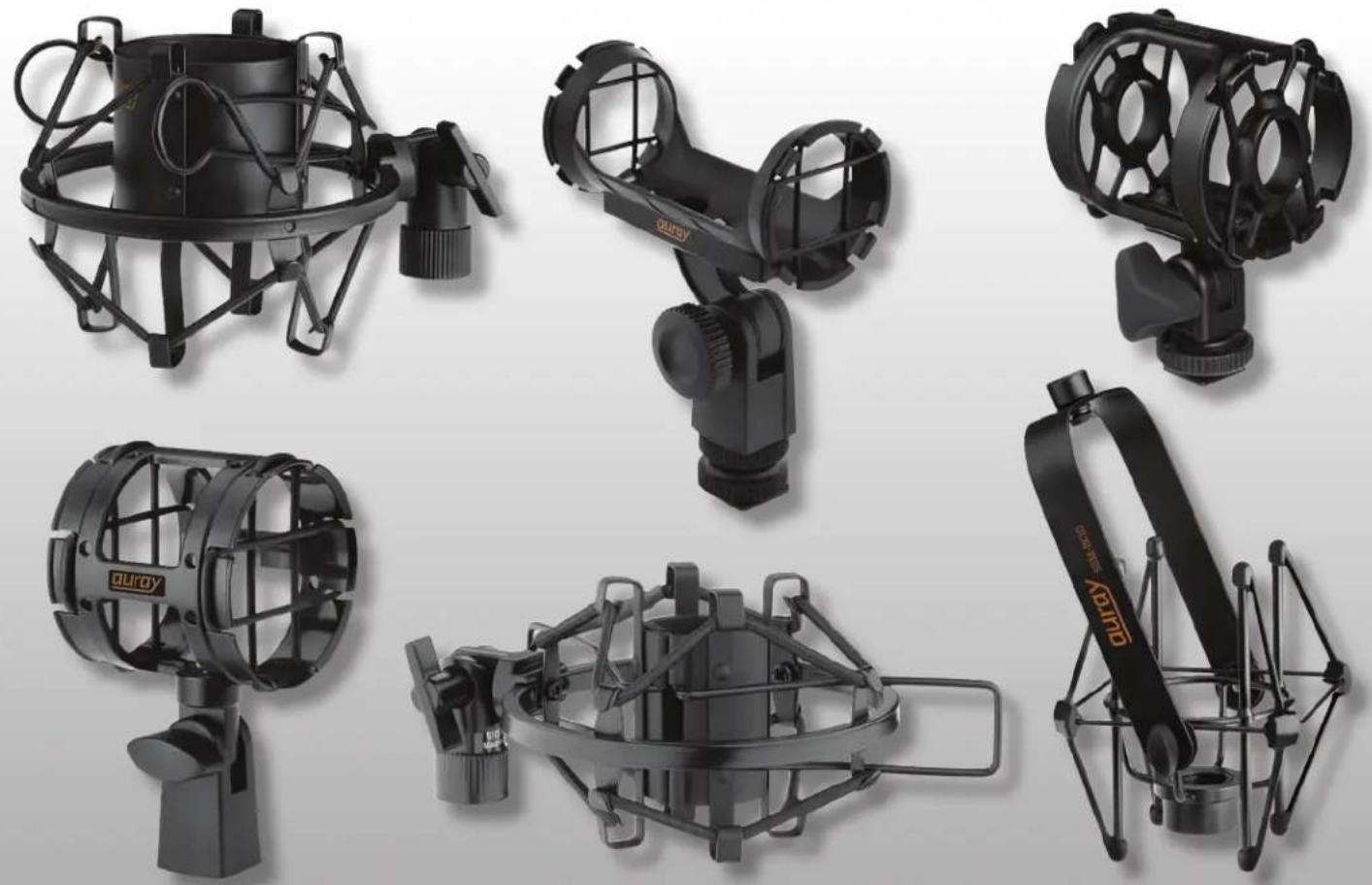

Suspension Shockmounts
Auray's complete line of shockmounts are designed to prevent shock or contact from affecting the microphone's performance as well as eliminate noise and vibrations that often travel through a mic stand.
- Prevent unwanted noise from interrupting recordings and provide quiet professional-quality sound.
- Shockmounts available for shotgun large diaphragm and small diaphragm microphones from most manufacturers.
- All Auray suspension shockmounts feature solid heavy duty construction for durability and reliable performance
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75-1" / 19-25mm | SHM-ESG.82-1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75-0.9" / 12-22mm | SHM-SD10.9-1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SM-BC10 | SM-NMN | $SM-UM22 |
| ADK | ||||||||||
| Large Diaphragm | • MK8• A6 | • Odin• Thor• MK8• A6 | • Odin• Thor• MK8• A6 | |||||||
| AKG | ||||||||||
| Shotgun | • C568 B • C568 B • C568 B • C568 B | |||||||||
| Small Diaphragm | • C451 B• CK62• C541 B | • P170• C451 B• SE300B• C430• C480B• C480B• C541 B | • SE300B | |||||||
| Large Diaphragm | • P120• P220• P420• P820 | • P120• P220• P420• P820 | ||||||||
| AMT | ||||||||||
| Small Diaphragm | • 404 | |||||||||
| Large Diaphragm | • 350 • 350 | |||||||||
| ART | ||||||||||
| Small Diaphragm | • M-Six | |||||||||
| Large Diaphragm | • M-One• M-Two | • M-One• M-Two | ||||||||
| AUDIO-TECHNICA | ||||||||||
| Shotgun | • AT897• AT875R• ATR6550• AT8035• AT8015• BP4029• BP4027• BP4071• BP4071L• BP4073 | • AT897• AT875R• ATR6550• AT8035• AT8015• BP4029• BP4027• BP4071• BP4073 | • AT897• ATR6550• AT8035• AT8015• BP4029• BP4027• BP4071• BP4073 | • AT875R• ATR6550• BP4029• BP4073 | ||||||
| Small Diaphragm | • AT4041• AT4049b• AT4051b• AT4053b, | • AT4053b• AT4022• AT2021• Pro 37• AT4021• AT4041• AT4049b• AT4051b• AT4053b• ATM-450 | • AT5045 | |||||||
| AUDIX | ||||||||||
| Shotgun | • UEM81S • UEM81S • UEM81S | |||||||||
| Small Diaphragm | • ADX-51• UEM81C | • ADX-51• F9• M1250• M1255• M1280• M44• SCX1• UEM81C | • SCX1-HC• M1250B• M1255B | |||||||
| Large Diaphragm | • CX112B• CX212B | • CX112B• CX212B | ||||||||
| AVANTONE | ||||||||||
| Small Diaphragm | • CK-1 • CK-1 | |||||||||
| Large Diaphragm | • CK-40• CK-6 | • CK-6• CK-7 | • CK-6• CK-7 | |||||||
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75-1" / 19-25mm | SHM-ESG.82-1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75-0.9" / 12-22mm | SHM-SD10.9-1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SM-BC10 | SM-NMN | $SM-UM22 |
| AZDEN | ||||||||||
| Shotgun | • SGM-250• SGM-PII• SGM-IX• SGM-3416• SGM-3416L | • SGM-250• SGM-PII• SGM-IX• SGM-3416• SGM-3416L | • SGM-250• SGM-PII• SGM-IX | • SGM-250• SGM-PII• SGM-IX• SGM-3416• SGM-3416L• SXM-100• SMX-10 | ||||||
| BEHRINGER | ||||||||||
| Small Diaphragm | • C-2• B-5• C-4 | • C-4 | ||||||||
| Large Diaphragm | • C1• C1U• C3• B1• B2 | • C1• C1U• C3• B1• B2 | ||||||||
| BLUE | ||||||||||
| Small Diaphragm | • Hummingbird • Hummingbird | |||||||||
| Large Diaphragm | • Baby Bottle• Bluebird• Bottle Rocket• Spark | • BabyBottle• Kiwi• Spark | • BabyBottle• Kiwi | |||||||
| CAD | ||||||||||
| Small Diaphragm | • e70 • C9S | • GXL-1200• e70 | ||||||||
| Large Diaphragm | • GLX2200• GLX3000 | • M179e300• GLX2600USB• U39 USB• GLX2200• U37 | • M179.e300• GLX2600USB• U39 USB• GLX2200• U37 | |||||||
| CASCADE | ||||||||||
| Small Diaphragm | • M39• V57 | • M39• V57 | ||||||||
| Large Diaphragm | • M20u | |||||||||
| DPA | ||||||||||
| Shotgun | • 4017B • 4017 | • 4017B • 4017B | • 4017C | |||||||
| Small Diaphragm | • 2011A• 4003• 4004• 4006A• 4011A• 4012• 4015A• 4016• 4018A• 4041-SP• 4007A | • 2011A• 4003• 4004• 4006A• 4011A• 4012• 4015A• 4016• 4018A• 4041-SP• 4007A | • 2006A• 2011A• 4003• 4004• 4006A• 4011A• 4012• 4015A• 4016• 4018A• 4041-SP• 4007A | • 4090• 2006A• 2006C• 2011A• 2011C• 4003• 4004• 4006A• 4011A• 4012• 4015A• 4016• 4018A• 4041-SP• 4007A | • 4041-SP | |||||
| EARTHWORKS | ||||||||||
| Small Diaphragm | • SR25• QTC30• QTC40• QTC50• SR30• SR40• TC20• TC25• TC30 | • SR25• QTC30• QTC40• QTC50• SR30• SR40• TC20• TC25• TC30 | • SR25• P30• CMK1• CMK5• QTC30• QTC40• QTC50• SR30• SR40• TC20• TC25• TC30 | • SR25• CMK1• CMK5• QTC30• QTC40• QTC50• SR30• SR40• TC20• TC25• TC30 | • P30• CMK5• QTC30• QTC40• SR30• SR40• TC20• TC25• TC30 | |||||
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75-1" / 19-25mm | SHM-ESG.82-1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75-0.9" / 12-22mm | SHM-SD10.9-1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SSM-BC10 | SSM-NMN | SSM-UM22 |
| ELECTRO-VOICE | ||||||||||
| Small Diaphragm | • PL37 • PL37 • ND66 | |||||||||
| Broadcast | • RE-20• RE27 N/D• RE320 | |||||||||
| GOLDEN AGE PROJECT | ||||||||||
| Small Diaphragm | • FC 4 • FC 4 • FC 4 | |||||||||
| Large Diaphragm | • FC 2• FC 3• FC 1 MK2 | • FC 2• FC 3• FC 1 MK2 | • FC 2• FC 3• FC 1 MK2 | |||||||
| HEIL | ||||||||||
| Broadcast | • PR 40 | |||||||||
| LAUTEN | ||||||||||
| Large Diaphragm | • FC-387• FC-357 | |||||||||
| LEWITT | ||||||||||
| Small Diaphragm | • LCT 140• LCT 340 | • LCT 140• LCT 340 | ||||||||
| MIKTEK | ||||||||||
| Small Diaphragm | • C5 • C5 | |||||||||
| Large Diaphragm | • C1• C7,CV4 | • C1• C7,CV4 | ||||||||
| MOHAVE AUDIO | ||||||||||
| Small Diaphragm | • MA-101FET • MA101FET | |||||||||
| Large Diaphragm | • MA-201FET• MA-50 | • MA-201FET• MA-50 | ||||||||
| MXL | ||||||||||
| Shotgun | • FL-331M• FM-333M | • FL-331M• FM-333M | • FR-330M | |||||||
| Small Diaphragm | • 603• 604• V67N• 840• 441• 551 | • 603• 604• 606• V67N• 840• 441• 551 | • 603• 604• 606• V67N• 840• 441• 551 | |||||||
| Large Diaphragm | • V67G• V67I• V87• 870• 880• 550• 2006• 2003A• USB 006• USB 008• CR30• USB 007• V87 | • V67G• V67I• V87• 890• MCA-SP1• USB 006• USB 008• CR30• GOLD35• TEMPOXLR• USB 007• USB 009• V87 | • BCD-1• BCC-1 | • V67G• V67I• V87• 890• MCA-SP1• USB 006• USB 008• CR30• GOLD 35• TEMPOXLR• USB 007• USB 009• V87 | ||||||
| NADY | ||||||||||
| Shotgun | • SGM-12 • SGM-12 • SGM-12 • SGM-12 | |||||||||
| Small Diaphragm | • CM 90• CM 88 | • CM 90• CM 88 | ||||||||
| Large Diaphragm | • SCM 700• SCM 800• SCM 900 | • SCM 1000• SCM 800• SCM 900 | • SCM 1000• SCM 800• SCM 900 | |||||||
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75 1" / 19-25mm | SHM-ESG.82 1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75 0.9" / 12-22mm | SHM-SD10.9 1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SSM-BC10 | SSM-NMN | SSM-UM22 |
| NEUMANN | ||||||||||
| Shotgun | • KMR 81 i• KMR 81 i MT• KMR 82 i MT | • KMR 81 i• KMR 81 i MT• KMR 82 i MT | • KMR 81 i• KMR 81 i MT• KMR 82 i MT | • KMR 81 i• KMR 81 i MT | ||||||
| Small Diaphragm | • KM 183• KM 184• KM 185• KM 120• KM 131• KM 143• KM 145 | |||||||||
| Large Diaphragm | • TLM 193• U89 i• USM 69 i | • U87 Ai• U89 i• U87TLM 193• TLM 102• TLM 103• TLM 127• TLM 17 | ||||||||
| PANASONIC | ||||||||||
| Shotgun | • AJ-MC200G• AJ-MC900G | |||||||||
| PEAVEY | ||||||||||
| Large Diaphragm | • Pro M1• Pro M2 | |||||||||
| POLSEN | ||||||||||
| Shotgun | • SCL-1075 • SCL-1075 • SCL-1075 • SCL-1075 | |||||||||
| Small Diaphragm | • SDC-2150 • SDC-2150 • SDC-2150 • SDC-2150 | |||||||||
| PSC | ||||||||||
| Shotgun | • SGM1 • SGM1 • SGM1 | |||||||||
| RODE | ||||||||||
| Shotgun | • NTG1• NTG2• NTG3• NTG4• NTG4+ | • NTG1• NTG2• NTG4• NTG4+ | • NTG2• NTG3• NTG4+ | • NTG1 | ||||||
| Small Diaphragm | • NT3• NT5 | • M3 | • NT3• NT5• NT6• M5• NT55 | |||||||
| Large Diaphragm | • NT1-A• NT-2A | |||||||||
| SAMPSON | ||||||||||
| Small Diaphragm | • C02 | • C02 | • C02 | |||||||
| Large Diaphragm | • C01U• C01UCW• C01• C03U• C03UCW• MTR101• MTR201• MTR231 | • C01U• C01UCW• C01• C03U• C03UCW• MTR101• MTR201• MTR231 | ||||||||
| SANKEN | ||||||||||
| Shotgun | • CS-2• CS-3e• CSR-2 | • CMS-10• CSR-2 | • CS-3e• CS-2• CMS-10• CMS-10 | • CS-1e• CS-2• CSR-2 | ||||||
| SCHOEPS | ||||||||||
| Shotgun | • CMIT5U• CMIT5UAG• CMIT 2U• SuperCMIT | • CMIT5U• CMIT5UAG• CMIT 2U• SuperCMIT | • CMIT5U• CMIT5UAG• CMIT 2U• SuperCMIT | • CMIT5U• CMIT5UAG• CMIT 2U• SuperCMIT | ||||||
| Small Diaphragm | • CMC 6• CMC 6U | • CMC 6• CMC 6U | • CMC 6• CMC 6U | |||||||
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75-1" / 19-25mm | SHM-ESG.82-1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75-0.9" / 12-22mm | SHM-SD10.9-1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SSM-BC10 | SSM-NMN | SSM-UM22 |
| SE ELECTRONICS | ||||||||||
| Shotgun | • ProMic Laser | • ProMic Laser • P | • ProMic Laser • ProMic Laser | |||||||
| Small Diaphragm | • sE1a• sE5 | • sE1a• sE5 | • sE5 | |||||||
| SENAL | ||||||||||
| Shotgun | • MC24-EL• MC24-ES | • MC24-EL• MC24-ES | • MC24-EL • MC24-ES | |||||||
| Small Diaphragm | • SCI-3212 • SCI-3212 | |||||||||
| Large Diaphragm | • SC-550X • SC-550X• SCM-600• SCM-660 | • SC-550X• SCM-600• SCM-660 | ||||||||
| SENNHEISER | ||||||||||
| Shotgun | • MKE 600• MKH-416• ME66• ME67• MKH 8070• MKH418S | • ME66• ME67 | • MKE 600• MKH-416• MKH 8070• MKH418S | • ME66• MKH 8060 | ||||||
| Small Diaphragm | • MKH 20 P48• MKH 30 P48• MKH 40 P48• MKH 50 P48 | • MKH 20 P48• MKH 30 P48• MKH 40 P48• MKH 50 P48 | • e 614• MKH-8020• MKH-8040• MKH-8050 | • MKH 20 P48• MKH 30 P48• MKH 40 P48• MKH 50 P48• ME64• e 914• ME62/K6 | ||||||
| Large Diaphragm | • MK-4 • MK-4 | |||||||||
| SHURE | ||||||||||
| Shotgun | • VP89L• VP82• VP89M• VP89S | • VP89M• VP89S | • VP89L• VP89M• VP89S | • VP82• VP89S | ||||||
| Small Diaphragm | • KSM137/SL• KSM141/SL | • SM137 • SM137 | • KSM137/SL• KSM141/SL• BETA 98AMP | • SM137 | ||||||
| Large Diaphragm | • KSM32/SL• KSM32/CG• KSM42/SG• KSM44A/SL• PGA27 | |||||||||
| SONY | ||||||||||
| Shotgun | • ECM-VG1• ECM-CG50• ECM-673/9X• ECM-674/9X• ECM-678/9X• ECM-680S | • ECM-CG50 • ECM | • VG1• ECM-CG50• ECM-673/9X• ECM-674/9X• ECM-678/9X• ECM-680S | • ECM-VG1• ECM-673/9X | ||||||
| SOYUZ | ||||||||||
| Small Diaphragm | • SU-011 • SU-011 | |||||||||
| Large Diaphragm | • SYZ-SU-017 | • SYZ-SU-017 | ||||||||
| STUDIO PROJECTS | ||||||||||
| Small Diaphragm | • C4 | • C4 | ||||||||
| Large Diaphragm | • CS1000• CS5• C1 | •B1•B3 | • CS1000• CS5• C1 | |||||||
| TASCAM | ||||||||||
| Small Diaphragm | • TM-PC1 | • TM-PC1 | • TM-PC1 | |||||||
| Large Diaphragm | • TM-80 | |||||||||
auray™
| MICROPHONE MANUFACTURER | DUSM-1.75-1" / 19-25mm | SHM-ESG.82-1.25" / 21-31.7mm | SHM-SOCAM.75-1.2" / 19-30.5mm | SHM-SD2.82-1.06" .75-0.9" / 12-22mm | SHM-SD10.9-1.06" / 22-27mm | SHM-UC21.65-1.9" / 42-50mm | SHM-SCM1 | SSM-BC10 | SSM-NMN | SSM-UM22 |
| TELEFUNKEN | ||||||||||
| Small Diaphragm | • ELA M 260• M60• M61• M62 | • ELA M 260• M60• M61• M62 | ||||||||
| VIDPRO | ||||||||||
| Shotgun | • XM-55• XM-88 | • XM-55• XM-88 | • XM-55• XM-88 | |||||||
| VOICE TECHNOLOGIES | ||||||||||
| Shotgun | • VT5000 • VT5000 • VT5000 | |||||||||
| WILLIAMS SOUND | ||||||||||
| Shotgun | • MIC 027 • MIC 027 | |||||||||
