BRUKSANVISNING SC16V Adastra
MODEL NUMBER
Indoor Column Speakers 100V
Item ref: 952.241UK, 952.243UK
User Manual

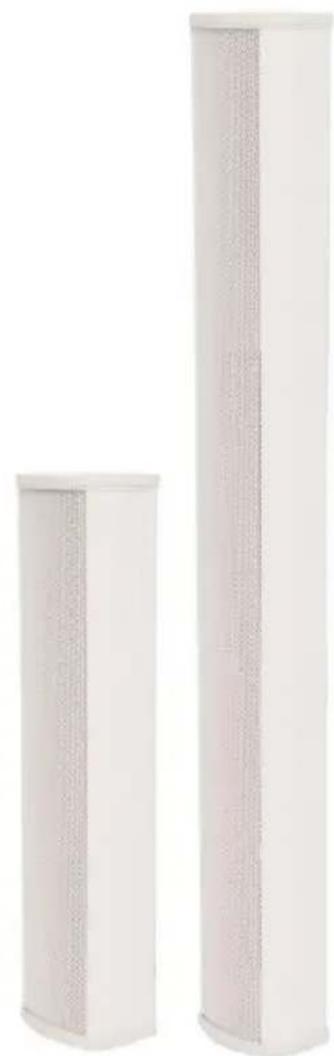

Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
Introduction
Thank you for choosing the Adastra SC series 100V indoor ceiling speakers as part of your sound reinforcement system. Please read and keep this manual for future reference.
Installation
The SC series column speakers are supplied with a top and bottom bracket for mounting to a wall or upright support. The top bracket can be extended to allow a downward angle if mounting at height. Lateral adjustment is afforded by pivoting the speaker on the brackets.
The rear of each SC series column speaker is fitted with a speaker wire. Connect this wire to the output of a 100V amplifier by linking the white core to "100V" (or +) and the black core to "COM" (or -). If extending this cable, be sure to use 2-core double-insulated cable which is the same power handling as the speaker wire or higher.
Specifications
| SC16V | SC32V | |
| Drivers | 4 x 63mm∅ (2.5") | 8 x 63mm∅ (2.5") |
| Power handling: RMS | 16W | 32W |
| Power handling: Max | 32W | 64W |
| Impedance (nominal) | 8 Ohms | 4 Ohms |
| Tappings | 12, 6, 3, 1.5W & 8 Ohms | 20, 10, 5, 2.5W & 4 Ohms |
| SPL @ 1W,1m | 91dB | 93dB |
| Frequency response (-10dB) | 200Hz – 16kHz | |
| Dispersion angle | 160° | |
| Dimensions | 105 x 410 x 90mm | 105 x 620 x 90mm |
| Weight | 2.3kg | 3.6kg |
Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted. Copyright© 2021.
AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
