BRUKSANVISNING Pro LCB1215IP BeamZ
BEAMZ
MADE
EAZY
150.721 V1.0
LCB1215IP
QUICK START GUIDE
CONTROL MENU

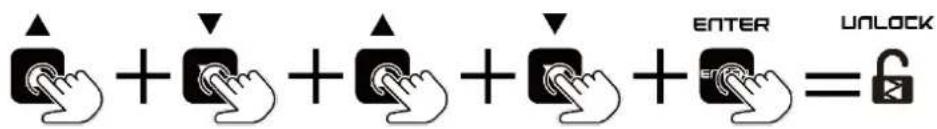

If the display is in standby, unlock it:

MENU
| MANUAL | Red | 000-255 | Manual control |
| Green | 000-255 | ||
| Blue | 000-255 | ||
| White | 000-255 | ||
| Amber | 000-255 | ||
| Lime | 000-255 | ||
| Strobe | 00-20 | ||
| DREAM | Program | 001-031 | Select desired program |
| Speed | 000-100 | Select desired speed of dream program | |
| Strobe | 00-20 | Select desired strobe of dream program | |
| AUTO RUN | FON | 01-99 | Select desired auto program |
| DIMMER | Respon 01 | Fixture response immediately on DMX changes | |
| Respon 02 | Fixture response smoothly on DMX changes | ||
| DIMMER CURVE | Linear | Dimmer curve linear | |
| Exp | Dimmer curve exponential | ||
| I. Square | Dimmer curve logarithmic | ||
| S-Curve | Dimmer curve S-shaped | ||
| DMX MODE | Address | 001-512 | DMX address setting |
| CH Mode | 2Ch | Select desired DMX mode | |
| 6CH1 | |||
| 6CH2 | |||
| 8CH | |||
| 11CH | |||
| 38Ch | |||
| 41 Ch | |||
| 74 CH | |||
| 77CH | |||
| SLAVE | Slave mode | ||
| LOCK KEY | On | Enable or disable the keylock function | |
| Off | |||
| VERSION | Vx.xx | Software version |
DESCRIPTION
DIMMER CURVE
LINEAR

line
| X | Y | |---|---| | 0 | 0 | | 255 | 100% |EXPONENTIAL

line
| X | Y | |---|---| | 0 | 0 | | 255 | 1.5 |LOGARITHMIC

line
| X | Y | |---|---| | 0 | 0 | | 255 | 1 |S-SHAPE

line
| x | y | | --- | --- | | 0 | 0 | | 255 | >25 |DMX CHANNELS
2 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Dimmer | 000-255 | Master Dimmer 0-100% |
| 2 | Colour macro | 000-005 | No function |
| 006-013 | Red | ||
| 014-021 | Amber | ||
| 022-029 | Yellow warm | ||
| 030-037 | Yellow | ||
| 038-045 | Green | ||
| 046-053 | Turquoise | ||
| 054-061 | Cyan | ||
| 062-069 | Blue | ||
| 070-077 | Lavender | ||
| 078-085 | Mauve | ||
| 086-093 | Magenta | ||
| 094-101 | Pink | ||
| 102-109 | Warm White | ||
| 110-117 | White | ||
| 118-125 | Cold White | ||
| 126-128 | Colour jumping stop | ||
| 129-192 | Colour jumping Speed Colour 1-12, from slow to fast | ||
| 193-255 | Colour fading Speed Colour 1-12, from slow to fast |
6 CHANNELS MODE2
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Red | 000-255 | Dimmer 0-100% |
| 2 | Green | 000-255 | Dimmer 0-100% |
| 3 | Blue | 000-255 | Dimmer 0-100% |
| 4 | White | 000-255 | Dimmer 0-100% |
| 5 | Amber | 000-255 | Dimmer 0-100% |
| 6 | Lime | 000-255 | Dimmer 0-100% |
8 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Dimmer | 000-255 | Master Dimmer 0-100% |
| 2 | Strobe | 000-005 | Strobe open |
| 006-010 | Strobe closed | ||
| 011-033 | Pulse random, from slow to fast | ||
| 034-056 | Ramp up random, from slow to fast | ||
| 057-079 | Ramp down random, from slow to fast | ||
| 080-102 | Random strobe effect, from slow to fast | ||
| 103-127 | Strobe break effect, 5sec to 1sec (very short flash) | ||
| 128-250 | Strobe, from slow to fast 0-20Hz | ||
| 251-255 | Strobe open | ||
| 3 | Red | 000-255 | Dimmer 0-100% |
| 4 | Green | 000-255 | Dimmer 0-100% |
| 5 | Blue | 000-255 | Dimmer 0-100% |
| 6 | White | 000-255 | Dimmer 0-100% |
| 7 | Amber | 000-255 | Dimmer 0-100% |
| 8 | Lime | 000-255 | Dimmer 0-100% |
