BRUKSANVISNING Memphis Talgø
Please read instructions carefully. Remove all wrapping material, staples and packing straps from the carton. See Hardware and Furniture Parts List for guidance. Be sure you have all parts before you start assembling. Place all wooden furniture parts on a clean and flat soft surface, such as carpet or rug to prevent from being scratched.
CAUTIONS: (1) DO NOT FULLY-TIGHTEN THE NUTS OR SCREWS INITIALLY UNTIL ALL THE NUTS OR SCREWS ARE ALREADY ASSEMBLED. (TO AVOID CAUSING DAMAGES TO THE THREAD, DO NOT OVER-TIGHTEN THE NUTS OR SCREWS.)
(2) KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN.
PART LIST
| NO | DESCRIPTIONS | QTY |
| A | TABLE TOP | 1 PC |
| B | TABLE LEG | 4 PCS |
| C | TABLE LEAF | 2 PCS |
HARDWARE LIST
| NO | DESCRIPTIONS | QTY |
| 1 | JCBC M8 X 60 | 8 PCS |
| 2 | SPRING WASHER | 8 PCS |
| 3 | FLAT WASHER | 8 PCS |
| 4 | ALLEN KEY M5 | 1 PC |
| 5 | DOWEL 8 x 30 | 4 PCS |
| 6 | WING SCREW | 8 PCS |

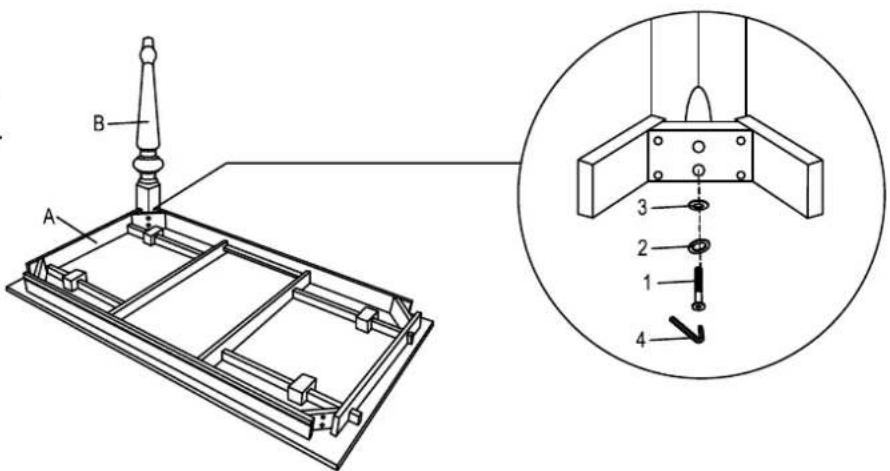

STEP 1
Place the table top on smooth surface. Align the table leg to the corner. Insert the JCBC bolt (1), Spring Washer (2) and Flat Washer (3) into the holes. Then tighten using Allen Key (4). Repeat above step for the other table legs.
Turn back the assembled table upside down.
Now, the table can be use.


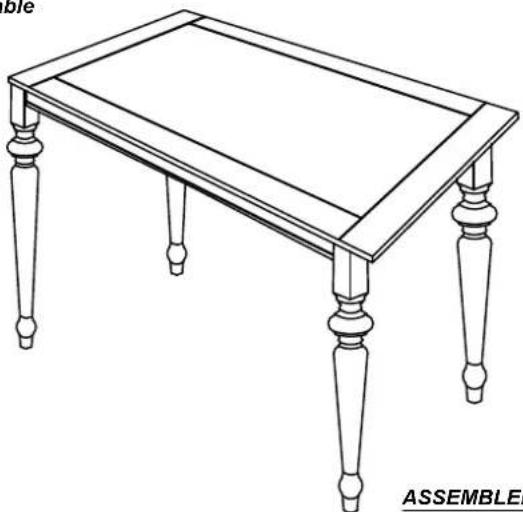

Line drawing of a four-legged table with four legs and a wooden frame (no text or symbols)ASSEMBLED TABLE
