V-CTSQPK INSTALLATION INSTRUCTIONS

INTRODUCTION

The interior speaker, the V-CTSQPK, is capable of reproducing paging as well as back ground music. The volume may be adjusted by connecting various combinations on the input screw terminals. The enclosure is made of steel with a durable powder coated finish. The color of the enclosure can easily be changed to match any décor. The unit contains an 8" full range speakers.

DIMENSION/WEIGHT

11.5" L x 11.5" W x 3.0" D

(29.2cm L x 29.2cm W x 7.62cm D)

2.6 lbs. (1.18kg)

INSTALLATION

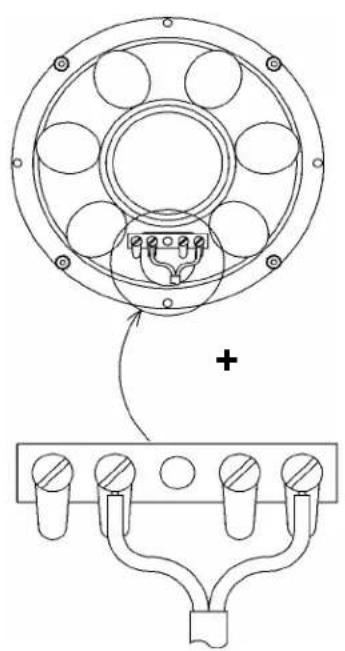

• See Figure 1 To Set Volume Level
• See Figure 2 For Ceiling Mounting
• See Figure 3,4 For Wall Mounting

Technical diagram showing a circular component with internal holes and a separate electrical terminal block (no text or symbols)

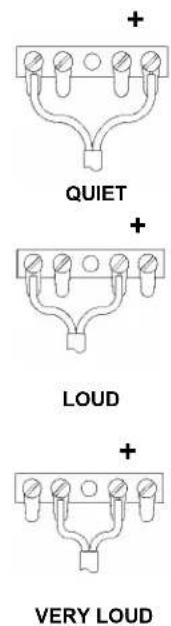

NORMAL

+ QUIET + LOUD + VERY LOUD

Figure 1

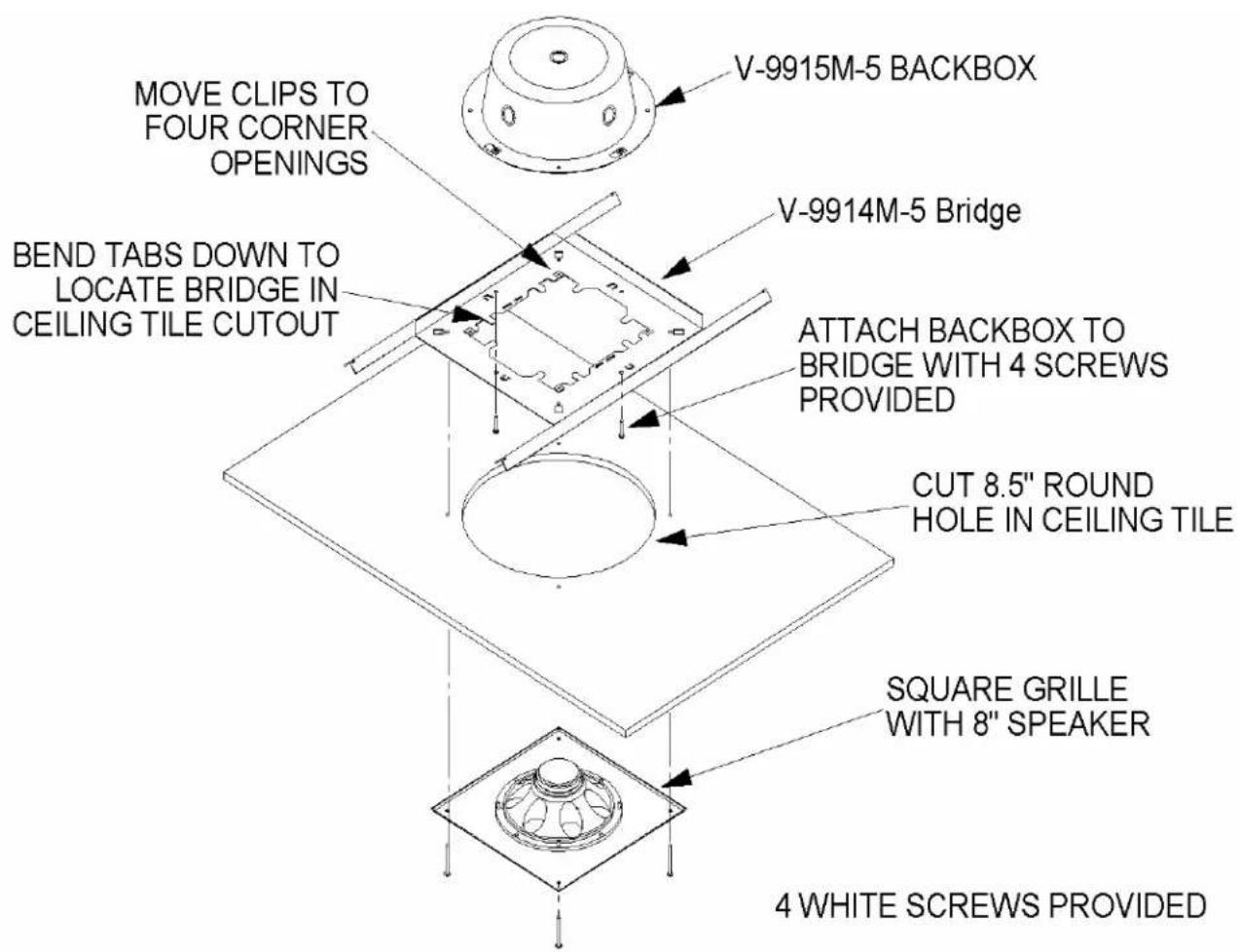

MOVE CLIPS TO FOUR CORNER OPENINGS BEND TABS DOWN TO LOCATE BRIDGE IN CEILING TILE CUTOUT V-9915M-5 BACKBOX V-9914M-5 Bridge ATTACH BACKBOX TO BRIDGE WITH 4 SCREWS PROVIDED CUT 8.5" ROUND HOLE IN CEILING TILE SQUARE GRILLE WITH 8" SPEAKER 4 WHITE SCREWS PROVIDED

Figure 2: CEILING INSTALLATION INSTRUCTIONS

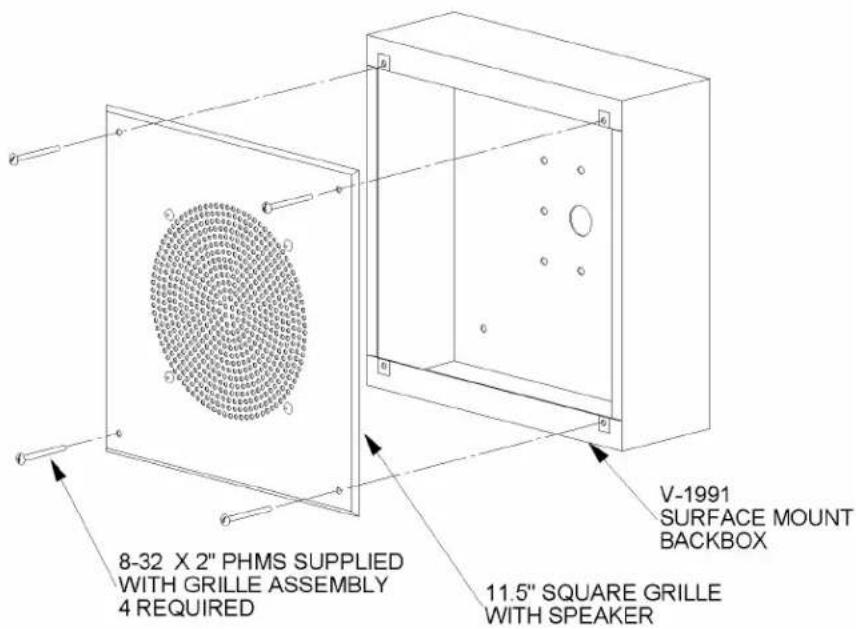

FIGURE 3: SURFACE MOUNT INSTALLATION INSTRUCTIONS

8-32 X 2" PHMS SUPPLIED WITH GRILLE ASSEMBLY 4 REQUIRED V-1991 SURFACE MOUNT BACKBOX 11.5" SQUARE GRILLE WITH SPEAKER

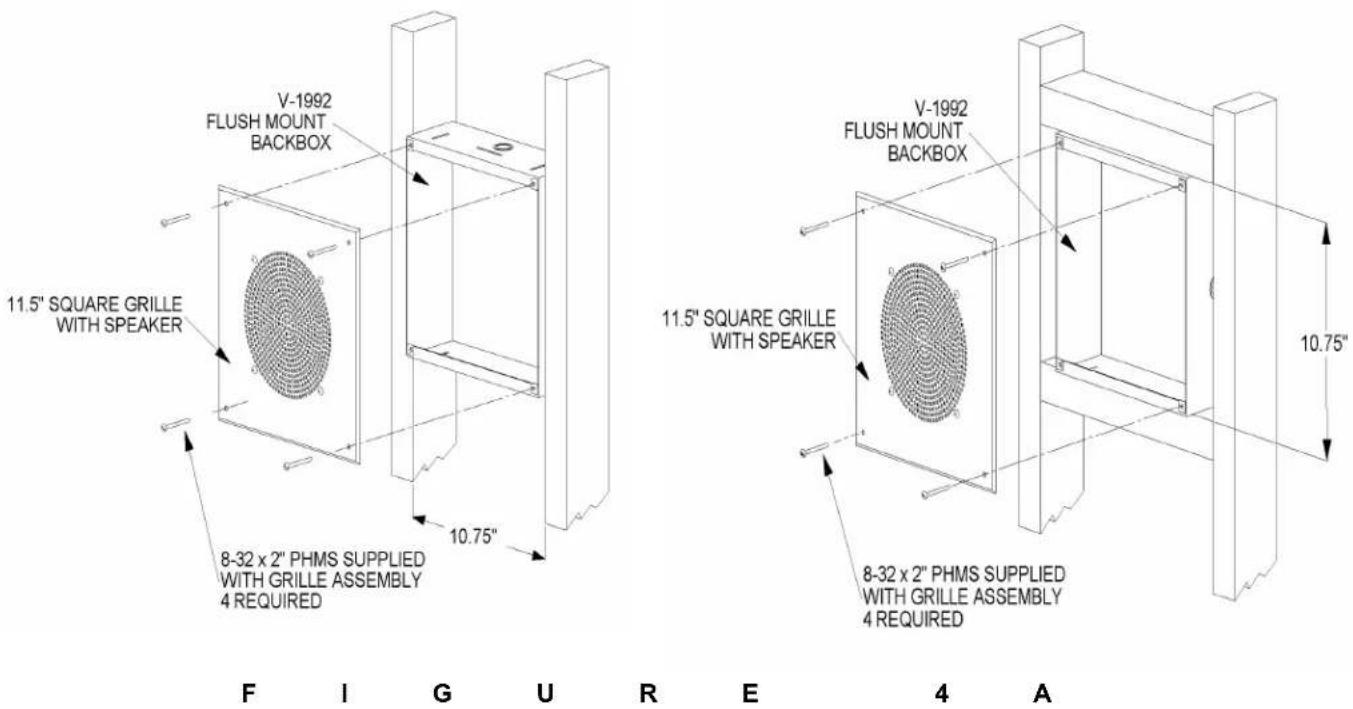

FIGURE 4A,B: FLUSH MOUNT INSTALLATION INSTRUCTIONS

V-1992 FLUSH MOUNT BACKBOX 10.75" 11.5" SQUARE GRILLE WITH SPEAKER 8-32 x 2" PHMS SUPPLIED WITH GRILLE ASSEMBLY 4 REQUIRED 10.75" F I G U R E 4 A V-1992 FLUSH MOUNT BACKBOX 11.5" SQUARE GRILLE WITH SPEAKER 8-32 x 2" PHMS SUPPLIED WITH GRILLE ASSEMBLY 4 REQUIRED 10.75"

ROUGH DIMENSIONS

TECHNICAL ASSISTANCE

Assistance in troubleshooting is available from the factory. When calling, you should have a VOM, a telephone test set and call from the job site. Call [phone] and press 1 for Technical Support or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

ROANOKE, VA 24019

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
   3 the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts and labor

will be applied to units defaced or physically damaged);

1. freight charges for the return of products to Valcom are prepaid;
   5 all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to addition

charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product. This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
