BRUKSANVISNING LSM-7GN MXL
LSM-5GR
Dynamic Microphone
With Bright, Crisp Tone
Marshall Electronics
1910 East Maple Ave. El Segundo, CA 90245
(10) 333-0606 Fax (310) 333 mall. Friend@marlmo.com
www.MXLmics.com
Thank you for purchasing the MXL LSM-5GR dynamic microphone. With proper care, this mic will provide many years of satisfaction. For best results, please take a few moments to review this literature.
General Characteristics
This microphone is a cardioid dynamic microphone. This microphone incorporates a high end boost for clear, crisp performances. For a warmer, richer tone, the MXL LSM-7GN is available. The microphone was designed primarily as a vocal microphone for on-stage use. The term "cardioid response" means that the LSM-5GR is most sensitive to sound arriving from the front, and less sensitive to sound from the rear and sides. Rugged construction and a steel mesh grill ensure the LSM-5GR will perform consistently in nearly all environments. The LSM-5GR features a standard 3-pin male XLR type connector. The microphone can be
connected to the rest of your equipment using a standard microphone cable fitted with a female 3-pin type XLR connector.
Microphone Cables
The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphones will sound poor if the interconnect cable allows noise to enter, or causes distortion and loss of information. Use only the best microphone cable your budget will allow.
Care
Dust and foreign materials can degrade the performance of a microphone over time so always store the unit in a moisture free environment.
Specifications
| Type: | Dynamic |
| frequency Range: | 40Hz-15kHz |
| Polar Pattern: | Cardioid |
| Sensitivity: | -54dB re 1 V/Pa |
| Impedance: | 600 ohms |
| Size: | 7.09in x 1.93in /180mm x 49mm |
| Weight: | 0.65 lbs/295g |
| Metal Finish: | Gray |
Polar Pattern

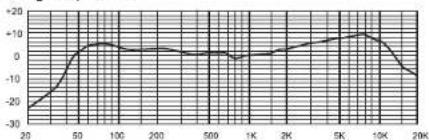

Frequency Chart
line
| X-Axis | Y-Axis | |---|---| | 20 | -25 | | 50 | -5 | | 100 | 5 | | 200 | 0 | | 500 | -5 | | 1K | 0 | | 2K | 5 | | 5K | 10 | | 10K | 15 | | 20K | -10 |Warranty
MXL Microphones are guaranteed against defects in material and workmanship for three years from date of purchase. Should you encounter any problem with this unit, promptly contact the company you purchased it from for assistance. The original dated salesreceipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department! Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.
LSM-7GN
Dynamic Microphone With Warm Rich Tone
Marshall Electronics
1910 East Maple Ave. El Segundo, CA 90245
(310) 333-0606 Fax: (310) 333 E-mail: Sales@rmimics.com
www.MXLmics.com
Thank you for purchasing the MXL LSM-7GN dynamic microphone. With proper care, this mic will provide many years of satisfaction. For best results, please take a few moments to review this literature.
General Characteristics
This microphone is a cardioid dynamic microphone. This microphone incorporates a capsule tuned for a warm rich tonality. For a brighter, crisper tone, the MXL LSM-5GR is available. The microphone was designed primarily as a vocal microphone for on-stage use. The term "cardioid response" means that the LSM-7GN is most sensitive to sound arriving from the front, and less sensitive to sound from the rear and sides. Rugged construction and a steel mesh grill ensure the LSM-7GN will perform consistently in nearly all environments. The LSM-7GN features a standard 3-pin male XLR type connector. The microphone can be con-
nected to the rest of your equipment using a standard microphone cable fitted with a female 3-pin type XLR connector.
Microphone Cables
The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphones will sound poor if the interconnect cable allows noise to enter, or causes distortion and loss of information. Use only the best microphone cable your budget will allow.
Specifications
| Type: Dynamic |
| Frequency Range: 40Hz-15kHz |
| Polar Pattern: Cardioid |
| Sensitivity: -54dB re 1 V/Pa |
| Impedance: 600 ohms |
| Size: 7.09in x 1.93in/180mm x 49mm |
| Weight: 0.61 lbs/277g |
| Metal finish: Green |

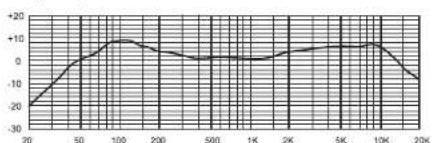

Frequency Chart
line
| X-Axis | Y-Axis | |---|---| | 20 | -25 | | 50 | 0 | | 100 | 10 | | 200 | 5 | | 500 | 0 | | 1K | 0 | | 2K | 5 | | 5K | 10 | | 10K | 10 | | 20K | -10 |Polar Pattern
MXL Microphones are guaranteed against defects in material and workmanship for three years from date of purchase. Should you encounter any problem with this unit, promptly contact the company you purchased it from for assistance. The original dated salesreceipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department! Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.
