DWG NO.S100857

DELTA	CABLE WIRING DIAGRAM
	UTSG6248SP1B		PIGTAILS
CIRCUIT	POS	WIRE WIRE		POS
240V CIRCUIT #1	A	BLACK	BLACK	L1
240V CIRCUIT #3	F	BLACK
240V CIRCUIT #2	B	WHITE	WHITE	L2
240V CIRCUIT #1	E	WHITE
240V CIRCUIT #3	C	RED	RED	L3
240V CIRCUIT #2	D	RED
PROTECTIVE EARTH	G	GREEN	GREEN	PE
PROTECTIVE EARTH	GND	GREEN

REVISIONS
REV.	DESCRIPTION	DATE	SY	APPROVED
A	INITIAL RELEASE	2/24/2022	LR	LB
B	UPDATED PER CR D/00763 & CO 0189493	1/25/2023	LR	LB

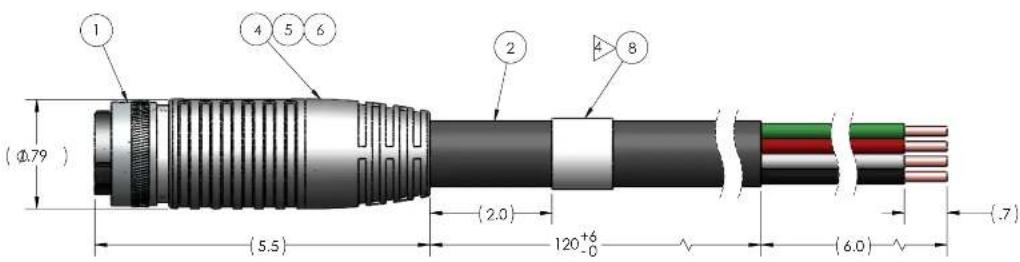

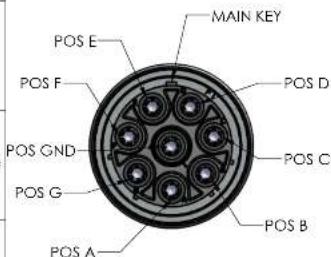

MAIN KEY POS E POS F POS GND POS G POS A POS D POS C POS B

MATING SIDE VIEW

(Ø79 ) (5.5) (2.0) 120+6 -0 (6.0) (.7)

NOTES.

1. WORKMANSHIP STANDARDS AND INSPECTION

CRITER A ARE IN ACCORDANCE WITH

IPC/WHMA A 620 CLASS 2

1. INSPECTION REQUIREMENTS 100% AFTER

ASSEMBLY:

2.1 VISUAL

2.2 ALL CIRCUITS CONTINUITY, SHORTS & OPENS

2.3 ON EACH PRODUCTION UNIT PERFORM DWV

(HI-POT) TEST 1500VAC OR 2100 VDC.

1. DIMENSIONAL INSPECTION PER AQL

FOR LABELING. SEE LABEL INFO. USE WRAP AROUND LABEL (NO FLAG) AT INDICATED LOCATION AROUND THE CABLE. THE LABEL WILL CONTAIN EATON LOGO. CABLE MODEL NUMBER. REGULATORY MODEL NUMBER, INPUT VOLTAGE/CURRENT RATING. LETTER POINT SIZE: 9) AND UL RECOGNIZED MARK 5mm MIN HEIGHT.

1. PACKAGE MUST BE MARKED PER ePDUG4-0040 v1.1 SPEC.

2. EACH CORDSET SHALL BE INDIVIDUALLY WRAPPED IN A LARGE BUBBLE BAG, CABLE ASSEMBLIES SHALL BE PACKAGED WITH TWO PER BOX. EACH BOX WILL HAVE DIMENSIONS OF 17" X 17" X 5".

3. ALL MATERIALS ARE RoHS AND UL COMPLIANT.

4. CORDSET QUALIFICATIONS

• UL 817 (UL FILE NUMBER: E529492)

CSA C22.2 No. 2

4 RATING LABEL (2.0) (1.0) EAT·N CBL357-10 EZ1-4U 200-240V~, 3W+PE, 48A c US

9	PRIMER	A/R	SL
8	WRAP AROUND LABEL 5" X 2"	1	EA
6	OVERMOLD MATERIAL	A/R	LB
5	P38 PYPE SLEEVE	3	EA
4	BACKSHELL UTG	1	EA
3	FEMALE POWER CONTACT	8	EA
2	CABLE 6/4 W TYPE 2000V UL LISTED	A/R	FT
1	UTG6248SNR 8 POS UTG CONNECTOR	1	EA
ITEM NO.	DESCRIPTION	QTY.	UM

CLIENT DOCUMENT APPROVAL			PART LIST FULL OF MATERIALS
			UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN NOTES (1) 2000. NO. 1450000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000			EAT·N 1740 COMMERCE VXY, PAGO ROBLES, CA 33446 Paying Process W/CH400 PART NO.: CBL357-10 DESCRIPTION CABLE ASSY UNIV 6AWG/4C PIGTAILS 10FT UL
X	ITEMS	DRAWN BY	DATE	SIZE B	CAGE CODE 09922	DWG. NO. S100857	REV B
X	CHECKED BY	LR	11/5/2021
X	RICHMOND FOR CHEDDER RICHMOND DRAWING SHEET	CHECKED BY	DATE
X	ORDER SHEET	INSCRIT THIS DRAWING ACCORDANCE WITH AVEI Y1401-2005	LU	11/5/2021
X	PROCEEDS	APPROVED BY	DATE
