BRUKSANVISNING MS045 Maruyama
ILLUSTRATED PARTS LIST
MODEL MS045
MODEL MS045D
BACKPACK SPRAYER
Effective 1-4-93

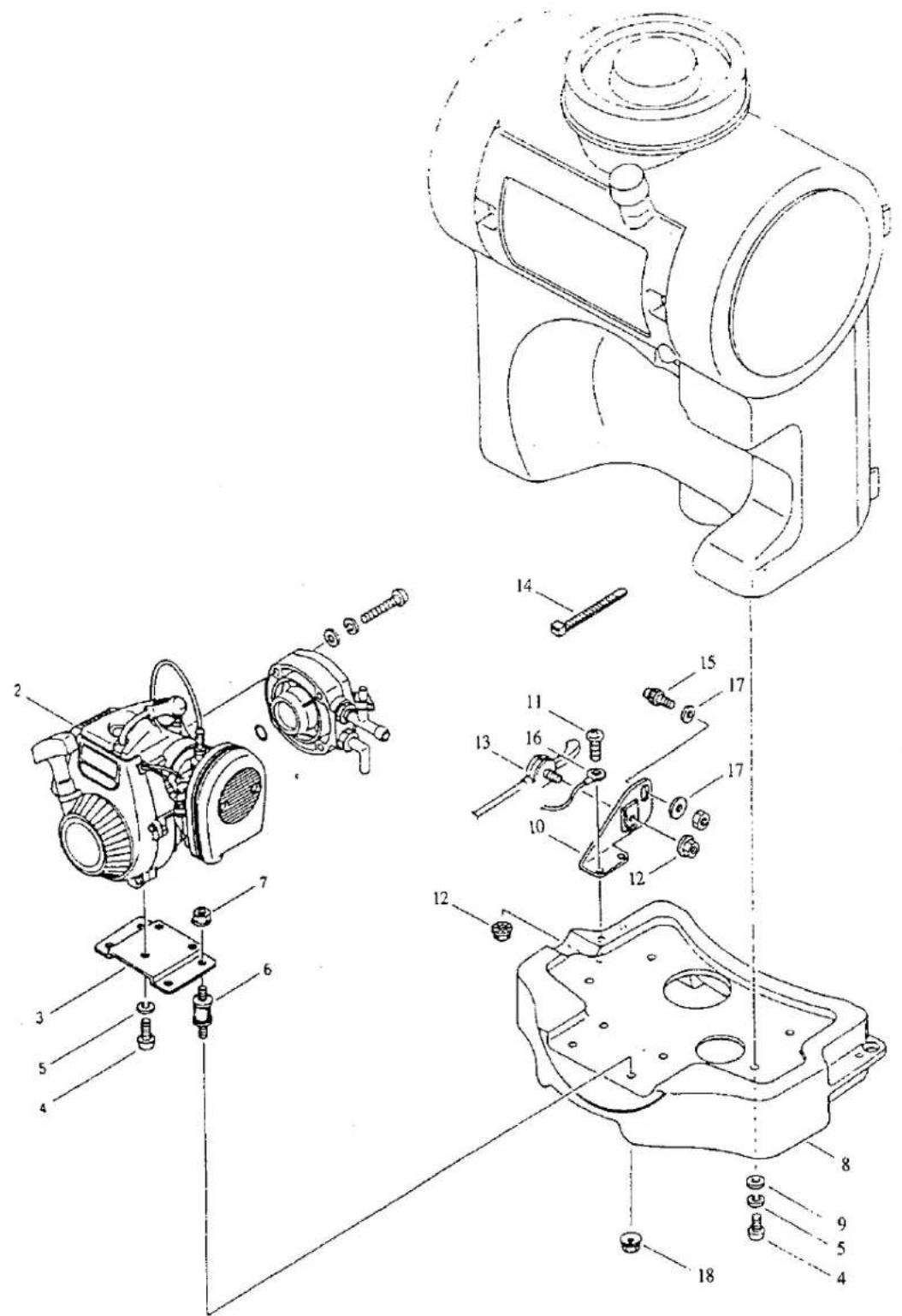

- MAIN BODY
MARUYAMA U.S., INC.
| Ref. No. | Parts No. | Parts Name | Q'ty |
| 1-1 | 323397 | MS045D | 1 |
| 323358 | MS045 | 1 | |
| 1-2 | 111151 | Engine (TF022H - AG22) | 1 |
| 107367 | Engine (KT12X) (MS045) | 1 | |
| 1-3 | 106319 | Bracket | 1 |
| 1-4 | 081454 | Screw (M6x14) | 7 |
| 1-5 | 012502 | Spring Washer (M6) | 7 |
| 1-6 | 100573 | Buffer | 4 |
| 1-7 | 100420 | Nut (M6) | 4 |
| 1-8 | 106334 | Base | 1 |
| 1-9 | 019056 | Washer (6.5x18xtl) | 4 |
| 1-10 | 103156 | Stay | 1 |
| 1-11 | 081415 | Screw (M5x0.8x16) | 2 |
| 1-12 | 103549 | Nut (M5x0.8) | 3 |
| 1-13 | 102377 | Throttle Lever | 1 |
| 1-14 | 105337 | Band | 2 |
| 1-15 | 101110 | Stop Button | 1 |
| 1-16 | 102380 | Earth Cord | 1 |
| 1-17 | 012489 | Washer (M8) | 2 |
| 1-18 | 109704 | Nut (M6) | 4 |
| Ref. No. | Parts No. | Parts Name | Q'ty |

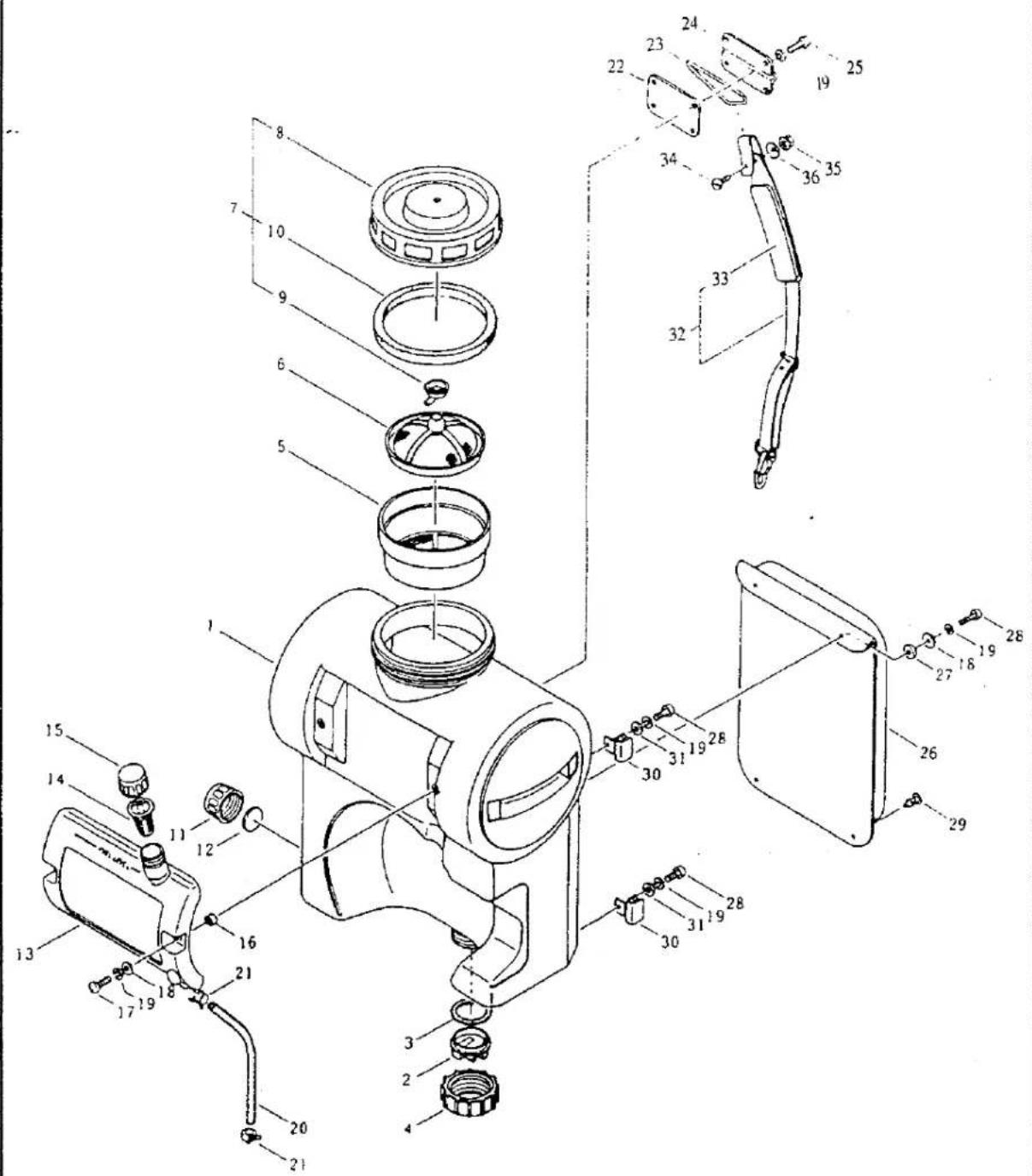

- CHEMICAL TANK
MARUYAMA U.S., INC.
| Ref.No. | Parts No. | Parts Name | Q'ty | Ref.No. | Parts No. | Parts Name | Q'ty |
| 2-1 | 106327 | Chemical tank | 1 | ||||
| 2-2 | 106329 | Connector | 1 | ||||
| 2-3 | 107176 | Packing (ø 50 xø 60 x13) | 1 | ||||
| 2-4 | 100466 | Cap | 1 | ||||
| 2-5 | 106330 | Strainer | 1 | ||||
| 2-6 | 102623 | Strainer | 1 | ||||
| 2-7 | 106331 | Cap, chemical tank, ass'y | 1 | ||||
| 2-8 | 106332 | · Cap, chemical tank | 1 | ||||
| 2-9 | 022363 | · Inner cap | 1 | ||||
| 2-10 | 022362 | · Packing (ø 150 xø 170 x110) | 1 | ||||
| 2-11 | 106333 | Blind cap | 1 | ||||
| 2-12 | 029299 | Blind packing (ø 36 x13) | 1 | ||||
| 2-13 | 106335 | Fuel tank | 1 | ||||
| 2-14 | 106920 | Strainer | 1 | ||||
| 2-15 | 028391 | Cap | 1 | ||||
| 2-16 | 106344 | Collar | 2 | ||||
| 2-17 | 081465 | Screw (M6 x 18) | 2 | ||||
| 2-18 | 019056 | Washer (ø 6.5 xø 18 x11) | 4 | ||||
| 2-19 | 012502 | Spring washer (M6) | 10 | ||||
| 2-20 | 105334 | Vinyl hose (ø 7 xø 11 x125L) | 1 | ||||
| 2-21 | 105335 | Hose band (# 10) | 2 | ||||
| 2-22 | 106349 | Plate | 1 | ||||
| 2-23 | 029306 | Strap hook | 1 | ||||
| 2-24 | 106350 | Bracket | 1 | ||||
| 2-25 | 081452 | Screw (M6 x 10) | 4 | ||||
| 2-26 | 106351 | Cushion pad | 1 | ||||
| 2-27 | 106352 | Packing (ø 5.5 xø 16 x t1.5) | 2 | ||||
| 2-28 | 081453 | Screw (M6 x 12) | 4 | ||||
| 2-29 | 101863 | Fastener | 2 | ||||
| 2-30 | 106353 | Clip | 2 | ||||
| 2-31 | 013754 | Washer (M6) | 2 | ||||
| 2-32 | 108466 | Knapsack strap, ass'y | 2 | ||||
| 2-33 | 019874 | · Shoulder pad | 2 | ||||
| 2-34 | 020654 | Bolt (M6) | 2 | ||||
| 2-35 | 100420 | Nut (M6) | 2 | ||||
| 2-36 | 100603 | Washer (M6) | 2 | ||||

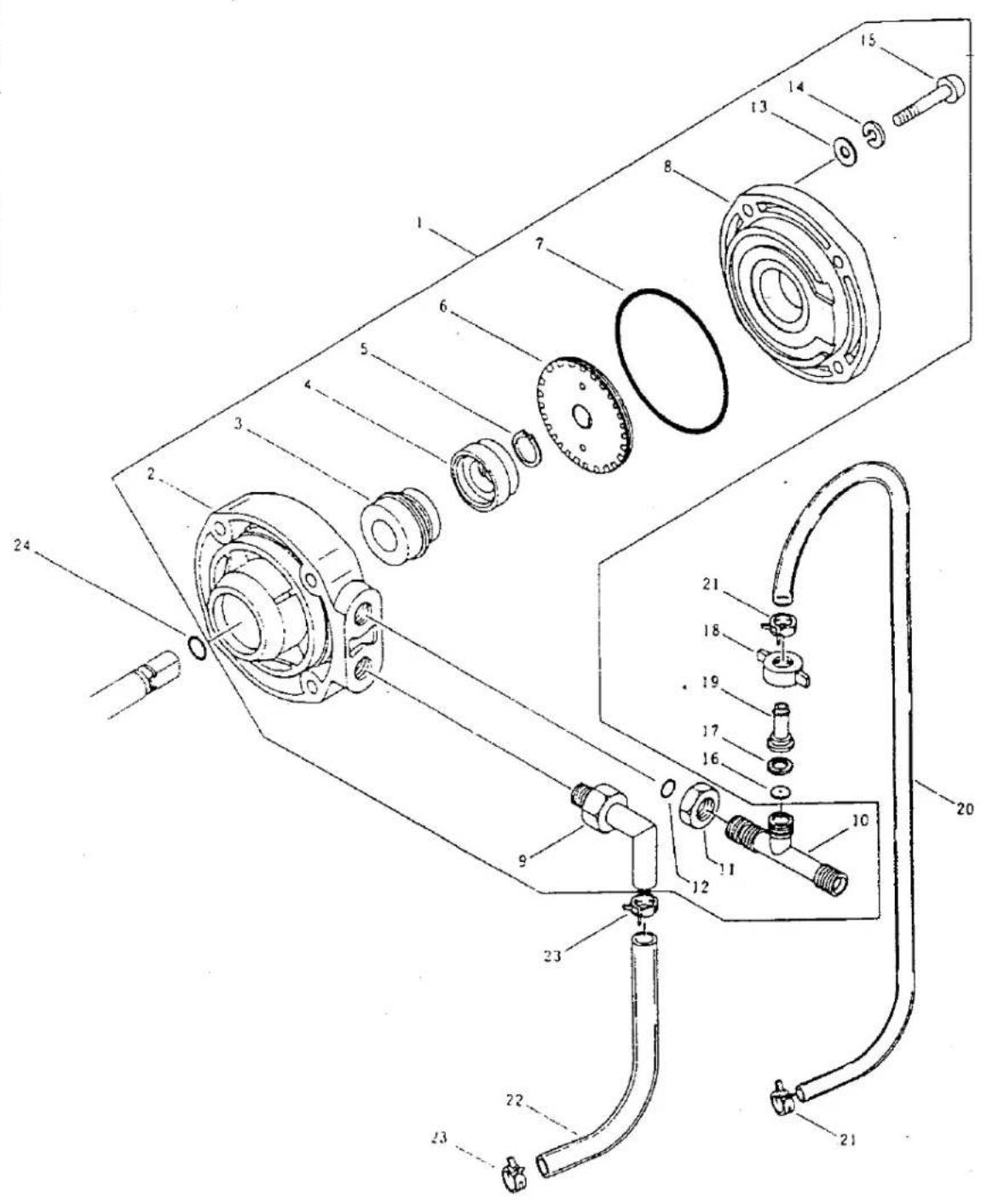

3. POWER SPRAYER
MARUYAMA U.S., INC.
| Ref.No. | Parts No. | Parts Name | Q'ty | Ref.No. | Parts No. | Parts Name | Q'ty |
| 3-1 | 106320 | Pump, ass'y | 1 | ||||
| 3-2 | 106275 | ·Casing | 1 | ||||
| 3-3 | 107421 | ·Mechanical seal | 1 | ||||
| 3-4 | 107201 | ·Holder | 1 | ||||
| 3-5 | 106323 | ·C-shaped snap ring (S12) | 1 | ||||
| 3-6 | 107202 | ·Impeller (57x3.5Tx12) | 1 | ||||
| 3-7 | 014033 | ·O-ring (S67) | 1 | ||||
| 3-8 | 106276 | ·Casing cover | 1 | ||||
| 3-9 | 106325 | ·Elbow (PT1/4) | 1 | ||||
| 3-10 | 106326 | ·T-joint (PF1/4) | 1 | ||||
| 3-11 | 025604 | ·Nut (PF1/4) | 1 | ||||
| 3-12 | 011343 | ·O-ring (P10A) | 1 | ||||
| 3-13 | 065005 | ·Washer (M6) | 4 | ||||
| 3-14 | 105849 | ·Spring washer (M6) | 4 | ||||
| 3-15 | 088348 | ·Screw (M6 x 45) | 4 | ||||
| 3-16 | 100704 | Nozzle plate (ø 1.0xø 8.2x t1) | 1 | ||||
| 3-17 | 100703 | Packing (ø 6 xø 11.5 x t2.5) | 1 | ||||
| 3-18 | 023266 | Hose coupling (F) (PF1/4) | 1 | ||||
| 3-19 | 106346 | Inner core | 1 | ||||
| 3-20 | 106347 | Vinyl hose (ø 5 xø 8 x 400L) | 1 | ||||
| 3-21 | 106348 | Hose band (# 4) | 2 | ||||
| 3-22 | 105336 | Vinyl hose (ø 10xø 15x180L) | 1 | ||||
| 3-23 | 103033 | Hose band (# 27) | 2 | ||||
| 3-24 | 013963 | O-ring (S10) | 1 | ||||

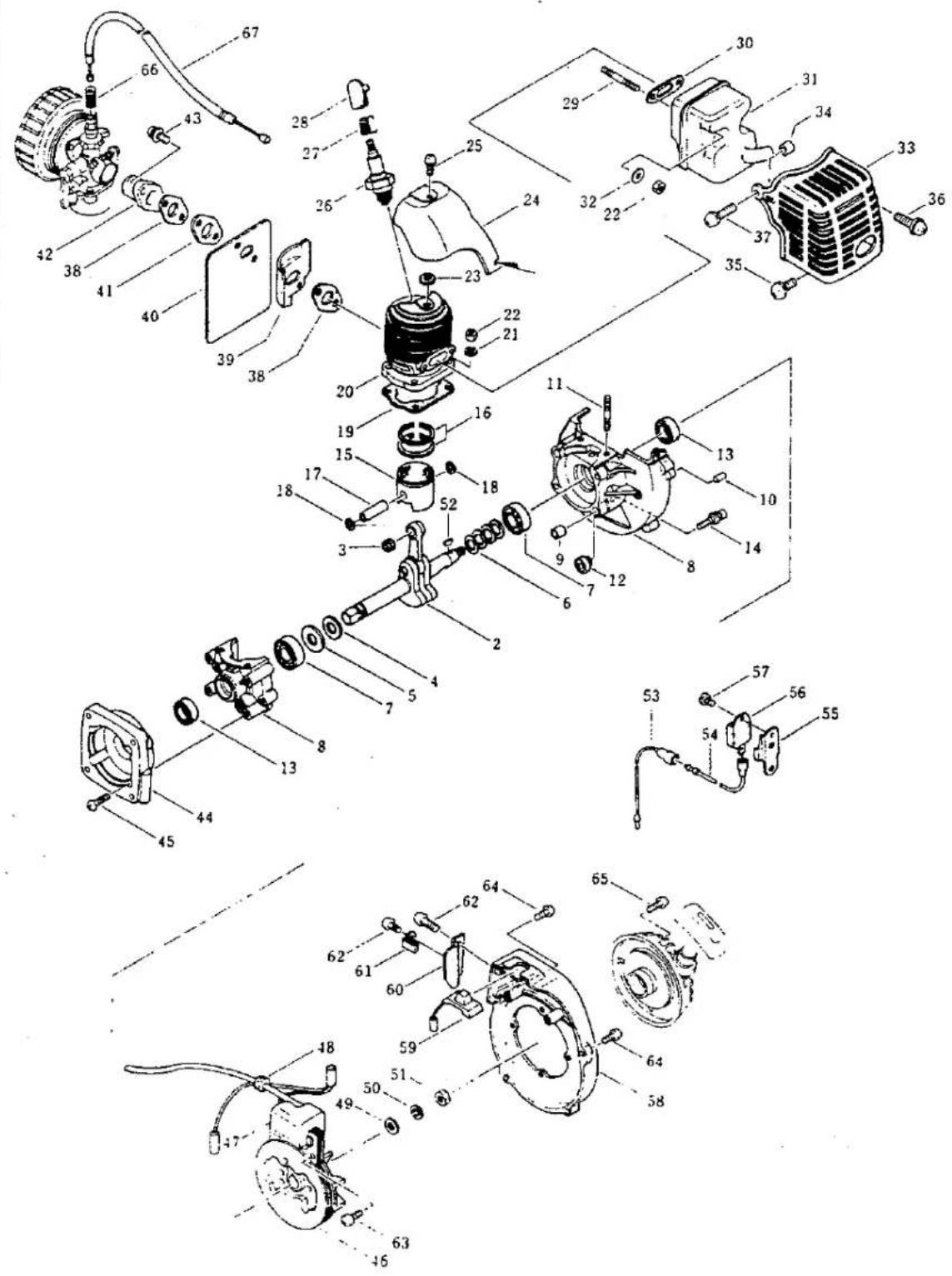

- ENGINE (CRANKCASE, CYLINDER)
(KT12X)
MARUYAMA U.S., INC.
| Ref.No. | Parts No. | Parts Name | Q'ty | Ref.No. | Parts No. | Parts Name | Q'ty |
| 4-1 | 107367 | Engine (KT12X) | 1 | 4-38 | 943170 | Gasket | 2 |
| 4-2 | 944788 | Crankshaft, ass'y | 1 | 4-39 | 944091 | Cylinder cover | 1 |
| 4-3 | 943597 | .Needle bearing | 1 | 4-40 | 944101 | Gasket | 1 |
| 4-4 | 911322 | Washer | 1 | 4-41 | 943992 | Insulator | 1 |
| 4-5 | 911323 | Washer | 1 | 4-42 | 943169 | Inlet pipe | 1 |
| 4-6 | 911320 | Shim (t0.1) | AR | 4-43 | 943978 | Screw | 2 |
| 4-6 | 943128 | Shim (t0.2) | AR | 4-44 | 943650 | Case | 1 |
| 4-6 | 943129 | Shim (t0.4) | AR | 4-45 | 943575 | Screw | 4 |
| 4-6 | 943130 | Shim (t0.6) | AR | 4-46 | 944583 | Flywheel | 1 |
| 4-7 | 944111 | Ball bearing (6001V3) | 2 | 4-47 | 944584 | Ignition coil | 1 |
| 4-8 | 944789 | Crankcase, ass'y | 1 | 4-48 | 943994 | Grommet | 1 |
| 4-9 | 071098 | .Dowel pin | 2 | 4-49 | 901564 | Washer | 1 |
| 4-10 | 071100 | .Dowel pin | 2 | 4-50 | 943142 | Spring washer | 1 |
| 4-11 | 071554 | .Stud | 4 | 4-51 | 943173 | Nut | 1 |
| 4-12 | 944790 | Damper | 1 | 4-52 | 071090 | Key | 1 |
| 4-13 | 911325 | Oil seal | 2 | 4-53 | 943998 | Lead wire | 1 |
| 4-14 | 943190 | Screw | 4 | 4-54 | 944110 | Lead wire | 1 |
| 4-15 | 943580 | Piston | 1 | 4-55 | 944109 | Bracket | 1 |
| 4-16 | 073343 | Piston ring set | 1 | 4-56 | 944108 | Igniter | 1 |
| 4-17 | 943943 | Piston pin | 1 | 4-57 | 943894 | Screw | 1 |
| 4-18 | 943581 | Snap ring | 2 | 4-58 | 944793 | Spiral case | 1 |
| 4-19 | 943589 | Gasket | 1 | 4-59 | 943161 | Stop switch | 1 |
| 4-20 | 944582 | Cylinder | 1 | 4-60 | 943995 | Cylinder cover | 1 |
| 4-21 | 901518 | Spring washer | 4 | 4-61 | 944113 | Clamp | 1 |
| 4-22 | 943265 | Nut | 6 | 4-62 | 943458 | Screw | 2 |
| 4-23 | 943188 | Gasket | 1 | 4-63 | 943644 | Screw | 2 |
| 4-24 | 943197 | Cylinder cover | 1 | 4-64 | 943574 | Screw | 4 |
| 4-25 | 943987 | Screw | 1 | 4-65 | 944794 | Screw | 4 |
| 4-26 | 943643 | Spark plug (BM6) | 1 | 4-66 | 944004 | Spring | 1 |
| 4-27 | 943771 | Spring | 1 | 4-67 | 944795 | Throttle cable | 1 |
| 4-28 | 943773 | Plug cap | 1 | ||||
| 4-29 | 943571 | Stud | 2 | ||||
| 4-30 | 943468 | Gasket | 1 | ||||
| 4-31 | 944791 | Muffler, ass'y | 1 | ||||
| 4-32 | 071104 | Washer | 2 | ||||
| 4-33 | 944585 | Muffler cover | 1 | ||||
| 4-34 | 944586 | Collar | 1 | ||||
| 4-35 | 944792 | Screw | 1 | ||||
| 4-36 | 944125 | Screw | 1 | ||||
| 4-37 | 944126 | Screw | 1 |

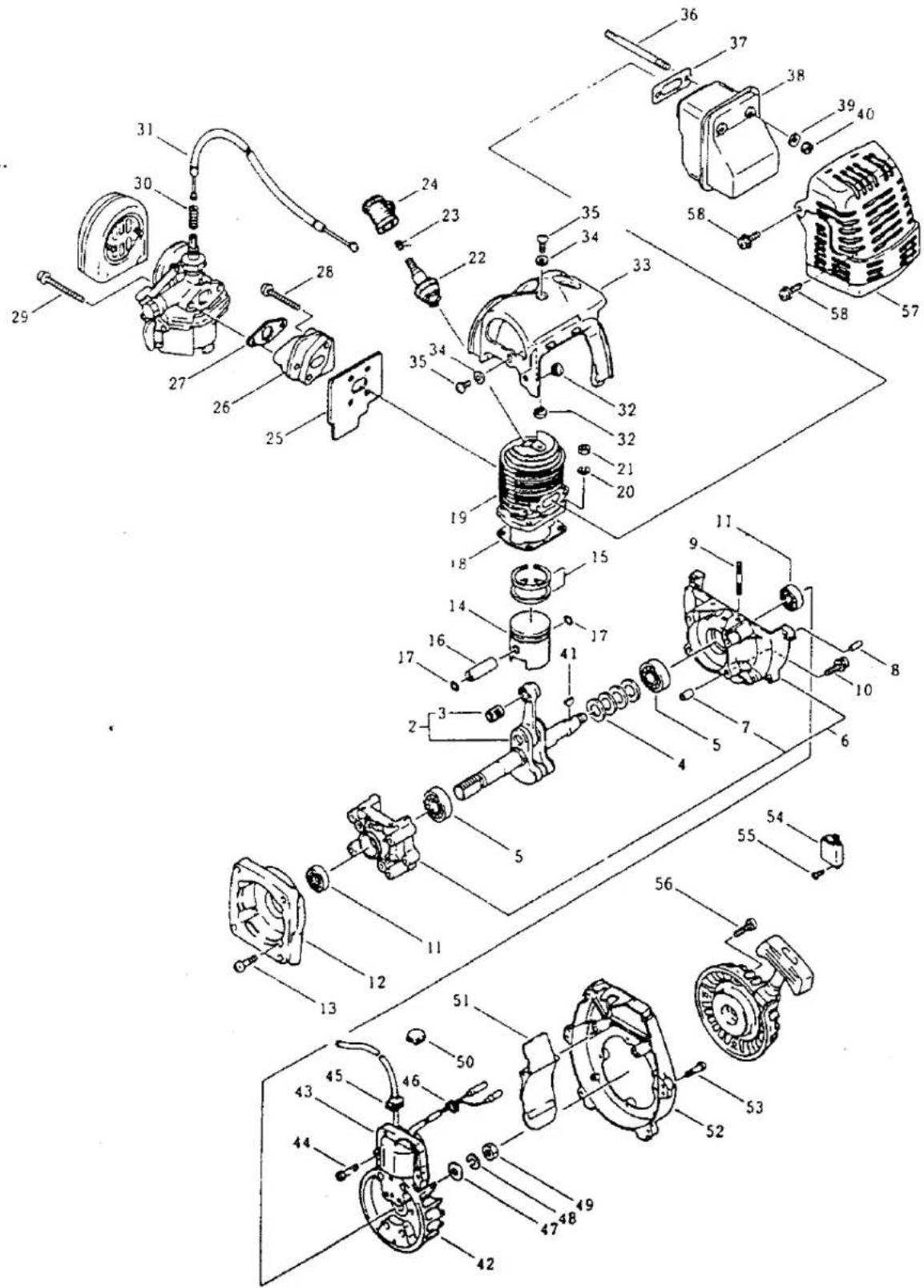

- ENGINE (CRANKCASE, CYLINDER)
(TF022H)
MARUYAMA U.S., INC.
| Ref.No. | Parts No. | Parts Name | Q'ty | Ref.No. | Parts No. | Parts Name | Q'ty |
| 5-1 | 111151 | Engine, ass'y (TF022H-AG22) | 1 | 5-38 | 577352 | Muffler, ass'y | 1 |
| 5-2 | 577347 | Crankshaft, ass'y | 1 | 5-39 | 573952 | Washer | 2 |
| 5-3 | 943597 | · Needle bearing | 1 | 5-40 | 577353 | Nut (M5) | 2 |
| 5-4 | 911320 | Shim (t = 0.1) | AR | 5-41 | 071090 | Key | 1 |
| 5-4 | 943128 | Shim (t = 0.2) | AR | 5-42 | 573964 | Flywheel | 1 |
| 5-4 | 943129 | Shim (5 = 0.4) | AR | 5-43 | 573965 | Ignition coil | 1 |
| 5-4 | 943130 | Shim (t = 0.6) | AR | 5-44 | 943644 | Bolt (M4 × 20) | 2 |
| 5-5 | 944111 | Ball bearing (6001V3) | 2 | 5-45 | 573966 | Grommet | 1 |
| 5-6 | 577348 | Crankcase, ass'y | 1 | 5-46 | 943968 | Grommet | 1 |
| 5-7 | 573908 | · Dowel pin | 2 | 5-47 | 071190 | Washer (M8) | 1 |
| 5-8 | 071100 | Dowel pin | 2 | 5-48 | 071615 | Spring washer (M8) | 1 |
| 5-9 | 071099 | Stud | 4 | 5-49 | 943173 | Nut (M8) | 1 |
| 5-10 | 573179 | Screw | 4 | 5-50 | 573967 | Grommet | 1 |
| 5-11 | 573958 | Oil seal | 2 | 5-51 | 573985 | Plate | 1 |
| 5-12 | 577349 | Flange | 1 | 5-52 | 577354 | Fan housing | 1 |
| 5-13 | 573973 | Screw (M5 × 16) | 4 | 5-53 | 573986 | Screw (M4 × 16) | 4 |
| 5-14 | 573955 | Piston | 1 | 5-54 | 573079 | Igniter | 1 |
| 5-15 | 073343 | Piston ring set | 1 | 5-55 | 943579 | Screw (M4 × 8) | 1 |
| 5-16 | 943943 | Piston pin | 1 | 5-56 | 944794 | Screw | 4 |
| 5-17 | 943581 | Snap ring | 2 | 5-57 | 577355 | Muffler protector | 1 |
| 5-18 | 943589 | Cylinder gasket | 1 | 5-58 | 577356 | Bolt | 2 |
| 5-19 | 573948 | Cylinder | 1 | ||||
| 5-20 | 071692 | Spring washer (M5) | 4 | ||||
| 5-21 | 944415 | Nut (M5) | 4 | ||||
| 5-22 | 571472 | Spark plug (BM7A) | 1 | ||||
| 5-23 | 943771 | Terminal | 1 | ||||
| 5-24 | 943773 | Plug cap | 1 | ||||
| 5-25 | 573961 | Gasket | 1 | ||||
| 5-26 | 573960 | Insulator | 1 | ||||
| 5-27 | 573962 | Gasket | 1 | ||||
| 5-28 | 572912 | Screw (M5 × 20) | 2 | ||||
| 5-29 | 943738 | Screw (M5 × 43) | 2 | ||||
| 5-30 | 944004 | Spring | 1 | ||||
| 5-31 | 944795 | Throttle wire | 1 | ||||
| 5-32 | 577350 | Washer | 2 | ||||
| 5-33 | 573984 | Shroud | 1 | ||||
| 5-34 | 573989 | Washer (φ 4.5 × φ 10 × t1.2) | 2 | ||||
| 5-35 | 573988 | Screw (M4 × 16) | 2 | ||||
| 5-36 | 577351 | Stud | 2 | ||||
| 5-37 | 573951 | Gasket | 1 |

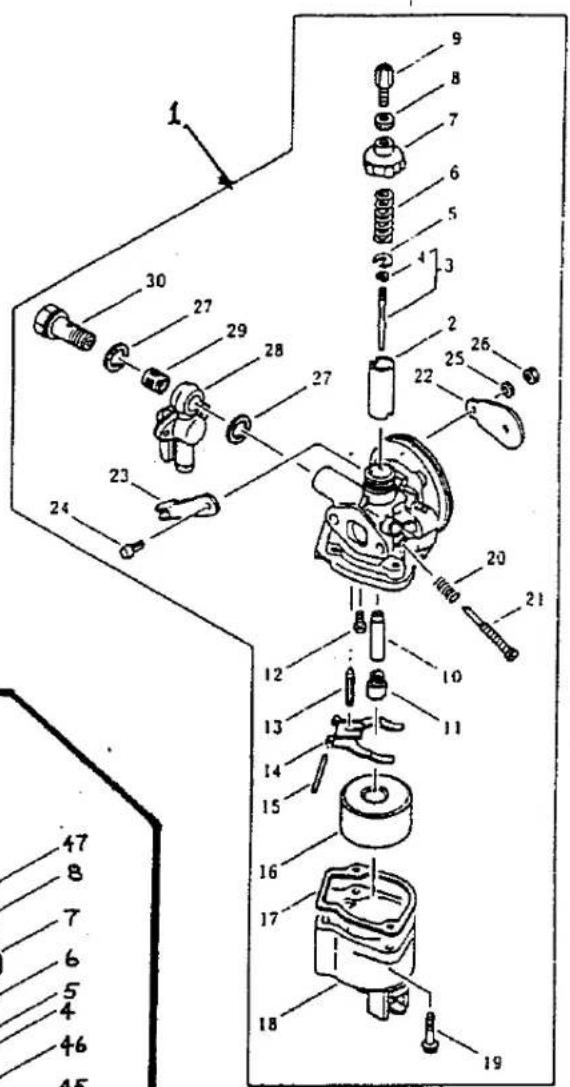

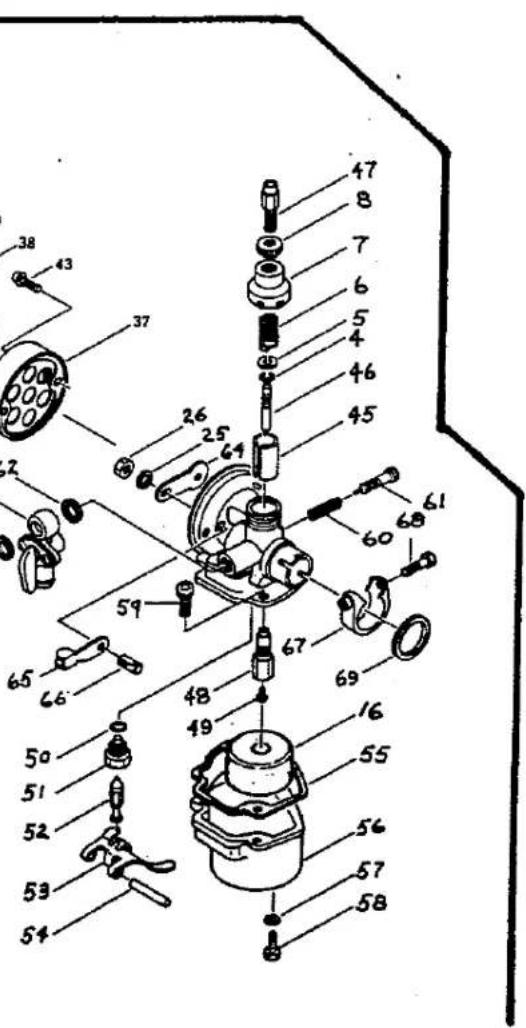

- MODEL MS045D
Ref. # 6-1 CARBURETOR
- MODEL MS045
Ref. # 6-44 CARBURETOR
| Ref. No. | Parts No. | Parts Name | Q'ty |
| 6-1 | 544357 | Carburetor, ass'y | 1 |
| 6-2 | 573994 | Throttle valve | 1 |
| 6-3 | 573993 | Jet needle | 1 |
| 6-4 | 071145 | Snap ring | 1 |
| 6-5 | 943167 | Retainer valve | 1 |
| 6-6 | 071253 | Throttle spring | 1 |
| 6-7 | 071252 | Body cap | 1 |
| 6-8 | 071149 | Lock nut | 1 |
| 6-9 | 573992 | Cable adjuster | 1 |
| 6-10 | 577358 | Needle jet | 1 |
| 6-11 | 577359 | Main jet (#50) | 1 |
| 6-12 | 944322 | Screw (M3x6) | 1 |
| 6-13 | 944320 | Needle valve | 1 |
| 6-14 | 573189 | Arm | 1 |
| 6-15 | 943512 | Hinge pin | 1 |
| 6-16 | 944106 | Float | 1 |
| 6-17 | 944323 | Gasket | 1 |
| 6-18 | 944324 | Float chamber | 1 |
| 6-19 | 943896 | Screw (M4x16) | 2 |
| 6-20 | 943196 | Spring | 1 |
| 6-21 | 944316 | Slow stop screw | 1 |
| 6-22 | 944314 | Valve | 1 |
| 6-23 | 944478 | Choke lever | 1 |
| 6-24 | 944313 | Bolt | 1 |
| 6-25 | 944102 | Washer | 1 |
| 6-26 | 071153 | Nut | 1 |
| 6-27 | 944482 | Gasket | 2 |
| 6-28 | 944104 | Fuel valve, ass'y | 1 |
| 6-29 | 944481 | Filter | 1 |
| 6-30 | 944480 | Eye bolt | 1 |

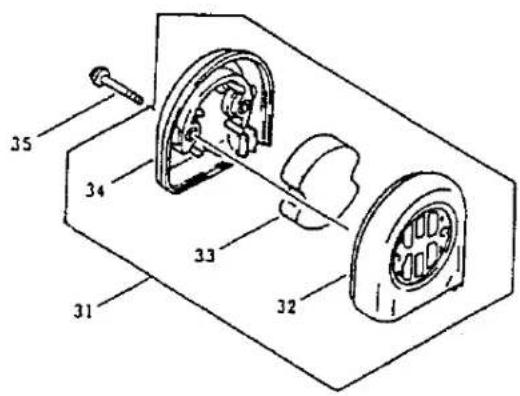

| 6-31 | 574002 | Air cleaner, ass'y | 1 |
| 6-32 | 574003 | Air cleaner case | 1 |
| 6-33 | 943483 | Air filter | 1 |
| 6-34 | 574004 | Air filter cap | 1 |
| 6-35 | 574005 | Screw (M4x40) | 2 |
| 6-36 | 943590 | Air Cleaner, ass'y | 1 |
| 6-37 | 943193 | Air cleaner case | 1 |
| 6-38 | 943194 | Element | 1 |
| 6-39 | 944797 | Band | 1 |
| 6-40 | 944798 | Screw | 1 |

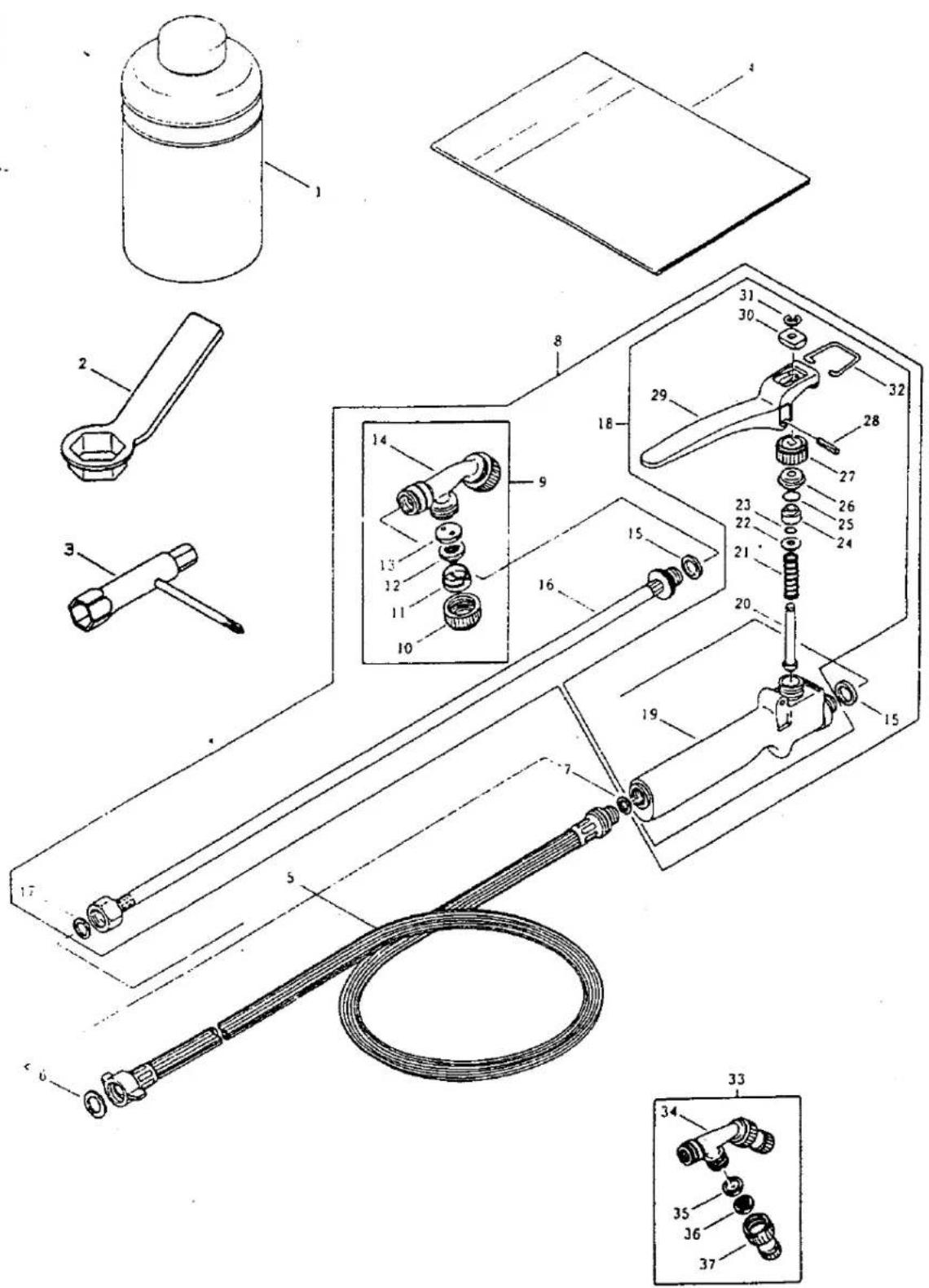

- ACCESSORIES, OPTIONAL ACCESSORIES
MARUYAMA U.S., INC.
| Ref. No. | Parts No. | Parts Name | Q'ty |
| 7-1 | 022540 | Fuel blending bottle (0.5) | 1 |
| 7-2 | 022097 | Box spanner (21) | 1 |
| 7-3 | 210418 | Box spanner (19) | 1 |
| 7-4 | 113046 | Instruction manual (MS045D) | 1 |
| 106372 | Instruction manual (MS045) | 1 | |
| 7-5 | 105633 | Hose ass'y (7.5x1300L) | 1 |
| 7-6 | 100707 | ·Packing (011.5x016xt2) | 1 |
| 7-7 | 100712 | ·Packing (07x010.5xt1.5) | 1 |
| 7-8 | 106357 | Nozzle/wand ass'y | |
| 7-9 | 814267 | ·Nozzle, ass'y | 1 |
| 7-10 | 103173 | ·Cap | 2 |
| 7-11 | 103172 | ·Orifice disc | 2 |
| 7-12 | 106358 | ·Strainer | 2 |
| 7-13 | 106359 | ·Packing | 2 |
| 7-14 | 103170 | ·Nozzle pipe | 1 |
| 7-15 | 028819 | ·Packing (012x016xt2) | 2 |
| 7-16 | 106360 | ·Nozzle pipe (PF1/4) | 1 |
| 7-17 | 107615 | ·Packing (07.5x011xt2) | 1 |
| 7-18 | 814268 | ·Grip, ass'y | 1 |
| 7-19 | 106361 | ·Grip (PF1/4) | 1 |
| 7-20 | 106362 | ·Valve rod | 1 |
| 7-21 | 106363 | ·Spring | 1 |
| 7-22 | 106364 | ·Washer (05.5x09.7xtl) | 1 |
| 7-23 | 014180 | ·O-ring (P5) | 1 |
| 7-24 | 106365 | ·Bush | 1 |
| 7-25 | 011681 | ·O-ring (P7) | 1 |
| 7-26 | 106366 | ·Guide | 1 |
| 7-27 | 106367 | ·Cap | 1 |
| 7-28 | 106368 | ·Spring pin | 1 |
| 7-29 | 106369 | ·Lever | 1 |
| 7-30 | 106370 | ·Washer | 1 |
| 7-31 | 020381 | ·E-ring | 1 |
| 7-32 | 106371 | ·Lock | 1 |
| Ref. No. | Parts No. | Parts Name | Q'ty |
| OPTIONAL ACCESSORIES | |||
| 7-33 | 996084 | Nozzle ass'y (Driftless) | 1 |
| 7-34 | 107487 | · Nozzle pipe | 1 |
| 7-35 | 107488 | · Packing | 2 |
| 7-36 | 107489 | · Strainer | 2 |
| 7-37 | 107490 | · Nozzle tip, ass'y | 2 |
PARTS LIST
MODEL MS045 & MS045D

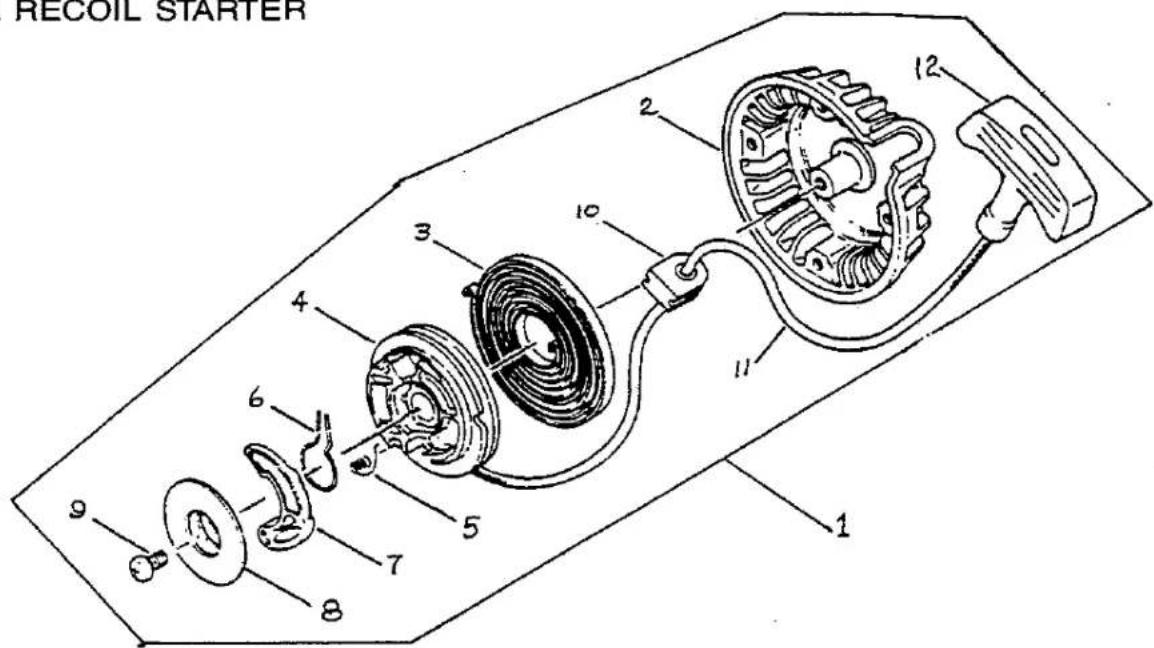

- RECOIL STARTER
| Ref. No. | Parts No. | Parts Name | Q'ty |
| 8-1 | 573970 | Recoil starter, ass'y | 1 |
| 8-2 | 574008 | ·Recoil starter case | 1 |
| 8-3 | 574007 | ·Recoil spring | 1 |
| 8-4 | 944724 | ·Reel | 1 |
| 8-5 | 943467 | ·Spring, pawl | 1 |
| Ref. No. | Parts No. | Parts Name | Q'ty |
| 8-6 | 943221 | ·Spring, brake | 1 |
| 8-7 | 943220 | ·Pawl | 1 |
| 8-8 | 944328 | ·Retainer | 1 |
| 8-9 | 944801 | ·Screw | 1 |
| 8-10 | 944239 | ·Rope guide | 1 |
| 8-11 | 944240 | Rope (890L) | 1 |
| 8-12 | 944241 | ·Grip | 1 |
