BRUKSANVISNING 381210-17-1 ACV

ACV 381210-17-1 - 1

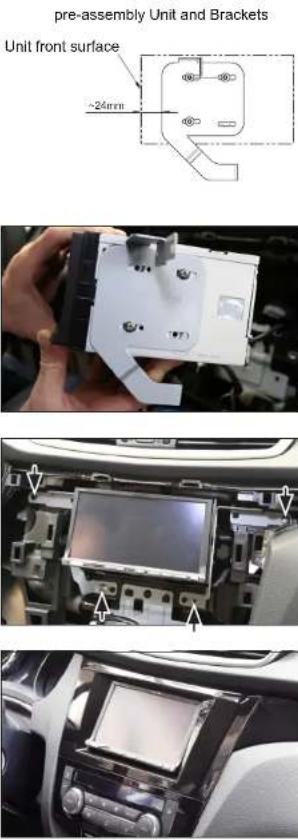

  1. Mount mounting brackets with flat headed screws to Double-DIN head unit

We recommend to leave about 24 mm space to the unit front surface

  1. Connect all required circuit points. Place Double-DIN head unit on dash board Fix it with 4 screws

  2. Put clips on the rear side of facia plate. Place facia plate on dash board

Reinstall everything in reverse order to finish installation

ACV 381210-17-1 - 2

Installation Manual Double DIN Kit

piano-black: 381210-17-1

• Nissan Qashqai (J11) 02/2014->

Compatible with these double DIN devices
Double-DIN Navigation
ACV 381210-17-1 - • Nissan Qashqai (J11) 02/2014-> - 1

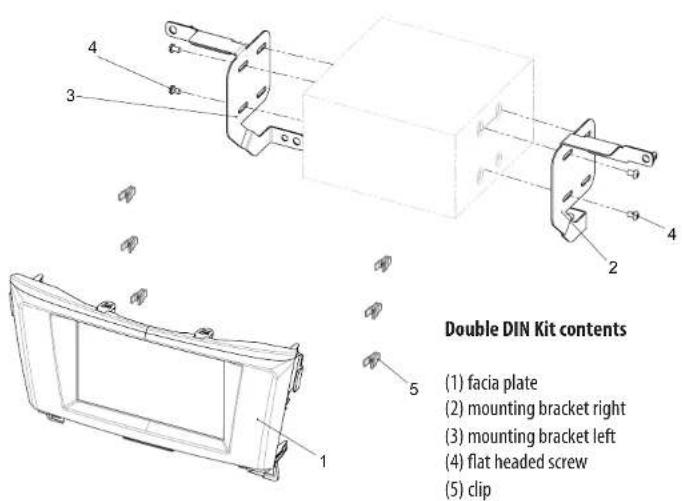

Double DIN Kit contents

(1) facia plate
(2) mounting bracket right
(3) mounting bracket left
(4) flat headed screw
(5) clip

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

ACV 381210-17-1 - Double DIN Kit contents - 1

natural_image Close-up of a car infotainment panel with hands operating controls (no visible text or symbols)
  1. Unclip air condition control unit under OEM head unit

ACV 381210-17-1 - Double DIN Kit contents - 2

natural_image Close-up of a car's internal battery pack assembly (no visible text or symbols)
  1. Remove air condition control unit

ACV 381210-17-1 - Double DIN Kit contents - 3

natural_image Close-up of a car dashboard with hand operating controls and a keypad (no visible text or symbols)
  1. Remove panel at left side

ACV 381210-17-1 - Double DIN Kit contents - 4

natural_image Interior view of a car dashboard with a hand adjusting the grille (no visible text or symbols)
  1. Remove panel at right side

ACV 381210-17-1 - Double DIN Kit contents - 5

natural_image Close-up of a hand adjusting a digital camera module with a green control knob (no visible text or symbols)

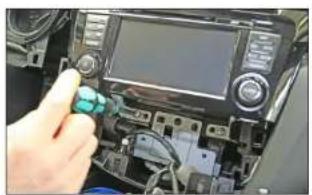

  1. Remove all screws of OEM head unit

ACV 381210-17-1 - Double DIN Kit contents - 6

natural_image Close-up of a gloved hand inserting a component into a mechanical device (no visible text or symbols)

left side

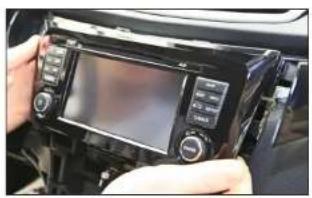

ACV 381210-17-1 - Double DIN Kit contents - 7

natural_image Close-up of hands holding a digital camera interface with a screen and control buttons (no visible text or symbols)

ACV 381210-17-1 - Double DIN Kit contents - 8

natural_image Close-up of a hand holding a tool interacting with a mechanical component (no visible text or symbols)

right side

ACV 381210-17-1 - Double DIN Kit contents - 9

natural_image Close-up of a car engine bay with visible hoses and components (no text or symbols)
  1. Unplug all cables of OEM head unit

Remove OEM head unit

ACV 381210-17-1 - Double DIN Kit contents - 10

natural_image Interior view of a car showing internal components and a person seated in the lower section (no visible text or symbols)
  1. Dash board after removal of OEM head unit
