BRUKSANVISNING ADD916T HAGER
Residualcurrentoperated circuit-breaker RCBO with switched neutral 6 to 32A
This device is to be installed only by a professional electrician fitter according to local applicable installation standards. Do not plug in or unplug this product when it is live. Conform to TBTS installation rules.
Electrical connection


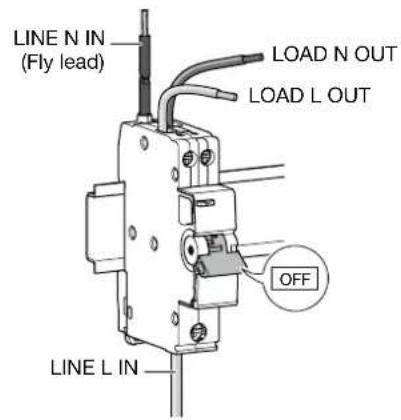

LINE N IN (Fly lead) LOAD N OUT LOAD L OUT OFF LINE L IN230 / 240 V\~ 50 Hz
| 1 to 162 x 10 | 1 to 162 x 6 | |
| 12 mm | 10 mm | |
| PZ2 | PZ2 | |
| 2,1 Nm | 1,9 Nm |

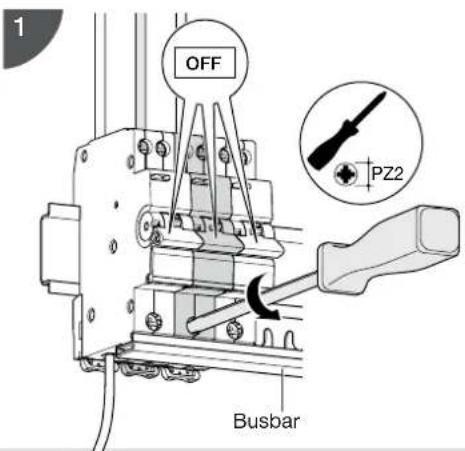

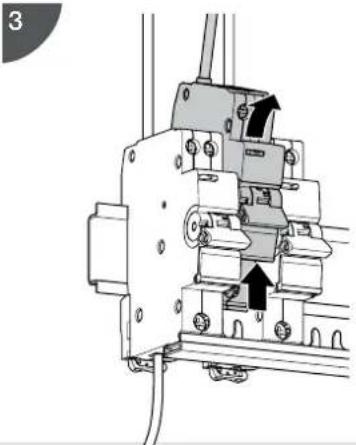

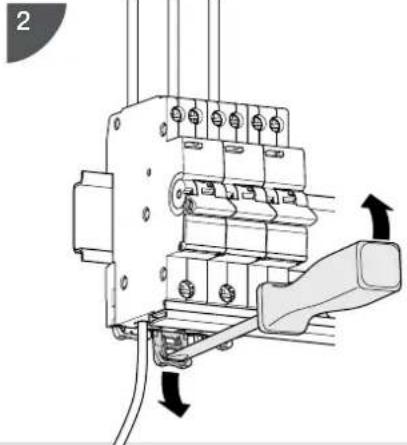

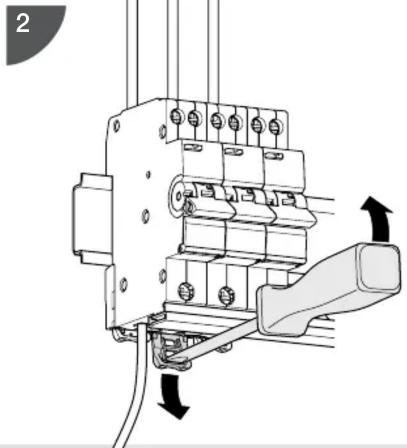

Easy dismounting with the plastic DIN rail clip
RCBO 1 module suitable for DIN rail mount & Invicta panel board


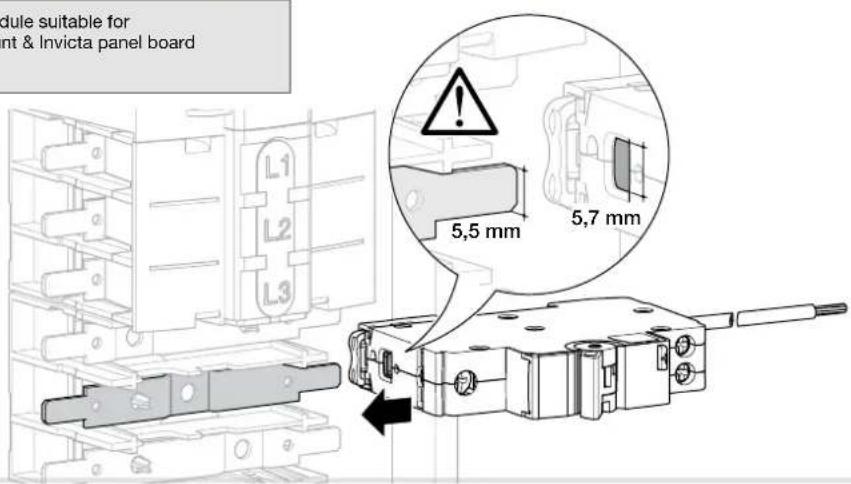

Module suitable for ant & Invicta panel board L1 L2 L3 5,5 mm 5,7 mm


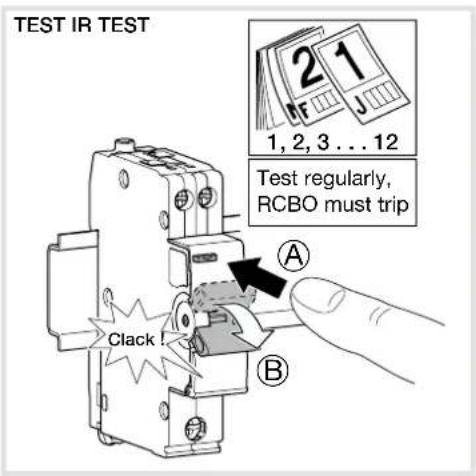

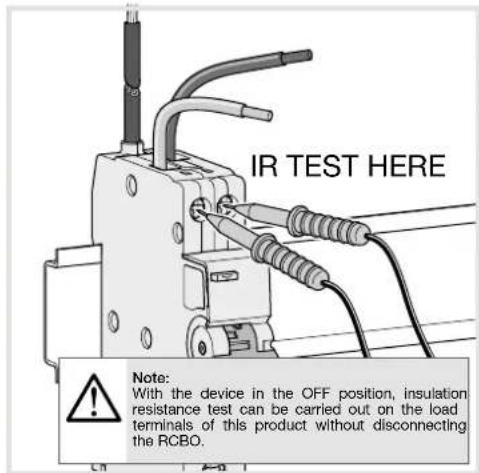

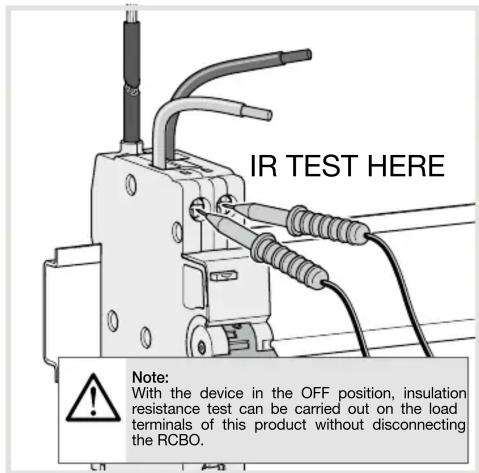

TEST IR TEST 1, 2, 3 ... 12 Test regularly, RCBO must trip Clack A B


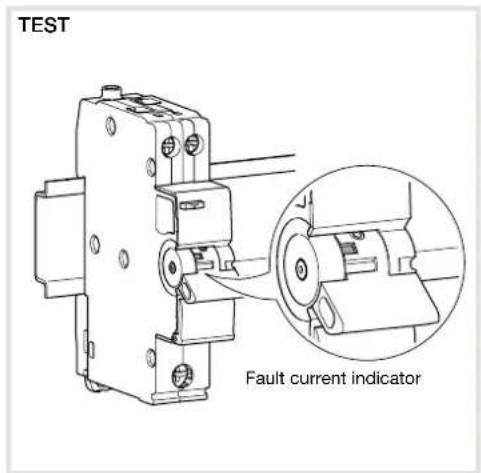

TEST Fault current indicator
