BRUKSANVISNING STS800 Kantek

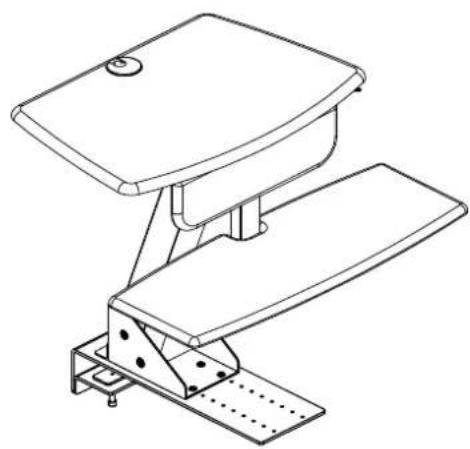

STS800 STS800W


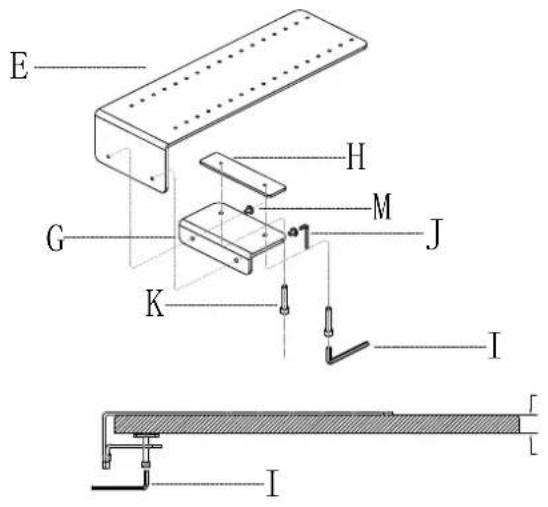

A X1 | B X1 | C X1 | G X1 | |||||
H X1 | ||||||||
D E F |  |  X1 | I X1 | |||||
| JX1 | K L M NX1 | PX2 | X8 | X2 | 0X2X14 | X1 | ||
STEP. 1 STEP. 2
STEP. 3-1 STEP. 3-2
Option A Option B

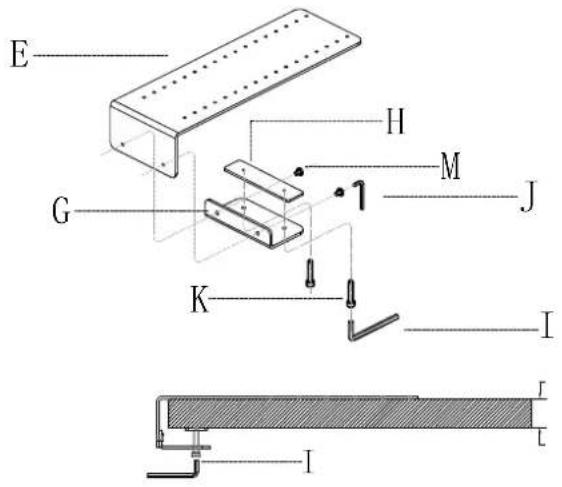

For desk thickness less than 1.57"
For desk thickness 1.57"-2.95"

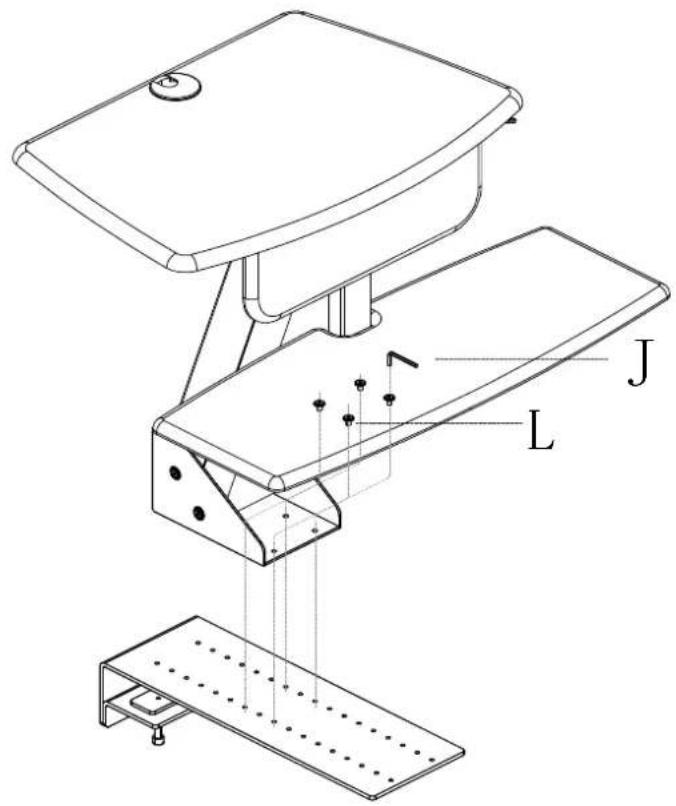

STEP. 4


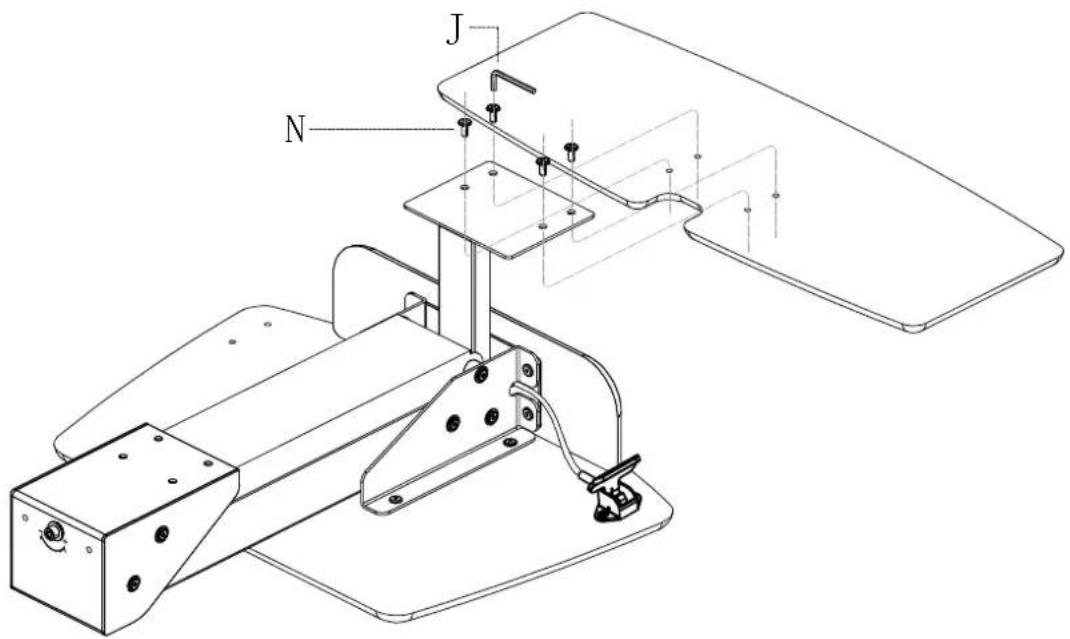

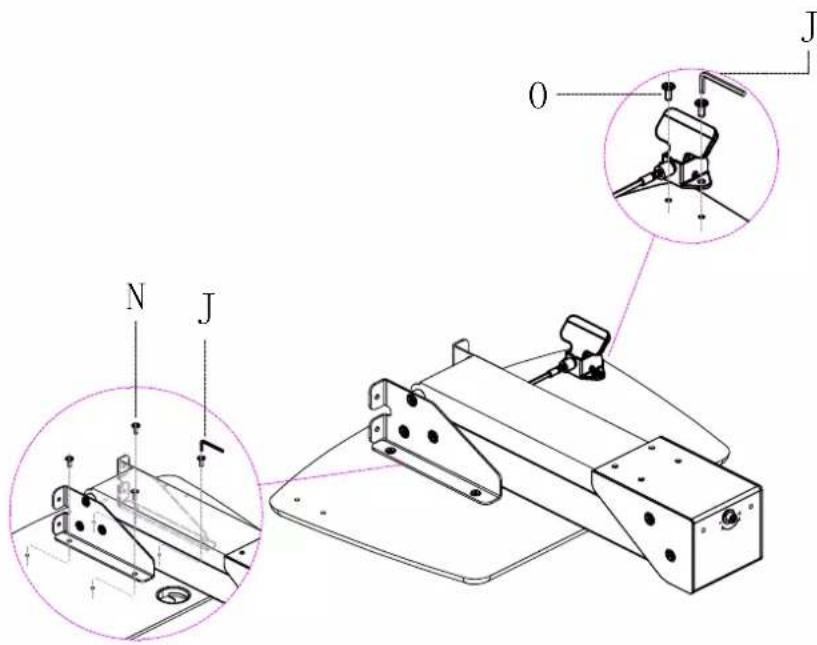

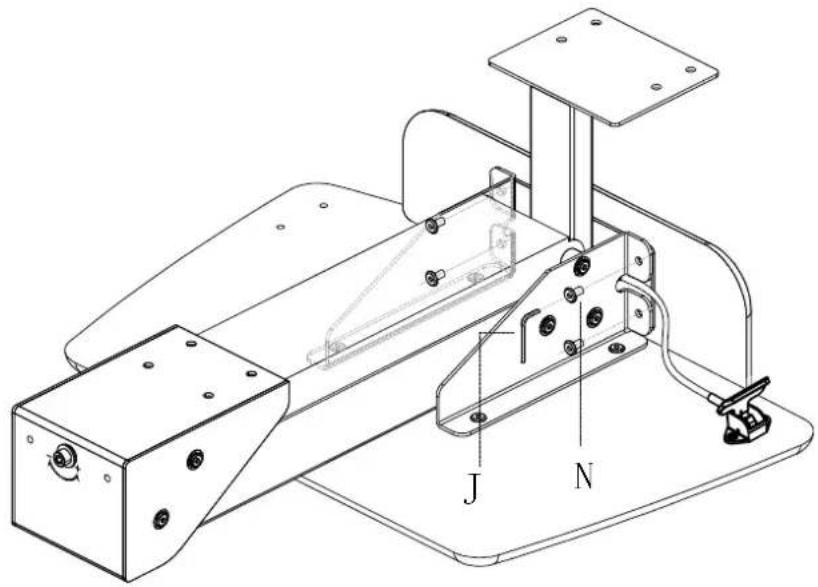

Technical line drawing of a mechanical device with labeled components J and N (no text or symbols beyond labels)STEP. 5


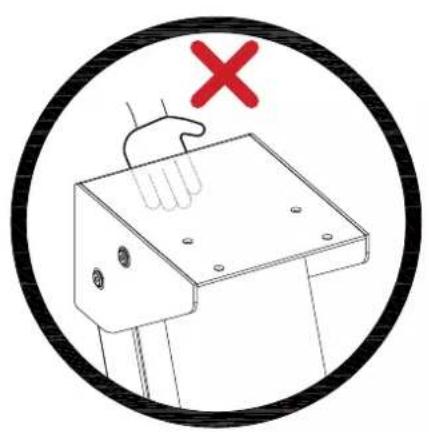

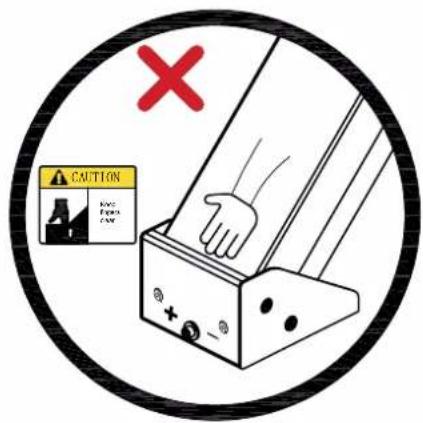

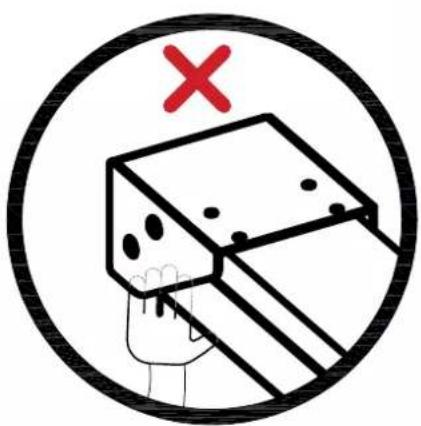

Simple line drawing of a hand pressing down on a workbench within a circle, with a red X mark above (no text or symbols)

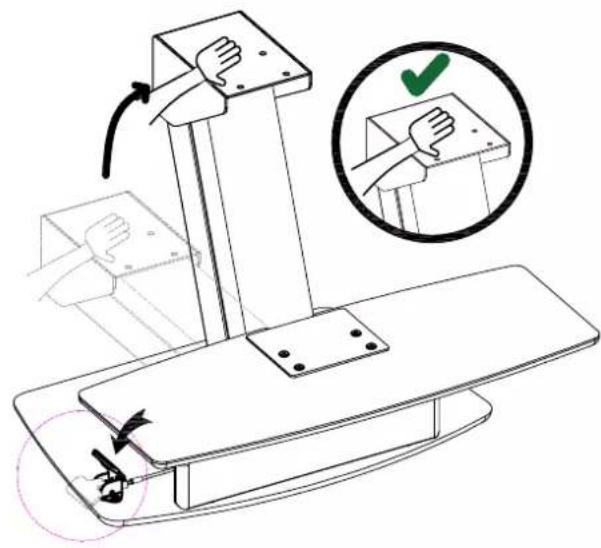

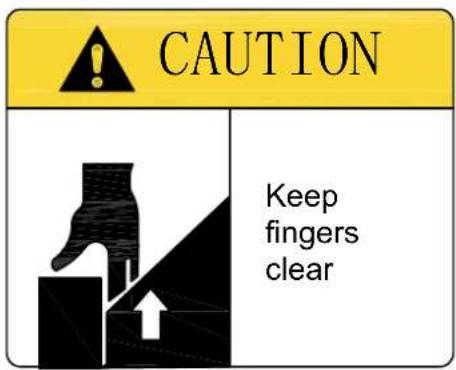

NOTE: HOLD THE ARM DOWN WITH ONE HAND, WHILE PRESSING THE "RELEASE LEVER", TO PREVENT THE ARM FROM RISING TOO QUICKY.

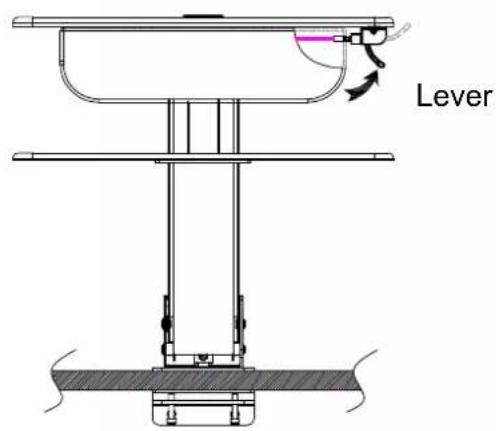

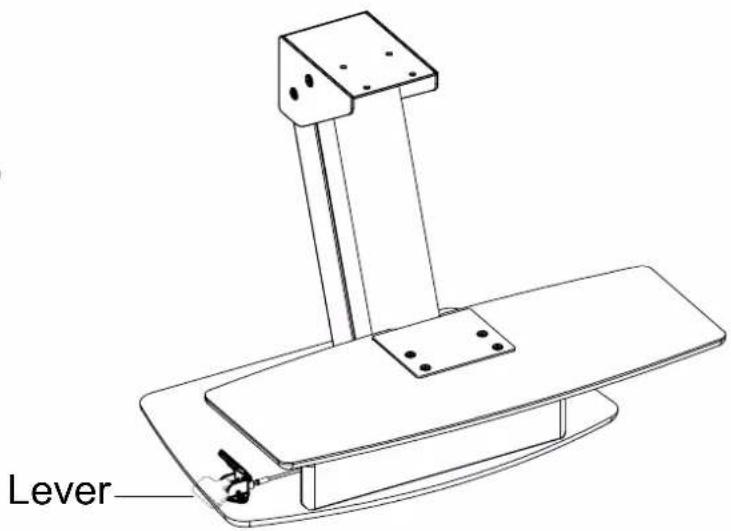

Gently press lever to release arm, and raise slowly.
STEP. 7

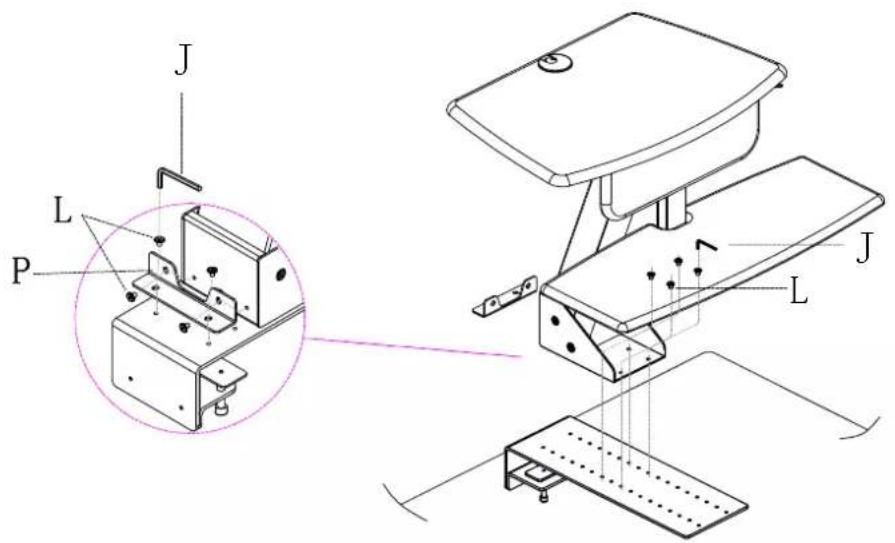

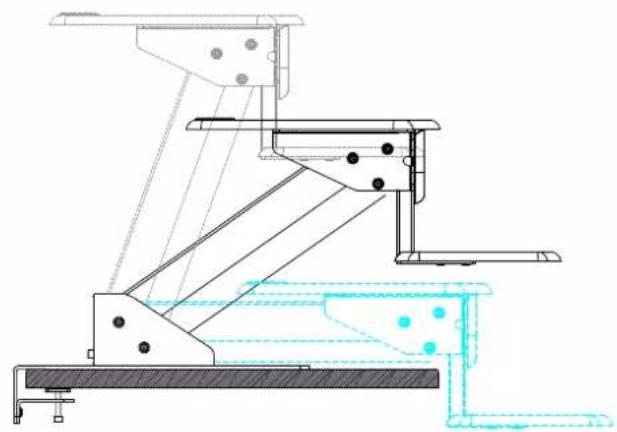

Positioning installation of the arm mechanism
To determine position of the mechanism refer to the enclosed template
STEP. 8

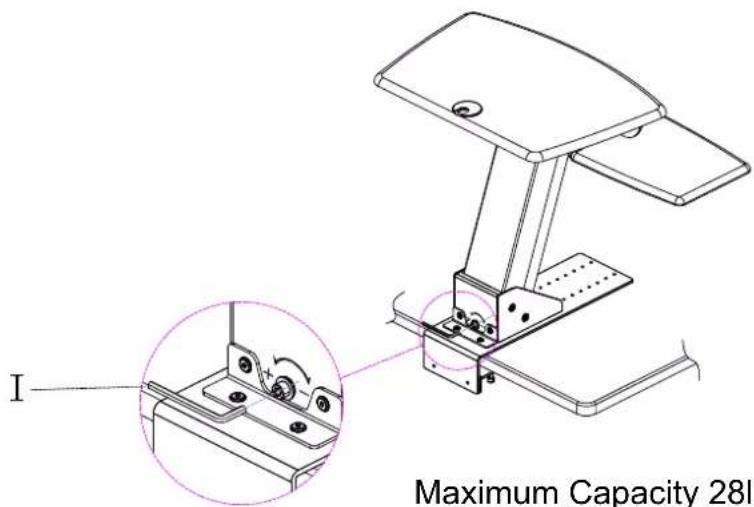

"+" Increase tension to accommodate additional weight
"-" Decrease tension for less weight
STEP. 8-1 STEP. 8-2
Maximum Capacity 28lbs

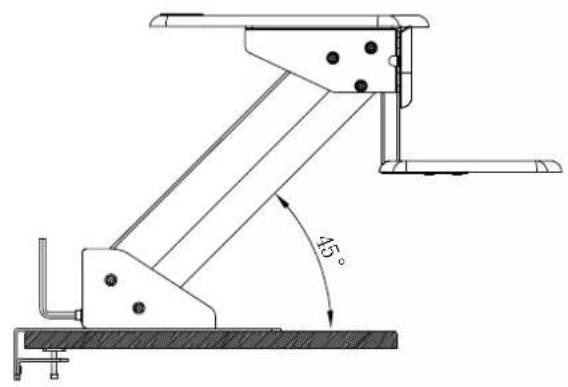

STEP. 9
While pressing lever, raise and lower to desired height.
Release lever to lock arm in position.


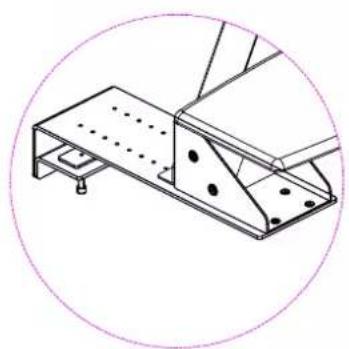

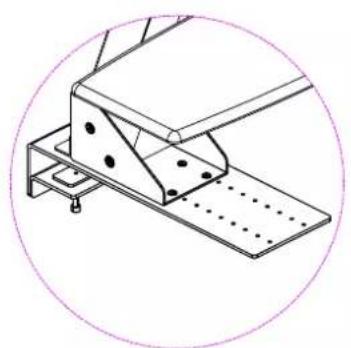

Technical line drawing of a staircase with structural components and mounting feet (no text or symbols)Positioning installation of the arm mechanism
-
Measure the depth of the desk or mounting surface.
-
Select position of the arm base using the template below.
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | ○ | |
| ○ | 23.5 INCH | |
| ○ | 24.5 INCH | |
| ○ | 25.5 INCH | |
| ○ | 26.5 INCH | |
| ○ | 27.5 INCH | |
| ○ | 28.5 INCH | |
| ○ | 29.5 INCH | |
| ○ | 30.5 INCH | |
| ○ | 31.5 INCH |
