Last ned instruksjonene for din Stol i PDF-format gratis! Finn veiledningen din Pacific PAC51R107 - Ave Six og ta den elektroniske enheten tilbake i hendene. På denne siden er alle dokumenter som er nødvendige for bruken av enheten din publisert. Pacific PAC51R107 av merket Ave Six.
BRUKSANVISNING Pacific PAC51R107 Ave Six


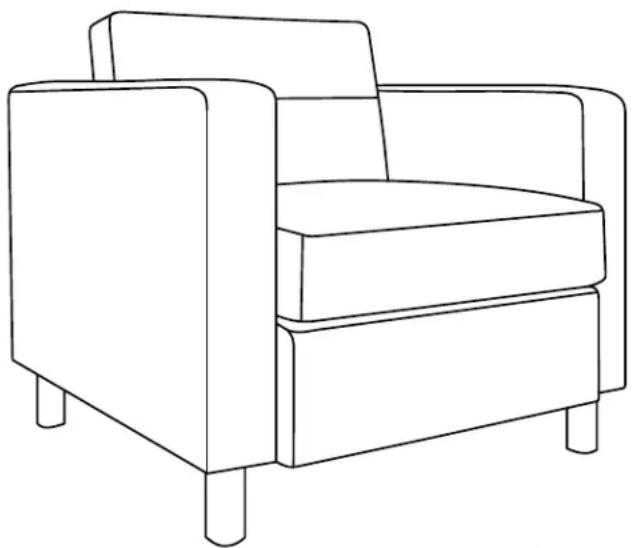

Line drawing of a simple armchair with four legs and two side panels (no text or symbols)AVE·SIX®
furnish your lifestyle
P.O. Box 3520, Ontario, CA 91761
Customer Service: 1-800-950-7262
www.avesix.com
LIMITED WARRANTY
Office Star Products warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. Office Star Products will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. Replacement parts can only be supplied if parts are available. Items out of production may be unavailable. This warranty shall be effective for the applicable time period beginning from the date of purchase as shown on your original sales receipt. This warranty is your sole remedy for product defects and excludes defects due to or arising in connection with product abuse or misuse, use modification of, or attachments to the product, and products or parts not used, maintained, or installed in accordance with the company's installation, maintenance and/or applicable guidelines. There are no other warranties, express or implied, other than those specifically described, including without limitation any implied warranty of merchantability or of fitness for a particular purpose. Office Star Products will not be responsible for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.avesix.com, email or write us.
 |  |
| 1 (Back) - 1 Piece | 2 (Seat) - 1 Piece |
 |  |
| 3 (Right Arm & Left Arm) - 2 Pieces | 4 (Back Cushion) - 1 Piece |
 |  |
| 5 (Seat Cushion) - 1 Piece | 6 (Leg) - 4 Pieces |
HARDWARE LIST
| A |  | BOLT | 8 PCS |
| B |  | LOCK WASHER | 8 PCS |
| C |  | FLAT WASHER | 8 PCS |
| D |  | ALLEN WRENCH | 1 PC |

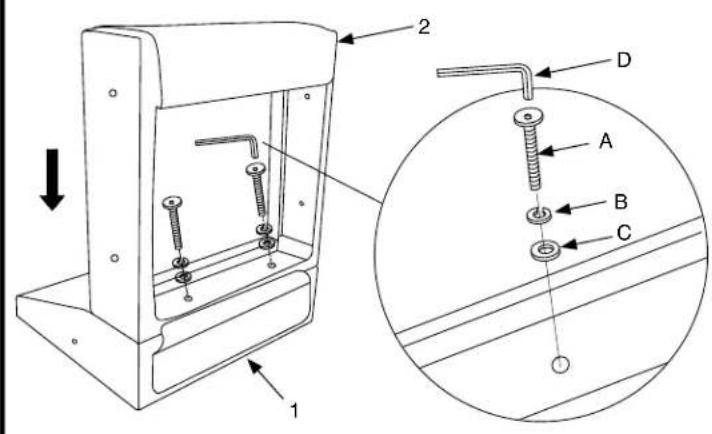

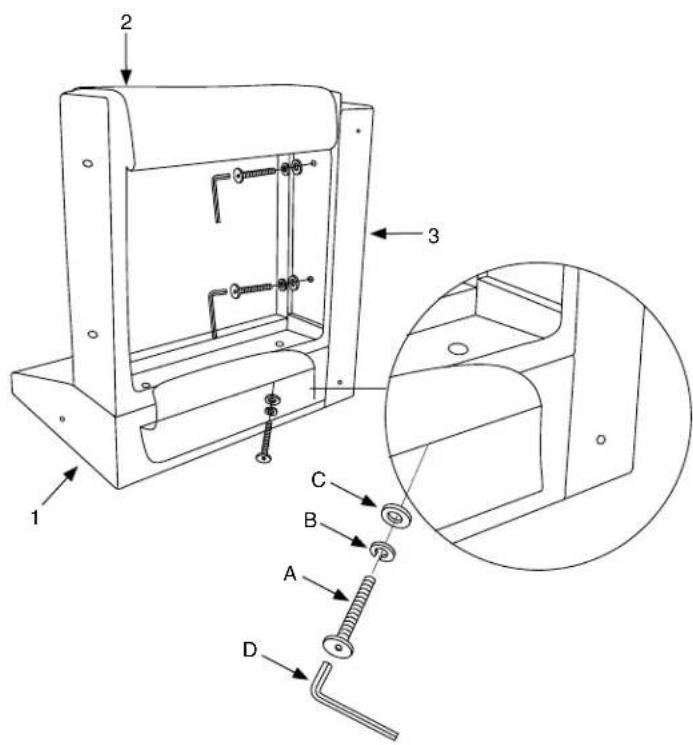

Step 1 Step 2

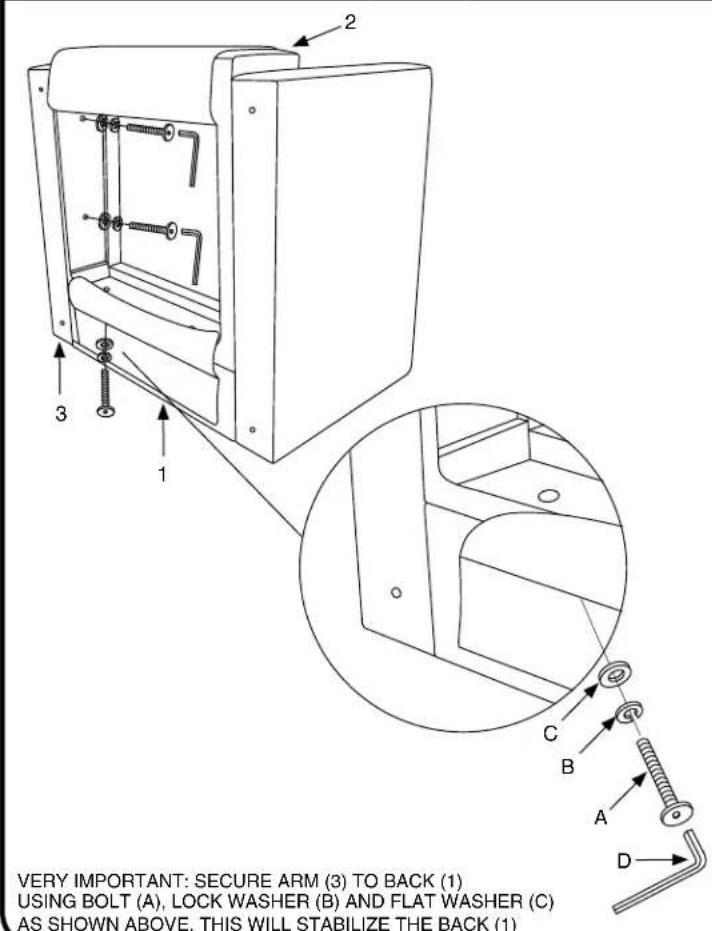

VERY IMPORTANT: SECURE ARM (3) TO BACK (1) USING BOLT (A), LOCK WASHER (B) AND FLAT WASHER (C) AS SHOWN ABOVE. THIS WILL STABILIZE THE BACK (1)

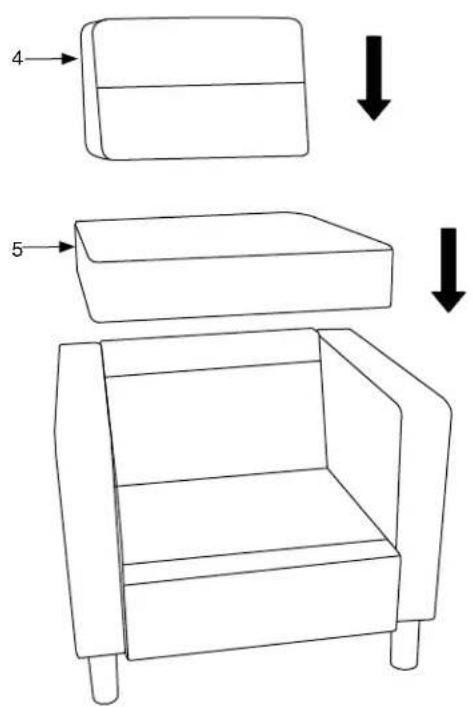

Step 3 Step 4


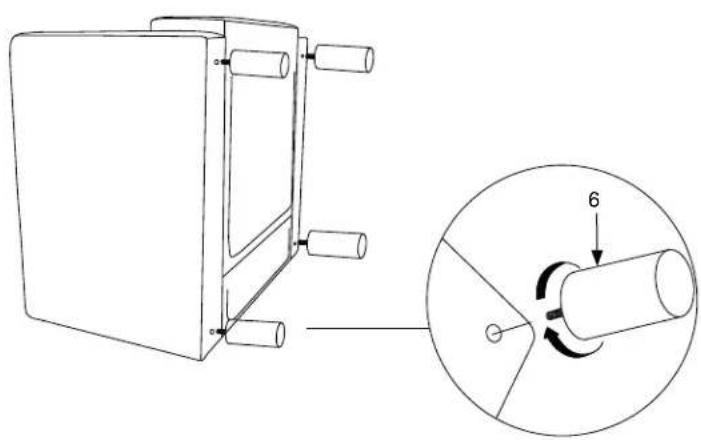

Technical line drawing of a mechanical component with an inset showing a rotating cylindrical component (no text or symbols)Step 5
