BRUKSANVISNING FX5 Massive
FAZE
Series Component & Co-Axial
General Features:
* Heavy Gauge Steel Basket With Thick Powder Coating, MASSIVE Punched Logo(FX6/FK6/FX69)
* Custom Made Massive Logo 2 Way Tweeter Plate
* Built-in 6dB Crossover(Co-Axial)
* High-Energy Y35 Magnets Assure Sufficient Magnet Force Needed
* Custom Designed Pole Piece For Low Distortion And Sound Quality
* Two Piece Custom Paintable Metal Grills(Except FX57)
* Rugged Construction To Withstand Harsh Mobile Environment
* Custom Fiber Glass Cone With Butyl Rubber Surround
* Fully Isolated Tinsel Leads To Eliminate Crosstalk
* High Quality Cloth Spider With Polyester Fiber
*1" High Temperature 100% Pure KSV Voice Coil
* 20mm Inverted Aluminum Dome Tweeter With Ferro Fluid Cooled V.C.
* Competition Grade 12dB Crossover(Kit)
Specifications:
| Model FX4 FX5 FX57 FX6 FX69 FK6 | ||||||
| Woofer Size 4" 5.25" 5*7" 6.5" 6*9" 6.5" | ||||||
| Tweeter Size 20mm 20mm 20mm | 20mm 20mm | 20mm | ||||
| Frequency Range | 70-20KHz | 70-20KHz | 58-20KHz | 58-20KHz | 50-20KHz | 58-20KHz |
| SPL@2.83V/1m | 87dB | 90dB | 91dB | 91dB | 92dB | 92dB |
| Watts RMS | 50W | 60W | 70W | 75W | 80W | 80W |
| Maximum Power | 100W | 120W | 140W | 150W | 160W | 160W |
| Peak Power | 200W | 240W | 280W | 300W | 320W | 320W |
| Impedance | 4OHM | 4OHM | 4OHM | 4OHM | 4OHM | 4OHM |

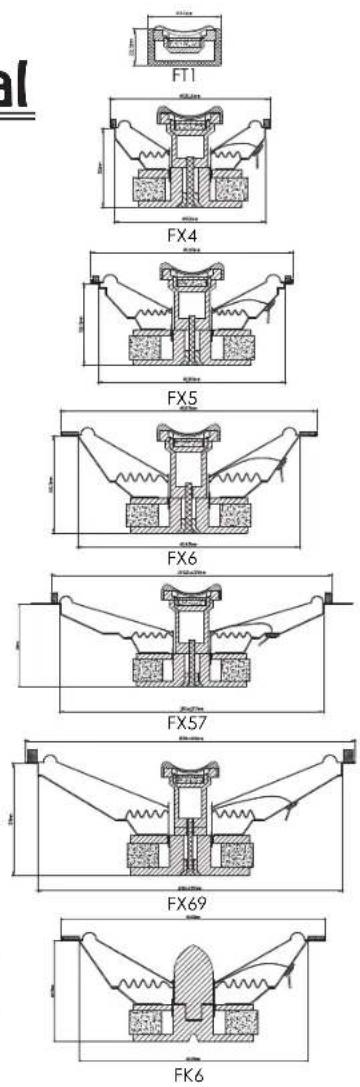

| Frame Diameter | 3.98" | 5.12" | 5.5X8.60" | 6.54" | 6.5"x9.27" | 6.54" |
| Mounting Depth | 2" | 2.06" | 2.24" | 2.46" | 3.3" | 2.46" |
| Mounting Diameter | 3.97" | 4.72" | 4.96"x7.1" | 5.6" | 6.25"x8.58" | 5.6" |
P.O. Box 252004 Los Angeles, CA 90025 U.S.A. WWW.MASSIVEAUDIO.COM
