BRUKSANVISNING VOADS5241SS VIKING

Installation MANUAL

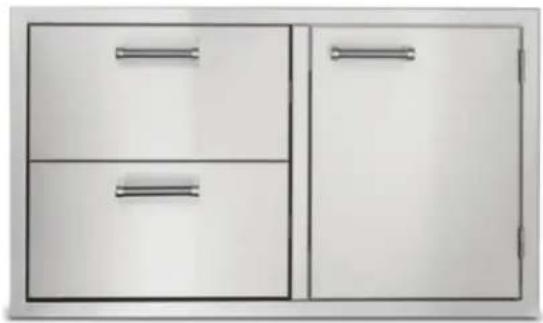

VIKING VOADS5241SS - Installation MANUAL - 1

natural_image Simple diagram of a two-door cabinet with two drawers and one door, no text or symbols present.

VIKING VOADS5241SS - Installation MANUAL - 2

natural_image Blank white rectangular panel with a small rectangular slot on the left side (no text or symbols)

5 SERIES

Outdoor Access Doors / Drawers

VOADS5181/VOADS5241

VODRD5191

VOADD5301/VOADD5361/VOADD5421

VOADDR5301/VOADDR5361/VOADDR5421

VOADS5181 - 18" DOOR

Product Dimensions

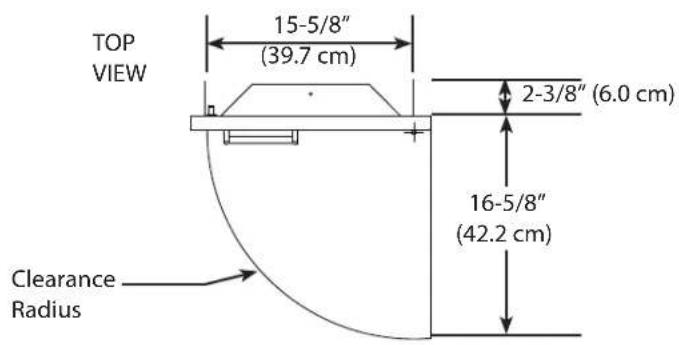

TOP VIEW 15-5/8" (39.7 cm) 2-3/8" (6.0 cm) 16-5/8" (42.2 cm) Clearance Radius

VIKING VOADS5241SS - VOADS5181 - 18" DOOR - 2

natural_image Isometric line drawing of a rectangular frame with a handle and side connectors (no text or symbols)

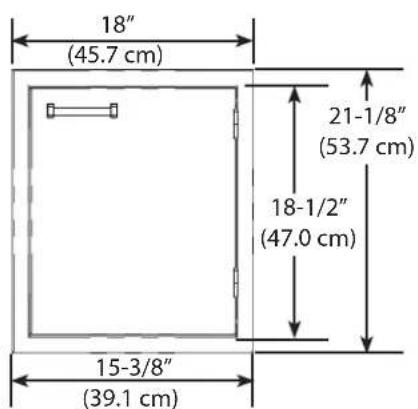

FRONT VIEW
18" (45.7 cm) 21-1/8" (53.7 cm) 18-1/2" (47.0 cm) 15-3/8" (39.1 cm)

SIDE VIEW
2-3/8" (6.0 cm) 18-3/4" (47.6 cm) 1-1/4" (3.2 cm)

Cutout Dimensions

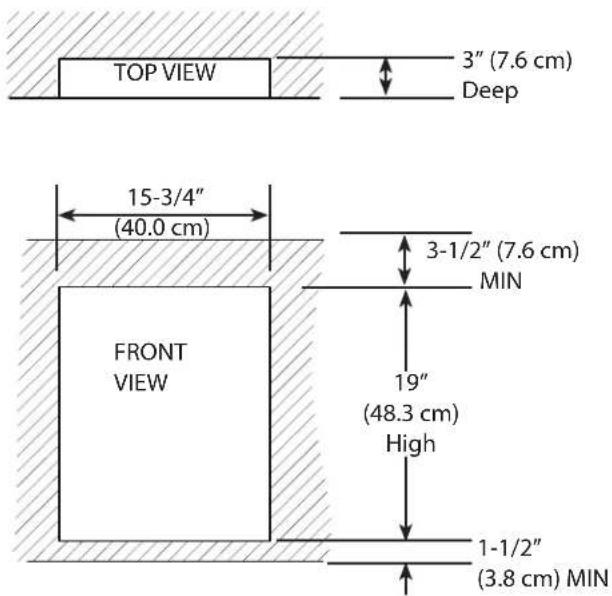

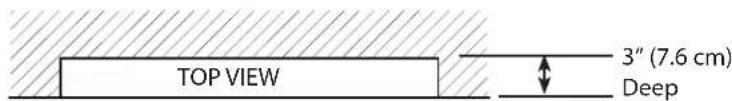

TOP VIEW 3" (7.6 cm) Deep 15-3/4" (40.0 cm) FRONT VIEW 3-1/2" (7.6 cm) MIN 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN

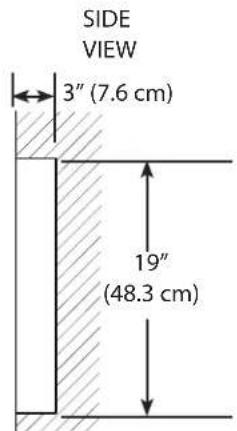

SIDE VIEW 3" (7.6 cm) 19" (48.3 cm)

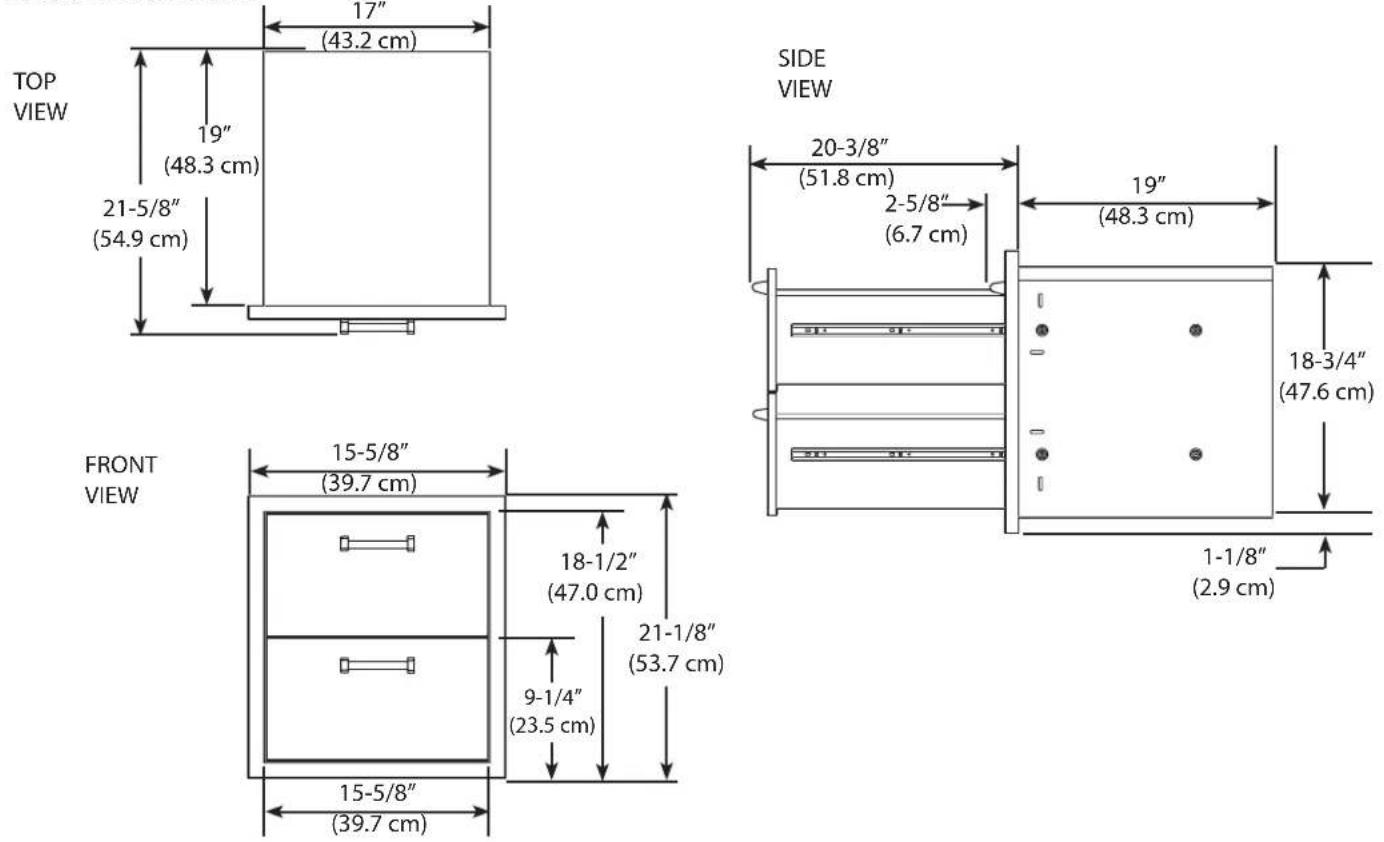

VODRD5191 - 19" DRAWERS

Product Dimensions
VIKING VOADS5241SS - VODRD5191 - 19" DRAWERS - 1

Cutout Dimensions

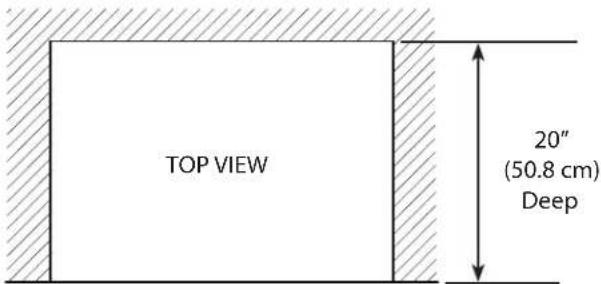

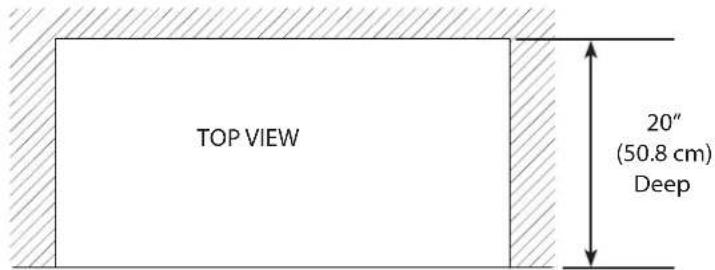

TOP VIEW 20" (50.8 cm) Deep

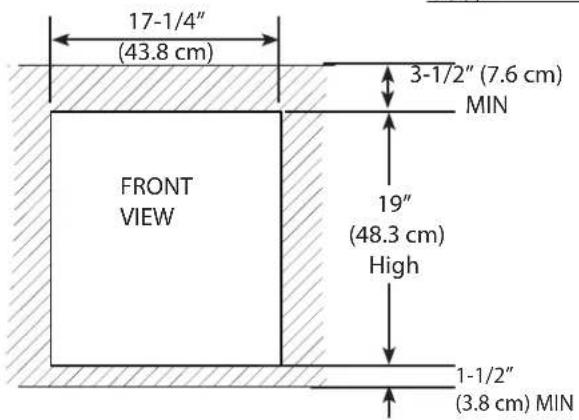

17-1/4" (43.8 cm) 3-1/2" (7.6 cm) MIN FRONT VIEW 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN

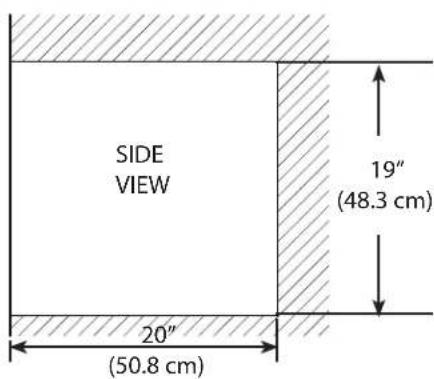

SIDE VIEW 19" (48.3 cm) 20" (50.8 cm)

VOADS5241 - 24" DOOR

Product Dimensions

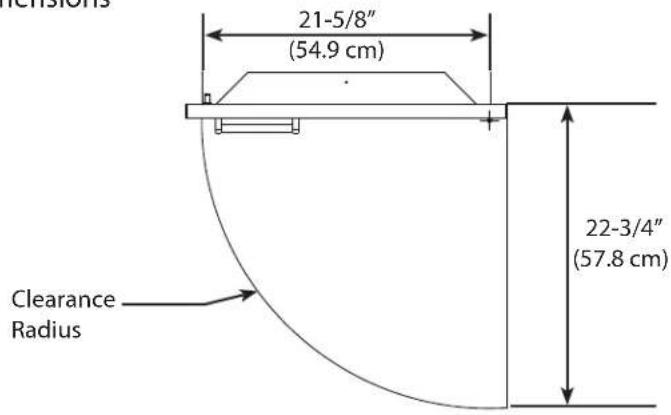

TENSIONS 21-5/8" (54.9 cm) 22-3/4" (57.8 cm) Clearance Radius

VIKING VOADS5241SS - VOADS5241 - 24" DOOR - 2

natural_image Technical line drawing of a rectangular frame with a handle and mounting holes (no text or symbols)

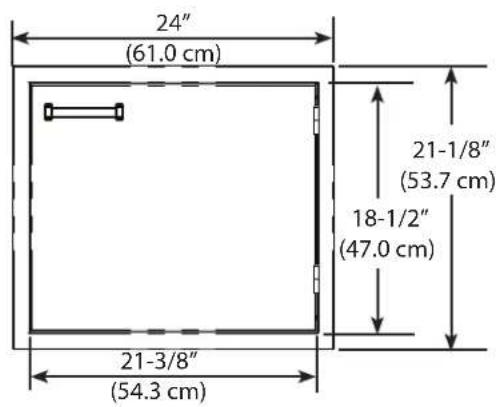

FRONT VIEW
24" (61.0 cm) 21-1/8" (53.7 cm) 18-1/2" (47.0 cm) 21-3/8" (54.3 cm)

SIDE VIEW
2-5/8" (6.7 cm) 18-3/4" (47.6 cm) 1-1/4" (3.2 cm)

Cutout Dimensions

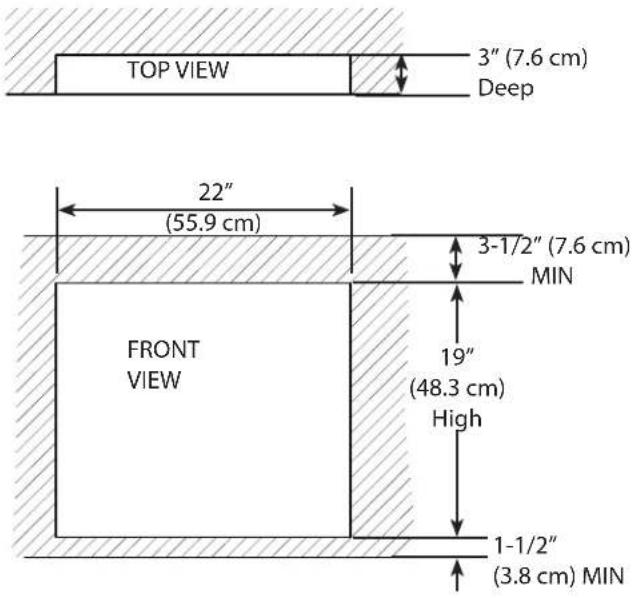

TOP VIEW 3" (7.6 cm) Deep 22" (55.9 cm) 3-1/2" (7.6 cm) MIN FRONT VIEW 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN

SIDE VIEW 3" (7.6 cm) 19" (48.3 cm)

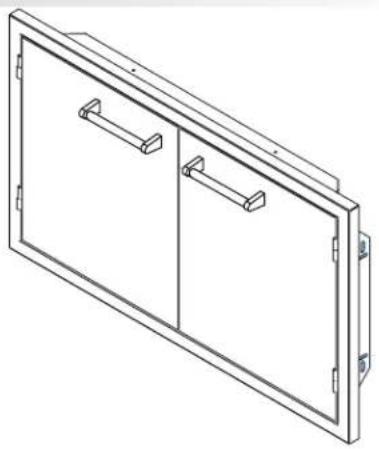

Product Dimensions

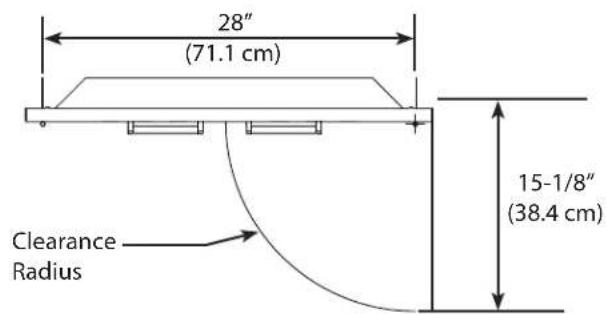

28" (71.1 cm) Clearance Radius 15-1/8" (38.4 cm)

VIKING VOADS5241SS - Product Dimensions - 2

natural_image Technical line drawing of a two-panel door frame with handle bars (no text or symbols)

FRONT VIEW

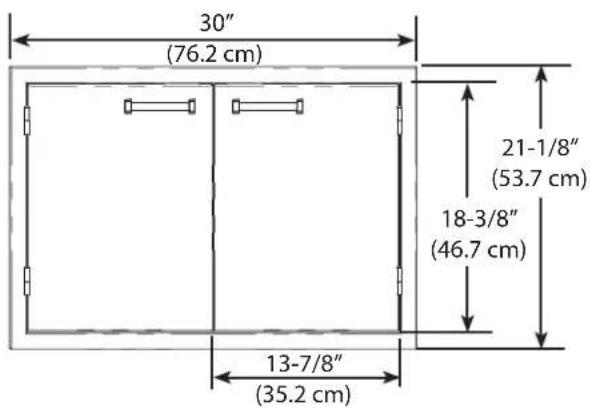

30" (76.2 cm) 21-1/8" (53.7 cm) 18-3/8" (46.7 cm) 13-7/8" (35.2 cm)

SIDE VIEW
2-1/4" (5.7 cm) 18-3/4" (47.6 cm) 1-1/4" (3.2 cm)

TOP VIEW 3" (7.6 cm) Deep

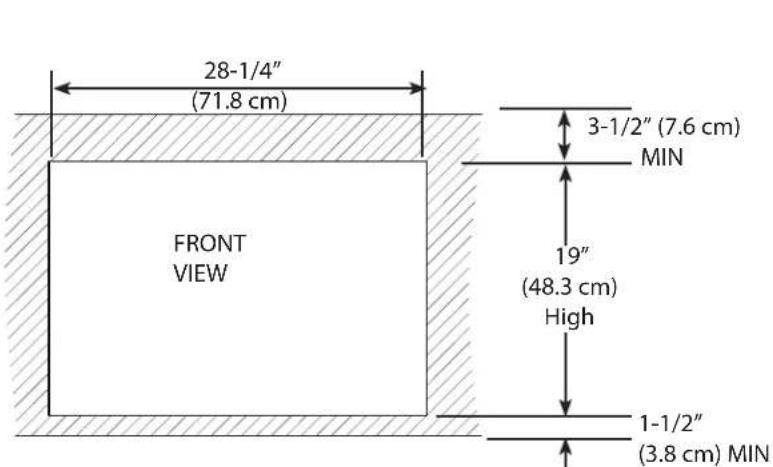

28-1/4" (71.8 cm) 3-1/2" (7.6 cm) MIN FRONT VIEW 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN

SIDE VIEW 3" (7.6 cm) 19" (48.3 cm)

VOADDR5301 - 30" DOOR / DRAWERS

Product Dimensions

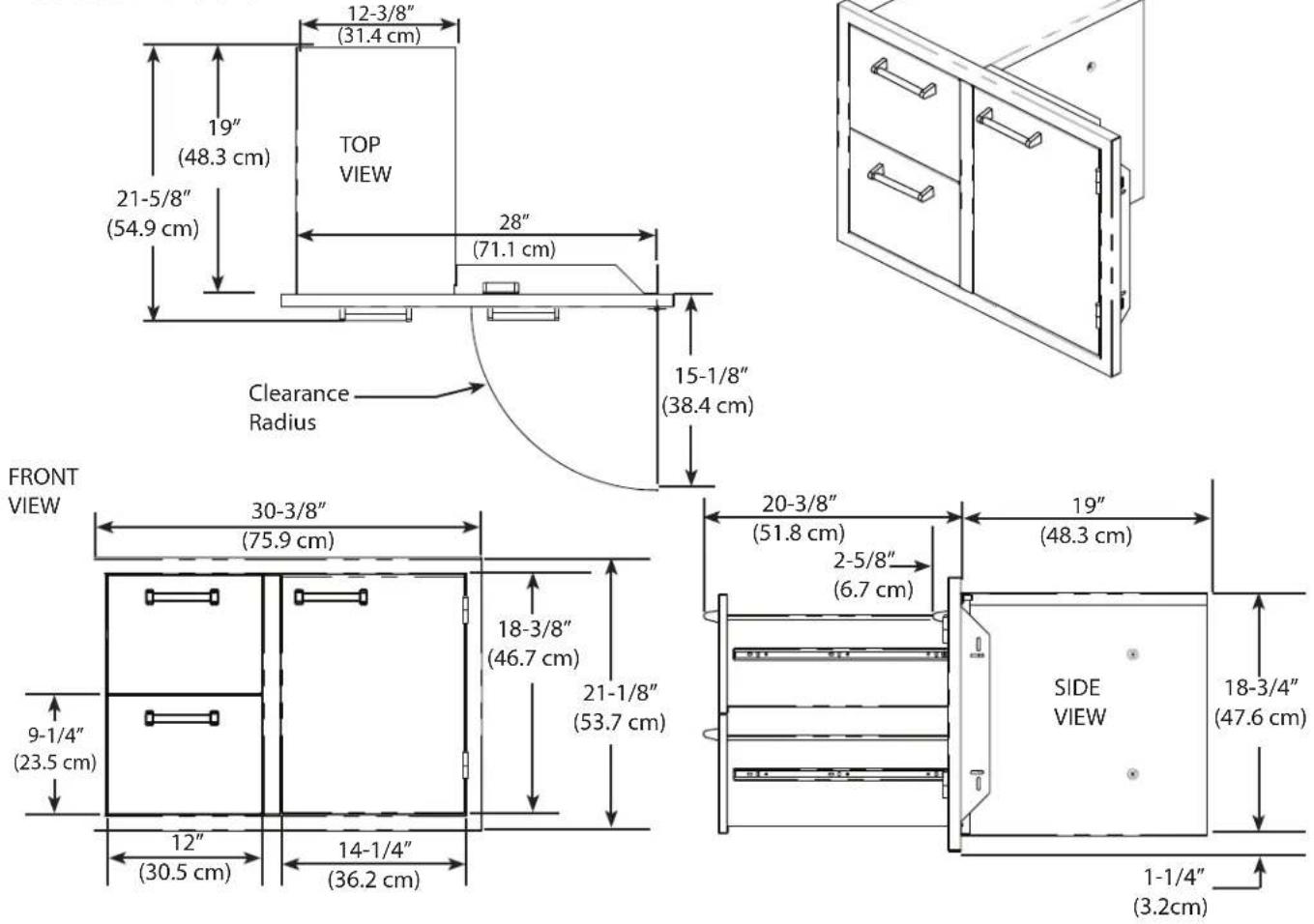

VIKING VOADS5241SS - VOADDR5301 - 30" DOOR / DRAWERS - 1

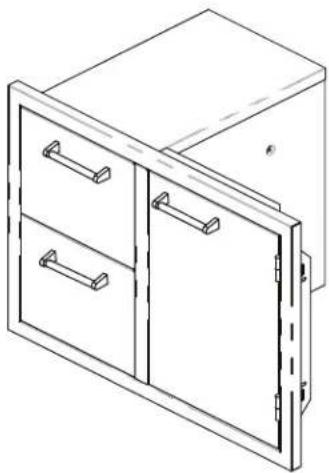

VIKING VOADS5241SS - VOADDR5301 - 30" DOOR / DRAWERS - 2

natural_image Line drawing of a cabinet with two doors and three drawers (no text or symbols)

Cutout Dimensions

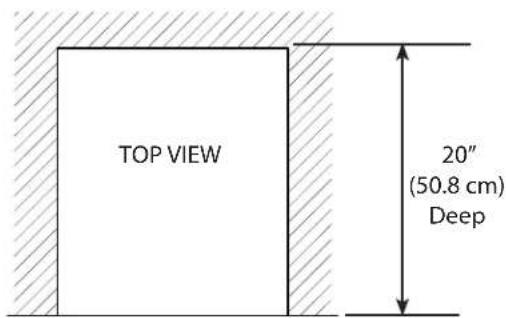

TOP VIEW 20" (50.8 cm) Deep

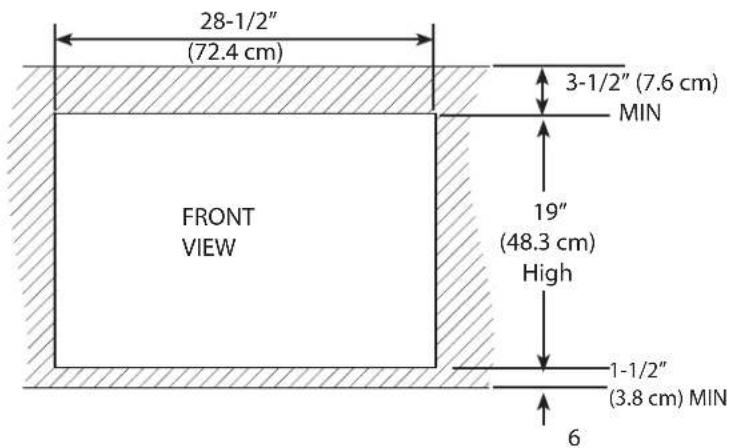

28-1/2" (72.4 cm) 3-1/2" (7.6 cm) MIN FRONT VIEW 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN 6

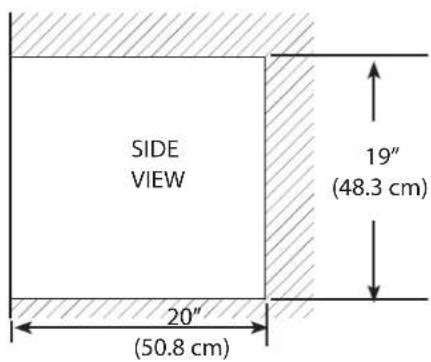

SIDE VIEW 19" (48.3 cm) 20" (50.8 cm)

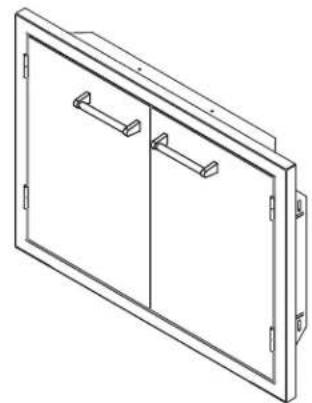

Product Dimensions

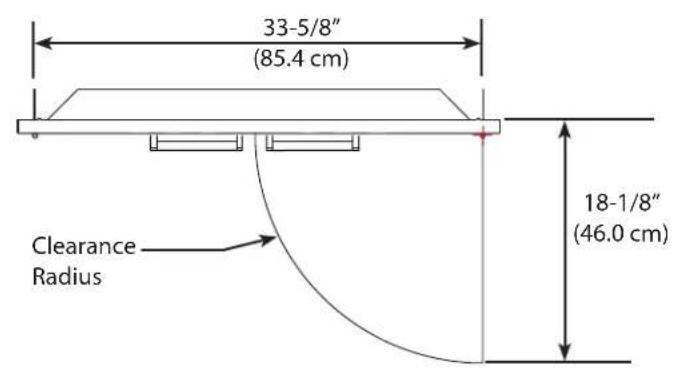

33-5/8" (85.4 cm) 18-1/8" (46.0 cm) Clearance Radius

VIKING VOADS5241SS - Product Dimensions - 2

natural_image Line drawing of a two-panel door frame with handle bars (no text or symbols)

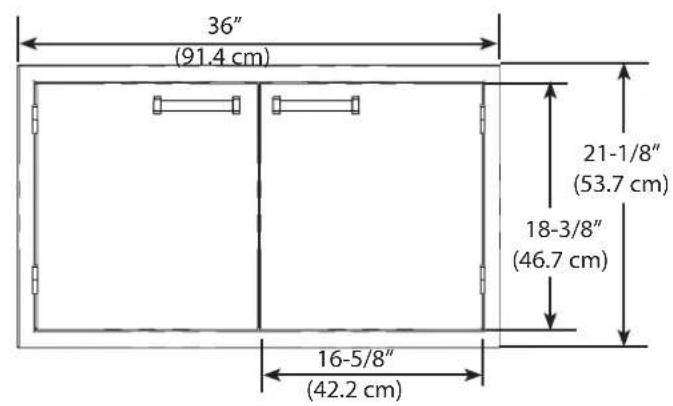

FRONT VIEW
36" (91.4 cm) 21-1/8" (53.7 cm) 18-3/8" (46.7 cm) 16-5/8" (42.2 cm)

SIDE VIEW 2-3/4" (7.0 cm) 18-3/4" (47.6 cm) 1-1/4" (3.2 cm)

Cutout Dimensions

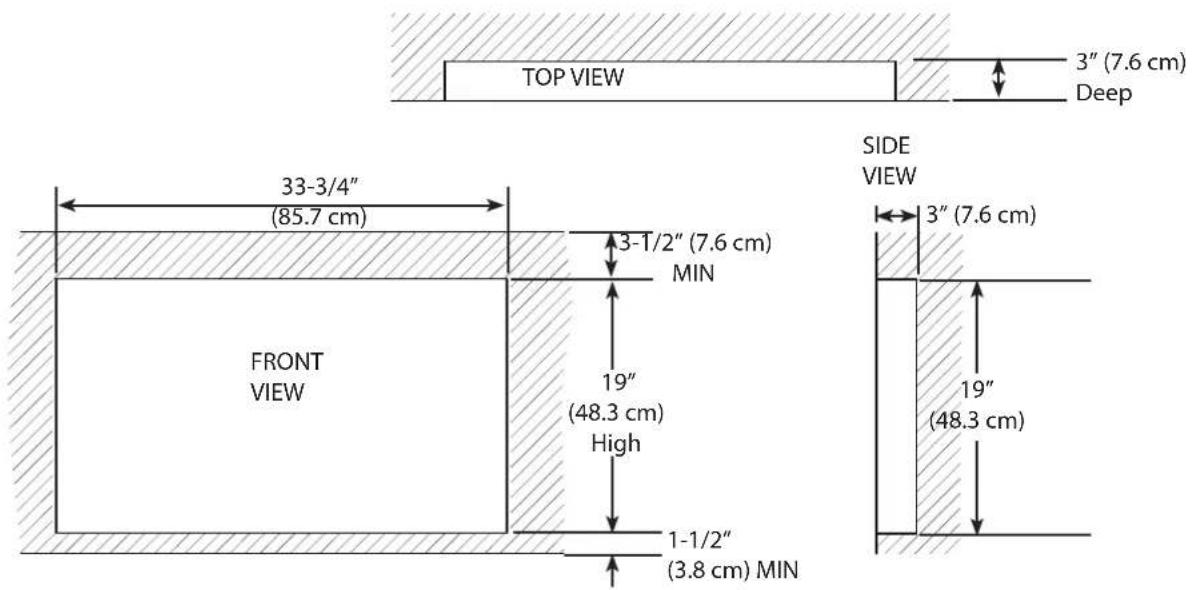

TOP VIEW 3" (7.6 cm) Deep 33-3/4" (85.7 cm) FRONT VIEW 3-1/2" (7.6 cm) MIN 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN SIDE VIEW 3" (7.6 cm) 19" (48.3 cm)

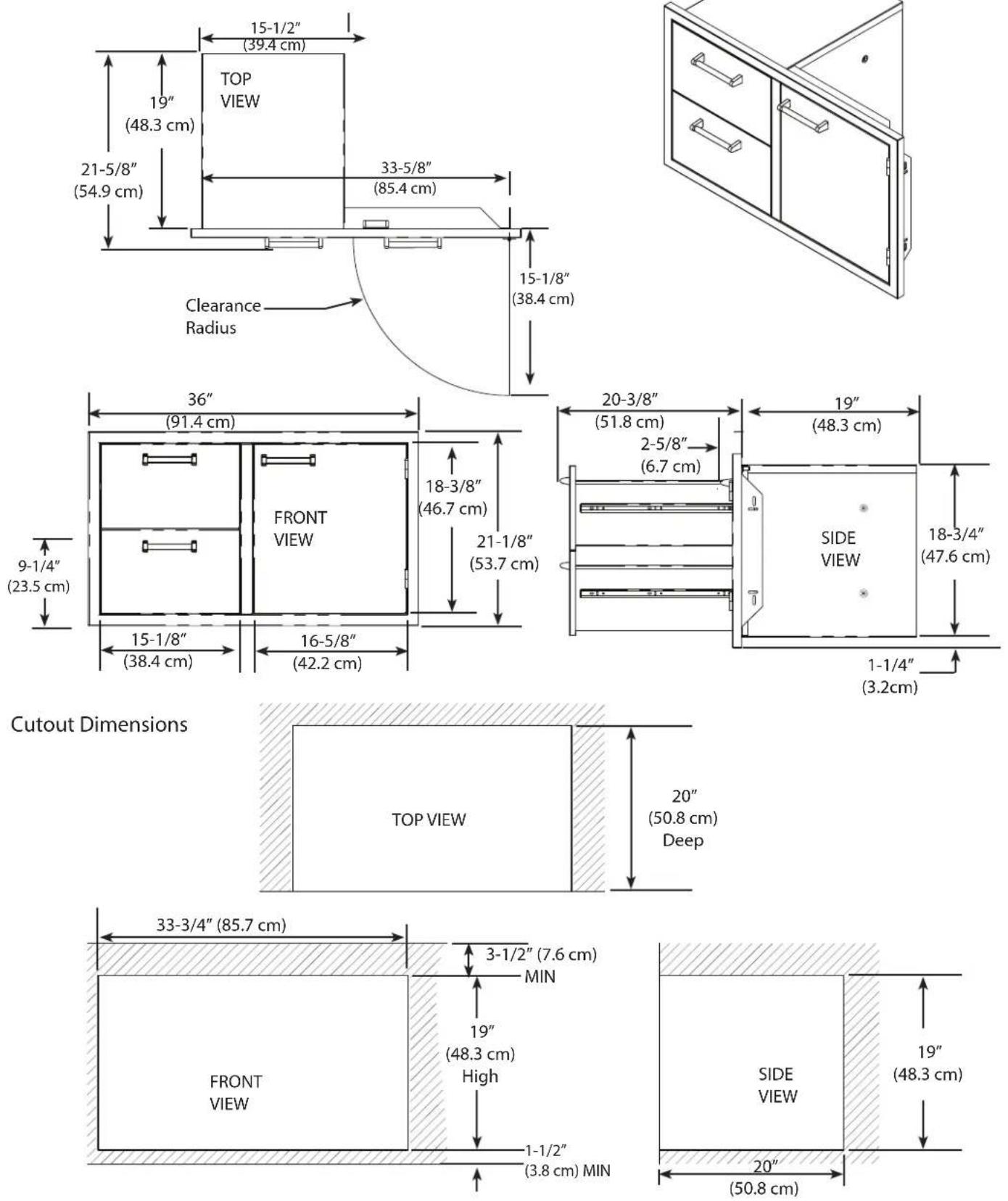

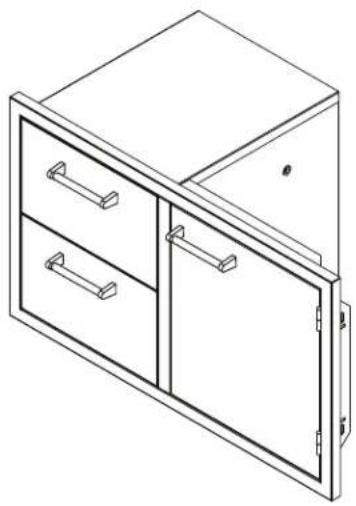

VOADDR5361 - 36" DOOR / DRAWER

Product Dimensions
VIKING VOADS5241SS - VOADDR5361 - 36" DOOR / DRAWER - 1

VIKING VOADS5241SS - VOADDR5361 - 36" DOOR / DRAWER - 2

natural_image Line drawing of a 3D cabinet or drawer with two drawers and one door (no text or symbols)

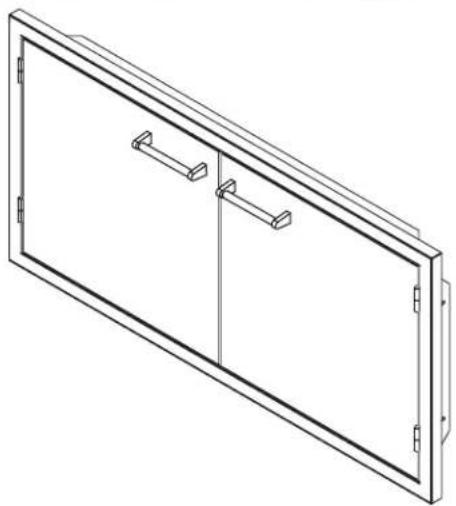

VOADD5421 - 42" DOOR

Product Dimensions

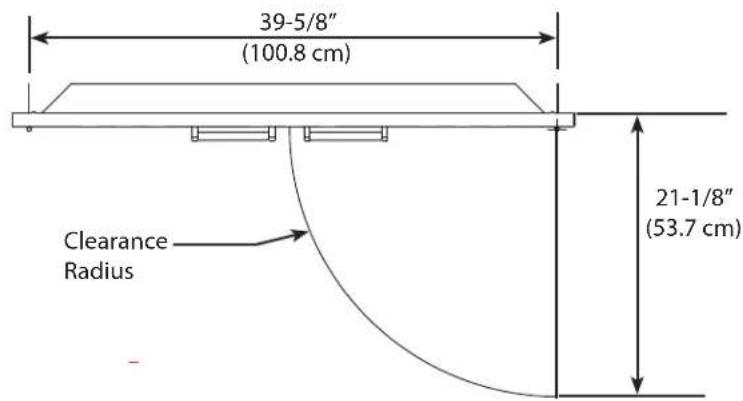

39-5/8" (100.8 cm) 21-1/8" (53.7 cm) Clearance Radius

VIKING VOADS5241SS - VOADD5421 - 42" DOOR - 2

natural_image Line drawing of a two-door door with two side handles (no text or symbols)

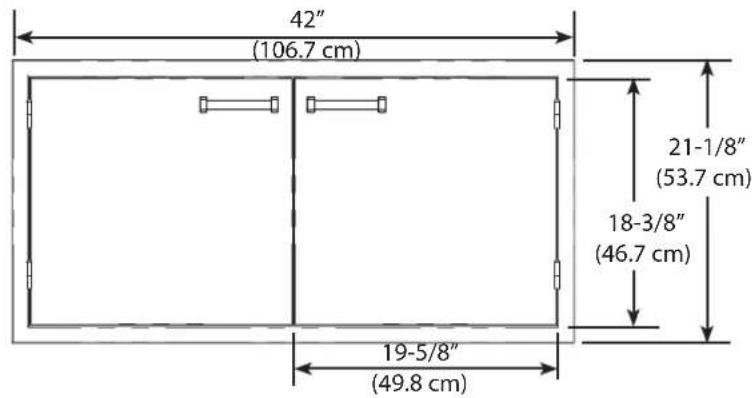

FRONT VIEW
42" (106.7 cm) 21-1/8" (53.7 cm) 18-3/8" (46.7 cm) 19-5/8" (49.8 cm)

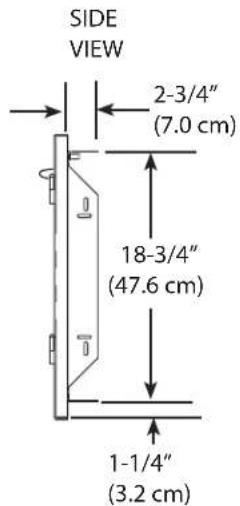

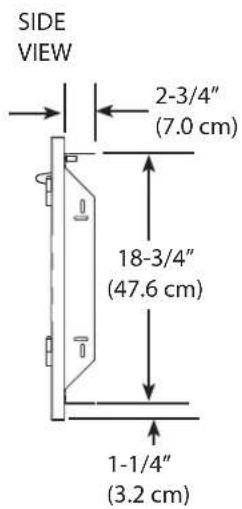

SIDE VIEW 2-3/4" (7.0 cm) 18-3/4" (47.6 cm) 1-1/4" (3.2 cm)

Cutout Dimensions

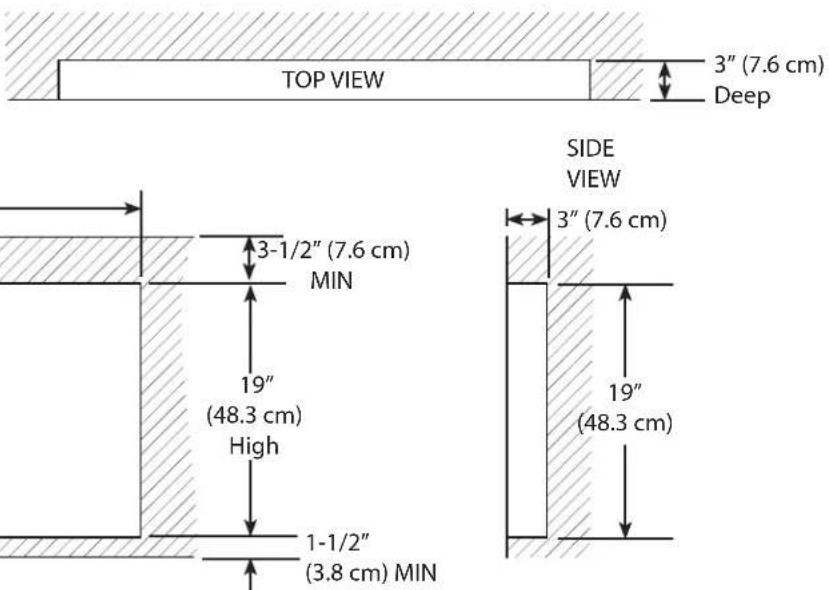

TOP VIEW 3" (7.6 cm) Deep SIDE VIEW 3" (7.6 cm) 3-1/2" (7.6 cm) MIN 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN 19" (48.3 cm)

VOADDR5421 - 42" DOOR / DRAWERS

Product Dimensions

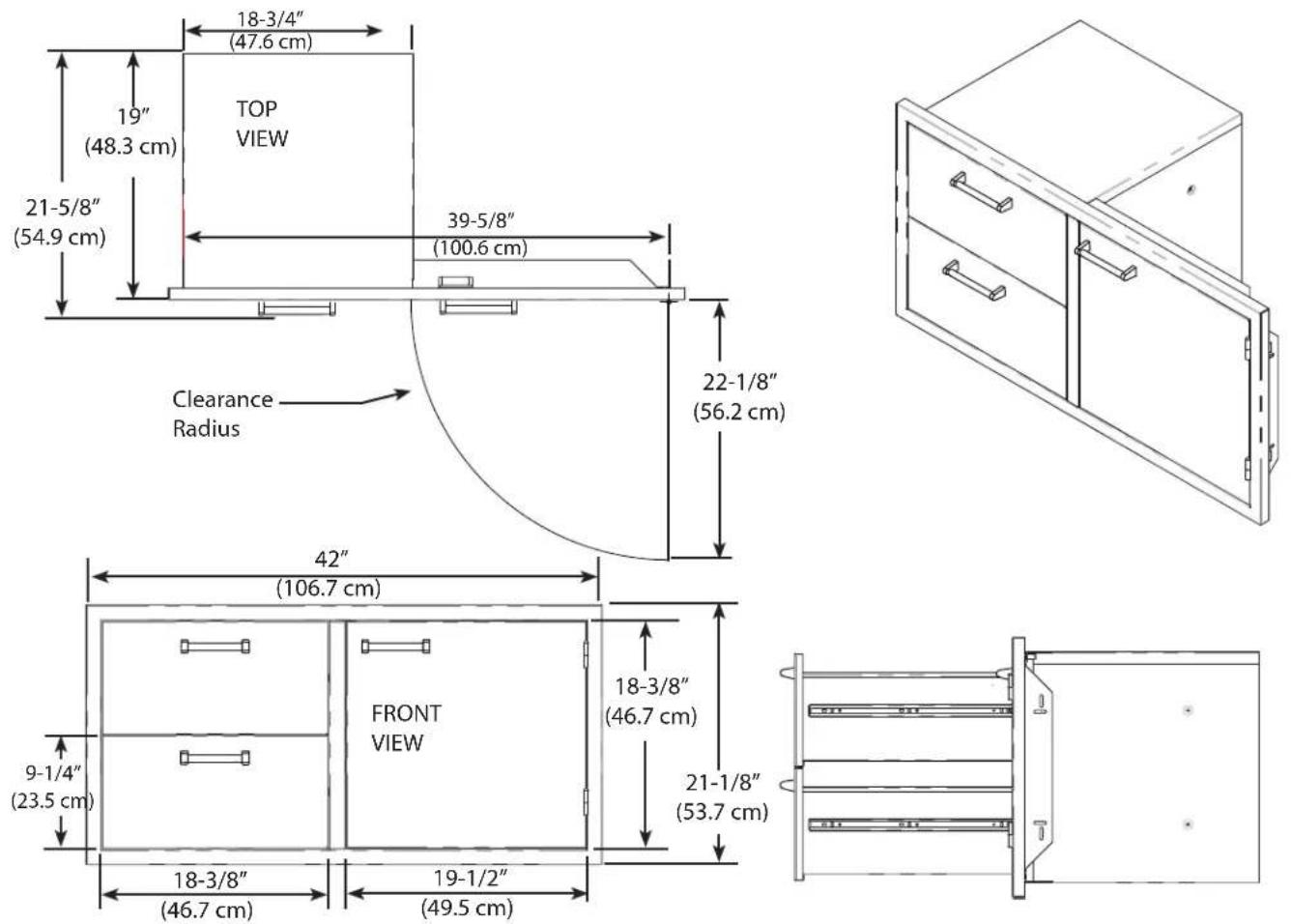

VIKING VOADS5241SS - VOADDR5421 - 42" DOOR / DRAWERS - 1

Cutout Dimensions
TOP VIEW 20" (50.8 cm) Deep

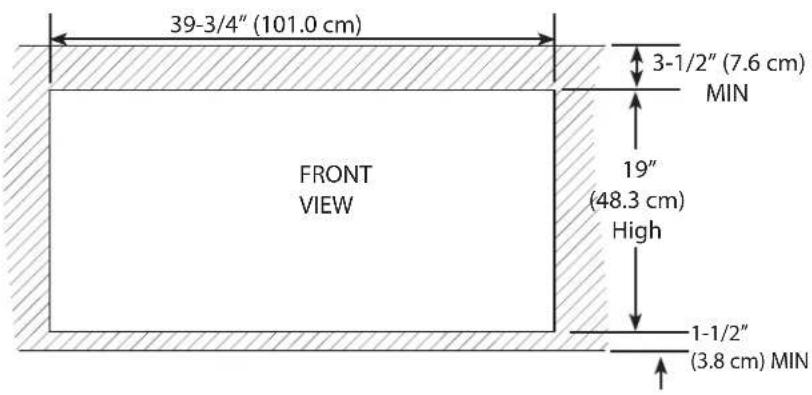

39-3/4" (101.0 cm) 3-1/2" (7.6 cm) MIN FRONT VIEW 19" (48.3 cm) High 1-1/2" (3.8 cm) MIN

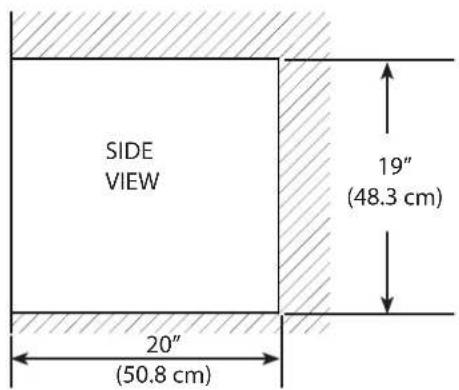

SIDE VIEW 19" (48.3 cm) 20" (50.8 cm)

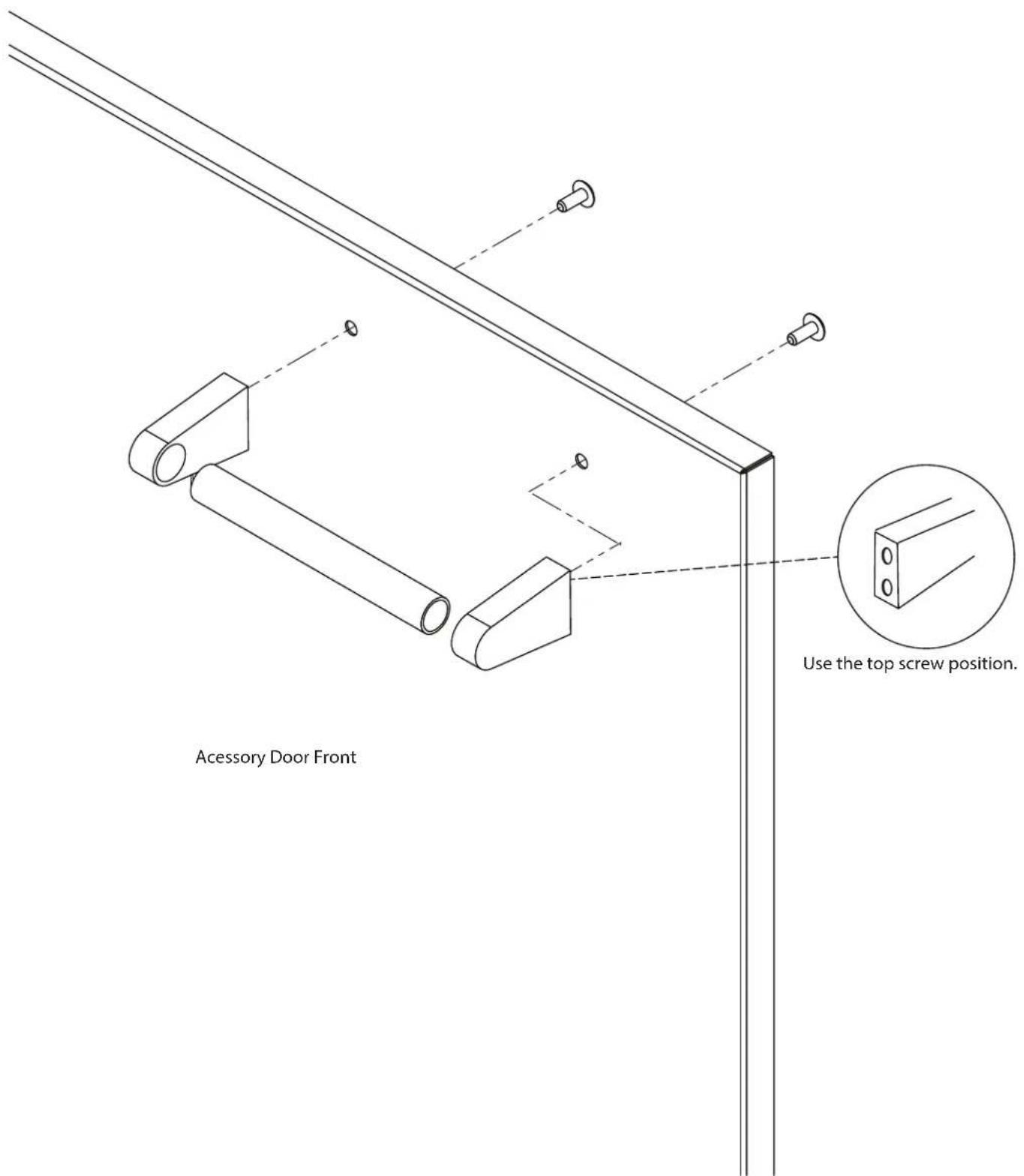

Accessory Door Front Use the top screw position.

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-(845-4641)

or visit our web site at vikingrange.com
