BRUKSANVISNING HS111 Aquatic AV
HS111 Mounting Ring Installation

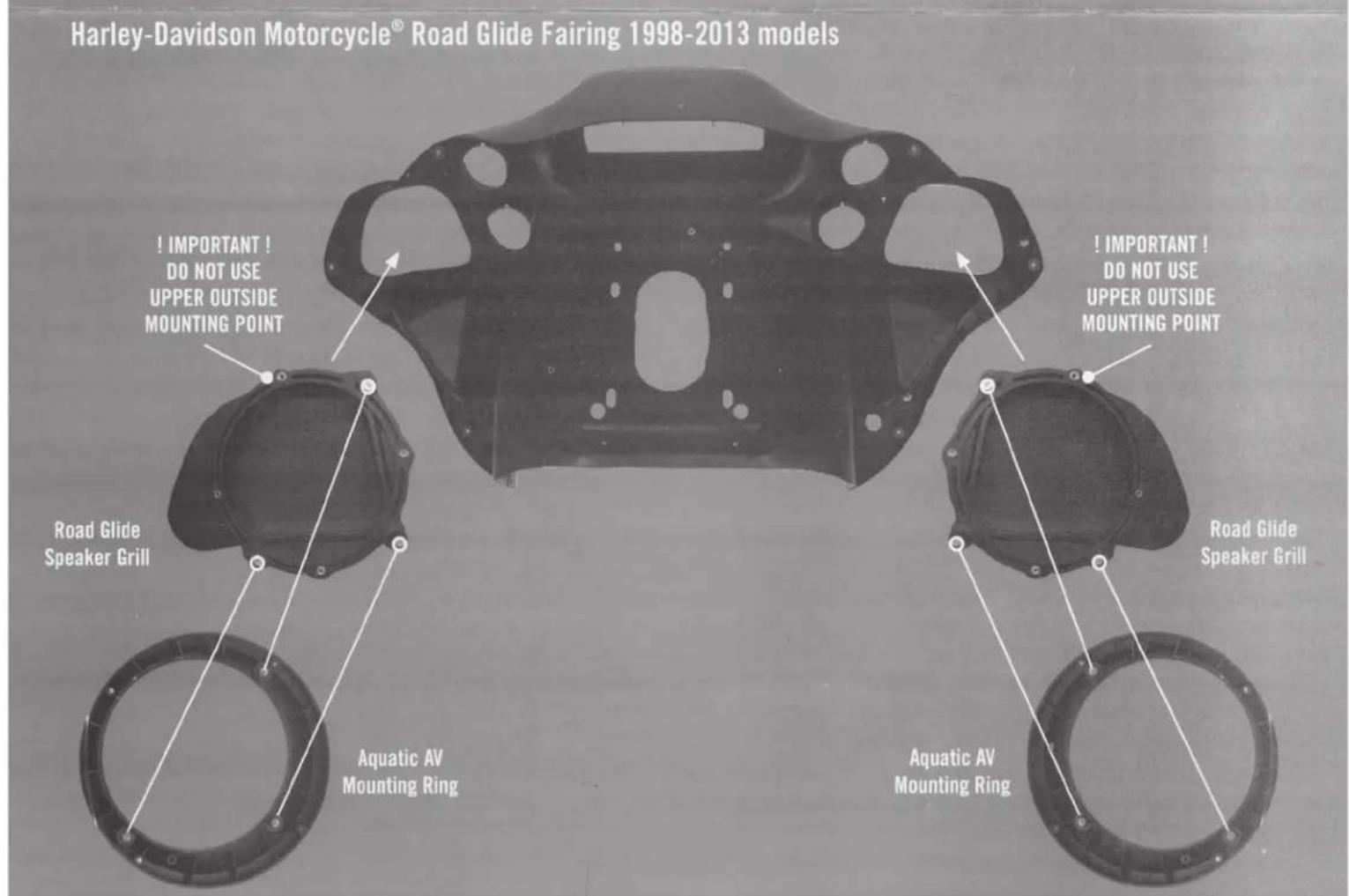

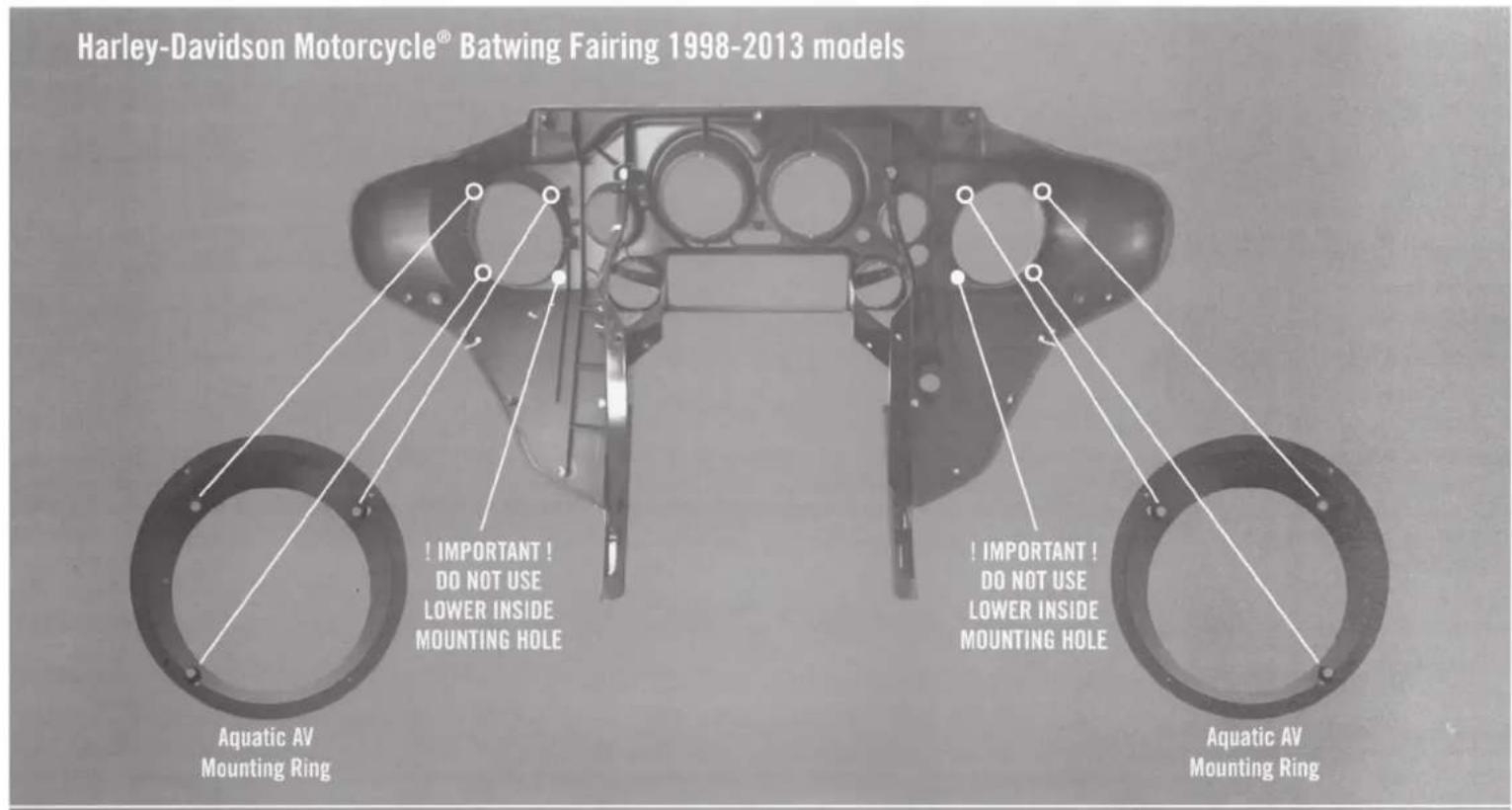

Installation Precautions for Batwing and Road Glide Fairings 1998-2013 models
AQUATIC AV®
products with a watertight reputation
HS111
ULTRA SERIES WATERPROOF SPEAKERS
FOR HARLEY-DAVIDSON® MOTORCYCLES


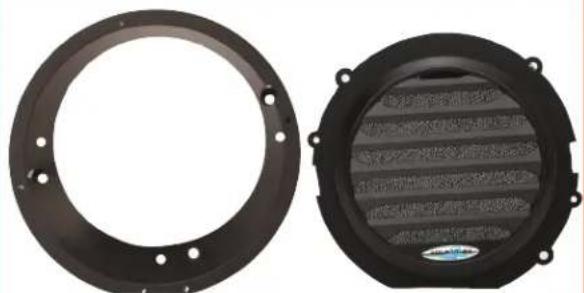

Two black plastic circular components with mounting holes, one showing a grid pattern and the other a small inset (no text or symbols visible)Includes Grill, Mounting Ring & Hardware
1998-2013 models require grill & mounting ring (included).
2014+ models do not require grill & mounting ring.
SPECIFICATIONS
| Type: Full-range, 2-way waterproof speaker | |
| Cone Size: 6.5" | |
| Tweeter Size: 1" / 25mm | |
| Outside Grill Diameter: 16 | 7mm |
| Mounting Hole Diameter: 144mm | |
| Mounting Depth: 69.2mm | |
| Impedance: 4 Ohm | |
| Frequency Response: 60Hz - 20,000 Hz | |
| Cross-Over 12db/Octave | |
| Sensitivity: 87dB | |
| Power (Total): 360W (2x 180W) | |
| Power (RMS): 180W (2x 90W) | |
| Waterproof: Yes | |
| Grill Material: UV Plastic, 500hrs stable | |
| Basket Material: Aluminum | |
| Cone Material: Complex Fibre | |
| Tweeter Material: | Silk Neodymium |
| Magnet Material: | 14.3oz Neodymium |
| Additional Features: | Adjustable Tweeter direction |
| Accessories: | Grill, Mounting Ring & Hardware |
| (all included) | |

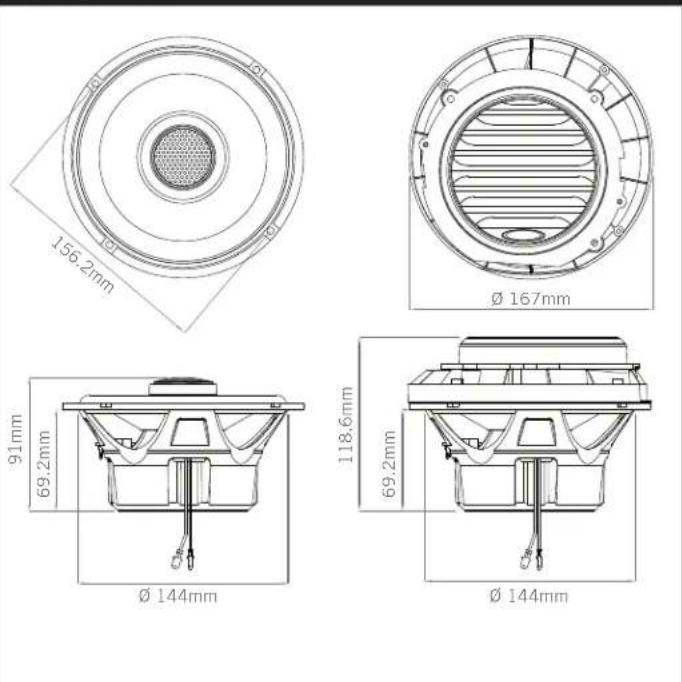

DIMENSIONS
Design and specification subject to change without notice.E&OE
AQUATIC AV®
products with a watertight reputation
Performance
Frequency Response....60Hz - 20,000Hz
Power (max)....360W (2x 180W)
Power (RMS)....180W (2x 90W)
Impedance....4 Ohm
Cross-Over.....12dB/octave
Sensitivity....87dB
Dimensions
Cone Size 6.5"
Tweeter Size....25mm
Outside Grill Diameter 167mm
Mounting Hole Diameter.....144mm
Mounting Depth....65.7mm
Multi-Environment Certifications
Waterproof.....Yes
UV Protection....500 hours stable
Additional Features

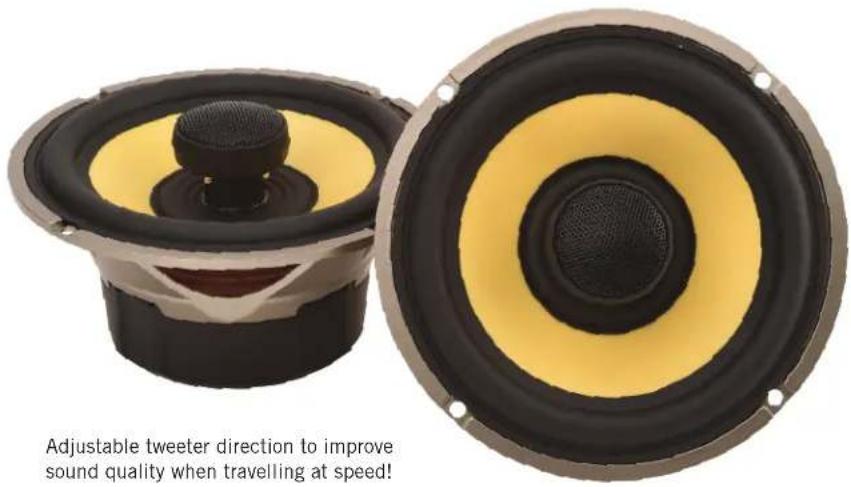

√ Adjustable Tweeter direction
√ Removable Grill
√ Mounting Ring and Hardware included
"For use with Harley-Davidson" Motorcycles:
1998 2013 models require grill & mounting ring
(included)
2014+ models do not require grill & mounting ring.
WWW.AQUATICAV.COM/HARLEY
