BRUKSANVISNING Juno Roper Rhodes

ROPER RHODES

JUNO FITTING INSTRUCTIONS

Please read carefully before you start and retain for future reference

Please read carefully before attempting to fit the seat. If you are not the end user, please make sure the aftercare instructions are made available for the end user to read.

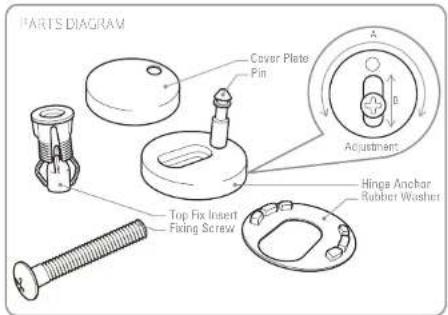

Maximum adjustment of the pin position is achieved by rotating the hinge anchor around the screw (adjustment A in the parts diagram above). Further line adjustment of the pin position can be achieved by sliding the screw in the adjustment plate (adjustment B).

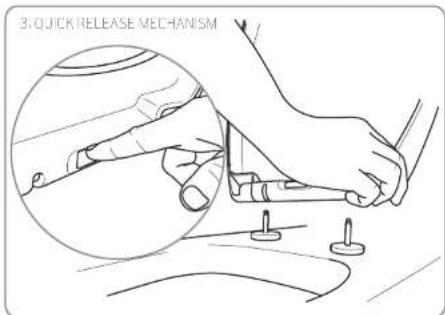

This seat is designed for quick & easy removal when cleaning the toilet pan. To activate the quick release lift the lid & seat up & press the button in the centre of the hinges & lift. To replace, align the sockets with the pins and firmly press into position.

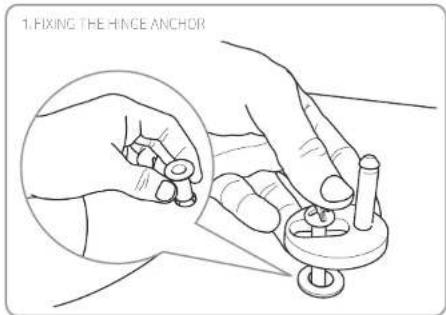

Place the Top Fix Inserts into the fixing holes in the toilet pan. Insert the screws within the Hinge Anchors as shown and begin to lighten the screws until they are loosely secured, to allow for adjustment of the seat on the pan.

AFTERCARE INSTRUCTIONS

Clean surfaces with a soft damp cloth and mild soap solution

Do not scrub or scour

Do not use abrasive cleaning agents

Do not stand on the lid or ring of your toilet seat

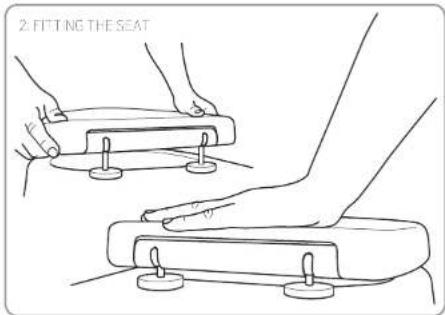

Align and insert the pins into the seat hinge sockets and firmly press down until you hear them 'click' into position. Adjustment the hinge anchors to make sure the seat line up with the edges of the toilet pan. When you are satisfied the seat is in the correct position, remove the seat from the hinge anchors (see step 3) and fully tighten the screw in the Top Fix Insert Ishown in step 11 Place the Cover Plates over the Hinge Anchors. Replace the seat and click into position.

Roper Rhodes Ltd

Brassmill Lane Trading Estate. Bath BA1 3JF | tel: [phone]
