LIETOŠANAS INSTRUKCIJA Hot Shot Jandy

HOT SHOT (100K) HEATER TROUBLESHOOTING

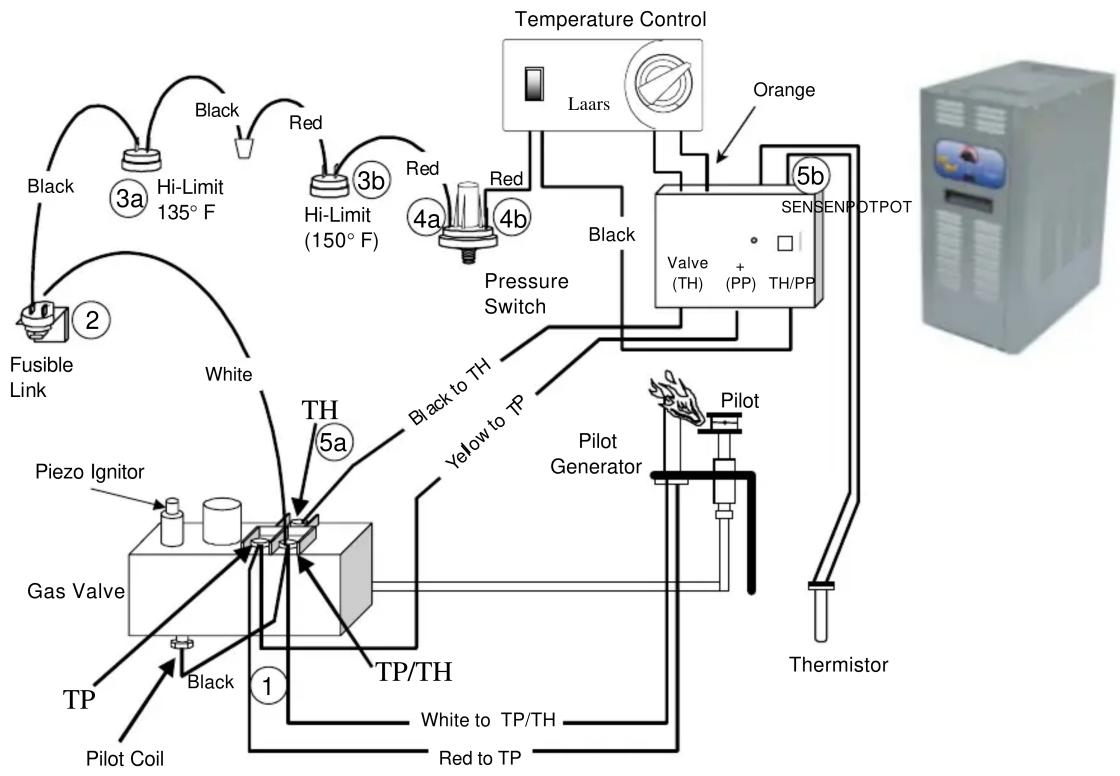

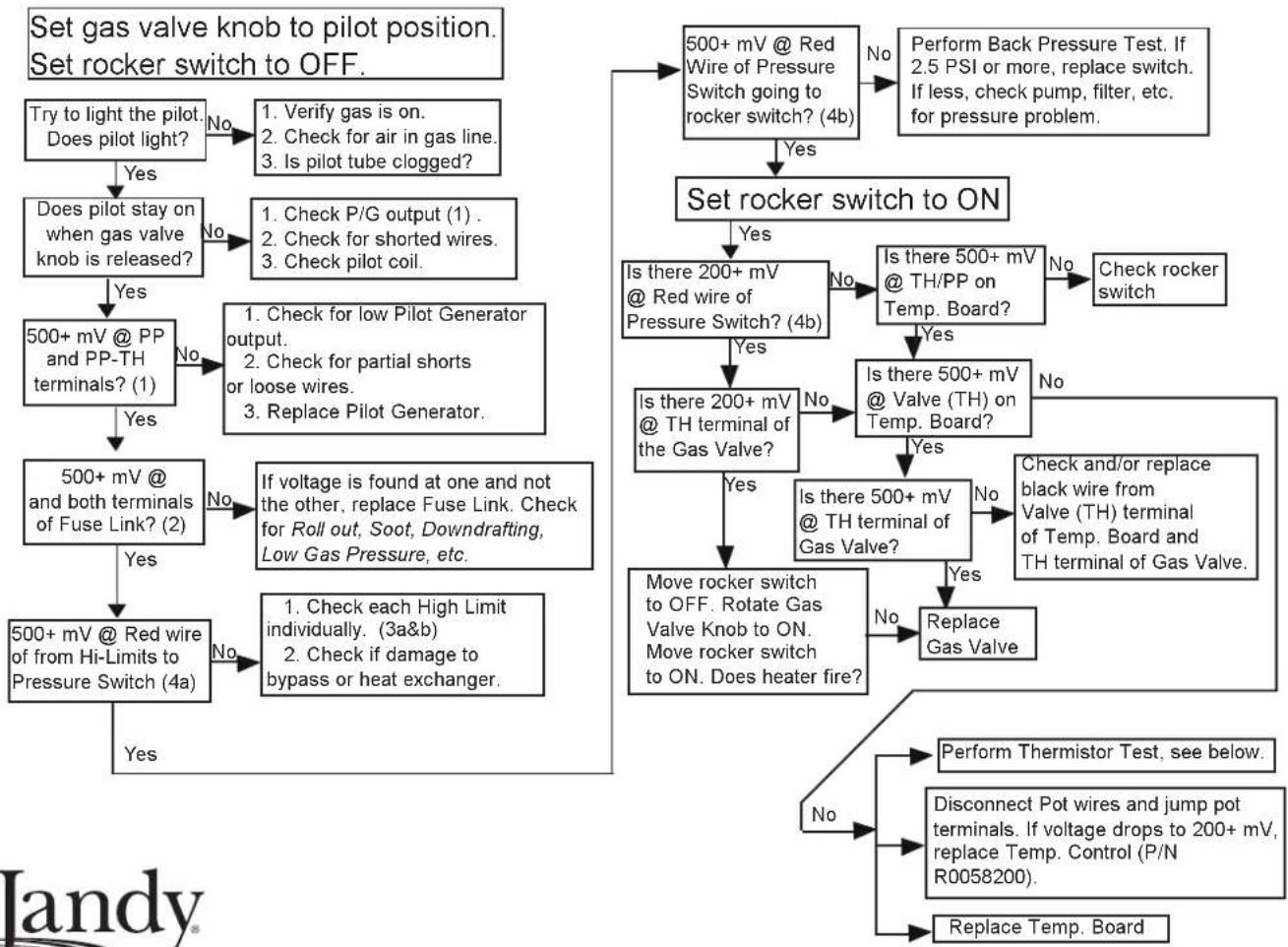


HOT SHOT (100K) HEATER TROUBLESHOOTING

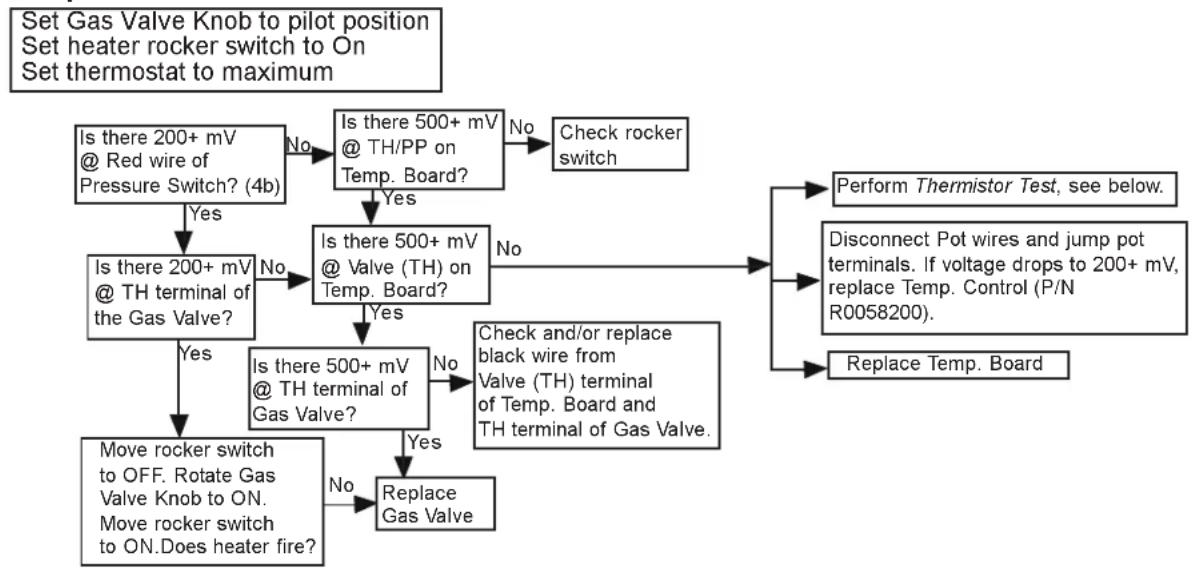

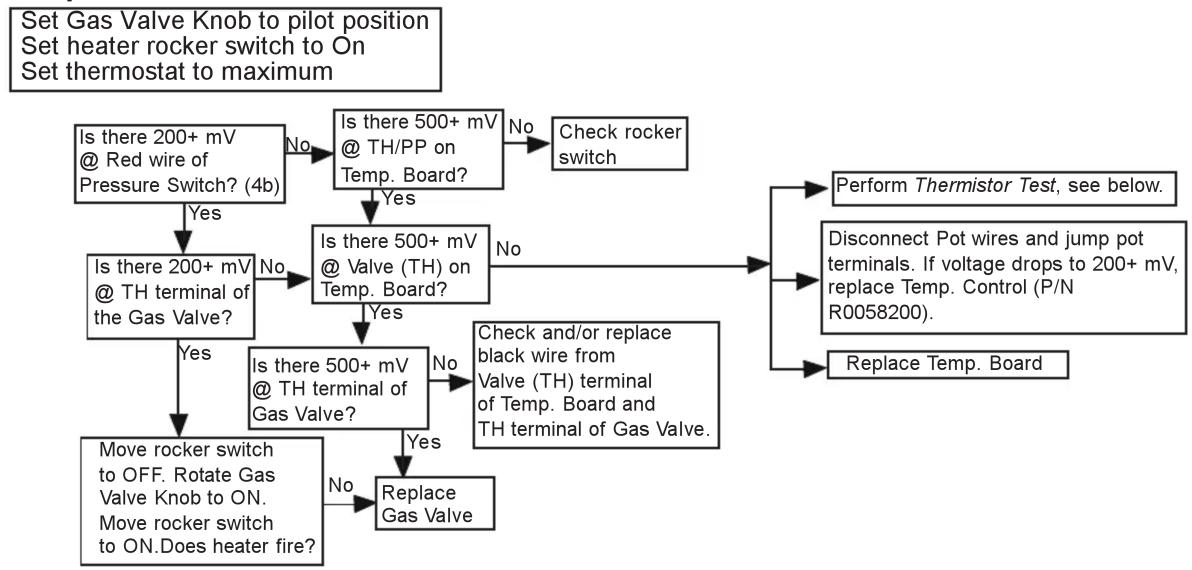

Temperature Control Test


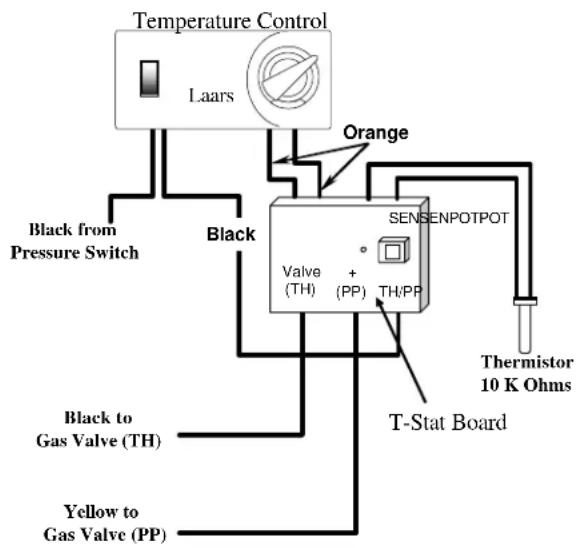

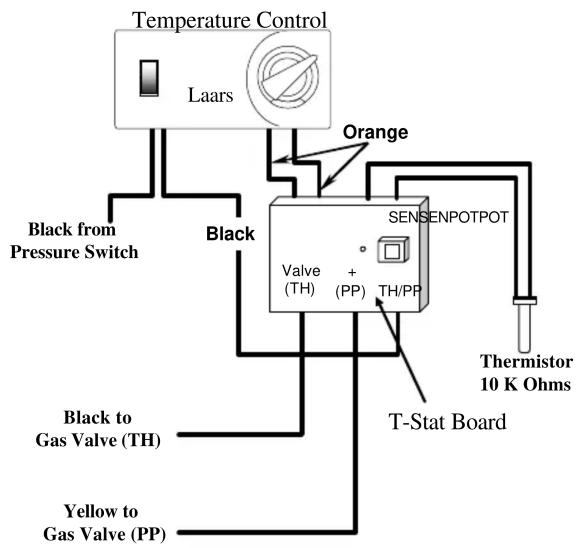

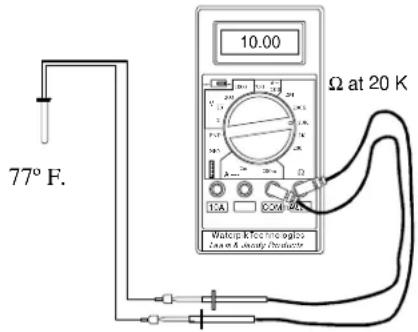

Thermistor Test

Disconnect the thermistor from the T-Stat Board before performing test. Place a good thermometer in the pool skimmer and turn on the filter pump. Set your meter to Resistance (20 K Ohms or above). Measure the resistance between the two leads of the thermistor. Compare this reading to the chart.

77° F. 10.00 Ω at 20 K Sample Sample Product Molecule Sample Products 13A 20A 20K

Thermistor Temp/Resistance Chart

Temp	Resistance	Temp	Resistance
50^ F	19.898 K Ohms	78^ F	9.735 K Ohms
51^ F	19.435 K Ohms	79^ F	9.483 K Ohms
52^ F	18.871 K Ohms	80^ F	9.284 K Ohms
53^ F	18.382 K Ohms	81^ F	9.079 K Ohms
54^ F	17.902 K Ohms	82^ F	8.864 K Ohms
55^ F	17.473 K Ohms	83^ F	8.655 K Ohms
56^ F	16.988 K Ohms	84^ F	8.450 K Ohms
57^ F	16.549 K Ohms	85^ F	8.253 K Ohms
58^ F	16.150 K Ohms	86^ F	8.057 K Ohms
59^ F	15.710 K Ohms	87^ F	7.871 K Ohms
60^ F	15.314 K Ohms	88^ F	7.687 K Ohms
61^ F	14.923 K Ohms	89^ F	7.509 K Ohms
62^ F	14.547 K Ohms	90^ F	7.335 K Ohms
63^ F	14.193 K Ohms	91^ F	7.166 K Ohms
64^ F	13.823 K Ohms	92^ F	7.001 K Ohms
65^ F	13.477 K Ohms	93^ F	6.840 K Ohms
66^ F	13.138 K Ohms	94^ F	6.685 K Ohms
67^ F	12.813 K Ohms	95^ F	6.531 K Ohms
68^ F	12.492 K Ohms	96^ F	6.384 K Ohms
69^ F	12.186 K Ohms	97^ F	6.238 K Ohms
70^ F	11.893 K Ohms	98^ F	6.099 K Ohms
71^ F	11.593 K Ohms	99^ F	5.963 K Ohms
72^ F	11.309 K Ohms	100^ F	5.829 K Ohms
73^ F	11.032 K Ohms	101^ F	5.700 K Ohms
74^ F	10.765 K Ohms	102^ F	5.572 K Ohms
75^ F	10.502 K Ohms	103^ F	5.449 K Ohms
76^ F	10.250 K Ohms	104^ F	5.327 K Ohms
77^ F	10.000 K Ohms
