LIETOŠANAS INSTRUKCIJA MSSFR25 ICC
Swing Frame Wall Mount Rack, 25 RMS
INSTALLATION INSTRUCTIONS

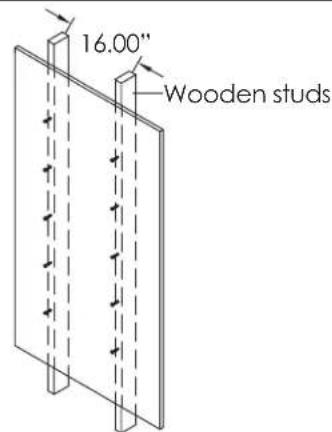

Step 1: Locate studs, then use the template to mark 10 locations for mounting screws (not provided). Pre-drill the screws without fully tightening them.


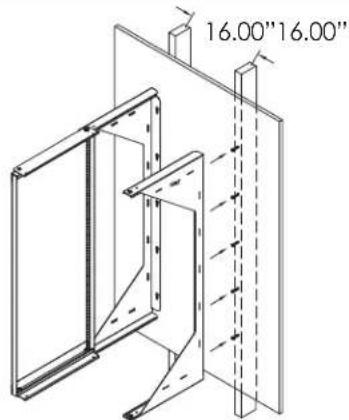

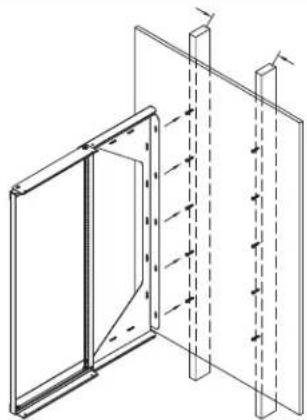

Step 2: Rack can be installed to swing open left or right. Place the left and right brackets onto the pre-drilled screws then tighten all screws.

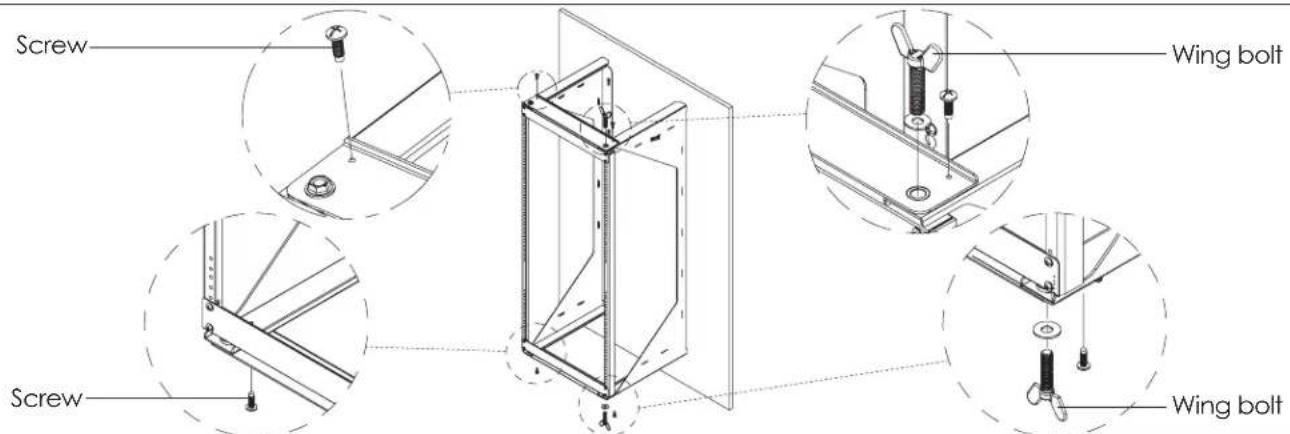

Step 3: Use four #12-24 screws and two wing bolts to secure the top and bottom of the frame to the brackets. CAUTION! Please do not exceed more than 85 lbs weight capacity.
Swing Frame Wall Mount Rack, 25 RMS
INSTALLATION INSTRUCTIONS


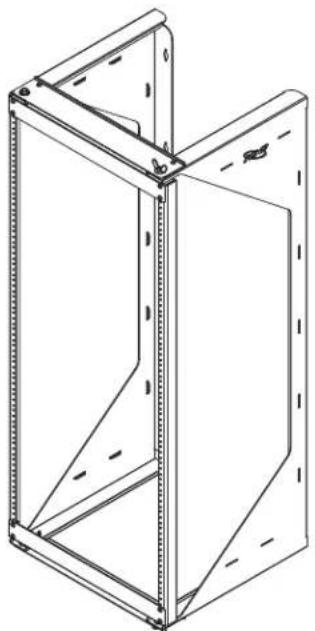

Technical line drawing of a mechanical frame or enclosure with vertical supports and internal ribs (no text or symbols)| Item # Dimensions #12-24 screws | |
| ICCMSSFR25 19.50"W x 49.125"H x 18.00"D 12 screws |
FEATURES AND BENEFITS
• Manufactured with heavy duty steel.
• Supports up to 85 lbs. when properly mounted and fastened.
- Swing out feature allows for easy maintenance and upgrades.
- Rack can be installed to swing open left or right.
OPTIONAL ACCESSORIES
ICCMSCMPK1 Panel with cover, 1 RMS
ICCMSCMPK2 Panel with cover, 2 RMS
• For horizontal cable routing
ICMPP0245E CAT 5e 24-Port, 8P8C, 1 RMS
ICMPP0485E CAT 5e 48-Port, 8P8C, 2 RMS
ICMPP02460 CAT 6 24-Port, 8P8C, 1 RMS
ICMPP04860 CAT 6 48-Port, 8P8C, 2 RMS
• Exceeds ANSI/TIA-568 standards
• Rear 110-Type IDC termination
ICCMSCMPB1 1.75"H×19"W,1 RMS
ICCMSCMPB2 3.50"H x 19"W, 2 RMS
ICCMSCMPB3 5.25"H x 19"W, 3 RMS
ICCMSCMPB4 7.00"H x 19"W, 4 RMS
• Fills empty spaces between mounted equipment
• Steel construction for durability
ICCMSCMA41 1.75"H×3.19"D, 1 RMS
ICCMSCMA42 3.50"H x 3.23"D, 2 RMS
• For front cable management
• Durable steel base with plastic fingers
• Includes slide-on cover
1 RMS (Rack Mount Space) = 1.75"
