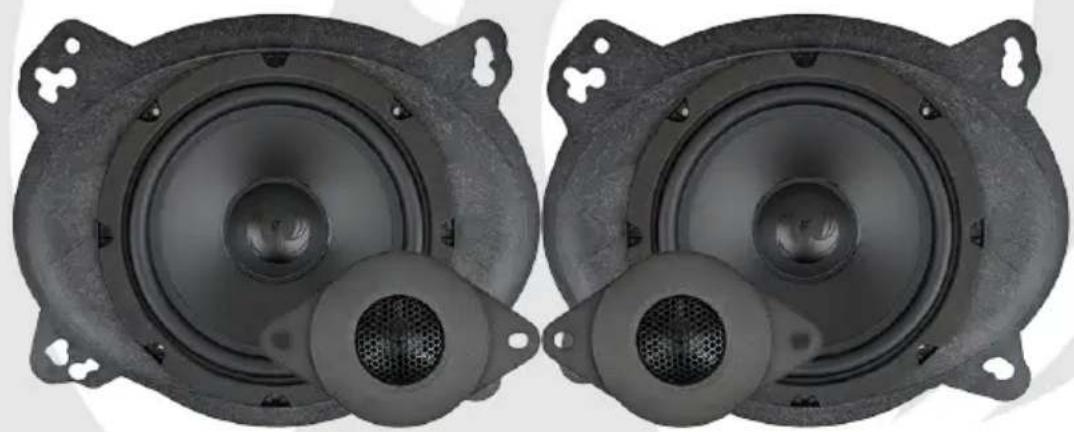

Two identical black speaker amplifiers with visible sound waves and mounting brackets (no text or symbols)

ZDSKSU1

Plug & Play 2-Way Speaker Upgrade Kit

160W MAX POWER

80W RMS

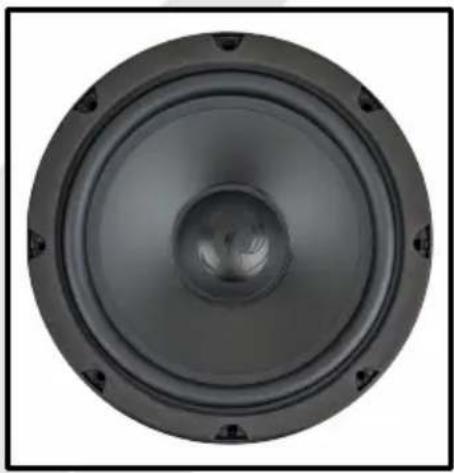

2x Speakers 2x Adapter Rings 2x Tweeters

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

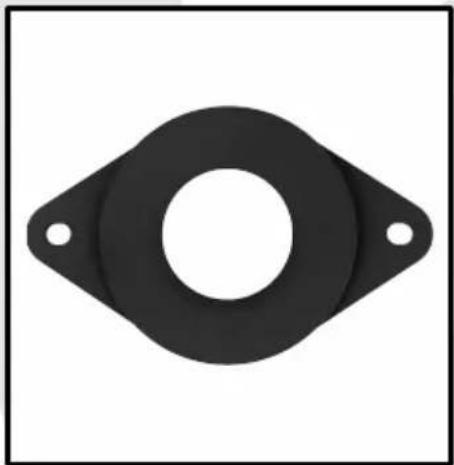

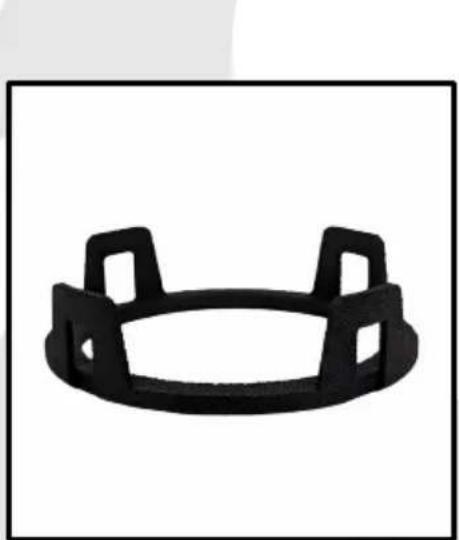

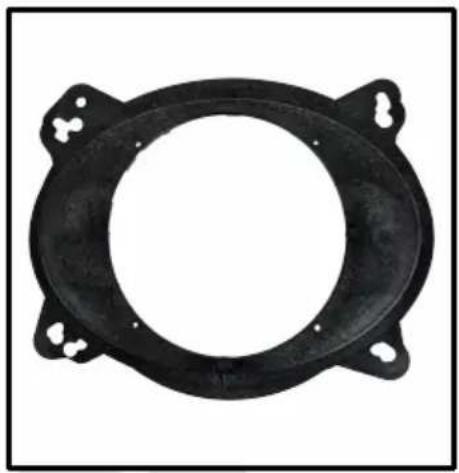

2x Tweeter Adapters

Black circular mechanical component with four mounting holes and a central hole (no text or symbols)

Black plastic mechanical bracket component (no text or symbols visible)

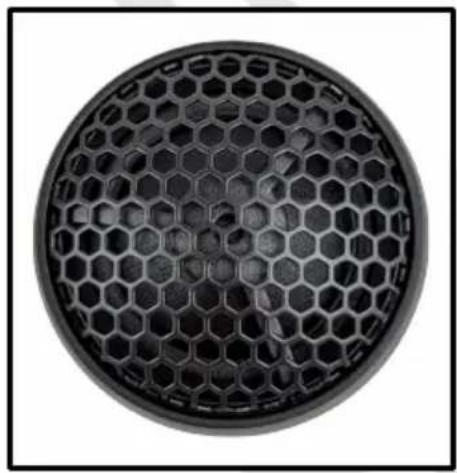

Circular black hexagonal mesh pattern with no text or symbols

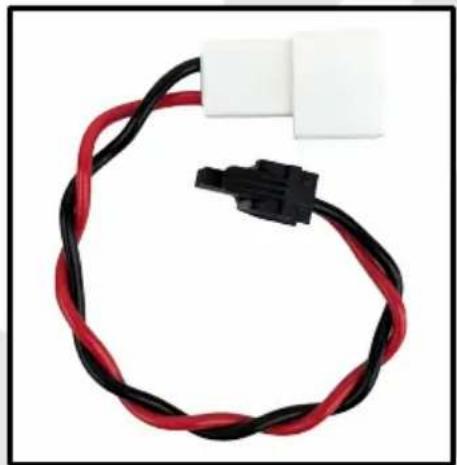

2x Speaker Harness 2x

Black mechanical flange component with circular center and two mounting holes (no text or symbols)

2x Tweeter Harness

Black plastic mechanical bracket component (no text or symbols visible)

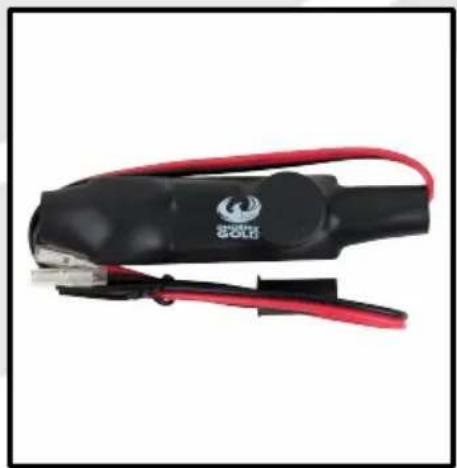

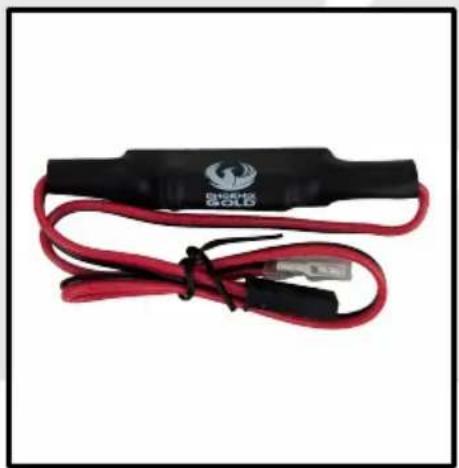

2x ZZF-LP4000 2x ZZF-HP4000-6

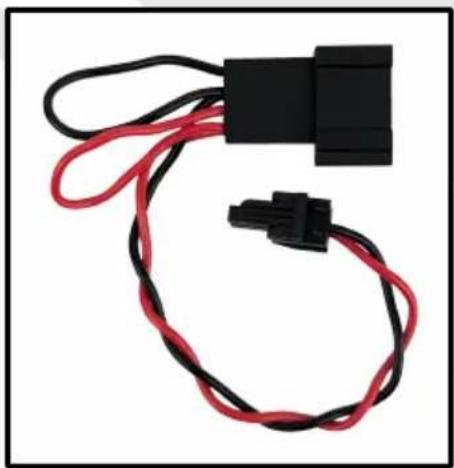

Coiled black and red electrical connector with a white terminal block attached (no text or symbols visible)

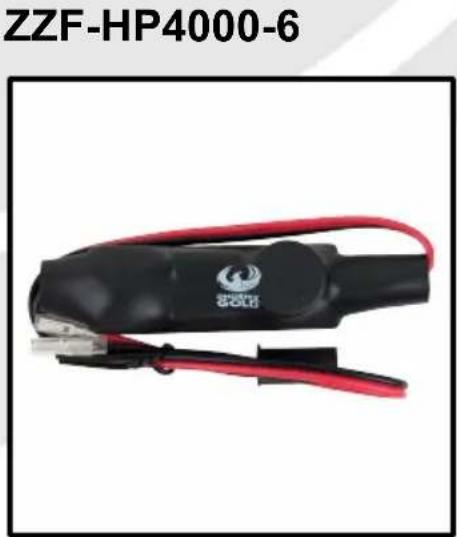

Close-up of a black and red electrical wire tool labeled 'ZZF-HP4000-6' (no additional text or symbols visible)

Coiled black and red electrical connector with a separate black terminal block (no text or symbols visible)

Coiled black and red electrical cable with a logo, no visible text or symbols on the main subject.

Close-up of a black and red electrical clamp tool with a metallic connector (no visible text or symbols)

Quick Start Guide

1

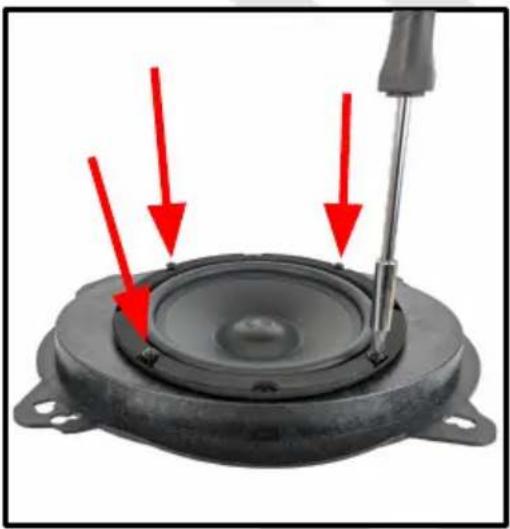

Screw the speaker into the speaker adapter.

Close-up of a speaker component with red arrows indicating motion or force, no visible text or symbols

2

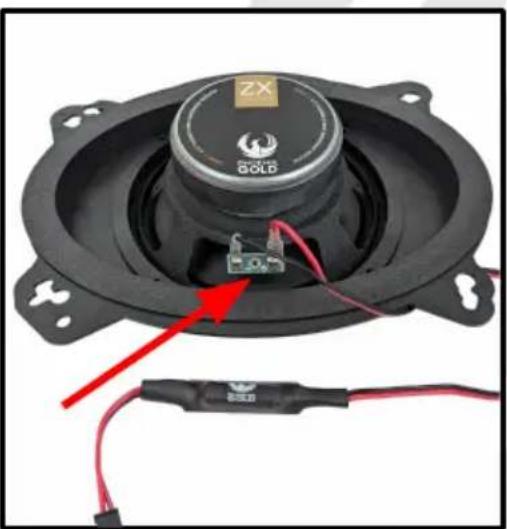

Connect the ZZF-LP4000 filter to the speaker.

Close-up of a black speaker with a GOLB brand head and red cable, showing no text or symbols on the device itself.

3

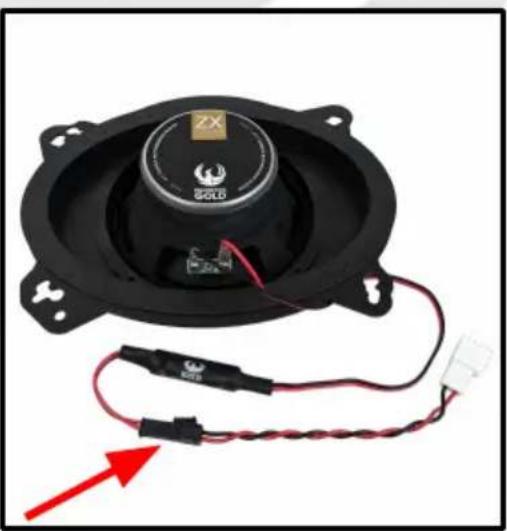

Connect the speaker connector to the ZZF-LP4000 filter.

Close-up of a black speaker with exposed audio components and wiring, no visible text or symbols

Quick Start Guide

4

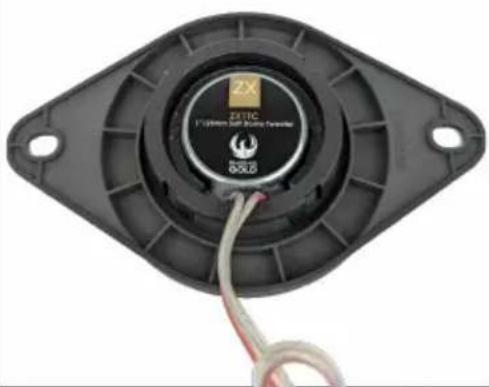

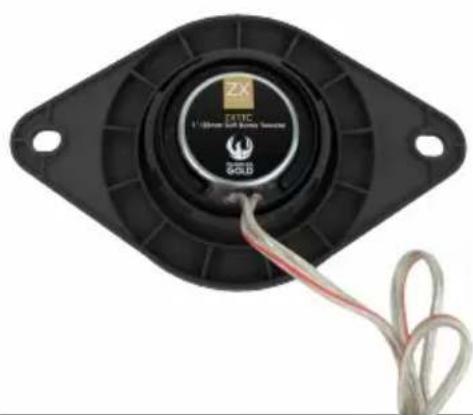

Put the tweeter into the tweeter adapter.

Close-up of a black speaker component with visible wiring and logo (no readable text or symbols beyond branding)

5

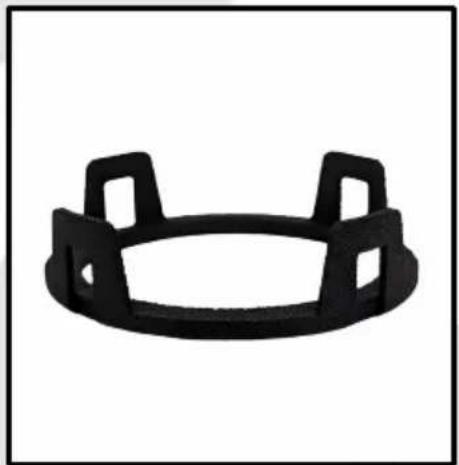

Attach the bottom plate to the back of the tweeter adapter.

Close-up of a black speaker component with visible wiring and a logo (no readable text or symbols beyond branding)

6

Connect the ZZF-HP4000-6 filter to the tweeter.

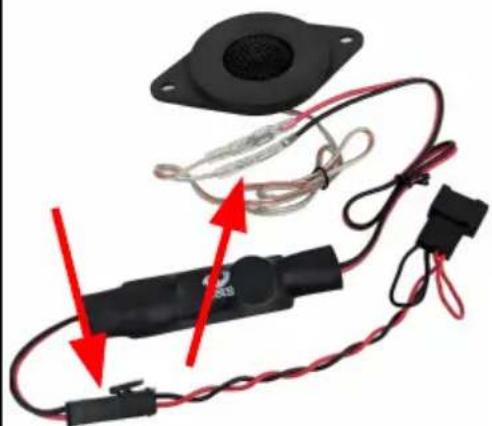

Connect the tweeter harness to ZZF-HP4000-6 filter.

Close-up of a black electronic device with red arrows indicating connection points, alongside a speaker and cable (no text or symbols visible)

Specifications

Speaker Type: 2-Way Speaker Kit

Speaker Size: 6.5” (165mm) / 1” (25mm)

Frequency Response: 60Hz - 20kHz

Power Handling (RMS): 80W

Power Handling (MAX): 160W

Impedance: 4Ω

Sensitivity: 89dB (1W/1m)

Fs: 62Hz

Qts: 0.593

Crossover: Inline Crossovers

1” (25mm) Voice Coil

Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment
Subaru Crosstrek 2022		→ (GU) Front Doors
Subaru Forester 2014 -		2018 (SJ) Front Doors
See the latest updated compatibility list in the PG ZD Fitment List

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.
