NAUDOJIMO INSTRUKCIJA Ahoy QF5224AP Quoizel

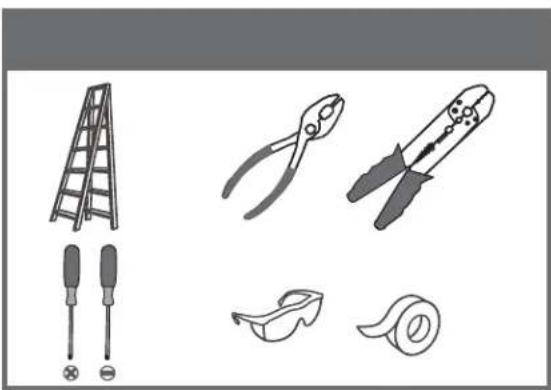

Illustration of various tools including a ladder, screwdriver, pliers, and tape roll (no text or symbols)

Package Contents

Preparation: Identify and inspect all parts before beginning the installation.

Missing or damaged parts? Contact your original place of purchase.

PARTS BAG

B
Outlet Box Screw x 2

C

Wire Connector x 3

Simple line drawing of a circular container with internal particles and a small object inside (no text or symbols)

D

Ceiling Canopy x 1

E Screw x 3

Technical line drawing of a cylindrical mechanical component with mounting holes (no text or symbols)

F

Cage x 1

Simple oval shape with no text, numbers, or symbols

G

Diffuser x 1

Table of Contents

STEP 1

Step 1

Install crossbar assembly

Step2-3
Test fitting ceiling canopy to nipple

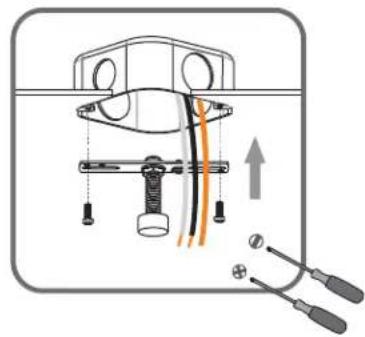

Diagram of a mechanical component with a central knob and orange cable, showing a downward arrow (no text or symbols)

STEP 2

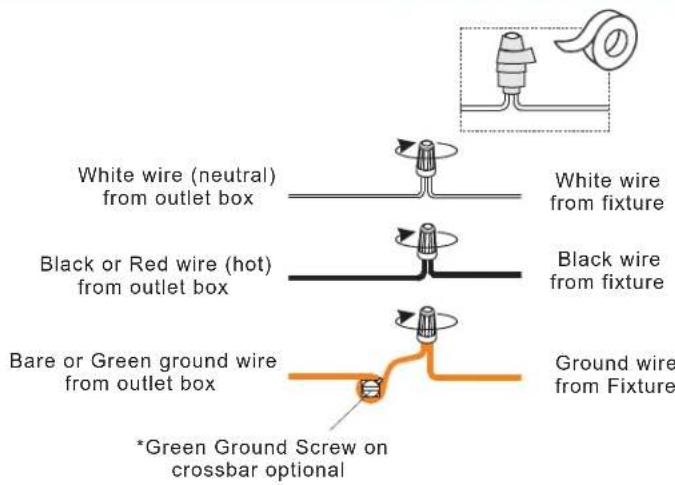

STEP 3

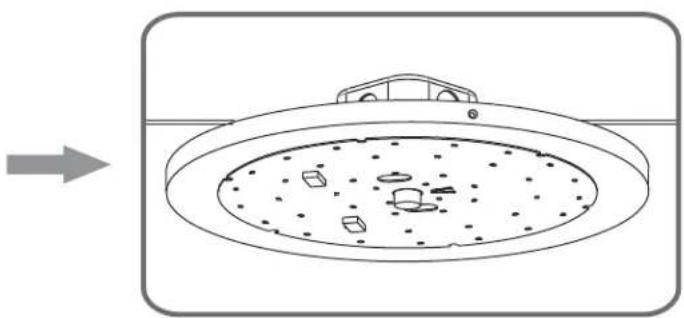

Diagram of a mechanical device above a circular tank with internal components and directional arrows indicating flow or movement (no text or symbols)

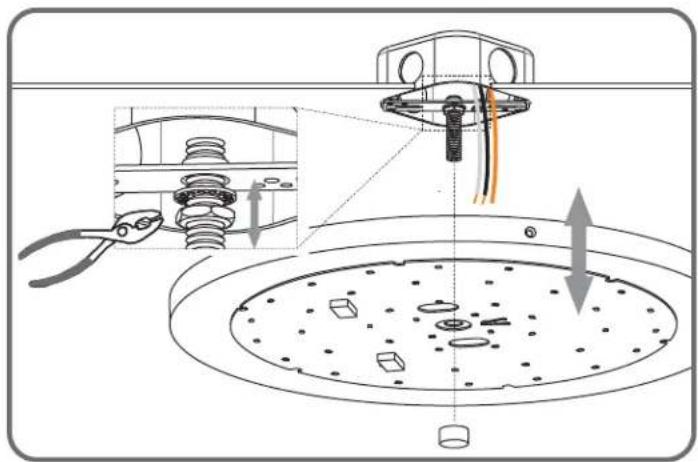

Diagram of a circular tank with internal compartments and a horizontal inlet, showing flow direction (no text or symbols)

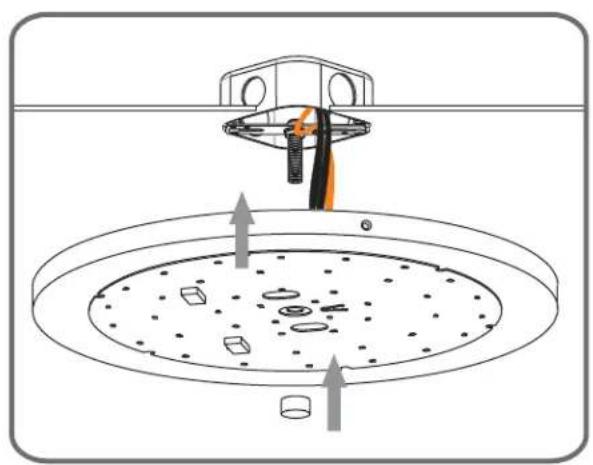

STEP 4

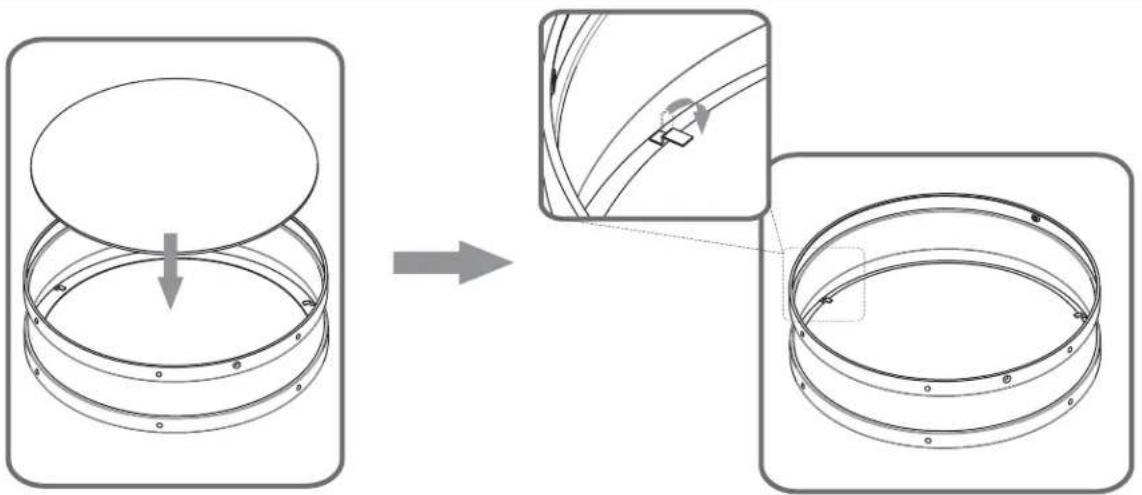

Diagram showing a mechanical assembly process with two views of a circular component, one before and one after, with no visible text or symbols.

STEP 5

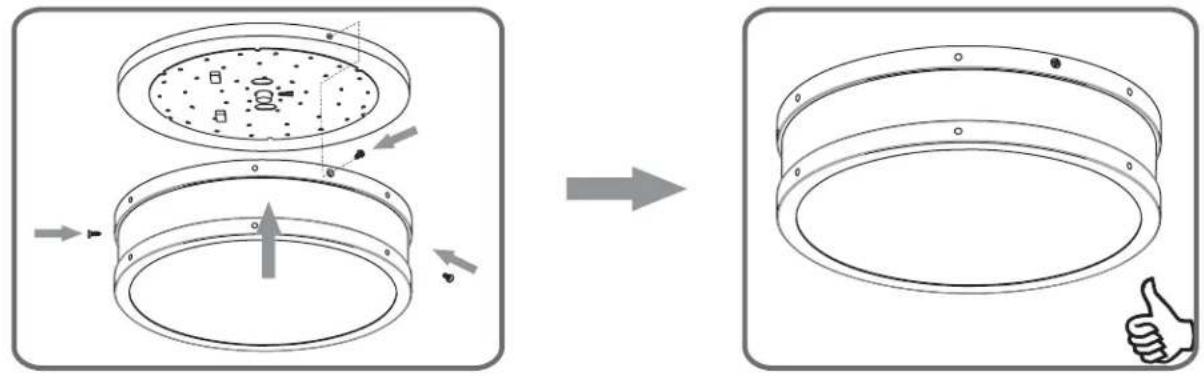

Diagram showing a mechanical assembly process: before and after transformation, with no visible text or symbols.
