NAUDOJIMO INSTRUKCIJA 2005-0.5 Sani-Lav
SANI-LAV® COLUMBIA PRODUCTS
Operating Manual for Faucets
Models 2005 and 2005-0.5

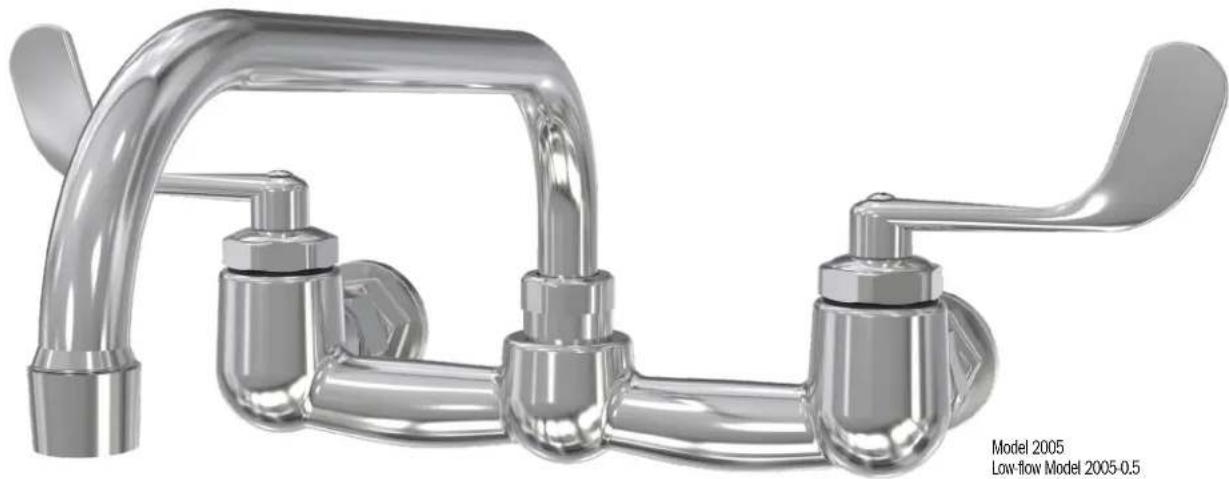

Product Compliance
Certified to NSF/ANSI 61, Section 9 by CSA, ASME A112.18.1/CSA B125.1
Standard flow rate: 2 GPM, low-flow model: 0.5 GPM
COLUMBIA SPECIFICATIONS
FAUCETS

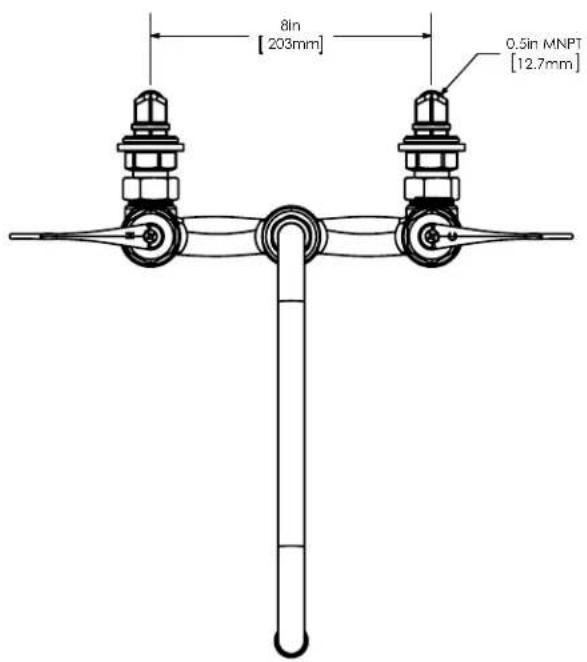

![8in [203mm] 0.5in MNPT [12.7mm]](/content/2026/05/1110027/images/2520d4891fc106517c31f3aa8d4b979f5e9c2adb213b8229153df1ff77cae798.jpg)

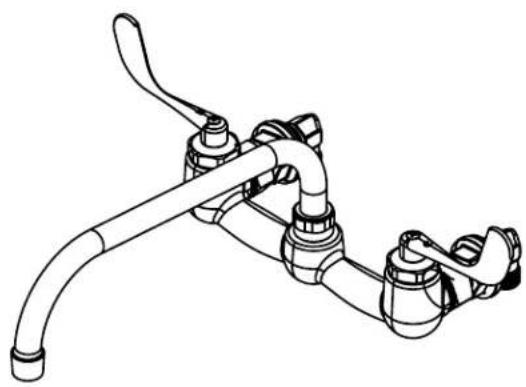

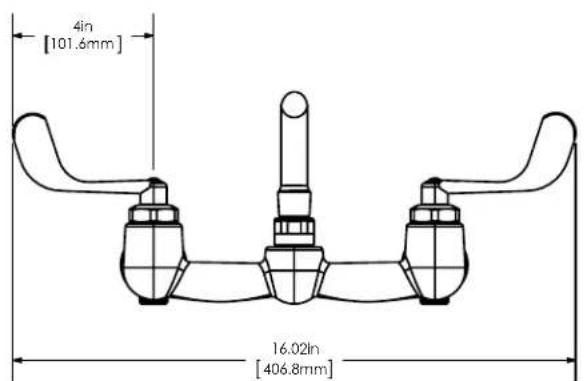

Line drawing of a shower faucet assembly with handle and valve (no text or symbols)![4in [101.6mm] 16.02in [406.8mm]](/content/2026/05/1110027/images/7b30d871bde2c5ade655018f35ab7f41c26e5e3bf2e934f82c056a5556a37aa3.jpg)

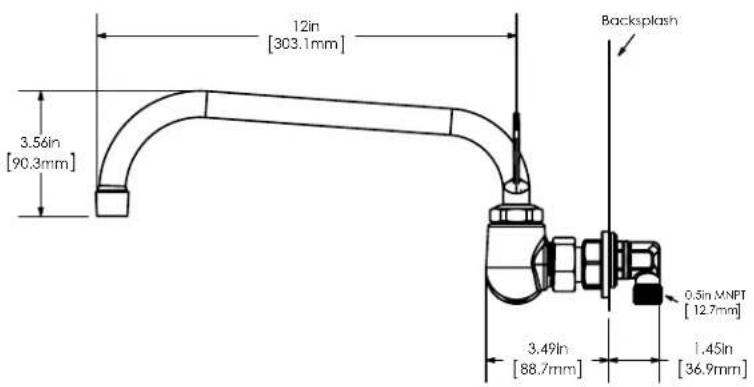

![12in [303.1mm] 3.56in [90.3mm] Backsplash 0.5in.MNPT [12.7mm] 3.49in [88.7mm] 1.45in [36.9mm]](/content/2026/05/1110027/images/d9e23d23c8c2b8a8fbdbb4f47ebe2f128e984b9d51248ab035c92728c9ad6f43.jpg)
Go to columbiasinks.com for more information on replacement parts and installation videos.
Notice for California Consumers
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certified under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
COLUMBIA PRODUCTS
800.626.2117 • columbiasinks.com • info@columbiasinks.com

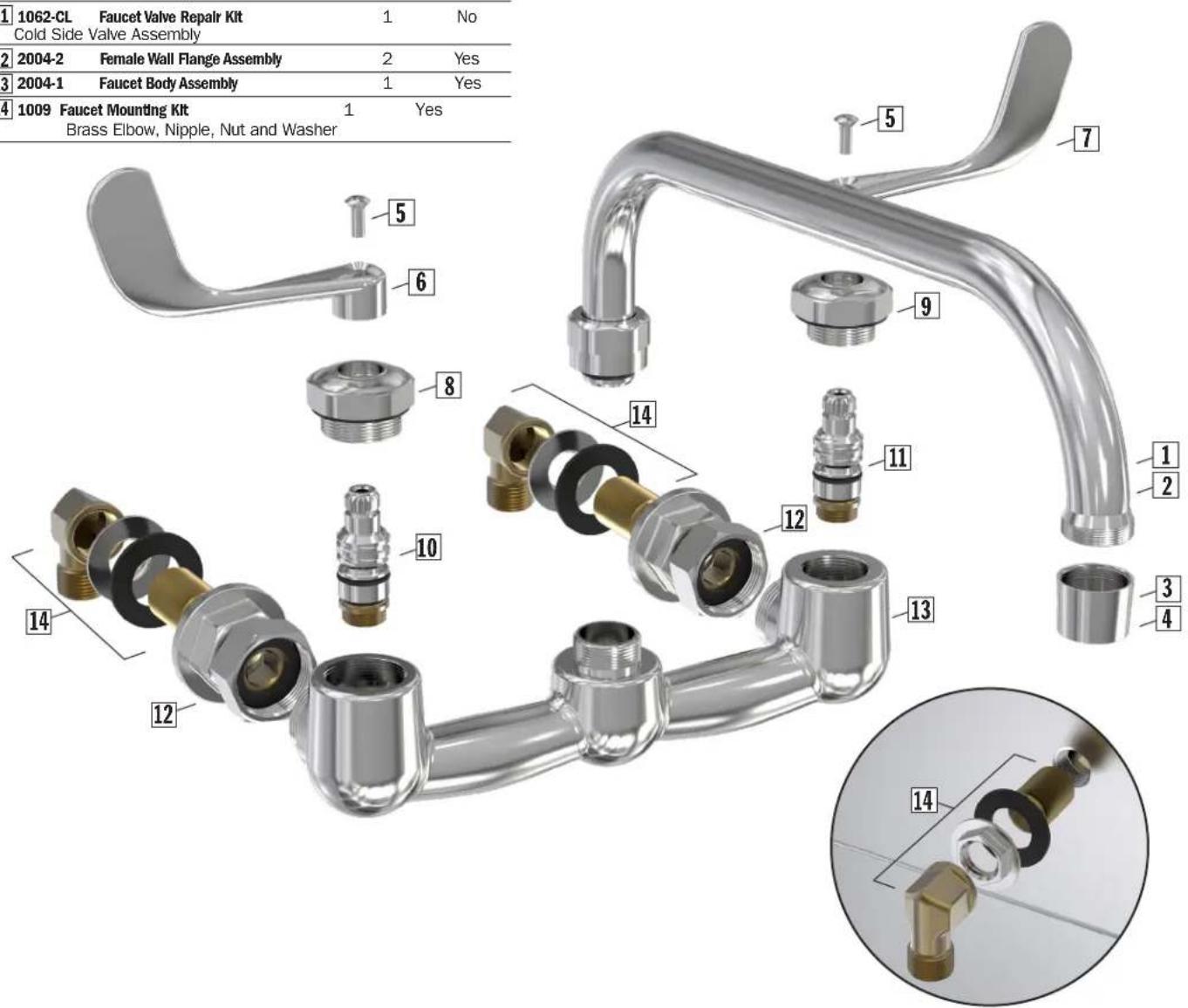

Replacement Parts
Part No. Description Quantity Universal Part
| 1 | 2001-1Swivel SpoutStandard 2.0 GPM Flow Rate | 1 | Yes | ||
| 2 | 2001-1-0.5Swivel Spout 1Standard 0.5 GPM Flow Rate | Yes | |||
| 3 | 1002Aerator 55/64 - 27 Thread Size 1Standard 2.0 GPM Flow Rate | Yes | |||
| 4 | 1003Aerator 55/64 - 27 Thread Size 1Low-flow 0.5 GPM Flow Rate | Yes | |||
| 5 | 2004-510-24 Oval Countersunk Screw x .5" | 2 | Yes | ||
| 6 | 2011-2Handle 4" inch - Hot | 1 | No | ||
| 7 | 2011-1Handle 4" inch - Cold | 1 | No | ||
| 8 | 2004-4ABonnet Nut - Hot | 1 | No | ||
| 9 | 2004-3ABonnet Nut - Cold | 1 | No | ||
| 10 | 1062-HLFaucet Valve Repair KitHot Side Valve Assembly | 1 | No | ||
| 11 | 1062-CLFaucet Valve Repair KitCold Side Valve Assembly | 1 | No | ||
| 12 | 2004-2Female Wall Flange Assembly | 2 | Yes | ||
| 13 | 2004-1Faucet Body Assembly | 1 | Yes | ||
| 14 | 1009Faucet Mounting KitBrass Elbow, Nipple, Nut and Washer | 1 | Yes | ||
