NAUDOJIMO INSTRUKCIJA HDS12v2.0 AV:link
MINI
HDMI to CVBS
USER Manual
Table of Contents
1.0 Introduction
2.0 Specifications
3.0 Package Contents
4.0 Panel Descriptions
5.0 Connection Diagram
1.0 Introduction
The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i). So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.
1.1 Features
- No need to install drivers, portable, flexible, plug and play.
-
Low power, No power adaptor.
-
Support NTSC and PAL two standard TV formats output
-
Compatible HDMI1.3
2.0 SPECIFICATIONS
- Input ports: 1xHDMI.
- Output ports: 1xRCA (Yellow, White, Red)
- Dimensions (mm): 66(D) x55(W) x20(H)
-
Wight (g): 40
-
HDMI Input Resolution:
640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p50/60Hz,1080I50/60Hz, 1080p50/60Hz.
- CVBS output: PAL, NTSC_M, and (NTSC_J)
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Main unit (HDMI to AV Converter) ----1PCS
2) USB Cable----1PCS
3) User Manual. ----1PCS
4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
Back Panel:
Top Panel:
Front Panel


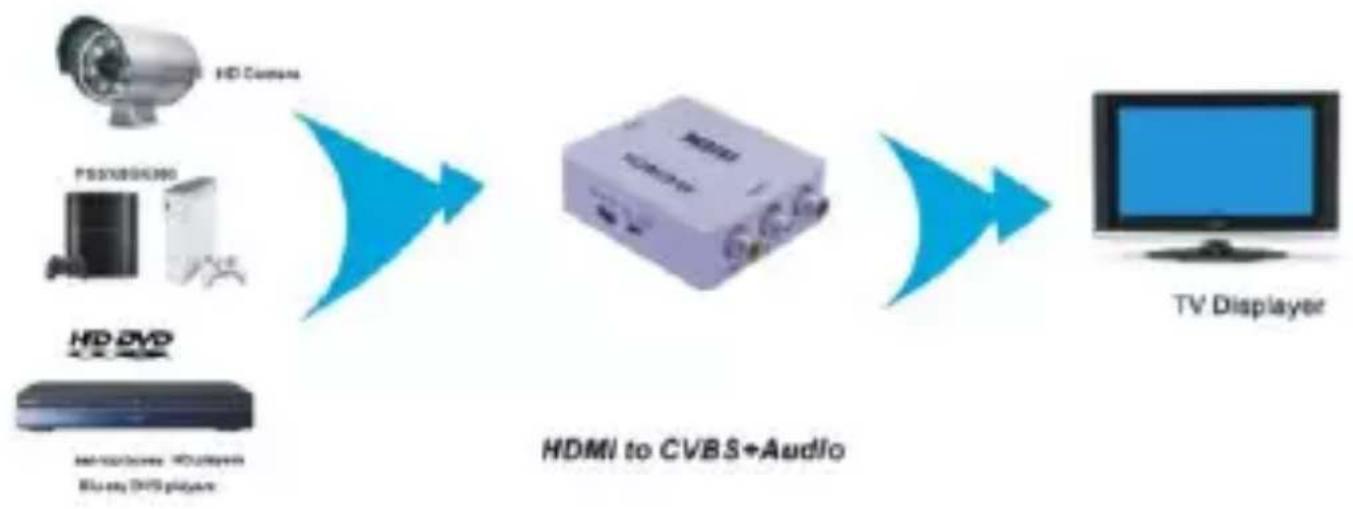

5.0 CONNECTION DIAGRAM
Errors and emissions excepted.
Copyright© 2021 NASL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Trafford Park, Manchester, MA1 73Q.
NISL (Europe) Ltd, Unit 3D North Point House, North Point Bus. Park, New Nallow Road, Cork, Ireland.
