NAUDOJIMO INSTRUKCIJA ZOME36ASBAF Zephyr
Ombra is the perfect combination of form and function with its capacitive touch controls and optional hybrid baffle filters. Ombra features a powerful 600 CFM blower with our exclusive Airflow Control Tech-
nology™ (ACT™) to meet local code requirements. Available in sleek black stainless steel and stainless steel.
ACT
| INTERNAL BLOWER STANDARD | INTERNAL BLOWER with ACTTM AIRFLOW CONTROL TECHNOLOGYTM* | ||
| Min. - Max. CFM | 200 - 600 | 200 - 390 | 200 - 290 |
| Min. - Max. Sones | 1 - 6 | 1 - 4 | 1 - 3 |
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.


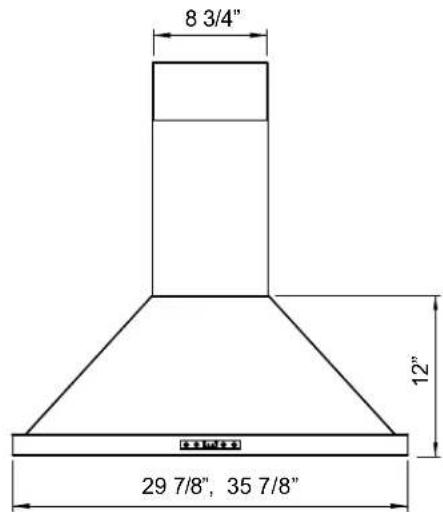

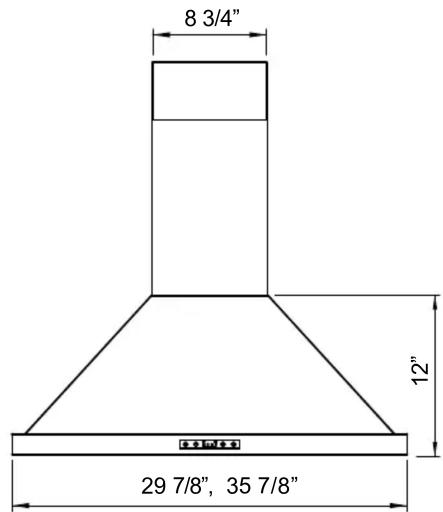

8 3/4" 12" 29 7/8", 35 7/8"FRONT


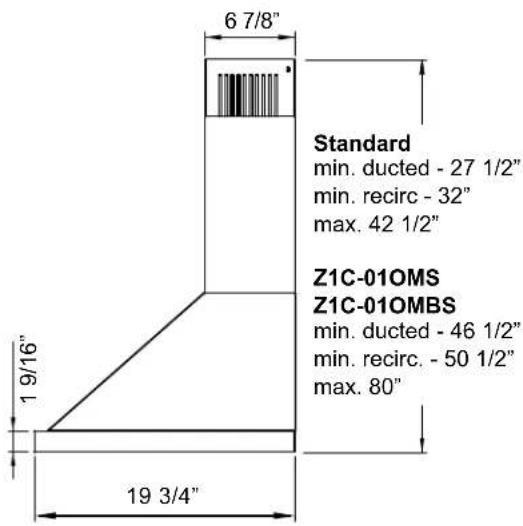

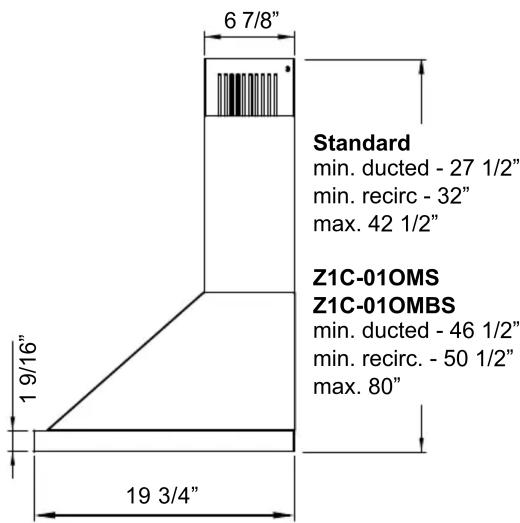

6 7/8" Standard min. ducted - 27 1/2" min. recirc - 32" max. 42 1/2" Z1C-01OMS Z1C-01OMBS min. ducted - 46 1/2" min. recirc. - 50 1/2" max. 80" 19 3/4"SIDE
| MODEL | ||
| Stainless Steel | ZOM-E30AS | ZOM-E36AS |
| Black Stainless Steel | ZOM-E30ABS | ZOM-E36ABS |
| Size | 30" | 36" |
| Blower CFM (Min. - Max.) | 200 - 600 | 200 - 600 |
| Sones (Min. - Max.) | 1 - 6 | 1 - 6 |
| ACT 390 CFM (Min. - Max.) | 200 - 390 | 200 - 390 |
| ACT 390 Sones (Min. - Max.) | 1 - 4 | 1 - 4 |
| ACT 290 CFM (Min. - Max.) | 200 - 290 | 200 - 290 |
| ACT 290 Sones (Min. - Max.) | 1 - 3 | 1 - 3 |
| FEATURES | ||
| ACTTM Technology | Yes | Yes |
| Controls | Capacitive Touch | Capacitive Touch |
| Speed Levels | 4* | 4* |
| Auto Delay-Off | Yes | Yes |
| Lighting | Halogen, 35W x2 | Halogen, 35W x2 |
| Dual-Level Lighting | Yes | Yes |
| Filters | Aluminum Mesh x2 | Aluminum Mesh x2 |
| Recirculating Option | Yes | Yes |
| Duct Cover Extension Option | Yes, Up to 12' Ceiling | Yes, Up to 12' Ceiling |
| DUCT SPECIFICATIONS | ||
| Vertical Internal Blower | 6" Round | 6" Round |
| Horizontal Internal Blower | NA | NA |
| AC POWER | 120V, 60Hz at Max. 3.5A | 120V, 60Hz at Max. 3.5A |
| OPTIONAL ACCESSORIES | ||
| Recirculating Kit | ZRC-01OM | ZRC-01OM |
| Duct Cover Extension | Z1C-01OMS (ss) | Z1C-01OMS (ss) |
| Z1C-01OMBS (black ss) | Z1C-01OMBS (black ss) | |
| BloomTM GU10 LED | Z0B0040 | Z0B0040 |
| Hybrid Baffle Filter Kit | Z0F-B002 | Z0F-B002 |
| Make-Up Air Kit | MUA006A | MUA006A |
| MOUNTING HEIGHT RANGE** | 26" - 34" | 26" - 34" |
| WARRANTY | 3 years parts, 1 year labor | 3 years parts, 1 year labor |
| CEILING HEIGHT | 8' | 8.5' | 9' | 9.5' | 10' | 10.5' | 11' | 12' | |
| STANDARD DUCT COVER | Ducted Mounting Height** | 26" - 33.5" | 26" - 34" | 29.5" - 34" | NA | NA | NA | NA | NA |
| Recirc Mounting Height** | 26" - 28.5" | 26" - 34" | 29.5" - 34" | NA | NA | NA | NA | NA | |
| DUCT COVER EXTENSION | Ducted Mounting Height** | NA | NA | 26" - 30.5" | 26" - 34" | 26" - 34" | 26" - 34" | 26" - 34" | 28" - 34" |
| Recirc Mounting Height** | NA | NA | 26" - 26" | 26" - 32" | 26" - 34" | 26" - 34" | 26" - 34" | 28" - 34" | |
*When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36" tall cooking surface and bottom of hood.
