NAUDOJIMO INSTRUKCIJA C17JKW12 Currys Essentials

SPECIFICATIONS

Mains supply: 230-240V--50Hz

Power consumption: 2025-2200W

Specifications and features may change without prior notice.

SAFETY FIRST!

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

- Read all the instructions carefully before using this appliance and keep them for future reference.

- Retain the manual. If you pass the appliance on to a third party, make sure to include this manual.

- Unplug the appliance from the mains socket when not in use, or before cleaning any part of the appliance.

- Allow the appliance to completely cool down before cleaning.

- Never immerse the appliance in water and always keep the electrical contacts dry.

- Never place the appliance on or near a source of heat such as a cooker ring or gas flame.

• Always place the appliance on a dry, flat and stable surface.

- Avoid contact with the steam from the appliance's spout. Take care when pouring or refilling after boiling.

- To prevent from boiling dry, do not fill the appliance with water less than the minimum fill level as indicated on the appliance.

- Do not use the appliance to heat anything other than water.

- Do not interfere with the normal working of the switch.

• Always keep the appliance out of the reach of small children. Children should be taught about the dangers of boiling water.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- if the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.

- This appliance is intended to be used in households and similar places such as: - Staff kitchen areas in shops, offices and other work places.

- By clients in motels, hotels and Bed & Breakfast establishments.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:

Replacement Part Part Number

Scale Filter C17JKW12-001

Partmaster COUK

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to it www.partmaster.co.uk or call 0844 800 3456 (UK) at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England

IP.N.C17JKW12.0201

currys essentials KETTLE

Instruction Manual C17JKW12

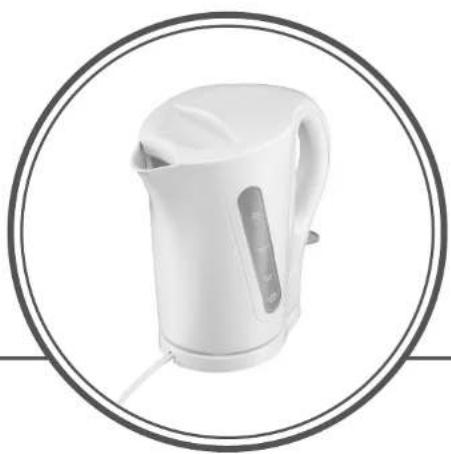

White portable water heater with a circular frame (no text or symbols visible)

Thank you for purchasing your new Currys Essentials Kettle. We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

UNPACKING

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• The Main Unit • The Kettle Stand

(P.N.: C17JKW12-018)

• Instruction Manual (P.N.: C17JKW12-020)

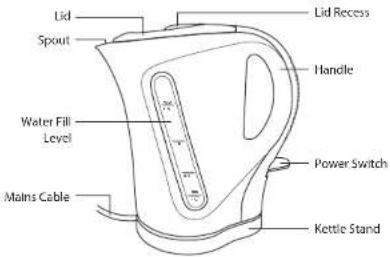

PRODUCT OVERVIEW

FIRST TIME USE

Clean your kettle by boiling a full kettle of water twice and then discarding the water.

FILLING THE KETTLE

Grip the lid recess and kettle firmly. Pull on the lid recess to open the lid. Fill the kettle with the required amount of water. Do not exceed the maximum fill level (Max 1.7L) as indicated on the Water Fill Level. Always ensure the kettle is filled passed the minimum fill level (Min 0.5L) as indicated on the Water Fill Level.

If the kettle is overfilled, boiling water may be ejected from the spout and cause scalding.

GB-1 GB-2

SWITCHING ON

The kettle stand comes packaged inside the kettle. Grip the lid recess and kettle firmly. Pull on the lid recess to open the lid. Remove the kettle stand and place it on a firm, stable and dry work surface.

Place the kettle on its stand. Connect the stand's mains cable to the mains socket.

The kettle is only to be used with the stand provided.

Push the power switch down to the ON position (indicated by the symbol 'I').

- Never open the lid while the water is boiling. The steam coming out from the kettle is very hot.

- If there is insufficient water in the kettle, the automatic safety cut-out will operate. If this happens, pull the power switch up to the OFF position and allow the kettle to cool for 10 minutes before refilling with cold water and re-boiling.

• Ensure that the switch is not obstructed and the lid is firmly closed. The kettle will not turn off if the switch is obstructed or if the lid is open.
  • After removing the kettle, there may be some water on the surface of the stand. This is condensation from the steam that causes the kettle to automatically switch off after boiling. This is normal and should not be a cause for alarm.
• Ensure that the switch is not obstructed and the lid is firmly closed. The kettle will not turn off if the switch is obstructed, or if the lid is open.
  • After removing the kettle, there may be some water on the surface of the stand. This is condensation from the steam that causes the kettle to automatically switch off after boiling. This is normal and should not be a cause for alarm.

WHEN THE WATER HAS BOILED

The kettle will automatically switch off (indicated by the symbol '0').

CLEANING THE KETTLE

The kettle exterior should be cleaned with a soft clamp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the kettle. Never immerse the kettle or the stand in water and always keep the electrical contacts dry. Always disconnect from the mains before cleaning the stand.

Do not Insert any foreign objects or allow any liquid to spill into the Power Connector Hole.

DESCALING THE KETTLE

Depending on the hardness of the water in your area, limescale may be deposited on the heating element and the Inside of the kettle. This normal build-up is not harmful to health but an excessive amount of scale may affect the performance of the kettle.
To descale, fill the kettle with distilled water up to three-quarters of the Max level and bring the water to boil. After the kettle has switched off, add a descaling solution following the manufacturers instructions. Never attempt to descale the kettle by chipping or scraping with a sharp implement.

Line drawing of a kettle being poured into a cup (no text or symbols)

CLEANING THE REMOVABLE SCALE FILTER

Ensure the kettle is cool before removing the filter.

To prevent loose particles of limescale being poured into your beverage, your kettle is fitted with a scale filter. You may remove the filter and fit it back in after cleaning.

1. To remove the filter, open the lid.
2. Grip the filter's lip firmly and pull upwards. If one side comes free first, gently but firmly pull the other side free.
3. To fit the filter, open the lid.
4. Slot the filter into the grooves inside the spout.
5. Snap (gently) into place,

GB-3
