NAUDOJIMO INSTRUKCIJA HL-346 Streetz

BLUETOOTH HEADPPHOHENS

STREETZ

STREETZ

QUICK START GUIDE

HL-344

HL-345

HL-346

HL-347

QUICK START GUIDE

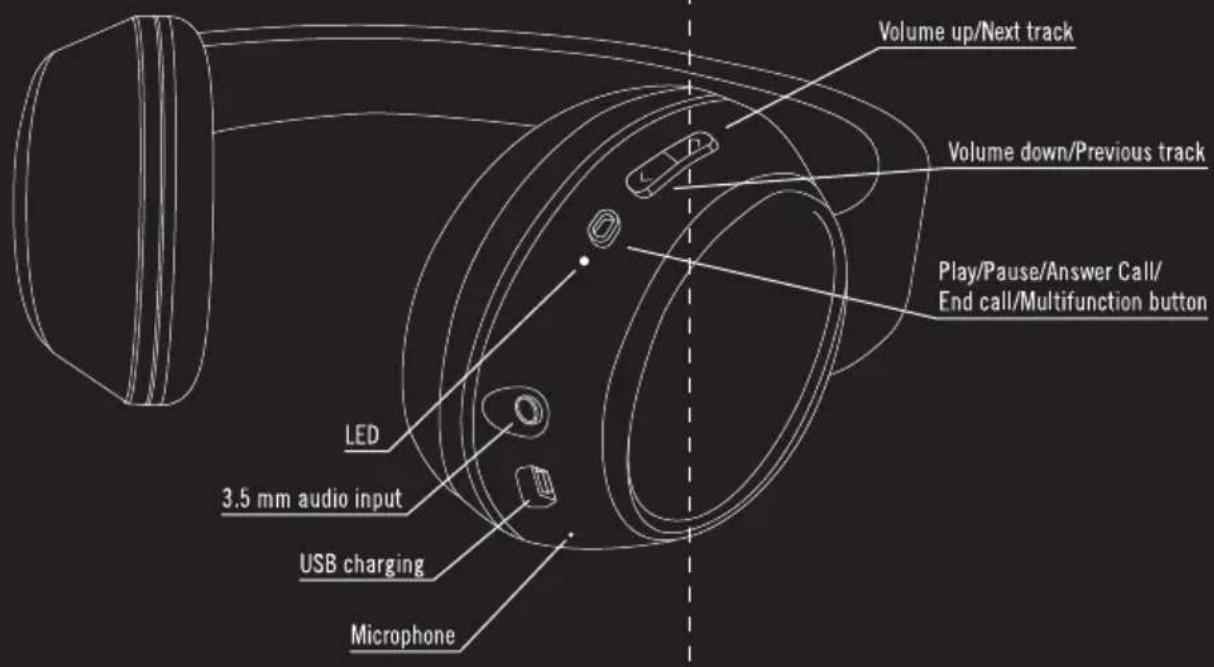

HEADPHONE FUNCTIONS

OPERATION LED STATUS

Ready for bluetooth connection Blue LED flashes

Low battery: Red LED flashes

Charging: Red LED is lit during charging

Blue LED flashes: When active / playing music

HOW TO USE

Power on/off: Press multifunction button for 3 seconds.

Volume adjust: Press and hold '<' or '>' buttons.

Play/Pause: Short press multifunction button, music pause. Press it again, music continues.

Previous/Next: Short press '<' or '>' buttons.

Answer Call: Short press multifunction button to answer the phone call.

End call: Short press multifunction button, phone call ended.

Charging: When in low battery, please charge via USB cable for 2 hours. Red LED is lit during charging.

3.5mm music line-in function:

Connect Audio line in cable to 3.5 audio jack for wired music.

Phone call function cannot be used in this mode

Connect the 3.5 audio wire to the headphone and audio player.

PAIRING

Pairing with one phone or other device.

Make sure the headphone is powered off.

Press and hold the multifunctional button for 3 seconds to enter the pairing mode.

Blue LED flashes alternately, waiting for connection.

Activate your phone or device Bluetooth function and search for headphone.

Select the headphone on your device to connect it.

KIT CONTENTS

1 x Bluetooth headphone

1 x Charging Micro USB cable

1 x 3.5 mm audio cable

1 x User Manual

SPECIFICATION

Bluetooth version: 2.1+ EDR

Talk time: 10h

Stand-by time: 20h

Music play time: 10h

Wireless range: 10m

Impedance: 32Ω

Sound pressure level: 85±3dB

Weight: 150g
