Lancer Sportback (2011) - 自動車 MITSUBISHI - 無料のユーザーマニュアル

製品タイプ	自動車
ブランド	三菱
モデル	ランサースポーツバック (2011年)
全長	4,585 mm
全幅	1,760 mm
全高	1,505 mm (16インチタイヤ) / 1,515 mm (18インチタイヤ)
ホイールベース	2,635 mm
車両重量 (最大積載時)	約1,820 kg (2.0L ES)
エンジン	2.0L 4気筒 (4B11) または 2.4L 4気筒 (4B12)
燃料	無鉛ガソリン (レギュラー87以上、ターボ車はプレミアム91以上)
燃料タンク容量	59 L (2WD) / 55 L (4WD)
トランスミッション	5速MT / CVT / ツインクラッチSST
駆動方式	2WD または 4WD (AWC)
ブレーキ	前後ディスク (ABS, EBD, ブレーキアシスト付)
安全装備	SRSエアバッグ (前席、サイド、カーテン)、プリテンショナー、TPMS、ASC、ヒルスタートアシスト
タイヤ	205/60R16 または 215/45R18
バッテリー	12V 75D23L
エンジンオイル容量	4.0 L (2.0L ノンターボ) / 4.8 L (2.0L ターボ) / 4.3 L (2.4L)
冷却水容量	7.0 L (MT/CVT) / 7.5 L (SST)
メンテナンス目安	エンジンオイル交換: 5,000kmまたは6ヶ月; エアフィルター: 20,000km
修理可能性	三菱純正部品推奨; 改造は保証対象外

よくある質問 - Lancer Sportback (2011) MITSUBISHI

この車両の燃料は何を使用しますか？

無鉛ガソリンを使用します。通常モデルはオクタン価87以上（レギュラー）、ターボモデルはオクタン価91以上（プレミアム）を推奨します。詳細はマニュアルの燃料選択の項を参照してください。

エンジンオイルの交換頻度と適切なオイルは？

通常5,000kmまたは6ヶ月ごとの交換を推奨します。ILSAC認証マーク（スターburst）付きのエンジンオイルを使用してください。容量はエンジンタイプにより異なります（2.0Lノンターボ: 4.0L、2.0Lターボ: 4.8L、2.4L: 4.3L）。

タイヤの推奨空気圧は？

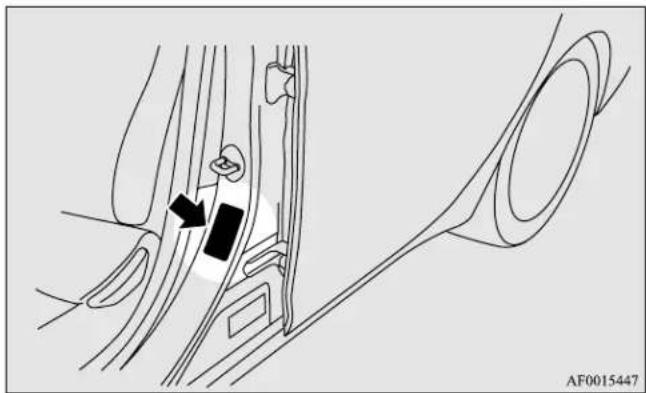

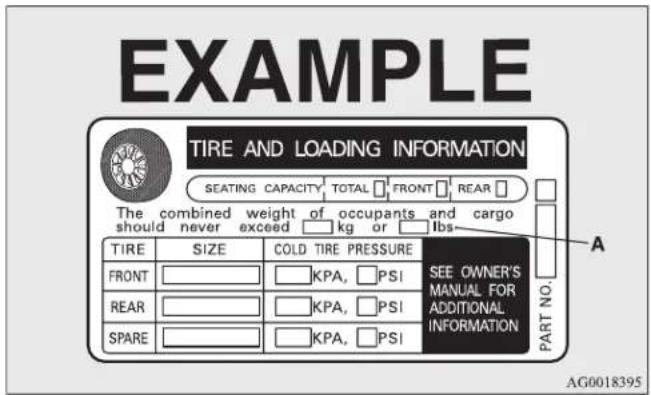

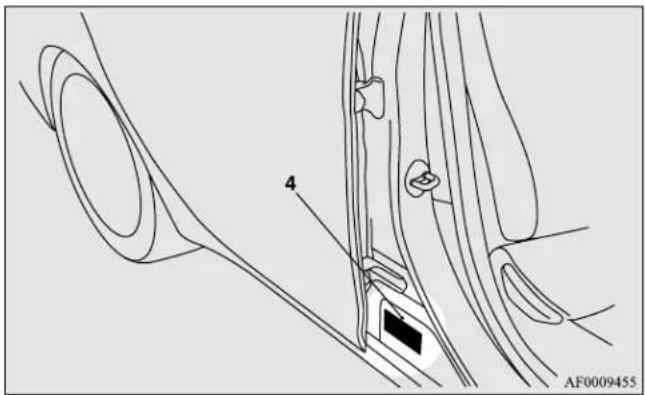

タイヤと積載情報ラベル（運転席ドア部）に記載されています。標準は前後とも約2.3 bar（33 psi）ですが、必ずラベルを確認してください。タイヤ空気圧監視システム（TPMS）搭載車は警告灯で異常を知らせます。

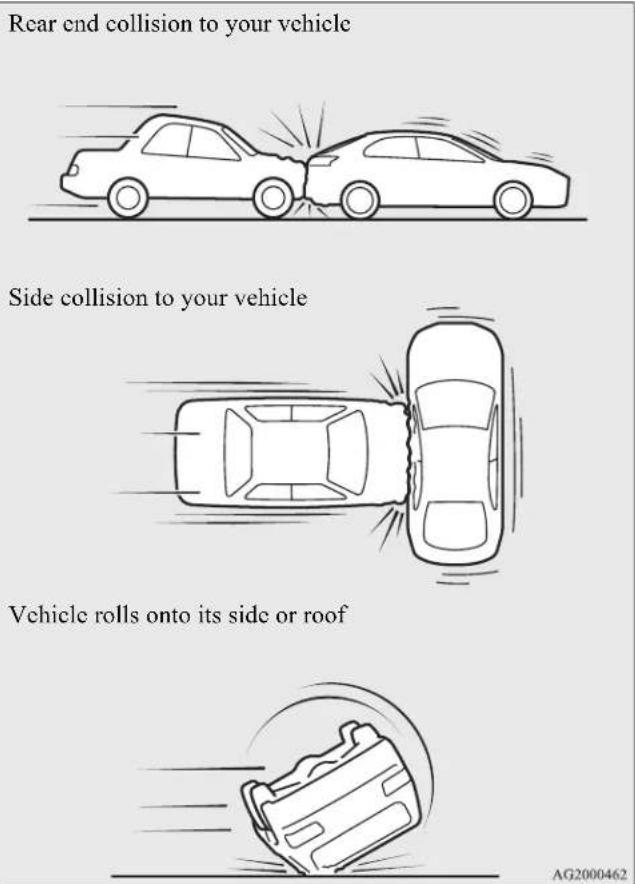

エアバッグに関する重要な注意点は？

前席エアバッグ、サイドエアバッグ、カーテンエアバッグを装備。シートベルトは必ず着用し、運転席はステアリングから可能な限り離して着座してください。後ろ向きチャイルドシートは絶対に助手席に設置しないでください。詳細はマニュアルのSRSエアバッグの項をご覧ください。

チャイルドシートの取り付け方法は？

LATCHシステムまたはシートベルト（ALRモード）を使用します。LATCH対応の場合は後席外側の下部アンカーとトップテザーアンカーを利用。シートベルトの場合は、ベルトを完全に引き出してALRモードに切り替えて固定します。必ず取扱説明書に従い、取り付け後は前後左右に揺れて確実に固定されているか確認してください。

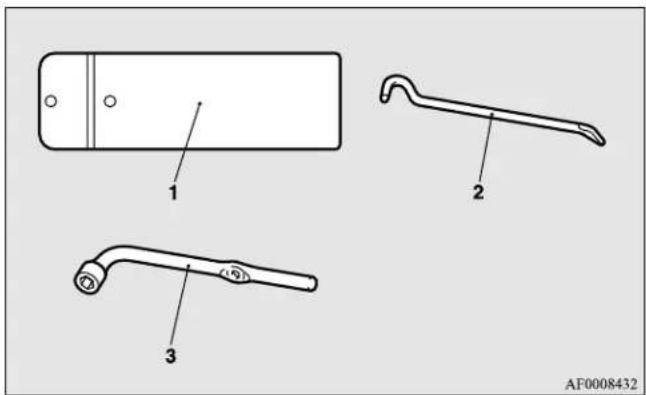

パンクした場合の対処方法は？

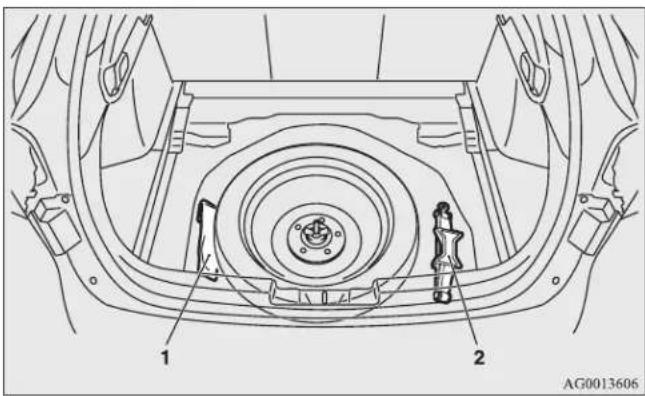

安全な平坦な場所に停車し、ジャッキとスペアタイヤを使用して交換します。マニュアルのパンク時のタイヤ交換の手順に従ってください。トランクの工具収納場所を確認し、ジャッキポイントは車体下面の指定位置です。交換後は速やかにタイヤ空気圧を点検してください。

バッテリーが上がった場合の対処法は？

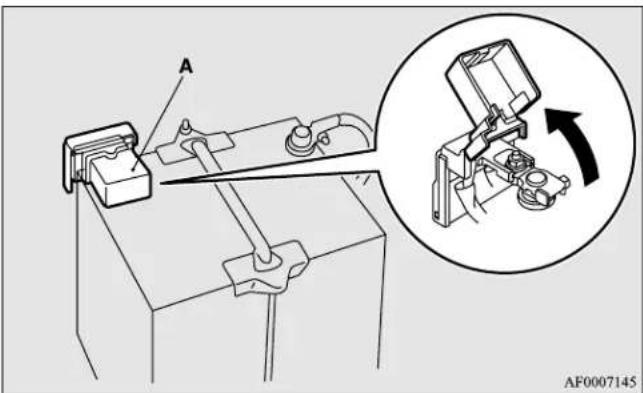

ブースターケーブルを使用して他車からジャンプスタートします。マニュアルのジャンプスタートの項を参照。正しい接続順序（プラス→プラス、マイナス→エンジンブロック）を守り、最終接続はバッテリーから離れた場所で行ってください。作業後はバッテリーの充電状態を点検してください。

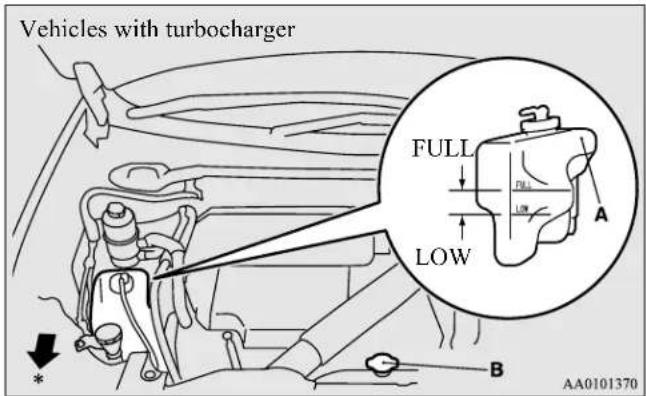

冷却水の補充方法と頻度は？

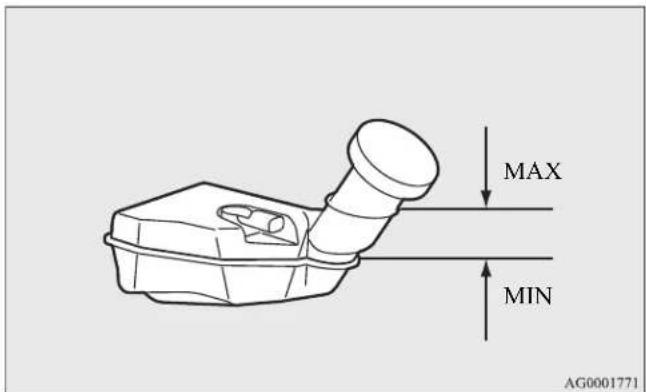

エンジン冷却水はリザーバータンクのレベルを定期的に確認し、LOWレベル以下なら補充します。クーラントは三菱純正の長寿命クーラント（エチレングリコールベース）を使用。交換目安は2年または40,000kmです。エンジンが冷えている状態でキャップを開けてください。

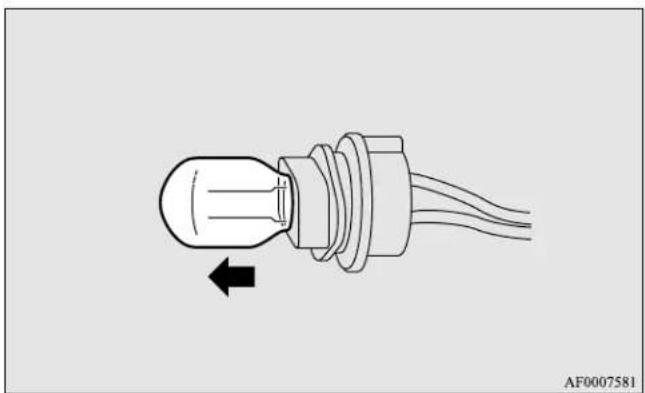

ヘッドライトのバルブ交換方法は？

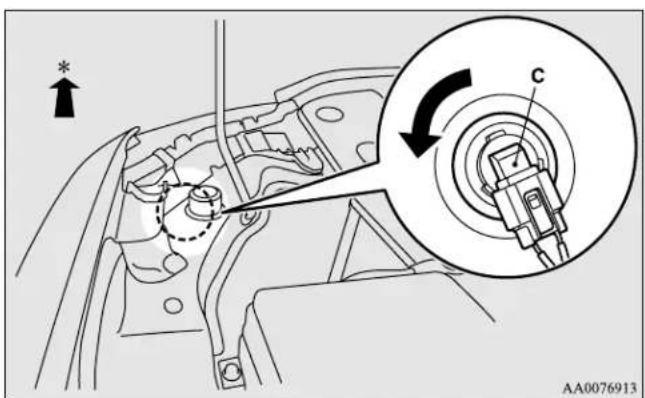

バルブタイプにより手順が異なります。マニュアルのヘッドライトバルブ交換の項（7-62～7-69）を参照。一般的には、エンジンルーム内のバルブカバーを外し、コネクタを抜いてバルブを取り外します。新しいバルブはガラス部分に触れずに取り付けてください。

走行中に警告灯が点灯した場合の対応は？

警告灯の種類により対応が異なります。マニュアルの警告灯一覧（3-214～3-216）を確認してください。例えば、充電警告灯は安全な場所に停車しエンジンを停止、ブレーキ警告灯はパーキングブレーキの解除とブレーキフルードレベルを確認。SRS警告灯は点灯したら速やかに点検を受けてください。

使用説明書 Lancer Sportback (2011) MITSUBISHI

Introduction

N09200100732

Thank you for buying a MITSUBISHI LANCER SPORTBACK.

We are confident you will enjoy your vehicle. It has been engineered for optimum performance, durability and comfort. By thoroughly reading this Owner's Manual, you will gain an understanding of the many features that are included in the LANCER SPORTBACK. The Owner's Manual contains descriptions and illustrations that will assist in the operation and maintenance of your vehicle.

Your Authorized Mitsubishi Motors Dealer will be happy to assist you with any further questions you may have regarding the operation of your vehicle.

Please note that this manual applies to all LANCER SPORTBACK models and explains all features including options. Some features explained in this manual may not be installed on your vehicle.

Please leave this Owner's Manual in the vehicle at the time of resale. The next owner will appreciate having access to the information contained here.

This manual includes instructions for standard and optional equipment available at the time of printing. Mitsubishi Motors Corporation reserves the right to make changes in design and specifications and to make additions or improvements in its product without assuming any obligation to install these on previously manufactured products.

Throughout this manual the words WARNING and CAUTION appear.

These are reminders to be especially careful. Failure to follow the instructions could result in personal injury or damage to your vehicle.

WARNING

Indicates a strong possibility of severe personal injury or death if instructions are not followed.

CAUTION

Points out hazards or unsafe practices that could cause minor personal injury or damage to your vehicle.

You will see another important symbol:

NOTE Gives helpful information.

WARNING

●Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Table of contents

Overview
Quick index
General information	1
Seat and restraint systems	2
Features and controls	3
Driving safety	4
Comfort controls	5
For emergencies	6
Vehicle care and maintenance	7
Customer assistance/Reporting Safety Defects	8
Specifications	9

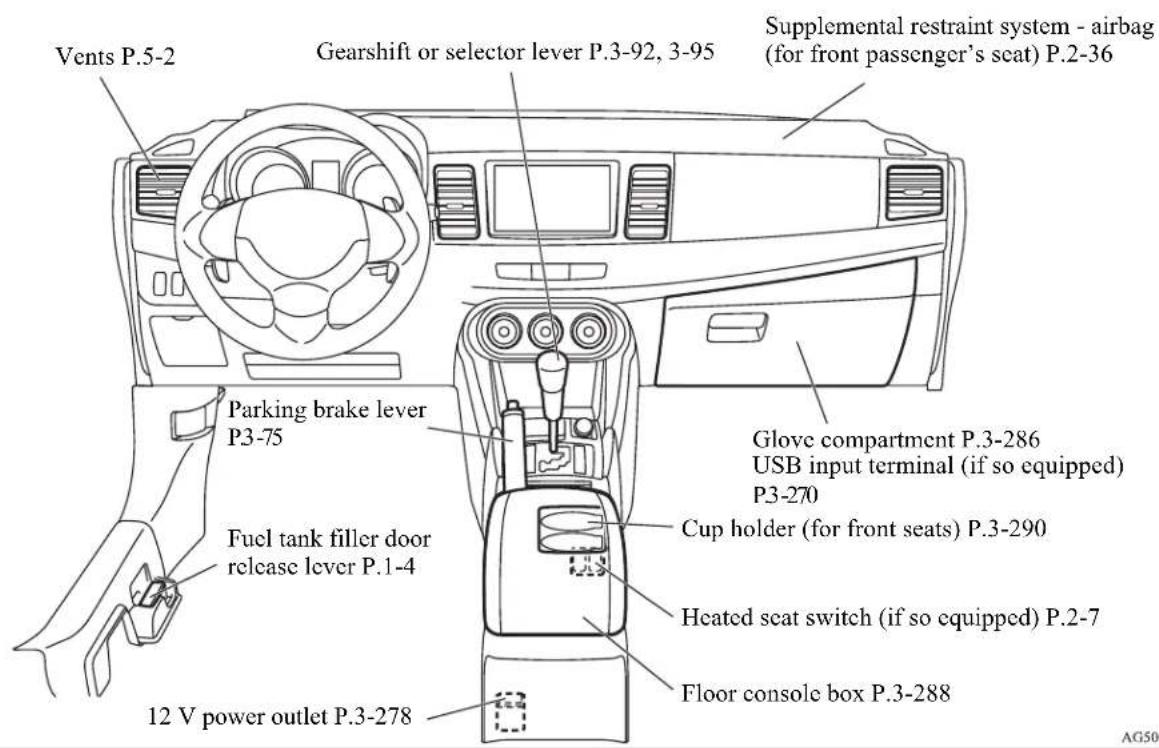

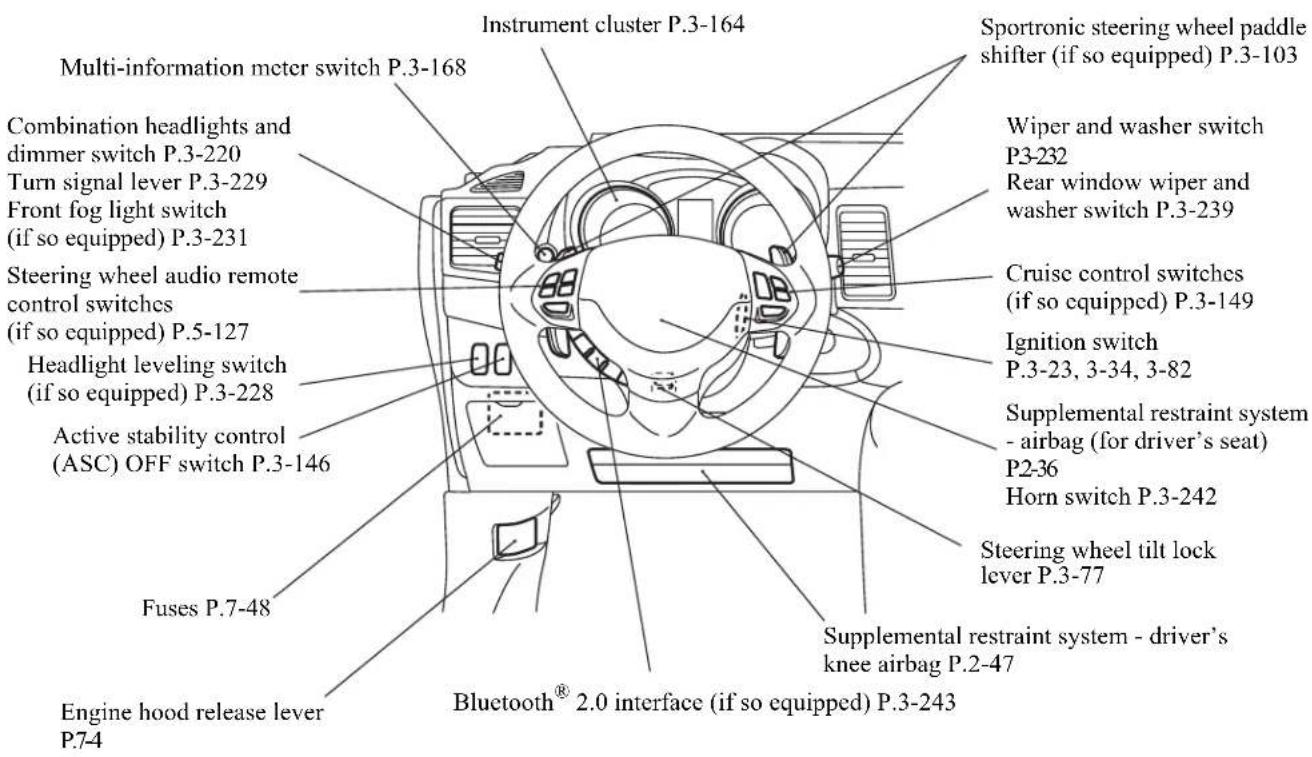

Instruments and controls (Driver's area)

N00100201358

Except for RALLIART

AG5001499

RALLIART

Instruments and controls

N00100201361

Except for RALLIART

AG5002962

Overview

RALLIART

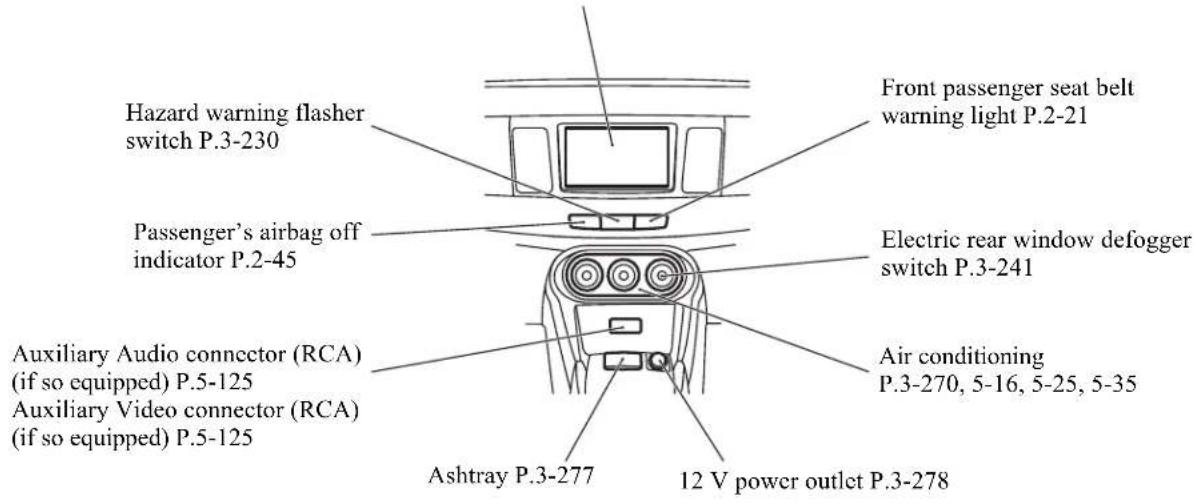

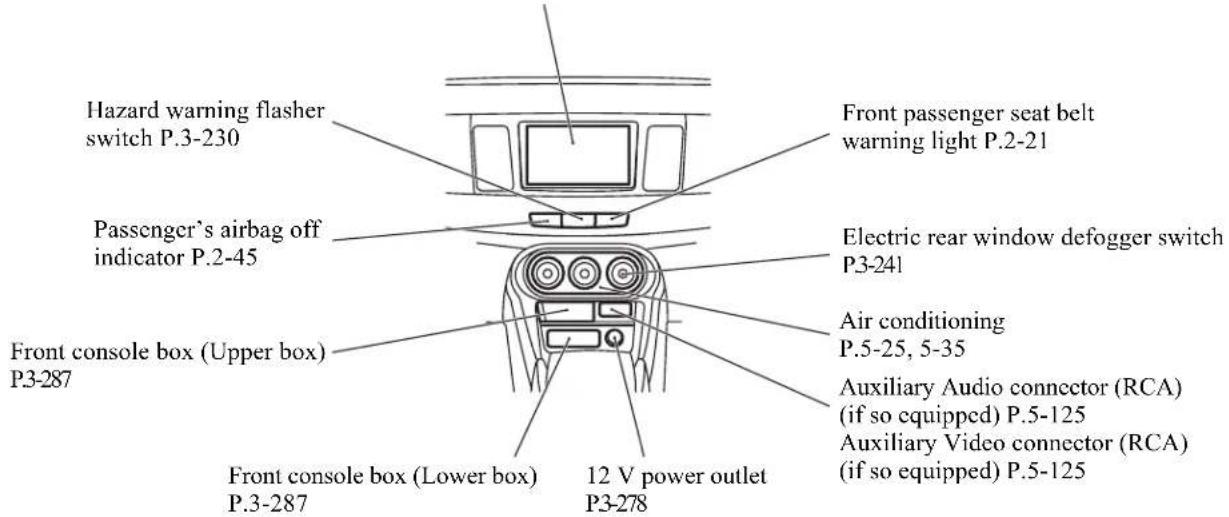

Center panel

N00100700167

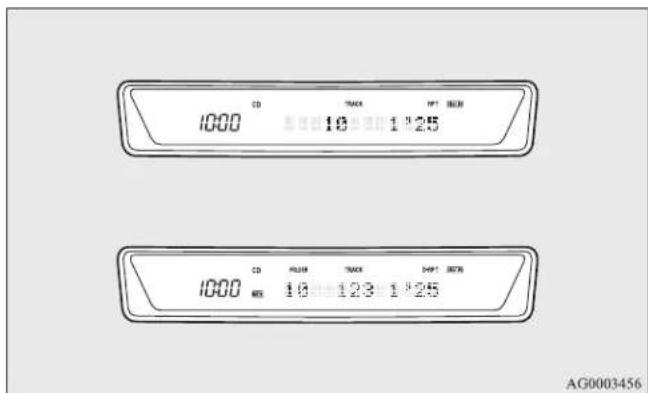

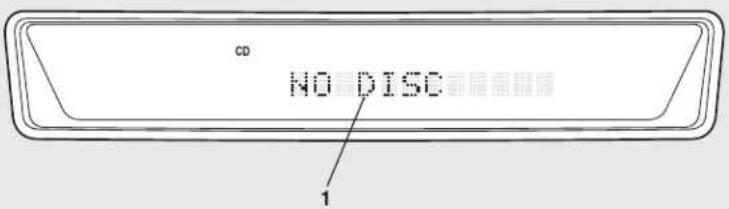

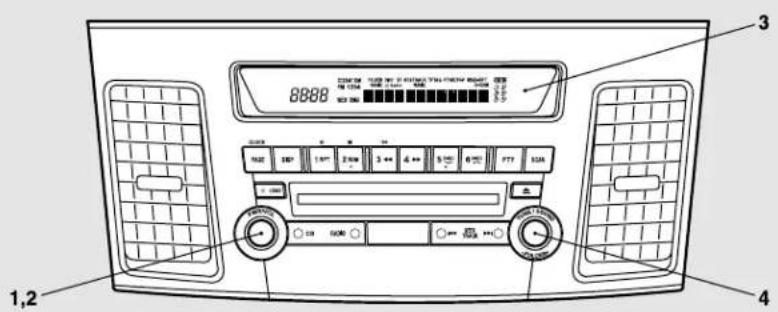

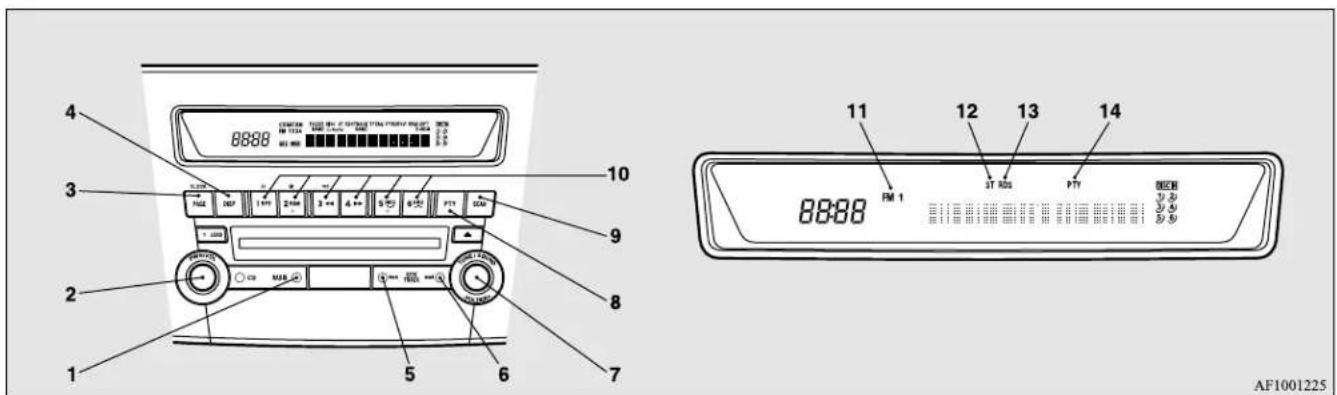

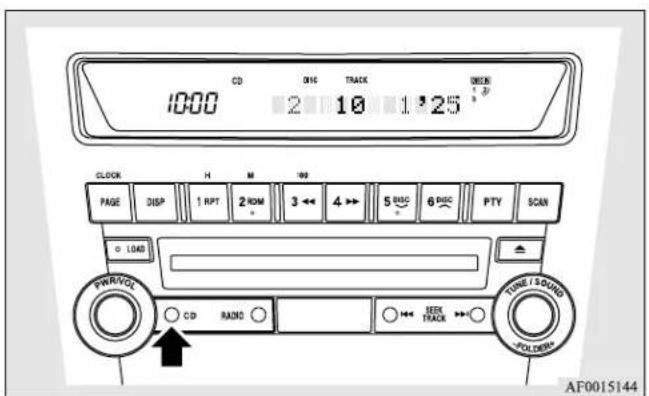

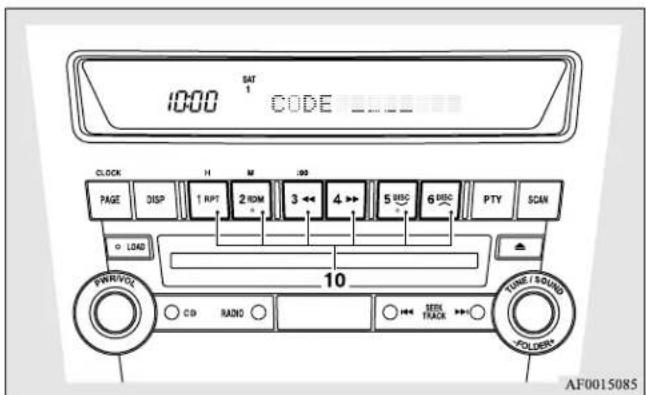

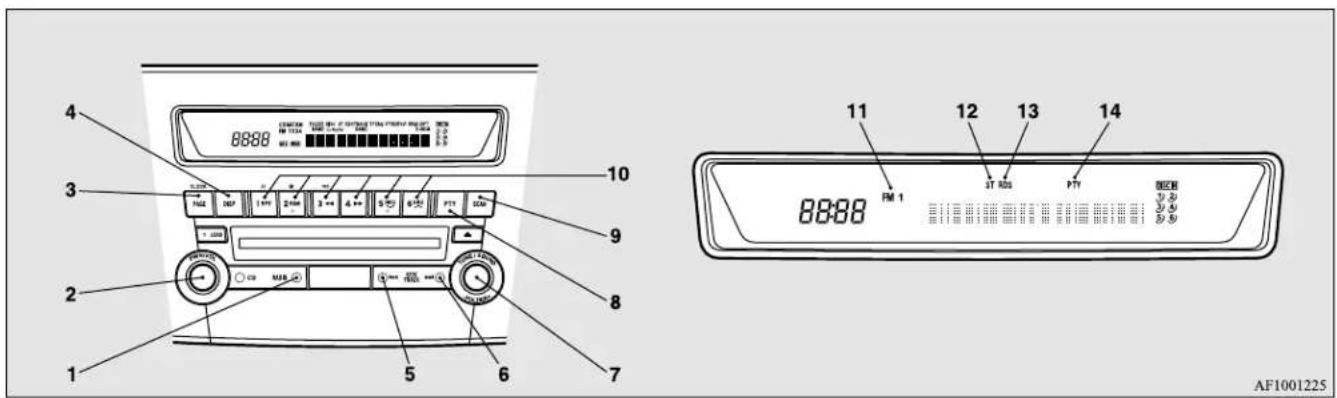

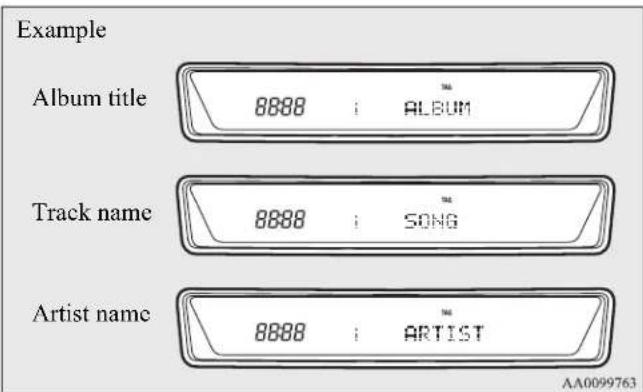

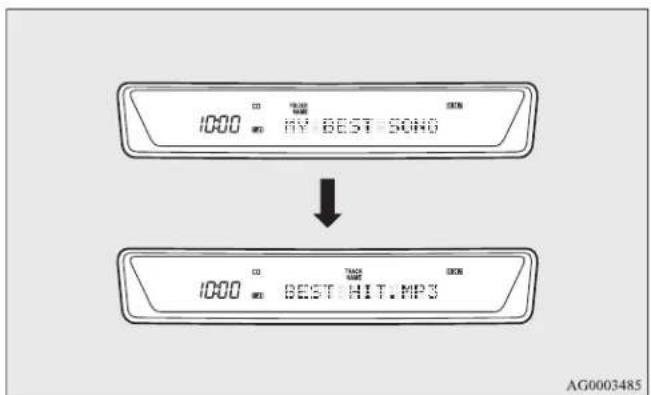

Audio (if so equipped) P.5-46, 5-74

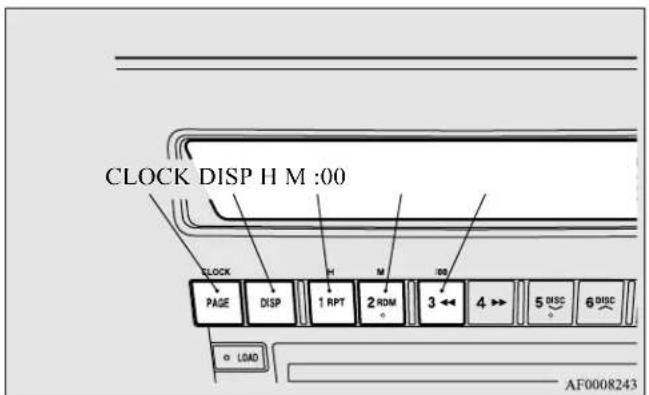

Digital clock (if so equipped) P.5-141

Mitsubishi Multi-Communication System (if so equipped)

Refer to the separate "Mitsubishi Multi-Communication System owner's manual"

AG5001532

Audio (if so equipped) P.5-46, 5-74

Digital clock (if so equipped) P.5-141

Mitsubishi Multi-Communication System (if so equipped)

Refer to the separate "Mitsubishi Multi-Communication System owner's manual"

Interior

N00100301128

Interior

Overview

N00100300932

Overview

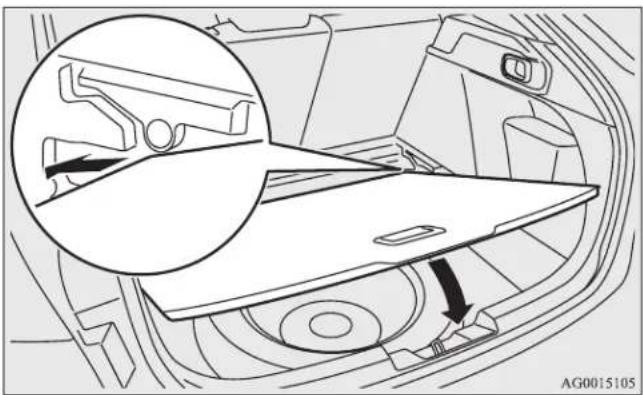

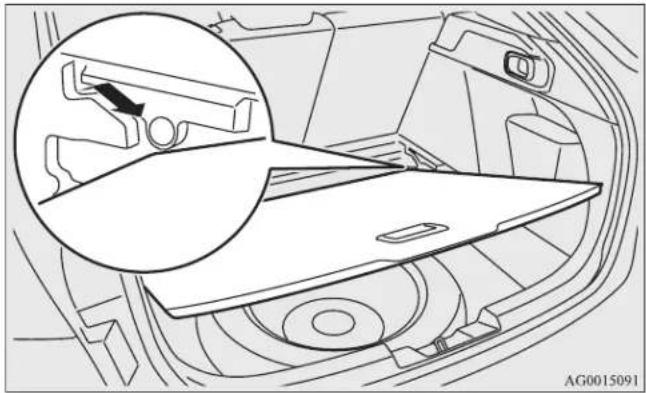

Luggage compartment

N00100500396

AG5001431

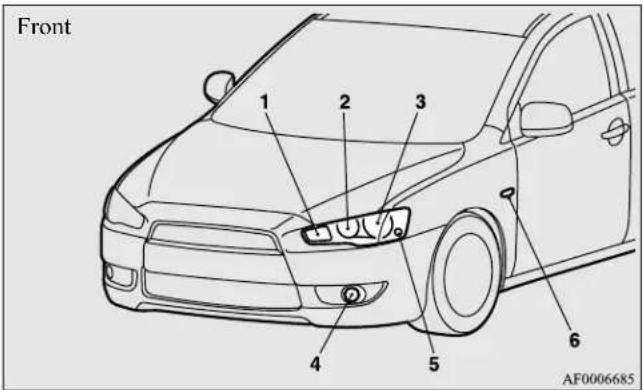

Outside (Front)

Overview

N00100601206

Except for RALLIART

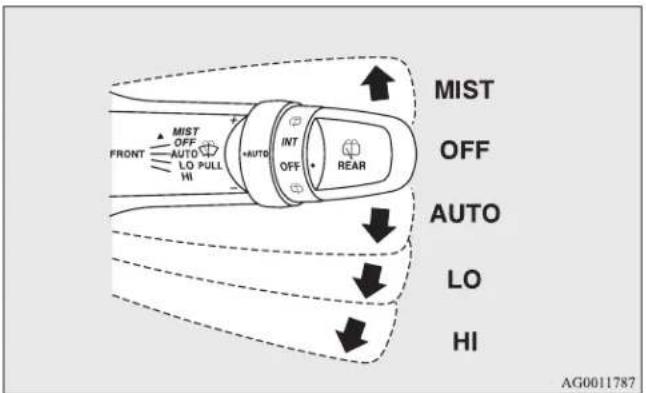

Windshield wiper P.3-232

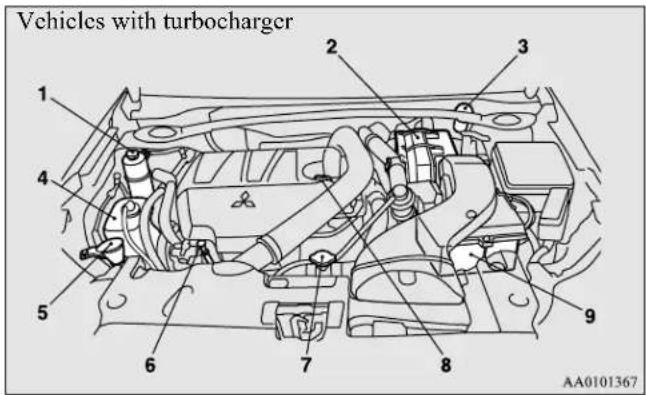

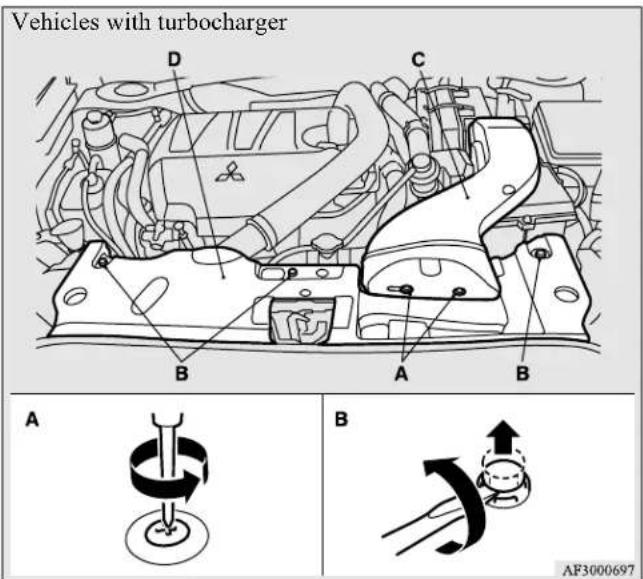

Engine compartment P.7-7

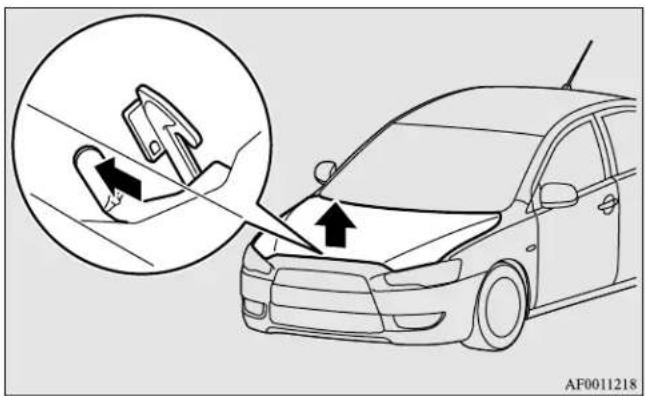

Engine hood P.7-4

Sunroof (if so equipped) P.3-72

Outside rearview mirrors P.3-80

Fuel tank filler P.1-4

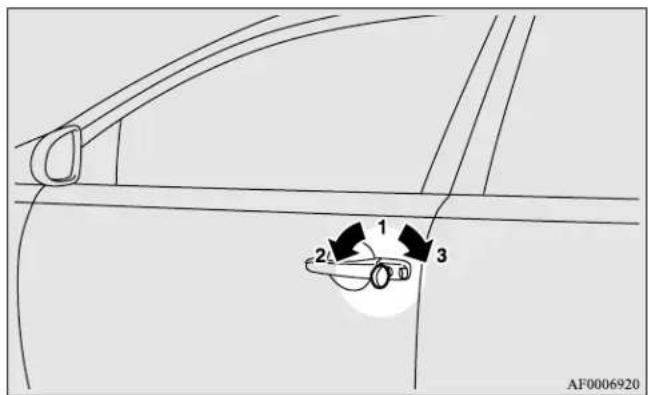

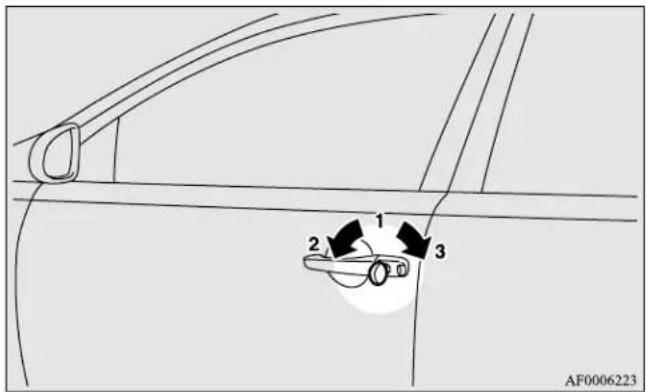

Locking and unlocking P.3-51

Keyless entry system

(if so equipped) P.3-8

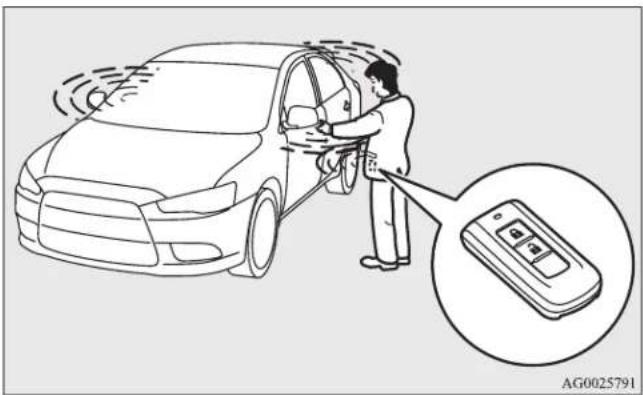

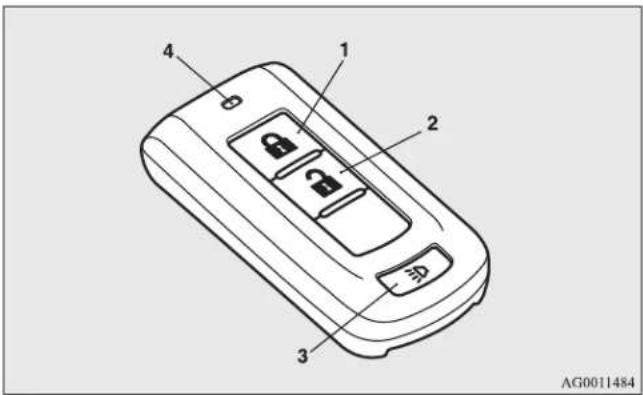

F.A.S.T.-key (Free-hand Advanced

Security Transmitter)

(if so equipped) P.3-16

Side turn signal lights P.3-229, 7-58

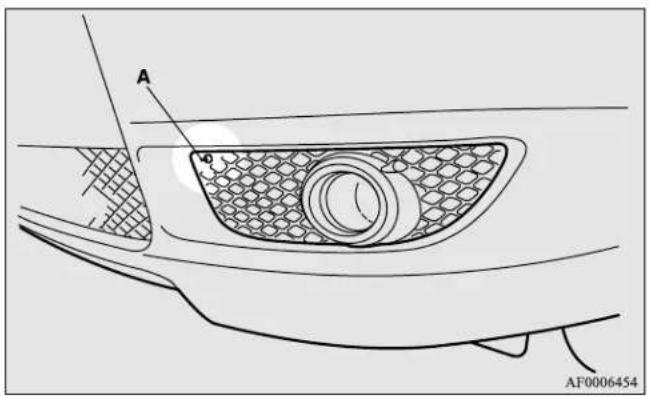

Front fog lights (if so equipped) P.3-231, 7-58, 7-75

[Except for vehicles with high intensity discharge headlights type]

Front turn signal lights P.3-229, 7-58, 7-73

Line drawing of a car's front wheel and side panel (no text or symbols)

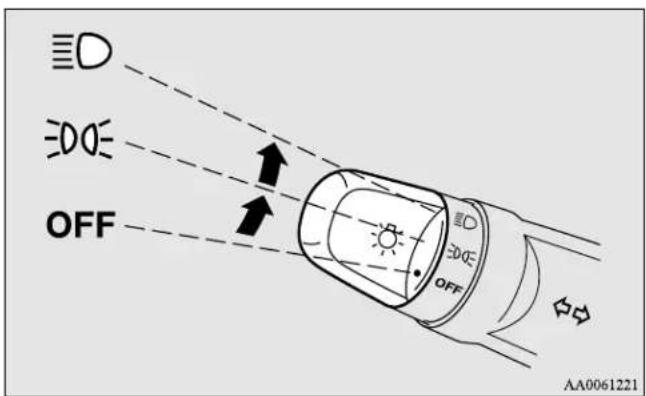

Headlights, low beam P.3-220, 7-58, 7-62

Front side-marker and parking lights P.3-220, 7-58, 7-71

Headlights, high beam P.3-220, 7-58, 7-64

[For vehicles with high intensity discharge headlights type]

Front turn signal lights P.3-229, 7-58, 7-73

Line drawing of a car's front wheel and side door (no text or symbols)

Headlights, low/high beam P.3-220, 7-58, 7-69

Front side-marker and parking lights P.3-220, 7-58, 7-69

Daytime running lights P.3-220, 7-58, 7-67

AG5001213

Overview

RALLIART

Sunroof (if so equipped) P.3-72

Outside rearview mirrors P.3-80

Windshield wiper P.3-232

Engine compartment P.7-7

Engine hood P.7-4

Fuel tank filler P.1-4

Locking and unlocking P.3-51

Keyless entry system

(if so equipped) P.3-8

F.A.S.T.-key (Free-hand Advanced

Security Transmitter)

(if so equipped) P.3-16

Side turn signal lights P.3-229, 7-58

Front fog lights P.3-231, 7-58, 7-79

[Except for vehicles with high intensity discharge headlights type]

Front turn signal lights P.3-229, 7-58, 7-73

Line drawing of a car's front wheel and side door (no text or symbols)

Headlights, low beam P.3-220, 7-58, 7-62

Front side-marker and parking lights P.3-220, 7-58, 7-71

Headlights, high beam P.3-220, 7-58, 7-64

[For vehicles with high intensity discharge headlights type]

Front turn signal lights

P.3-229, 7-58, 7-73

Headlights, low/high beam

P.3-220, 7-58, 7-69

Line drawing of a car's front wheel and side door (no text or symbols)

Front side-marker and parking lights P.3-220, 7-58, 7-69

Daytime running lights P.3-220, 7-58, 7-67

AG5001590

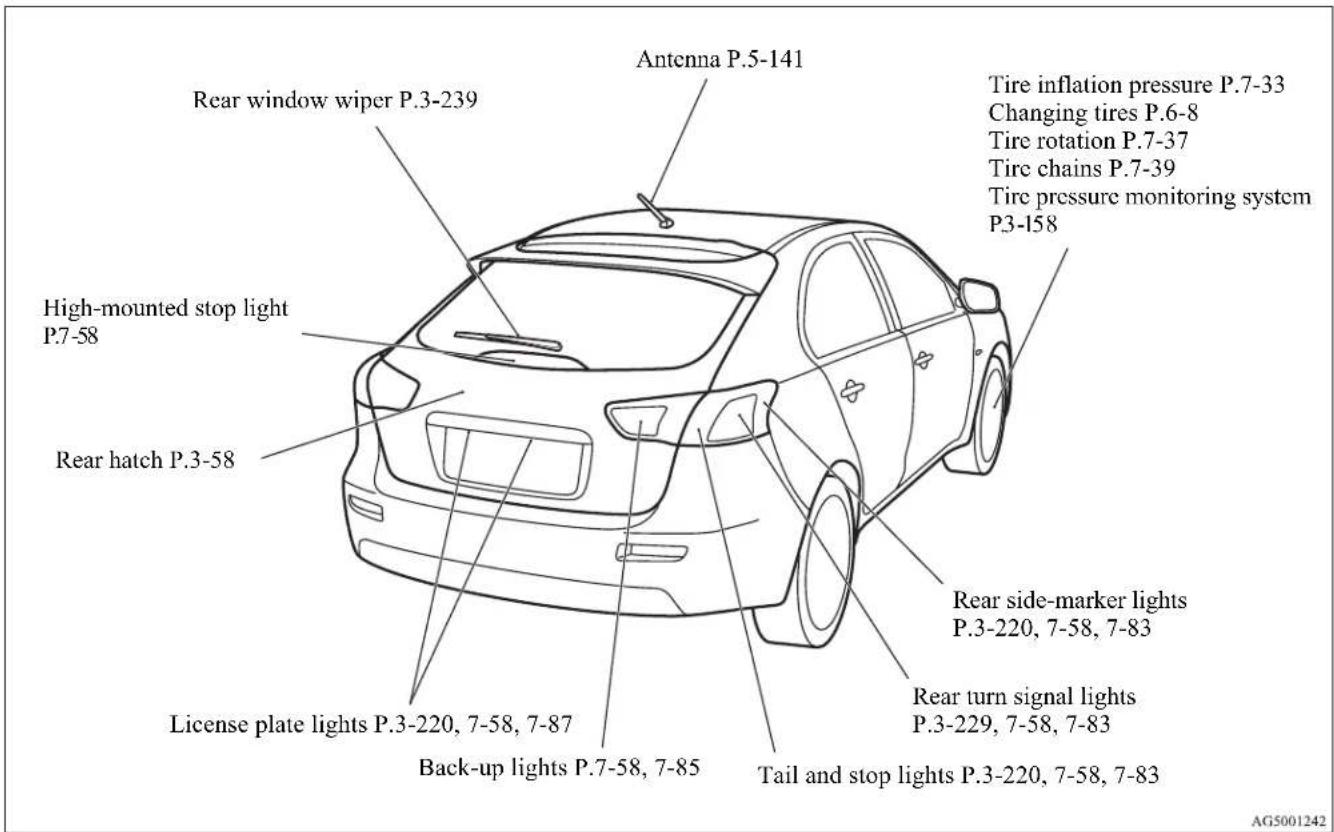

Outside (Rear)

Overview

N00100601017

	10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3	11.4	11.5	11.6	11.7	11.8	11.9	12.0
									10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3

If this warning light comes on or flashes while you're driving...

N00200701077

NOTE

• For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-167.
• These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to "ON".

Warning light Do this Ref. page
Charging system warning light	●Park your vehicle in a safe place and stop the engine.Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.	P.3-216
Brake warning light	●If this light comes on while driving, check to see that the parking brake is fully released.●If this light stays on after releasing the parking brake, stop and check the brake fluid level.●If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speeds, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.	P.3-214
Engine malfunction indicator(“SERVICE ENGINE SOON” or “Check engine light”)	●Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. If the vehicle is not drivable, contact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or local towing company for assistance.	P.3-215

Quick index

Warning light Do this Ref. page
Anti-lock braking system warning light	●When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning.●Park your vehicle in a safe place and stop the engine.Test the system as described on page 3-141.●If the light does not go out after the test, or if it comes on again, we recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.	P.3-140,3-141
SRS warning light	●It is not necessary to stop the vehicle immediately, but we recommend that you have the airbag and the pre-tensioner seat belt system checked at an authorized Mitsubishi Motors dealer as soon as possible.	P.2-24,2-46
Tire pressure monitoring system warning light	●If the warning light comes on, you should stop and adjust the tires to the proper inflation pressure as soon as possible.(See “Tire inflation pressures” on page 7-33.)Once adjustments have been made, the warning light will go off after a few minutes of driving.●If the warning light blinks for approximately 1 minute and then remains continuously illuminated, the system is not operating properly. If the system returns to normal, the warning light will go off. If the warning light does not go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.	P.3-159

If this problem occurs...

N00200900740

Problem Do this Ref. Page
Cannot turn the key.(When using a key to start the engine)	When using a key to start the engineWill not turn from “LOCK” to “ACC”.Turn the key while turning the steering wheel in either direction.	P.3-84, 3-85

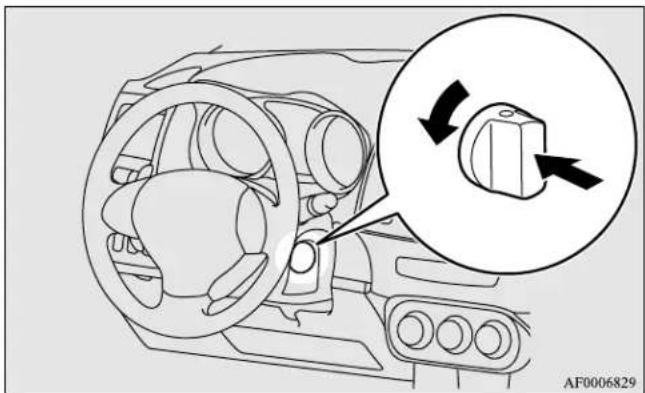

	Will not turn from “ACC” to “LOCK”.Vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST:Check the position of the selector lever (CVT) or the gearshift lever (Twin Clutch SST).The key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the “P” (PARK) position.Vehicles equipped with manual transaxle:Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key to start the engine)	When using the F.A.S.T.-key to start the engineWill not turn from “LOCK (PUSH OFF)” to “ACC”.Push the ignition switch again, turn the steering wheel in both directions and then turn the ignition switch.
	Will not turn from “ACC” to “LOCK”.Vehicles equipped with CVT or Twin Clutch SST:Check whether the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the “P” (PARK) position.Vehicles equipped with manual transaxle:Place the ignition switch at the “ACC” position. Push the ignition switch in and turn it.	P.3-16

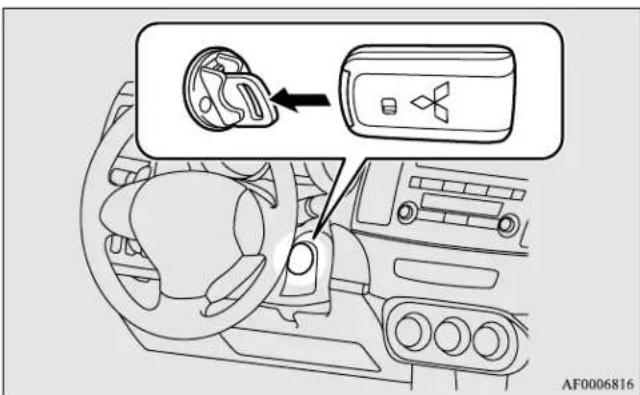

The F.A.S.T.-key does not operate.(for vehicles equipped with the F.A.S.T.-key)	Use the emergency key to lock and unlock the doors and start the engine. P.3-33

Quick index

Problem Do this Ref. Page
Cannot shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) from the “P” (PARK) position.(for vehicles equipped with CVT or Twin Clutch SST)	Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the brake pedal.Check that the ignition key or ignition switch is in the “ON” position.	P.3-95, 3-108

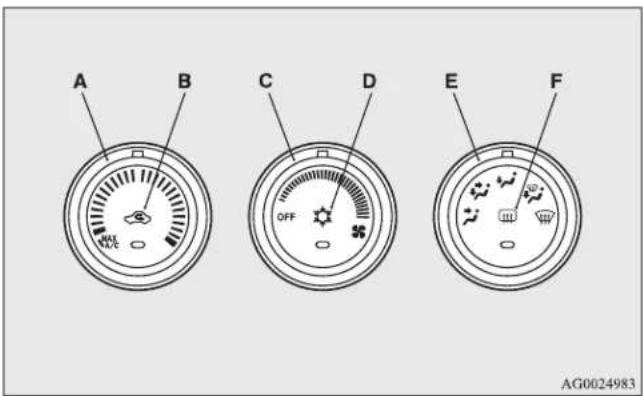

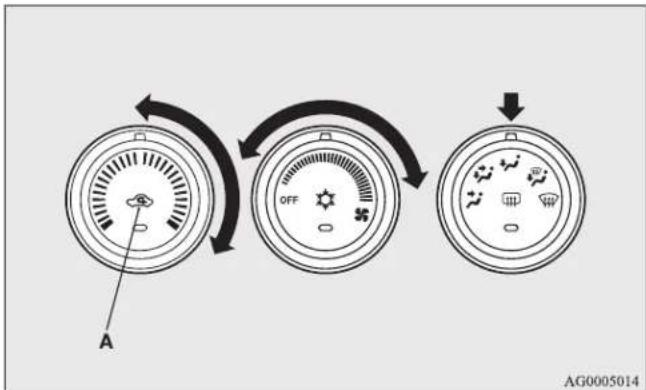

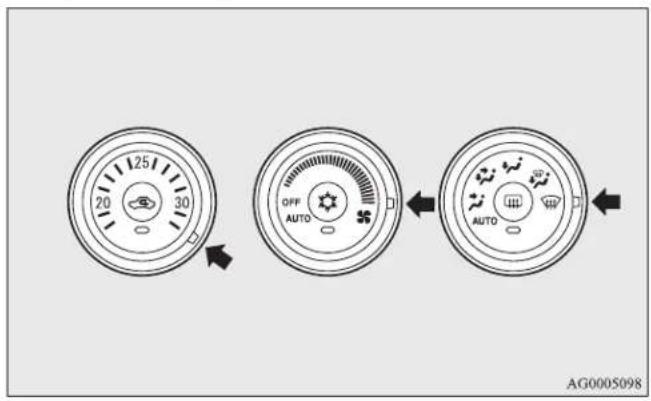

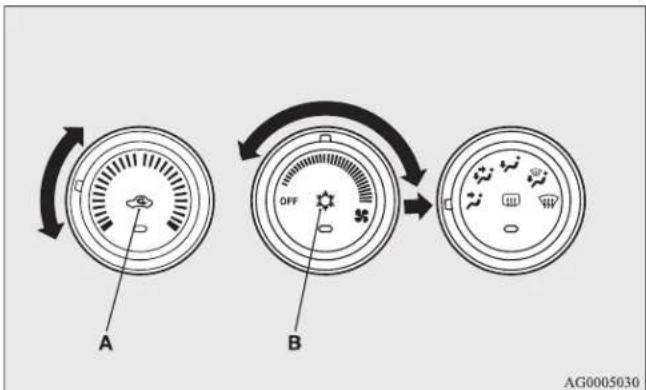

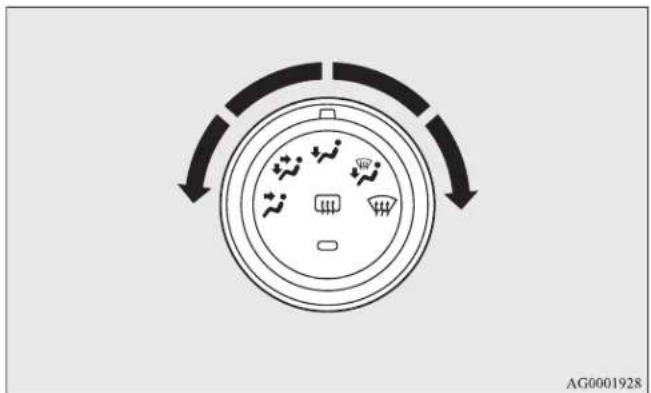

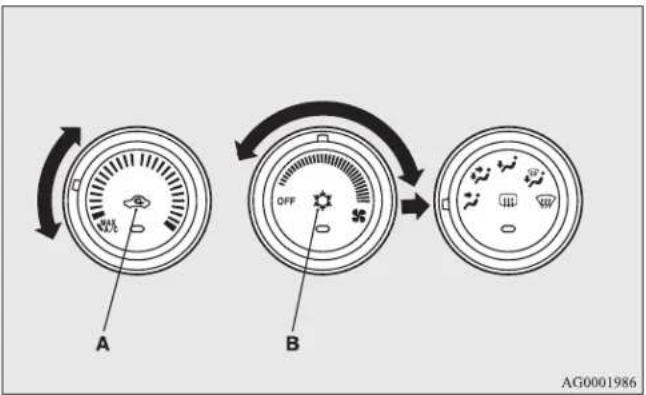

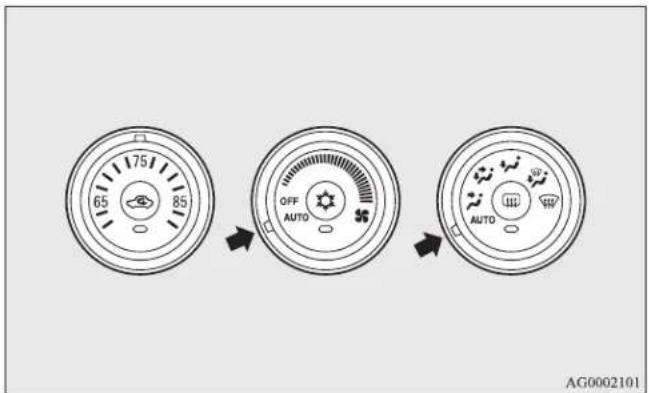

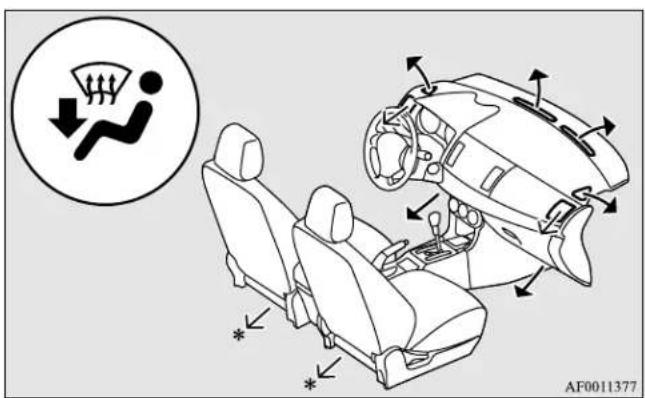

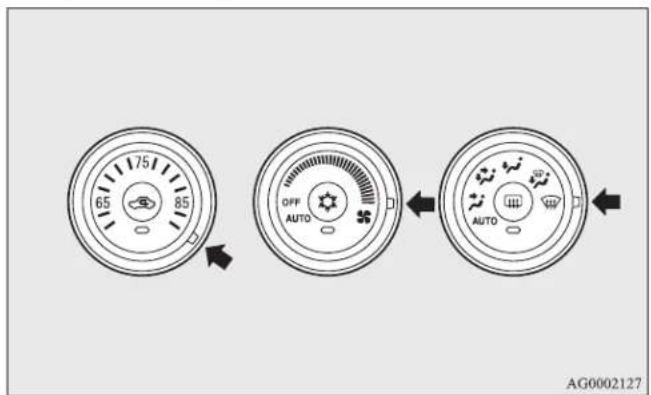

The windows are fogged up.	1. Set the mode selection dial to the “or ” position.2. Turn on the blower.	P.5-33, 5-43

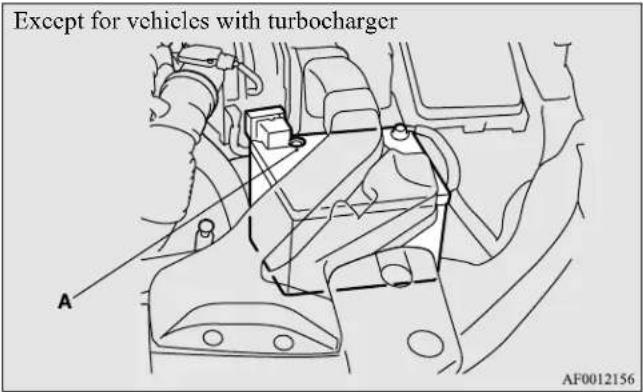

The engine does not start.The lights do not come on.The lights are dim.The horn does not honk.The horn sound is weak.	Have the battery checked. Recharge or replace as needed.	P.6-2,7-23

Quick index

Problem Do this Ref. page
The engine coolant temperature display “in the multi-information display is flashing. Steam comes out of the engine compartment. Type 1Type 2	The engine is overheated.Carefully stop the vehicle in a safe place.	P.6-5
The vehicle is stuck in sand, mud, or snow.	Rock your vehicle back and forth to free it. P.6-23

WARNING

• When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
• Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating and transaxle failure.

If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.

Quick index

Problem Do this Ref. page
The brakes are not functioning properly after driving through water.	Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-6
The CVT makes no engine speed to vehicle speed ratio change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles equipped with CVT)	There may be a problem in the CVT.If the or warning lights on the multi-information display will not turn off, or if they are coming on frequently, please have the vehicle checked at your nearest Mitsubishi Motors dealer.	P.3-107
Twin Clutch SST does not shift.Vehicle cannot move.Acceleration is slow.The vehicle does not creep.A large shock is felt when shifting.Shifting occurs at higher engine speed.Response is slow.(for vehicles equipped with Twin Clutch SST)	The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin Clutch SST has been activated due to a possible malfunction in the Twin Clutch SST, or there is a possible malfunction in the engine electronic control module.	P.3-112, 3-127, 3-215

Quick index

Problem Do this Ref. page

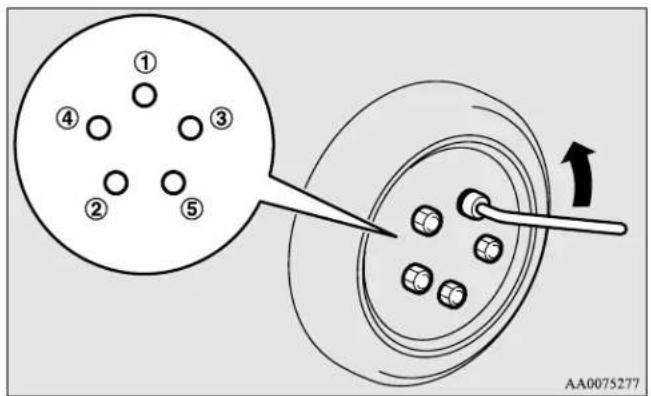

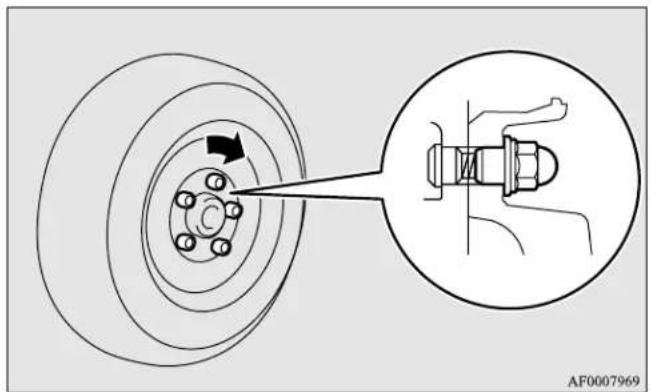

A tire is punctured.	1. Park the vehicle in a safe place where the surface is flat and level.2. Replace the flat tire with the spare tire.	P.6-8

	10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3	11.4	11.5	11.6	11.7	11.8	11.9	12.0
									10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3

General information

Fuel selection....1-2

Filling the fuel tank....1-4

Modifications to and racing of your vehicle .....1-7

Mitsubishi Motors genuine parts .....1-9

California Perchlorate Materials Requirements. . .1- 10

General information

Fuel selection

N00301000765

Your vehicle is designed to use unleaded gasoline only. It is equipped with a fuel filler tube especially designed to accept only a small diameter unleaded gasoline dispensing nozzle.

WARNING

●Gasoline is highly flammable and explosive. You could be burned, seriously injured or killed when handling it. Whenever you refuel your vehicle, stop the engine and keep flames, sparks, and smoking materials away from the vehicle. Always handle fuel in well-ventilated outdoor areas.

CAUTION

● Using leaded gasoline in your vehicle will damage the engine, catalytic converter, and the oxygen sensors. Also, using leaded gasoline is illegal, and will void your warranty coverage of the engine, catalytic converter, and oxygen sensors.

Gasoline detergent additives

In the United States, fuel suppliers are required by law to add detergents to their gasoline to minimize fuel-injector fouling and minimize intake-valve deposits. Detergent gasoline helps keep your engine in tune and your emission-control system working properly.

Octane requirement

Except for vehicles equipped with turbocharger

Your vehicle is designed to operate on unleaded gasoline having a minimum octane number of 87 [(MON+RON)/2], or 91 RON.

Vehicles equipped with turbocharger

Your vehicle is designed to operate on premium grade unleaded gasoline having a minimum octane rating of 93 [(MON+RON)/2] or higher for optimum performance. In case premium grade unleaded gasoline 93 [(MON+RON)/2] is not available, unleaded gasoline rating of 91 [(MON+RON)/2] can be used. However, the performance level is reduced.

In order to maintain exhaust system durability, premium unleaded gasoline having an octane rating of at least 91 [(MON+RON)/2] must be used.

If the premium grade unleaded gasoline rating of 91 [(MON+RON)/2] or higher is not available on journey, etc., regular unleaded gasoline having an octane rating of 87 [(MON+RON)/2] can be used temporarily as an emergency measure.

MON: Motor Octane Number

RON: Research Octane Number

Oxygenated gasoline

Gasoline sold at some service stations contains oxygenates such as ethanol and MTBE, although the oxygenates may not be identified by those names. Oxygenates are required in some areas of the country. Such fuel can be used in your vehicle.

Ethanol (Gasohol)

A mixture of up to 10 % ethanol (grain alcohol) and 90 % unleaded gasoline may be used in your vehicle, provided the octane number is at least as high as that recommended for unleaded gasoline.

Methanol

Do not operate your vehicle on gasoline containing methanol (wood alcohol). Using this type of alcohol could adversely affect the vehicle's performance and damage critical parts of the vehicle's fuel system.

Reformulated gasoline

Many areas of the country require the use of cleaner burning fuel referred to as “Reformulated Gasoline”.

Reformulated gasoline contains oxygenates and is specially blended to reduce vehicle emissions and improve air quality.

Mitsubishi Motors Corporation strongly supports the use of reformulated gasoline. Properly blended reformulated gasoline has no adverse effect on vehicle performance or the durability of the engine and fuel system.

MMT (methylcyclopentadienyl manganese tricarbonyl)

MMT is a manganese-containing metallic additive that is blended into some gasolines to increase the octane number. Mitsubishi Motors Corporation recommends using gasolines without MMT.

Use of gasolines blended with MMT may adversely affect performance, and cause the malfunction indicator on your instrument panel to come on. If this happens, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.

Sulfur in gasoline

Your vehicle may have been designed to satisfy California's low-emission regulations based on clean-burning low-sulfur gasoline. Gasoline sold in parts of the country other than California is allowed to have a higher sulfur content. Using such gasoline could adversely affect the vehicle's catalytic converter and cause the engine malfunction indicator ("SERVICE ENGINE SOON" or "Check engine light") to come on. Illumination of this indicator while you are using high-sulfur gasoline does not necessarily mean the vehicle's emission-control system is malfunctioning. Your authorized Mitsubishi Motors dealer may suggest you try using a different, lower-sulfur brand of unleaded gasoline to determine whether the problem is fuel-related.

General information

NOTE

●Poor-quality gasoline can cause problems such as poor starting, stalling during idling, abnormal engine noise, and poor acceleration. If you experience any of these problems, try using a different brand of gasoline. If the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) flashes, have the vehicle inspected as soon as possible by the nearest authorized Mitsubishi Motors dealer or a repair facility of your choice.
●Repeatedly driving short distances at low speeds can cause deposits to form in the fuel system and engine, resulting in poor starting and poor acceleration. If these problems occur, you are advised to add a detergent additive to the gasoline when you refuel the vehicle. The additive will remove the deposits, thereby returning the engine to a normal condition. Be sure to use a genuine Mitsubishi cleaning additive. Using an unsuitable additive could make the engine malfunction. For details, please contact the nearest authorized Mitsubishi Motors dealer.

Filling the fuel tank

N00301100841

WARNING

●Gasoline is highly flammable and explosive. You could be burned, seriously injured or killed when handling it. When refueling your vehicle, always turn the engine off and keep away from flames, sparks, and smoking materials. Always handle fuel in well-ventilated outdoor areas.
- Before removing the fuel cap, be sure to get rid of your body's static electricity by touching a metal part of the car or fuel pump. Any static electricity on your body could create a spark that ignites fuel vapor.
●Perform the whole refueling process (opening the fuel tank filler door, removing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapor could be ignited.
●Do not move away from the fuel tank filler until refueling is finished. If you moved away and did something else (for example, sitting on a seat) part-way through the refueling process, you could pick up a fresh charge of static electricity.
●Be careful not to inhale fuel vapor. Fuel contains toxic substances.
- Keep the doors and windows closed while refueling the vehicle. If they were open, fuel vapor could get into the cabin.

General information

Fuel tank capacity

2WD: 15.5 gal (59 liters)

4WD: 14.5 gal (55 liters)

Refueling

1. Before filling with fuel, stop the engine.

2. The fuel tank filler is located on the rear driver side of your vehicle.

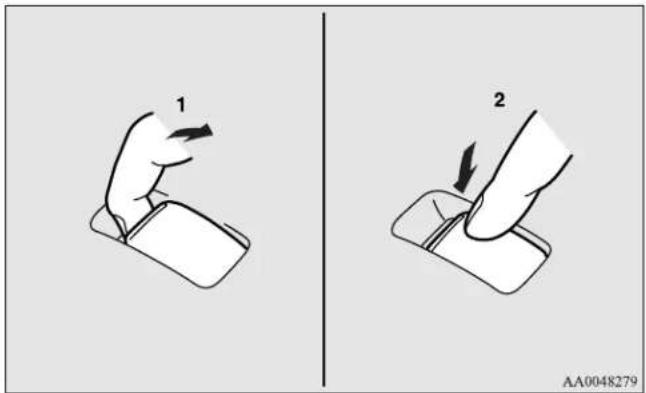

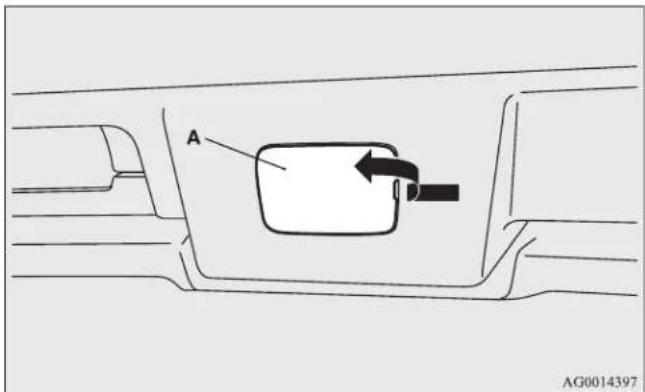

The fuel tank filler door can be opened from inside the vehicle with the fuel tank filler door release lever located at the left side of the driver's seat.

Diagram showing car seatbelt adjustment and side view of a car door (no text or symbols)

1. Open the fuel tank filler pipe by slowly turning the cap counterclockwise.

A- Remove

B-Close

WARNING

●Since the fuel system may be under pressure, remove the fuel tank filler cap slowly. This relieves any pressure or vacuum that might have built up in the fuel tank. If the cap is venting vapor or if you hear a hissing sound, wait until it stops before removing the cap. Otherwise, fuel may spray out, injuring you or others.

General information

1. While filling with fuel, store the cap in the cap holder located on the inside of the fuel tank filler door.

Diagram of a mechanical assembly with labeled parts, showing internal components and a directional arrow (no text or symbols present)

AA0069748

1. To fill with fuel correctly depends mainly on correct handling of the fuel filler nozzle. Do not tilt the nozzle. Insert the nozzle in the tank port as far as it will go.

CAUTION

●Your vehicle can only be operated using unleaded gasoline. Serious engine and catalytic converter damage will result if leaded gasoline is used.

1. When the nozzle stops automatically, do not attempt to add more fuel.

CAUTION

- To avoid fuel spillage and overfilling, do not "top-off" the fuel tank. Spilled fuel could discolor, stain, or crack the vehicle's paintwork. If fuel spills on the paintwork, wipe it off with a soft cloth.

1. To close, turn the fuel tank filler cap slowly clockwise until you hear clicking sounds, then gently push the fuel tank filler door closed.

WARNING

●Make sure the fuel cap is securely closed. If the fuel cap is loose, fuel could leak, resulting in a fire.

CAUTION

- If you need to replace the fuel tank filler cap, use only the cap specified for your model vehicle.

NOTE

- If the fuel tank filler cap is not tight while driving, the engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) may come on when the onboard diagnostic (OBD) system performs a self check. Always tighten the fuel tank filler cap until you hear clicking sounds.

The indicator will go off after driving several times. If the indicator does not go off, contact your authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

Modifications to and racing of your vehicle

N00301600178

This vehicle should not be modified with non-Mitsubishi Motors genuine parts. Mitsubishi Motors designs and manufactures high quality vehicles with an emphasis on safety and durability. Modifications using non-Mitsubishi Motors genuine parts may affect the performance, safety and/or durability of your vehicle, and may violate applicable state and/or federal regulations.

DAMAGE OR PERFORMANCE PROBLEMS RESULTING FROM MODIFICATIONS TO OR RACING OF YOUR VEHICLE ARE NOT COVERED UNDER WARRANTY.

Examples of modifications to your vehicle that can cause damage or performance problems include the following:

●Failure to use Mitsubishi Motors genuine parts
●Failure to use required fuel and fluids
●Failure to use proper size tires and wheels
●Modification of the fuel, intake, exhaust, emission, suspension, engine, drive train or electrical wiring systems
●Modification of any onboard computer/control module, including reprogramming, or replacing/adding chips to any onboard computer/control module

Review the Warranty and Maintenance Manual for further details regarding warranty coverage.

General information

Installation of accessories

N00301700023

CAUTION

●Before any electrical or electronic accessories are installed, consult an authorized Mitsubishi Motors dealer.

●The installation of accessories, optional parts, etc., should only be carried out within the limits prescribed by law in the driving area and in accordance with the guidelines and warnings contained within the documents accompanying this vehicle. Only Mitsubishi Motors approved accessories should be fitted to your vehicle.
- Improper installation of electrical parts could cause fire. Refer to the “Modification/alterations to the electrical or fuel systems” section within this owner’s manual.
● Using a cellular phone or radio set inside the vehicle without an external antenna may cause electrical system interference, which could lead to unsafe vehicle operation.
●Tires and wheels which do not meet specifications must not be used.

Refer to the “Specifications” section for information regarding wheel and tire sizes.

WARNING

- If you choose to use a cellular phone while driving, you must not allow that usage to distract you in the safe operation of your vehicle. Anything, including cellular phone usage, that distracts you from the safe operation of your vehicle increases your risk of an accident.

Refer to and follow all state and local laws in your area regarding cellular phone usage while driving.

Important point!

Due to the large number of accessory and replacement parts provided by different manufacturers in the market, it is not always possible for an authorized Mitsubishi Motors dealer to check whether the attachment or installation of non-Mitsubishi Motors genuine parts will affect the driving safety of your Mitsubishi-vehicle.

Modification/alterations to the electrical or fuel systems

N00301800167

Mitsubishi Motors manufactures high quality vehicles with an emphasis on safety. It is important to consult an authorized Mitsubishi Motors dealer before installation of any accessory which may involve modification of the electrical or fuel systems.

CAUTION

- Please consult an authorized Mitsubishi Motors dealer concerning any such accessory fitment or modification. If the wires interfere with the vehicle body or improper installation methods are used (protective fuses not included, etc.), electronic devices may be adversely affected, resulting in a fire, vehicle damage, or other accident.

Mitsubishi Motors genuine parts

N00301400235

Mitsubishi Motors Genuine Parts are designed and manufactured to meet high standards of performance, and are recommended for all of your maintenance needs. Also available from your Mitsubishi Motors dealer are a wide variety of accessories to personalize your new vehicle. Each Mitsubishi Motors vehicle has a selection of Mitsubishi Motors authorized accessories to choose from to tailor your new vehicle to your own personal preference. Your Mitsubishi Motors dealer's Parts Manager has information on various audio systems, protection items, as well as interior and exterior accessories available for your specific model.

General information

California Perchlorate Materials Requirements

N0030010017

Certain components of this vehicle, such as airbag modules, seat belt pretensioners, and button cell batteries, may contain perchlorate materials.

Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.

Seat and restraint systems

Seats 2-2

Seats and restraint systems. 2-3

Front seats 2-3

Rear seats 2-8

Head restraints 2-9

Extending a luggage compartment....2-13

Seat belts 2-15

Seat belt use during pregnancy 2-23

Seat belt pre-tensioner and force limiter systems 2-23

Child restraint systems. 2-25

Maintenance and inspection of seat belts. . . . . . .2-36

Supplemental Restraint System (SRS) - airbag . . .2- 36

Seat and restraint systems

Seats

N00408400408

AG1000957

1 - Front seats

● To adjust the seat forward or backward → P.2-5
● To adjust the seatback → P.2-5
●To adjust the seat height (except for RECARO seat, driver's side only) → P.2-7
● Heated seats (if so equipped) → P.2-7

2 - Rear seats

- Arm rest → P.2-8

Seats and restraint systems

N00401600182

Your vehicle has seat belts and other features that help protect you and your passengers in an accident.

Seat belts are the most important safety device. When worn properly, seat belts can reduce the chance of serious injury or death in various types of crashes. For added protection during a severe frontal collision, your vehicle has a Supplemental Restraint System (SRS) with airbags for the driver and passengers. The seats, head restraints, and door locks also are safety equipment, which must be used correctly.

Always check the following before you drive:

●That everyone in your vehicle is properly wearing their seat belt.
●That infants and small children are properly secured in appropriate child restraint systems in the rear seat.
●That all doors are fully closed and locked.
●That seatbacks are upright, with head restraints properly adjusted.

Safety equipment cannot prevent injury or death in all motor vehicle accidents. You can help reduce the risk of injury or death, however, by following the instructions in this manual.

Front seats

N00401800328

Position the driver's seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel and safely operate the vehicle.

WARNING

• Do not attempt to adjust the seat while driving. This can cause loss of vehicle control and result in an accident.
  ●After adjusting the seat, make sure that the seat is securely locked into position.
• To reduce the risk to the driver of serious injury or death during deployment of the driver's airbag, always properly wear the seat belt and adjust the driver's seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle.
• To reduce the risk to the front passenger of serious injury or death during deployment of the passenger's airbag, always properly wear the seat belt and adjust the front passenger's seat as far back as possible.
  ●Always place children 12 years old and under in the rear seat and use appropriate child restraint systems.

CAUTION

●Make sure that the seat is adjusted by an adult. If it is adjusted by a child, an unexpected accident might occur.
- Do not place a cushion or the like between your back and the seatback while driving. The effectiveness of the head restraints will be reduced in the event of an accident.
●When sliding the seats, be careful not to catch your hand or leg.
- When sliding or reclining the seat rearward, pay careful attention to the rear seat passengers.

To adjust the seat forward or backward

N004D1900257

Pull the seat adjusting lever up and slide the seat forward or backward to the desired position. Release the adjusting lever to lock the seat in place.

WARNING

●To make sure that the seat is securely locked, try to move it forward or backward without using the adjusting lever.

Seat and restraint systems

To adjust the seatback

N00402(100343

Except for RECARO seat

To adjust the seatback, lean forward slightly, gently pull the seatback lock lever up, then lean backward to a comfortable position and release the lever. The seatback will lock in place.

Illustration of a car seat with foot positioning and a magnified inset showing the foot being adjusted (no text or symbols)

CAUTION

●The reclining mechanism used in the seatback is spring loaded, and will cause the seatback to return quickly to the vertical position when the lock lever is operated.

When pulling the lever, sit close to the seatback or hold the seatback with your hand to control its return motion.

Seat and restraint systems

RECARO seat

Adjust the seatback angle by turning the dial.

1- To move to forward direction
2- To recline backward

WARNING

●To reduce the risk of serious injury or death in the event of an accident or sudden stop, all seatbacks should be kept in the upright position while the vehicle is in motion.

Seat belt performance during an accident can be adversely affected if the seatbacks are reclined. The more a seatback is reclined, the more likely seat belt performance will be adversely affected. If the seat belt is not properly positioned against the body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.

To adjust the seat height (except for RECARO seat, driver's side only)

N00402100201

Operate the lever repeatedly to raise or lower the seat.

1- Raise
2-Lower

Seat and restraint systems

Heated seats (if so equipped)

N00435600280

The heated seats can be operated when the ignition switch is in the "ON" position.

1 (HI) - Heater high (for quick heating)
2 - Heater off
3 (LO) - Heater low (to keep the seat warm)

The indicator light (A) will illuminate while the heater is on.

Seat and restraint systems

CAUTION

- Switch off the seat heaters when not in use. Operate the heaters at the "HI" position for quick heating. After the seat has become warm, set the heater switch to the "LO" position to keep it warm. Slight variations in the seat temperature may be felt while using the heated seats. This is caused by the operation of the heater's internal thermostat and does not indicate a malfunction.

If the following types of persons use the heated seats, they might become too hot or receive minor burns (red skin, heat blisters, etc.):

• Children, elderly persons, ill persons
- Person with sensitive skin
• Excessively fatigued persons
- Persons under the influence of alcohol or sleep-inducing medication (cold medicine, etc.)

●Do not place heavy objects on the seat or stick pins, needles, or other pointed objects into it.
- Do not use a blanket, cushion, or other material with high heat insulation properties on the seat while using the heater; doing so could cause the heater element to overheat.
- When cleaning the seat, do not use benzine, kerosene, gasoline, alcohol, or other organic solvents; doing so could damage not only the surface of the seat, but also the heater.
- If water or any other liquid is spilled on the seat, allow it to dry thoroughly before attempting to use the heater. Turn the heater off immediately if it appears to be malfunctioning during use.

Rear seats

N00402500162

Arm rest

N01403000265

Tilt the arm rest down for use as shown.

The arm rest includes a cup holder. (Refer to “Cup holder” on page 3-290.)

Line drawing of a car seat with a black arrow indicating the seatbelt (no text or symbols)

Head restraints

N00404300467

Except for RECARO seat

N00409400014

Padded head restraints for the seats can reduce the risk of a whiplash injury if your vehicle is hit from the rear.

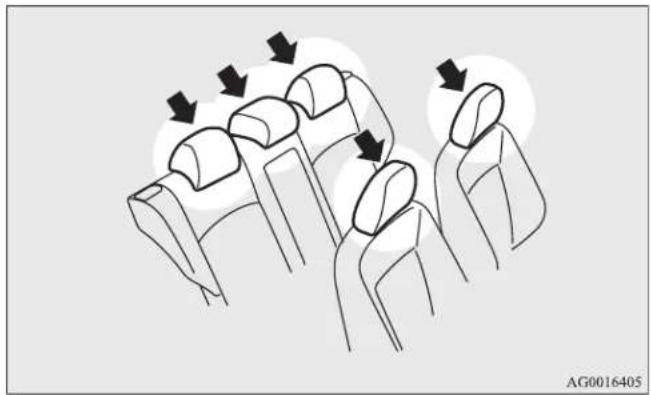

The head restraints are equipped in the illustrated position.

To maximize the effectiveness of your head restraint, adjust the head restraint to the proper position. For the driver and front passenger, adjust the seatbacks to the upright position before adjusting the head restraints. Sit back against the seatback with your head close to the head restraint.

Illustration of a hand holding three chairs with arrows indicating movement or force direction (no text or symbols)

Seat and restraint systems

WARNING

●In order to minimize the risk of a neck injury due to a rear impact, the head restraint must be adjusted to the proper position before vehicle operation. For the driver and front passenger, the seatbacks must be adjusted to the upright position before adjusting the head restraints. The driver should never adjust the seat while the vehicle is in motion.

●Driving without the head restraints in place can cause you and your passengers serious injury or death in an accident. To reduce the risk of injury in an accident, always make sure the head restraints are installed and properly positioned when the seat is occupied.

●Never place a cushion or similar device on the seat-back. This can adversely affect head restraint performance by increasing the distance between your head and the restraint.

Seat and restraint systems

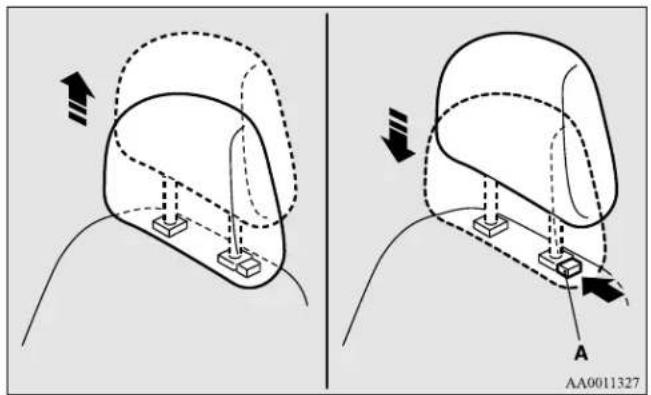

Adjustment of the head restraint height

To reduce the risk of injury in an accident, adjust the head restraint height so that the center of the restraint is at your eye level when seated. Any person too tall for the restraint to reach their eye level when seated should raise the restraint to the highest locked position.

●To raise the restraint, pull it straight up.
●To lower the restraint, push down on it while pressing the lock knob (A) in the direction shown by the arrow.
●After adjusting the height, push down on the restraint to make sure it is locked in position.

Two diagrams showing a 3D object with arrows indicating motion, no text or symbols present.

To remove

Press the lock knob (A) in the direction shown by the arrows. Then pull the head restraint up and out of the seatback.

Two diagrams showing a 3D object with arrows indicating motion, labeled A and AA0029687 (no text or symbols on the objects themselves)

WARNING

●To help minimize the risk of neck injury in the event of an accident, the head restraints must be properly installed and positioned to proper height before vehicle operation.

To install

First check that the head restraint is facing in the right direction as shown in the previous illustration, and then insert it into the seatback. Push the head restraint down while pressing the lock knob (A) until the restraint locks into place.

CAUTION

- Check that the lock knob (A) is extended out as shown in the illustration. Then pull the head restraint up to make sure that it is locked in place and will not come out of the seatback.

CAUTION

●The shape and size of the head restraint differs according to the seat. Always use the correct head restraint provided for the seat and do not install the head restraint in the wrong direction.

Seat and restraint systems

RECARO seat

N01409501015

RECARO seats are equipped with padded head restraints integrated with the seatbacks. These head restraints can reduce the risk of a whiplash injury if your vehicle is hit from the rear.

The head restraints are equipped in the illustrated position.

To maximize the effectiveness of your head restraint, adjust your seatback to the upright position and sit back against the seatback with your head close to the head restraint.

Diagram of car seat assembly showing two car seats with arrows indicating movement (no text or symbols)

WARNING

●In order to minimize the risk of a neck injury due to a rear impact, the driver and front passenger seat-backs must be adjusted to the upright position before vehicle operation. The driver should never adjust the seat while the vehicle is in motion.
●Never place a cushion or similar device on the seat-back. This can adversely affect head restraint performance by increasing the distance between your head and the restraint.

Extending a luggage compartment

N00405500088

WARNING

●Never adjust the seats to extend a luggage compartment while the vehicle is in motion or on a slope. The seats could move suddenly and cause serious injury or an accident.
●After returning a seatback to its normal position, make sure that the seatback is firmly secured. If the seatback is not secured, it could move and cause a serious accident.
- Do not allow anyone to ride in the luggage compartment while the vehicle is in motion. People who are not properly seated and restrained can be seriously injured or killed in an accident.
●The luggage compartment in the rear of the vehicle should never be used as a play area by children. All children should be properly restrained in a restraint device that offers the maximum protection for their size and age. Refer to “Child restraint systems” on page 2-25.

Seat and restraint systems

WARNING

●The front passenger seat is equipped with weight sensors. Depending on the weight detected, the front passenger airbag is disabled or enabled. When folding the rear seats forward for increased cargo capacity, the front passenger seat and seatback must be adjusted to assure they are not contacting the rear seat. In the event the front seat or seatback is allowed to contact the folded rear seat, proper operation of the front passenger airbag system may be affected.

CAUTION

●In the luggage compartment, do not load the luggage higher than the top of the seats and make sure that the luggage is firmly secured. Restricted rear vision or unsecured objects entering the passenger compartment from the luggage compartment during sudden braking can cause serious injury or an accident.
- Seatbacks should always be folded and put back into normal position by an adult. Seat adjustments by a child could lead to an unexpected accident.
- When adjusting the seats, be careful not to catch your hand or leg. Personal injury could result.

NOTE

- When the seatback of a front seat is reclined, return it to the upright position before driving.

Seat and restraint systems

Folding the rear seatbacks forward

ND0405701093

The rear seatbacks can be folded forward to extend luggage compartment.

NOTE

●Before folding the rear seatbacks forward, make sure that the arm rest is stowed and the head restraints are lowered completely.
●You can separately fold the right and left side of the seat-back.

1. Push the rear seat release button (A) to manually fold the rear seatback forward, or pull the luggage compartment lever (B) to automatically fold the seatback forward.

1. The seatbacks fold forward.

Confirm that the seatback locks securely when it is returned.

Line drawing of a car seat assembly with no text or symbols

WARNING

• When folding the rear seat, make sure no one is on the seat. The seatback will fall forward rapidly and could cause serious injury.
  ●After returning the seatbacks to their upright positions, make sure that the seatbacks lock in place and are firmly secured.

Also check to be sure that the rear seat belts front of the seatbacks, and not caught behind the seatbacks.

are in

Seat and restraint systems

Seat belts

N00406000439

Seat belts are installed in your vehicle to help reduce the risk of injury to the driver and passenger in the event of an accident. Always use the provided seat belts.

Carefully review the following information for proper seat belt usage.

WARNING

●To help reduce the risk of injury or death in an accident, seat belts and child restraint systems must always be used. Refer to “Child restraint systems” on page 2-25 for additional information.
●Never use one seat belt for more than one person.
●Never carry more people in your vehicle than there are seat belts.
●Always adjust the seat belt for a snug fit.
●Always place the shoulder belt over your shoulder and across your chest. Never put it behind you or under your arm.
●Always wear the lap belt as low as possible across your hips, not around your waist.
●Never modify or alter the seat belts in your vehicle.
- To reduce the risk to the driver of serious injury or death during deployment of the driver's airbag, always properly wear the seat belt and adjust the driver's seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle.

WARNING

●To reduce the risk to a front seat passenger of serious injury or death from a deploying airbag, make sure the passenger always wears the seat belt properly, remains seated all the way back and upright in their seat, and moves the seat as far back as possible. Refer to “Supplemental Restraint System (SRS) - airbag” on page 2-36 for additional information.
●Never hold an infant or child in your arms or on your lap when riding in this vehicle even when you are wearing your seat belt. Never place any part of the seat belt you are wearing around an infant or child. Failure to follow these simple instructions creates a risk of serious injury or death to your child in the event of an accident or sudden stop.
●Children 12 years old and under should always ride in the rear seat and be properly restrained. This reduces their risk of serious injury or death in an accident, especially due to a deploying front passenger airbag. Refer to “Child restraint systems” on page 2-25 for additional information.
●Any child who is too small to properly wear a seat belt must be properly restrained in an appropriate child restraint system. Children 12 years old and under should be seated only in the rear seat to reduce their risk of serious injury or death in an accident, especially from the deployment of a front passenger airbag.
●Infants MUST be placed in a rear-facing child safety seat and positioned in the rear seat.

WARNING

●In the event of an accident, all seat belt assemblies, including retractors and attachment hardware, should be inspected by an authorized Mitsubishi Motors dealer to determine whether replacement is necessary.

Seat belt instructions

N01406200428

All seats are equipped with a seat belt which uses one combined lap-and-shoulder belt with an emergency locking retractor.

This system is designed to provide both comfort and safety. It permits full extension and automatic retraction of the belts during normal vehicle operation. A sensing device inside the belt retractor is designed to lock the retractor in the event of a sudden change in the vehicle's motion.

NOTE

- For instructions on installing a child restraint system using a seat belt, refer to “Installing a child restraint system using the seat belt” on page 2-32.

1. Occupants should always sit back in their seats with their backs against the upright seatback. To reduce the risk of serious injury or death during deployment of the airbag, adjust the driver's seat as far back as possible while maintaining a position that still enables you to fully apply the pedals, easily control the steering wheel, and safely operate the vehicle. The front passenger seat should also be moved as far back as possible. Refer to "Supplemental Restraint System (SRS) - airbag" on page 2-36. Also refer to "To adjust the seat forward or backward" on page 2-5.

Line drawing of a person wearing a short-sleeve shirt and holding a belt, standing beside it (no text or symbols)

WARNING

●To reduce the risk of serious injury or death in the event of an accident or sudden stop, all seatbacks should be kept in the upright position while the vehicle is in motion.

Seat belt performance during an accident can be adversely affected if the seatbacks are reclined. The more a seatback is reclined, the more likely seat belt performance will be adversely affected. If the seat belt is not properly positioned against the body during an accident, there is increased risk you will slide under the belt and receive serious injury or death.

Seat and restraint systems

1. Grasp the latch plate and slide it up the webbing so that it easily pulls across your body.

Illustration of a person performing a medical or therapeutic procedure on a patient's abdomen (no text or symbols)

1. Pull the seat belt out slowly while holding the latch plate. Push the latch plate into the buckle until you hear a "click". Pull up on the belt to be sure the latch plate is locked securely in the buckle.

Line drawing of a person sitting on a seat with a belt and diagonal stripe (no text or symbols)

NOTE

- If the seat belt locks up and cannot be pulled out, pull it once with force and let it retract all the way. Then, pull the belt out slowly once again.

1. The lap part of the belt must always be worn low and snug across the hips. Pull up on the shoulder portion of the belt to take up any slack in the lap belt.

Illustration of a person sitting on a seatbelt with a belt buckle (no text or symbols)

Seat and restraint systems

NOTE

●With the exception of the seat belt for the driver, the seat belts in all other seating positions are equipped with an Automatic Locking Retractor (ALR) function. If you pull the seat belt fully out of the retractor, the retractor will switch to its ALR child restraint installation function (see page 2-32).

When the ALR function has been activated, the seat belt will only retract. If this happens, let the belt fully retract, then pull the seat belt back out, repeating steps 1 through 4.

WARNING

●Be sure the lap belt portion fits snugly and is worn as low as possible across the hips, not around the waist. Failure to follow this instruction will increase the risk of serious injury or death in the event of an accident.
- Be sure the seat belt webbing is not twisted when worn. Twisted webbing may adversely affect seat belt performance.

1. To release the belt, press the button on the buckle and allow the belt to retract.

If the belt does not retract smoothly, pull it out and check for kinks or twists in the webbing. Then make sure it remains untwisted as it retracts.

Seat and restraint systems

Seat belt warning

NDI40910011

Driver's seat belt reminder/warning light and display

N00409200025

Warning light

Warning display type 1

Warning display type 2

A tone and warning light are used to remind the driver to fasten the seat belt.

If the ignition switch is turned to the "ON" position without the driver's seat belt being fastened, a warning light will come on and a tone will sound for approximately 6 seconds to remind you to fasten your seat belt.

If you then drive with the seat belt unfastened for longer than a minute from when the ignition switch was turned on, the warning light will come on and blink repeatedly and the tone will sound intermittently.

The warning light and the tone will stop after approximately 90 seconds.

If you then repeatedly stop and start your vehicle with the seat belt unfastened, the warning light/display and tone will remind you to fasten your seat belt every time the vehicle starts moving. You will also be reminded to fasten your seat belt in this way when you remove your seat belt while driving. The warning light and the tone go off when the seat belt is fastened.

WARNING

●In order to reduce the risk of serious injury or death in an accident, always wear your own seat belt. Do not allow anyone to ride in your vehicle unless he or she is also seated and wearing a seat belt. Children should additionally be restrained in a secure child restraint system.

NOTE

- At the same time, “FASTEN SEAT BELT” will be displayed on the information screen in the multi-information display.

Front passenger seat belt warning light

N01409300013

The front passenger seat belt warning light is located in the instrument panel.

When the ignition switch is turned to the "ON" position, this indicator normally comes on and goes off a few seconds later. The light comes on when a person sits on the front passenger seat but does not fasten the seat belt. It goes off when the seat belt is subsequently fastened.

WARNING

●Do not install any accessory or sticker that makes the light difficult to see.

Seat and restraint systems

Adjustable seat belt shoulder anchor (front seats)

N(014)6300269

To move the anchor down, press the lock knob (A) and slide the anchor down to the desired position.

To move the anchor up, slide the anchor up to the desired position.

Seat and restraint systems

WARNING

●Always adjust the shoulder belt anchor so that the shoulder belt is positioned across the center of your shoulder without touching your neck. The shoulder belt should not be able to fall off your shoulder. Failure to follow this instruction can adversely affect seat belt performance and increase the risk of serious injury or death in the event of an accident.
●Adjust the shoulder belt anchor only when the vehicle is not in motion.
●Make sure the anchor is securely locked in position after adjusting it.

Seat belt extender

ND1406700087

When your seat belt, even fully extended, is not long enough, a seat belt extender must be obtained. The extender may be used for either of the front seats.

Technical line drawing of a mechanical component with no visible text or symbols

WARNING

●The extender should only be used if the existing belt is not long enough. Anyone who can use the standard seat belt should not use an extender. Unnecessary use of an extender can adversely affect seat belt performance in an accident.
●When not required, the extender must be removed and stowed.

Seat belt use during pregnancy

N00406800121

Seat belts work for everyone, including pregnant women. Like all occupants, pregnant women are more likely to be seriously injured or killed in an accident if they do not wear seat belts.

WARNING

●To reduce the risk of serious injury or death to pregnant women and unborn children in an accident, pregnant women should always wear a seat belt. The lap portion of the seat belt should be worn snug and low across the hips and below the rounding. Consult your doctor if you have any additional questions or concerns.

Seat and restraint systems

Seat belt pre-tensioner and force limiter systems

N00417700566

The driver's and front passenger's seats each have a seat belt equipped with a pre-tensioner system.

Pre-tensioner system

The driver and front passenger seat belts are equipped with a seat belt pre-tensioner system. In moderate-to-severe frontal collisions, this system operates simultaneously with the deployment of the front airbags.

The seat belt pre-tensioners are located within the seat belt retractors (A). When activated, the pre-tensioners quickly draw back seat belt webbing and increase seat belt performance.

Line drawing of a car seatbelt with labeled component A (no text or symbols beyond label)

Seat and restraint systems

The seat belt pre-tensioner system includes the following components:

1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Airbag control unit

The airbag control unit monitors the readiness of the electronic parts of the system whenever the ignition switch is in the "ON" or "START" position. These include all of the items listed above and all related wiring.

The pre-tensioner seat belt system will operate only when the ignition switch is in the "ON" or "START" position.

When the seat belt pre-tensioners activate, some smoke is released and a loud noise will be heard. The smoke is not harmful, but care should be taken not to intentionally inhale it, as it may cause some temporary irritation to people with respiratory problems.

The pre-tensioners activate in the event of a moderate-to-severe frontal impact, even if the seat belt is not being worn. The seat belt pre-tensioners may not activate in certain frontal collisions, even though the vehicle may appear to be severely damaged. Such non-activation does not mean something is wrong with the seat belt pre-tensioner system, but rather that the collision forces were not severe enough or not of the type to activate the system.

WARNING

●The seat belt pre-tensioner system is designed to work only once. After the seat belt pre-tensioners have been activated, they will not work again. They must promptly be replaced and the entire seat belt pre-tensioner system inspected by an authorized Mitsubishi Motors dealer.

SRS warning

NDIM08700111

This warning tells you if there is a problem involving the SRS airbags and the pre-tensioner seat belts. Refer to "SRS warning light/display" on page 2-46.

Force limiter system

N00408900113

In the event of an accident, the seat belt force limiter system will help reduce the force applied to the driver and front seat passenger.

Seat and restraint systems

Child restraint systems

N00407100596

When transporting infants or small children in your vehicle, an appropriate child restraint system must always be used. This is required by law in the U.S. and Canada.

Child restraint systems specifically designed for infants and small children are offered by several manufacturers. Choose only a child restraint system with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations (RSSR). Look for the manufacturer's statement of compliance on the box and child restraint system itself.

The child restraint system should be appropriate for your child's weight and height, and should properly fit your vehicle's seat.

For detail information, refer to the instruction manual accompanying the child restraint system.

Seat and restraint systems

Guidelines for child restraint system selection

All children should be properly restrained in a restraint device that offers the maximum protection for their size and age. Be sure to check local, state, or provincial requirements for child size and age that may vary from the recommendations listed below.

●Children less than 1 year old and children less than 20 pounds (9 kg) MUST ride in a rear-facing child safety seat that MUST ONLY be used in the rear seat.
●Children older than 1 year of age and who weigh less than 40 pounds (18 kg) or who are less than 40 inches (100 cm) tall must be in a forward-facing restraint used only in the rear seat.
Children who weigh more than 40 pounds (18 kg) or who are more than 40 inches (100 cm) tall, regardless of age, should use a suitable child seat or a booster seat (including a booster cushion) in the rear seat until the vehicle's lap/shoulder belt fits them properly.

WARNING

●All children must be seated in the rear seat, and properly restrained.
Accident statistics show that children of all sizes and ages are safer when properly restrained in the rear seat, rather than in the front seat.

WARNING

• Any child who is too large to use a child restraint system should ride in the rear seat and wear the lap and shoulder belt properly. The shoulder belt must be positioned over the shoulder and across the chest, not across their neck, and with the lap belt positioned low on the child's hips, not across their stomach. If necessary, a booster seat (including a booster cushion) should be used to help achieve a proper seat belt fit. Follow the booster seat (including a booster cushion) manufacturer's instructions. Only use a booster seat (including a booster cushion) that is certified as complying with Federal Motor Vehicle Safety Standards or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations.

WARNING

●Never hold an infant or child in your arms or on your lap when riding in this vehicle, even when you are wearing your seat belt. Never place any part of the seat belt you are wearing around an infant or child. Failure to follow these simple instructions creates a risk of serious injury or death to your child in the event of an accident or sudden stop.

WARNING

- Your vehicle is also equipped with a front passenger airbag. Never put REAR-FACING CHILD RESTRAINT SYSTEMS or INFANT RESTRAINT SYSTEMS in the front passenger seat. This places the infant too close to the passenger airbag. During deployment of the airbag, the infant can be seriously injured or killed. Rear-facing child restraint systems or infant restraint systems must only be used in the rear seat.

Seat and restraint systems

WARNING

●FRONT-FACING CHILD RESTRAINT SYSTEMS should be used in the rear seat whenever possible. If they must be used in the front passenger seat, move the seat to the most rearward position and make sure the child stays in the child restraint system, properly restrained. Failure to follow these instructions could result in serious injury or death to the child.

Illustration of a child sitting in a car seat with a dashed arrow indicating motion (no text or symbols)

AA0017127

WARNING

• It is important to use an approved rear-facing infant restraint until the infant is one year old (unless the infant outgrows the seat sooner). This allows the infant's neck and spine to develop enough to support the weight of their head in the event of an accident.
• When installing a child restraint system, follow the instructions provided by the manufacturer and follow the directions in this manual. Failure to do so can result in serious injury or death to your child in an accident or sudden stop.
  ●After installation, push and pull the child restraint system back and forth, and side to side, to see that it is firmly secured. If the child restraint system is not installed securely, it may cause injury to the child or other occupants in the event of an accident or sudden stop.
• When not in use, keep your child restraint system secured with the seat belt, or remove it from the vehicle, in order to prevent it from being thrown around inside the vehicle during an accident.

NOTE

Before purchasing a child restraint system, try installing it in the rear seat to make sure there is a good fit. Because of the location of the seat belt buckles and the shape of the seat cushion, it may be difficult to securely install some manufacturer's child restraint systems.

If the child restraint system can be pulled forward or to either side easily on the seat cushion after the seat belt has been tightened, choose another manufacturer's child restraint system.

Depending on the seating position in the vehicle and the child restraint system that you have, the child restraint system can be attached using one of the following two methods:

- To the lower anchorage in the rear seat ONLY if the child restraint system is compatible with the LATCH system (See page 2-29).

• To the seat belt (See page 2-32).

Installing a child restraint system using the LATCH (Lower Anchors and Tethers for children) system

N00418800115

Lower anchor locations

The outboard seating positions in the rear seat of your vehicle are equipped with lower anchors for attaching child restraint systems compatible with the LATCH system.

NOTE

●The symbols on the seatback show the location of the lower anchor points.

Seat and restraint systems

Tether anchor locations

N00418900145

Your vehicle has 3 attachment points located on the back of the seatbacks. These are for securing a child restraint system tether strap to each of the 3 rear seating positions in your vehicle.

Examples of child restraint systems compatible with the LATCH system

NDM19D00185

A- Rear-facing child restraint system
B- Front-facing child restraint system
C- Child restraint system lower anchor connectors
D- Tether strap

(These are only examples.)

Using the LATCH system

N00419100199

1. In order to securely fasten the tether strap, remove the head restraint from the location where you wish to install the child restraint system.
2. Push the anchor connectors (A) on the child restraint system into the slits (B) in accordance with the instructions provided by the child restraint system manufacturer. Remember, the lower anchors (E) provided with your vehicle are designed to secure suitable child restraint systems compatible with the LATCH system in the rear seat only.

A-

B-

Connector

Slit

D-

E-

C- Vehicle seatback

Seat and restraint systems

NOTE

- In order to secure a child restraint system compatible with the LATCH system, use the lower anchor points in the outboard positions of the rear seat. It is not necessary to use the vehicle's seat belt. The vehicle's seat belt, however, MUST be used to secure a child restraint system in the center position of the rear seat.

WARNING

• If there is any foreign material in or around the lower anchors, remove it before installing the child restraint system. Also, make sure the seat belt is away from, not looped through or otherwise interfering with, the child restraint system. If foreign matter is not removed and/or the seat belt interferes with the child restraint system, the child restraint system will not be secured properly, could detach and move forward in the event of sudden braking or an accident, and could result in injury to the child or other vehicle occupants.
• When the vehicle is moving, do not adjust the seat where the child restraint system is installed.

Vehicle

seat

cushion

Lower

anchor

Seat and restraint systems

1. Remove the rear shelf panel from the vehicle. (Refer to "Rear shelf panel" on page 3-292.)
2. Latch the tether strap hook (F) of the child restraint system to the tether anchor bar (G) and tighten the tether strap so it is securely fastened.

1. Push and pull the child restraint system in all directions to be sure it is firmly secured.

WARNING

●Child restraint system tether anchors are designed only to withstand loads from correctly fitted child restraint systems. Under no circumstances are they to be used for adult seat belts, or harnesses, or for attaching other items or equipment to the vehicle.

Installing a child restraint system using the seat belt (with emergency/automatic locking mechanism)

ND0407300439

With the exception of the driver, the seat belt in all other seating positions can be converted from normal Emergency Locking Retractor (ELR) mode to Automatic Locking Retractor (ALR) mode. This means that when you pull the seat belt fully out of the retractor, the retractor will switch to its ALR child restraint installation function. Always use the ALR child restraint installation function when you install a child restraint system using the seat belt.

Children 12 years old and under should always be restrained in the rear seat, whenever possible, although the front passenger seat belt can also be converted to ALR mode.

WARNING

- When you install a child restraint system using the seat belt, always make sure the retractor has been switched to the ALR child restraint installation function. The ALR function will keep the child restraint system tightly secured to the seat. Failure to convert the retractor to the ALR function may allow the child restraint system to move forward during sudden braking or an accident, resulting in serious injury or death to the child or other occupants.

Installation

1. Place the child restraint system in the rear seating position.
2. Route the seat belt through the child restraint system according to the instructions provided by the child restraint system manufacturer. Then insert the seat belt latch plate into the buckle. Make sure you hear a "click" when you insert the latch plate into the buckle.

Illustration of a person adjusting a car seatbelt, showing mechanical adjustment (no text or symbols)

Seat and restraint systems

1. To activate the ALR child restraint installation function, slowly pull the shoulder part of the belt all the way out of the retractor until it stops. Then let the belt feed back into the retractor.

Illustration of a person kneeling to lift a car seatbelt, no text or symbols present

1. After the belt has retracted, tug on it. If the belt is in the ALR function, you will not be able to pull it out. If the webbing can be pulled out from retractor, the ALR function has not been activated and you will need to repeat steps 3 and 4.

Seat and restraint systems

1. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt allowing the slack to feed into the retractor. Remember, if the lap belt portion is not tight, the child restraint system will not be secure. It may help to put your weight on the child restraint system and/or push on its seatback while pulling up on the belt (see illustration).

2

Illustration of a person in motion, possibly performing a martial arts or exercise pose with a tool and rope (no text or symbols)

If your child restraint system requires the use of a tether strap, fasten the tether strap in accordance with the following procedures.

1. Remove the head restraint from the location in which you wish to install a child restraint system.
2. Remove the rear shelf panel from the vehicle. (Refer to "Rear shelf panel" on page 3-292.)
3. Latch the tether strap hook (A) of the child restraint system to the tether anchor bar (B) and tighten the tether strap so it is securely fastened.

WARNING

●Child restraint system tether anchors are designed only to withstand loads from correctly fitted child restraint systems. Under no circumstances are they to be used for adult seat belts, or harnesses, or for attaching other items or equipment to the vehicle.

1. Before putting your child in the restraint, push and pull the restraint in all directions to be sure it is firmly secured. Do this before each use. If the child restraint system is not firmly secure, repeat steps 1 through 8.
2. To remove a child restraint system from the vehicle and deactivate the ALR mode, remove the child from the restraint. Unlatch the buckle. Then remove the belt from the restraint and let the belt fully retract.

Children who have outgrown child restraint systems

N00407600588

Children who have outgrown a child restraint system should be seated in the rear seat and wear the seat belt. If the shoulder belt crosses their face or neck, and/or the lap belt crosses their stomach, a commercially available booster seat (including a booster cushion) must be used, to raise the child so that the shoulder belt crosses their shoulder and the lap belt remains positioned low across their hips. The booster seat (including a booster cushion) should fit the vehicle seat and have a label certifying compliance with Federal Motor Vehicle Safety Standards or Motor Vehicle Restraint Systems and Booster Cushions Safety Regulations.

WARNING

●Any child who is too small to properly wear a seat belt must be properly restrained in an appropriate child restraint system, to reduce their risk of serious injury or death in an accident.
●A child should never be left unattended in, or unsupervised, around your vehicle. When you leave the vehicle, always take the child out as well.
●Children can die from heat stroke if left or trapped inside the vehicle, especially on hot days.
- Keep your vehicle locked when not in use. Keep your vehicle keys away from children.
●Never allow children to play in the luggage compartment of your vehicle.

Seat and restraint systems

Maintenance and inspection of seat belts

N00407000221

The seat belt webbing may be cleaned with mild soap or detergent solution. Do not use an organic solvent. Allow the belts to dry in the shade. Do not allow them to retract until completely dry. Do not attempt to bleach or re-dye the belts. The color may rub off and the webbing strength may be affected.

Regularly check your seat belt buckles and their release mechanisms for positive engagement and release of the latch plate. Check the retractors for automatic locking when in the Automatic Locking Retractor function.

The entire seat belt assembly should be replaced if the webbing shows any obvious cuts, tears, increase in thickness in any section of the webbing from broken fibers, or severe fading from sunlight. All of these conditions indicate a weakening of the belt, which may adversely affect seat belt performance in an accident.

WARNING

- Do not attempt to repair or replace any part of the seat belt assemblies. This work should be done by an authorized Mitsubishi Motors dealer. Failure to have an authorized Mitsubishi Motors dealer perform the work could reduce the effectiveness of the belts and could result in a serious injury or death in an accident.

Supplemental Restraint System (SRS) - air- bag

NDI407700622

This vehicle is equipped with a Supplemental Restraint System (SRS), which includes airbags for the driver and passengers.

The SRS front airbags are designed to supplement the primary protection of the driver and front passenger seat belt systems by providing those occupants with protection against head and chest injuries in certain moderate to severe frontal collisions. The SRS front airbags, together with sensors at the front of the vehicle and sensors attached to the front seats, form an advanced airbag system.

The SRS driver's knee airbag is designed to supplement the primary protection of the driver's seat belt system. It can reduce the forward movement of the driver's lower legs and provide increased overall body protection in certain moderate to severe frontal collisions.

The SRS side airbags and the curtain airbags are also designed to supplement the seat belts. The SRS side airbags provide the driver and front passenger with protection against chest injuries by deploying the bag on the side impacted in moderate to severe side impact collisions. The SRS curtain airbags provide the driver and passengers on the front seat and rear outboard seat with protection against head injuries by deploying a bag on the side impacted in moderate to severe side impact collisions.

The SRS airbags are NOT a substitute for use of the seat belts. For maximum protection in all types of accidents, seat belts must ALWAYS be worn by everyone who drives or rides in this vehicle (with infants and small children in an appropriate child restraint system in the rear seat, and older children buckled in the rear seat). Refer to “Child restraint systems” on page 2-25.

WARNING

●IT IS VERY IMPORTANT TO ALWAYS WEAR YOUR SEAT BELT PROPERLY EVEN WITH AN AIRBAG.

- Seat belts help keep the driver and passengers properly positioned. This reduces the risk of injury in all collisions, and reduces the risk of serious injuries or death when the airbags inflate.

During sudden braking just before a collision, an unrestrained or improperly restrained driver or passengers can move forward into direct contact with, or within close proximity to, the airbag when it begins to inflate.

The beginning stage of airbag inflation is the most forceful and can cause serious injuries or death if the occupant comes in contact with the airbag at this time.

- Seat belts reduce the risk of injury in rollovers, rear impact collisions, and in lower-speed frontal collisions, because the airbags are not designed to inflate in those situations.

- Seat belts reduce the risk of being thrown from your vehicle in a collision or rollover.

WARNING

●IT IS VERY IMPORTANT TO BE PROPERLY SEATED.

- A driver or front passenger sitting too close to the steering wheel or instrument panel during airbag deployment can be seriously injured or killed.

- Airbags inflate very quickly and with great force. If the driver and front passenger are not properly seated and restrained, the airbag may not provide the proper protection and can cause serious injuries or death when it inflates.

- To reduce the risk to the driver of serious injury or death due to a deploying driver's airbag, always properly wear your seat belt and adjust the driver's seat as far back as possible, maintaining a position that still allows the driver to have good control of the steering wheel, brake, accelerator, and other vehicle controls.

- To reduce the risk to the front passenger of serious injury or death from a deploying passenger's airbag, make sure the passenger always wears the seat belt properly, remains seated upright and all the way back in the seat, and positions the seat as far back as possible.

- Seat all infants and children in the rear seat, properly restrained in an appropriate child restraint system.

Seat and restraint systems

WARNING

●Airbags inflate very quickly and with great force. Do not sit on the edge of the seat or sit with your lower legs too close to the instrument panel, or lean your head or chest close to the steering wheel or the instrument panel.
●Do not put your feet or legs on or against the instrument panel.

WARNING

●Infants and small children should never ride unrestrained, or lean against the instrument panel. They should never ride held in your arms or on your lap. They can be seriously injured or killed in an accident, especially when the airbags inflate. Infants and children should be properly seated in the rear seat in an appropriate child restraint system. Refer to "Child restraint systems" on page 2-25.

WARNING

●NEVER put REAR-FACING CHILD RESTRAINT SYSTEMS or INFANT RESTRAINT SYSTEMS in the front passenger seat. This places the infant too close to the passenger airbag. During deployment of the airbag, the infant can be seriously injured or killed.

Rear-facing child restraint systems or infant restraint systems must only be used in the rear seat.

WARNING

●FRONT-FACING CHILD RESTRAINT SYSTEMS should be used in the rear seat whenever possible. If they must be used in the front passenger seat, move the seat to the most rearward position and make sure the child stays in the child restraint system, properly restrained. Failure to follow these instructions could result in serious injury or death to the child.

Illustration of a child sitting in a car seat with a diagonal brace and dashed outline indicating seat alignment (no text or symbols)

Seat and restraint systems

WARNING

- Older children should be seated in the rear seat with their seat belt properly worn, and with an appropriate booster seat (including a booster cushion) if needed. Refer to “Children who have outgrown child restraint systems” on page 2-35.

How the Supplemental Restraint System works

ND1407800421

The SRS includes the following components:

1- Driver's airbag
2- SRS warning light
3- Passenger's airbag off indicator
4- Passenger's front airbag
5- Front impact sensors
6- Driver's knee airbag
7- Driver's seat position sensor
8- Passenger's seat weight sensors
9- Airbag control unit

10- Side airbag modules
11- Curtain airbag modules
12- Side impact sensors

The airbag control unit monitors the readiness of the electronic parts of the system whenever the ignition switch is in the "ON" or "START" position. These include all of the items listed above and all related wiring.

The airbags will operate only when the ignition switch is in the "ON" or "START" position.

Seat and restraint systems

When the impact sensors detect a sufficient front or side impact to deploy the airbag(s), the appropriate airbag(s) will be deployed.

When airbags deploy, some smoke is released accompanied by a loud noise. The smoke is not harmful, but do not intentionally inhale the smoke as it may cause temporary irritation to people with respiratory problems.

After deployment, the airbags will quickly deflate, so quickly that some people may not even realize the airbags inflated. Airbag inflation does not prevent the driver from seeing or being able to steer the vehicle, and does not prevent people from leaving the vehicle.

CAUTION

●Airbags inflate very quickly and with great force. In certain situations, contact with an inflating airbag may cause small cuts, abrasions, and bruises.

Seat and restraint systems

Event Data Recording

N00418600171

Your vehicle is equipped with an “EDR” - Event Data Recorder which is capable of collecting and storing data in the event of an airbag deployment.

The EDR may record the following information:

●Condition of specific vehicle systems;
●Diagnostic code(s)

Driver's seat position sensor

NO1417900180

The driver's seat position sensor is attached to the seat rail and provides the airbag control unit with information on the seat's fore-aft position. The airbag control unit controls deployment of the driver's front airbag in accordance with the information it receives from this sensor.

If there is a problem involving the driver's seat position sensor, the SRS warning in the instrument panel will come on. Refer to "SRS warning light/display" on page 2-46.

WARNING

• If the SRS warning comes on, have the vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible.

• Please observe the following instructions to ensure that the driver's seat position sensor can operate correctly.

• Adjust the seat to the correct position, and sit well back against the seatback. Refer to “Front seats” on page 2-3.

• Do not recline the seatback more than necessary when driving.
• Do not place metallic objects or luggage under the front seat.

- If the vehicle is involved in a severe impact, have the SRS sensor inspected by an authorized Mitsubishi Motors dealer as soon as possible.

Passenger's seat weight sensors

N00418000292

The passenger's seat weight sensors are attached to the seat rails and provide the airbag control unit with information regarding the weight on the front passenger seat. The airbag control unit controls deployment of the passenger's front airbag in accordance with the information it receives from this sensor.

The passenger's front airbag will not deploy in an impact when the weight on the seat is sensed to be less than approximately 66 pounds (30 kg). In this case, the passenger's airbag off indicator will come on.

Refer to "Passenger's airbag off indicator" on page 2-45.

If there is a problem involving the passenger's seat weight sensors, the SRS warning in the instrument panel will come on.

Refer to "SRS warning light/display" on page 2-46.

WARNING

- If any of the following conditions occur, you should immediately have your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:

• The SRS warning does not initially come on when the ignition switch is turned to the "ON" or "START" position.
• The SRS warning does not go out after several seconds.
• The SRS warning comes on while you are driving.

WARNING

- To ensure that the passenger's seat weight sensors can correctly sense the weight being applied to the seat, observe the following instructions. Failure to follow these instructions can adversely affect the performance of the passenger's airbag system.

• Adjust the seat to the correct position, and sit well back against the seatback.
  Refer to "Front seats" on page 2-3.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child) sitting on the seat.
• Do not place anything between the seat and the floor console.
• Do not hang anything on the front passenger's seatback.
• Do not remove the head restraints.
• When attaching a child restraint system, secure it firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the seat.
• Do not place the floor mat on the seat rails.
• Do not expose the sensors to liquids or vapors.
• Do not subject the sensors to shock.
• Do not allow rear-seat occupants to push the front passenger seat with their feet or force the front passenger seat upward.

Seat and restraint systems

WARNING

• Do not allow rear-seat occupants to grasp the front passenger's seatback or put their arms around it.
• When attaching a child restraint system in the rear seat, make sure it does not interfere with the front seat.

WARNING

- If the vehicle is involved in a severe impact, have the SRS sensors inspected by an authorized Mitsubishi Motors dealer as soon as possible.

Passenger's airbag off indicator

N00418100251

The passenger's airbag off indicator is located in the instrument panel.

The indicator normally comes on when the ignition switch is turned to the "ON" position and goes out a few seconds later. In the following situations, the indicator will stay on to show that the passenger's front airbag is not operational.

• The passenger's seat weight sensors sense a weight of less than approximately 66 pounds (30 kg) on the front passenger seat.
  ●The front passenger's seat is not occupied.

When the weight applied to the front passenger seat is sensed to be approximately 66 pounds (30 kg) or greater, the indicator goes out to show that the passenger's front airbag is operational.

Seat and restraint systems

WARNING

- If any of the following conditions occur, you should immediately have the airbag system in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:

• The passenger's airbag off indicator comes on when an adult is sitting on the front passenger seat.
• The passenger's airbag off indicator does not come on when the front passenger's seat is not occupied.
• The passenger's airbag off indicator does not come on when the ignition switch is turned to the "ON" position.
• The passenger's airbag off indicator comes on and goes out repeatedly.

- Do not attach any accessory to your vehicle that makes the passenger's airbag off indicator difficult or impossible to see.

You must be able to see the passenger's airbag off indicator and verify the status of the passenger's airbag system.

Seat and restraint systems

SRS warning light/display

N004083001524

Warning light

Warning display type 1

Warning display type 2

If there is an error in the system, the warning light will come on and the warning display will appear on the information screen in the multi-information display.

Under normal conditions, the warning light comes on when the ignition switch is turned to the “ON” position and goes off a few seconds later.

The warning light will also come on and remain on when the SRS airbags and the seat belt pre-tensioner system have been activated.

The warning light/display is used for both SRS airbag warnings and seat belt pre-tensioner system warnings.

WARNING

●There may be a system error if the warning light/display appears as indicated. In such cases, an SRS airbag or a seat belt pre-tensioner system may not function properly in a collision. Have your vehicle checked by an authorized Mitsubishi Motors dealer:

• Even when the ignition switch is in the “ON” position, the warning light does not come on or it remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving

Seat and restraint systems

Driver's and passenger's front airbag system

N004D7900275

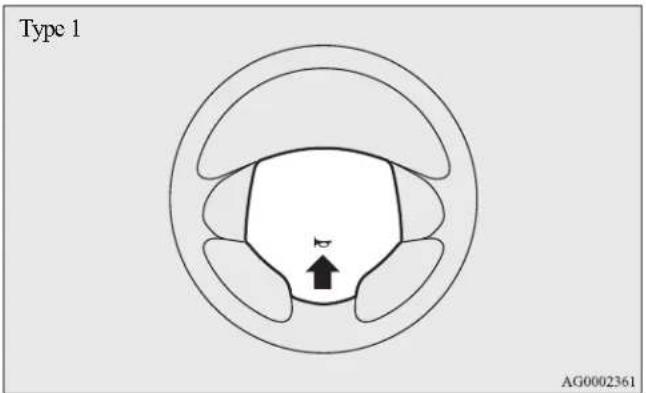

The driver's airbag is located under the padded cover in the middle of the steering wheel. The front passenger's airbag is contained in the instrument panel above the glove compartment. The driver's airbag and the front passenger's airbag are designed to deploy at the same time. However, the front passenger's airbag does not deploy when the front passenger seat is not occupied or when the weight sensor in the front passenger seat senses a weight on the seat of less than approximately 66 pounds (30 kg).

Driver's knee airbag system

N(014)4500010

The driver's knee airbag is located under the steering wheel. The driver's knee airbag is designed to deploy at the same time as the driver's front airbag.

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

Seat and restraint systems

Deployment of front airbags

NDI408010551

The front airbags and driver's knee airbag ARE DESIGNED TO DEPLOY when...

Head-on collision with a solid wall at speeds of approx. 15 mph (25 km/h) or higher

Moderate to severe frontal impact within the shaded area between the arrows

Line drawing of a car with a license plate emitting exhaust smoke (no text or symbols)

Top-down diagram of a car's front view showing roof and side-mounted dashboard (no text or symbols)

AG1000928

The front airbags and driver's knee airbag are designed to deploy when the vehicle suffers a moderate to severe frontal impact. A typical condition is shown in the illustration to the left.

The front airbags and driver's knee airbag are designed to deploy only in certain moderate to severe frontal collisions within the shaded area between the arrows in the illustration to the right.

The front airbags and driver's knee airbag will deploy if the impact to the vehicle's main structure is above a specific threshold level. The threshold level is approximately 15 mph (25 km/h) for a frontal collision straight into a solid flat wall

that does not bend or deform. If the impact to the vehicle's main structure is below this threshold level, the front airbags and driver's knee airbag may not deploy. This threshold level may also be higher if the vehicle hits something that absorbs the impact, either by bending or moving (for example, another stationary vehicle, a pole or a guard rail).

The beginning stage of airbag inflation is the most forceful, and can cause serious injuries or death if you are too close to the deploying airbag. Accordingly, it is important that you always wear the available seat belt.

The front airbags and driver's knee airbag MAY NOT DEPLOY when ...

In certain types of front collisions, the front airbags and driver's knee airbag may not deploy, even if the deformation of the body seems to be large, because the vehicle's body structure is designed to absorb the impact and deform in order to help protect the occupants. Some typical situations where the front airbags and driver's knee airbag may not deploy are shown in the illustrations.

Because the front airbags and driver's knee airbag do not protect the occupant in all types of frontal collisions, be sure to always wear your seat belts properly.

AG2000459

Seat and restraint systems

The front airbags and driver's knee airbag ARE NOT DESIGNED TO DEPLOY when ...

The front airbags and driver's knee airbag are not designed to deploy in situations where they cannot provide protection to the occupants.

Some typical situations are shown in the illustrations.

Because the front airbags and driver's knee airbag do not protect the occupants in all types of collisions, be sure to always wear your seat belts properly.

The front airbags and driver's knee airbag MAY DEPLOY when ...

The front airbags and driver's knee airbag may deploy if the underside of the vehicle suffers a moderate to severe impact (undercarriage impact). Some typical situations are shown in the illustrations.

Because the front airbags and driver's knee airbag may deploy in certain types of unexpected impacts, as shown in the illustrations, and these unexpected impacts can move you out of position, it is important to always wear your seat belts properly. When worn properly, seat belts can help maintain your distance from the airbags and driver's knee airbag when they begin to inflate. The beginning stage of airbag inflation is the most forceful and can cause serious injury or death if you are close to the deploying airbag.

Collision with an elevated median/island or curb

Simple line drawing of a car on a paved surface with motion lines indicating speed (no text or symbols)

Vehicle travels over a deep hole/pothole

Line drawing of a car speeding with motion lines indicating speed (no text or symbols)

Vehicle drives down a steep slope and hits the ground

Line drawing of a car speeding with motion lines indicating speed (no text or symbols)

AG2000475

Seat and restraint systems

WARNING

• Do not attach anything to the steering wheel's padded cover, such as trim material, badges, etc. These could strike and injure an occupant if the airbag inflates.
• Do not set anything on, or attach anything to, the instrument panel above the glove compartment. Such items could strike and injure an occupant if the airbag inflates.

WARNING

• Do not attach accessories to, or put them in front of, the windshield. They could restrict the airbag inflation, or strike and injure an occupant, when the airbag inflates.

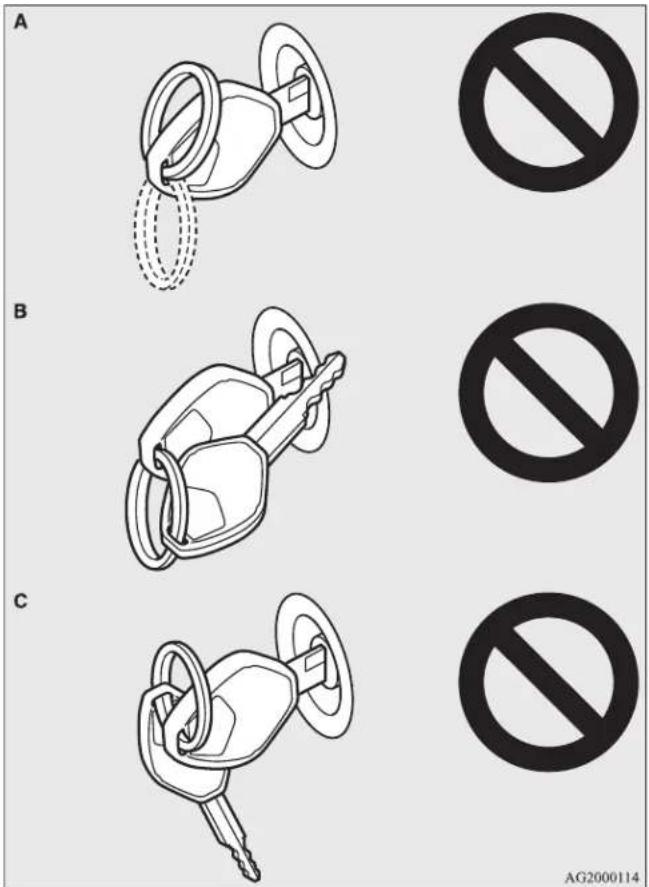

• Do not attach additional keys or accessories (hard, pointed or heavy objects) to the ignition key. Such objects could prevent the driver's knee airbag from inflating normally or could be propelled to cause serious injury if the airbag inflates.
• Do not attach accessories to the lower portion of the driver's side instrument panel. Such objects could prevent the driver's knee airbag from inflating normally or could be propelled to cause serious injury if the airbag inflates.

WARNING

●Do not attempt to remove, install, disassemble or repair the SRS airbags.
●Do not place objects, such as packages or pets, between the airbags and the driver or the front passenger. Such objects can adversely affect airbag performance, or cause serious injury or death when the airbag deploys.
- Immediately after airbag inflation, some parts of the airbag system will be hot. Do not touch them. You could be burned.
●The airbag system is designed to work only once. After the airbags deploy, they will not work again. They must promptly be replaced and the entire airbag system must be inspected by an authorized Mitsubishi Motors dealer.

Side airbag system

N(04)8100359

The side airbags (A) are contained in the driver and front passenger seatbacks.

The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.

Seat and restraint systems

A label is attached to the seatbacks in vehicles with side airbags.

Curtain airbag system

ND1419200174

The curtain airbags are contained in the front and rear pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.

Line drawing of two men seated in a vehicle, one standing and one seated, with no visible text or symbols.

WARNING

●The side airbag and curtain airbag can cause serious injury or death to anyone too close to the airbag when it deploys. To reduce the risk of injury from a deploying side airbag and curtain airbags, all occupants must be properly restrained and seated well back, upright, and in the middle of the seat. Do not lean against the door.

WARNING

●In order to reduce the risk of injury from a deploying side airbag, do not allow any rear seat passengers to hold onto the back of either front seat. Special care should be taken with children.
- Do not place any objects near or around the front of either front seatback. Such objects can interfere with proper side airbag deployment and cause injury during deployment of the side airbag.
●Do not place stickers, labels or additional trim on the back of either front seat. They can interfere with proper side airbag deployment.
- Do not install seat covers or re-cover seats that have side airbags. Covers can interfere with proper side airbag deployment and adversely affect side airbag performance.

Seat and restraint systems

WARNING

- Do not attach a microphone (A) or any other object around the part where the curtain airbag (B) deploys, such as on the windshield, side door glass or front and rear pillars and roof side rail. When the curtain airbag inflates, the microphone or other object may be hurled with great force or the curtain airbag may not inflate correctly, resulting in death or serious injury.

WARNING

• Do not put a hanger or any heavy or pointed object on the coat hook. If the curtain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.
  ●Never install a rear-facing child restraint system in the front passenger seat. Rear-facing child restraint systems MUST ONLY be used in the rear seat.
  ●Front-facing child restraint systems should also be used ONLY in the rear seat. If a front-facing child restraint system must be used in the front passenger seat, move the seat as far back as possible, and make sure that the child stays in the child restraint system, properly restrained and away from the door.
• Do not allow a child to lean against or sit close to the passenger door, even if the child is seated in a child restraint system. The child's head should also not lean against or be close to the section of the seatback where the side airbag and curtain airbag are located. It is dangerous if the side airbag and curtain airbag deploys. Failure to follow all of these instructions could lead to serious injury or death to the child.

WARNING

●Work done on or in the vicinity of the side airbag and curtain airbag system components should be done only by an authorized Mitsubishi Motors dealer. Improper work methods can cause accidental side airbag and curtain airbag deployment, or render a side airbag and curtain airbag inoperable. Either of these situations can result in serious injury or death.

Seat and restraint systems

Deployment of side airbag and curtain airbag

N(041)8200464

The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when ...

A side airbag and curtain airbag are designed to deploy when the vehicle suffers a moderate to severe side impact to the middle of the passenger compartment.

The typical situation is shown in the illustration.

The seat belts in your vehicle are your primary means of protection in an accident. The SRS (Supplemental Restraint System) side airbags and curtain airbags are designed to provide additional protection. Therefore, for your safety and the safety of all occupants, be sure to always wear your seat belts properly.

Seat and restraint systems

The side airbag and curtain airbag MAY NOT DEPLOY when ...

In certain types of side collisions, the side airbag and curtain airbag may not deploy, even if the deformation of the body seems to be large, because the vehicle's body structure is designed to absorb the impact and to deform in order to help protect the occupants. Some typical situations where the side airbag and curtain airbag may not deploy are shown in the illustrations.

Because the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to always wear your seat belts properly.

Side impact in an area away from the passenger compartment

Top-down line drawing of two cars with motion lines indicating speed or impact (no text or symbols)

Motorcycle or other similar small vehicle collision with the side of vehicle

Line drawing of a person riding a motorcycle on a car, with motion lines indicating speed (no text or symbols)

Collision with a utility pole, tree or other narrow object

Line drawing of a car parked near a vertical pole (no text or symbols)

AG2000488

Oblique side impact

Line drawing of two cars in motion with radiating lines, no text or symbols present

Vehicle rolls onto its side or roof

Illustration of a car with motion lines indicating speed (no text or symbols)

AG3001512

Seat and restraint systems

The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when ...

The side airbag and curtain airbag are not designed to deploy in situations where they cannot provide protection to the occupants. Some typical situations are shown in the illustrations.

Because the side airbags and curtain airbags do not protect the occupants in all types of collisions, be sure to always wear your seat belts properly.

Head-on collision

Side view line drawing of a car with motion blur effect (no text or symbols)

Rear end collision

Line drawing of a car collision with two cars on the ground (no text or symbols)

AG3001525

Seat and restraint systems

SRS servicing

N004085001614

WARNING

●Any maintenance performed on or near the components of the SRS should be performed only by an authorized Mitsubishi Motors dealer. Do not permit anyone else to do any service, inspection, maintenance or repair on any SRS components or wiring. Similarly, no part of the SRS should ever be handled, removed or disposed by anyone except an authorized Mitsubishi Motors dealer. Improper work methods on the SRS components or wiring could result in an accidental airbag deployment or could make the SRS inoperable. Either of these situations could result in serious injury or death.
- Do not modify your steering wheel or any other SRS component or related vehicle part. For example, replacement of the steering wheel, or modifications to the front bumper or body structure can adversely affect SRS performance and may lead to injury.
- If your vehicle has received any damage, you should have the SRS inspected by an authorized Mitsubishi Motors dealer to make sure it is in proper working order.

WARNING

• Do not modify your front seats, center pillar or center console. Such modifications can adversely affect SRS performance and may lead to injury. Also, if you discover any tear or open seam in the seat fabric near the side airbag, have the seat inspected by an authorized Mitsubishi Motors dealer.
• If you find a crack in or damage to the front pillar, rear pillar, or roof side rail where the curtain airbag is located, have the SRS inspected by an authorized Mitsubishi Motors dealer.

NOTE

• When you transfer ownership of the vehicle to another person, we urge you to alert the new owner that it is equipped with the SRS and refer that owner to the applicable sections in this owner's manual.
• If you decide to junk or scrap your vehicle, we urge you to first take it to an authorized Mitsubishi Motors dealer so that the SRS can be made safe for disposal.

• If any of the following parts needs to be modified for use by a handicapped person, the advanced airbag system will be greatly affected. Please consult an authorized Mitsubishi Motors dealer for assistance.

• Driver's seat

• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel

Seat and restraint systems

[For vehicles sold in U.S.A.]

To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to:

Mitsubishi Motors North America, Inc.

Customer Relations Department

P. O. Box 6400

Cypress, CA 90630-0064

[For vehicles sold in Canada]

To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:

Mitsubishi Motor Sales of Canada, Inc.

Customer Relations Department

P.O. Box 41009

4141 Dixie Road

Mississauga, ON L4W 5C9

[For vehicles sold in Puerto Rico]

To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-800-981-0452 or write to:

Mitsubishi Motor Sales of Caribbean, Inc.

Customer Service Department

P.O. Box 192216

SAN JUAN PR 00919-2216

[For vehicles sold in Guam]

To contact Triple J Enterprises Inc.

call [phone] or write to:

Triple J Enterprises, Inc.

P.O. Box 6066

TAMUNING

GUAM 96931

[For vehicles sold in Saipan]

To contact Triple J Motors

call [phone] or write to:

Triple J Motors

P.O. Box 500487

SAIPAN, MP96950-0487

[For vehicles sold in American Samoa]

To contact Pacific Marketing Inc.

call 684 (699) 9140 or write to:

Pacific Marketing, Inc.

P.O. Box 698

PAGO PAGO,

AMERICAN SAMOA AS, 96799

Seat and restraint systems

Warning labels

N004086001338

Occupant restraint warning labels for the SRS are located in the vehicle as shown in the illustration.

Interior view of a car showing dashboard and steering wheel (no text or symbols)

Medical illustration showing a surgical procedure with an arrow pointing to a specific anatomical structure (no text or labels present)

* - Located in the passenger's side as well.

Features and controls

Break-in recommendations 3-2
Keys. 3-2
Electronic immobilizer (Anti-theft starting system) 3-4
Keyless entry system (if so equipped) 3-8
Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped). 3-16
Door locks 3-51
Power door locks....3-55
"Child safety locks" for rear door 3-57
Rear hatch 3-58
Inside rear hatch release 3-60
Theft-alarm system 3-62
Power windows 3-68
Sunroof (if so equipped) 3-72
Parking brake 3-75
Steering wheel tilt lock lever....3-77
Inside day/night rearview mirror....3-78
Outside rearview mirrors....3-80
Ignition switch. 3-82
Steering wheel lock....3-85
Starting and stopping the engine 3-86
Turbocharger operation (if so equipped). 3-91
Manual transaxle (if so equipped)....3-92
Continuously variable transmission (CVT) (if so equipped) 3-95
Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) ..... 3-107
All-wheel drive system (if so equipped) 3-129
Cautions on handling of all-wheel drive vehicles 3-129
ACD (Active center differential system) (if so equipped) 3-131
Limited-slip differential (if so equipped) 3-13
Service brake....3-135
Hill start assist (for vehicles equipped with Twin Clutch SST) ..... 3-136
Brake assist system 3-13
Anti-lock braking system 3-139

Power steering system 3-143

Active stability control (ASC) 3-144

Cruise control (if so equipped).... 3-149

Tire pressure monitoring system 3-158

Instrument cluster.... 3-164

Multi-information display 3-167

Indicator light, warning light, and information screen display list ..... 3-201

Indicators 3-214

Warning lights 3-214

Information screen display.... 3-217

Combination headlights and dimmer switch 3-220

Headlight leveling switch (if so equipped) 3-228

Turn signal lever 3-229

Hazard warning flasher switch.... 3-230

Front fog light switch (if so equipped).... 3-231

Wiper and washer switch 3-232

Electric rear window defogger switch 3-241

Horn switch 3-242

Link System (if so equipped) 3-243

Bluetooth® 2.0 interface (if so equipped) 3-243

USB input terminal (if so equipped) 3-270

Sun visors.... 3-276

Ashtray (if so equipped) 3-277

12 V power outlet. 3-278

Interior lights 3-280

Storage spaces 3-285

Cup holder 3-290

Bottle holder.... 3-291

Rear shelf panel 3-292

Dual height adjustable cargo floor board (if so equipped).... 3-293

Assist grip 3-294

Coat hook 3-295

Features and controls

Break-in recommendations

N00508700314

Advanced automobile manufacturing techniques permit you to operate your new vehicle without requiring a long break-in period of low-speed driving.

However, you can add to the future performance and economy of your vehicle by observing the following precautions during the first 300 miles (500 km).

Drive your vehicle at moderate speeds during the break-in period.

●Avoid revving the engine. For vehicles equipped with turbocharger, do not exceed 5,000 rpm for the first 600 miles (1,000 km).
●Avoid rough driving such as fast starts, sudden acceleration, prolonged high-speed driving and sudden braking. These would have a detrimental effect on the engine and also cause increased fuel and oil consumption, which could result in malfunction of the engine components. Be particularly careful to avoid full acceleration while in low gear.
- Do not overload the vehicle. Observe the seating capacity (See “Cargo load precautions” on page 4-12).
●Do not use this vehicle for trailer towing.

Keys

N00508800591

Type 1

Two keys are provided. The keys fit all locks.

Keep one in a safe place as a spare key.

1- Key for the electronic immobilizer and keyless entry system
2- Key number plate

Type 2

Two Free-hand Advanced Security Transmitter (F.A.S.T.-key) and two emergency keys are provided.

Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of spare keys.

1- Free-hand Advanced Security Transmitter (F.A.S.T.-key) (with electronic immobilizer and keyless entry system function)
2- Emergency key
3- Key number plate

Features and controls

NOTE

●The key is a precision electronic device with a built-in signal transmitter. Please observe the following in order to prevent damage.

- Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard.

- Do not take the remote control transmitter apart.

- Do not excessively bend the key or subject it to strong impacts.

- Keep the remote control transmitter dry.

- Keep away from magnetic objects such as key rings.

- Keep away from devices that produce magnetism, such as audio systems, computers and televisions.

- Keep away from devices that emit strong electromagnetic waves, such as cellular phones, wireless devices and high frequency equipment (including medical devices.)

- Do not clean with ultrasonic cleaners.

- Do not leave the key where it may be exposed to high temperature or high humidity.

- If you lose your key, to prevent the theft of the vehicle immediately contact an authorized Mitsubishi Motors dealer.

If you notify an authorized Mitsubishi Motors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key number plate in a safe place separate from the key itself.

Features and controls

●No keys other than those registered in advance can be used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-4.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 3-41.
- When the theft-alarm is in the system operational status, the alarm operates if a door or rear hatch is opened after using the key, the door lock knob or the power door lock to unlock the vehicle.
●The system does not enter the preparation status if the keyless entry system or the F.A.S.T.-key was not used to lock the vehicle.

Electronic immobilizer (Anti-theft starting system)

ND1509100735

[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)]

For information on operations for vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer to "Free-hand Advanced Security Transmitter (F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)" on page 3-41.

[Except for vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)]

The electronic immobilizer is designed to significantly reduce the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is attempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system.

All of the keys provided with your new vehicle have been programmed to the vehicle's electronics.

NOTE

• Do not attach additional keys or accessories to the ignition key. Such objects could prevent the driver's knee airbag from inflating normally. Refer to "Deployment of front airbags" on page 2-48.
  ●In the following cases, the vehicle may not be able to recognize the registered ID code from the key. This means the engine will not start even when the key is turned to the "START" position.

• When the key contacts a key ring or other metallic or magnetic object (Type A)

• When the key grip contacts metal of another key (Type B)
• When the key contacts or is close to other immobilizer keys (including keys of other vehicles) (Type C)

- In cases like the above, move the offending object(s) away from the key and turn the key back to the "ACC" or "LOCK" position. Then try to start the engine again. If the engine does not start, contact an authorized Mitsubishi Motors dealer.

AG2000114

Features and controls

NOTE

●The key may not operate properly when it is near an object or facility that emits strong electromagnetic waves.
●Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a loss of security protection.
●A system failure is suspected when the ignition switch is turned to the "START" position, and the engine does not start. In such a case, contact an authorized Mitsubishi Motors dealer.

WARNING

- Do not make any alterations or additions to the immobilizer system. Alterations or additions could cause failure of the immobilizer.

Replacement keys

Only keys that have been programmed to the vehicle's electronics can be used to start the vehicle.

If you lose the key, contact your authorized Mitsubishi Motors dealer by referring to the key number.

To prevent vehicle theft, the ID code for the vehicle keys must be changed.

Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer to have your ID code changed.

Additional keys

To add a key, you need to register the ID code to the vehicle. Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada).

For you to register the ID code yourself, follow the "Customer key programming" procedure below.

If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.

NOTE

●You are provided with two keys, but you may register up to eight keys.

Customer key programming (Except for vehicles sold in Canada)

N00562200067

You can program new keys to the system if you have two valid (already registered) keys and blank (not registered) immobilizer key (specially cut for your vehicle at your Mitsubishi Motors dealer) by doing the following:

1. Insert the first valid key into the ignition switch and turn the key to the "ON" position for 5 seconds.
2. Turn the key to the "LOCK" position and remove the first key.
3. Within 30 seconds of turning the first key to the "LOCK" position, insert the second valid key into the ignition and turn it to the "ON" position. About 10 seconds later, the immobilizer display will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the "LOCK" position and remove it. Within 30 seconds after doing so, insert a blank immobilizer key into the ignition switch and turn it to the "ON" position. Perform this operation no more than 30 seconds after the immobilizer display starts blinking. When registration of the ID code is complete, the immobilizer display will come on for 3 seconds then go off. If an error occurs, the immobilizer display will go off during the procedure.

1. If you wish to register another key, perform the process again from step 1.

NOTE

●Perform the operation when the interrupt display screen is not showing. The interrupt display screen may prevent you from seeing the immobilizer display.
- It is not possible to register a key if:

- the immobilizer display goes off during the procedure

- the immobilizer display does not come on within 30 seconds after turning the ignition switch to the "ON" position with a blank immobilizer key

●The procedure will be terminated automatically if:

• a period of 30 seconds or longer elapses from the moment when the first key is turned to the “LOCK” position to the moment when the second key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the moment when the second key is turned to the “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position

●To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to "Keyless entry system: Customer remote control transmitter programming" on page 3-12.

Features and controls

General information

N0056230X1071

Your electronic immobilizer operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules. Operation is subject to the following two conditions.

●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

- Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.

Keyless entry system (if so equipped)

N00509000S19

Press the remote control transmitter buttons to lock or unlock the doors and the rear hatch.

It can also help you signal for attention by setting off the panic alarm.

1- LOCK (button
2- UNLOCK ( ) button
3- PANIC button
4- Indicator light

To lock

N010542700037

Press the LOCK button (1) to lock all the doors and the rear hatch.

The turn signal lights will also blink once.

NOTE

- If you press the LOCK button (1) twice quickly, the horn will sound once.

To unlock

N01543300085

Press the UNLOCK button (2) to unlock the driver's door only. Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors and the rear hatch.

The dome light will turn on for 30 seconds. The turn signal lights will also blink twice.

The front side-marker and parking lights will also turn on for about 30 seconds. Refer to “Welcome light” on page 3-226.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.
●The door and rear hatch unlock function can be set so that all doors and the rear hatch unlock when the UNLOCK button (2) is pressed once.

Refer to “Setting of door and rear hatch unlock function” on page 3-11.

Answerback function

N(015435001)74

Setting of the horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with the key removed from the ignition switch.

NOTE

●The answerback function does not operate when the key is in the ignition switch or any doors or rear hatch is opened.

Features and controls

Horn deactivation/reactivation

The horn answerback function can be set to the following three conditions.

Each time the horn answerback function is set, a chime will sound to tell you the condition of the answerback function.

Number of chimes	Condition
One chime The	horn will not sound.
Two chimes The	the horn will sound.
Four chimes	The horn will sound if the LOCK button (1) is pressed twice quickly.

1. Remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Changing the setting of the turn signal lights answer-back function

The turn signal lights answerback function can be set to the following seven conditions.

Each time the turn signal lights answerback function is set, a chime will sound to tell you the condition of the answerback function.

Number of chimes	Condition
	To lock To unlock
One chime One flash	Two flashes
Two chimes One flash	No flash
Three chimes No flash	Two flashes
Four chimes Two flashes	One flash
Five chimes	No flash One flash
Six chimes	Two flashes No flash
Seven chimes	No flash No flash

1. Remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.

3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.

4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Setting of door and rear hatch unlock function

NO0543600088

The door and rear hatch unlock function can be set to the following two conditions.

Each time the door and rear hatch unlock function is set, a chime will sound to tell you the condition of the door and rear hatch unlock function.

Number of chimes	Condition
One chime All doors and rear hatch unlock
Two chimes Driver's door unlock only

1. Remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.

Features and controls

1. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Using the panic alarm

N(015437001)21

If you are near your vehicle and feel threatened, you may activate the alarm to call attention as follows:

1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote control transmitter.

Replacement remote control transmitters

N00543800035

Only remote control transmitters programmed with the vehicle's electronics can lock or unlock all doors and the rear hatch.

If you lose the remote control transmitter, you can order a remote control transmitter from your authorized Mitsubishi Motors dealer by referring to the key number.

To prevent vehicle theft, the ID codes for all the remote control transmitters except the one for the lost key must be programmed again.

Take your vehicle and all the remaining remote control transmitters to your authorized Mitsubishi Motors dealer to have your ID codes programmed again.

Features and controls

Additional remote control transmitters

N005439X0036

To add a remote control transmitter, you must already have one registered remote control transmitter.

Registering the ID code can be done by yourself or by your authorized Mitsubishi Motors dealer. For you to register the ID code yourself, follow the “Customer remote control transmitter programming” procedure below.

If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.

NOTE

●You are provided with two remote control transmitters, but you may register up to eight remote control transmitters.

Customer remote control transmitter programming

N00544000047

You can program new remote control transmitters to the system if you have one valid (already registered) remote control transmitter by doing the following:

1. Have available all (current and new) remote control transmitters you wish to register.
2. With a valid (already registered) remote control transmitter, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.

At this time, ID codes for all remote control transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door or rear hatch is locked and unlocked) informs you that the registration mode has been activated.

1. Within 60 seconds after step 3, complete the following ID code registration operation using the next remote control transmitter you wish to register within 4 seconds.

i. Press both the LOCK and UNLOCK buttons for 2 seconds.
ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button.

The answerback function informs you that the ID code registration of the transmitter is completed.

1. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4.

2. If no ID code of a remote control transmitter is registered within 60 seconds after step 4, the registration mode is canceled and the normal mode returns.

NOTE

●For verification purposes, try to lock and unlock the doors and the rear hatch after the registration is completed.
●The indicator light (4) comes on each time a button is pressed.
●The keyless entry system does not work if the key is in the ignition switch.
●The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power station, or a radio station.
- If the UNLOCK button (2) is pressed when all doors and the rear hatch are locked and no doors or the rear hatch are opened within about 30 seconds, the doors and the rear hatch will automatically re-lock.

On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

- If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced.

• The doors and the rear hatch cannot be locked or unlocked.
  • The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

- If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.

Features and controls

• If you wish to obtain an additional remote control transmitter, please contact an authorized Mitsubishi Motors dealer. A maximum of eight remote control transmitters can be programmed for your vehicle.
  ●To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to “Electronic immobilizer (Anti-theft starting system): Customer key programming” on page 3-7.

General information

N00546100097

Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules.

Operation is subject to the following two conditions.

●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

- Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.

Features and controls

Procedure for replacing the remote control transmitter battery

N00544100048

1. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to open the case.

Diagram of a screwdriver tool fastening a screwdriver with a circular component (no text or symbols)

NOTE

●Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the remote control transmitter case, the buttons may come out.

1. Remove the remote control transmitter from the remote control transmitter case. Then, open the remote control transmitter using the method described in step 1.

Diagram of a tool with a circular arrow indicating rotation or movement, no text or symbols present

1. Remove the old battery.

2. Install a new battery with the + side (A) down.

1. Close the remote control transmitter firmly.

2. Place the remote control transmitter in the remote control transmitter case, then securely close the remote control transmitter case.

3. Check the keyless entry system to see that it works.

NOTE

●You may purchase a replacement battery at an electric appliance store.
●Your authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.

CAUTION

- When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal components.

Features and controls

Free-hand Advanced Security Transmitter (F.A.S.T.-key)(if so equipped)

NOD5031X0181

The Free-hand Advanced Security Transmitter (F.A.S.T.-key) enables the doors and the rear hatch to be locked and unlocked and the engine to be started simply by carrying it.

The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system.

Refer to "Free-hand Advanced Security Transmitter (F.A.S.T.-key): Keyless entry system" on page 3-44.

The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors and the rear hatch, and starting the engine. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.

WARNING

●Individuals who use implantable pacemakers or implantable cardioverter-defibrillators should keep away from the external and internal transmitters. The electromagnetic waves used in the F.A.S.T.-key may affect the operation of implantable pacemakers and implantable cardioverter-defibrillators.

A- External transmitter B- Internal transmitter

WARNING

●Individuals using other electrical medical apparatuses besides implantable pacemakers and implantable cardioverter-defibrillators should check with the manufacturer of the apparatus to confirm the effect of the electromagnetic waves used by the F.A.S.T.-key. The electromagnetic waves may affect the operations of the electro-medical apparatus.

The operations possible with the F.A.S.T.-key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorized Mitsubishi Motors dealer.

• Enabling only the locking and unlocking of the doors and the rear hatch
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key

Features and controls

NOTE

●The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper or unstable.
- The vehicle is near a facility that emits strong electromagnetic waves, such as a TV transmitting tower, a power station, a radio station or an airport
- The key is carried together with other communication devices such as cellular phones or radios, or electrical appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
- A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
- The vehicle is in a location with strong electromagnetic waves or noise
Use the emergency key in such circumstances.
Refer to "To operate using the emergency key" on page 3-33.
●The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the battery is always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 3 years, depending on the usage conditions.
- Since the F.A.S.T.-key is constantly performing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not place near electrical appliances such as televisions or computers.

Features and controls

Operating range of the F.A.S.T.-key

N00503201154

When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.-key and press the driver's or front passenger's door lock/unlock switch, the rear hatch LOCK switch or the rear hatch OPEN switch, verification of the ID code is performed.

The F.A.S.T.-key enables the doors and the rear hatch to be locked and unlocked and the engine to be started only when the ID codes of the vehicle and F.A.S.T.-key match.

NOTE

- When the battery of the F.A.S.T.-key has run down or there are strong electromagnetic waves or noise in the area, the operating range could decrease or operations could become unstable.

Operating range for locking and unlocking the doors and the rear hatch

The operating range is within about 2.3 feet (70 cm) of the handles of the driver's and front passenger doors and the center of the rear hatch.

Top-down diagram of a car with shaded interior areas and an arrow indicating leftward motion (no text or symbols)

*: Front of the vehicle

Operating range

NOTE

●Only the doors and the rear hatch that derect the F.A.S.T.-key can be locked and unlocked.
●The system may not operate if the F.A.S.T.-key is too close to the windshield, door windows or rear hatch.
- Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the handles of the driver's and front passenger doors and center of the rear hatch, the system may not operate if the key is close to the ground or in a high position.
- If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doors or the rear hatch by pressing the driver's or front passenger's door lock/unlock switch, the rear hatch LOCK switch or the rear hatch OPEN switch.

Operating range for starting the engine

N(05)3300041

The operating range is the interior of the vehicle.

Top-down diagram of a car showing front and side views with a directional arrow (no text or symbols)

*: Front of the vehicle
: Operating range

NOTE

●Even if the F.A.S.T.-key is within the operating range, it may not be possible to start the engine if the key is in a storage space such as the glove compartment, on top of the instrument panel, or in the door pocket or luggage compartment.
●Even if the F.A.S.T.-key is outside the vehicle, it may be possible to start the engine if the key is too close to a door or door window.

Features and controls

To operate using the F.A.S.T.-key

N005034001185

To lock

While carrying the F.A.S.T.-key, press the driver's or front passenger's door lock/unlock switch (A), or the rear hatch LOCK switch (B) within the operating range to lock all the doors and rear hatch.

The turn signal lights will blink once and the buzzer will sound once.

Also refer to "Door locks", "Power door locks" and "Rear hatch" on pages 3-51, 3-55 and 3-58 respectively.

3

NOTE

●In cases such as the following, the F.A.S.T.-key does not operate.

• A door or the rear hatch is open or ajar

- The ignition switch is in a position other than "LOCK"

• The emergency key is inserted into the ignition switch

●The rear hatch OPEN switch (C) can be used to confirm that the vehicle is locked properly.

Press the rear hatch OPEN switch within about 3 seconds of locking.

●If the rear hatch OPEN switch is pressed 3 seconds or more after the vehicle is locked, the doors and the rear hatch are unlocked.

Features and controls

●The time within which locking confirmation is possible can be adjusted. See an authorized Mitsubishi Motors dealer for details.

On a vehicle equipped with a Mitsubishi Multi-Communication System, the function can be adjusted on the screen. For details, refer to the separate operation manual.

To unlock

While carrying the F.A.S.T.-key within the operating range, you can unlock the doors and the rear hatch by F.A.S.T.-key operation.

The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will sound twice.

Also refer to "Door locks", "Power door locks" and "Rear hatch" on pages 3-51, 3-55 and 3-58 respectively.

Press the driver's door lock/unlock switch (A) to unlock only the driver's door.

Within about 2 seconds, press the driver's door lock/unlock switch (A) one more time to unlock all the doors and rear hatch.

NOTE

- Settings can be changed so that all doors and rear hatch are unlocked automatically by pressing the driver's door lock/unlock switch (A) once.

Refer to "Setting of door and rear hatch unlock function" on page 3-46.

Features and controls

Press the front passenger's door lock/unlock switch (B), or the rear hatch OPEN switch (C) to unlock all the doors and the rear hatch.

NOTE

- If the doors and the rear hatch are unlocked when all doors and the rear hatch are locked and no doors or the rear hatch are opened within about 30 seconds, the doors and the rear hatch will automatically re-lock.

●The amount of time after unlocking until the vehicle re-locks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details.

On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

●In cases such as the following, the F.A.S.T.-key does not operate.

• A door or the rear hatch is open or ajar

- The ignition switch is in a position other than "LOCK"

- The emergency key is inserted into the ignition switch

●The doors and the rear hatch cannot be unlocked by using the rear hatch OPEN switch for about 3 seconds after locking.

●The time within which locking confirmation is possible can be adjusted. See an authorized Mitsubishi Motors dealer for details.

On a vehicle equipped with a Mitsubishi Multi-Communication System, the function can be adjusted on the screen. For details, refer to the separate operation manual.

NOTE

●Function settings can be modified as stated below.

See an authorized Mitsubishi Motors dealer for details.

On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

- Activating the operation confirmation function (flashing of the hazard warning lights) only during locking, or only during unlocking.

- Deactivating the operation confirmation function (flashing of the hazard warning lights) and buzzer.

- Modifying the number of flashes in the operation confirmation function (flashing of the hazard warning lights).

- Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and the rear hatch are closed.

Ignition switch

N(01513500)59

To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can be used to start the engine. (Electronic immobilizer function)

While carrying the F.A.S.T.-key, the ignition switch can be turned to start the engine.

LOCK (PUSH OFF)

The position where the steering wheel is locked.

LOCK (PUSH ON)

When the ID code verification inside the vehicle produces a match, the ignition switch can be turned.

ACC

Allows operation of electrical accessories with the engine off.

Features and controls

ON

The engine runs and all electrical accessories can be used.

START

Engages the starter. Release the ignition switch when the engine starts. The ignition switch returns automatically to the "ON" position.

NOTE

- Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-41.)

- If the ignition switch is not turned to the "LOCK (PUSH OFF)" position when the engine is not running, the ID code cannot be verified and the engine will not start even if the ignition switch is turned to the "START" position. If this happens, fully return the ignition switch to the "LOCK (PUSH OFF)" position, and start the engine again.

To turn from "LOCK (PUSH OFF)" to "ACC"

ND1513600021

Turn slowly after pressing the ignition switch.

A- Steering wheel locked

B- Steering wheel lock released

NOTE

●To turn the ignition switch from the "LOCK (PUSH OFF)" position to the "ACC" position, push the ignition switch again, turn the steering wheel in both directions and then turn the ignition switch.

●The ignition switch cannot be turned unless the F.A.S.T.-key is inside the vehicle. Refer to "Operating range for starting the engine" on page 3-19.

To turn from "ACC" to "LOCK"

N01513700064

For vehicles equipped with manual transaxle

Slowly turn the ignition switch to the "LOCK" position while pressing it.

For vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST

First, set the selector lever (CVT) or the gearshift lever (Twin Clutch SST) to the "P" (PARK) position, and then slowly turn the ignition switch to the "LOCK" position while pressing it.

Diagram of a car dashboard with a close-up view showing a rotary knob (no text or symbols present)

NOTE

- For vehicles equipped with CVT or Twin Clutch SST, the ignition switch cannot be turned to the "LOCK" position unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the "P" (PARK) position.

Features and controls

CAUTION

• If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will be required. Also, the power steering system will not function and it will require greater effort to manually steer the vehicle.
• Do not leave the ignition switch in the "ON" or "ACC" position for a long time when the engine is not running. Doing so could lead to a dead battery.
• Do not turn the ignition switch to the "START" position when the engine is running. It will damage the starter motor.

Features and controls

Warning activation

N00503501203

With the F.A.S.T.-key, warnings are given through buzzers and displays on the information screen in the multi-information display in order to prevent mistaken operations or vehicle theft. When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning is also displayed if there is a problem in the F.A.S.T.-key.

If the following warning displays, contact an authorized Mitsubishi Motors dealer.

Type 1Type 2

There is a problem in the F.A.S.T.-key

If the following warning display, the display goes off if corrective action is taken.

●The ID codes of the F.A.S.T.-key and the vehicle cannot be verified

Type 1	Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the operating range
Type 2
Type 1	Refer to “F.A.S.T.-key take-out monitoring system” on page 3-28.

Features and controls

Type 1KEY BATTERY LOWType 2

The battery of the F.A.S.T.-key is run down

- A door or the rear hatch cannot be locked even when the driver's or front passenger's door lock/unlock switch or the rear hatch LOCK switch is pressed.

Type 1	Refer to “Ignition switch turn-off reminder system” on page 3-29.
Type 2

Type 1[IMAGE]Type 2[IMAGE]	Refer to “Key lock-in prevention system” on page 3-28.
Type 1[IMAGE]Type 2[IMAGE]	Refer to “Door ajar prevention system” on page 3-29.

Features and controls

F.A.S.T.-key take-out monitoring system

ND1559800115

Type 1

When the ignition switch is in a position other than "LOCK (PUSH OFF)", and a door is opened and the F.A.S.T.-key is removed from the passenger compartment so that the ID codes of the F.A.S.T.-key and the vehicle can no longer be verified, the warning display is displayed and the buzzer sounds 4 times as a warning.

NOTE

●The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key is removed through a window without opening a door. This setting can be changed. See an authorized Mitsubishi Motors dealer for details.
●The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine. The surrounding environment or electromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.

Key lock-in prevention system

ND1559900145

Type 1

When the ignition switch is in the "LOCK (PUSH OFF)" position, the F.A.S.T.-key is left in the passenger compartment, all the doors and the rear hatch are closed, and someone tries to lock the vehicle by pressing the driver's or front passenger's door lock/unlock switch, or the rear hatch LOCK switch, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors and the rear hatch cannot be locked.

If all the doors and the rear hatch are manually locked and closed while the ignition switch is in the "LOCK (PUSH OFF)" position and the F.A.S.T.-key is left in the car, the doors and the rear hatch will automatically unlock and a buzzer will sound for about 3 seconds.

Door ajar prevention system

N00561000146

Type 1

Type 2

When the ignition switch is in the "LOCK (PUSH OFF)" position, and someone tries to lock the vehicle by pressing the driver's or front passenger's door lock/unlock switch, or the rear hatch LOCK switch while one of the doors or the rear hatch is not fully closed, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors and the rear hatch cannot be locked.

Features and controls

Ignition switch turn-off reminder system

N00560100147

Type 1

Type 2

When the ignition switch is in a position other than "LOCK (PUSH OFF)", all the doors and the rear hatch are closed, and someone tries to lock the vehicle by pressing the driver's or front passenger's door lock/unlock switch, or the rear hatch LOCK switch, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors and the rear hatch cannot be locked.

Features and controls

Steering wheel lock

N00514300025

To lock

Turn the ignition switch to the "LOCK" position.

Turn the steering wheel until it is locked.

To unlock

Turn the ignition switch to the "ACC" position while moving the steering wheel slightly.

CAUTION

●Carry the key with you when leaving the vehicle.
- If your vehicle needs to be towed, turn the ignition switch to the "ACC" position to unlock the steering wheel.

NOTE

- If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the ignition switch from "LOCK" to "ACC" position. Firmly turn the steering wheel to the left or to the right as you turn the ignition switch.

Starting

N00514600204

Tips for starting

• Do not operate the starter motor continuously for longer than 15 seconds as this could run the battery down or damage the starter motor. If the engine does not start, turn the ignition switch back to the "LOCK" position, wait a few seconds, and then try again. Trying repeatedly with the engine or starter motor still turning will damage the starter mechanism.
• If the engine will not start because the battery is weak or discharged, refer to "Jump-starting the engine" on page 6-2 for instructions.
  ●[Except for vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. A longer warm up period will only consume extra fuel.
  ●[For vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. Driving before the bar graph moves may cause deterioration of turbocharger performance and driveability. A longer warm up period will only consume extra fuel.

●On vehicles equipped with the Twin Clutch SST, the following may occur after the engine is started, but they do not indicate an abnormality.

- You may hear operational sounds of the Twin Clutch SST and you may feel vibration in the vehicle body.

- If you shift the gearshift lever into the “N” (NEUTRAL) position and depress the accelerator pedal, increases in the engine speed will be limited.

WARNING

●Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Carbon monoxide gas, which is odorless and extremely poisonous, could build up and cause serious injury or death.

CAUTION

●Do not push-start the vehicle.

- Do not run the engine at high rpms or drive at high speeds until the engine has had a chance to warm up.

●Release the ignition switch as soon as the engine starts. Otherwise, the starter motor will be damaged.

Starting the engine

Your vehicle is equipped with an electronically controlled fuel injection system. This is a system that automatically controls fuel injection. There is usually no need to depress the accelerator pedal when starting the engine.

The starter motor should not be run for more than 15 seconds at a time.

To prevent battery drain, wait a few seconds between attempts to restart the engine.

1. Make sure all occupants are properly seated with seat belts fastened.

2. Make sure the parking brake is applied.

3. Press and hold the brake pedal down with your right foot.

4. Press and hold the clutch pedal all the way down (manual transaxle).

NOTE

- For models equipped with a manual transaxle, the starter will not operate unless the clutch pedal is fully depressed (Clutch interlock). This is a safety feature.

Features and controls

1. On vehicles equipped with manual transaxle, place the gearshift lever in the "N" (Neutral) position. On vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST, make sure the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the "P" (PARK) position.

NOTE

- On vehicles equipped with CVT, the starter will not operate unless the selector lever is in the "P" (PARK) or "N" (NEUTRAL) position. On vehicles equipped with Twin Clutch SST, the starter will not operate unless the gearshift lever is in the "P" (PARK) position or the gearshift lever is in the "N" (NEUTRAL) position with the brake pedal depressed. For safety reasons, start the engine in the "P" (PARK) position so that the wheels are locked.

1. While pushing the ignition switch from "LOCK" (PUSH OFF) to "LOCK" (PUSH ON), set the ignition switch to the "ON" position and confirm that all warning lights and warning displays are operating properly.
2. Without pressing the accelerator pedal, slowly turn the ignition switch to the "START" position to start the engine. Release the ignition switch when the engine starts.

NOTE

●Minor noises may be heard on engine start-up. These will disappear as the engine warms up.

Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely cold ambient temperature

When the ambient temperature is -4 ^ ( -20 ^ ) or lower on vehicles equipped with CVT, or -22 ^ ( -30 ^ ) or lower on vehicles equipped with Twin Clutch SST, it may not be possible to start from a standstill even with the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE) position.

This phenomenon occurs because the transaxle has not warmed up sufficiently; it does not indicate a problem. If this occurs, place the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the "P" (PARK) position and let the engine idle for at least 10 minutes.

The transaxle will warm up, and you will be able to drive normally.

Do not leave the vehicle during warm-up operation.

To operate using the emergency key

N00514800020

Emergency key

N00515200135

The emergency key is built into the F.A.S.T.-key.

When the F.A.S.T.-key cannot be used, such as when the battery of the F.A.S.T.-key or the vehicle has run down, the emergency key can be used to lock and unlock the driver's door and to start the engine.

To use the emergency key (1), unlock the lock knob (2) and remove it from the F.A.S.T.-key (3).

Features and controls

NOTE

●Only use the emergency key in an emergency. When the battery of the F.A.S.T.-key has run down, replace the battery as soon as possible and use it as a F.A.S.T.-key again.
●After using the emergency key, be sure to reinsert it into the F.A.S.T.-key.

To lock or unlock the driver's door with the emergency key Turn the emergency key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the emergency key back to the center and remove it.

1- Insert or remove the emergency key
2-Lock
3- Unlock

Features and controls

Ignition switch

N00529301166

To prevent vehicle theft, only the emergency key with the preregistered F.A.S.T.-key inserted can start the engine. (Electronic immobilizer function)

LOCK

The engine is off and the steering wheel is locked. The emergency key can be inserted and removed only when the ignition switch is in this position.

ACC

The electrical accessories can be used with the engine off.

ON

The engine will start only by using the emergency key with the F.A.S.T.-key inserted. It is possible to use all electrical accessories with only the emergency key.

START

Engages the starter. Release the emergency key when the engine starts. The ignition switch returns automatically to the "ON" position.

NOTE

●The vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-41.)

To turn from "LOCK" to "ACC"

1. Remove the emergency key from the F.A.S.T.-key. Refer to "Emergency key" on page 3-33.

2. While pushing the lock release buttons (A), remove the cover of the ignition switch.

Diagram of a car dashboard and steering wheel with an inset showing a mechanical component labeled A (no text or symbols present)

Features and controls

1. Insert the emergency key into the ignition switch, and slowly push and turn.

NOTE

- When the ignition switch cannot be turned from the "LOCK" position to the "ACC" position, turn the ignition switch while turning the steering wheel in both directions.

Features and controls

To turn from "ACC" to "LOCK"

1. [For vehicles equipped with manual transaxle] Push the emergency key in at the "ACC" position and keep it depressed until it is turned to the "LOCK" position, and remove. [For vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST] First, set the selector lever (CVT) or the gearshift lever (Twin Clutch SST) to the "P" (PARK) position, and then slowly turn the ignition switch to the "LOCK" position while pressing it.

3

Interior view of a car dashboard with steering wheel and steering wheel (no text or symbols visible)

NOTE

- For vehicles equipped with CVT or Twin Clutch SST, the emergency key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the "P" (PARK) position.

1. Install the cover of the ignition switch.
2. Reinsert the emergency key into the F.A.S.T.-key.

NOTE

●Always install the cover of the ignition switch when not using the emergency key. Not doing so could cause damage if foreign material such as dust gets into the keyhole of the ignition switch.

CAUTION

• Do not turn the ignition switch to the "LOCK" position while the vehicle is moving. This will cause the steering wheel to lock, making it impossible to operate the vehicle.
• If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will be required. Also, the power steering system will not function and it will require greater effort to manually steer the vehicle.
• Do not leave the ignition switch in the "ON" or "ACC" position for a long time when the engine is not running. The battery will run down.
• Do not turn the ignition switch to the "START" position when the engine is running. It will damage the starter motor.

Steering wheel lock

Diagram of a car dashboard and steering wheel with directional arrows indicating rotation (no text or symbols)

To lock

Turn the emergency key to the "LOCK" position.

Turn the steering wheel until it is locked.

To unlock

Turn the emergency key to the "ACC" position while moving the steering wheel slightly.

CAUTION

• Remove the emergency key when leaving the vehicle.
• If your vehicle needs to be towed, turn the emergency key to the "ACC" position to unlock the steering wheel.

Features and controls

NOTE

- If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the emergency key from "LOCK" to "ACC". Firmly turn the steering wheel to the left or to the right as you turn the emergency key.

Starting

Tips for starting

• Do not operate the starter motor continuously for longer than 15 seconds as this could run the battery down or damage the starter motor. If the engine does not start, turn the emergency key back to the "LOCK" position, wait a few seconds, and then try again. Trying repeatedly with the engine or starter motor still turning will damage the starter mechanism.
• If the engine will not start because the battery is weak or discharged, refer to "Jump-starting the engine" on page 6-2 for instructions.
  ●[Except for vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. A longer warm up period will only consume extra fuel.
  ●[For vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. Driving before the bar graph moves may cause deterioration of turbocharger performance and driveability. A longer warm up period will only consume extra fuel.

Features and controls

●On vehicles equipped with the Twin Clutch SST, the following may occur after the engine is started, but they do not indicate an abnormality.

- You may hear operational sounds of the Twin Clutch SST and you may feel vibration in the vehicle body.

- If you shift the gearshift lever into the "N" (NEUTRAL) position and depress the accelerator pedal, increases in the engine speed will be limited.

WARNING

●Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Carbon monoxide gas, which is odorless and extremely poisonous, could build up and cause serious injury or death.

CAUTION

●Do not push-start the vehicle.

●Do not run the engine at high rpms or drive at high speeds until the engine has had a chance to warm up.

●Release the emergency key as soon as the engine starts. It will damage the starter motor.

Starting the engine

The vehicle is equipped with an electronically controlled fuel injection system. This is a system that automatically controls the fuel injection. There is usually no need to depress the accelerator pedal when starting the engine.

The starter motor should not be run for more than 15 seconds at a time.

To prevent battery drain, wait a few seconds between attempts to restart the engine.

1. Make sure all occupants are properly seated with seat belts fastened.
2. Make sure the parking brake is applied.
3. While pushing the lock release buttons (A), remove the cover of the ignition switch.

Diagram of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

1. Insert the emergency key into the ignition switch.

1. Insert the F.A.S.T.-key into the emergency key.

Features and controls

1. Press and hold the brake pedal down with your right foot.

2. Press and hold the clutch pedal all the way down (manual transaxle).

NOTE

●On vehicles equipped with manual transaxle, the starter will not operate unless the clutch pedal is fully depressed (Clutch interlock). This is a safety feature.

1. On vehicles equipped with manual transaxle, place the gearshift lever in the "N" (Neutral) position.

On vehicles equipped with CVT or Twin Clutch SST, make sure the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the "P" (PARK) position.

NOTE

●On vehicles equipped with CVT, the starter will not operate unless the selector lever is in the "P" (PARK) or "N" (NEUTRAL) position.

On vehicles equipped with Twin Clutch SST, the starter will not operate unless the gearshift lever is in the "P" (PARK) position or the gearshift lever is in the "N" (NEUTRAL) position with the brake pedal depressed.

For safety reasons, start the engine in the "P" (PARK) position so that the wheels are locked.

1. Turn the emergency key with the F.A.S.T.-key to the "ON" position and make certain that all warning lights and warning displays are functioning properly before starting the engine.

Features and controls

1. Turn the emergency key with the F.A.S.T.-key to the "START" position without pressing the accelerator pedal. Release the emergency key with the F.A.S.T.-key when the engine starts.

2. Remove the F.A.S.T.-key from the emergency key.

NOTE

●Minor noises may be heard on engine start-up. These will disappear as the engine warms up.

WARNING

- Make sure to remove the F.A.S.T.-key from the emergency key after the engine is started. If not removed, the F.A.S.T.-key could fall to the floor, which may interfere with pedal operation. Furthermore, the F.A.S.T.-key could prevent the driver's knee airbag from inflating normally or could be propelled to cause serious injury if the airbag inflates.

NOTE

- If the emergency key is attached to a key ring, it may become impossible to insert the F.A.S.T.-key into the emergency key, and it may prevent the engine from being started. When using the emergency key to start the engine, first remove the key from the key ring.

Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely cold ambient temperature

When the ambient temperature is -4 ^ ( -20 ^ ) or lower on vehicles equipped with CVT or -22 ^ ( -30 ^ ) or lower on vehicles equipped with Twin Clutch SST or it may not be possible to start from a standstill even with the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE) position.

This phenomenon occurs because the transaxle has not warmed up sufficiently; it does not indicate a problem. If this occurs, place the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the "P" (PARK) position and let the engine idle for at least 10 minutes.

The transaxle will warm up, and you will be able to drive normally.

Do not leave the vehicle during warm-up operation.

Features and controls

Electronic immobilizer (Anti-theft starting system)

N00529600127

The electronic immobilizer is designed to significantly reduce the possibility of vehicle theft. The purpose of the system is to immobilize the vehicle if an invalid start is attempted. A valid start attempt can only be achieved (subject to certain conditions) using a F.A.S.T.-key “registered” to the immobilizer system.

All of the keys provided with your new vehicle have been programmed to the vehicle's electronics.

Replacement F.A.S.T.-key

Only the F.A.S.T.-keys that have been programmed to the vehicle's electronics can be used to start the vehicle.

If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number.

To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys except the one for the lost F.A.S.T.-key must be programmed again.

Take your vehicle and all the remaining F.A.S.T.-keys to your authorized Mitsubishi Motors dealer to have your ID codes programmed again.

Additional F.A.S.T.-key

To add a F.A.S.T.-key, you must already have two registered F.A.S.T.-keys. You need to register the ID code to the vehicle.

Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada).

For you to register the ID code yourself, follow the “Customer F.A.S.T.-key programming” procedure below.

If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.

NOTE

●You are provided with two F.A.S.T.-keys, but you may register up to four F.A.S.T.-keys.

You can obtain blank F.A.S.T.-keys specially cut for your vehicle from your Mitsubishi Motors dealer.

Features and controls

Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)

N00561200103

You can program new F.A.S.T.-keys to the system if you have two valid (already registered) F.A.S.T.-keys, blank (not registered) F.A.S.T.-key and emergency key (specially cut for your vehicle at your Mitsubishi Motors dealer).

To use the new F.A.S.T.-key, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to "Keyless entry system: Customer F.A.S.T.-key programming" on page 3-48.

For F.A.S.T.-key programming, follow the procedures below.

1. Remove the emergency key from the F.A.S.T.-key. Refer to "Emergency key" on page 3-33.
2. While pushing the lock release buttons (A), remove the cover of the ignition switch.

Interior view of a car dashboard with steering wheel and steering wheel (no text or symbols visible)

1. Insert the emergency key into the ignition switch.

1. Insert the first valid F.A.S.T.-key into the emergency key.

1. Turn the emergency key with the F.A.S.T.-key to the "ON" position for 5 seconds.
2. Turn the emergency key with the F.A.S.T.-key to the "LOCK" position. Within 30 seconds after doing so, remove the F.A.S.T.-key from the emergency key, insert the second valid F.A.S.T.-key into the emergency key and turn it to the "ON" position. About 10 seconds later, the immobilizer display will start to blink.
3. When the immobilizer display starts blinking, turn the second valid F.A.S.T.-key to the "LOCK" position and remove it. Within 30 seconds after doing so, insert a blank F.A.S.T.-key into the emergency key and turn it to the "ON" position. Perform this operation no more than 30 seconds after the immobilizer display starts blinking. When registration of the ID code is complete, the immobilizer display will come on for 3 seconds then go off. If an error occurs, the immobilizer display will go off during the procedure.

1. If you wish to register another F.A.S.T.-key, repeat the process from step 1.

NOTE

●Perform the operation when the interrupt display screen is not showing. The interrupt display screen may prevent you from seeing the immobilizer display.
●It is not possible to register a F.A.S.T.-key if:

- the immobilizer display goes off during the procedure

- the immobilizer display does not come on within 30 seconds after turning the ignition switch to the "ON" position with a blank F.A.S.T.-key

●The procedure will be terminated automatically if:

- a period of 30 seconds or longer elapses from the moment when the first F.A.S.T.-key is turned to the "LOCK" position to the moment when the second F.A.S.T.-key is turned to the "ON" position

- a period of 30 seconds or longer elapses from the moment when the second F.A.S.T.-key is turned to the “LOCK” position to the moment when the blank F.A.S.T.-key is turned to the “ON” position

●To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to "Keyless entry system: Customer F.A.S.T.-key programming" on page 3-48.

Features and controls

Keyless entry system

N00515501196

Press the remote control transmitter buttons to lock or unlock the doors and the rear hatch.

It can also help you signal for attention by setting off the panic alarm.

1- LOCK (button
2- UNLOCK (button
3- PANIC (button
4- Operation indicator light

To lock

ND1544200049

Press the LOCK button (1) to lock all the doors and the rear hatch.

The turn signal lights will also blink once.

NOTE

- If you press the LOCK button (1) twice quickly, the horn will sound once.

To unlock

N00544300095

Press the UNLOCK button (2) to unlock the driver's door only. Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors and the rear hatch.

The dome light will turn on for 30 seconds. The turn signal lights will also blink twice.

The front side-marker and parking lights will also turn on for about 30 seconds. Refer to "Welcome light" on page 3-226.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.
●The door and rear hatch unlock function can be set so that all doors and the rear hatch unlock when the UNLOCK button (2) is pressed once.

Refer to "Setting of door and rear hatch unlock function" on page 3-46.

Answerback function

N(01544500)55

Setting of the horn, turn signal lights and buzzer of the keyless entry system answerback function can be changed as required. This is done with the key removed from the ignition switch.

NOTE

●The answerback function does not operate when the key is in the ignition switch or any door or rear hatch is opened.

Horn deactivation/reactivation

The horn answerback function can be set to the following three conditions.

Each time the horn answerback function is set, a chime will sound to tell you the condition of the answerback function.

Number of chimes	Condition
One chime The	horn will not sound.
Two chimes The	horn will sound.
Four chimes	The horn will sound if the LOCK button (1) is pressed twice quickly.

1. Turn the ignition switch to the "LOCK" position. If you started the engine with the key, remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.

Features and controls

1. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Changing the setting of the turn signal lights answerback function

The turn signal lights answerback function can be set to the following seven conditions.

Each time the turn signal lights answerback function is set, a chime will sound to tell you the condition of the answerback function.

Number of chimes	Condition
	To lock To unlock
One chime One flash	Two flashes
Two chimes One flash	No flash
Three chimes No flash	Two flashes
Four chimes Two flashes	One flash
Five chimes No flash	One flash
Six chimes	Two flashes No flash
Seven chimes	No flash No flash

Features and controls

1. Turn the ignition switch to the "LOCK" position. If you started the engine with the key, remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Buzzer deactivation/reactivation

The buzzer answerback function can be turned ON or OFF as required.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Setting of door and rear hatch unlock function

ND154460085

The door and rear hatch unlock function can be set to the following two conditions.

Each time the door and rear hatch unlock function is set, a chime will sound to tell you the condition of the door and rear hatch unlock function.

Number of chimes	Condition
One chime All doors and rear hatch unlock
Two chimes Driver's door unlock only

1. Turn the ignition switch to the "LOCK" position. If you started the engine with the key, remove the key from the ignition switch.
2. Open the driver's door and turn the combination headlights and dimmer switch to the "OFF" position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

Using the panic alarm

N(0544700028

If you are near your vehicle and feel threatened, you can activate the alarm to call attention as follows:

1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote control transmitter.

Replacement F.A.S.T.-keys

N00561300045

Only a F.A.S.T.-key, which has been programmed into the vehicle's electronics, can lock and unlock all the doors and the rear hatch, and start the engine.

If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number.

To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys except the one for the lost F.A.S.T.-key must be programmed again.

Take your vehicle and all the remaining F.A.S.T.-keys to your authorized Mitsubishi Motors dealer to have your ID codes programmed again.

Additional F.A.S.T.-keys

N00561400046

To add a F.A.S.T.-key, you must already have two registered F.A.S.T.-keys.

Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada). For you to register the ID code yourself, follow the “Customer F.A.S.T.-key programming” procedure below.

If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remaining F.A.S.T.-keys to your authorized Mitsubishi Motors dealer.

NOTE

●You are provided with two F.A.S.T.-keys, but you may register up to four F.A.S.T.-keys.

Features and controls

Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)

N00561500106

You can program new F.A.S.T.-keys to the system if you have two valid (already registered) F.A.S.T.-keys, blank (not registered) F.A.S.T.-key and emergency key (specially cut for your vehicle at your Mitsubishi Motors dealer).

To use the new F.A.S.T.-key, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to "Electronic immobilizer: Customer F.A.S.T.-key programming" on page 3-42.

For F.A.S.T.-key programming, follow the procedures below.

1. Remove the emergency key from the F.A.S.T.-key. Refer to "Emergency key" on page 3-33.
2. While pushing the lock release buttons (A), remove the cover of the ignition switch.

Interior view of a car dashboard with steering wheel and steering wheel (no text or symbols visible)

1. Insert the emergency key into the ignition switch.

1. Insert the valid F.A.S.T.-key into the emergency key.

1. Turn the emergency key with F.A.S.T.-key to the "ON" position. (Perform the following procedure within 30 seconds)
2. Remove the F.A.S.T.-key from the emergency key.
3. With the first valid F.A.S.T.-key, press the UNLOCK button (2) and the LOCK button (1) simultaneously for 4 to 10 seconds.
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 7. (Perform the following procedure within 30 seconds)
5. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button during this time.
6. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 9, and the immobilizer display will blink on the information screen in the multi-information display. (Perform the following procedure within 60 seconds)
7. Press the LOCK button twice with the blank F.A.S.T.-key and the immobilizer display will come on for 30 seconds on the information screen in the multi-information display.
8. This completes the registration of the F.A.S.T.-key.

NOTE

●The indicator light (4) comes on each time a button is pressed.
●The keyless entry system does not work if the key is in the ignition switch.
●The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power station, or a radio station.
- If the UNLOCK button (2) is pressed when all doors and the rear hatch are locked and no doors or rear hatch are opened within about 30 seconds, the doors and the rear hatch will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.
- If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced.
- The doors and the rear hatch cannot be locked or unlocked.
• The panic alarm cannot be operated.
- The indicator light (4) is dim or does not come on.

Features and controls

• If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for a replacement.
• If you wish to obtain an additional F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.-key can be programmed for your vehicle.
  ●To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry system.

Also refer to "Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.-key programming" on page 3-42.

3 General information

N00562000052

Your F.A.S.T.-key operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules.

Operation is subject to the following two conditions.

●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

- Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.

Procedure for replacing the remote control transmitter battery

N00562100024

1. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remote control transmitter case and use it to open the case.

Diagram of a handheld device with a screwdriver and lever mechanism, showing internal components (no text or symbols)

NOTE

●Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the remote control transmitter case, the transmitter may come out.
2. Remove the old battery.

1. Install a new battery with the + side (A) up.

1. Close the remote control transmitter case firmly.
2. Check the keyless entry system to see that it works.

NOTE

●You may purchase a replacement battery at an electric appliance store.
●Your authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.

CAUTION

- When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal components.

Features and controls

Door locks

N00509200521

WARNING

●Make sure all doors are tightly closed and locked while driving.

• Locked doors, in combination with the use of seat belts, can help reduce the risk of ejection in an accident.
• Locked doors can help keep passengers, especially small children, from opening doors and falling out of moving vehicles.
• Locked doors can help prevent outsiders from gaining access to your vehicle when you slow or come to a stop.
  ●Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer serious injury or death due to heat stroke.
  ●Never leave children unattended inside a vehicle. In addition to the risk of heat stroke, children can activate switches and controls, resulting in an injury or fatal accident.

Features and controls

NOTE

- When locking or unlocking with the key, only the driver's door will be locked or unlocked.

To lock or unlock all doors and rear hatch, use the power door lock switches, the keyless entry system, the F.A.S.T.-key operation.

Refer to "Power door locks" on page 3-55, "Keyless entry system" on page 3-8 and 3-44, and "To operate using the F.A.S.T.-key" on page 3-20.

- In vehicles equipped with the F.A.S.T.-key, the driver's door can be locked and unlocked using the emergency key.

Refer to "Emergency key" on page 3-33.

To lock or unlock the doors with the key (driver's door)

Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center and remove it.

1- Insert or remove the key
2-Lock
3- Unlock

Features and controls

To lock or unlock the door from the inside

Move the lock knob to the lock position to lock the door. All doors should be kept locked while driving.

1-Lock
2- Unlock

The driver's door can be unlocked without using the lock knob by pulling on the inside door handle.

To lock the door without using the key

1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.

Features and controls

Key reminder system

N005496001208

When a key was used to start the engine Type 1

Type 2

If the ignition switch is turned off and the driver's door is opened with the key in the ignition switch, the key reminder buzzer will sound intermittently to remind you to remove the key.

The warning display will be displayed on the information screen in the multi-information display.

Lock out protection

N00517300039

When you push the lock knob forward or lock the door with the power door lock switch in both of the following conditions, the lock knob will automatically return to the unlocked position.

●The key is in the ignition switch or the ignition switch is in the “ACC” or “ON” position.
- Driver's door or front passenger door is opened.

Ignition switch return reminder system

ND1503800134

When the F.A.S.T.-key was used to start the engine Type 1

Type 2

If the driver's door is opened while the ignition switch is in a position other than "LOCK" (PUSH OFF), the ignition switch return reminder buzzer will sound intermittently to remind you to return the ignition switch to the "LOCK" (PUSH OFF) position.

The warning display will be displayed on the information screen in the multi-information display.

Power door locks

N00509300593

NOTE

• When locking or unlocking with the key on the driver's door, only the driver's door will lock or unlock.
  ●Repeated continuous operation between lock and unlock could activate the power door locking systems built-in protection circuit and prevent the system from operating. If this occurs, wait about one minute before operating the power door lock switch.

Features and controls

To lock and unlock the doors and rear hatch

Using the power door lock switch

1-Lock
2- Unlock

All of the doors and the rear hatch can be locked or unlocked by pressing the power door lock switch on the driver's or the front passenger's door.

Features and controls

To unlock the doors and rear hatch

N005634001079

You can select the functions to unlock the doors and rear hatch either using the ignition switch position or using the selector lever {continuously variable transmission (CVT)} position or the gearshift lever (Twin Clutch SST) position.

These functions are not activated when the vehicle is shipped from the factory. To activate or deactivate these functions, please contact your authorized Mitsubishi Motors dealer.

Using the ignition switch position

All doors and the rear hatch will unlock when the ignition switch is turned to the "LOCK" position.

Using the selector lever {continuously variable transmission (CVT)} position or the gearshift lever (Twin Clutch SST) position

All doors and the rear hatch will unlock when the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is moved to the "P" (PARK) position with the ignition switch in the "ON" position.

Vehicles with CVT Vehicles with

Simple line drawing of a mechanical lever with a labeled point P (no text or symbols on the lever itself)

Twin Chutch SST

Simple line drawing of a mechanical lever with a circular label containing the letter 'P' (no text or symbols on the lever itself)

AA0081777

NOTE

●On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

"Child safety locks" for rear door

N00509400204

1- To lock
2- To release

Child safety locks help prevent rear passengers, especially children, from opening the rear door using the inside door handle. A lock lever for the child safety lock is provided on each rear door.

When the lever is in the lock position (1), the rear door cannot be opened using the inside door handle.

To open the rear door when the child safety lock lever is in the lock position, pull the outside door handle.

When the lever is in the release position (2), the child safety lock is released and the rear door can be opened using the inside door handle.

Features and controls

WARNING

●Always keep the doors tightly closed and locked when driving. An unlocked door may be accidentally opened by a passenger, especially by a child who could fall out. Also, if the doors are not locked, there is a greater risk of someone being thrown from the vehicle in an accident.

Features and controls

Rear hatch

N00510000066

WARNING

• It is dangerous to drive with the rear hatch open since carbon monoxide (CO) gas can enter the passenger compartment.
  CO is an invisible, odorless gas that can cause unconsciousness and even death.
• When opening and closing the rear hatch, make sure that there are no people nearby and be careful not to hit your head or pinch your hands, neck, etc.

CAUTION

- Do not stand behind the exhaust pipe when loading and unloading luggage. Heat from the exhaust could lead to burns.

NOTE

●Locking and unlocking the doors by using the power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-key operation (if so equipped) also locks and unlocks the rear hatch.

To open

After unlocking, lift the rear hatch.

Line drawing of a sedan car viewed from the side, showing front and rear sections (no text or symbols)

CAUTION

●Make sure there is no one standing nearby when opening the rear hatch.

NOTE

●The rear hatch cannot be raised if it is not raised immediately after pressing the rear hatch OPEN switch. If this happens, raise the rear hatch again after pressing the rear hatch OPEN switch.
- It is not possible to open the rear hatch while the battery is disconnected. If necessary, use the inside rear hatch release.
- When the battery is reconnected, all doors and the rear hatch will be locked. Unlock them before trying to open the rear hatch.

To close

Pull the rear hatch grip (A) downward as illustrated and release it before the rear hatch closes completely. Gently slam the rear hatch from the outside so that it is completely closed.

Line drawing of a car trunk with open lid and labeled component A (no text or symbols beyond label)

CAUTION

●To avoid injuring your hand or arm, do not attempt to close the rear hatch without releasing the rear hatch grip (A).
●Before starting the vehicle, be sure to confirm that the rear hatch is locked. If the rear hatch opens while driving the vehicle, objects stored in the luggage compartment could fall out into the road.

Features and controls

NOTE

●Gas struts (B) are installed in the locations illustrated in order to support the rear hatch. Please observe the following in order to prevent damage or faulty operation.

• Do not touch, push or pull the gas struts when closing the rear hatch.
• Do not attach any plastic material, tape, etc., to the gas struts.
• Do not tie string, etc., around the gas struts.
• Do not hang objects on the gas struts.

Line drawing of a car trunk with open lid and labeled component B (no text or symbols beyond label)

Inside rear hatch release

N00523100058

The inside rear hatch release is designed to provide a way to open the rear hatch if the battery is dead or disconnected.

The rear hatch release lever (see illustration) is mounted on the rear hatch.

Line drawing of a car interior showing a seatbelt and dashboard, with an inset magnified view highlighting the seat area (no text or symbols present)

You and your family should familiarize yourselves with the location and operation of the rear hatch release lever.

To open

1. Open the lid (A) inside of the rear hatch.

Features and controls

1. Move the lever (B) to open the rear hatch.

1. Push out on the rear hatch to open it.

CAUTION

●Always keep the release lever lid on rear hatch closed when driving so that your luggage cannot accidentally bump the lever and open the rear hatch.

Features and controls

Theft-alarm system

N00510200215

The theft-alarm system is designed to provide protection from unauthorized entry into the vehicle. This system is operated in three stages: the first is the “armed” stage, the second is the “alarm” stage, and third is the “disarmed” stage. If triggered, the system provides both audible and visual alarm signals.

CAUTION

●Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.

Armed stage

ND1510300173

Park the vehicle and stop the engine. Arm the system as described below.

1. Turn the ignition switch to the "LOCK" position.
   Also, if a key was used to start the engine, remove the key from the ignition switch.
2. Make sure that the engine hood is closed.
3. Lock all doors and the rear hatch by using the keyless entry system or the F.A.S.T.-key operation.

Arm the system and leave

Line drawing of a car and a walking person (no text or symbols)

AA0056858

At this time, the theft-alarm indicator (A) on the audio panel flashes for confirmation.

Top-down line drawing of a car interior showing dashboard, seats, and steering wheel (no text or symbols)

1. The system has entered the armed stage after about 20 seconds, when the theft-alarm indicator (A) flashing becomes slower.

The theft-alarm indicator (A) continues to flash while the system is in the armed stage.

Features and controls

NOTE

- If the engine hood is open, the theft-alarm indicator (A) illuminates and the system cannot enter the armed stage. The system enters the armed stage about 20 seconds after the engine hood is closed.

●The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors and rear hatch are unlocked by using the keyless entry system or the F.A.S.T.-key operation.

●The system will be disarmed if, while the theft-alarm indicator is illuminated, the ignition switch is turned to the "ON" position.

●The system will not be armed if a door or the rear hatch or the engine hood is not completely closed. If this happens, rearm the system as described above.

●The theft-alarm system can be activated when people are riding inside the vehicle or when the windows are open. To prevent accidental activation of the alarm, do not set the system to the system armed mode while people are riding in the vehicle.

Features and controls

- For vehicles equipped with the interior alarm sensor, if the turn signal lights do not flash after the locking and unlocking operation using the keyless entry system or the F.A.S.T.-key operation, the theft-alarm system may be malfunctioning.

Have the vehicle inspected by an authorized Mitsubishi Motors dealer.

If the answerback function (flashing of the turn signal lights by locking and unlocking the doors and the rear hatch) is deactivated, the turn signal lights do not flash after the locking and unlocking operation.

For information on the answerback function, refer to "Keyless entry system" on pages 3-8, 3-44 and "To operate using the F.A.S.T.-key" on page 3-20.

●For vehicles equipped with the interior alarm sensor, the security alarm system could be activated in the following situations.

• Using a car washer.
  • Taking the vehicle on a ferry.
• Parking in an automated car park.
  • Leaving someone or a pet in the vehicle.
  • Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or accessory in the vehicle.
• Suffering a continuous impact or vibration by hail, thunder, etc.

According to the situations, deactivate the vehicle inclination detection function and the interior intrusion detection function.

Refer to “Theft-alarm system: To deactivate the vehicle inclination detection function and the interior intrusion detection function” on page 3-62.

●For vehicles equipped with the interior alarm sensor, the sensitivity of the interior intrusion detection function can be adjusted. For further details, please contact an authorized Mitsubishi Motors dealer.

Alarm stage

ND1510400187

The alarm will be activated if any of the following occur while the vehicle is parked and the system is armed.

●One of the doors and the rear hatch is opened without using the keyless entry system or the F.A.S.T.-key operation.
●The engine hood is opened.

Also, for vehicles equipped with the interior alarm sensor, the alarm will be activated if any of the following occur.

• Attempt an unauthorized moving of the vehicle. (the vehicle inclination detection function)
• Detect a motion in the vehicle. (the interior intrusion detection function)
  ●Disconnect the battery terminal.

Type of alarm

When the alarm is activated:

1. The headlights blink on and off for 3 minutes.
   After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior alarm sensor) will sound intermittently for 3 minutes.

Horn or siren sounds!

Headlights blink on and off!

Cartoon illustration of a person inside a car with a warning sign, next to a lightning bolt (no text or symbols)

AF0008168

Features and controls

NOTE

●The alarm will continue to operate for 3 minutes. At the end of that period, the alarm will automatically shut off to save battery power. The system will then be rearmed until the proper disarming step is taken.
●The alarm will resume if unauthorized actions are taken again, even if the alarm has stopped.
●While the alarm is operating, a warning is displayed on the information screen in the multi-information display.

Type 1

Type 2

Alarm deactivation

The alarm can be deactivated in the following ways.

●By using the keyless entry system or the F.A.S.T.-key operation to lock or unlock the door or rear hatch.
●Turn the ignition switch to the "ON" position.

Features and controls

To deactivate the vehicle inclination detection function and the interior intrusion detection function (vehicles equipped with the interior alarm sensor)

The vehicle inclination detection function and the interior intrusion detection function can be deactivated when parking in automated car parks or leaving pets in the vehicle.

1. Turn the ignition switch to the "LOCK" position. Also, if a key was used to start the engine, remove the key from the ignition switch.
2. Raise and hold the wiper and washer switch to the "MIST" position for about 3 seconds. The buzzer will sound once and the function will be deactivated.

To activate the function again, raise and hold the wiper and washer switch to the "MIST" position for about 3 seconds. The buzzer will sound twice and the function will be activated.

Diagram of a car handle with an arrow indicating upward motion, no text or symbols present

NOTE

●The function will be activated again if the following operation is performed.

• If the doors and the rear hatch are unlocked using the keyless entry system or the F.A.S.T.-key operation.
• If the ignition switch is turned to the "ON" or "ACC" position.

Disarmed stage

N00510500159

The system will be disarmed if the following operation is performed.

●The ignition switch is turned to the "ON" position.
●All doors and the rear hatch are unlocked by the keyless entry system or the F.A.S.T.-key operation.

Disarm...by using the keyless entry system or F.A.S.T.-key operation

Line drawing of a person standing beside a car door with sound waves (no text or symbols)

AA0070940

NOTE

- If the UNLOCK button on the remote control transmitter, or the driver's or front passenger's door lock/unlock switch is pressed when all doors and the rear hatch are closed and no door is opened within approximately 30 seconds, re-arming will automatically occur.

●The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details. On a vehicle equipped with a Mitsubishi Multi-Communication System, the functions can be adjusted on the screen. For details, refer to a separate operation manual.

●Once the system has been disarmed, it cannot be rearmed except by repeating the arming procedure.

Testing the theft-alarm system

N00510600118

Use the following procedure to test the system:

1. Lower the driver's window.
2. Arm the system as explained in "Armed stage".
3. Make sure that the theft-alarm indicator comes on and flashes for approximately 20 seconds.

4. Wait a few seconds and then unlock the driver's side door by using the inside door lock knob and open the door.

5. Check to be sure that the horn (the siren for vehicles equipped with the interior alarm sensor) sounds intermittently and the headlights blink on and off when the door is opened.

6. Disarm the system by unlocking all doors and the rear hatch by using the keyless entry system or the F.A.S.T.-key operation.

Features and controls

Power windows

N00510800325

1- Open (down)
2- Close (up)

NOTE

●Never try to operate the main switch and sub switch in different directions at the same time. This will freeze the window in position.
- Operating the power windows repeatedly with the engine stopped will run down the battery. Use the window switches only while the engine is running.

WARNING

●Before operating the power windows, make sure that nothing can be trapped (head, hands, fingers, etc.) in the window.
●Never leave the vehicle with the key in the ignition switch.
●Never leave a child alone in the vehicle.

Main switch

The main switch located on the driver's door can be used to operate all door windows.

A window can be opened or closed by operating the corresponding switch.

Press the switch down to open the window, and pull up the switch to close it.

If the driver's door window switch is fully pressed down/pulled up, the driver's door window automatically opens/closes completely.

If you want to stop the window movement, operate the switch lightly in the reverse direction.

Features and controls

1- Driver's door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch

Sub switch

1- Close (up)
2- Open (down)

Each sub switch can be used for its own passenger door window, unless the driver's window lock switch is activated.

Features and controls

Timer function

The power windows can be run up or down when the ignition switch is in the "ON" position.

The door windows can be opened or closed for a 30 second period after the ignition switch is turned to the “ACC” or “LOCK” position. However, once the driver’s door or the front passenger’s door is opened, the power windows cannot be operated.

Safety mechanism (Driver's door window only)

ND1528800089

If a hand or head is trapped, for safety the door window is automatically lowered a little.

After the door window is lowered, pull up the switch again to close the door window.

WARNING

• If the safety mechanism is activated three or more times successively, the safety mechanism will be temporarily cancelled.
  If a hand or head subsequently gets trapped, a serious injury can result.
  ●The safety mechanism is deactivated while the switch is pulled up continuously. Therefore be especially careful that hands or head are not trapped in the door window opening.
  ●Do not deliberately trap your hands or head in order to activate the safety mechanism.
  Your hand or head could be trapped and personal injury could result.

CAUTION

●The safety mechanism is deactivated just before the door window closes. This allows the door window to close completely. Therefore be especially careful that fingers are not trapped in the door window opening.

NOTE

●The safety mechanism can be activated if the driving conditions or other circumstances cause the door window to be subjected to a physical shock similar to that caused by trapped hand or head.
- If the safety mechanism is activated 3 or more times consecutively, the safety mechanism is deactivated and normal closing of the door window will be aborted.

Use the following method to return to normal operation.

1. If the door window is open, repeatedly pull up the power window switch to fully close the door window.
2. With fully closing the window, release the switch and then pull up the switch again for about 1 second.

Lock switch

N00549000127

When this switch is in the lock mode, the main switch for passenger door window and the sub switch cannot be used to open or close the door window, and the main switch will open or close only the driver's door window. To unlock the switch, press it again.

1-Lock
2- Unlock

WARNING

●Before driving with a child in the vehicle, be sure to lock the window switch to make it inoperative. Children tampering with the switch could easily trap their hands or heads in the window.

Features and controls

What to do if you hear wind buffeting when driving

N00551400014

Wind buffeting can be described as the perception of pressure on the ears or a booming or rumbling sound. Your vehicle may exhibit wind buffeting when driving with one or both rear door windows down or partially opened. This is a normal occurrence that can be minimized. If the buffeting occurs with the rear door windows open, open the front door windows as well as the rear door windows to minimize the condition.

Sunroof (if so equipped)

N00511000643

WARNING

●Do not stick your head, hands or anything else in the sunroof opening.
●Before operating the sunroof, make sure that nothing can be trapped (head, hands, fingers, etc.).
●Never leave a child (or other person who is incapable of safely operating the sunroof switch) alone in the vehicle.

The sunroof can be opened and closed with the ignition switch in the "ON" position.

To open

Press the switch (1), the sunroof automatically opens and the sunroof will stop several centimeters this side of the full open position. Press the switch (1) again, and the sunroof will be fully open.

To stop the moving sunroof, press the switch.

NOTE

●The sunroof stops just before reaching the fully open position. If the vehicle is driven with the sunroof in this position, wind buffeting is lower than with the sunroof fully open.

To close

Press the switch (3), the sunroof automatically closes.

To stop the moving sunroof, press the switch.

To tilt up

When the switch (2) is pressed, the rear edge of sunroof raises for ventilation.

To tilt down

Press the switch (3).

Timer function

The sunroof can be operated when the ignition switch is in the "ON" position. The sunroof can be opened or closed for a 30 seconds period after the ignition switch is turned to the "ACC" or "LOCK" position. However, once the driver's door or the front passenger's door is opened, the sunroof cannot be operated until the ignition switch is turned on again.

Safety mechanism

If a hand or head is trapped in the closing sunroof opening, the safety mechanism will cause the sunroof to re-open automatically. The opened sunroof will become operational again after a few seconds.

If the safety mechanism is activated 5 or more times consecutively, normal closing of the sunroof will be aborted. To return the sunroof to normal operation:

1. Press the switch (2) repeatedly until the sunroof moves into the tilt up position.
2. Once the tilt up position has been reached, press again and hold the switch (2) for at least 3 seconds.
3. Press the switch (3) to fully close the sunroof.
4. After pressing the switch (1) to perform full opening, press the switch (3) to fully close the sunroof.

NOTE

●The safety mechanism can be activated if the driving conditions or other circumstances cause the sunroof to be subjected to a physical shock similar to that caused by a trapped hand or head.
●Avoid stopping the sunroof before it reaches the opening or closing end during operations. If this should accidentally be allowed to happen, repeat the process from step 1.

Features and controls

WARNING

●The safety mechanism is deactivated while the switch (3) is pressed continuously. Therefore be especially careful that hands or head are not trapped in the sunroof opening.
●Do not deliberately trap your hands or head in order to activate the safety mechanism. Personal injury and malfunction of the sunroof could result.

CAUTION

●The safety mechanism is deactivated just before the sunroof closes. This allows the sunroof to close completely. Therefore be especially careful that fingers are not trapped in the sunroof opening.

1. The sunroof should now operate in the normal manner.

Sunshade

The sunshade can be opened or closed manually while the sun-roof is closed.

When the sunroof is opened, the sunshade will also open automatically.

Interior view of a car showing the backrest door and seat area with directional arrows indicating movement (no text or symbols)

CAUTION

• Do not attempt to close the sunshade when the sun-roof is opened.
  ●Be careful that hands are not trapped when closing the sunshade.

NOTE

- Be sure to tilt down the sunroof before closing the sun-shade.

NOTE

• When leaving the vehicle unattended, be sure to close the sunroof and without the ignition key.
• Do not try to operate the sunroof if it is frozen closed (after snowfall or during extreme cold).
• Do not sit on or place heavy luggage on the sunroof or roof opening edge.
• Do not apply any force that may cause damage to the sun-roof.
  ●Release the switch when the sunroof has reached a completely open or completely closed position.
• If the sunroof does not operate when the sunroof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have the sunroof checked at an authorized Mitsubishi Motors dealer.
  ●Be careful when tilting up the sunroof if a ski carrier or a roof carrier is installed. Depending on the model of ski carrier or roof carrier, the sunroof may contact the carrier when the sunroof is tilted up.
  ●Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.
• Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. If it is waxed, the weatherstrip cannot maintain a weatherproof seal with the sunroof.
  ●After washing the vehicle or after rain be sure to wipe off any water that is on the sunroof before operating it.
• Operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof only while the engine is running.

Parking brake

N00511400344

To park the vehicle, first bring it to a complete stop, fully engage the parking brake, and then move the gearshift lever to 1st (on a uphill) or "R" (Reverse) (on a downhill) position for vehicles equipped with a manual transaxle, set the selector lever {continuously variable transmission (CVT)} or the gearshift lever (Twin Clutch SST) to "P" (PARK) position for vehicles equipped with CVT or Twin Clutch SST.

Features and controls

To apply To release

Diagram of a mechanical component with a curved arm and dashed outline, labeled '1' with reference number AF0007262 (no text or symbols on the diagram itself)

1- Pull the lever up without pushing the button at the end of hand grip.

When the parking brake is set and the ignition switch is in the "ON" position, the brake warning light in the instrument cluster will come on.

Before driving, be sure to release the parking brake.

1- Pull the lever up slightly.
2- Push and hold the button at the end of the hand grip.
3- Push the lever downward.

When parking on a hill, apply the parking brake and turn the front wheels toward the curb on a downhill grade, away from the curb on an uphill grade.

CAUTION

●Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear on the information screen in the multi-information display. If a vehicle is driven without releasing the parking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure.

Warning light

Warning display type 1

Warning display type 2

Steering wheel tilt lock lever

N00511500172

To adjust the steering wheel height, release the tilt lock lever while holding the steering wheel by hand, and raise or lower the steering wheel to the desired height. After adjustment, securely lock the lever by pulling it upward.

1- Locked
2- Released

Features and controls

WARNING

●After adjusting, make sure the lock lever is secured in the locked (1) position.
- Do not attempt to adjust the steering wheel while driving. This can be dangerous.
- When releasing the tilt lock lever {moving it to the position (2)}, be sure to hold the steering wheel firmly. Otherwise, the steering wheel may slip down too suddenly.

Inside day/night rearview mirror

N00511600203

Adjust the inside rearview mirror only after making any seat adjustments so as to have a clear view to the rear of the vehicle.

WARNING

●Do not attempt to adjust the inside rearview mirror while driving. This can be dangerous.
Be sure to adjust the mirror before driving.

Features and controls

Inside day/night rearview mirror

Adjust the inside mirror to maximize the view through the rear window.

To adjust the mirror position

It is possible to move the mirror vertically and horizontally to adjust its position.

Simple line drawing of a car front mirror with bidirectional arrow indicators (no text or symbols)

To adjust the vertical mirror position

It is possible to move the mirror up and down to adjust its position.

Diagram of a hand holding a curved object with dashed lines indicating motion, showing a vertical double-headed arrow (no text or symbols present)

Features and controls

To reduce the glare

The day/night knob (A) at the bottom of the mirror can be used to adjust the mirror to reduce the glare from the headlights of vehicles behind you during night driving.

AG0001511

1-Daytime position
2- Night position

Outside rearview mirrors

N00512200192

Adjust the outside rearview mirrors only after making any seat adjustments so you have a clear view to the rear of the vehicle.

WARNING

• Do not attempt to adjust the outside rearview mirrors while driving. This can be dangerous. Be sure to adjust the mirrors before driving.
• Your passenger's side mirror is convex. The objects you see in the mirror will look smaller and farther away than they appear in a regular flat mirror. Do not use this mirror to estimate the distance of vehicles following you when changing lanes.

Features and controls

To adjust the mirror position

The outside rearview mirrors can be adjusted when the ignition switch is in the "ON" or "ACC" position.

Move the lever (A) to the same side as the mirror you wish to adjust.

L- Left outside mirror adjustment
R- Right outside mirror adjustment

Press the switch (B) to adjust the mirror position.

1-Up
2-Down
3- Right
4- Left

NOTE

●After adjusting, return the lever to the “•” (off) position (C).

To fold the mirror

The outside mirror can be folded in toward the side window to prevent damage when parking in tight locations.

Diagram of a car's side mirror and wheel assembly with directional arrows indicating rotation (no text or symbols)

Features and controls

Heated mirror (if so equipped)

N00549301175

When the rear window defogger switch is pressed with the engine running, the outside rearview mirrors are defogged or defrosted. Current will flow through the heater element inside the mirrors, thus clearing away frost or condensation. The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically in about 20 minutes.

Ignition switch

N00512400628

[For vehicles equipped with the F.A.S.T.-key]

For information on operations for vehicles equipped with the F.A.S.T.-key, refer to "F.A.S.T.-key: Ignition switch" on page 3-23.

[Except for vehicles equipped with the F.A.S.T.-key]

LOCK

The engine is off and the steering wheel is locked. The key can be inserted and removed only when the switch is in this position.

ACC

Allows operation of electrical accessories with the engine off.

ON

The engine runs and all accessories can be used.

START

Engages the starter. After the engine starts, release the key and it will return automatically to the "ON" position.

NOTE

- Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the transponder inside the key sends must match the one registered to the immobilizer computer.

(Refer to "Electronic immobilizer" on page 3-4.)

ACC power auto-cutout function

N(01539600)61

After about 30 minutes has elapsed with the ignition switch in the “ACC” position, the function automatically cuts out the power for the audio system and other electric devices that can be operated with that position.

When the ignition switch is turned from the "ACC" position, the power is supplied again to those devices.

NOTE

- It is possible to modify functions as follows:

• The time until the power cuts out can be changed to about 60 minutes.
• The ACC power auto-cutout function can be deactivated.

For details, consult a Mitsubishi Motors dealer.

On vehicles equipped with Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

Features and controls

To remove the key

N005509168

For vehicles equipped with a manual transaxle, when removing the key, push the key in at the "ACC" position and keep it depressed until it is turned to the "LOCK" position, and remove.

For vehicles equipped with a continuously variable transmission (CVT) or Twin Clutch SST, when removing the key, first set the selector lever (CVT) or the gearshift lever (Twin Clutch SST) to the "P" (PARK) position, and then turn the key to the "LOCK" position, and remove.

NOTE

- For vehicles equipped with a CVT or Twin Clutch SST, the key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the "P" (PARK) position, which allows the ignition switch to turn to the "LOCK" position.

CAUTION

●Do not remove the ignition key from the ignition switch while driving. The steering wheel will lock, causing loss of control.

- If the engine is turned off while driving, the power brake booster will stop functioning and braking efficiency will be reduced. Also, the power steering system will not function and it will require greater effort to manually steer the vehicle.

- Do not leave the key in the "ON" position for a long time when the engine is not running. This will cause the battery to run down.

- Do not turn the key to the "START" position when the engine is running. It will damage the starter motor.

Steering wheel lock

N00512500179

[For vehicles equipped with the F.A.S.T.-key]

For information on operations for vehicles equipped with the F.A.S.T.-key, refer to "F.A.S.T.-key: Steering wheel lock" on page 3-30.

[Except for vehicles equipped with the F.A.S.T.-key]

To lock

Remove the key at the "LOCK" position.

Turn the steering wheel until it is locked.

To unlock

Turn the key to the "ACC" position while moving the steering wheel slightly.

Features and controls

CAUTION

- Remove the key when leaving the vehicle.

NOTE

- If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the key from “LOCK” position to “ACC” position. Firmly turn the steering wheel to the left or to the right as you turn the key.

Starting and stopping the engine

N00542100057

Tips for starting

• Do not operate the starter motor continuously for longer than 15 seconds as this could run the battery down or damage the starter motor. If the engine does not start, turn the ignition switch back to the “LOCK” position, wait a few seconds, and then try again. Trying repeatedly with the engine or starter motor still turning will damage the starter mechanism.
• If the engine will not start because the battery is weak or discharged, refer to “Jump-starting the engine” (on page 6-2) for instructions.
  ●[Except for vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. A longer warm up period will only consume extra fuel.
  ●[For vehicles equipped with the turbocharger] The engine is warmed up enough for driving when the bar graph of engine coolant temperature display starts to move. Driving before the bar graph moves may cause deterioration of turbocharger performance and driveability. A longer warm up period will only consume extra fuel.

●On vehicles equipped with the Twin Clutch SST, the following may occur after the engine is started, but they do not indicate an abnormality.
- You may hear operational sounds of the Twin Clutch SST and you may feel vibration in the vehicle body.
- If you shift the gearshift lever into the “N” (NEUTRAL) position and depress the accelerator pedal, increases in the engine speed will be limited.

WARNING

●Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Carbon monoxide gas, which is odorless and extremely poisonous, could build up and cause serious injury or death.

CAUTION

●Do not push-start the vehicle.
- Do not run the engine at high rpms or drive at high speeds until the engine has had a chance to warm up.
●Release the ignition switch as soon as the engine starts. Otherwise, the starter motor will be damaged.

Features and controls

Starting the engine

N(01542200190)

[For vehicles equipped with the F.A.S.T.-key]

For information on operations for vehicles equipped with the F.A.S.T.-key, refer to “F.A.S.T.-key: Starting the engine” on page 3-30.

[Except for vehicles equipped with the F.A.S.T.-key]

Your vehicle is equipped with an electronically controlled fuel injection system, which automatically controls the release of fuel. There is usually no need to depress the accelerator pedal when starting the engine.

The starter should not be run for more than 15 seconds at a time.

To prevent battery drain, wait a few seconds between attempts to restart the engine.

1. Make sure all occupants are properly seated with seat belts fastened.
2. Insert the ignition key.
3. Make sure the parking brake is applied.
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual transaxle).

NOTE

●For models equipped with a manual transaxle, the starter will not operate unless the clutch pedal is fully depressed (Clutch interlock). This is a safety feature.

Features and controls

1. On vehicles equipped with manual transaxle, place the gearshift lever in the "N" (Neutral) position. On vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST, make sure the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the "P" (PARK) position.

NOTE

- On vehicles equipped with CVT, the starter will not operate unless the selector lever is in the "P" (PARK) or "N" (NEUTRAL) position. On vehicles equipped with Twin Clutch SST, the starter will not operate unless the gearshift lever is in the "P" (PARK) position or the gearshift lever is in the "N" (NEUTRAL) position with the brake pedal depressed. For safety reasons, start the engine in the "P" (PARK) position so that the wheels are locked.

1. Turn the ignition switch to the "ON" position and make certain that all warning lights are functioning properly before starting the engine.
2. Turn the ignition switch to the "START" position without pressing the accelerator pedal. Release the key when the engine starts.

NOTE

●Minor noises may be heard on engine start-up. These will disappear as the engine warms up.

Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely cold ambient temperature

When the ambient temperature is -4 ^ ( -20 ^ ) or lower on vehicles equipped with CVT, -22 ^ ( -30 ^ ) or lower on vehicles equipped with Twin Clutch SST, it may not be possible to start from a stand-still even with the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE) position.

This phenomenon occurs because the transaxle has not warmed up sufficiently; it does not indicate a problem. If it occurs, place the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the "P" (PARK) position and let the engine idle for at least 10 minutes.

The transaxle will warm up, and you will be able to start normally.

Do not leave the vehicle during warm-up operation.

Idle speed in high altitude area

N01547600028

At high altitude locations, the idle speed may be higher. This is done in order to stabilize the idle speed when the power steering system and other systems operate. It does not indicate a malfunction.

Features and controls

Stopping the engine

N(015423001)59

1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake pedal.
3. For vehicles equipped with a manual transaxle, turn the ignition switch to the "LOCK" position to stop the engine, and then move the gearshift lever to the 1st (on a uphill) or "R" (Reverse) (on a downhill) position.
   For vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST, place the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the "P" (PARK) position, and then turn the ignition switch to the "LOCK" position to stop the engine.

Features and controls

NOTE

●For vehicles equipped with Twin Clutch SST, the engine will stop and the vehicle power will turn off approximately 1 second after the ignition switch is turned to the "LOCK" position.

The reason for this is that, in the time from when the ignition switch is turned to the "LOCK" position until the engine stops, the gears inside the Twin Clutch SST disengage so that the engine will start smoothly the next time it is started.

Two clutches installed in the Twin Clutch SST alternately engage and disengage to achieve smooth shifting.

In addition, the gear on the side with the free clutch is engaged, therefore, quick shifting is performed.

If the engine was stopped with the gear engaged like this, it would provide resistance the next time the engine is started. Therefore, the gear disengages in the approximately 1-second period until the engine stops.

●For vehicles equipped with Twin Clutch SST, do not operate the gearshift lever or the accelerator pedal for approximately 1 second until the engine stops.

●For vehicles equipped with Twin Clutch SST, if the temperature inside the engine compartment is high, the cooling fans (A) will continue to operate for some time even if the engine is stopped.

Therefore, the operation sound of the cooling fans may be heard even after the engine is stopped. This sound is normal and does not indicate a malfunction.

After operating for a period of time, the cooling fans will stop automatically.

*: Front of the vehicle

Turbocharger operation (if so equipped)

N00537300064

CAUTION

• Do not run the engine at high speeds (for example, by revving it or by accelerating rapidly) immediately after starting it.
  ●Do not stop the engine immediately after high-speed or uphill driving. First allow the engine to idle to give the turbocharger a chance to cool down.
  ●Engine oil must be properly maintained to avoid engine and/or turbocharger damage. To better protect your engine and turbocharger, use fully synthetic engine oil.

Features and controls

Turbocharger

The turbocharger increases engine power by pushing large amounts of air into the engine's cylinders. The finned parts inside the turbocharger turn at extremely high speeds and are subjected to extremely high temperatures. They are lubricated by engine oil and cooled by engine oil and coolant. If the engine oil is not replaced at the specified intervals, the bearings may seize or emit abnormal noise.

1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas

Features and controls

Manual transaxle (if so equipped)

N00512700096

The shift pattern below is shown on the gearshift lever. Press the clutch pedal all the way down while shifting gears.

NOTE

●During cold weather, shifting may be difficult until the transaxle lubricant has warmed up. This is normal and not harmful to the transaxle.

To start

Press the clutch pedal all the way down and shift into 1st. Then gradually release the clutch pedal while depressing the accelerator pedal.

CAUTION

●Do not rest your foot on the clutch pedal because this will cause premature clutch wear or damage.
- Do not coast in the “N” (Neutral) position (illegal in many states).
- Do not use the gearshift lever as a handrest, because this can result in premature wear of the transaxle shift forks.

NOTE

- If it is hard to shift into 1st, depress the clutch pedal a second time; the shift will then be easier.

Proper shift points

N00537400049

Always use care to change the gear with the vehicle speed matched to the engine speed. Proper shifting will improve fuel economy and prolong engine life.

CAUTION

●Avoid downshifting that may cause the tachometer pointer to enter the red zone. This puts the engine at risk of being damaged.

Features and controls

Upshifting

N010512900131

For the best fuel economy and performance in using your manual transaxle, upshift as listed below.

At low altitude locations, shift at the vehicle speeds listed. Upshifting earlier during cruise conditions (relatively steady speeds) will improve your fuel economy.

Shift point	Upshift speeds
	Acceleration Cruise
1st gear to 2nd gear	15 mph (24 km/h)	15 mph (24 km/h)
2nd gear to 3rd gear	28 mph (45 km/h)	19 mph (31 km/h)
3rd gear to 4th gear	36 mph (58 km/h)	33 mph (53 km/h)
4th gear to 5th gear	45 mph (72 km/h)	45 mph (72 km/h)

At high altitude locations, upshift as listed below.

Shift point Upshift speeds

1st gear to 2nd gear 15 mph (24 km/h)

2nd gear to 3rd gear 25 mph (40 km/h)

3rd gear to 4th gear 40 mph (64 km/h)

4th gear to 5th gear 45 mph (72 km/h)

Features and controls

Downshifting

N00513001096

It is recommended that you downshift to a lower gear when needed to maintain the desired speed, according to the table.

Avoid downshifting at too high a speed. The engine may suffer damage.

To maintain a safe speed and prolong brake life, shift down to 2nd or 1st when descending a steep hill.

Downshifting is also important to avoid “lugging” the engine at too low a speed, such as when turning a corner or when driving up a steep hill.

Recommended downshifting speed

Downshifting speed Shift point
Under 20 mph (32 km/h)	Shift down from current gear to 2nd gear.
20 to 30 mph (32 to 48 km/h)	Shift down from current gear to 3rd gear.

Driving precautions

ND1513100231

- Do not use the gearshift lever as a handrest. This can result in premature wear of the transaxle shift forks.

Maximum possible driving speed

Shift points	Maximum possible driving speed
1st gear 31	mph (50 km/h)
2nd gear 62	mph (100 km/h)
3rd gear 87	mph (140 km/h)
4th gear 121	mph (195 km/h)

●The table above shows the maximum recommended driving speed for in each gear. Do not drive near or at these speeds for prolonged periods of time.

Continuously variable transmission (CVT)

(if so equipped)

N00513200199

The continuously variable transmission (CVT) is capable of changing the engine speed to vehicle speed ratio automatically and steplessly to suit driving conditions in all phases of vehicle operation. It therefore realizes smooth, shock-free operation and excellent fuel efficiency.

DRIVING UPHILL

The transmission may not shift to a higher ratio if the computer determines your current speed would be affected.

For smoother operation, the transmission may not shift if you release the throttle while climbing a steep hill. This is normal because the computer controls the shifting. After reaching the top of the hill, your normal shift function will resume.

DRIVING DOWNHILL

When traveling down steep grades and using the brakes, the computer may automatically shift to a lower ratio. This helps engine braking efforts, reducing your need to use the brakes.

CAUTION

●Automatic downshifts may not take place if the continuously variable transmission (CVT) fluid is still cool immediately after you start driving. To cause a downshift, depress the brake pedal or shift down manually.

Always drive safely in accordance with road conditions.

Selector lever operation

N00513800368

As an additional safety precaution, models equipped with a CVT have a shift-lock device that holds the selector lever in the "P" (PARK) position. To move the selector lever from the "P" (PARK) position to another position, follow the steps below.

1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.

NOTE

●The selector lever cannot be moved from "P" (PARK) to another position if the ignition switch is at the "LOCK" or "ACC" position, or the key has been removed, or if the brake pedal is not pressed and held down.

Features and controls

Except for vehicles with sports mode

The CVT has 2 forward selector positions and 1 reverse selector position.

The CVT selects an optimum ratio automatically when the selector lever is in the "D" (DRIVE) or "L" (LOW) position, depending on the speed of the vehicle and the position of the accelerator pedal.

The selector lever has 5 positions.

	With the brake pedal depressed, set the selector lever in the gate to operate.
	Set the selector lever in the gate to operate.

WARNING

●Always depress the brake pedal when shifting the selector lever into a selector position from the "P" (PARK) or "N" (NEUTRAL) position. When beginning to drive, do not shift the selector lever from the "P" (PARK) or "N" (NEUTRAL) position while depressing the accelerator pedal. Doing so is dangerous because the vehicle will "jump" forward or backward.

NOTE

●To ensure proper transmission operation, stop at each detent position when shifting. After shifting, check the position in the multi-information display.

- If the brake pedal is not depressed and held, the shift-lock device activates to prevent the selector lever from being moved from the "P" (PARK) position.

●For a shift indicated by in the illustration, depress the brake pedal before moving the selector lever. If you attempt to move the selector lever before depressing the brake pedal, the selector lever will be immovable.

Vehicles with sports mode

The CVT selects an optimum ratio automatically when the selector lever is in the "D" (DRIVE) position, depending on the speed of the vehicle and the position of the accelerator pedal. The selector lever (A) has 2 gates; the main gate (B) and the manual gate (C).

NOTE

●In the main gate, the selector lever has 4 positions.

●For information on manual gate operation, please refer to "Sports mode" on page 3-103.

Features and controls

↓	With the brake pedal depressed, set the selector lever in the gate to operate.
↓	Set the selector lever in the gate to operate.

WARNING

●Always depress the brake pedal when shifting the selector lever into a selector position from the “P” (PARK) or “N” (NEUTRAL) position.When beginning to drive, do not shift the selector lever from the “P” (PARK) or “N” (NEUTRAL) position while depressing the accelerator pedal. Doing so is dangerous because the vehicle will “jump” forward or backward.

NOTE

●To ensure proper transmission operation, stop at each detent position when shifting. After shifting, check the position in the multi-information display.
- If the brake pedal is not depressed and held, the shift-lock device activates to prevent the selector lever from being moved from the "P" (PARK) position.
●For a shift indicated by in the illustration, depress the brake pedal before moving the selector lever. If you attempt to move the selector lever before depressing the brake pedal, the selector lever will be immovable.

Features and controls

When the selector lever cannot be shifted from the "P" (PARK) position

N00563100021

When the selector lever cannot be shifted from the "P" (PARK) position to another position while the brake pedal is pressed and held down with the ignition switch at the "ON" position, the battery may be flat or the shift-lock mechanism may be malfunctioning.

Immediately have your vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

If you need to move the vehicle, shift the selector lever as follows.

1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch (A) of the cover. Pry gently as shown to remove the cover.

Mechanical gear shift lever diagram showing keyway and gear movement (no text or symbols)

1. Depress the brake pedal with the right foot.
2. Turn the ignition switch to the "ACC" position.

NOTE

• For vehicles with the Free-hand Advanced Security Transmitter (F.A.S.T.-key), turn the ignition switch to the "ACC" position with the emergency key if the vehicle battery is flat.
• Insert a screwdriver in the shift-lock release hole (B). Shift the selector lever to the "N" (NEUTRAL) position while pressing the screwdriver down.

Technical diagram of a mechanical assembly with a tool inserted into a component, labeled B (no text or symbols beyond label)

Features and controls

Selector lever position display

N00513901428

When the ignition switch is turned to the "ON" position, the selector lever position is shown on the multi-information display.

Warning display

ND1514001241

Type 1

Type 2

When the Ⓓ warning display or the Ⓤ warning display appears on the information screen in the multi-information display while you are driving, there could be a malfunction in the CVT.

CAUTION

- If a malfunction occurs in the CVT while driving, the ① warning display or the ② warning display will appear on the information screen in the multi-information display.

In this case, immediately park your vehicle in a safe place and follow these procedures:

[When Warning display is showing]

The continuously variable transmission (CVT) fluid is overheating. The engine control may activate to lower the CVT fluid temperature, causing the engine revolutions and vehicle speed to decrease. In this case, take one of the following procedures:

• Slow down your vehicle.
• Stop your vehicle in a safe place, put the selector lever in the "P" (PARK) position, and open the engine hood with the engine running to allow the engine to cool down.

After a while, confirm that the Warning display is no longer showing. It is safe to continue driving if the display is no longer showing. If the warning display remains or flashes frequently, have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

CAUTION

[When Warning display is showing] It may be that there is something unusual happening in the CVT, causing a safety device to activate. Have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

Selector lever positions

N00514200330

"P" PARK

This position locks the transmission to prevent the vehicle from moving. The engine can be started from the “PARK” position.

"R" REVERSE

Move the lever to this position only after the vehicle has come to a complete stop.

CAUTION

●Never shift into the “P” (PARK) or “R” (REVERSE) position while the vehicle is in motion. If the lever is shifted into the “P” (PARK) or “R” (REVERSE) position while the vehicle is in motion, the transmission may be damaged.

Features and controls

"N" NEUTRAL

At this position, the transmission is disengaged. It is the same as the neutral position on a manual transaxle and should be used when the vehicle is not moving for an extended length of time during driving, such as in a traffic jam.

WARNING

●Never move the selector lever to the “N” (NEUTRAL) position while driving since you could accidentally slip it into the “P” (PARK) or “R”(REVERSE) position, damaging the transmission.
●To prevent the vehicle from rolling when stopped on a slope, the engine should be started in the "P" (PARK) position, not in "N" (NEUTRAL) position.
●Always keep your foot on the brake pedal when the vehicle is in “N” (NEUTRAL) position, or when shifting into or out of “N” (NEUTRAL) position, to prevent rolling.

“D” DRIVE

This position is used for most city and highway driving. Engine shifting and braking are done automatically as needed, depending on road conditions.

CAUTION

●Never shift into the “D” (DRIVE) position from the “R” (REVERSE) position while the vehicle is in motion. Transmission damage will result.

"L" LOW (except for vehicles with sports mode)

This position is for driving up very steep hills and for engine braking at low soeeds when driving down steep hills.

WARNING

- This position can be used for maximum engine braking. Be very careful not to shift into “L” (LOW) suddenly. Sudden engine braking may cause the tires to skid. Select this position according to the road conditions and vehicle speed.

NOTE

- For information on manual gate operation, please refer to "Sports mode" on page 3-103.

Sports mode (if so equipped)

N00514400390

Whether the vehicle is stationary or in motion, sports mode is selected by pushing the selector lever from the "D" (DRIVE) position into the manual gate (1). To return to "D" (DRIVE) operation, push the selector lever back into the main gate (2). In sports mode, rapid shifting is possible simply by operating the selector lever or sportronic steering wheel paddle shifter. Unlike the manual transaxle, sports mode allows shifting with the accelerator pedal depressed.

NOTE

- For vehicles equipped with the sportronic steering wheel paddle shifter, sports mode can be operated even when the selector lever is in the main gate (2). Also, you can return to the "D" operation in any of following ways. When returning to "D" operation, the selector lever position display will change to "D" (DRIVE) position.

• Pull the + (SHIFT UP) side sportronic steering wheel paddle shifter forward (toward the driver) for over 2 seconds.
• Stop the vehicle
• Push the selector lever from the "D" (DRIVE) position into the manual gate (A) and push the selector lever back into the main gate (B).

+(SHIFT UP)

Transmission shifts up once by each operation.

- (SHIFT DOWN)

Transmission shifts down once by each operation.

CAUTION

●Upward shifts do not take place automatically in sports mode. The driver must make upward shifts in accordance with prevailing road conditions, making sure the engine rpm remains below the red zone on the tachometer.

Features and controls

CAUTION

• By rapidly moving the selector lever or sportronic steering wheel paddle shifter to the “- (SHIFT DOWN)” side twice, it is possible to skip one shift range (i.e., 3rd to 1st or 4th to 2nd). Since sudden engine braking or acceleration can cause a loss of traction, downshifts must be made carefully in accordance with the vehicle’s speed.
  ●On vehicles with a sportronic steering wheel paddle shifter, shift ranges may not change when the lateral paddle shifters are operated at the same time.

NOTE

• Shift ranges can only be selected in a forward direction from 1st to 6th. To reverse or park the vehicle, move the selector lever to the “R” (REVERSE) or “P” (PARK) position.
• To maintain good running performance, the transmission may refuse to perform an upshift when the selector lever or sportronic steering wheel paddle shifter is moved to the “+ (SHIFT UP)” position at certain vehicle speeds. Also, to prevent over-revving of the engine, the transmission may refuse to perform a downshift when the shift lever or sportronic steering wheel paddle shifter is moved to the “-(SHIFT DOWN)” position at certain vehicle speeds. When this happens, a buzzer sounds to indicate that a downshift is not going to take place.

- Move the selector lever gently between the manual and main gates and between positions in the manual gate. And do not operate sportronic steering wheel paddle shifter violently. Excessive force could damage the selector lever or sportronic steering wheel paddle shifter.

Sports mode display

ND0538800170

In sports mode, the currently selected shift range is displayed on the information screen in the multi-information display.

Pure diagram of a rectangular object inside a curved boundary, with no text or symbols

Operation of the CVT

N00514500333

CAUTION

●Before selecting a position with the engine running and the vehicle stationary, fully depress the brake pedal to prevent the vehicle from creeping. Do not release the brakes until you are ready to drive away. The vehicle will begin to move as soon as the CVT is engaged, especially when the engine speed is high (fast idle or air conditioning on).
●Depress the brake pedal with the right foot. Using the left foot could cause driver movement delay in case of an emergency.
●To prevent sudden acceleration, never run the engine at high rpms when shifting from the "P" (PARK) or "N" (NEUTRAL) position.
- Operating the accelerator pedal while the other foot is resting on the brake pedal will affect braking efficiency and may cause premature wear of brake pads.
●Use the selector lever in the correct shift position in accordance with driving conditions.

Never coast downhill backward in the driving shift position { “D” (DRIVE), “L” (LOW) or sports mode} or coast forward in the “R” (REVERSE) position.

Engine stopping and increased brake pedal and steering effort could lead to an accident.

Features and controls

CAUTION

●Do not rev the engine with the brake pedal pressed when the vehicle is stationary.

This can damage the CVT.

Also, when you depress the accelerator pedal while holding down the brake pedal with the selector lever in the "D" (DRIVE) position, the engine revolutions may not rise as high as when performing the same operation with the selector lever in the "N" (NEUTRAL) position.

Features and controls

Passing acceleration

N00514900063

To gain extra acceleration in “D” (DRIVE) position (when passing another vehicle) push the accelerator to the floor if it is safe to do so in traffic conditions. The CVT will automatically downshift.

NOTE

●In sports mode, downshifts do not take place when the accelerator is depressed all the way to the floor.

Waiting

N00515000074

For short waiting periods, such as at traffic lights, the vehicle can be left in selector lever position and held stationary with the service brake.

For longer waiting periods with the engine running, the selector lever should be placed in the "N" (NEUTRAL) position.

CAUTION

●To avoid transmission overheating, never try to keep your vehicle stationary on a hill by using the accelerator pedal. Always apply the parking brake and/or service brake.
●Unexpected acceleration may occur if the selector lever is in a position other than “P” (PARK) or “N” (NEUTRAL).
Before driving off from a stop, make sure that the selector lever is in “D” (DRIVE) position or “Sports mode” position.

Parking

ND1515100062

To park the vehicle, first bring it to a complete stop, fully engage the parking brake, and then move the selector lever to the "P" (PARK) position.

If you are going to leave the vehicle unattended, always switch off the engine and carry the key.

NOTE

●On a slope, be sure to apply the parking brake before moving the selector lever to the “P” (PARK) position. If you move the selector lever to the “P” (PARK) position before applying the parking brake, it may be difficult to disengage the selector lever from the “P” (PARK) position when next you drive the vehicle, requiring application of a strong force to the selector lever to move from the “P” (PARK) position.

When the CVT makes no speed change

N01515300208

If the CVT does not shift while driving, or your vehicle does not pick up enough speed when starting on an uphill slope, there may be something unusual happening in the transmission, causing a safety device to activate. Have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

1. If your vehicle has difficulty moving uphill, shift the selector lever into "L" (LOW) position (except for vehicles with sport mode) or 2nd shift range of the sports mode.

This method might not work depending on the type of transmission malfunction.

1. Once the vehicle is moving on a level road, move the selector lever back to "D" (DRIVE) position.

NOTE

- When the warning display or the warning display appears on the information screen in the multi-information display, there could be a malfunction in the CVT. Refer to “Continuously variable transmission (CVT): Warning display” on page 3-100.

Twin Clutch SST (Sportronic Shift Transmission) (if so equipped)

N(00539700146

The Twin Clutch SST is a transmission that, through integrated control of the engine and transmission, is able to achieve both the smooth shifting of an automatic transaxle and the acceleration and fuel economy close to a manual transaxle. In addition, the control mode can be selected from two types to suit the driving conditions.

Together with manual shifting, the transmission is capable of responding to a variety of driving circumstances.

Twin Clutch SST control mode → P.3-116

Manual shift → P3-11 8

Features and controls

Gearshift lever operation

NDD5398X047

As an additional safety precaution, models equipped with a Twin Clutch SST have a shift-lock device that holds the gear-shift lever in the “P” (PARK) position. To move the gearshift lever from the “P” (PARK) position to another position, follow the steps below.

1. Press and hold the brake pedal down.

2. Move the gearshift lever to the desired position.

NOTE

●The gearshift lever cannot be moved from "P" (PARK) to another position if the ignition switch is at the "LOCK" or "ACC" position, or the key has been removed, or if the brake pedal is not pressed and held down.

The Twin Clutch SST has 6 forward gears and 1 reverse gear. The individual gears are selected automatically, depending on the position of the gearshift lever, the speed of the vehicle and the position of the accelerator pedal.

The gearshift lever (A) has 2 gates; the main shift gate (B) and the manual shift gate (C).

NOTE

●In the main shift gate, the gearshift lever has 4 positions.
●For information on manual shift gate operation, please refer to "Manual shift" on page 3-118.

↓	The pull-ring (D) must be pulled up while the brake pedal is depressed to move the gearshift lever.
↓	The gearshift lever will move without pulling up the pull-ring (D).
↓	The pull-ring (D) must be pulled up to move the gear-shift lever.

Features and controls

WARNING

- If the pull-ring is always pulled up when using the gearshift lever, the gearshift lever may be accidentally shifted into the "P" (PARK) or "R" (REVERSE) position. Do not pull up the pull-ring when making shifts shown by ↓ in the illustration.

●Always depress the brake pedal when shifting the gearshift lever into the other position from the "P" (PARK) or "N" (NEUTRAL) position. When beginning to drive, do not shift the gearshift lever from the "P" (PARK) or "N" (NEUTRAL) position while depressing the accelerator pedal. Doing so is dangerous because the vehicle will "jump" forward or backward.

NOTE

●For a shift indicated by the illustration, depress the brake pedal before moving the gearshift lever. If you attempt to move the gearshift lever before depressing the brake pedal, the gearshift lever will be immovable.
- Do not accelerate immediately after moving the gearshift lever. It may take some time for the transmission to shift to the selected gear.
- When the gearshift lever is operated when the Twin Clutch SST fluid temperature is low, the time required to shift to the selected gear may be longer than usual.

Features and controls

Gearshift lever position display

ND153990H11D

When the ignition switch is turned to the "ON" position, the gearshift lever position is shown on the multi-information display.

In addition, when the vehicle is driven with the gearshift lever in the "D" (DRIVE) position, the forward gear number is shown.

When the gearshift lever position display blinks

When the gearshift lever is placed in the “R” (REVERSE) position, the gearshift lever position display on the multi-information display may blink and the vehicle will not move because the gears in the transmission have not engaged.

If this occurs, perform the following procedure.

1. Depress the brake pedal with your right foot and place the gearshift lever in the "N" (NEUTRAL) position.
2. Place the gearshift lever in the "R" (REVERSE) position, and confirm that the gearshift lever position displays stops blinking.
3. Repeat 1 and 2 above if the gearshift lever position display continues to blink.

WARNING

●To avoid unintended vehicle movement, keep brake pedal applied with your right foot and do not depress the accelerator pedal, while the gearshift lever position display is blinking.

If the gearshift lever position display is not showing

N(0562500)15

There may be a problem in the Twin Clutch SST.

If this occurs, the safety device operates and prevents the vehicle from moving. Therefore, perform the following procedure.

1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.

If the gearshift lever position display is shown and the vehicle can move after this procedure is performed, there is no malfunction.

If the gearshift lever position display is not shown and the vehicle cannot move, or if this problem occurs repeatedly, have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

Features and controls

Warning display

N00540001049

or

When the ⏻ warning display or the ⏻ warning display appears on the information screen in the multi-information display while you are driving, take the following measures.

When Ⓤwarning display is showing

N00543100054

The temperature of the Twin Clutch SST fluid is high.

If this occurs, take one of the following measures.

●Reduce the vehicle speed.

- Stop the vehicle in a safe place, place the gearshift lever in the "P" (PARK) position, and then open the engine hood with the engine running to cool the engine.

After a while, check that the Ⓞ warning display has gone out. If the display goes out, the vehicle can be driven normally. If the warning display remains on or comes on frequently, have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

CAUTION

- When ⏰warning display is shown, your vehicle may not accelerate normally, even if the accelerator pedal is depressed. Use caution when necessary to drive the vehicle.

NOTE

- If the vehicle is continuously driven on hilly roads or in an aggressive manner involving high engine rpm, sudden acceleration and/or deceleration, the vehicle transmission may vibrate.

This vibration is to alert the driver that the Twin Clutch SST fluid temperature has risen. It does not indicate a malfunction.

If this occurs, perform the same measures for when the Ⓞ warning appears. If the vibration stops, the vehicle can be driven normally.

If vehicle is driven with ⏻ warning displayed

If the vehicle continues to be driven after the ⏻warning display appears, and the temperature of the Twin Clutch SST fluid continues to rise, the transmission protection control may be activated and cause the transmission to function as if the gear-shift lever was in the “N” (NEUTRAL) position.

At this time, the vehicle temporarily cannot be driven. If this occurs, take the following measures.

1. Depress the brake pedal and stop the vehicle in a safe place.
2. Place the gearshift lever in the "P" (PARK) position, and then open the engine hood with the engine running to cool the engine.
3. After a while, check that the Warning display has gone out, and then stop the engine if the Warning display has gone out.
4. If the engine can be restarted, the vehicle can be driven normally.

If the warning display remains on or comes on frequently, have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

Features and controls

When Ⓞwarning display is showing

N00543200026

A safety device in the Twin Clutch SST has been activated due to a possible problem in the Twin Clutch SST or in the engine electronic control module.

If this occurs, perform the following procedure.

1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.

If the Ⓞ warning display goes out, there is no abnormal condition.

However, if the warning display remains on or comes on frequently, have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

CAUTION

- When Warning display is shown, your vehicle may not accelerate normally, even if the accelerator pedal is depressed. Use caution when necessary to drive the vehicle.

Gearshift lever positions (Main shift gate)

ND1540100037

"P" PARK

This position locks the transmission to prevent the vehicle from moving. The engine can be started from the "PARK" position.

"R" REVERSE

Move the lever to this position only after the vehicle has come to a complete stop.

CAUTION

●Never shift into the “P” (PARK) or “R” (REVERSE) position while the vehicle is in motion. If the lever is shifted into the “P” (PARK) or “R” (REVERSE) position while the vehicle is in motion, the transmission may be damaged.

"N" NEUTRAL

At this position, the transmission is disengaged. It is the same as the neutral position on a manual transaxle and should be used when the vehicle is not moving for an extended length of time during driving, such as in a traffic jam.

WARNING

●Never move the gearshift lever to the “N” (NEUTRAL) position while driving since you could accidentally slip it into the “P” (PARK) or “R”(REVERSE) position and the engine speed could rise, damaging the transmission.
●To prevent the vehicle from rolling when stopped on a slope, the engine should be started in the "P" (PARK) position.
Although the engine can be started when the vehicle is in the “N” (NEUTRAL) position, for safety reasons, do not start the engine in the “N” (NEUTRAL) position.
●Always keep your foot on the brake pedal when the vehicle is in “N” (NEUTRAL) position, or when shifting into or out of “N” (NEUTRAL) position, to prevent rolling.

“D” DRIVE

This position is used for most city and highway driving. Engine shifting and braking are done automatically as needed, depending on road conditions.

CAUTION

●Never shift into the “D” (DRIVE) position from the “R” (REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “D” (DRIVE) from the “R” (REVERSE) position while the vehicle is in motion, the transmission may be damaged.

NOTE

• For information on manual shift gate operation, please refer to "Manual shift" on page 3-118.
• When the engine is cold, upshifts occur at a higher vehicle speed than when the engine is warm.
  This control is performed to quickly warm up the engine. It does not indicate a malfunction. After the vehicle has been driven for a while, upshifts will occur at the regular engine speeds.

Features and controls

Twin Clutch SST control mode

N005402001067

Select the control mode from the following two types to suit the driving conditions.

Twin Clutch SST control mode	Characteristic
NORMAL (Control mode when engine is started)	Control mode for normal driving on local roads, freeways, and the like. Smooth shifting is performed at low engine speeds for economical driving with good ride quality.
SPORT	Control mode for driving on mountain roads, roads with uphill and downhill slopes, and freeways with long downhill slopes where engine braking is necessary. Compared to “NORMAL” mode, shifting occurs at higher engine speeds and is quicker. In addition, quick downshifting is possible when the accelerator pedal is depressed for quick acceleration or when the brakes are applied.

NOTE

- When continuously driving on closed circuit tracks or at other locations where the engine is operated at high speeds and under a heavy load, the Twin Clutch SST fluid temperature will have a tendency to rise.

In this case, if the temperature rises too high, the Warning display will appear on the information screen in the multi-information display to alert the driver.

If the ⏻warning display appears, be sure to refer to "Warning display" on page 3-112 and follow the appropriate measures.

●The Twin Clutch SST control mode can be selected both when “D” range operation is selected and when manual shifting is selected.

- If you select "SPORT" mode while the engine is cold, the transmission may shift up at different speeds compared to that when the engine is warm.

This is simply the operation of the control system to warm the engine quickly. It does not indicate a malfunction.

- For slippery road surfaces, such as roads with accumulated snow, "NORMAL" mode is recommended for smooth shifting at low engine speeds.

Twin Clutch SST control mode switch

N01541300155

When the ignition switch is set to the "ON" position, operate the Twin Clutch SST control mode switch (A) to change the control mode.

When the engine is started, the control mode is automatically set to the "NORMAL" mode. Use the following procedures to change the control mode.

Features and controls

To shift from "NORMAL" mode to "SPORT" mode

While the vehicle is stopped or being driven, push the Twin Clutch SST control mode switch forward.

To shift from "SPORT" mode to "NORMAL" mode

While the vehicle is stopped or being driven, push the Twin Clutch SST control mode switch rearward.

NOTE

- If the Twin Clutch SST control mode switch is continuously pressed after a control mode has been selected, an erroneous operation prevention function operates and the control mode is automatically set to the "NORMAL" mode.

If you would like to select a control mode again, return the ignition switch to the "ACC" or "LOCK" position and restart the engine. Then, push the Twin Clutch SST control mode switch.

Features and controls

Twin Clutch SST control mode display

N005404001072

When the ignition switch is set to the "ON" position, the currently selected control mode is displayed on the multi-information display.

Manual shift

ND1540500044

Using the gearshift lever (A) or the sportronic steering wheel shifters (B), shifting can be performed manually.

Shifting can be performed even while the accelerator pedal is depressed.

This allows the driver to enjoy sporty driving, such as quick cornering, by nimbly downshifting to reduce vehicle speed just before entering a curve.

CAUTION

• When manually shifting while the vehicle is being driven, select the correct shift position to control the engine speed so that the tachometer indicator does not enter the red zone.
  ●Sudden engine braking and rapid acceleration can cause the vehicle to skid. Shift down according to road conditions and vehicle speed.
• If both the left and right sportronic steering wheel shifters are operated at the same time, the transmission may not change gears.

NOTE

●Only the forward gears 1 to 6 can be selected.
To reverse or park, place the gearshift lever in the "R" (REVERSE) or "P" (PARK) position.
●During manual shifting, downshifting will be performed automatically when the vehicle slows down and the transmission will downshift to 1st gear before the vehicle stops.
- If the gearshift lever or sportronic steering wheel shifters are operated repeatedly, the transmission will also shift repeatedly.
- In order to ensure driving performance, upshifting may not occur depending on the vehicle speed even if the gearshift lever or sportronic steering wheel shifters are operated. In addition, in order to prevent excessive engine speed, the buzzer sounds and downshifting may not occur depending on the vehicle speed even if the gearshift lever or sportronic steering wheel shifters are operated.
- When driving in an aggressive manner involving high engine rpm, sudden acceleration and/or deceleration, the Twin Clutch SST could take longer to shift due to higher fluid temperatures.

Features and controls

Shifting using the gearshift lever

N005406X016

Selecting manual shifting

While the vehicle is stopped or being driven, move the gear-shift lever from the "D" (DRIVE) position in the main shift gate toward the driver's seat to select manual shifting.

Diagram of a mechanical device with two spheres and a base, showing motion direction (no text or symbols)

Shifting up and shifting down

Each time the gearshift lever is pulled rearward, the transmission shifts up 1 gear.

In addition, each time the gearshift lever is pushed forward, the transmission shifts down 1 gear.

NOTE

●After manual shifting is selected using the gearshift lever, shifting up and down can also be performed using the sportronic steering wheel shifters.

Returning to "D" range operation

Move the gearshift lever toward the front passenger's seat to return to automated shifting.

Simple line drawing of a light bulb with a curved arrow and dashed outline, mounted on a remote control (no text or symbols)

NOTE

- When the gearshift lever is moved to the "D" (DRIVE) position from the manual shift gate, it may automatically select a gear different from the gear selected during manual shifting depending on vehicle speed or driving conditions.

Features and controls

Shifting using the sportronic steering wheel shifters

N(0054)700117

Selecting manual shifting

While the vehicle is stopped or being driven with the gearshift lever in the "D" (DRIVE) position, manual shifting can be selected by pulling one of the sportronic steering wheel shifters toward you.

Features and controls

Shifting up

Each time the + (SHIFT UP) sportronic steering wheel shifter is pulled, the transmission shifts up 1 gear.

Shifting down

Each time the - (SHIFT DOWN) sportronic steering wheel shifter is pulled, the transmission shifts down 1 gear.

NOTE

●After manual shifting is selected using the sportronic steering wheel shifters, shifting up and down can also be performed using the gearshift lever.

Returning to "D" range operation

When the gearshift lever is in the "D" (DRIVE) position, pull the + (SHIFT UP) sportronic steering wheel shifter toward you for 2 seconds or more to return to "D" range operation.

Medical illustration showing a hand holding a device near a curved anatomical structure, with an inset close-up highlighting the device (no text or symbols present)

Features and controls

NOTE

- If manual shifting is selected using the sportronic steering wheel shifters when the gearshift lever is in the "D" (DRIVE) position, the transmission will automatically return to "D" range operation before the vehicle stops.

- When the transmission returns to "D" range operation from manual shifting, it may automatically shift up or down from the gear selected using manual shifting depending on the vehicle speed or driving conditions.

- If manual shifting is selected using the sportronic steering wheel shifters, "D" range operation will again be selected by moving the gearshift lever from the "D" (DRIVE) position toward the driver's seat, then return it toward the front passenger's seat.

Features and controls

Manual shift display

N00543000079

In manual shift, the currently selected gear is displayed on the multi-information display.

Operation of the Twin Clutch SST

N00540800047

CAUTION

●Before selecting a position with the engine running and the vehicle stationary, fully depress the brake pedal to prevent the vehicle from creeping. Do not release the brakes until you are ready to drive away. The vehicle will begin to move as soon as the Twin Clutch SST is engaged.
●Depress the brake pedal with the right foot. Using the left foot could cause driver movement delay in case of an emergency.
●To prevent sudden acceleration, never run the engine at high rpms when shifting from the "P" (PARK) or "N" (NEUTRAL) position.
●Operating the accelerator pedal while the other foot is resting on the brake pedal will affect braking efficiency, may cause premature wear of brake pads and may cause engine damage.
- Use the gearshift lever in the correct shift position in accordance with driving conditions. Never coast downhill backward in the driving shift position { "D" (DRIVE) or manual shifting} or coast forward in the "R" (REVERSE) position. Engine stopping and increased brake pedal and steering effort could lead to an accident.

CAUTION

- Do not rev the engine with the brake pedal pressed when the vehicle is stationary. This can cause sudden acceleration and damage the Twin Clutch SST.

Also, when you depress the accelerator pedal while holding down the brake pedal with the gearshift lever in the “D” (DRIVE) position, the engine revolutions may not rise as high as when performing the same operation with the gearshift lever in the “N” (NEUTRAL) position.

Features and controls

Passing acceleration

N00540900019

To gain extra acceleration in “D” (DRIVE) position (when passing another vehicle) push the accelerator to the floor if it is safe to do so in traffic conditions. The Twin Clutch SST will automatically downshift.

NOTE

●In manual shift, downshifts do not take place when the accelerator is depressed all the way to the floor.

Uphill/downhill driving

N00541600026

DRIVING UPHILL

The Twin Clutch SST may not upshift to a higher shift position if the computer determines the current speed cannot be maintained once a higher shift position is engaged.

For smoother vehicle performance, if you release the throttle while climbing a steep grade, the Twin Clutch SST may not upshift. This is normal, as the computer is temporarily preventing shifting. After reaching the top of the hill, normal shift function will resume.

Features and controls

CAUTION

• Do not use the tendency of the vehicle to creep forward in order to drive at low speeds up hills. The transmission may be damaged and an accident may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise and can cause transmission damage.
• If the vehicle is continuously driven at low speeds using the tendency of the vehicle to creep forward, the vehicle will vibrate or the ⏻warning display will appear on the information screen in the multi-information display to alert the driver that the Twin Clutch SST fluid temperature has risen.
  After that, if the Twin Clutch SST fluid temperature rises even higher, the transmission protection control will operate.
  If this occurs, the vehicle may suddenly reverse as if the gearshift lever was in the “N” (NEUTRAL) position and cause an accident.
  If the Ⓞ warning display appears or the transmission protection control operates, refer to “When ⏻ warning display is showing” on page 3-112.

DRIVING DOWNHILL

When traveling down steep grades, the computer may automatically select a lower shift position. This function assists engine braking efforts, reducing the need for using the service brakes.

Waiting

ND154100002D

For short waiting periods, such as at traffic lights, the vehicle can be left in gearshift lever position and held stationary with the service brake.

For longer waiting periods with the engine running, place the gearshift lever in the “N” (NEUTRAL) position and apply the parking brake, while holding the vehicle stationary with the service brake.

Prior to moving off after having stopped the vehicle, make sure that the gearshift lever is in “D” (DRIVE) position or manual shift position.

CAUTION

- Do not rev the engine unnecessarily while the vehicle is stationary. Unexpected acceleration may occur if the gearshift lever is in a position other than “P” (PARK) or “N” (NEUTRAL).

CAUTION

- Do not keep the vehicle in a stopped position on an uphill slope by depressing the accelerator pedal instead of the brake pedal.

The transmission may be damaged and an accident may occur due to the following conditions.

• The Twin Clutch SST fluid temperature will rise and can cause transmission damage.
• If the vehicle is kept in a stopped position by depressing the accelerator pedal instead of the brake pedal, the vehicle will vibrate or the ① warning display will appear on the information screen in the multi-information display to alert the driver that the Twin Clutch SST fluid temperature has risen.

After that, if the Twin Clutch SST fluid temperature rises even higher, the transmission protection control will operate.

If this occurs, the vehicle may suddenly reverse as if the gearshift lever was in the “N” (NEUTRAL) position and cause an accident.

If the Ⓞ warning display appears or the transmission protection control operates, refer to “When

① warning display is showing" on page 3-112.

Parking

N(0541100)18

To park the vehicle, first bring it to a complete stop, fully engage the parking brake, and then move the gearshift lever to the "P" (PARK) position.

What to do if the following occur with the Twin Clutch SST

N00541200051

If there is a problem in the Twin Clutch SST or engine electronic control module, the following may occur.

●Twin Clutch SST does not shift.
●Vehicle cannot move.
●Twin Clutch SST acceleration is slow.
●Vehicle does not creep.
●“Shift shock” is large.
●Shifting occurs at higher engine speed.
●Response is slow.

Features and controls

If any of these occurs, perform the following procedure.

When Warning display is showing

The temperature of Twin Clutch SST fluid is high.

Refer to “Warning display” on page 3-112 and follow the appropriate measures.

When the engine malfunction indicator ("SERVICE ENGINE SOON" or "Check engine light") comes on or blinking

There could be a malfunction in the engine electronic control module.

Have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

When the gearshift lever position display is not showing

A safety device in the Twin Clutch SST has been activated due to a possible malfunction in the Twin Clutch SST.

Refer to "If the gearshift lever position display is not showing" on page 3-111 and follow the appropriate measures.

When ⓄWarning display is showing or when no warning is showing in the multi-information display

A safety device in the Twin Clutch SST has been activated due to a possible malfunction in the Twin Clutch SST or in the engine electronic control module.

Perform the following procedure.

1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.

If the vehicle moves and accelerates normally after this procedure is performed, there is no malfunction.

However, if the vehicle does not move or accelerate normally, or if this problem occurs repeatedly, have the vehicle checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

CAUTION

- When the Twin Clutch SST fluid temperature is high, the engine idle speed when the vehicle is stopped may increase or the vehicle will have a weak tendency to creep.

After that, if the Twin Clutch SST fluid temperature rises even higher, the ① warning display will appear.

All-wheel drive system (if so equipped)

N00516400046

All-wheel drive vehicles are propelled by engine power distributed constantly and appropriately to all four wheels.

Not only does this ensure enhanced handling on dry, paved roads but also permits better traction when driving on slippery, wet or snow-covered roads and when moving out of mud.

These vehicles, however, are not designed for off-road use, and are unsuitable for driving on bumpy ground that may cause excessive strain. All-wheel drive vehicles should be driven only under the same conditions as are suitable for ordinary front-wheel drive vehicles.

Features and controls

Cautions on handling of all-wheel drive vehicles

N00530800158

Tires and wheels

Since driving torque can be applied to the four wheels, the driving performance of the vehicle when operating in all-wheel drive is greatly affected by the condition of the tires.

Pay close attention to the tires.

●Install only the specified tires on all wheels. Refer to "Tires and wheels" on page 9-9.
- Be sure all four tires and wheels are the same size and type. When it is necessary to replace any of the tires or wheels, replace all four.
●All tires should be rotated before the wear difference between the front and rear tires is recognizable.

Good vehicle performance cannot be expected if there is a difference in wear between tires. Refer to “Tire rotation” on page 7-37.

- Check the tire inflation pressure regularly.

Features and controls

CAUTION

●Always use tires of the same size, type, and brand that have no wear differences. Using tires of different size, type, brands or degree of wear, will increase the differential oil temperature and result in possible damage to the driving system. Further, the drive train will be subjected to excessive loading, possibly leading to oil leakage, component seizure, or other serious failures.

Towing

AA3004515

CAUTION

- Do not tow all-wheel drive vehicles with the front or rear wheels on the ground (Type A or Type B) as illustrated. This could result in damage to the drivetrain, or unstable towing.

If you tow all-wheel drive vehicles, use Type C or Type D equipment.

Jacking up all-wheel drive vehicles

WARNING

- Do not start or run the engine while the vehicle is on the jack. The jack could slip out of position and result in an accident.

Features and controls

ACD (Active center differential system) (if so equipped)

N00538500050

The ACD is a system that improves acceleration performance and straight-ahead stability by regulating the differential limiting action and power drive distribution of the center differential.

CAUTION

• Do not over-rely on the ACD. Even the ACD cannot prevent the natural laws of physics from acting on the vehicle. This system, like any other system, has limits and cannot help you to maintain traction and control of the vehicle in all circumstances. Reckless driving can lead to accidents. It is the driver's responsibility to drive carefully. This means taking into account the traffic, road and environmental conditions.
• Be sure to use tires that are the same specified size, type, and brand, and have no difference in the amount of wear for all four wheels. Otherwise, the ACD may not work properly.

NOTE

- If the parking brake lever is pulled up while the vehicle is moving, the center differential is designed to switch to a free state condition which will allow the rear wheel to lock easier.

Features and controls

ACD control mode

N005454001035

Select the control mode from the following three types to suit the driving conditions.

ACD control mode	Operation
TARMAC	Normally, use this control mode. Use this mode for paved roads.
GRAVEL	Use this control mode when driving on somewhat slippery road surfaces, such as wet road surfaces and gravel roads.
SNOW	Use this control mode when driving on slippery road surfaces, such as snow-covered roads.

ACD control mode switch

ND1545500036

When the ignition switch is set to the "ON" position, operate the "AWC" switch to change the control mode.

Each time the switch is pushed, the control mode changes in the order "TARMAC" → "GRAVEL" → "SNOW" → "TARMAC".

NOTE

●The control mode can be changed while the vehicle is moving.
●The selected control mode is stored in memory even if the engine is stopped.

However, if a battery terminal is disconnected, the control mode stored in memory will be erased and the control mode will be set to the "TARMAC" mode.

ACD control mode display

N(015456000)53

Example: "TARMAC" mode is selected.

The currently selected control mode is displayed on the multi-information display.

In addition, when the control mode is changed, the selected mode appears on the interrupt display screen of the information screen in the multi-information display.

The control mode display will appear on the information screen for a few seconds, and then the original screen will return.

CAUTION

●The ACD control mode display may flash under aggressive driving conditions.

At this time, ACD control is temporarily suspended in order to protect the ACD device, but this will not affect normal driving.

After the vehicle is driven for a while, if the ACD control mode display remains on, the ACD control will start operating again.

Features and controls

ACD warning display

N(01545700196

When there is a malfunction in the system, the warning display will appear on the information screen in the multi-information display.

In addition, the ACD control mode display in section A will go out at the same time.

AG0018412

Features and controls

CAUTION

●The system may be malfunctioning.

Park your vehicle in a safe place and stop the engine.

Restart the engine and check whether the warning display goes out.

If the ^rot warning display goes out, there is no abnormal condition. If the ^rot warning display does not go out or appears frequently, it is not necessary to stop the vehicle immediately, but we recommend that you have your vehicle inspected.

NOTE

- If the ambient temperature drops and the viscosity of the AWC control fluid increases, the warning may be displayed.

At this time, ACD control is temporarily suspended, but this will not affect normal driving.

After the vehicle is driven for a while, if the engine is restarted after the AWC control fluid warms up or the ambient temperature increases, the ACD control will start operating again if the warning display goes out.

Limited-slip differential (if so equipped)

N00517400085

A limited-slip differential is applied for rear wheel differential. The features of this limited-slip differential are described below:

Just as with a conventional differential, the wheel on one side is allowed to turn at a different speed from the wheel on the other side when the vehicle is cornering. The difference between the limited-slip differential and a conventional differential is that if the wheel on one side of the vehicle loses traction, a greater amount of torque is applied to the wheel on the other side to improve traction.

NOTE

●Even if there is a difference in the amount of traction the wheels can get, if both of them are spinning, the limited-slip differential will not be effective.

CAUTION

●Never start the engine while one of the front or rear wheels is jacked up and the others in contact with the ground; doing so may cause the vehicle to jump forward.

●Continuously attempting to extract the vehicle from snow, mud, etc. while using high engine rpm may damage the limited-slip differential.

●Using a compact spare wheel will adversely affect the limited-slip differential; replace the compact spare wheel with a standard size wheel as soon as possible.

Service brake

N00517500262

Brake pedal

Overuse of the brake can cause poor brake response and premature wear of the brake pads and linings.

When driving down a long or steep hill, use engine braking by downshifting.

WARNING

- Do not leave any objects near the brake pedal or let a floor mat slide under it; doing so could prevent the full pedal stroke that would be necessary in an emergency. Make sure that the pedal can be operated freely at all times. Make sure the floor mat is securely held in place.

CAUTION

- It is important not to drive the vehicle with your foot resting on the brake pedal when braking is not required. This practice can result in very high brake temperatures, premature pad and lining wear, and possible damage to the brakes.

Features and controls

Power brakes

N00517600393

Your vehicle is equipped with power brakes for more braking force with minimal brake pedal effort.

Your brakes are designed to operate at full capacity, even if the power assist is lost.

If the power assist is lost, the effort needed to press the brake pedal is greater.

If you should lose the power assist for some reason, the brakes will still work.

If the power brake unit or either of the two brake hydraulic systems stops working properly, the rest of the brake system will still work, but the vehicle will not slow down as quickly.

You will know this has happened if you find you need to depress the brake pedal down further, or harder when slowing down or stopping, or if the brake warning light and the warning display in the multi-information display come on.

WARNING

●Never coast downhill with the engine OFF. Keep the engine running whenever your vehicle is in motion. If you turn off the engine while driving, the power brake booster will stop working and your brakes will not work as well.

- If the power assist is lost or if either brake hydraulic system stops working properly, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of your choice immediately.

Features and controls

Brake pad wear alarm

N00532500087

The disc brakes have an alarm that makes a metallic squeal when the brake pads have worn down enough to need service. If you hear this sound, have the brake pads replaced at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

WARNING

●Driving with worn brake pads will make it harder to stop, and can cause an accident.

Hill start assist (for vehicles equipped with Twin Clutch SST)

ND1562610061

The hill start assist makes it easy to start off on a steep uphill slope by preventing the vehicle from moving backwards. It keeps the braking force for about 2 seconds when you move your foot from the brake pedal to the accelerator pedal.

CAUTION

• Do not overly rely on the hill start assist to prevent backwards movement of the vehicle. Under certain circumstances, even when hill start assist is activated, the vehicle may move backwards if the brake pedal is not sufficiently depressed, if the vehicle is heavily loaded, or if the road is very steep or slippery.
  ●The hill start assist is not designed to keep the vehicle stopped in place on uphill slopes for more than 2 seconds.
• When facing uphill, do not rely on using the hill start assist to maintain a stopped position as an alternative to depressing the brake pedal. Doing so could cause an accident.
• Do not turn the ignition switch to the “LOCK” or “ACC” position while the hill start assist is operating. The hill start assist could stop operating, which could result in an accident.

To operate

N01562700088

1. Stop the vehicle completely using the brake pedal.
2. Release the brake pedal and the hill start assist will maintain the braking force applied while stopping for approximately 2 seconds.
3. Depress the accelerator pedal and the hill start assist gradually will decrease the braking force as the vehicle starts moving.

NOTE

●The hill start assist is activated when all of the following conditions are met.

• The engine is running.
(The hill start assist will not be activated while the engine is starting or immediately after the engine is started.)
- The gearshift lever is in any position other than “P” (PARK) or “N” (NEUTRAL).
- The vehicle is completely stationary, with the brake pedal depressed.
• The parking brake is released.

●The hill start assist will not operate if the accelerator pedal is depressed before the brake pedal is released.

●The hill start assist also operates when reversing on an uphill slope.

Warning display

N(01562800089

If an abnormal condition occurs in the system, the following display/indicator will turn on.

ASC indicator

Warning display

CAUTION

• If the warning is displayed, the hill start assist will not operate. Start off carefully.
  ●Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the display/indicator goes out, in which case the hill start assist is again working normally.
  If they remain displayed or reappear frequently, it is not necessary to stop the vehicle immediately, but the vehicle should be inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

Features and controls

Brake assist system

N00567300050

The brake assist system is a device assisting drivers who cannot depress the brake pedal firmly such as in emergency stop situations and provides greater braking force.

If the brake pedal is depressed suddenly, the brakes will be applied with more force than usual.

CAUTION

●The brake assist system is not a device designed to exercise braking force greater than its capacity. Make sure to always keep a sufficient distance between vehicles in front of you without relying too much on the brake assist system.

NOTE

●Once the brake assist system is operational, it maintains great braking force even if the brake pedal is lightly released.

To stop its operation, completely remove your foot from the brake pedal.

●The brake assist system may become operational when the brake pedal is fully depressed even if it has not been depressed suddenly.

- When the brake assist system is in use while driving, you may feel as if the depressed brake pedal is soft, the pedal moves in small motions in conjunction with the operation noise, or the vehicle body and the steering wheel vibrate. This occurs when the brake assist system is operating normally and does not indicate faulty operation. Continue to depress the brake pedal.

●You may hear an operation noise when the brake pedal is depressed suddenly while stationary. This does not indicate a malfunction and the brake assist system is operating normally.

Anti-lock braking system

N00517900282

The anti-lock braking system helps prevent the wheels from locking up when braking. This helps you keep control of your vehicle and its direction.

Driving hints

- When using the anti-lock brakes (sudden braking), steering is slightly different from normal driving conditions. Use the steering wheel carefully.

●Always keep a safe distance from the vehicle in front of you. Even if your vehicle is equipped with the anti-lock braking system, leave a greater braking distance when:

- Driving on gravel or snow-covered roads.

- Driving on uneven road surfaces.

●Operation of anti-lock braking system is not restricted to situations where brakes are applied suddenly. This system may also prevent the wheels from locking when you drive over manholes, steel roadwork plates, road markings, or any uneven road surface.

- When the anti-lock braking system is in use, you may feel the brake pedal vibrating and hear a unique sound. You may also feel as if the pedal resists being pressed.

In this situation, simply hold the brake pedal down firmly. Do not pump the brake, which will result in reduced braking performance.

CAUTION

●The anti-lock braking system cannot prevent accidents. It is your responsibility to take safety precautions and to drive carefully.

●To prevent failure of the anti-lock braking system, be sure all four wheels and tires are the same size and the same type.

●Never install a limited-slip differential as the anti-lock braking system may not function normally. Please consult an authorized Mitsubishi Motors dealer.

NOTE

●After your vehicle is driven a short distance after starting the engine, you will hear the sound coming from the engine compartment. These are the normal sounds the anti-lock braking system makes when performing a self-check. It does not indicate a malfunction.

●The anti-lock braking system can be used after the vehicle has reached a speed over approximately 6 mph (10 km/h). It stops working when the vehicle slows below approximately 3 mph (5 km/h).

Features and controls

Anti-lock braking system warning light/display

N005316081616

Warning light

Warning display type 1

Warning display type 2

If there is a malfunction in the system, the anti-lock braking system warning light will come on and the warning display will appear on the information screen in the multi-information display.

Under normal conditions, the anti-lock braking system warning light only comes on when the ignition switch is turned to the "ON" position and goes off a few seconds later.

CAUTION

●Any of the following warning light/display behavior indicates that the anti-lock braking system is not functioning and only the standard brake system is working. (The standard brake system will still work properly.) If this happens, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

• When the ignition switch is in the "ON" position, the warning light does not come on or it remains on and does not go off
  • The warning light comes on while driving
  • The warning display appears while driving

If the warning light/display comes on while driving

N00531700545

If only the anti-lock braking system warning light/display comes on

●Avoid hard braking and high-speed driving. Stop the vehicle in a safe place.

Test the system by restarting the engine and driving at a speed of about 12 mph (20 km/h) or higher.

If the warning light/display then remain off during driving, there is no problem.

However, if the warning light/display do not disappear, or if they come on again when the vehicle is driven, have the vehicle checked by an authorized Mitsubishi Motors dealer or repair facility of your choice as soon as possible.

If the anti-lock braking system warning light/display and brake warning light/display come on at the same time

Warning light

Warning display type 1

Warning display type 2

The anti-lock braking system and brake force distribution function may not work, so hard braking could make the vehicle unstable.

Avoid hard braking and high-speed driving. Stop the vehicle in a safe place and contact an authorized Mitsubishi Motors dealer or repair facility of your choice.

NOTE

●The anti-lock braking system warning light and brake warning light illuminate at the same time and the warning displays appear alternately on the information screen in the multi-information display.

Features and controls

After driving on icy roads

NDD5292010151

After driving on snow or icy roads, remove any snow and ice which may have been left around the wheels. On vehicles that have an anti-lock braking system, be careful not to damage the wheel speed sensors (A) or the cables located at each wheel.

Power steering system

N00518000277

The power steering system operates while the engine is running. It helps reduce the effort needed to turn the steering wheel.

The power steering system has mechanical steering capability in case the power assist is lost. If the power assist is lost for some reason, you will still be able to steer your vehicle. If the power assist is lost, you will notice it takes much more effort to steer and that there is much more “free play” in the steering wheel. If this happens, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of your choice.

WARNING

- Do not stop the engine while the vehicle is moving. Stopping the engine would make the steering wheel extremely hard to turn, possibly resulting in an accident.

Hydraulic power steering system (HPS) (if so equipped)

N00547100049

The hydraulic power steering system (HPS) uses a hydraulic pressure pump to assist the turning of the steering wheel.

CAUTION

- Do not leave the steering wheel turned all the way in one direction. This can cause damage to the power steering system.

Electric power steering system (EPS) (if so equipped)

N(00547200140

The electric power steering system (EPS) uses an electric motor to assist the turning of the steering wheel.

NOTE

●During repeated full-lock turning of the steering wheel (for example, while you are manoeuvring the vehicle into a parking space), a protection function may be activated to prevent overheating of the power steering system. This function will make the steering wheel gradually harder to turn. In this event, limit your turning of the steering wheel for a while. When the system has cooled down, the steering action will return to normal.
- If you turn the steering wheel while the vehicle is stationary with the headlights on, the headlights may become dim. This behaviour is not abnormal. The headlights will return to their original brightness after a short while.

Features and controls

Electronic power steering system warning display

Type 1

Type 2

If there is a malfunction in the system, the warning display will appear on the information screen in the multi-information display.

CAUTION

- If the warning display appears during driving, it may become harder to turn the steering wheel.

If the warning display appears while driving

1. Stop the vehicle in a safe place and turn off the engine.
2. Wait approximately 30 seconds and then restart the engine to check whether the warning display goes out; if it then remains off, there is no problem.

If the warning display does not go out, or it appears again while driving, have the vehicle inspected at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

Active stability control (ASC)

N00559100091

The active stability control (ASC) takes overall control of the anti-lock braking system, traction control function and skid control function to help maintain the vehicle's control and traction. Please read this section in conjunction with the page on the anti-lock braking system, traction control function and skid control function.

Anti-lock braking system → P.3-1 39

Traction control function → P.3-145

Skid control function → P.3-145

CAUTION

• Do not over-rely on the ASC. Even the ASC cannot prevent the natural laws of physics from acting on the vehicle. This system, like any other system, has limits and cannot help you to maintain traction and control of the vehicle in all circumstances. Reckless driving can lead to accidents. It is the driver's responsibility to drive carefully. This means taking into account the traffic, road and environmental conditions.
  ●Be sure to use the same specified type and size of tire on all four wheels. Otherwise, the ASC may not work properly.
  ●Do not install any aftermarket limited-slip differential (LSD) on your vehicle. The ASC may stop functioning properly.

NOTE

●An operation noise may be emitted from the engine compartment in the following situations. The sound is associated with checking the operations of the ASC. At this time, you may feel a shock from the brake pedal if you depress it. These do not indicate a malfunction.

• When the ignition switch is set to the "ON" position.
• When the vehicle is driven for a while after the engine is turned on.

- When the ASC is activated, you may feel a vibration in the vehicle body or hear a whining sound from the engine compartment.

This indicates that the system is operating normally. It does not indicate a malfunction.

- When the anti-lock braking system warning light is illuminated, the ASC is not active.

Traction control function

N(01559200147

On slippery surfaces, the traction control function prevents the drive wheels from spinning excessive, thus helping the vehicle to start moving from a stopped condition. It also provides sufficient driving force and steering performance as the vehicle turns while pressing the acceleration pedal.

CAUTION

- When driving a vehicle on a snowy or icy road, be sure to install snow tires and drive the vehicle at moderate speeds.

Skid control function

N00546800023

The skid control function is designed to help the driver maintain control of the vehicle on slippery roads or during rapid steering maneuvers. It works by controlling the engine output and the brake on each wheel.

NOTE

●The skid control function operates at speeds of about 9 mph (15 km/h) or higher.

Features and controls

"ASC OFF" switch

N00559401212

The ASC is automatically activated when the ignition switch is turned to the "ON" position. You can deactivate the system by pressing down the "ASC OFF" switch for 3 seconds or longer. When the ASC is deactivated, the display/indicator will turn on. To reactivate the ASC, momentarily press the "ASC OFF" switch; the display/indicator is turned off.

CAUTION

●For safety reasons, the "ASC OFF" switch should be operated when your vehicle is stopped.
●Be sure to keep the ASC on while driving in normal circumstances.

NOTE

●Using the “ASC OFF” switch turns off both the skid control function and the traction control function.
- When moving out of mud, sand or fresh snow, pressing the accelerator pedal may not allow the engine speed to increase. In such situations, temporarily turning off ASC with the "ASC OFF" switch will make it easier to move out your vehicle.
- If you continue to press the "ASC OFF" switch after the ASC is turned off, the "mistaken operation protection function" will activate and the ASC will turn back on.

ASC operation display or ASC OFF display

N015465001105

ASC operation display/ASC indicator

The display/indicator will blink when the ASC is operating.

ASC OFF display/ASC OFF indicator

This display/incicator will turn on when the ASC is turned off with the "ASC OFF" switch.

NOTE

●The combination of items shown on the display varies depending on the vehicle model.

CAUTION

- When display/indicator blinks, ASC is operating, which means that the road is slippery or that your vehicle's wheels are beginning to slip. If this happens, drive slower.

- If the temperature in the braking system continues to increase due to continuous brake control on a slippery road surface, the display/indicator will blink. To prevent the brake system from overheating, the brake control of the traction control function will be temporarily suspended. The engine control of the traction control function and normal brake operation will not be affected. Park your vehicle in a safe place. When the temperature in the braking system has come down, the display/indicator will be turned off and the traction control function will start operating again.

NOTE

●The display/indicator may come on when you start the engine. This means that the battery voltage momentarily dropped when the engine was started. It does not indicate a malfunction, provided that the display goes out immediately.

- When a spare tire has been put on your vehicle, the gripping ability of the tire will be lower, making it more likely that the display/indicator will blink.

Features and controls

ASC warning display

N005466021106

If an abnormal condition occurs in the system, the following display/indicator will turn on.

ASC indicator

ASC OFF display/ASC OFF indicator

Warning display type I

Warning display type 2

NOTE

●The combination of items shown on the display varies depending on the vehicle model.

CAUTION

●The system may be malfunctioning.

Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the display/indicator goes out. If they go out, there is no abnormal condition. If they do not go out or if they turn on frequently, it is not necessary to stop the vehicle immediately, but you should have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

Towing

ND1546300057

CAUTION

- When towing the vehicle with only the front wheels or only the rear wheels raised off the ground, do not place the ignition switch in the "ON" position. Placing the ignition switch in the "ON" position could cause the ASC to operate, resulting in an accident. Note that the correct towing method depends on the transmission type and the vehicle's drive configuration. For details, refer to "Towing" on page 6-21.

Cruise control (if so equipped)

N00518300560

Cruise control is an automatic speed control system that keeps a set speed. It can be activated at speeds from about 25 mph (40 km/h). Cruise control does not work at speeds below about 25 mph (40 km/h).

CAUTION

●When you do not wish to drive at a set speed, turn off the cruise control for safety.
●Do not use cruise control when driving conditions will not allow you to stay at the same speed, such as in heavy traffic or on roads that are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.
●On vehicles equipped with manual transaxle, do not move the gearshift lever to the "N" (Neutral) position while driving at a set speed without depressing the clutch pedal. The engine will run too fast and might be damaged.

NOTE

●Cruise control may not be able to keep your speed on uphills or downhills.
●Your speed may decrease on a steep uphill. You may use the accelerator pedal if you want to stay at your set speed.
●Your speed may increase to more than the set speed on a steep downhill. You have to use the brake to control your speed. As a result, the set speed driving is deactivated.

Features and controls

Cruise control switches

Features and controls

A- "ON OFF" switch

Used to turn on and off the cruise control.

B- "COAST SET" switch

Used to reduce the set speed and to set the desired speed.

C- "ACC RES" switch

Used to increase the set speed and to return to the original set speed.

D- "CANCEL" switch

Used to deactivate the set speed driving.

NOTE

- When operating the cruise control switches, press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or more switches of the cruise control are pressed at the same time.

To activate

ND1518400369

1. With the ignition switch in the "ON" position, press the "ON OFF" switch (A) to turn on the cruise control. The "CRUISE" indicator light in the meter cluster will come on.

NOTE

- If the cruise control is on when the ignition switch is turned to "LOCK" or "ACC" position, cruise control will be on automatically the next time you start the engine. The "CRUISE" indicator light will also be on.

- If the battery voltage is insufficient, the memory data for the cruise control may be erased. As a result, the “CRUISE” indicator light may not come on when you restart the engine. If this happens, press the “ON OFF” switch once again to turn on the cruise control.

Features and controls

1. Confirm that the Twin Clutch SST control mode is set to "NORMAL" (on vehicles equipped with Twin Clutch SST). Refer to "Twin Clutch SST control mode" on page 3-116.

NOTE

●The cruising speed cannot be set when the Twin Clutch SST control mode is set to "SPORT" mode.

Features and controls

1. Accelerate or decelerate to your desired speed, then press and release the "COAST SET" switch (B) when the "CRUISE" indicator light is illuminated. The vehicle will then maintain the desired speed.

NOTE
- When you release the "COAST SET" switch, the vehicle speed will be set.

To increase the set speed

ND1518500315

There are 2 ways to increase the set speed.

"ACC RES" switch

Press and hold the "ACC RES" switch (C) while driving at the set speed, and your speed will then gradually increase.

When you reach your desired speed, release the switch. Your new cruising speed is now set.

Features and controls

To increase your speed in small amounts, press the "ACC RES" switch for less than about 1 second and release it. Each time you press the "ACC RES" switch, your vehicle will go about 1 mph (1.6 km/h) faster.

Accelerator pedal

While driving at the set speed, use the accelerator pedal to reach your desired speed and then press the "COAST SET" switch (B) and release the switch momentarily to set a new desired cruising speed.

To decrease the set speed

N00518600244

There are 2 ways to decrease the set speed.

"COAST SET" switch

Press and hold the "COAST SET" switch (B) while driving at the set speed, and your speed will slow down gradually. When you reach your desired speed, release the switch. Your new cruising speed is now set.

Features and controls

To slow down your speed in small amounts, press the "COAST SET" switch for less than about 1 second and release it. Each time you press the "COAST SET" switch, your vehicle will slow down by about 1 mph (1.6 km/h).

Brake pedal

While driving at the set speed, use the brake pedal, which disengages the cruise control, then press the "COAST SET" switch (B) and release the switch momentarily to set a new desired cruising speed.

To temporarily increase or decrease the speed

ND1541700027

To temporarily increase the speed

Depress the accelerator pedal as you would normally. When you release the pedal, you will return to your set speed.

Diagram of a foot pressing a pedal, showing the foot and ankle mechanism (no text or symbols)

To temporarily decrease the speed

Depress the brake pedal to decrease the speed. To return to the previously set speed, press the “ACC RES” switch (C). Refer to “To resume the set speed” on page 3-157.

Features and controls

To deactivate

N00518800477

The set speed driving can be deactivated as follows:

●Press the "ON OFF" switch (A). (Cruise control will be turned off.)
●Press the "CANCEL" switch (D).
●Depress the brake pedal.

Features and controls

The set speed driving is deactivated automatically in any of the following ways.

• When you depress the clutch pedal (on vehicles equipped with manual transaxle).
• When your speed slows to about 10 mph (15 km/h) or more below the set speed because of a hill, etc.
• When your speed slows to about 25 mph (40 km/h) or less.
• When the Twin Clutch SST control mode is set to "Sport" mode (on vehicles equipped with Twin Clutch SST). Refer to "Twin Clutch SST control mode" on page 3-116
• When the active stability control (ASC) starts operating. Refer to “Active stability control (ASC)” on page 3-144.

Also, the set speed driving may be deactivated as follow:

- When the engine speed rises and approaches the tachometer's red zone (the red-colored part of the tachometer dial).

CAUTION

- When the set speed driving is deactivated automatically in any situation other than those listed above, there may be a system malfunction. Press the “ON OFF” switch to turn off the cruise control and have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

WARNING

●On vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST, although the set speed driving will be deactivated when shifting to the "N" (NEUTRAL) position, never move the selector lever (CVT) or the gearshift lever (Twin Clutch SST) to the "N" (NEUTRAL) position while driving. You would have no engine braking and could cause a serious accident.

To resume the set speed

N00518900250

If the set speed driving is deactivated by the condition described in "To deactivate" on page 3-155, you can resume the previously set speed by pressing the "ACC RES" switch (C) while driving at a speed of about 25 mph (40 km/h) or higher.

Features and controls

Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed. In these situations, repeat the speed setting procedure:

●The "ON OFF" switch is pressed.
●The ignition switch is turned OFF.
●“CRUISE” indicator light is turned OFF.

Features and controls

Tire pressure monitoring system

N00530200370

The tire pressure monitoring system uses tire inflation pressure sensors (A) on the wheels to monitor the tire inflation pressures. The system only indicates when a tire is significantly under-inflated.

Diagram of a car with three wheels and connecting lines, labeled 'A' at top and bottom (no text or symbols on the diagram itself)

WARNING

●The spare wheel does not have a tire inflation pressure sensor.
When the spare tire is used, the tire pressure monitoring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon as possible to replace or repair the original tire.

NOTE

●The tire pressure monitoring system is not a substitute for regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in "Tires" on page 7-29.
●Each of the grommets and washers where the tire inflation pressure sensors are mounted should be replaced with new ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors dealer.

The tire pressure monitoring system warning light/display

N00532700308

When the ignition switch is turned to the "ON" position, the tire pressure monitoring system warning light normally illuminates and goes off a few seconds later.

If one or more of the vehicle tires (except for the spare tire) is significantly under-inflated, the warning light will remain illuminated while the ignition switch is in the "ON" position.

Refer to “If the warning light/display illuminates while driving” on page 3-161 and take the necessary measures.

NOTE

●In addition, the warning display is displayed on the information screen in the multi-information display.

Type 1

Type 2

CAUTION

- If the tire pressure monitoring system warning light does not illuminate when the ignition switch is turned to the "ON" position, it means that the tire pressure monitoring system is not working properly. Have the system inspected by an authorized Mitsubishi Motors dealer.

In such situations, a malfunctioning of the system may be preventing the monitoring of the tire pressure. Avoid sudden braking, sharp turning and high-speed driving.

- If a malfunction is detected in the tire pressure monitoring system, the tire pressure monitoring system warning light will blink for approximately 1 minute and then remain continuously illuminated. The warning light will issue further warnings each time the engine is restarted as long as the malfunction exists.

Check to see whether the warning light goes off after few minutes driving.

If it then goes off during driving, there is no problem.

However, if the warning light does not go off, or if it blinks again when the engine is restarted, have the vehicle inspected by an authorized Mitsubishi Motors dealer.

In such situations, a malfunctioning of the system may be preventing the monitoring of the tire pressure. For safety reasons, when the warning light appears while driving, avoid sudden braking, sharp turning and high-speed driving.

Features and controls

NOTE

●In addition, the warning display is displayed on the information screen in the multi-information display.

Type 1

Type 2

Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under-inflated.

Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure.

Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling and stopping ability. Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver's responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure tell-tale.

Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale.

When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists.

When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.

If the warning light/display illuminates while driving

N00532800426

1. If the tire pressure monitoring system warning light illuminates, avoid hard braking, sharp steering maneuvers and high speeds. You should stop and adjust the tires to the proper inflation pressure as soon as possible. Adjust the spare tire at the same time. Refer to "Tires" on page 7-29.

NOTE

●In addition, the warning display is displayed on the information screen in the multi-information display.
- When inspecting or adjusting the tire pressure, do not apply excessive force to the valve stem to avoid breakage.
●After inspecting or adjusting the tire pressure, always reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the valve, resulting in damage to the tire inflation pressure sonor.
- Do not use metal valve caps, which may cause a metal reaction, resulting in corrosion and damage of the tire inflation pressure sensors.
●Once adjustments have been made, the warning light will go off after a few minutes of driving.

1. If the tire pressure monitoring system warning light remains illuminated after you have been driving for about 20 minutes after you adjust the tire inflation pressure, one or more of the tires may have a puncture. Inspect the tire and if it has a puncture, have it repaired by an authorized Mitsubishi Motors dealer as soon as possible.

Features and controls

WARNING

- If the warning light/display illuminates while you are driving, avoid hard braking, sharp steering maneuvers and high speeds. Driving with an under-inflated tire adversely affects vehicle performance and can result in an accident.

CAUTION

• If a tire has a puncture, replace that tire with the spare tire. Driving on a punctured tire could lead to an accident.
  ●The warning light/display may not illuminate immediately in the event of a tire blowout or rapid leak.

NOTE

●To avoid the risk of damage to the tire inflation pressure sensors, have any punctured tire repaired by an authorized Mitsubishi Motors dealer. If the tire repair is not done by an authorized Mitsubishi Motors dealer, it is not covered by your warranty.
- Do not use an aerosol puncture-repair spray on any tire. Such a spray could damage the tire inflation pressure sensors. Have any puncture repaired by an authorized Mitsubishi Motors dealer.

The tire pressure monitoring system may not work normally in the following circumstances:

●A wireless facility or device using the same frequency is near the vehicle.
●Snow or ice is stuck inside the fenders and/or on the wheels.
●The tire inflation pressure sensors' battery is dead.
●Wheels other than Mitsubishi genuine wheels are being used.
●Wheels that are not fitted with tire inflation pressure sensors are being used.
●Wheels whose ID codes are not memorized by the vehicle are used.
●Compact spare tire is fitted on a road wheel.
●A window tint that affects the radio wave signals is installed.

NOTE

●Tire inflation pressures vary with the ambient temperature. If the vehicle is subjected to large variations in ambient temperature, the tire inflation pressures may be underinflated (causing the warning light/display to come on) when the ambient temperature is relatively low. If the warning light/display comes on, adjust the tire inflation pressure.

Whenever the tires and wheels are replaced with new ones

N00532900137

If new wheels with new tire inflation pressure sensors are installed, their ID codes must be programmed into the tire pressure monitoring system. Have tire and wheel replacement performed by an authorized Mitsubishi Motors dealer to avoid the risk of damaging the tire inflation pressure sensors. If the wheel replacement is not done by an authorized Mitsubishi Motors dealer, it is not covered by your warranty.

CAUTION

●The use of non-genuine wheels will prevent the proper fit of the tire inflation pressure sensors, resulting in air leakage or damage of the sensors.

General information

N010533(000177

Your tire pressure monitoring system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-Gen of the Industry Canada Rules.

Operation is subject to the following two conditions.

●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

- Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.

Features and controls

Instrument cluster

N00519000362

1- Tachometer → P3-165
2- Multi-information display → P.3-167
Information screen display list → P.3-202
3- Speedometer → P.3-164
4- Rheostat meter illumination button → P3-166

Speedometer

ND1519100233

The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour (km/h).

Type 1

AG0018685

Type 2

AA0100591

Features and controls

Tachometer

N00519200247

The tachometer shows engine revolutions per minute. This allows the driver to determine the most efficient shift position (manual transaxle), selector position {continuously variable transmission (CVT)} or shift position (Twin Clutch SST) and engine speed combinations.

This gauge also assists in evaluating engine performance.

AG0018656

CAUTION

●The red zone indicates an engine speed beyond the range of safe operation.
- Select the correct shift position (manual transaxle), selector position (CVT) or gearshift position (Twin Clutch SST) to control the engine speed so that the tachometer indicator does not enter the red zone.

Features and controls

Rheostat meter illumination button

N00554901179

Each time you press this button, there is a sound and the brightness of the instruments changes.

1- Brightness display
2- Rheostat illumination button

NOTE

●You can adjust to 8 different levels respectively for when the tail lights are illuminated and when they are not.
- If the vehicle is equipped with the automatic light control, when the light switch is in a position other than the "OFF" position, the meter illumination switches automatically to the adjusted brightness, depending on the brightness outside the vehicle.
●The brightness level of the instruments is stored in memory when the ignition switch is turned off.
- If you press and hold the button for longer than about 1 second when the parking lights are illuminated, the brightness level changes to the maximum level. Pressing and holding the button for longer than about 1 second again returns the brightness level to the previous level.

Multi-information display

N00555000210

The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, selector lever position, average and momentary fuel consumption, driving range, average speed, instrument brightness, etc. It is also possible to change elements such as the language and units used on the multi-information display.

With ignition switch is "OFF" position

With ignition switch is "ON" position {Continuously variable transmission (CVT), Twin Clutch SST}

With ignition switch is "ON" position (Manual transaxle)

Type 1 Type 2 Type 1 Type 2 Type 1 Type 2

AA1007844

1- Warning display screen (With ignition switch in the "OFF" position) → P. 3-169
2- Information screen (With ignition switch in the "OFF" position) → P. 3-169 Interrupt display screen (With ignition switch in the "OFF" position) → P. 3-171
3- Door ajar warning display screen (With ignition switch in the "OFF" position) → P. 3-173
4- Warning display screen (With ignition switch in the "ON" position) → P.3-175

5- Active stability control (ASC) OFF display screen (if so equipped) → P. 3-175
6- Information screen (With ignition switch in the "ON" position) → P. 3-176 Interrupt display screen (With ignition switch in the "ON" position) → P. 3-180
7- Outside temperature display screen → P. 3-182
8- Fuel remaining display screen → P. 3-182
9- Engine coolant temperature display (if so equipped) → P. 3-176

Features and controls

10- Twin Clutch SST control mode display screen (Twin Clutch SST) → P.3 -118
11- Selector lever position display screen (CVT) → P. 3-100 Gearshift lever position display screen (Twin Clutch SST) → P. 3-110
12- ACD control mode display screen (Twin Clutch SST) → P. 3-132

NOTE

●The fuel units, temperature units, display language, and other settings can be changed.
Refer to "Changing the function settings (With ignition switch in the "ON" position)" on page 3-187.
●The display screen is different depending on whether the ignition switch in the "OFF" or "ON" position.
Refer to "Information screen (With ignition switch in the "OFF" position)" on page 3-169.
Refer to "Warning display list (With ignition switch in the "OFF" position)" on page 3-203.
Refer to "Information screen (With ignition switch turned from "OFF" to "ON" position)" on page 3-173.
Refer to "Information screen (With ignition switch in the "ON" position)" on page 3-176.
Refer to "Warning display list (With ignition switch in the "ON" position)" on page 3-206.

Multi-information meter switch

ND1555100178

The multi-information meter switch is a button marked "INFO" on the left side of the dash.

Each time the multi-information meter switch is operated, a sound is emitted and the multi-information display changes between information such as warnings, service reminder, average and momentary fuel consumption, driving range, average speed and ACD control mode display (if so equipped).

It is also possible to change elements such as the language and units used on the multi-information display by operating the multi-information meter switch.

⚠ warning display screen (With ignition switch in the "OFF" position)

N00555200212

If you press the multi-information meter switch and return from the warning display screen to the previous screen, the warning is displayed.

Refer to "Returning to the display screen from before the warning display" on page 3-171.

This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the ▲Warning goes out automatically.

NOTE

• When the Warning is displayed, the warning display screen can be redisplayed on the information screen.
  Refer to "Information screen (With ignition switch in the "OFF" position)" on page 3-169.
  Refer to "Information screen (With ignition switch in the "ON" position)" on page 3-176.

Information screen (With ignition switch in the "OFF" position)

N00555300154

Each time you lightly press the multi-information meter switch, the display screen changes in the following order.

Features and controls

1- Odometer (Type 1)/Trip odometer A
2- Odometer (Type 1)/Trip odometer B
3- Service reminder
4- Redisplay of a warning display screen

Odometer/Trip odometer

N00555400142

Each time you lightly press the multi-information meter switch, the display screen changes as follows:

Odometer/Trip odometer A→ Odometer/Trip odometer B → Service reminder → Redisplay of a warning display screen → Odometer/Trip odometer A

Odometer

Shows the total distance traveled.

Trip odometer

Shows the distance traveled between two points.

Usage examples for trip odometer Arip odometer : B It is possible to measure two currently traveled distances, from home using trip odometer A and from a particular point on the way using trip odometer B To reset the trip odometer: To return the display to 0, hold down the multi-information meter switch for about 2 seconds or more. Only the currently displayed value will be reset. Example: If trip odometer A is displayed, only trip odometer A will be reset.

Type 1

Type 2

AA2001979

NOTE

• If there is no warning display, the switching sequence is: Odometer/Trip odometer → Odometer/Trip odometer → service reminder → Odometer/Trip odometer .
• Both trip odometers And caBcount up to 9999.9 miles/kilometers. When a trip odometer goes past 9999.9 miles/kilometers it returns to 0.0 miles/kilometers.
• When the battery is disconnected, the memories of trip odometer displays And arB cleared, and their displays return to "0.0 miles/kilometers".

Service reminder

N00555500039

Shows the distance and number of months until the next periodic inspection.

Refer to "Service reminder" on page 3-183.

Interrupt display screen (With ignition switch in the "OFF" position)

N00559600184

When there is information to be announced, such as a key reminder, the buzzer sounds and switches to the warning display screen. Refer to the appropriate page and take the necessary measures.

When the cause of the warning display is eliminated, the warning display goes out automatically.

Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-203.

1- Information generated
2- Cause eliminated

Features and controls

Returning to the display screen from before the warning display

Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning display.

If you press the multi-information meter switch, the display screen switches to the screen display from before the warning and the ▲ warning (A) is displayed.

Type 1

Type 2

AA3007369

NOTE

●Warning display screens with a “or” mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows.

Press lightly.

“Press for about 2 seconds or more.

Redisplay of a warning display screen

When the ▲ warning is displayed, if you lightly press the multi-information meter switch a few times, the warning display screen you switched from is redisplayed.

Refer to “Information screen (With ignition switch in the “OFF” position)” on page 3-169.

Door ajar warning display (With ignition switch in the "OFF" position)

N00559700101

If any of the doors or the rear hatch is not completely closed, the open door or rear hatch warning is displayed.

Type 1

Type 2

AG0018874

1- Doors and rear hatch are closed
2- Doors or rear hatch is open (driver's door is open in this example)

Information screen (With ignition switch turned from "OFF" to "ON" position)

N00555800175

When the ignition switch is turned to the "ON" position, the display screen changes in the following order.

Type 1

Type 2

AG3003910

1- Screen when the ignition switch is "OFF"
2- System check screen
3- Screen when the ignition switch is "ON"

Features and controls

System check screen

When the ignition switch is turned to the "ON" position, the system check screen is displayed for about 4 seconds. If there is no fault, information screen (when the ignition switch is "ON") is displayed.

If there is a fault, the screen changes to warning display. Refer to “Warning display list (when the ignition switch is “ON”)” on page 3-206.

Type 1 Type 2

AG0026512

NOTE

●The system check screen display varies depending on your equipment.

Service reminder

When the time for periodic inspection arrives, the warning display is displayed for a few seconds after the screen that is initially displayed when the ignition switch is turned "ON". Refer to "Service reminder" on page 3-183.

Type 1

Type 2

ACD control mode display screen (if so equipped)

ND1545900056

The operation status of the ACD control mode is displayed. Refer to “ACD control mode” on page 3-132.

Features and controls

⚠ warning display screen (With ignition switch in the "ON" position)

N00555200124

This is displayed when you press the multi-information meter switch and switch the warning display screen.

This mark is also displayed if there is another warning other than the one displayed.

When the cause of the warning display is eliminated, the warning goes out automatically.

NOTE

- When the Warning is displayed, the warning display screen can be redisplayed on the information screen. Refer to "Information screen (With ignition switch in the "OFF" position)" on page 3-169 or "Information screen (With ignition switch in the "ON" position)" on page 3-176.

Active stability control (ASC) OFF display screen (if so equipped)

N00556100058

This is displayed when the Active stability control (ASC) is turned off with the "ASC OFF" switch.

If there is a fault in the ASC, the "ASC OFF" display illuminates.

Refer to "ASC OFF switch" on page 3-146.

Features and controls

Information screen (With ignition switch in the "ON" position)

N00556200219

Each time you lightly press the multi-information meter switch, the display screen changes in the following order.

1- Odometer (Type 1)/Trip odometer A

2- Odometer (Type 1)/Trip odometer B

3- Service reminder

4- Engine coolant temperature display (Type 1)

5- Driving range display (Type 1)

6- Average speed display, average fuel consumption display, momentary fuel consumption display (Type 1)

7- Driving range display, momentary fuel consumption display (Type 2)

8- Average fuel consumption display, momentary fuel consumption display (Type 2)

9- Average speed display, momentary fuel consumption display (Type 2)

10- Function setting screen

11- Redisplay of a warning display screen

NOTE

●While driving, the function setting screen is not displayed even if you operate the multi-information meter switch. Always park the vehicle in a safe place before operating. Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

- When there is information to be announced, such as a system fault, the tone sounds and the screen display is changed. Refer to “Interrupt display screen (With ignition switch in the “ON” position)” on page 3-180.

Odometer/Trip odometer

The operation method is the same as when the ignition switch is in the “OFF” position.

For further details, refer to “Odometer/Trip odometer” on page 3-170.

Service reminder

Shows the distance and number of months until the next periodic inspection.

Refer to "Service reminder" on page 3-183.

Engine coolant temperature display

Shows the engine coolant temperature.

If the coolant becomes hot, * will blink.

Pay careful attention to the engine coolant temperature display while you are driving.

CAUTION

- If the engine is overheating, “will blink. In this case, the bar graph is on the red zone. Immediately park the vehicle in a safe place and take the required measures. Refer to “Engine overheating” on page 6-5.

Features and controls

Driving range display

Shows the approximate driving range (how many more miles or kilometers you can drive) with the current fuel level. When this driving range falls below 30 miles (50 km), “---” is displayed.

Refuel as soon as possible.

NOTE

●The driving range is determined based on the fuel consumption data. This may vary depending on the driving conditions and habits. Treat the distance displayed as just a rough guideline.

- When you refuel, the driving range display is automatically updated.

However, if you only add a small amount of fuel, the correct value will not be displayed. Fill to a full tank whenever possible.

- When your vehicle is stopped on an extremely steep hill, the driving range value may change. This is due to the movement of fuel in the tank and does not indicate any problem.

●The display setting can be changed to the preferred units (miles or km).

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Average speed display

This displays the average speed from the last reset to the present.

There are 2 types of mode settings as follows.

For details on how to change the average speed display setting, refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Manual reset mode

- When the average speed is being displayed, if you hold down the multi-information meter switch, the average speed displayed at that time is reset.

- When the ignition switch is turned to the “ON” position from the “ACC” or “LOCK” position, the mode setting changes automatically from manual to auto.

Switching to auto occurs automatically. If switching to manual mode is done, however, the data from the last reset is displayed.

Auto reset mode

- When the average speed is being displayed, if you hold down the multi-information meter switch, these calculations will be reset to zero.

- When the ignition switch has been set to the “ACC” or “LOCK” position for about 4 hours or more, the average speed display will automatically reset.

NOTE

●The average speed display and the average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.

●“---” is displayed when the average speed cannot be measured.

●The initial (default) setting is "Auto reset mode".
●The display setting can be changed to the preferred units (mph or km/h).

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

●The average speed display memories for auto reset mode and manual reset mode are erased if the battery is disconnected.

Average fuel consumption display

This displays the average fuel consumption from the last reset to the present.

There are 2 types of mode settings as follows.

For details on how to change the average fuel consumption display setting, refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

The “mark in the momentary fuel gauge shows the average fuel consumption. (Type 2)

Manual reset mode

• When the average fuel consumption is being displayed, if you hold down the multi-information meter switch, the average fuel consumption displayed at that time is reset.
• When the ignition switch is turned to the "ON" position from the "ACC" or "LOCK" position, the mode setting changes automatically from manual to auto.

Switching to auto occurs automatically. If switching to manual mode is done, however, the data from the last reset is displayed.

Auto reset mode

• When the average fuel consumption is being displayed, if you hold down the multi-information meter switch, these calculations will be reset to zero.
• When the ignition switch has been set to the “ACC” or “LOCK” position for about 4 hours or more, the average speed display will automatically reset.

NOTE

●The average speed display and the average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.
●“---” is displayed when the average fuel consumption cannot be measured.
●The initial (default) setting is “Auto reset mode”.
●Average fuel consumption may vary depend on the driving conditions (road conditions, how you drive, etc.) The actual fuel consumption may differ from the fuel consumption displayed, so treat the fuel consumption displayed as just a rough guideline.
●The average fuel consumption display memories for auto reset mode and manual reset mode are erased if the battery is disconnected.
●The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100 km or km/L}.

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Features and controls

Momentary fuel consumption display

While driving, the momentary fuel consumption is shown with a bar graph.

When the momentary fuel consumption surpasses the average fuel consumption, the momentary fuel consumption is displayed with a green bar graph. (Type 2)

Be conscious of maintaining the momentary fuel consumption above the average fuel consumption, it can help you drive with the better fuel consumption.

NOTE

• When the momentary fuel consumption cannot be measured, a bar graph is not shown.
  ●The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100 km or km/L}. Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.
• It is possible to cancel the green bar graph. Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Function setting screen

The “Display language”, “Temperature unit”, “Fuel consumption unit”, and “Average fuel consumption and speed reset method” settings can be modified as desired.

For further details, refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Interrupt display screen (With ignition switch in the "ON" position)

N00556300177

Warning display

When there is information to be announced, such as a system fault, a tone sounds and the information screen is switched to the warning display screen.

Refer to the warning list and take the necessary measures. Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-206.

When the cause of the warning display is eliminated, the warning display goes out automatically.

Returning to the display screen from before the warning display

Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning display.

If you press the multi-information meter switch, the display screen switches to the screen display from before the warning and the A warning (A) is displayed.

Type 1

Type 2

AA3007545

NOTE

●Warning display screens with a “or” mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows.

“Press lightly.

“Press for about 2 seconds or more.”

Features and controls

Redisplay of a warning display screen

When the △ warning is displayed, if you lightly press the multi-information meter switch a few times, the warning display screen you switched from is redisplayed.

Other interrupt displays

The operation status of each system is displayed on the information screen.

For further details, refer to the appropriate page in the warning display list.

Refer to "Other interrupt displays (With ignition switch in the "ON" position)" on page 3-212.

Selector lever position display screen {continuously variable transmission (CVT)}

N00556400051

Shows the position of the selector lever.

Refer to "Selector lever operation" on page 3-95.

Gearshift lever position display screen (Twin Clutch SST)

N00545800068

Shows the position of the gearshift lever.

Refer to "Gearshift lever operation" on page 3-108.

Features and controls

Outside temperature display screen

N00556500108

Shows the temperature outside the vehicle.

NOTE

●The display setting can be changed to the preferred units (°F or °C).
Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.
●Depending on factors such as the driving conditions, the displayed temperature may vary from the actual outside temperature.

3

Twin Clutch SST control mode display screen (Twin Clutch SST)

N00545100032

The operation status of the Twin Clutch SST control mode is displayed. Refer to “Twin Clutch SST control mode” on page 3-116.

ACD control mode display screen (if so equipped)

N00545900069

The operation status of the ACD control mode is displayed. Refer to “ACD control mode” on page 3-132.

Fuel remaining display screen

ND15566(0)154

Shows the amount of fuel remaining.

Type 1 Type 2

AG0018702

CAUTION

●Running out of gas could damage the catalytic converter. If the warning display appears, refuel as soon as possible.

NOTE

• It may take several seconds to stabilize the display after refilling the tank.
• If fuel is added with the ignition switch in the "ON" position, the remaining fuel display may indicate an incorrect fuel level.

Fuel tank filler door mark

The arrow (A) indicates that the fuel tank filler door is located on the left side of the vehicle. (Refer to “Filling the fuel tank” on page 1-4.)

Fuel remaining warning display

When the fuel level runs low, the information screen changes to the interrupt display of the fuel remaining warning display and the mark (B) on the fuel remaining display flashes slowly. If this warning display appears, refuel as soon as possible.

Type 1

Type 2

AA3007558

NOTE

●On hills or curves, the display may be incorrect due to the movement of fuel in the tank.

Service reminder

NO0556700201

Displays the approximate time until the next recommended periodic inspection. “---” is displayed when the inspection time has arrived.

NOTE

●Except for vehicles equipped with Twin Clutch SST, shows the time until the periodic inspection every 6 months (7,500 miles or 12,000 km).

- For vehicles equipped with Twin Clutch SST, the service reminder time can be modified by an authorized Mitsubishi Motors dealer, to adjust for severe usage, etc. Refer to "Severe maintenance schedule" in your vehicle's Warranty and Maintenance Manual. For further information, please contact your authorized Mitsubishi Motors dealer.

Features and controls

Type 1

Type 2

AG0018917

1. Shows the time until the next periodic inspection.

NOTE

●Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.

1. This informs you that a periodic inspection is due. Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

At that time, when the ignition switch is switched from the "OFF" position to the "ON" position, the warning display is displayed for a few seconds on the information screen.

Type 1

Type 2

1. After your vehicle is inspected at an authorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.

Features and controls

To reset

The “---” display can be reset while the ignition switch is in the “OFF” position. When the display is reset, the time until the next periodic inspection is displayed and the warning display is no longer displayed when the ignition switch is switched from the “OFF” position to the “ON” position.

1. When you lightly press the multi-information meter switch, the information screen changes to the service reminder display screen.

2. Press and hold the multi-information meter switch (for about 2 seconds or more) to display "→" and make it flash. (If there is no operation for about 10 seconds with this indicator flashing, the display returns to the previous screen.)

3. With this indicator flashing, if you lightly press the multi-information meter switch, the screen switches from “---” to “CLEAR”. After that, the time until the next periodic inspection is shown.

Type 1

Type 2

AA3007402

Type 1

Type 2

AG3002173

Features and controls

CAUTION

●The customer is responsible for making sure that regular inspections and maintenance and periodic inspections and maintenance are performed. Inspections and maintenance must be performed to prevent accidents and malfunctions.

NOTE

●The “---” display cannot be reset while the ignition switch is in the “ON” position.
- When “---” is displayed, after a certain distance and a certain period of time, the display is reset and the time until the next periodic inspection is displayed.
- If you accidentally reset the display, consult an authorized Mitsubishi Motors dealer for assistance.

Door ajar warning display (With ignition switch in the "ON" position)

N00555700103

Type 1

Type 2

If any of the doors or the rear hatch is not completely closed, this displays the open door or rear hatch. If the speed increases to about 5 mph (8 km/h) or higher with a door or rear hatch ajar, a buzzer will sound 4 times to inform you that a door or rear hatch is ajar.

CAUTION

●Always make sure that the warning display goes out before beginning to drive.

Changing the function settings (With ignition switch in the "ON" position)

N00556800127

1. Park your vehicle in a safe place.

Fully apply the parking brake and move the gearshift lever (manual transaxle) into the "N" (Neutral) position, the selector lever {continuously variable transmission (CVT)} or the gearshift lever (Twin Clutch SST) into the "P" (PARK) position.

1. When you lightly press the multi-information meter switch, the information screen changes to the function setting screen.

Refer to “Information screen (With ignition switch in the “ON” position)” on page 3-176.

CAUTION

●For safety, stop the vehicle before operating. While driving, even if you operate the multi-information meter switch, the function setting screen is not displayed.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.

Type 1

Type 2

AG3002900

Features and controls

NOTE

●To return the menu screen to the function setting screen, press and hold the multi-information meter switch (for about 2 seconds or more).
- If no operations are made within about 15 seconds of the menu screen being displayed, the display returns to the function setting screen.
4. Select the item to change on the menu screen and change to the desired setting. For further details on the operation methods, refer to the following sections.

Refer to “Changing the reset mode for average fuel consumption and average speed” on page 3-188.

Refer to “Changing the fuel consumption display unit” on page 3-190.

Refer to “Changing the temperature unit” on page 3-192. Refer to “Changing the display language” on page 3-193. Refer to “Changing the language on Mitsubishi Multi-Communication System or Bluetooth® 2.0 interface to match the multi-information display (if so equipped)” on page 3-194.

Refer to “Operation sound setting” on page 3-195. Refer to “Changing the amount of time until “REST REMINDER” is displayed” on page 3-197.

Refer to “Changing the turn signal sound” on page 3-198. Refer to “Changing the momentary fuel consumption display (Type 2)” on page 3-199.

Refer to “Returning to the factory settings” on page 3-200.

Changing the reset mode for average fuel consumption and average speed

ND0557000083

You can change the mode condition for the average fuel consumption and average speed display to "Auto reset" or "Manual reset".

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

1. Lightly press the multi-information meter switch to select "AVG" (average fuel consumption and average speed setting).

Type 1

Type 2

AG3002681

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch in sequence from A (Auto reset mode) → M (Manual reset mode) → A (Auto reset mode).

The setting will change to the selected mode condition.

Features and controls

Manual reset mode

• If you press and hold the multi-information meter switch when the average fuel consumption and average speed are displayed, these calculations will be reset to zero.
• When the ignition switch is turned to the “ON” position from the “ACC” or “LOCK” position, the mode setting changes automatically from manual to auto.

Switching to auto occurs automatically. If switching to manual mode is done, however, the data from the last reset is displayed.

Auto reset mode

• When the average fuel consumption and average speed are being displayed, if you hold down the multi-information meter switch, these calculations will be reset to zero.
• When the ignition switch has been set to the “ACC” or “LOCK” position for about 4 hours or more, the average fuel consumption display and the average speed display will automatically reset.

NOTE

●The average speed display and average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.
●The average speed display memories and average fuel consumption memories for auto reset mode and manual reset mode are erased if the battery is disconnected.
●The initial (default) setting is “Auto reset mode”.

Features and controls

Changing the fuel consumption display unit

N005571X097

The fuel consumption display unit can be changed. The distance, speed, and amount units are also changed to match the selected fuel consumption unit.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode screen to the menu screen.

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

1. Lightly press the multi-information meter switch to select "AVG UNIT" (fuel consumption display unit setting).

Type 1

Type 2

AG3002694

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to display "AVG UNIT" (fuel consumption display unit setting).
2. Lightly press the multi-information meter switch to switch in sequence from km/L → L/100 km → mpg (US) → mpg (UK) → RETURN → km/L.

Type 1 Type 2

AG3002939

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selected unit.

Features and controls

NOTE

●The display units for the driving range, the average fuel consumption, the average speed and the momentary fuel consumption are changed, but the units for the indicating needle (speedometer), the odometer and the trip odometer will remain unchanged.
- If the battery is disconnected, the memory of the unit setting is erased and is automatically set to {mpg (US) or L/100 km}.

The distance and speed units are also changed in the following combinations to match the selected fuel consumption unit.

Fuel economy	Distance (driving range)	Speed (average speed)
mpg (US) mile(s) mph
mpg (UK) mile(s) mph
km/L km km/h
L/100 km km km/h

Features and controls

Changing the temperature unit

N00557200144

The temperature display unit can be changed.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode screen to the menu screen.
   Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

2. Lightly press the multi-information meter switch to select
   “”(temperature unit setting).

3. Press and hold the multi-information meter switch (for about 2 seconds or more) to change in sequence from °F → °C → °F.

The setting is changed to the selected temperature unit.

NOTE

- If the battery is disconnected, the memory of the unit setting is erased and is automatically set to ^ ( ^ ).

Type 1

Type 2

AG3003688

Changing the display language

N01557300073

The language of the multi-information display can be changed.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode screen to the menu screen.
   Refer to "Changing the function settings (With ignition switch in the "ON" position)" on page 3-187.
2. Lightly press the multi-information meter switch to select "LANGUAGE" (language setting).

Type 1

Type 2

AG3003024

Features and controls

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to display "LANGUAGE" (language setting).
2. Lightly press the multi-information meter switch to change in sequence from JAPANESE → ENGLISH → GERMAN → FRENCH → SPANISH → ITALIAN → --- (do not display warning message) → RETURN → JAPANESE.

Type 1

Type 2

AG3002014

Features and controls

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selected language.

NOTE

• If the battery is disconnected, the memory of the language setting is erased and is automatically set to ENGLISH.
• If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.

Changing the language on Mitsubishi Multi-Communication System or Bluetooth ^® 2.0 interface to match the multi-information display (if so equipped)

N00529800190

The language used in Mitsubishi Multi-Communication System (if so equipped) or Bluetooth ^® 2.0 interface (if so equipped) can be changed automatically to the same language as that shown in the multi-information display.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode screen to the menu screen.

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

1. Lightly press the multi-information meter switch to select “(language cooperative control).

Type 1

Type 2

AG3003691

1. Every time the multi-information meter switch is pressed for a long time, the setting will change as follows: A (language cooperation: enabled) → M (language cooperation: disabled) → A (language cooperation: enabled). The setting is changed to the selected condition.

NOTE

• If the battery is disconnected, the memory of the language cooperative control is erased and is automatically set to "A" (language cooperation: enabled).
  ●The language display modified with the language setting can be switched in the following manner.

- When “A” (language cooperation: enabled) has been selected with the language cooperative control, the language for the Mitsubishi Multi-Communication System (if so equipped) or the Bluetooth® 2.0 interface (if so equipped) is automatically changed to the language selected for the multi-information display.

- When “M” (language cooperation: disabled) has been selected with the language cooperative control, the language for the Mitsubishi Multi-Communication System (if so equipped) or the Bluetooth® 2.0 interface (if so equipped) is not automatically changed to the language selected for the multi-information display.

Operation sound setting

N00557400133

You can turn off the operation sounds of the multi-information meter switch and rheostat meter illumination button.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.

Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

Features and controls

1. Lightly press the multi-information meter switch to select " operation sound setting).

Type 1

Type 2

AG3003705

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch in sequence from ON (operation sound on) → OFF (operation sound off) → ON (operation sound on). The setting is changed to the selected condition.

NOTE

- If the battery is disconnected, the memory of the operation sound setting is erased and is automatically set to "ON" (operation sound on).

●The operation sound setting only deactivates the operation sound of the multi-information meter switch and rheostat meter illumination button. The warning display and other sounds cannot be deactivated.

Changing the amount of time until "REST REMINDER" is displayed

N00557500150

The amount of time until the display appears can be changed.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.
   Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.

2. Lightly press the multi-information meter switch to select "ALARM" (rest time setting).

Type 1

Type 2

AG3003718

Features and controls

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to display "ALARM" (rest time setting).

Type 1 Type 2

AG0018786

1. Lightly press the multi-information meter switch to select the amount of time until the display appears.
2. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selected time.

NOTE

• If the battery is disconnected, the memory of the unit setting is erased and is automatically set to the "OFF".
  ●The drive time is reset when the ignition switch is in the "OFF" position.

Features and controls

Changing the turn signal sound

N005635X0107D

It is possible to change the turn signal sound.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.
   Refer to "Changing the function settings (With ignition switch in the "ON" position)" on page 3-187.
2. Lightly press the multi-information meter switch to select
   (changing the turn signal sound)

3-198

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from 1 (turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn signal sound 1).

The setting changes to the selected turn signal sound.

Changing the momentary fuel consumption display (Type 2)

N00563600013

It is possible to change the bar graph setting of the momentary fuel consumption display.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.
   Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select 📄. (changing the momentary fuel consumption display)

Features and controls

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from ON (with the green bar graph) → OFF (without the green bar graph) → ON (with the green bar graph).

The setting changes to the selected bar graph setting.

Features and controls

Returning to the factory settings

N00557600180

All of the function settings can be returned to their factory settings.

1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode screen to the menu screen. Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.
2. Lightly press the multi-information meter switch to select "RESET" (return to the factory settings).

Type 1

Type 2

AG3003734

1. Press and hold the multi-information meter switch (for about 5 seconds or more), the buzzer sounds and all of the function settings are returned to the factory settings.

NOTE

●The factory settings are as follows.

• Average fuel consumption and average speed reset mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or L/100 km
  • Temperature unit: °F (Fahrenheit) or °C (Celsius)
  • Display language: ENGLISH
  • Cooperative language setting: A
  • Operation sounds: ON (Operation sound on)
• "REST REMINDER" display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph (Type 2): ON

Indicator light, warning light, and information screen display list

Indicator and warning light list

N00557700035

N00557800209

1- Position indicator → P.3-214
2-High beam indicator → P.3-214
3- Charging system warning light → P.3-216
4- Turn signal indicator/hazard warning light → P.3-214
5- Front fog light indicator (if so equipped) → P.3-214
6- Anti-lock braking system warning light → P.3-140
7- Tire pressure monitoring system warning light → P.3-159
8- Brake warning light → P.3-214
9- Cruise control indicator (if so equipped) → P.3-150
10- Seat belt reminder/warning light → P.2-20
11- Supplemental Restraint System (SRS) warning light → P.2-46

12- Engine malfunction indicator ("SERVICE ENGINE SOON" or "Check engine light") → P.3-215
13- Active stability control (ASC) OFF indicator (if so equipped) → P3-147
14- Active stability control (ASC) indicator → P.3-147
15- Information screen display list → P.3-202

Features and controls

Information screen display list

N0055790(1041)

When there is information to be announced, such as light reminders, the tone sounds and the screen switches to the displays shown below. Refer to the appropriate page and take the necessary measures.

When the cause of the warning display is eliminated, the warning display goes out automatically.

Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 3-203.

Refer to “Warning display list (With ignition switch in the “ON” position)” on page 3-206.

Refer to “Other interrupt displays (With ignition switch in the “ON” position)” on page 3-212.

NOTE

●In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at times.

This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional problem.

• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electronics (including after-market parts).

If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair facility of your choice and have the system checked.

Warning display list (With ignition switch in the "OFF" position)

N00558000208

Screen type 1 Screen type 2 Cause Do this (Reference)
REMOVE KEY	REMOVE KEY	●You have forgotten to remove the key from the ignition switch.	●Remove the key.Refer to “Key reminder system” on page 3-54.
TURN OFF LIGHTS	[4D8S]TURN OFF LIGHTS	●You have forgotten to turn off the lights.	●Refer to “Light auto-cutout function (headlights and other lights)” on page 3-223.
	ALARM ACTIVATING	●The theft-alarm is operating.	●Refer to “Theft-alarm system” on page 3-62.
		●Immobilizer is registered.	●Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-7, 3-42.

Features and controls

Screen type 1 Screen type 2 Cause Do this (Reference)
		●After turning off the engine, an attempt was made to open the driver's door with the ignition switch in any position other than “LOCK” (PUSH OFF).	●Turn the ignition switch to the “LOCK” (PUSH OFF) position. Refer to “Ignition switch return reminder system” on page 3-54.
		●An attempt was made to lock all the doors and the rear hatch with the ignition switch in any position other than “LOCK” (PUSH OFF).	●Turn the ignition switch to the “LOCK” (PUSH OFF) position. Refer to “Ignition switch turn-off reminder system” on page 3-29.
KEY BATTERY LOW	KEY BATTERY LOW	● There is a fault in the F.A.S.T.-key.	● Refer to “F.A.S.T.-key” on page 3-16.
KEY MISSING	KEY NOT DETECTED
CONFIRM KEY LOCATION	KEY STILL IN VEHICLE
CHECK DOORS	CHECK DOORS
SERVICE REQUIRED	KEYLESS OPERATION SYSTEM SERVICE REQUIRED

Features and controls

Warning display list (With ignition switch in the "ON" position)

ND1558100225

Screen type 1 Screen type 2 Cause Do this (Reference)
	—	● There is a fault in the EPS.	● Stop the vehicle in a safe place and inspect it.●If the light still illuminates after the inspection, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Electric power steering system (EPS)” on page 3-143.
KEY BATTERY LOW	KEY BATTERY LOW	● There is a fault in the F.A.S.T.-key.	● Refer to “F.A.S.T.-key” on page 3-16.
KEY MISSING	KEY NOT DETECTED
CONFIRM KEY LOCATION	KEY STILL IN VEHICLE
CHECK DOORS	CHECK DOORS
SERVICE REQUIRED	KEYLESS OPERATION SYSTEM SERVICE REQUIRED
		● Immobilizer is registered.	● Refer to “Electronic immobilizer (Anti-theft starting system)” on page 3-7, 3-42.

Features and controls

Screen type 1 Screen type 2 Cause Do this (Reference)
CHECK		●The brake fluid level is low.●There is a fault in the brake system.	●Park the vehicle in a safe place and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Brake warning display” on page 3-217.
		●There is a fault in the Anti-lock braking system.	●Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective measures.Refer to “Anti-lock braking system warning light/display” on page 3-140.
		●The tire pressure in one of the tires (except spare tire) is low.	●Refer to “Tire Pressure Monitoring System” on page 3-158.
		●There is a fault in the Tire Pressure Monitoring System.	●Refer to “Tire Pressure Monitoring System” on page 3-158.
		●One of the doors or the rear hatch is not completely closed.The open door or rear hatch is displayed.	●Close the door or rear hatch.Refer to “Door ajar warning display (With ignition switch in the “OFF” position)” on page 3-173.

Features and controls

Screen type 1 Screen type 2 Cause Do this (Reference)
CLOSE HOOD		●The engine hood is open. ●Close the engine hood.Refer to “Engine hood” on page 7-4.
CHECK		● The engine is overheated.	● Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 6-5.
SLOW DOWN		●The continuously variable transmission (CVT) fluid or Twin Clutch SST fluid temperature is increased.	●Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable trans-mission (CVT)” on page 3-95.Refer to “Twin Clutch SST” on page 3-107.
FASTEN SEAT BELT		●The seat belt is not fastened when the ignition switch is in the “ON” position.	●Fasten your seat belt properly.Refer to “Driver’s seat belt reminder/warning light and display” on page 2-20.
SERVICE REQUIRED		● There is a fault in the fuel system.	● Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

Features and controls

Screen type 1 Screen type 2 Cause Do this (Reference)
RELEASEPARKING BRAKE		●The vehicle is being driven with the parking brake still applied.	●Release the parking brake.Refer to “Brake warning display” on page 3-217.
		●There is a fault in the engine oil circulation system.	●Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Oil pressure warning display” on page 3-219.
		● There is a fault in the charging system.	● Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Charging system warning display” on page 3-218.
		●There is a fault in the SRS airbag or the seat belt pre-tensioner system.	●Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “SRS warning light/display” on page 2-46.
		●There is a fault in the Active stability control (ASC).	●Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active stability control (ASC)” on page 3-144.

Features and controls

Screen type 1 Screen type 2 Cause Do this (Reference)
		●There is a fault in the CVT.●A safety device in the Twin Clutch SST has been activated due to a possible malfunction in the Twin Clutch SST or in the engine electronic control module.	●Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Continuously variable transmission (CVT)” on page 3-95.Refer to “Twin Clutch SST(Sport shift transmission)” on page 3-107.
		●There is a fault in the ACD (Active center differential system).	●Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “ACD (Active center differential system)” on page 3-131.
		● The fuel is running low.	● Refuel as soon as possible.Refer to “Fuel remaining display screen” on page 3-182.
		● The outside temperature is 37 °F (3 °C) or less.	●Be careful driving on frozen ground.●The ground may be frozen even when this warning is not displayed, so drive carefully.
		● The timing chain may be worn.	● Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

Features and controls

Other interrupt displays (With ignition switch in the "ON" position)

ND15582(0120)

The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each system.

Screen System operation	status Reference
	●When the Active stability control (ASC) is operating.	●Refer to “Active stability control (ASC)” on page 3-147.

This informs you that a periodic inspection is due.

Screen type 1 Screen type 2 Do this
		Have an inspection made by an authorized Mitsubishi Motors dealer. For further details, refer to “Service reminder” on page 3-183.

The rest time can be set.

Screen type 1 Screen type 2 Do this
		Park the vehicle in a safe place, turn off the engine, and take a rest.Use this display as rough guide for taking rests during a long drive.The interval from the start of your trip until this message is displayed can be set.Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 3-187.The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds about every 5 minutes to encourage you to take a rest.● In the following cases, the time driven is reset and the display returns to the previous display screen. After this, when the set time is reached again, the display and buzzer encourage you to take a rest.• The buzzer sounds 3 times.• The ignition switch is turned to the “OFF” position.• The multi-information meter switch is held (for about 2 seconds or more).

Features and controls

Indicators

N00519900156

Warning lights

N00520300147

Turn signal indicators/Hazard warning lights

N00520000229

The arrows will flash in time with the corresponding exterior turn signals when the turn signal lever is used.

Both arrows will flash when the hazard warning flasher switch is pressed.

NOTE

- If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.

High beam indicator

N00520100086

A blue light comes on when the headlights are on high beam.

Front fog light indicator

N00520200218

This indicator comes on while the front fog lights are on.

Position indicator

N00551300026

This indicator light illuminates while the position lights are on.

Brake warning light

N00520400366

When the ignition switch is turned to the “ON” position, this indicator normally comes on and goes out a few seconds later. A warning is also displayed in the multi-information display. The warning light also illuminates after starting the engine under the following conditions:

●When the parking brake is still applied.
●When the brake fluid level is low.
- When the brake system circuit is not working properly.

Before driving, be sure that the parking brake is fully released and brake warning light is off.

CAUTION

• If the brake warning light and the anti-lock braking system warning light are illuminated at the same time, the braking force distribution function will not operate, so the vehicle may be destabilized during sudden braking under the following conditions.
• When the brake warning light does not go out even when the parking brake is released.
• When the brake warning light stays on while driving.
• If the above occurs, avoid sudden braking and high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.

CAUTION

●The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.

• Confirm that the vehicle slows down when you press down on the brake pedal harder than usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking brake.

Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.

- Do not suddenly apply the parking brake while driving. This may cause the rear wheels to lock and cause an accident.

Engine malfunction indicator ("SERVICE ENGINE SOON" or "Check engine light")

N00520500758

This indicator is a part of the onboard diagnostic (OBD) system which monitors the emissions, engine control system or continuously variable transmission (CVT) control system/Twin Clutch SST control system. If a problem is detected in one of these systems, this indicator comes on. When the ignition switch is turned to the "ON" position, this indicator normally comes on and goes off after the engine has started.

This indicator will come on if the fuel tank filler cap is not properly tightened. If this indicator comes on and stays on after refueling, stop the engine and check that the cap is properly tightened. (Turn the cap clockwise until you hear clicking sounds.)

If this indicator does not go off after several seconds or lights up while driving, have the system checked as soon as possible at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

CAUTION

●Driving for a long time with the engine malfunction indicator on may cause more damage to the emission control system. This could also affect fuel economy and drivability.
- If this indicator does not come on when the ignition switch is turned to the "ON" position, have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

Features and controls

CAUTION

- If the engine malfunction indicator comes on while the engine is running, avoid driving at high speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when you depress the accelerator pedal. When the vehicle is stationary with the indicator on, you must depress the brake pedal more firmly than usual since the engine idling speed is higher than usual and a vehicle equipped with a CVT or a Twin Clutch SST has a stronger tendency to creep forward.

NOTE

- Do not disconnect the battery cable when the engine malfunction indicator ("SERVICE ENGINE SOON" or "Check engine light") is on.

The engine electronic control module stores critical OBD information (especially exhaust emission data), which may be lost if the battery cable is disconnected while the engine malfunction indicator is on. This will make it difficult to diagnose the cause of future problems.

Charging system warning light

ND15206101296

This light comes on in the event of a malfunction in the charging system or when the ignition switch is turned to the “ON” position (engine off). A warning is also displayed in the multi-information display. When the engine is started, the light should go out. Check to make sure that the light has gone out before driving.

CAUTION

- If the warning light stays on while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

Information screen display

N00558300025

Brake warning display

N00558400101

Type 1

This warning is displayed if the vehicle is being driven with the parking brake still applied. The warning light in the instrument cluster only comes on when the parking brake is applied.

CAUTION

- If a vehicle is driven without releasing the parking brake, the brakes will overheat, resulting in ineffective braking and possible brake failure. If this warning is displayed while driving, release the parking brake.

Features and controls

Type 1

Type 2

When the ignition switch is turned to the "ON" position, if the brake fluid is low, this warning is displayed. The warning light in the instrument cluster also illuminates.

CAUTION

• If this warning stays on and does not go out while driving, there is a danger of ineffective braking. If this happens, park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.
• If the brake warning display, brake warning light, and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribution function will not operate, so the vehicle may be destabilized during sudden braking. Avoid sudden braking and high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.

Features and controls

CAUTION

●The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.

• Confirm that the vehicle slows down when you press down on the brake pedal harder than usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine braking to reduce your speed and slowly apply the parking brake.

Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.

Charging system warning display

ND1558610073

Type 1

Type 2

If there is a fault in the charging system, the warning display is displayed on the information screen in the multi-information display. The warning light in the instrument cluster also illuminates.

CAUTION

- If warnings are displayed while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.

Oil pressure warning display

N00558700061

Type 1

Type 2

If the engine oil pressure drops while the engine is running, the warning display is displayed on the information screen in the multi-information display.

CAUTION

• If the vehicle is driven while the engine oil is low, or the oil level is normal but the warning is displayed, the engine may overheat and damage may result.
• If the warning is displayed while the engine is running, park your vehicle in a safe place as soon as possible and check the engine oil level.
• If this warning display comes on when the engine oil level is proper, have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

NOTE

●The oil pressure warning display does not show the amount of oil. The oil level must be checked using the dipstick.

Features and controls

Combination headlights and dimmer switch

N00522500680

Headlights

NOTE

●Do not leave the headlights and other lights on for a long period of time when the engine is not running. The battery will run down.
- When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes foggy. This is the same as when window glass mists up on a humid day, and does not indicate a problem. When the light is switched on, the heat will dry out the fog. However, if water collects inside the light, have it checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

Type 1

Rotate the switch to operate the lights.

OFF	All lights off
EDGE	Parking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

If your vehicle is equipped with daytime running lights, the combinations of switch operations and illuminated lights differ in accordance with the following conditions.

[When the engine is started and the parking brake is released]

The daytime running lights will be illuminated.

OFF	The daytime running lights illuminated
EDGE	The daytime running lights illuminatedParking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

NOTE

- Once the daytime running light come on, they do not go out until the ignition switch is turned to the "LOCK" or "ACC" position.

[The engine is not running, or the engine is running but the parking brake has not been released]

The engine starts when the lights are off.

OFF	All lights off
EDGE	Parking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

Type 2

Rotate the switch to operate the lights.

OFF All lights off
AUTO	Headlights and other lights turn on and off automatically in accordance with outside light level.
EDGE	Parking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

Features and controls

If your vehicle is equipped with daytime running lights, the combinations of switch operations and illuminated lights differ in accordance with the following conditions.

[When the engine is started, and the parking brake is released]

The daytime running lights will be illuminated.

OFF The daytime running lights illuminated
AUTO	The daytime running lights illuminatedHeadlights and other lights turn on and off automatically in accordance with outside light level.
EDGE	The daytime running lights illuminatedParking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

NOTE

- Once the daytime running light come on, they do not go out until the ignition switch is turned to the “LOCK” or “ACC” position.

[When the engine is not running, or when the engine is running but the parking brake is not released]

The engine starts when the lights are off.

OFF All lights off
AUTO	Headlights and other lights turn on and off automatically in accordance with outside light level.
EDGE	Parking, tail, front and rear side-marker lights, license plate and instrument panel lights on
ED	Headlights and other lights on

NOTE

●The sensitivity of the automatic on/off control can be adjusted.

For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.

On vehicles equipped with Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

●Do not cover the sensor (A) for the automatic on/off control by affixing a sticker or label to the windshield.

- If the lights do not turn on or off with the switch in the "AUTO" position, manually operate the switch and we recommend you to have your vehicle checked.

Features and controls

Light auto-cutout function (headlights and other lights)

N00532600525

- If the ignition key is turned to "LOCK" or "ACC" position or removed from the ignition switch and the driver's door is opened with the light switch in the "∅r" position, the lights automatically turn off.

[When using a key to start the engine]

- If the driver's door is opened after the key is removed from the ignition switch, a high-pitched constant tone will sound to remind you to turn off the lights.

- If the driver's door is opened with the key in the ignition switch, a low-pitched tone will sound to remind you to remove the key.

[When using the F.A.S.T.-key to start the engine]

- If the ignition switch is turned to the "LOCK" position and the driver's door is opened, a high-pitched constant buzzer will sound to remind you to turn off the lights.

- If the ignition switch is turned to any position other than "LOCK" and the driver's door is opened, a low-pitched constant buzzer will sound to remind you to return the ignition switch.

- If the ignition switch is turned to "LOCK" or "ACC" position with the driver's door closed and the light switch in the "305 or " " Position, the lights will stay on for about 3 minutes and then turn off automatically.

Features and controls

NOTE

●The light auto-cutout function can be deactivated.

See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For further details, refer to the separate owner's manual.

When you want to keep the lights on:

If the light switch is turned to the “20 or “” position again after the engine is turned off, the about 3 minutes auto-cutout function described above will not work. The lights (the parking lights, tail lights and license plate lights) will stay on and will not turn off automatically.

NOTE

- When the engine is started using the key, if the driver's door is opened and the key is removed, the headlight reminder buzzer intermittently emits a high-pitched sound. If the key is still in the ignition the key reminder buzzer intermittently emits a low-pitched sound.

The buzzer stops when the driver's door is closed. (A warning is also displayed in the multi-information display.)

- When the engine is started using the F.A.S.T.-key, if the driver's door is opened and the ignition switch is in the "LOCK" position, the headlight reminder buzzer intermittently emits a high-pitched sound. If the ignition switch is in any position other than "LOCK", the ignition switch on reminder buzzer intermittently emits a low-pitched sound. The buzzer stops when the driver's door is closed. (A warning is also displayed in the multi-information display.)

Headlight reminder buzzer

ND1549M0167

When using a key to start the engine

If the driver's door is opened with the key in the "LOCK" or "ACC" position or removed from the ignition switch while the lights are on, the buzzer will sound to remind you to turn off the lights.

When using the F.A.S.T.-key to start the engine

If the driver's door is opened with the ignition switch in the "LOCK" or "ACC" position, or if the ignition switch is moved to the "LOCK" position while the lights are on, the buzzer will sound to remind you to turn off the lights.

In either case, the lights and buzzer will turn off automatically. Or you can turn the light switch to the "OFF" position to stop the buzzer.

Dimmer (high/low beam change)

N00549900155

To change the headlights from high beam to low beam and vice versa, pull the turn signal lever to fully toward you (1). Switch the headlights to low beam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated blue light in the instrument cluster indicates when the headlights are on high beam.

Features and controls

Headlight flasher

N00551K100156

You can flash the high beams by pulling the lever gently toward you (2). The lights will go back to normal when you let go. While the high beam is on, you will see a blue light on the instrument panel.

NOTE

●You can flash the high beams by pulling the lever toward you, even if the light switch is off.

- If you turn the lights off with the headlights set to high-beam illumination, the headlights are automatically returned to their low-beam setting when the light switch is next turned to the “≡” position.

Features and controls

Welcome light

N00563201093

This function turns on the front side-marker and parking lights for about 30 seconds after the UNLOCK button (A) on the remote control transmitter is pressed when the combination headlights and dimmer switch is in the "OFF" or "AUTO" position (for vehicles equipped with the automatic light control). On vehicles equipped with the automatic light control, the welcome light function will operate only when it is dark outside the vehicle.

3

NOTE

●While the welcome light function is operating, perform one of the following operations to cancel the function.

- Push the LOCK button (B) on the remote control transmitter.

- Turn the combination headlights and dimmer switch to the “” position.

- Turn the ignition switch to the "ON" position.

●It is possible to modify functions as follows:

• The headlights can be set to come on in the low beam setting.
  • The welcome light function can be deactivated.

For details, consult a Mitsubishi Motors dealer.

On vehicles equipped with a Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

Coming home light

N00547300096

This function turns on the headlights in the low beam setting for about 30 seconds after the ignition switch is turned to the "LOCK" position.

1. Turn the combination headlights and dimmer switch to the "OFF" or "AUTO" position (for vehicles equipped with the automatic light control).
2. Turn the ignition switch to the "LOCK" position. Also, if a key was used to start the engine, remove the key from the ignition switch.
3. Within 60 seconds of turning the ignition switch to the "LOCK" position, pull the turn signal lever toward you.

Diagram of a mechanical component with a curved arrow indicating rotation, no text or symbols present

Features and controls

1. The headlights will come on in the low beam setting for about 30 seconds. After the headlights go off, the headlights can be turned on again in the low beam setting for about 30 seconds by pulling the turn signal lever toward you within 60 seconds of turning the ignition switch to the "LOCK" position. To turn on the headlights again after 60 seconds of turning the ignition switch to the "LOCK" position, repeat the process from step 1.

NOTE

●While the coming home light function is operating, perform one of the following operations to cancel the function.

- Pull the turn signal lever toward you.

- Turn the combination headlights and dimmer switch to the “30 or “” position.

- Turn the ignition switch to the "ON" position.

- It is possible to modify functions as follows:

- The time that the headlights remain on can be changed.

- The coming home light function can be deactivated.

For details, consult a Mitsubishi Motors dealer.

On vehicles equipped with a Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

Headlight leveling switch (if so equipped)

N00537100062

The direction of the headlight beam (the direction in which the light shines) alters according to the number of people and the load in the vehicle. Lower the headlight angle if it is too high due to the number of people and/or the load in the vehicle so that the headlights' glare does not distract the drivers of approaching vehicles. First set the light switch to the "≡D position, then turn the headlight leveling switch knob to lower the beam. The greater the number on the headlight leveling switch knob, the lower the beam will point.

Set the switch to the appropriate position so that the headlight beam is level with the road.

WARNING

●To avoid distraction while driving, always perform headlight adjustments before vehicle operation.

NOTE

●Start adjusting when the knob is at the "0" position (when the beam is at its highest).
- Keep the knob in the "0" position except when using the knob to lower the headlight beam angle.
●Always return the knob to the "0" position when the load is removed and the people have left the vehicle.

Turn signal lever

N00522600489

When changing lanes, or to making a gradual turn, hold the lever in the "lane change" position (1). It will return to the neutral position when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn is complete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel is turned only slightly. You can easily return the lever by hand.

Also, when you move the lever to (1) slightly then release it, the turn signal lights and indicator light in the instrument cluster will flash three times.

Features and controls

NOTE

●A light in the instrument panel flashes to show when the front and rear turn signal lights are working properly.

If this light flashes faster than usual, check for a burned out light bulb or malfunctioning connection.

If the panel light does not come on when the lever is moved, check for a blown fuse or a burned out bulb in the panel.

Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice.

●It is possible to modify functions as follows:

• Deactivate the turn signal light 3-flash function for lane changes.
• Adjust the time required to operate the lever for the 3-flash function.

See your authorized Mitsubishi Motors dealer for details.

For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For further details, refer to the separate owner's manual.

Hazard warning flasher switch

N00522700233

If you press the flasher switch, the front and rear turn signals will flash intermittently, and so will the hazard warning lights. This is an emergency warning system and should not be used when the vehicle is in motion, except for emergencies.

If you need to leave your vehicle, the flashers will keep working after the ignition switch is turned off.

NOTE

- If you keep the flashers on for several hours with the engine turned off, the battery will run down.

Front fog light switch (if so equipped)

N00522800407

The front fog lights illuminate only when the headlights are on low beam.

Turning the knob in the direction of the "ON" position turns on the front fog lights as well as the indicator in the instrument cluster. To turn them off, turn the knob in the direction of the "OFF" position.

The knob will return to the neutral position when it is released.

NOTE

- If the headlights are switched to high beam, the front fog lights will go out; they will illuminate again when the headlights are switched back to low beam.

Features and controls

- If the light switch is rotated to the "OFF" or "Position while the front fog lights are illuminated, they will automatically turn off. They can be turned back on again by rotating the light switch back to "Position, and turning the knob in the direction of the "ON" position.

- Do not use fog lights except in conditions of fog, otherwise excessive light glare may temporarily blind oncoming vehicle drivers.

Features and controls

Wiper and washer switch

N00523000594

CAUTION

- If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm the glass with the defroster before using the washer.

Windshield wipers

NOTE

●To ensure a clear rearward view, the rear window wiper will automatically perform several continuous operations if the gearshift lever or the selector lever is put in the "R" position while the windshield wipers are operating. Refer to "Rear window wiper and washer" on page 3-239.

Except for vehicles equipped with rain sensor

The windshield wiper and washer can be operated with the ignition switch in the "ON" or "ACC" position.

If the blades are frozen to the windshield, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.

MIST- Misting function

The wipers will operate once.

OFF-Off

INT- Intermittent (Speed sensitive)

LO-Slow

HI- Fast

Features and controls

To adjust intermittent intervals

With the lever in the "INT" (speed sensitive intermittent operation) position, the intermittent intervals can be adjusted by turning the knob (A).

1 - Fast
2- Slow

NOTE

●The speed-sensitive-operation function of the windshield wipers can be deactivated.

For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice. On vehicles equipped with Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment. Refer to separate owner's manual for details.

Misting function

The misting function can be used when the ignition switch is in the "ON or "ACC" position.

The wipers will operate once if the wiper lever is raised to the "MIST" position and released. This operation is useful when it is drizzling, etc. The wipers will continue to operate while the lever is held in the "MIST" position.

Diagram of a car handle with an arrow indicating upward motion (no text or symbols)

Features and controls

Vehicles equipped with rain sensor

The windshield wipers can be operated with the ignition switch in the "ON" or "ACC" position.

If the blades are frozen to the windshield or rear window, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.

MIST- Misting function
The wipers will operate once.
OFF-Off
INT- Auto-wiper control
Rain sensor
The wipers will automatically operate depending on the amount of moisture on the windshield.
LO-Slow
HI-Fast

Rain sensor (if so equipped)

Can only be used when the ignition switch is "ON" position. If the lever is put in the "AUTO" position, the rain sensor (A) will detect the extent of rain (or snow, other moisture, dust, etc.) and the wipers will operate automatically.

Keep the lever in the "OFF" position if the windshield is dirty and the weather is dry.

Wiper operation under these conditions can scratch the wind-shield and damage the wipers.

Line drawing of a car interior showing dashboard, steering wheel, and seat area (no text or symbols)

CAUTION

• With the ignition switch in the "ON" position and the lever in the "AUTO" position, the wipers may automatically operate in the situations described below.
• When cleaning the outside surface of the windshield, if you touch the rain sensor.
• When cleaning the outside surface of the windshield, if you wipe with a cloth the rain sensor.
• When using an automatic car wash.
• A physical shock is applied to the windshield.
• A physical shock is applied to the rain sensor.
  If your hands get trapped, you could suffer injuries or the wipers could malfunction. To deactivate the rain sensor, place the lever in the "OFF" position.

NOTE

●To protect the rubber parts of the wipers, this operation of the wipers does not take place when the vehicle is stationary and the ambient temperature is about 32 °F ( 0 °C ) or lower.
- Do not cover the sensor by affixing a sticker or label to the windshield. Also, do not put any water-repellent coating on the windshield. The rain sensor would not be able to detect the extent of rain, and the wipers might stop working normally.
●In the following cases, the rain sensor may be malfunctioning. Have the vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
- When the wipers operate at a constant interval despite changes in the extent of rain.
- When the wipers do not operate even though it is raining.
●The wipers may automatically operate when things such as insects or foreign objects are affixed to the windshield on top of the rain sensor or when the windshield is frozen. Objects affixed to the windshield will stop the wipers when the wipers cannot remove them. To operate the wipers again, move lever to the “LO” or “HI” position. Also, the wipers may operate automatically due to strong direct sunlight or electromagnetic wave. To stop the wipers, place the lever in the “OFF” position.
- Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice when replacing the windshield glass.

Features and controls

To adjust the sensitivity of the rain sensor

With the lever in the "AUTO" (rain sensor) position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (B).

“+”- Higher sensitivity to rain

“-”- Lower sensitivity to rain

NOTE

●Automatic operation (rain droplet sensitive) can be changed to intermittent operation (vehicle-speed sensitive, or at adjustable intervals).

For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.

On vehicles equipped with Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

Features and controls

Misting function

Move the lever in the direction of the arrow and release, to operate the wipers once.

Use this function when you are driving in mist or drizzle.

The wipers will operate once if the lever is raised to the "MIST" position and released when the ignition switch is in the "ON" or "ACC" position. The wipers will continue to operate while the lever is held in the "MIST" position.

Diagram of a car handle with an arrow indicating upward motion (no text or symbols)

The wipers will operate once if the lever is moved to the "AUTO" position and the knob (C) is turned in the "+" direction when the ignition switch is "ON" position.

Features and controls

Windshield washer

NDD5046DX1256

The windshield washer can be operated with the ignition switch in the "ON" or "ACC" position.

The washer fluid will be sprayed onto the windshield by pulling the lever toward you.

When the wipers are not in operation or in intermittent operation, by pulling the lever toward you, the wipers will operate several times while the washer fluid is being sprayed.

Also, by releasing the lever soon after pulling it toward you, the washer fluid will be sprayed several times while the wipers are operating several times. (Intelligent washer)

Intelligent washer will stop operating with any operation of the lever.

Diagram of a car showing airflow patterns around the window, with an inset illustrating the motion of airflow (no text or symbols present)

NOTE

●It is possible to modify functions as follows:

• Intelligent washer can be deactivated.
• The wipers can be set to operate again after about 6 seconds.

For details, consult a Mitsubishi Motors dealer.

On vehicles equipped with a Mitsubishi Multi-Communication System, screen operations can be used to make the adjustment.

Refer to the separate owner's manual for details.

Rear window wiper and washer

N00523200349

The rear window wiper and washer can be operated when the ignition switch is in the "ON" or "ACC" position.

Turn the knob to operate the rear window wiper.

OFF-Off

INT- The wiper operates continuously for several seconds then operates intermittently at intervals of about 8 seconds.

Washer fluid will be sprayed onto the rear window glass while the knob is turned fully in either direction.

When the washer fluid is sprayed, the wiper will automatically operate 2 or 3 times.

Features and controls

NOTE

●The rear window wiper will automatically perform several continuous operations if the gearshift lever or the selector lever is put in the "R" position while the windshield wipers or the rear window wiper is operating. (automatic operation mode)

After the automatic operation, the rear window wiper will stop operating if the knob is in the "OFF" position. If the knob is in the "INT" position, the rear window wiper will return to the intermittent operation.

It is possible to set the rear window wiper to perform the automatic operation only if the gearshift lever or the selector lever is put in the "R" position while the rear window wiper is operating with the knob in the "INT" position. See your authorized Mitsubishi Motors dealer for details.

- If the knob is in the "OFF" position, turn the knob to the "INT" position twice quickly to operate the rear window wiper continuously. (continuous operation mode) Turn the knob to the "OFF" position to stop the rear window wiper continuous operation.

- The wiper intermittent operation time can be adjusted. See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For further details, refer to the separate owner's manual.

●The washer fluid reservoir is located in the engine compartment.

Check the fluid level regularly and refill if necessary. (Refer to "Washer fluid" on page 7-21.)

Features and controls

Precautions to observe when using wipers and washers

N00523500209

CAUTION

- If the washer is used in cold weather, the washer fluid sprayed onto the glass might freeze, blocking your view. In cold weather, heat the glass with the defroster before using the washer.

NOTE

• Do not use the wipers when the windshield is dry. This could scratch the glass and wear the wiper blades prematurely.
  ●Before using the wipers in cold weather, check to be sure that the wiper blades are not frozen to the windshield. Using the wipers while the blades are frozen could cause the wiper motor to burn out.
• If the wipers become blocked by ice or other deposits on the glass, the motor may still burn out even if the wiper switch is OFF. If deposits form on the windshield, park your vehicle in a safe place, turn off the engine, and clean the glass so that the wipers can operate smoothly.
  ●Avoid using the washer for more than 20 seconds at a time. Do not operate the washer when the fluid reservoir is empty or the pump may fail.
  ●During cold weather, add a recommended washer solution that will not freeze in the washer reservoir. Otherwise the washer may not work or may be damaged.

- Replace the wiper blades when they are worn. Use the proper size replacement blades. If you have questions, ask your authorized Mitsubishi Motors dealer.

Electric rear window defogger switch

N00523700315

The electric rear window defogger can be used when the engine is running.

The indicator light (A) will come on when you press the electric rear window defogger switch. Electric current will flow through the heating wires on the rear window to help clear away moisture or frost.

After about 20 minutes of operation, the system will shut off automatically.

To switch the defogger OFF before 20 minutes have passed, press the switch again. The indicator light will go out and the defogger will turn off.

If you need the defogger for more than 20 minutes, press the switch again. This will add 20 more minutes.

CAUTION

●The rear window defogger is not designed to melt snow. Remove any snow manually before using the rear window defogger.

●Use the rear window defogger only after the engine has started and is running. Be sure to turn the defogger switch off immediately after the window is clear to save on battery power.

●Do not place stickers, tape, or other items that are attached with adhesive over the grid wires on the rear window.

●When cleaning the inside rear window, use a soft cloth and wipe lightly over the grid wires.

NOTE

- If your vehicle is equipped with heated mirrors, mist can also be removed from the outside rearview mirrors when the rear window defogger switch is pressed. (Refer to "Heated mirror" on page 3-82.)

Features and controls

Horn switch

N00523800169

To honk the horn, press around the “” mark on the steering wheel.

Link System (if so equipped)

N00563700027

The Link System takes overall control of the devices connected via the USB input terminal or the Bluetooth ^® 2.0 interface allowing the connected devices to be operated by using the switches in the vehicle or voice commands.

See the following section for details on how to operate.

Refer to "Bluetooth® 2.0 interface" on page 3-243.

Refer to "USB input terminal" on page 3-270.

Refer to "To play tracks from USB device" on page 5-104.

Refer to “To play tracks from a Bluetooth ^® device” on page 5-121.

Refer to “To use the external audio input function” on page 5-125.

Bluetooth ^® is a registered trademark of BLUETOOTH SIG, INC.

Link System End User License Agreement

N01563800015

You have acquired a device that includes software licensed by Mitsubishi Motors Corporation from JOHNSON CONTROLS Inc (the automotive experience business unit), and their subsequent 3rd party suppliers. For a complete list of these 3rd party products and their end user license agreements, please go to the following website.

http://www.jciblueconnect.com/faq/fulldisclosure.pdf

Bluetooth ^® 2.0 interface (if so equipped)

N(01563900061

The Bluetooth ^® 2.0 interface allows for making/receiving hands-free calls in the vehicle using a Bluetooth ^® compatible cellular phone based on the wireless communication technology commonly known as Bluetooth ^® . It also allows the user to play music, saved in a Bluetooth ^® music player, from the vehicle's speakers.

The system is equipped with a voice recognition function, which allows you to make hands-free calls by simple switch operations and voice command operations using a defined voice tree.

The Bluetooth ^® 2.0 interface can be used when the ignition switch is in the “ON” or “ACC” position.

Before you can use the Bluetooth ^® 2.0 interface, you must pair the Bluetooth ^® device and Bluetooth ^® 2.0 interface. Refer to “Connecting the Bluetooth ^® 2.0 interface and Bluetooth ^® device” on page 3-251.

Bluetooth ^® is a registered trademark of BLUETOOTH SIG, INC.

Features and controls

WARNING

• Although the Bluetooth ^® 2.0 interface allows you to make hands-free calls, if you choose to use the cellular phone while driving, you must not allow yourself to be distracted from the safe operation of your vehicle. Anything, including cellular phone usage, that distracts you from the safe operation of your vehicle increases your risk of an accident.
  ●Refer to and comply with all state and local laws in your area regarding cellular phone usage while driving.

NOTE

• If the ignition switch is left in the “ACC” position, the accessory power will automatically turn off after a certain period of time and you will no longer be able to use the Bluetooth® 2.0 interface. The accessory power comes on again if the ignition switch is turned from the “ACC” position. Refer to “ACC power auto-cutout function” on page 3-83.
  ●The Bluetooth ^® 2.0 interface cannot be used if the Bluetooth ^® device has a dead battery or the device power is turned off.
  ●Hands-free calls will not be possible if your phone does not have service available.
• Some Bluetooth ^ devices are not compatible with the Bluetooth ^ 2.0 interface.

Steering control switch → P3-245

Voice recognition function → P3-24 7

Useful voice commands → P.3-248

Speaker enrollment function → P.3-250

Connecting the Bluetooth ^® 2.0 interface and the Bluetooth ^® device → P.3-251

Operating a music player connected via Bluetooth ^® → P.3-256 How to make or receive hands-free calls → P3-256

Phonebook function → P. 3-260

Steering control switch

N015640100143

Features and controls

1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP button

Features and controls

Volume up button

Press this button to increase the volume.

Volume down button

Press this button to decrease the volume.

SPEECH button

- Press this button to change to voice recognition mode. While the system is in voice recognition mode, “Listening” will appear on the audio display.

- If you press the button briefly while in voice recognition mode, it will interrupt prompting and allow voice command input.

Pressing the button longer will deactivate the voice recognition mode.

- Pressing this button briefly during a call will enable voice recognition and allow voice command input.

PICK-UP button

●Press this button when an incoming call is received to answer the telephone.

- When another call is received during a call, press this button to put the first caller on hold and talk to the new caller.

- In such circumstances, you can press the button briefly to switch between callers. You will switch to the first caller and the other caller will be put on hold.

- To establish a three-way call in such situations, press the SPEECH button to enter voice recognition mode and then say “Join calls.”

HANG-UP button

- Press this button when an incoming call is received to refuse the call.

●Press this button during a call to end the current call. When another call is on hold, you will switch to that call.

- If this button is pressed in the voice recognition mode, the voice recognition mode will be deactivated.

NOTE

- When you press the SPEECH button to enter voice recognition mode with a cellular phone paired to the system, current information on the cellular phone, such as "remaining battery life," "signal strength" or "roaming," will be displayed on the audio display.*

*: Some cellular phones will not send this information to the Bluetooth® 2.0 interface.

- Call waiting and three-way calls can be used by the Bluetooth® 2.0 interface, only if it is possible to use those services with your cellular phone.

Voice recognition function

N(01564100060

The Bluetooth ^® 2.0 interface is equipped with a voice recognition function.

Simply say voice commands and you can perform various operations and make or receive hands-free calls.

With the Bluetooth ^® 2.0 interface, voice recognition is possible for US English, North American Spanish and Canadian French. The factory setting is “English.”

NOTE

• If the voice command that you say differs from the predefined command or cannot be recognised due to ambient noise or some other reason, the Bluetooth® 2.0 interface will ask you for the voice command again up to 3 times.
  ●For best performance and further reduction of ambient noise, the vehicle windows should be closed while engaging the voice recognition function.
  ●Some voice commands have alternative commands.
  ●Depending on the selected language, some functions may not be available.

Selecting the language

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Language."
4. The voice guide will say “Select a language: English, Spanish or French.” Say the desired language. (Example: “English”)
5. The voice guide will say "English (Spanish or French) selected. Is this correct?" Say "Yes." If you say "No," the system will return to Step 4.

NOTE

●The voice guide will repeat the same message twice. The first message is in the current language, and the second message is in the selected language.
- If many entries are registered in the vehicle phonebook, changing the language will take a longer time.
- Changing the language deletes the mobile phonebook imported to the Bluetooth® 2.0 interface. If you wish to use it, you will have to import it again.
6. When the voice guide says “English (Spanish or French) selected,” the language change process will be completed and the system will return to the main menu.

Features and controls

Useful voice commands

N0056420016

Help function

N00564300017

The Bluetooth ^® 2.0 interface is equipped with a help function. If you say “Help” when the system is waiting for a voice command input, the system will tell you a list of the commands that can be used under the circumstances.

Canceling

N0056440018

There are 2 cancel functions.

If you are at the main menu, say "Cancel" to exit from the Bluetooth ^® 2.0 interface.

If you are anywhere else within the system, say "Cancel" to return to the main menu.

Confirmation function setting

ND1564500019

The Bluetooth ^® 2.0 interface is equipped with a confirmation function.

With the confirmation function activated, you are given more opportunities than normal to confirm a command when making various settings to the Bluetooth ^® 2.0 interface. This allows you to decrease the possibility that a setting is accidentally changed.

The confirmation function can be turned on or off by following the steps below.

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Confirmation prompts."
4. The voice guide will say "Confirmation prompts are . Would you like to turn confirmation prompts ."

Answer “Yes” to change the setting or answer “No” to keep the current setting.

1. The voice guide will say "Confirmation prompts are " and then the system will return to the main menu.

Security function

N00564600065

It is possible to use a passcode as a security function by setting a passcode of your choice for the Bluetooth ^® 2.0 interface.

When the security function is turned on, it is necessary to make a voice input of a 4-digit passcode in order to use all functions of the Bluetooth ^® 2.0 interface, except for reception.

Setting the passcode

Use the following procedure to turn on the security function by setting a passcode.

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Passcode."
4. The voice guide will say "Passcode is disabled. Would you like to enable it?" Answer "Yes." Answer "No" to cancel the setting of the passcode and return to the main menu.
5. The voice guide will say "Please say a 4-digit passcode. Remember this passcode. It will be required to use this system." Say a 4-digit number which you want to set as a passcode.
6. For confirmation purposes, the voice guide will say "Passcode <4-digit passcode>. Is this correct?" Answer "Yes." Answer "No" to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the voice guide will say "Passcode is enabled" and the system will return to the main menu.

NOTE

●Passcode will be required to access the system after the next ignition cycle.
- It is required for a little time after engine stop that the entered passcode is actually recorded in the system. If the ignition switch is made to “ACC” or “ON” or the engine is started immediately after engine stop, there is a case when the entered passcode is not recorded in the system. At this time, please try to enter the passcode again.

Entering the passcode

If a passcode has been set and the security function is enabled, the voice guide will say "Hands-free system is locked. State the passcode to continue" when the SPEECH button is pressed to enter voice recognition mode. Say the 4-digit passcode number to enter the passcode.

If the entered passcode is wrong, the voice guide will say "<4-digit passcode>, Incorrect passcode. Please try again." Enter the correct passcode.

NOTE

●You can reenter the passcode as many times as you want.
- If you have forgotten your passcode, say "Cancel" to quit the voice input mode and then check with an authorized Mitsubishi Motors dealer.

Disabling the passcode

Use the following procedure to turn off the security function by disabling the passcode.

NOTE

●System must be unlocked to disable the passcode.

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Passcode."
4. The voice guide will say "Passcode is enabled. Would you like to disable it?" Answer "Yes." Answer "No" to cancel the disabling of the passcode and return to the main menu.
5. When the disabling of the passcode is completed, the voice guide will say "Passcode is disabled" and the system will return to the main menu.

Features and controls

Speaker enrollment function

ND156470011

The Bluetooth ^® 2.0 interface can use the speaker enrollment function to create a voice model for one person per language.

This makes it easier for the Bluetooth ^® 2.0 interface to recognise voice commands said by you.

You can turn a voice model registered with the speaker enrollment function on and off whenever you want.

Speaker enrollment

N00564800067

It takes about 2 to 3 minutes to complete the speaker enrollment process.

To ensure the best results, run through the process while in the driver's seat, in an environment that is as quiet as possible (when there is no rain or strong winds and the vehicle windows are closed). Please turn off your phone while in speaker enrollment to prevent interruption of the process.

Use the following procedure for speaker enrollment.

1. Stop your vehicle in a safe area, put the gearshift lever (manual transaxle) in the "N" (Neutral) position, or the selector lever {continuously variable transmission (CVT)} or gearshift lever (Twin Clutch SST) in the "P" (PARK) position, and then pull the parking brake lever.

NOTE

●Speaker enrollment is not possible unless the vehicle is parked. Make sure you park the vehicle in a safe area before attempting speaker enrollment.

1. Press the SPEECH button.

2. Say "Voice training."

3. The voice guide will say "This operation must be performed in a quiet environment while the vehicle is stopped. See the owner's manual for the list of required training phrases. Press and release the SPEECH button when you are ready to begin. Press the HANG-UP button to cancel at any time."

Press the SPEECH button to start the speaker enrollment process.

NOTE

- If you do not start the speaker enrollment process within 3 minutes after pressing the SPEECH button, the speaker enrollment function will time out.

The voice guide will say “Speaker enrollment has timed out.” The system will then beep and the voice recognition mode will be deactivated.

1. The voice guide will prompt for phrase 1. Repeat the corresponding phrase listed in table “Enrollment commands” on page 3-269.

The system will register your voice and then move on to the registration of the next command. Continue the process until all phrases have been registered.

NOTE

●To repeat the most recent voice training command, press and release the SPEECH button.
- If you press the HANG-UP button anytime during the process, the system will beep and stop the speaker enrollment process.

1. When all enrollment commands have been read out, the voice guide will say "Speaker enrollment is complete." The system will then end the speaker enrollment process and return to the main menu.

NOTE

●Completing the speaker enrollment process will turn on the voice model automatically.
●The commands “Help” and “Cancel” will not work in this mode.

Enabling and disabling the voice model and retraining

N00564900042

You can turn a voice model registered with the speaker enrollment function on and off whenever you want.

You can also retrain the system.

Use the following procedure to perform these actions.

1. Press the SPEECH button.
2. Say "Voice training."
3. If you have completed a speaker enrollment process once already, the voice guide will say either "Enrollment is enabled. Would you like to disable or retrain?" or "Enrollment is disabled. Would you like to enable or retrain?"
4. When enrollment is "enabled," the voice model is on; when enrollment is "disabled," the voice model is off. Say the command that fits your needs.
   Say “Retrain” to start the speaker enrollment process and recreate a new voice model. (Refer to “Speaker enrollment” on page 3-250.)

Connecting the Bluetooth ^® 2.0 interface and Bluetooth ^® device

N(01565(1001)66

Before you can make or receive hands-free calls or play music using the Bluetooth ^® 2.0 interface function, you must pair the Bluetooth ^® device and Bluetooth ^® 2.0 interface.

NOTE

●Pairing is required only when the device is used for the first time. Once the device has been paired with the Bluetooth ^® 2.0 interface, all you need is to bring the device into the vehicle next time and the device will connect to the Bluetooth ^® 2.0 interface automatically (if supported by the device).

Up to 7 Bluetooth ^® devices can be paired with the Bluetooth ^® 2.0 interface.

If multiple paired Bluetooth ^® devices are available in the vehicle, the cellular phone or music player most recently connected is automatically connected to the Bluetooth ^® 2.0 interface.

You can also change a Bluetooth ^® device to be connected.

NOTE

• Please go to following website for a lot of compatible devices.
  www.mitsubishifuse.com
  Or contact Mitsubishi hands-free customer support at [phone].

Features and controls

To pair

To pair a Bluetooth ^® device with the Bluetooth ^® 2.0 interface, follow the steps below.

NOTE

- For assistance with pairing, please go to the following website. www.mitsubishifuse.com

1. Stop your vehicle in a safe area, put the gearshift lever (manual transaxle) in the "N" (Neutral) position, or the selector lever {continuously variable transmission (CVT)} or gearshift lever (Twin Clutch SST) in the "P" (PARK) position, and then pull the parking brake lever.

NOTE

- You cannot pair any Bluetooth ^ device with the Bluetooth ^ 2.0 interface unless the vehicle is parked. Before pairing a Bluetooth ^ device with the Bluetooth ^ 2.0 interface, confirm that the vehicle is parked in a safe location.

1. Press the SPEECH button.
2. Say "Setup."

3. Say "Pairing Options."

4. The voice guide will say "Select one of the following: pair, edit, delete, or list." Say "Pair."

NOTE

• If 7 devices have already been paired, the voice guide will say “Maximum devices paired” and then the system will end the pairing process. To register a new device, delete one device and then repeat the pairing process. (Refer to “Selecting a device: Deleting a device” on page 3-253.)
• The voice guide will say "Please say a 4-digit pairing code." Say a 4-digit number. When the confirmation function is on, the system will confirm whether the number said is acceptable. Answer "Yes." Answer "No" to return to pairing code selection.

NOTE

• Some Bluetooth ^ devices require a specific pairing code. Please refer to the device manual for pairing code requirements.
• The pairing code entered here is only used for the Bluetooth® connection certification. It is any 4-digit number the user would like to select. Remember the pairing code as it needs to be keyed into the Bluetooth® device later in the pairing process.

Depending on the connection settings of the Bluetooth ^® device, this code may have to be entered each time you connect the Bluetooth ^® device to the Bluetooth ^® 2.0 interface. For the default connection settings, refer to the instructions for the device.

1. The voice guide will say "Start pairing procedure on the device. See the device manual for instructions." Enter in the Bluetooth® device the 4-digit number you have registered in Step 6.

NOTE

- If the Bluetooth ^ 2.0 interface cannot recognize the Bluetooth ^ device, the voice guide will say “Pairing has timed out” and the pairing process will be cancelled. Confirm that the device you are pairing supports Bluetooth ^ , and try pairing it again.

- If you enter the wrong number, the voice guide will say "Pairing failed" and the pairing process will be cancelled. Confirm the number is right, and try pairing it again.

1. The voice guide will say "Please say the name of the device after the beep." You can assign a desired name for the Bluetooth® device and register it as a device tag. Say the name you want to register after the beep.

NOTE

- When the confirmation function is on, after repeating the device tag you have said, the voice guide will ask “Is this correct?” Answer “Yes.” To change the device tag, answer “No” and then say the device tag again.

1. The voice guide will say "Pairing complete," after which a beep will be played and the pairing process will end.

Selecting a device

N(00565100)54

If multiple paired Bluetooth ^® devices are available in the vehicle, the cellular phone or music player most recently connected is automatically connected to the Bluetooth ^® 2.0 interface.

You can connect to the other cellular phone or music player by following setting change procedures.

To select a cellular phone

1. Press the SPEECH button.

2. Say "Setup."

3. Say "Select phone."

4. After the voice guide says "Please say," the numbers of the cellular phones and device tags of corresponding cellular phones will be read out in order, starting with the cellular phone that has been most recently connected. Say the number of the cellular phone that you want to connect to.

When the confirmation function is on, the system will ask you again whether the phone that you want to connect to is correct. Answer "Yes" to continue and connect to the cellular phone.

Answer "No," and the voice guide will say "Please say."

Say the number of the phone that you want to connect to.

NOTE

●You can connect to a phone at any time by pressing the SPEECH button and saying the number, even before all of the paired numbers and device tags of corresponding cellular phones are read out by the system.

Features and controls

1. The selected phone will be connected to the Bluetooth® 2.0 interface. The voice guide will say “ selected” and then the system will return to the main menu.

To select a music player

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Select music player."
4. After the voice guide says “Please say,” the numbers of the music players and device tags of corresponding music players will be read out in order, starting with the music player that has been most recently connected.

Say the number of the music player that you want to connect to.

When the confirmation function is on, the system will ask you again whether the music player that you want to connect to is correct. Answer "Yes" to continue and connect to the music player.

Answer “No,” and the voice guide will say “Please say.” Say the number of the music player that you want to connect to.

NOTE

●You can connect to a music player at any time by pressing the SPEECH button and saying the number, even before all of the paired numbers and device tags of corresponding music players are read out by the system.

1. The selected music player will be connected to the Bluetooth ^® 2.0 interface.

The voice guide will say " selected" and then the system will return to the main menu.

Deleting a device

Use the following procedure to delete a paired Bluetooth ^® device from the Bluetooth ^® 2.0 interface.

1. Press the SPEECH button.
2. Say "Setup."
3. Say "Pairing Options."
4. The voice guide will say "Select one of the following: pair, edit, delete, or list." Say "Delete."
5. After the voice guide says "Please say," the numbers of the devices and device tags of corresponding devices will be read out in order, starting with the device that has been most recently connected. After it completes reading all pairs, the voice guide will say "or all."

Say the number of the device that you want to delete from the system.

If you want to delete all paired phones from the system, say "All."

1. For confirmation purposes, the voice guide will say "Deleting . Is this correct?" or "Deleting all devices. Is this correct?"

Answer "Yes" to delete the phone(s).

Answer "No," the system will return to Step 4.

1. The voice guide will say "Deleted," and then the system will end the device deletion process.

NOTE

- If the device deletion process fails for some reason, the voice guide will say “Delete failed” and then the system will cancel deleting the device.

To check a paired Bluetooth ^® device

N00565200013

You can check a paired Bluetooth ^® device by following the steps below.

1. Press the SPEECH button.

2. Say "Setup."

3. Say "Pairing Options."

4. The voice guide will say "Select one of the following: pair, edit, delete, or list." Say "List."

5. The voice guide will read out device tags of corresponding devices in order, starting with the Bluetooth ^® device that has been most recently connected.

6. After the device tags of all paired Bluetooth ^® devices have been read, the system will say “End of list, would you like to start from the beginning?”

To hear the list again from the beginning, answer "Yes." When you are done, answer "No" to return to the main menu.

NOTE

- If you press and release the SPEECH button and say "Continue" or "Previous" while the list is being read, the system will advance or rewind the list.

Say “Continue” to proceed to the device with the next highest number or “Previous” to return to the phone with the previous number.

- You can change the device tag by pressing and releasing the SPEECH button and then saying “Edit” while the list is being read.

- You can change the phone to be connected by pressing and releasing the SPEECH button and then saying “Select phone” while the list is being read.

- You can change the music player to be connected by pressing and releasing the SPEECH button and then saying “Select music player” while the list is being read.

Changing a device tag

N00565300014

You can change the device tag of a paired cellular phone or music player.

Follow the steps below to change a device tag.

1. Press the SPEECH button.

2. Say "Setup."

3. Say "Pairing Options."

4. The voice guide will say "Select one of the following: pair, edit, delete, or list." Say "Edit."

Features and controls

1. The voice guide will say “Please say,” and read out the numbers of the Bluetooth ^® devices and device tags of corresponding devices in order, starting with the Bluetooth ^® that has been most recently connected.
   After all paired device tags have been read, the voice guide will say "Which device, please?" Say the number of the device tag you want to change.

NOTE

●You can press and release the SPEECH button while the list is being read, and immediately say the number of the device tag you want to change.

1. The voice guide will say "New name, please." Say the name you want to register as a new device tag. When the confirmation function is on, the voice guide will say ". Is this correct?" Answer "Yes." Answer "No," you can say the new device tag you want to register again.

2. The device tag is changed. When the change is complete, the voice guide will say "New name saved" and then the system will return to the main menu.

Operating a music player connected via Bluetooth®

N00565400015

For the operation of a music player connected via Bluetooth ^® , refer to “To play tracks from a Bluetooth ^® device” on page 5-121.

How to make or receive hands-free calls

N00565500058

You can make or receive hands-free calls using a Bluetooth ^® compatible cellular phone connected to the Bluetooth ^® 2.0 interface.

You can also use the phonebooks in the Bluetooth ^® 2.0 interface to make calls without dialing telephone numbers.

To make a call P.3-257

Send function P.3-259

Receiving calls P.3-259

Mute function P.3-260

Switching between hands-free mode and private mode P.3-260

To make a call

N00565600062

You can make a call in the following 3 ways using the Bluetooth ^® 2.0 interface:

• By saying a telephone number
• By using the Bluetooth ^ 2.0 interface's phonebook
• By redialing a telephone number

Making a call by using the telephone number

You can make a call by saying the telephone number.

1. Press the SPEECH button.
2. Say "Dial."
3. After the voice guide says "Number please," say the telephone number.
4. The voice guide will say "Dialing ." The Bluetooth® 2.0 interface will then make the call.

When the confirmation function is on, the system will confirm the telephone number again. To continue with that number, answer "Yes."

To change the telephone number, answer “No.” The system will say “Number please” then say the telephone number again.

NOTE

• In the case of English, the system will recognise both “zero” and “oh” (Letter “o”) for the number “0.”
  ●The Bluetooth ^® 2.0 interface supports numbers (0 to 9) and characters (+, # and *).

Features and controls

●The maximum supported telephone number length is as follows:

• International telephone number: + and telephone numbers (to 18 digits).
• Except for international telephone number: telephone numbers (to 19 digits).

Making a call using a phonebook

You can make calls using the vehicle phonebook or mobile phonebook of the Bluetooth ^® 2.0 interface.

For details on the phonebooks, refer to "Phonebook function" on page 3-260.

1. Press the SPEECH button.
2. Say "Call."

NOTE

- If you say “Call” when the vehicle phonebook and the mobile phonebook are empty, the voice guide will say “The vehicle phonebook is empty. Would you like to add a new entry now?”

Answer “Yes,” and the voice guide will say “Entering the phonebook - new entry menu.” You can now create data in the vehicle phonebook.

Answer "No," the system will return to the main menu.

1. After the voice guide says "Name please," say the name you want to call, from those registered in the phonebook.

Features and controls

1. If there is only 1 match, the system will proceed to Step 5. If there are 2 or more matches, the voice guide will say "More than one match was found, would you like to call ." If that person is the one you want to call, answer "Yes." Answer "No," the name of the next matching person will be uttered by the voice guide.

NOTE

- If you say “No” to all names read by the system, the voice guide will say “Name not found, returning to main menu” and the system will return to the main menu.

1. If only 1 telephone number is registered under the name you just said, the voice guide will proceed to Step 6. If 2 or more telephone numbers are registered that match the name you just said, the voice guide will say “Would you like to call at [home], [work], [mobile], or [other]?” Select the location to call.

NOTE

- If the name you selected has matching data in the vehicle phonebook but no telephone number is registered under the selected location, the voice guide will say “{home/work/mobile/other} not found for . Would you like to add location or try again?” Say “Try again,” and the system will return to Step 3. Say “Add location” and you can register an additional telephone number under the selected location.

- If the name you selected has matching data in the mobile phonebook but no telephone number is registered under the selected location, the voice guide will say “{home/work/mobile/other} not found for . Would you like to try again?” Answer “Yes,” and the system will return to Step 3. Answer “No,” and the call will be cancelled. Start over again from Step 1.

Features and controls

1. The voice guide will say "Calling " and then the system will dial the telephone number.

NOTE

- When the confirmation function is on, the system will check if the name and location of the receiver are correct. If the name is correct, answer "Yes."

To change the name or location to call, answer "No." The system will return to Step 3.

Redialing

You can redial the last number called, based on the history of dialed calls in the paired cellular phone.

Use the following procedure to redial.

1. Press the SPEECH button.
2. Say "Redial."

Send function

N00565700018

During a call, press the SPEECH button to enter voice recognition mode, then say “ SEND” to generate DTMF tones.

For example, if during a call you need to simulate the pressing of a phone button as a response to an automated system, press the SPEECH button and speak "1 2 3 4 pound send" and the 1234# will be sent via your cellular phone.

Receiving calls

N00565800019

If an incoming phone call is received while the ignition switch is in the “ACC” or “ON” position, the audio system will be automatically turned on and switched to the incoming call, even when the audio system was originally off.

The voice guide announcement for the incoming call will be output from the front passenger's seat speaker.

If the CD player or radio was playing when the incoming call was received, the audio system will mute the sound from the CD player or radio and output only the incoming call.

To receive the call, press the PICK-UP button on the steering wheel control switch.

When the call is over, the audio system will return to its previous state.

Features and controls

Mute function

N005659X01D

At any time during a call, you can mute the vehicle microphone.

Pressing the SPEECH button and then saying "Mute" during a call will turn ON the mute function and mute the microphone.

Saying “Mute off” in the same way will turn off the mute function and cancel the mute on the microphone.

Switching between hands-free mode and private mode

N0056660014

The Bluetooth ^® 2.0 interface can switch between hands-free mode (hands-free calls) and private mode (calls using cellular phone).

If you press the SPEECH button and say “Transfer call” during a hands-free call, you can stop the hands-free mode and talk in private mode.

To return to hands-free mode, press the SPEECH button again and say “Transfer call.”

Phonebook function

ND1566010018

The Bluetooth ^® 2.0 interface has 2 types of unique phonebooks that are different from the phonebook stored in the cellular phone. They are the vehicle phonebook and the mobile phonebook.

These phonebooks are used to register telephone numbers and make calls to desired numbers via voice recognition function.

NOTE

●Disconnecting the battery cable will not delete information registered in the phonebook.

Vehicle phonebook

N00566100077

This phonebook is used when making calls with the voice recognition function.

Up to 32 names can be registered in the vehicle phonebook per language.

Also, each entry has 4 locations associated with: home, work, mobile and other. You can register one telephone number for each location.

You can register a desired name as a name for any phonebook entry registered in the vehicle phonebook.

Names and telephone numbers can be changed later on.

The vehicle phonebook can be used with all paired cellular phones.

To register a telephone number in the vehicle phonebook

You can register a telephone number in the vehicle phonebook in the following 2 ways: Reading out a telephone number, and selecting and transferring 1 phonebook entry from the phonebook of the cellular phone.

To register by reading out a telephone number

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact." Say "New entry."
4. The voice guide will say "Name please." Say your preferred name to register it.

NOTE

- If the maximum number of entries are already registered, the voice guide will say “The phonebook is full. Would you like to delete a name?” Say “Yes” if you want to delete a registered name.

If you say "No," the system will return to the main menu.

1. When the name has been registered, the voice guide will say "home, work, mobile, or other?" Say the location for which you want to register a telephone number.

NOTE

• When the confirmation function is on, the voice guide will say ". Is this correct?" Answer "Yes." Answer "No" to return to location selection in Step 5. If a telephone number has been registered for the selected location, the voice guide will say "The current number is , number please." If you do not want to change the telephone number, say "cancel" or the original number to keep it registered.
• The voice guide will say "Number please." Say the telephone number to register it.

NOTE

- In the case of English, the system will recognise both “zero” and “oh” (Letter “o”) for the number “0.”

Features and controls

1. The voice guide will repeat the telephone number you have just read, and then register the number.

When the telephone number has been registered, the voice guide will say “Number saved. Would you like to add another number for this entry?”

To add another telephone number for a new location for the current entry, answer "Yes." The system will return to location selection in Step 5.

Answer “No” to end the registration process and return to the main menu.

NOTE

- When the confirmation function is on, after repeating the telephone number you have read, the voice guide will ask "Is this correct?" Answer "Yes."

Answer “No” to return to telephone number registration in step 6.

To select and transfer one phonebook entry from the phonebook of the cellular phone

You can select 1 phonebook entry from the phonebook of the cellular phone and register it in the vehicle phonebook.

NOTE

●Transfer is not permitted unless the vehicle is parked. Before transferring, make sure that the vehicle is parked in a safe location.
- All or part of data may not be transferred, even when the cellular phone supports Bluetooth ^ , depending on the compatibility of the device.
●The maximum supported telephone number length is 19 digits. Any telephone number of 20 digits or more will be truncated to the first 19 digits.
- If telephone numbers contain characters other than 0 to 9, *, # or +, these characters are deleted before the transfer.
●For the connection settings on the cellular phone side, refer to the instructions for the cellular phone.

1. Press the SPEECH button.
2. Say "Phonebook."

3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact." Say "Import contact."

4. The voice guide will say "Would you like to import a single entry or all contacts?" Say "Single entry." The Bluetooth® 2.0 interface will become ready to receive transferred phonebook data.

NOTE

- If the maximum number of entries are already registered, the voice guide will say "The phonebook is full. Would you like to delete a name?" Say "Yes" if you want to delete a registered name. If you say "No," the system will return to the main menu.

1. After the voice guide says "Ready to receive a contact from the phone. Only a home, a work, and a mobile number can be imported," the Bluetooth® 2.0 interface will receive the phonebook data from the Bluetooth® compatible cellular phone.

2. Operate the Bluetooth ^® compatible cellular phone to set it up so that the phonebook entry you want to register in the vehicle phonebook can be transferred to the Bluetooth ^® 2.0 interface.

NOTE

• If the Bluetooth ^ 2.0 interface cannot recognise the Bluetooth ^ compatible cellular phone or the connection takes too much time, the voice guide will say “Import contact has timed out” and then the system will cancel the registration. In such case, start over again from Step 1.
• Pressing the HANG-UP button or pressing and holding the SPEECH button will cancel the registration.

Features and controls

1. When the reception is complete, the voice guide will say " numbers have been imported. What name would you like to use for these numbers?" Say the name you want to register for this phonebook entry.

NOTE

- If the entered name is already used for other phonebook entry or similar to a name used for other phonebook entry, that name cannot be registered.

1. The voice guide will say "Adding ." When the confirmation function is on, the system will ask if the name is correct. Answer "Yes." Answer "No," the voice guide will say "Name please." Register a different name.

2. The voice guide will say "Numbers saved."

3. The voice guide will say "Would you like to import another contact?" Answer "Yes" if you want to continue with the registration. You can continue to register a new phonebook entry from Step 5. Answer "No," the system will return to the main menu.

Features and controls

To change the content registered in the vehicle phonebook

You can change or delete a name or telephone number registered in the vehicle phonebook.

You can also listen to the list of names registered in the vehicle phonebook.

NOTE

●The system must have at least one entry.

[Editing a telephone number]

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact". Say "Edit number."
4. The voice guide will say "Please say the name of the entry you would like to edit, or say list names." Say the name of the phonebook entry you want to edit.

NOTE

• Say “List names,” and the names registered in the phonebook will be read out in order. Refer to “Vehicle phonebook: Listening to the list of registered names” on page 3-260.
• The voice guide will say "Home, work, mobile or other?" Select and say the location where the telephone number you want to change or add is registered.

When the confirmation function is on, the system will check the target name and location again. Answer "Yes" if you want to continue with the editing.

Answer "No," the system will return to Step 3.

1. The voice guide will say "Number, please." Say the telephone number you want to register.

NOTE

• If the telephone number is already registered in the selected location, the voice guide will say “The current number is . New number, please.” Say a new telephone number to change the current number.
• The voice guide will repeat the telephone number. When the confirmation function is on, the system will ask if the number is correct. Answer "Yes." Answer "No," the system will return to the Step 3.
• Once the telephone number is registered, the voice guide will say "Number saved" and then the system will return to the main menu.

NOTE

- If the location where a telephone number was already registered has been overwritten with a new number, the voice guide will say “Number changed” and then the system will return to the main menu.

[Editing a name]

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact." Say "Edit name."
4. The voice guide will say "Please say the name of the entry you would like to edit, or say list names." Say the name you want to edit.

NOTE

• Say “List names,” and the names registered in the phonebook are read out in order. Refer to “Vehicle phonebook: Listening to the list of registered names” on page 3-260.
• The voice guide will say "Changing ."

When the confirmation function is on, the system will check if the name is correct. Answer "Yes" if you want to continue with the editing based on this information.

Answer "No," the system will return to Step 4.

1. The voice guide will say "Name please." Say the new name you want to register.
2. The registered name will be changed.

When the change is complete, the system will return to the main menu.

[Listening to the list of registered names]

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact." Say "List names."
4. Bluetooth ^® 2.0 interface will read out the entries in the phonebook in order.
5. When the voice guide is done reading the list, it will say "End of list, would you like to start from the beginning?" When you want to check the list again from the beginning, answer "Yes."

When you are done, answer "No" to return to the previous or main menu.

NOTE

• You can call, edit or delete a name that is being read out. Press the SPEECH button and say "Call" to call the name, "Edit name" to edit it, or "Delete" to delete it. The system will beep and then execute your command.
• If you press the SPEECH button and say “Continue” or “Previous” while the list is being read, the system will advance or rewind the list. Say “Continue” to proceed to the next entry or “Previous” to return to the previous entry.

Features and controls

[Deleting a telephone number]

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say "Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact." Say "Delete."
4. The voice guide will say "Please say the name of the entry you would like to delete, or say list names." Say the name of the phonebook entry in which the telephone number you want to delete is registered.

NOTE

• Say “List names,” and the names registered in the phonebook are read out in order. Refer to “Vehicle phonebook: Listening to the list of registered names” on page 3-260.
• If only one telephone number is registered in the selected phonebook entry, the voice guide will say "Deleting .”

If multiple telephone numbers are registered in the selected phonebook entry, the voice guide will say "Would you like to delete [home], [work], [mobile], [other], or all?"

Select the location to delete, and the voice guide will say "Deleting .”

NOTE

●To delete the telephone numbers from all locations, say "All."

1. The system will ask if you really want to delete the selected telephone number(s) to go ahead with the deletion, answer "Yes."

Answer “No,” the system will cancel deleting the telephone number(s) and then return to Step 4.

1. When the telephone number deletion is complete, the voice guide will say "deleted" and then the system will return to the main menu.

If all locations are deleted, the system will say " and all locations deleted" and the name will be removed from the phonebook. If numbers still remain under the entry, the name will retain the other associated numbers.

Erasing the phonebook

You can delete all registered information from the vehicle phonebook.

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact.” Say “Erase all.”
4. For confirmation purposes, the voice guide will ask "Are you sure you want to erase everything from your hands-free system phonebook?" Answer "Yes."
   Answer "No" to cancel the deletion of all registered information in the phonebook and return to the main menu.
5. The voice guide will say "You are about to delete everything from your hands-free system phonebook. Do you want to continue?" Answer "Yes" to continue.
   Answer “No” to cancel the deletion of all registered information in the phonebook and return to the main menu.
6. The voice guide will say "Please wait, erasing the hands-free system phonebook" and then the system will delete all data in the phonebook.

When the deletion is complete, the voice guide will say "Hands-free system phonebook erased" and then the system will return to the main menu.

Mobile phonebook

N(0566200)10

All entries in the phonebook stored in the cellular phone can be transferred in a batch and registered in the mobile phonebook. Up to 7 mobile phonebooks, each containing up to 1,000 names, can be registered.

The Bluetooth ^® 2.0 interface automatically converts from text to voice the names registered in the transferred phonebook entries, and creates names.

NOTE

●Only the mobile phonebook transferred from the connected cellular phone can be used with that cellular phone.
●You cannot change the names and telephone numbers in the phonebook entries registered in the mobile phonebook. You cannot select and delete specific phonebook entries, either.

To change or delete any of the above, change the applicable information in the source phonebook of the cellular phone and then transfer the phonebook again.

Features and controls

To import a devices phonebook

Follow the steps below to transfer to the mobile phonebook the phonebook stored in the cellular phone.

NOTE

●Transfer should be completed while the vehicle is parked. Before transferring, make sure that the vehicle is parked in a safe location.
- All or part of data may not be transferred, even when the cellular phone supports Bluetooth ^ , depending on the compatibility of the device.
●The maximum supported telephone number length is 19 digits. Any telephone number of 20 digits or more will be truncated to the first 19 digits.
- If telephone numbers contain characters other than 0 to 9, *, # or +, these characters are deleted before the transfer.
●For the connection settings on the cellular phone side, refer to the instructions for the cellular phone.

1. Press the SPEECH button.
2. Say "Phonebook."
3. The voice guide will say “Select one of the following: new entry, edit number, edit name, list names, delete, erase all, or import contact.” Say “Import contact.”

4. The voice guide will say "Would you like to import a single entry or all contacts?" Say "All contacts."

5. The voice guide will say "Importing the contact list from the mobile phonebook. This may take several minutes to complete. Would you like to continue?" Answer "Yes," transferring to the mobile phonebook the phonebook stored in the cellular phone will start.

Answer "No," the system will return to the main menu.

NOTE

●The transfer may take some time to complete depending on the number of contacts.
- If the Bluetooth ^ 2.0 interface could not be connected to the Bluetooth ^ compatible cellular phone, the voice guide will say “Unable to transfer contact list from phone” and then the system will return to the main menu.
- If you press the HANG-UP button or press and hold the SPEECH button during the data transfer, the transfer will be cancelled and the system will return to the main menu.
- If an error occurs during the data transfer, all transfer will be cancelled and the voice guide will say “Unable to complete the phonebook import” and then the system will return to the main menu.
- If there are no contacts in the phonebook, the voice guide will say “There are no contacts on the connected phone.”
6. When the transfer is complete, the voice guide will say "Import complete" and then the system will return to the main menu.

General information

N(01566300)53

MODEL: MMC FCC ID: CB2MDGMY10 IC: 279B-MDGMY10

Your Bluetooth ^® 2.0 interface operates on a radio frequency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

●This device may not cause harmful interference.
●This device must accept any interference received, including interference that may cause undesired operation.

CAUTION

- Changes or modifications not expressly approved by the manufacturer for compliance could void the user's authority to operate the equipment.

The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Features and controls

Enrollment Commands
N(015664001)70

Phrase	English	Spanish	French	Japanese
1	123456789	123456789	123456789	123456789
2	888 555 1212	888 555 1212	888 555 1212	888 555 1212
3	Call	Llamar	Appeler	呼び出し
4	Dial	Marcar	Composer	ダイヤル
5	Setup	Configurar	Configurer	設定
6	Cancel	Cancelar	Annuler	キャンセル
7	Continue	Continuar	Continuer	つぎ
8	Help	Ayuda	Aide	ヘルプ

Features and controls

USB input terminal (if so equipped)

N00566700015

You can connect your USB memory device or iPod* to play music files stored in the USB memory device or iPod.

The following explains how to connect and remove a USB memory device or iPod.

Refer to the following sections for details on how to play music files:

Refer to "To play tracks from USB device" on page 5-104.

*: "iPod" is a registered trademark of Apple Inc. in the United States and other countries.

How to connect a USB memory device

NDI5668010158

1. Park your vehicle in a safe place and turn the ignition switch to the "LOCK" position.

2. Open the USB input terminal cover (A) in the glove compartment.

1. Connect the connector cable (C) to the USB memory device (B).

Features and controls

1. Connect the connector cable (C) to the USB input terminal (D).

WARNING

●An open glove compartment door can cause a serious injury or death to the front passenger in an accident, even if the passenger is wearing his/her seat belt. Always keep the glove compartment door closed when driving.

Features and controls

NOTE

●Do not connect the USB memory device to the USB input terminal directly.
The USB memory device may be damaged.
- When closing the glove compartment, be careful not to trap the connector cable.
5. To remove the connector cable, turn the ignition switch to the "LOCK" position first and perform the installation steps in reverse.

How to connect an iPod

ND15669010159

1. Park your vehicle in a safe place and turn the ignition switch to the "LOCK" position.
2. Open the USB input terminal cover (A) in the glove compartment.

1. Connect the Dock connector (C) to the iPod (B).

NOTE

●Use a genuine Dock connector from Apple Inc.

Features and controls

1. Connect the Dock connector (C) to the USB input terminal (D).

WARNING

●An open glove compartment door can cause a serious injury or death to the front passenger in an accident, even if the passenger is wearing his/her seat belt. Always keep the glove compartment door closed when driving.

NOTE

- When closing the glove compartment, be careful not to trap the connector cable.

Features and controls

1. To remove the Dock connector, turn the ignition switch to the "LOCK" position first and perform the installation steps in reverse.

Types of connectable devices and supported file specifications

N00567000015

Device types

ND0567100061

Devices of the following types can be connected.

Model name Condition
USB memory device	Storage capacity of 256 Mbytes or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)*	F/W Ver.1.1.2 or later
Models other than USB memory devices and iPods	Digital audio player supporting mass storage class

*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are registered trademarks of Apple Inc. in the Untied States and other countries.

NOTE

●Depending on the type of the USB memory device or other device connected, the connected device may not function properly or the available functions may be limited.
- Use the iPod whose firmware has been updated to the latest version.
- You can charge your iPod by connecting it to the USB input terminal when the ignition switch is in the “ACC” or “ON” position.
- Do not keep your USB memory device or iPod in your vehicle.
- It is recommended that you back up the files in case of data damage.
- Do not connect to the USB input terminal any device (hard disk, card reader, memory reader, etc.) other than the connectable devices specified in the previous section. The device and/or data may be damaged. If any of these devices was connected by mistake, remove it after turning the ignition switch to the "LOCK" position.

File specifications

N00567200017

You can play music files of the following specifications that are saved in a USB memory device or other device supporting mass storage class.

Item Condition
File format MP3, WMA, AAC,	WAV
Maximum number of levels (including the root)	Level 8
Number of folders 700
Number of files 65,535

Features and controls

Sun visors

N00524600294

Fold the sun visor downward (1) to reduce front glare while driving. To reduce side glare, turn the visor to the side (2).

Vanity mirror

The vanity mirrors are located on the back of the sun visors.

Diagram of a car interior with a box and handle, showing an arrow pointing to the interior (no text or symbols present)

Card holder

Cards can be slipped into the front (A) of the lid of the vanity mirror.

Features and controls

Ashtray (if so equipped)

N00524800094

CAUTION

●Put out matches and cigarettes completely before leaving them in the ashtray.
- Don't put paper or other flammable items into your ashtray. If you do, cigarettes or other smoking materials will set them on fire, causing damage.
●Be sure to close the ashtray when finished. If the ashtray is left open, other cigarette butts in the tray may be rekindled.

To use the ashtray, open up the lid.

Diagram of a car gear shift lever with an arrow indicating clockwise motion (no text or symbols)

Features and controls

To remove the ashtray, open the lid and lift up the tray while holding the lid.

Diagram of a car gear shift lever with an arrow indicating direction (no text or symbols present)

12 V power outlet

N00525000569

CAUTION

●Be aware that using electronic equipment with the engine off may run the battery down.
- When the 12 V power outlet is not in use, be sure to put on the plug or close the 12 V power outlet cover. This will prevent the 12 V power outlet from becoming dirty and possibly short-circuiting.

12 V power outlets are located in front of the floor console (Type 1, Type 2) and inside of the floor console box (Type 3).

NOTE

- If your vehicle is equipped with two 12 V power outlets, both power outlets can be used simultaneously.

CAUTION

- Be sure to use a "plug-in" type accessory operating at 12 V and 120 W or less. When using two 12 V power outlets simultaneously, make sure that the total power consumption of these does not exceed 120 W at 12 V.

Features and controls

Type 1, Type 2

The accessory can be operated when the ignition switch is in the "ON" or "ACC" position.

To use a "plug-in" type accessory, pull out the plug, then insert the plug in the socket.

Features and controls

Type 3

The accessory can be operated when the ignition switch is in any position.

To use a "plug-in" type accessory, open the cover, then insert the plug in the socket.

Interior lights

N00525300487

1- Cargo room light → P.3-284
2- Dome light (Rear)(if so equipped) → P.3-283
3- Dome light (Front)/Reading lights → P.3-281

Dome light (Front)/Reading lights

N00525800134

Dome light (Front)

The dome light can be turned on by sliding the dome light switch.

Features and controls

1-(DOOR)

The dome light comes on when any door or the rear hatch is opened. When all the doors and the rear hatch are closed, the dome light goes off after approximately 30 seconds. However, the light goes off immediately if:

●The doors and the rear hatch are closed while the ignition switch is in the "ON" position.

- The driver's door is closed after all the other doors and the rear hatch are closed while the lock knob of the driver's door is in the lock position.

●The doors and the rear hatch are closed and the power door lock switch is used to lock the doors.

●The keyless entry system remote control transmitter is used to lock the doors and the rear hatch.

●In vehicles equipped with the F.A.S.T.-key, the doors and the rear hatch are locked using the F.A.S.T.-key.

Features and controls

NOTE

• When the engine is started using the key while the doors and rear hatch are closed, if you remove the key, the dome light will illuminate for approximately 30 seconds before going off.
• When the engine is started using the F.A.S.T.-key while the doors and rear hatch are closed, if the ignition switch is moved to the "LOCK" position, the dome light will illuminate for approximately 30 seconds before going off.
• The time until the light goes off can be adjusted. See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For details, refer to the separate owner's manual.

2-(OFF)

The dome light goes off.

Reading lights

ND1553M007D

Regardless of the dome light switch position, when you press the lens, the light on the side that is pressed illuminates; when you press the lens again, the light goes off.

Top-down diagram of a car interior showing the front and rear seats with directional arrows indicating movement (no text or symbols)

Dome light (Rear) (if so equipped)

N00525400387

The dome light can be turned on by sliding the dome light switch.

Features and controls

1-(ON)

The dome light comes on.

2-(●)

The dome light comes on when any door or the rear hatch is opened. When all the doors and the rear hatch are closed, the dome light goes off after approximately 30 seconds. However, the light goes off immediately if:

●The doors and the rear hatch are closed while the ignition switch is in the "ON" position.

●The driver's door is closed after all the other doors and the rear hatch are closed while the lock knob of the driver's door is in the lock position.

●The door and the rear hatch are closed and the power door lock switch is used to lock the doors.

●The keyless entry system remote control transmitter is used to lock the doors and the rear hatch.

●In vehicles equipped with the F.A.S.T.-key, the doors and the rear hatch are locked using the F.A.S.T.-key.

Features and controls

NOTE

- When the engine is started using the key while the doors and the rear hatch are closed, if you remove the key, the dome light will illuminate for approximately 30 seconds before going off.

- When the engine is started using the F.A.S.T.-key while the doors and the rear hatch are closed, if the ignition switch is moved to the "LOCK" position, the dome light will illuminate for approximately 30 seconds before going off.

●The time until the light goes off can be adjusted. See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For details, refer to the separate owner's manual.

3-(OFF)

The dome light goes off.

Cargo room light

ND1526200063

1-(ON)

The light illuminates regardless of whether the rear hatch is open or closed.

2-

The light illuminates when the rear hatch is open, and goes off when the rear hatch is closed.

3-(OFF)

The light remains off regardless of whether the rear hatch is open or closed.

Interior light auto-cutout function (dome light and other lights)

N00526300383

If any of the interior lights are left on with the ignition switch in the "LOCK" position, the lights go off automatically after about 30 minutes.

The lights come on again if the ignition switch is turned to the "ON" or "ACC" position, any door or the rear hatch is opened and closed, or the keyless entry system or F.A.S.T.-key is operated.

NOTE

●The interior light auto-cutout function can be deactivated. The time until the lights automatically go off can be adjusted. See your authorized Mitsubishi Motors dealer for details.

For vehicles equipped with the Mitsubishi Multi-Communication System, adjustments can be made using screen operations. For details, refer to the separate owner's manual.

Storage spaces

N00526400472

CAUTION

●Never leave lighters, carbonated drink cans, or spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and other flammable items may catch fire and unopened drink cans (including beer cans) may rupture. The heat may also deform or crack plastic spectacle parts.

- Keep the lids of storage spaces closed while driving the vehicle. A lid or the contents of a storage space could otherwise cause injuries during a sudden stop.

NOTE

- Do not leave valuables in any storage space when leaving the vehicle.

Features and controls

1- Cargo floor boxes (if so equipped) → P.3-289
2- Floor console box → P.3 -288
3- Front console boxes (if so equipped) → P.3-287
4- Glove compartment → P.3-286

Glove compartment

ND1551500233

To open the glove compartment, pull the lever (A).

WARNING

●An open glove compartment door can cause a serious injury or death to the front passenger in an accident, even if the passenger is wearing his/her seat belt. Always keep the glove compartment door closed when driving.

NOTE

●The USB input terminal is located in the glove compartment (if so equipped). For details, refer to “USB input terminal” on page 3-270.

Features and controls

Card holder

There is a card holder on the inside of the glove compartment.

Line drawing of a car interior showing steering wheel, gear shift, and dashboard (no text or symbols)

NOTE

●Up to 2 cards will fit in the card holder.

Front console boxes (if so equipped)

N01546400145

To open, push the lid.

Upper box

Line drawing of a car interior showing airflow direction and seat arrangement (no text or symbols)

NOTE

●The Auxiliary Audio connector (RCA) or the Auxiliary Video connector (RCA) is located in the front console upper box (if so equipped). For details, refer to “To use the external audio input function” on page 5-125.

Features and controls

Lower box

Interior view of a car dashboard with a highlighted airflow direction indicator (no text or symbols)

CAUTION

●Do not use the front console boxes as an ashtray. This could cause a fire.

Floor console box

ND1551600175

To open the floor console box, lift the right release lever (A) and raise the lid.

Features and controls

Tissue holder

The tissue holder (A) is located on the underside of the floor console box lid.

Cargo floor boxes (if so equipped)

N(01552300)23

The boxes for storing articles are located inside the luggage compartment.

To use the boxes, raise the lids (A).

Top-down line drawing of a car interior showing the roof, vent, and side panels (no text or symbols)

Features and controls

Cup holder

N00527300348

For the front seat

The cup holder is located the middle of the floor console.

The cup holder is designed for holding cups or drink-cans securely in its holes.

Type 1

Line drawing of a car interior showing hand placement inside a vehicle seat (no text or symbols)

Type 2

To use the cup holder, open up the lid.

Diagram of a car interior showing hand positioning and directional arrow (no text or symbols)

CAUTION

●Do not drink beverages while driving your vehicle. This is distracting and could cause an accident.

For the rear seat

This cup holder is located in the rear seat arm rest (A). Pull the rear arm rest down to use the cup holder.

Line drawing of a car seat assembly with labeled component A (no text or symbols beyond label)

Bottle holder

N00502800049

CAUTION

●Do not drink beverages while driving your vehicle. This is distracting and could cause an accident.

●Vibration and shaking while driving may cause beverages to spill. Be very careful, as spilling hot beverages could cause burns.

NOTE

●Make sure all lids are tightly closed when storing beverages that are in plastic bottles, etc.

●Some beverages may not be stored, depending on the size and shape of the plastic bottles, etc.

There are bottle holders located on both sides of the front seats.

Line drawing of a car interior showing dashboard, steering wheel, and seat (no text or symbols)

Features and controls

Rear shelf panel

N00528200070

WARNING

●To avoid obstructing your rearward view, never place anything on the rear shelf panel. In the event of sudden braking or an accident, objects placed on the rear shelf panel could strike occupants causing injury.

To install

1. Insert the concave portion (A) on the underside of the rear shelf panel into the inside protruding portion (B) on both sides of the luggage compartment.

WARNING

●Lightly push the rear shelf panel to make sure that the concave portion (A) is set firmly in the protruding portion (B) on both sides of the luggage compartment. Unsecured rear shelf panel can strike occupants causing injury in the event of sudden braking or an accident.

1. Hang the strap (C) of the rear shelf panel on the hook (D).

To remove

Follow this procedure in reverse to remove.

Dual height adjustable cargo floor board (if so equipped)

N00562400027

To increase the capacity of the luggage compartment, the board can be lowered.

CAUTION

●The exhaust pipe remains hot for a while after stopping the engine, so be sure not to touch it.
●Do not stand behind the exhaust pipe when loading and unloading luggage. The heat from the exhaust could cause burns.
●Handle the board with care so as to not injure your fingers and your hands.

NOTE

●Before handling the board, remove any luggage from the luggage compartment.
- When loading heavy luggage, the board must be set in the lower position to avoid damage to the board.

1. Raise the rear part of the board.

Interior view of a car showing the dashboard and seat area with an arrow indicating direction (no text or symbols present)

1. Pull the board toward you until the front part is lowered.

Technical line drawing of a car interior showing a plastic component with an inset close-up highlighting a specific part (no text or symbols present)

Features and controls

1. Push the board in all the way with the front part lowered, then set the board into place.

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

1. Make sure the board is set firmly in place.
2. Follow this procedure in reverse to return the board to its original position.

Assist grip

N00559000029

These grips are to support the body by hand while seated in the vehicle.

Line drawing of a car seatbelt buckle being adjusted to form a seatbelt (no text or symbols)

CAUTION

- Do not use the assist grips when getting into or out of the vehicle. The assist grips could detach and cause an accident.

Coat hook

N00553600124

There is a coat hook on the rear seat assist grip of the driver's side.

Line drawing of a car seatbelt mechanism (no text or symbols)

WARNING

- Do not put a hanger or any heavy or pointed object on the coat hook. If the curtain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.

Features and controls

	10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3	11.4	11.5	11.6	11.7	11.8	11.9	12.0
									10.2	10.3	10.4	10.5	10.6	10.7	10.8	10.9	11.0	11.1	11.2	11.3

	1	2	3	4	5	6	7	8	9	10
1	1	1	1	1	1	1	1	1	1	1
2	1	1	1	1	1	1	1	1	1	1
3	1	1	1	1	1	1	1	1	1	1
4	1	1	1	1	1	1	1	1	1	1
5	1	1	1	1	1	1	1	1	1	1
6	1	1	1	1	1	1	1	1	1	1
7	1	1	1	1	1	1	1	1	1	1
8	1	1	1	1	1	1	1	1	1	1
9	1	1	1	1	1	1	1	1	1	1
10	1	1	1	1	1	1	1	1	1	1

Driving safety

Fuel economy....4-2

Driving, alcohol and drugs. 4-2

Vehicle preparation before driving. . . . . . . . . . . . . . 4-3

Safe driving techniques .....4-5

Driving during cold weather .....4-5

Braking. 4-6

Parking 4-7

Loading information 4-8

Cargo loads 4-12

Trailer towing. 4-15

Driving safety

Fuel economy

N00628800107

Fuel economy is dependent on many factors. Your personal driving habits can have a significant effect on your fuel use. Several recommendations for achieving the greatest fuel economy are listed below.

●Whenever accelerating from a stop, always accelerate slowly and smoothly.
- When parked for even a short period, do not idle the engine. Shut it off.
●Plan your trips to avoid unnecessary stops.
- Keep your tires inflated to the recommended pressures.
- For freeway driving, maintain a speed of approximately 50 mph (80 km/h) when traffic, roadway and weather conditions safely permit.
- Keep your air filter clean and your vehicle lubricated according to the recommendations in this manual.
●Always keep your vehicle well maintained. A poorly maintained engine wastes fuel and costs money.
●Do not overload your vehicle.

Driving, alcohol and drugs

N00628900052

Drunk driving is one of the most frequent causes of accidents. Your driving ability can be seriously impaired even with blood alcohol levels far below the legal minimum. If you have been drinking, don't drive. Ride with a designated non-drinking driver, call a cab or a friend, or use public transportation. Drinking coffee or taking a cold shower will not make you sober.

Similarly, prescription and nonprescription drugs affect your alertness, perception and reaction time. Consult with your doctor or pharmacist before driving while under the influence of any of these medications.

WARNING

●NEVER DRINK AND DRIVE.

Your perceptions are less accurate, your reflexes are slower and your judgment is impaired.

Vehicle preparation before driving

N00629000571

For a safer and more enjoyable trip, always observe the following:

Seat belts and seats

●Before starting the vehicle, make certain that you and all passengers are seated and wearing their seat belts properly (with children in the rear seat, in appropriate restraints), and that all the doors and the rear hatch are locked.
- Move the driver's seat as far backward as possible, while still keeping good visibility, and good control of the steering wheel, brakes, accelerator, and controls. Check the instrument panel indicators and multi-information display for any possible problem.
●Move the front passenger seat as far back as possible.
●Make sure that infants and small children are properly restrained in accordance with all laws and regulations.

Driving safety

Floor mat

Always properly position floor mat and assure it does not interfere with operation of the pedals.

Always use retaining clip on the driver's floorboard to secure the Mitsubishi genuine floor mat. When used, this clip will help prevent the floor mat from moving forward and possibly interfering with the operation of the pedals.

To prevent the floor mat from moving forward and possibly interfering with the operation of the pedals, Mitsubishi genuine floor mats are recommended.

Driving safety

WARNING

●Always properly position floor mat and assure it does not interfere with operation of the pedals.
●Always use retaining clip on the driver's floorboard to secure the Mitsubishi genuine floor mat.
●Always install the mat with the correct side facing down.
●Never install a second mat over an existing floor mat.

Defrosters

Check these by selecting the defroster mode, and set the blower switch on high. You should be able to feel the air blowing against the windshield.

(Refer to “Defrosting or defogging (windshield, door windows)” on page 5-14, 5-23, 5-33, 5-43.)

Tires

Check all the tires for heavy tread wear or uneven wear patterns. Look for stones, nails, glass, or other objects stuck in the tread. Look for any tread cuts or sidewall cracks. Check the wheel nuts for tightness, and the tires (including spare tire) for proper pressures. Replace your tires before they are heavily worn out.

As your vehicle is equipped with a tire pressure monitoring system, there is a risk of damage to the tire inflation pressure sensors when the tire is replaced on the rim. Tire replacement should, therefore, be performed only by an authorized Mitsubishi Motors dealer.

Lights

Have someone watch while you turn all the exterior lights on and off. Also check the turn signal indicators and high-beam indicators on the instrument panel.

Fluid leaks

Check the ground under the vehicle after parking overnight, for fuel, water, oil, or other leaks. Make sure all the fluid levels are correct. Also, if you can smell fuel, you need to find out why immediately and have it fixed.

Safe driving techniques

N00629200078

Even this vehicle's safety equipment, and your safest driving, cannot guarantee that you can avoid an accident or injury. However, if you give extra attention to the following areas, you can better protect yourself and your passengers:

●Drive defensively. Be aware of traffic, road and weather conditions. Leave plenty of stopping distance between your vehicle and the vehicle ahead.
●Before changing lanes, check your mirrors and use your turn signal light.
●While driving, watch the behavior of other drivers, bicyclists, and pedestrians.
●Always obey applicable laws and regulations. Be a polite and alert driver. Always leave room for unexpected events, such as sudden braking.
- If you plan to drive in another country, obey their vehicle registration laws and make sure you will be able to get the right fuel.

Driving safety

Driving during cold weather

N00629400360

- Check the battery, including terminals and cables. During extremely cold weather, the battery will not be as strong. Also, the battery power level may drop because more power is used for cold starting and driving. Before driving the vehicle, check to see if the engine runs at the proper speed and if the headlights are as bright as normally. Charge or replace the battery if necessary. During extreme cold weather, it is possible that a very low battery could freeze.

WARNING

●The battery gives off explosive hydrogen gas. Any spark or flame can cause the battery to explode, which could cause serious injury or death. Always wear protective clothes and a face mask when working with your battery, or let a skilled mechanic do it.

●Warm the engine sufficiently. After starting the engine, allow a short warm-up time to distribute oil to all cylinders and turbocharger. Then drive your vehicle slowly.
- Stay at low speeds at first so that the transaxle, transfer case and rear axle oil have time to spread to all the lubrication points.
●Manual transaxle can be harder to shift in cold weather conditions. This is normal and shifting will get easier as the transaxle warms up.

Driving safety

- Check the engine antifreeze.

If there is not enough coolant because of a leak or from engine overheating, add Dia Queen Super Long Life Coolant Premium or equivalent.

Please read this section in conjunction with the “Engine coolant” on page 7-11.

WARNING

●Never open the radiator cap when the radiator is hot. You could be seriously burned.

[For RALLIART vehicles sold in U.S.A.]

●Mitsubishi Motors recommends that the standard equipment tires be replaced with winter tires when the vehicle is going to be used in winter.

The standard equipment tires provided with this vehicle are summer tires and use a high-grip compound that provides superior grip.

The road grip, however, is reduced in winter.

When replacing the standard equipment tires with winter tires, all four tires must be replaced using radial identical-size winter tires.

Braking

N00629500488

All the parts of the brake system are critical to safety. Have the vehicle serviced by an authorized Mitsubishi Motors dealer or a repair facility of your choice at regular intervals according to the “WARRANTY AND MAINTENANCE MANUAL”.

When brakes are wet

Check the brake system while driving at a low speed immediately after starting, especially when the brakes are wet, to confirm they work normally.

A film of water can be formed on the brake discs and prevent normal braking after driving in heavy rain or through large puddles, or after the vehicle is washed. If this occurs, dry the brakes out by driving slowly while lightly depressing the brake pedal.

When driving in cold weather

On snowy roads, ice can form on the braking system, making the brakes less effective. While driving in such conditions, pay close attention to preceding and following vehicles and to the condition of the road surface. From time to time, lightly depress the brake pedal and check how effective the brakes are.

When driving downhill

It is important to take advantage of the engine braking by shifting to a lower shift position while driving on steep downhill roads in order to prevent the brakes from overheating.

Parking

N00629600261

Parking on a hill

When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.

If necessary, apply chocks to wheels.

For vehicles equipped with manual transaxle

Place the gearshift lever into the “R” (Reverse) position when parking on a downhill slope, into the 1st position when parking on an uphill slope.

For vehicles equipped with continuously variable transmission (CVT) or Twin Clutch SST

Be sure that the parking brake is firmly set when parked and that the selector lever (CVT) or gearshift lever (Twin Clutch SST) is in the “P” (PARK) position.

When parking on a hill, it is important to set the parking brake before moving the selector lever (CVT) or gearshift lever (Twin Clutch SST) to the "P" (PARK) position. This prevents loading the parking brake against the transaxle. When this happens, it is difficult to move the selector lever (CVT) or gearshift lever (Twin Clutch SST) out of the "P" (PARK) position.

Driving safety

Parking with the engine running

Never leave the engine running while you take a short sleep/rest. Also, never leave the engine running in a closed or poorly ventilated place.

WARNING

●Leaving the engine running risks injury or death from accidentally moving the gearshift lever (manual transaxle or Twin Clutch SST) or the selector lever (CVT) or from the accumulation of toxic exhaust fumes in the passenger compartment.

Where you park

Your front bumper can be damaged if you scrape it over curbs or parking stop blocks. Be careful when traveling up or down steep slopes where your bumper can scrape the road.

WARNING

- Do not park your vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust, since a fire could occur.

When leaving the vehicle

When leaving the vehicle unattended, always carry the key and lock all doors and the rear hatch.

Always try to park your vehicle in a well lit area.

Driving safety

Loading information

N00629900323

It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo and non-factory-installed options. The tire and loading information placard located on the driver's door sill of your vehicle will show how much weight it may properly carry.

WARNING

●Never overload your vehicle. Overloading can damage your vehicle, adversely affect vehicle performance, including handling and braking, cause tire failure, and result in an accident.

It is important to familiarize yourself with the following terms before loading your vehicle:

●Vehicle maximum load on the tire: load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight and dividing by two.
●Vehicle normal load on the tire: load on an individual tire that is determined by distributing to each axle its share of the curb weight, accessory weight, and normal occupant weight and dividing by two.
●Maximum loaded vehicle weight: the sum of -

(a) Curb weight;
(b) Accessory weight;
(c) Vehicle capacity weight; and
(d) Production options weight.

●Curb weight: the weight of a motor vehicle with standard equipment including the maximum capacity of fuel, oil, and coolant.
- Accessory weight: the combined weight (in excess of those standard items which may be replaced) of automatic transmission, power steering, power brakes, power windows, power seats, radio, and heater, to the extent that these items are available as factory- installed equipment (whether installed or not).
- Vehicle capacity weight: the rated cargo and luggage load plus 150 lbs (68 kg)* times the vehicle's designated seating capacity.
●Production options weight: the combined weight of those installed regular production options weighing over 5 lbs (2.3 kg) in excess of those standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.
●Normal occupant weight: 150 lbs (68 kg)* times the number of specified occupants. (In your vehicle the number is 3)
●Occupant distribution: distribution of occupants in a vehicle as specified. (In your vehicle the distribution is 2 in front, 1 in second row seat)

*: 150 lbs (68 kg) is the weight of one person as defined by U.S.A. and Canadian regulations.

Tire and loading information placard

N0063H100341

The tire and loading information placard is located on the driver's door sill.

Medical illustration showing a surgical procedure with an arrow pointing to a specific anatomical area (no text or labels present)

Driving safety

This placard shows the maximum number of occupants permitted to ride in your vehicle as well as “the combined weight of occupants and cargo” (A), which is called the vehicle capacity weight. The weight of roof road is included in the definition of “cargo” when determining the vehicle capacity weight. This placard also tells you the size and recommended inflation pressure for the original equipment tires on your vehicle. For more information, refer to “Tires” on page 7-29.

Type 1

Driving safety

Type 2

Steps for Determining Correct Load Limit

N01630200182

1. Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs." on your vehicle's placard.
2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the "XXX" amount equals 1400 lbs. and there will be five 150 lbs. passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400 - 750 (5 x 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.

NOTE

●The above steps for determining correct load limit were written in accordance with U.S.A. regulations. Your vehicle cannot tow a trailer, so step 6 is irrelevant.

NOTE

● The following table shows examples on how to calculate total cargo/load capacity of your vehicle with varying seating configurations and number and size of occupants. This table is for illustration purposes only and may not be accurate for the seating and load capacity of your vehicle.
● For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

● Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR's) for the front and rear axles must not be exceeded. For further information on GAWR's, vehicle loading, see the "Specifications" section of this manual.

Driving safety

Cargo loads

N00629700493

Cargo load precautions

To determine the cargo load capacity for your vehicle, subtract the weight of all vehicle occupants from the vehicle capacity weight. For added information, if needed, refer to “Steps for Determining Correct Load Limit” on page 4-10.

DO NOT USE the Gross Vehicle Weight Rating and Gross Axle Weight Rating numbers listed on the safety certification label (A) located on the inside sill of the driver's door as the guide for passengers and/or cargo weight.

Medical illustration showing anatomical structures with labeled point A (no text or symbols beyond label)

WARNING

●To reduce the risk of serious injury or death, the combined weights of the driver, passengers and cargo and must never exceed the vehicle capacity weight.
●Exceeding the vehicle capacity weight will adversely affect vehicle performance, including handling and braking, and may cause an accident.
●Do not load cargo or luggage higher than the top of the seatback. Be sure that your cargo or luggage cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo being thrown inside the cabin if you suddenly have to brake can cause a serious accident or injury or death.
●Put cargo or luggage in the cargo area of your vehicle. Try to spread the weight evenly.

Loading cargo on the roof

N01631400083

WARNING

• Weight placed on the roof of the vehicle will raise the vehicle's center of gravity and adversely affect its handling characteristics. As a result, driving errors or emergency maneuvers could lead to a loss of control and result in an accident. Drive slowly and avoid excessive maneuvers such as sudden braking or quick turning.
  ●Make sure that the weight of luggage and the roof carrier do not exceed the maximum roof load, 110 lb (50 kg). If the maximum roof load is exceeded, this could cause damage to the vehicle or result in an accident.
  ●The total weight of all occupants and luggage, including your roof load, must not exceed the vehicle capacity weight. For more information, refer to "Tire and loading information placard" on page 9-4.
  ●Roof load is determined by adding the weight of the roof carrier and the weight of the luggage placed on the roof carrier.
• For additional information, refer to “Maximum roof load” on page 9-7.

Driving safety

CAUTION

• Do not load luggage directly onto the roof. Use a roof carrier that properly fits your vehicle.
  For installation, refer to the instruction manual provided with the roof carrier.
• Place the luggage on the carrier so that its weight is distributed evenly with the heaviest items on the bottom. Do not load items that are wider than the roof carrier.
  ●Before driving and after traveling a short distance, always check the load to make sure it is securely fastened to the roof carrier.
  Stop the vehicle periodically and check that the load remains secure. If the load is not secure, it could fall from the vehicle and damage your vehicle, another vehicle or create a road hazard.

NOTE

●To prevent wind noise or reduction in gas mileage, remove the roof carrier when not in use.
●Before using an automatic car wash, check with the attendant to determine if the roof carrier should be removed.
- Be sure that adequate clearance is maintained for raising the sunroof and/or rear hatch when installing a roof carrier. (For vehicle with sunroof only)

Driving safety

Roof carrier mounting brakets

N005306001072

When installing the roof carrier, use the brackets (A). The brackets (A) are located under each cover (B).

Attaching the roof carrier

Slide each cover (B) toward the front of the vehicle to remove it.

Refitting the covers

1. With each cover, put the tabs (C) on the cover in the holes (D) in the roof.
2. Slide the cover (B) toward the rear of the vehicle to install it.

Diagram of a rectangular electronic component with labeled point B and directional arrow (no text or symbols beyond labels)

Driving safety

Trailer towing

N00629800188

WARNING

●Do not use this vehicle for trailer towing. It may not be possible to maintain control or adequate braking.

Comfort controls

Vents. 5-2

Manual air conditioning with MAX A/C mode (if so equipped). 5-6

Manual air conditioning without MAX A/C mode (if so equipped). 5-16

Automatic air conditioning with Fahrenheit scale (if so equipped). 5-25

Automatic air conditioning with Celsius scale (if so equipped). 5-35

Important air conditioning operating tips .....5-45

Air purifier 5-46

AM/FM electronically tuned radio with CD player (RBDS and MP3 compatible) (if so equipped). 5-46

AM/FM electronically tuned radio with 6 CD autochanger (RBDS and MP3 compatible) (if so equipped). 5-74

To play tracks from USB device (if so equipped)....5-104

To play tracks from a Bluetooth® device (vehicles with Bluetooth® 2.0 interface) .....5-121

To use the external audio input function (if so equipped) 5-125

Steering wheel audio remote control switch (if so equipped) 5-127

Error codes 5-130

Error codes (SIRIUS Satellite Radio) (if so equipped) 5-132

Error codes (iPod) 5-134

Error codes (USB memory device)....5-136

Handling of compact discs (CD)....5-138

Antenna 5-141

Digital clock (if so equipped) 5-141

General information about your radio....5-142

Comfort controls

Vents

N00729900210

1- Center vents
2- Side vents

Air flow and direction adjustments

ND1730200255

Center vents

Move the knob to make adjustments.

To close the vent, move the knob to the inside as far as possible.

A- Knob
1- Close
2- Open

Side vents

Move the knob to make adjustments.

To close the vent, move the knob to the outside as far as possible.

A- Knob

1-Close

2- Open

NOTE

●On rare occasions, air from the vents of an air-conditioned vehicle may be foggy. This is only moist air cooling suddenly and does not indicate a problem.
●Do not let drinks or other liquids get into the vents as they could prevent the air conditioning from operating normally.

Changing the mode selection

N00736400565

To change the position and amount of air flowing from the vents, turn the mode selection dial. Refer to “Mode selection dial” on page 5-7, 5-17, 5-27, 5-37.

These symbols are used in the next several illustrations to demonstrate the quantity of air coming from the vents.

→ : Small amount of air from the vents
→ : Medium amount of air from the vents
→ : Large amount of air from the vents

Face position

Air flows only to the upper part of the passenger compartment.

Comfort controls

Foot/Face position

Air flows to the upper part of the passenger compartment, and flows to the leg area.

*- if so equipped

NOTE

- With the mode selection dial between the “” and “” positions, air flows mainly to the upper part of the passenger compartment. With the mode selection dial between the “” and “” positions, air flows mainly to the leg area.

Foot position

Air flows mainly to the leg area.

*- if so equipped

Comfort controls

Foot/Defroster position

Air flows to the leg area, the windshield and the door windows.

*- if so equipped

NOTE

- With the mode selection dial between the “” and “” positions, air flows mainly to the leg area. With the mode selection dial between the “” and “” positions, air flows mainly to the windshield and the door windows.

Defroster position

Air flows mainly to the windshield and the door windows.

Comfort controls

Manual air conditioning with MAX A/C mode (if so equipped)

N007303HX1315

The air conditioning can only be used while the engine is running.

Control panel

N00730500274

A- Temperature control dial
B-Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P.3-241

Blower speed selection dial

ND1736500146

When the ignition switch is in the "ON" position, select the blower speed by turning the blower speed selection dial. Turning the dial clockwise will increase the blower speed; turning the dial counterclockwise will decrease it. When the dial is set to the "OFF" position, all fan-driven airflow will stop.

Temperature control dial

N00736600219

Turn the temperature control dial clockwise to make the air warmer. Turn it counterclockwise to make the air cooler.

NOTE

●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.
●For instructions on how to use the "MAX A/C" position (A), refer to "For quick cooling" on page 5-12.

Comfort controls

Mode selection dial

N00736700151

To change the amount of air flowing from the vents, turn the mode selection dial. Refer to “Changing the mode selection” on page 5-3.

Comfort controls

Air selection switch

N0D736801367

Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the windshield.

To change the air selection, simply press the air selection switch. A sound will be made every time you push the switch.

●Outside air {Indicator light (A) OFF}
●Recirculated air {Indicator light (A) ON}

When the air conditioning turns on, the air selection is controlled automatically.

When the air conditioning turns off, the air selection automatically goes back to the outside air position.

The air selection indicator light (A) shows the selected position.

NOTE

- When the air conditioning operates with the air selection switch (A) in the outside air position, the system automatically determines whether to continue using outside air or to perform recirculation.

If the outside temperature is high, the system selects recirculation to achieve rapid cooling and causes the air selection indicator in the switch to illuminate. When the air conditioning turns off or the blower speed selection dial is set to the "OFF" position, the air selection automatically goes back to the outside position.

If the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every now and then to keep the windows from fogging up.

CAUTION

●Using recirculated air for a long time may cause the windows to fog up.

NOTE

●While the mode selection dial is set between “” and “” position, the air conditioning compressor will run automatically. The outside air position will also be selected automatically. (In this case, the air conditioning indicator will not change.)
- When the temperature control dial is set to the “MAX A/C” position, the air selection will be automatically set to the recirculation position.
- When the temperature control dial is in the “MAX A/C” position, if it is set to a position other than “MAX A/C”, the setting for the air selection switch is selected as described below. The selection of recirculated air or outside air depends on the setting before “MAX A/C” was used.

- If automatic control was set:

Automatic control is continued

- If recirculated air was selected:

Recirculated air is continued

• If outside air was selected:

Outside air is continued

Personalizing the air selection (Changing the function setting)

N00702100015

You can change the following functions to match your preference.

●Enable automatic air control:

When the air conditioning operates, the air selection switch will be automatically controlled.

●Disable automatic air control:

Even when the air conditioning operates, the air selection switch will not be automatically controlled.

●Changing the settings

Press the air selection switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

• When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.
• When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air control”.
●While the mode selection dial is set between “and” position, the air selection will automatically change to the outside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.

Comfort controls

Air conditioning switch

N007310X0449

Push the switch, and the air conditioning compressor will turn on. The air conditioning indicator light (A) will come on. A sound will be made every time you push the switch.

AG0001944

Push the switch again and the air conditioning compressor will stop and the indicator light (A) goes off.

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. Especially for vehicles with a continuously variable transmission (CVT), while the vehicle is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

NOTE

- If a problem is detected in the air conditioning compressor, the air conditioning indicator light (A) blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the air conditioning indicator light (A) does not blink, there is no problem. If it does blink, have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

●Sometimes, for example after using a high-pressure car wash, the condenser can get wet, and the air conditioning indicator light (A) blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evaporates, the blinking will stop.

Operating the air conditioning system

N00731100222

Heating

Set the mode selection dial to the “” position and set the air selection switch (A) to the outside air position.

Turn the temperature control dial clockwise or counterclockwise to the desired temperature. Select the best speed to fit your needs.

Comfort controls

NOTE

●For quick heating, set the blower speed selection dial to the position shown in the illustration.

Comfort controls

Cooling

N007312001278

For ordinary cooling

5

1. Set the mode selection dial to the “position.”
2. Push the air selection switch (A) to set it to the outside air position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clockwise or counterclockwise.
5. Set the desired blower speed.

NOTE

• If the outside air is dusty or contaminated in some way, push the air selection switch (A) to set it to the recirculation position. Let in some outside air from time to time for good ventilation.
  ●To cool the leg areas, set the mode selection dial to the “position.

For quick cooling

1. Set the mode selection dial to the “position.”
2. Set the temperature control dial to the "MAX A/C" position.
3. Set the blower speed to the highest position.

NOTE

• When the temperature control dial is set to the "MAX A/C" position, the air conditioning compressor will run automatically and the light will come on. The recirculation position will be selected automatically. In this case, you cannot turn the air conditioning off or select the outside air position.
• When the temperature control dial is set to a position other than "MAX A/C", the air selection will automatically change to outside air. The air conditioning will revert to the previous condition in which the "MAX A/C" position was not selected.

Combination of unheated air and heated air

N00731300211

Set the mode selection dial to one of the positions shown in the illustration and set the air selection switch (A) to the outside air position.

Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperature control dial) flows to the upper part of the passenger compartment.

Comfort controls

Defrosting or defogging (windshield, door windows)

N007314001531

CAUTION

●For safety, make sure you have a clear view through all the windows.

Set the mode selection dial (between “” and “” to remove frost or mist from the windshield and door window.

For ordinary defrosting

Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the mode selection dial to the “position.”
2. Select your desired blower speed by turning the blower speed selection dial.
3. Select your desired temperature by turning the temperature control dial.

For quick defrosting

1. Set the mode selection dial to the “position.”
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.

Comfort controls

NOTE

●While the mode selection dial is set between “” and “” position, the air conditioning compressor will run automatically. The outside air position will also be automatically selected. (In this case, the air conditioning indicator will not change.)
●While the mode selection dial is set between “” and “” position, you cannot turn the air conditioning off or select the recirculation position. This prevents the windows from fogging up.
●To defog quickly, direct the air flow from the side vents toward the door windows.
- When defrosting, do not set the temperature control dial near the "MAX A/C" cool position. This will blow cool air on the window glass and fog it up.

Comfort controls

Manual air conditioning without MAX A/C mode (if so equipped)

N007303X1269

The air conditioning can only be used while the engine is running.

Control panel

N00730500287

A- Temperature control dial
B-Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P.3-241

Blower speed selection dial

ND1736500133

When the ignition switch is in the "ON" position, select the blower speed by turning the blower speed selection dial. Turning the dial clockwise will increase the blower speed; turning the dial counterclockwise will decrease it. When the dial is set to the "OFF" position, all fan-driven airflow will stop.

Temperature control dial

N00736600126

Turn the temperature control dial clockwise to make the air warmer. Turn it counterclockwise to make the air cooler.

Circular diagram with concentric rings and arrows indicating clockwise motion, no text or symbols present

NOTE

●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.

Comfort controls

Mode selection dial

N00736700177

To change the amount of air flowing from the vents, turn the mode selection dial. Refer to “Changing the mode selection” on page 5-3.

Comfort controls

Air selection switch

N00736801279

Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the windshield.

To change the air selection, simply press the air selection switch. A sound will be made every time you push the switch.

●Outside air {Indicator light (A) OFF}
●Recirculated air {Indicator light (A) ON}

When the air conditioning turns on, the air selection is controlled automatically.

The air selection indicator light (A) shows the selected position.

NOTE

- When the air conditioning operates with the air selection switch (A) in the outside air position, the system automatically determines whether to continue using outside air or to perform recirculation.

If the outside temperature is high, the system selects recirculation to achieve rapid cooling and causes the air selection indicator in the switch to illuminate. Press the air selection switch to return to outside air.

If the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every now and then to keep the windows from fogging up.

CAUTION

●Using recirculated air for a long time may cause the windows to fog up.

NOTE

●While the mode selection dial is set to the “” position, the air conditioning compressor will run automatically. The outside air position will also be selected automatically. (In this case, the air conditioning indicator will not change.)

Personalizing the air selection (Changing the function setting)

N00702100057

You can change the following functions to match your preference.

●Enable automatic air control:

When the air conditioning operates, the air selection switch will be automatically controlled.

●Disable automatic air control:

Even when the air conditioning operates, the air selection switch will not be automatically controlled.

●Changing the settings

Press the air selection switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

- When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.

- When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air control”.

●While the mode selection dial is set to the “” position, the air selection will automatically change to the outside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.

Air conditioning switch

N00731000452

Push the switch, and the air conditioning compressor will turn on. The air conditioning indicator light (A) will come on. A sound will be made every time you push the switch.

AG0001944

Push the switch again and the air conditioning compressor will stop and the indicator light (A) goes off.

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. Especially for vehicles with a continuously variable transmission (CVT), while the vehicle is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

Comfort controls

NOTE

• If a problem is detected in the air conditioning compressor, the air conditioning indicator light (A) blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the air conditioning indicator light (A) does not blink, there is no problem. If it does blink, have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
  ●Sometimes, for example after using a high-pressure car wash, the condenser can get wet, and the air conditioning indicator light (A) blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evaporates, the blinking will stop.

Operating the air conditioning system

ND0731100219

Heating

Set the mode selection dial to the “” position and set the air selection switch (A) to the outside air position.

Turn the temperature control dial clockwise or counterclockwise to the desired temperature. Select the best speed to fit your needs.

NOTE

●For quick heating, set the blower speed selection dial to the position shown in the illustration.

Comfort controls

Cooling

N00731200249

For ordinary cooling

1. Set the mode selection dial to the “position.”
2. Push the air selection switch (A) to set it to the outside air position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clockwise or counterclockwise.
5. Set the desired blower speed.

Comfort controls

NOTE

• If the outside air is dusty or contaminated in some way, push the air selection switch (A) to set it to the recirculation position. Let in some outside air from time to time for good ventilation.
  ●To cool the leg areas, set the mode selection dial to the “position.

Combination of unheated air and heated air

ND1731300224

Set the mode selection dial to the positions shown in the illustration and set the air selection switch (A) to the outside air position.

The air flow will be directed to the leg area and the upper part of the passenger compartment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperature control dial) flows to the upper part of the passenger compartment.

Defrosting or defogging (windshield, door windows)

N00731400544

CAUTION

●For safety, make sure you have a clear view through all the windows.

Set the mode selection dial (between “” and “” to remove frost or mist from the windshield and door window.

Comfort controls

For ordinary defrosting

Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the mode selection dial to the "position."
2. Set the air selection switch (A) to the outside air position.
3. Select your desired blower speed by turning the blower speed selection dial.
4. Select your desired temperature by turning the temperature control dial.

Comfort controls

For quick defrosting

1. Set the mode selection dial to the “position.”
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.

NOTE

●While the mode selection dial is set to the “” position, the air conditioning compressor will run automatically. The outside air position will also be automatically selected.
- If the mode selection dial is set to the “” position, you cannot turn the air conditioning off or select the recirculation position. This prevents the windows from fogging up.
●To defog quickly, direct the air flow from the side vents toward the door windows.
- When defrosting, do not set the temperature control dial near the maximum cool position. This will blow cool air on the window glass and fog it up.

Automatic air conditioning with Fahrenheit scale (if so equipped)

N00731500284

The air conditioning can only be used while the engine is running.

Control panel

N00711800496

A- Temperature control dial
B-Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P. 3-241

NOTE

●There is an interior air temperature sensor (G) in the illustrated position. Never place anything over the sensor, since doing so will prevent it from functioning properly.

Interior view of a car showing the steering wheel and gear shift (no text or symbols)

Comfort controls

Comfort controls

Blower speed selection dial

N007369X1094

When the ignition switch is in the "ON" position, select the blower speed by turning the blower speed selection dial. Turning the dial clockwise will increase the blower speed; turning the dial counterclockwise will decrease it. When the dial is set to the "OFF" position, all fan-driven airflow will stop.

Temperature control dial

ND173700265

Use this dial to adjust the temperature in the passenger compartment. Turn the temperature control dial clockwise to make the air warmer. Turn it counterclockwise to make the air cooler.

NOTE

●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.
- When the temperature is set to the highest or the lowest setting under the AUTO operation, the air selection and the air conditioning will be automatically changed as follows.

Also, if the air selection is operated manually after an automatic changeover, manual operation will be selected.

- Quick Heating (When the temperature is set to the highest setting)

Outside air will be introduced and the air conditioning will stop.

- Quick Cooling (When the temperature is set to the lowest setting)

Inside air will be recirculated and the air conditioning will operate.

The above indicates the factory settings. You can personalize the air selection switch and air conditioning switch to match your personal preferences.

Contact your Mitsubishi Motors dealer or a repair facility of your choice for assistance.

Refer to "Personalizing the air conditioning switch (Changing the function setting)" on page 5-31.

Refer to "Personalizing the air selection (Changing the function setting)" on page 5-29.

Mode selection dial

N00737100093

To change the amount of air flowing from the vents, turn the mode selection dial. Refer to “Changing the mode selection” on page 5-3.

Comfort controls

Air selection switch

N007372001238

Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the windshield.

To change the air selection, simply press the air selection switch. A sound will be made every time you press the switch.

●Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.

●Recirculated air {Indicator light (A) ON}

Air is recirculated inside the passenger compartment.

When the air conditioning turns on, the air selection is controlled automatically. When the air conditioning turns off, the air selection automatically goes back to the outside air position. If high cooling performance is desired, or if the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every now and then to keep the windows from fogging up.

CAUTION

●Using recirculated air for a long time may cause the windows to fog up.

NOTE

• If the mode selection dial is set between “” and “”, you cannot turn the air conditioning off or select the recirculation position.
  This prevents the windows from fogging up.

- When the mode selection dial or the blower speed selection dial is set to the "AUTO" position again after manual operation, the air selection switch will also be automatically controlled.

Personalizing the air selection (Changing the function setting)

N0076000063

You can change the following functions to match your preference.

●Enable automatic air control:

When the mode selection dial or the blower speed selection dial is set to the "AUTO" position, the air selection switch will also be automatically controlled.

●Disable automatic air control:

Even when the mode selection dial or the blower speed selection dial is set to the “AUTO” position, the air selection switch will not be automatically controlled.

●Changing the settings:

Press the air selection switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

- When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.

- When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air control”.
●While the mode selection dial is set between “” and “” position, the air selection will automatically change to the outside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.

Comfort controls

Air conditioning switch

N007373001314

Push the switch, and the air conditioning compressor will turn on. The air conditioning indicator light (A) will come on. A sound will be made every time you push the switch.

AG0002097

Push the switch again and the air conditioning compressor will stop and the indicator light (A) goes off.

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. Especially for vehicles equipped with a continuously variable transmission (CVT) or Twin Clutch SST while the vehicle is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

NOTE

- If a problem is detected in the air conditioning compressor, the air conditioning indicator light (A) blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the air conditioning indicator light does not blink there is no problem. If it does blink, have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

●Sometimes, for example after using a high-pressure car wash, the condenser can get wet, and the air conditioning indicator light (A) blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evaporates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function setting)

N00759800074

You can change the following functions to match your preference.

●Enable automatic air conditioning control:

When the mode selection dial or blower speed selection dial has been set to the “AUTO” position or when the temperature control dial has been set to the minimum temperature, the air conditioning switch is automatically controlled.

●Disable automatic air conditioning control:

The air conditioning switch is not automatically controlled, unless the air conditioning switch is used.

●Changing the settings:

Press the air conditioning switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

- When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.

- When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air conditioning control”.
●While the mode selection dial is set between “” and “” position, the air conditioning will run automatically, even if the system is set to “Disable automatic air conditioning control”, in order to prevent windows from fogging up.

Comfort controls

Operating the air conditioning system (automatic mode)

N00731700358

5

In normal conditions, use the system in the AUTO mode and follow these procedures:

1. Set the blower speed selection dial to the "AUTO" position.
2. Select the temperature control dial to the desired temperature. The temperature can be set within a range of around 61 to 89. The temperature will increase as the dial is turned to the right.
3. Set the mode selection dial to the "AUTO" position.

The vents (except between “and”) recirculation/out-side air, blower speed, and ON/OFF of air conditioning will be controlled automatically.

NOTE

●Set the temperature at about 75 under normal conditions.
●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial. To prevent the windshield and windows from fogging up, the vent mode will be changed to “or” and the blower speed will be reduced.

Comfort controls

Operating the air conditioning system (manual mode)

N00731800072

Blower speed and vent mode may be controlled manually by setting the blower speed selection dial and the mode selection dial to the desired positions. To return to automatic operation, set the dials to the "AUTO" position.

Defrosting or defogging (windshield, door windows)

N00732400280

CAUTION

●For safety, make sure you have a clear view through all the windows.

To remove frost or mist from the windshield and door windows, use the mode selection dial ("or")

For ordinary defrosting

Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the mode selection dial to the “position.”
2. Select your desired blower speed by turning the blower speed selection dial.
3. Select your desired temperature by turning the temperature control dial.

Comfort controls

For quick defrosting

1. Set the mode selection dial to the “position.”
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.

NOTE

●While the mode selection dial is set between “” and “” position, the air conditioning compressor will run automatically. The outside air position will also be selected automatically.
- If the mode selection dial is set between “and” you cannot turn the air conditioning off or select the recirculation position. This prevents the windows from fogging up.
●To defog quickly, direct the air flow from the side vents toward the door windows.
- When defrosting, do not set the temperature control dial to the maximum cool position. This will blow cool air on the window glass and fog it up.

Automatic air conditioning with Celsius scale (if so equipped)

N00731500297

The air conditioning can only be used while the engine is running.

Control panel

N00711800500

A- Temperature control dial
B-Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P. 3-241

NOTE

●There is an interior air temperature sensor (G) in the illustrated position. Never place anything over the sensor, since doing so will prevent it from functioning properly.

Interior view of a car showing the wheel and seatbelt mechanism (no text or symbols)

Comfort controls

Comfort controls

Blower speed selection dial

ND0736900111

When the ignition switch is in the "ON" position, select the blower speed by turning the blower speed selection dial. Turning the dial clockwise will increase the blower speed; turning the dial counterclockwise will decrease it. When the dial is set to the "OFF" position, all fan-driven airflow will stop.

Temperature control dial

ND173700278

Use this dial to adjust the temperature in the passenger compartment. Turn the temperature control dial clockwise to make the air warmer. Turn it counterclockwise to make the air cooler.

NOTE

●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.
- When the temperature is set to the highest or the lowest setting under the AUTO operation, the air selection and the air conditioning will be automatically changed as follows.

Also, if the air selection is operated manually after an automatic changeover, manual operation will be selected.

- Quick Heating (When the temperature is set to the highest setting)

Outside air will be introduced and the air conditioning will stop.

- Quick Cooling (When the temperature is set to the lowest setting)

Inside air will be recirculated and the air conditioning will operate.

The above indicates the factory settings. You can personalize the air selection switch and air conditioning switch to match your personal preferences.

Contact your Mitsubishi Motors dealer or a repair facility of your choice for assistance.

Refer to "Personalizing the air conditioning switch (Changing the function setting)" on page 5-41.

Refer to "Personalizing the air selection (Changing the function setting)" on page 5-39.

Mode selection dial

N00737100136

To change the amount of air flowing from the vents, turn the mode selection dial. Refer to “Changing the mode selection” on page 5-3.

Comfort controls

Air selection switch

N00737201241

Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the windshield.

To change the air selection, simply press the air selection switch. A sound will be made every time you press the switch.

●Outside air {Indicator light (A) OFF} Outside air is introduced into the passenger compartment.
●Recirculated air {Indicator light (A) ON} Air is recirculated inside the passenger compartment.

When the air conditioning turns on, the air selection is controlled automatically. When the air conditioning turns off, the air selection automatically goes back to the outside air position. If high cooling performance is desired, or if the outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every now and then to keep the windows from fogging up.

CAUTION

●Using recirculated air for a long time may cause the windows to fog up.

Personalizing the air selection (Changing the function setting)

N0076000076

You can change the following functions to match your preference.

●Enable automatic air control:

When the mode selection dial or the blower speed selection dial is set to the "AUTO" position, the air selection switch will also be automatically controlled.

●Disable automatic air control:

Even when the mode selection dial or the blower speed selection dial is set to the “AUTO” position, the air selection switch will not be automatically controlled.

●Changing the settings:

Press the air selection switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

- When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.

- When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air control”.
●While the mode selection dial is set to the “”position, the air selection will automatically change to the outside air position, even if the system is set to “Disable automatic air control”, in order to prevent windows from fogging up.

Comfort controls

Air conditioning switch

N00737301327

Push the switch, and the air conditioning compressor will turn on. The air conditioning indicator light (A) will come on. A sound will be made every time you push the switch.

AG0002097

Push the switch again and the air conditioning compressor will stop and the indicator light (A) goes off.

CAUTION

- When using the air conditioning, the idling speed may slightly increase as the air conditioning compressor is switched on/off automatically. Especially for vehicles equipped with a continuously variable transmission (CVT) or Twin Clutch SST while the vehicle is stationary, fully depress the brake pedal to prevent the vehicle from creeping.

NOTE

- If a problem is detected in the air conditioning compressor, the air conditioning indicator light (A) blinks. Press the air conditioning switch once to turn it off, then once more to turn it back on. If the air conditioning indicator light does not blink there is no problem. If it does blink, have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.

●Sometimes, for example after using a high-pressure car wash, the condenser can get wet, and the air conditioning indicator light (A) blinks temporarily. Wait for a while, press the air conditioning switch once to turn the system off, then once more to turn it back on. Once the water evaporates, the blinking will stop.

Personalizing the air conditioning switch (Changing the function setting)

N00759800087

You can change the following functions to match your preference.

●Enable automatic air conditioning control:

When the mode selection dial or blower speed selection dial has been set to the “AUTO” position or when the temperature control dial has been set to the minimum temperature, the air conditioning switch is automatically controlled.

●Disable automatic air conditioning control:

The air conditioning switch is not automatically controlled, unless the air conditioning switch is used.

●Changing the settings:

Press the air conditioning switch for about 10 seconds or longer.

When the setting has changed, the system will beep and the indicator light will flash.

- When the setting has changed from enabled to disabled, the system will beep three times and the indicator will flash three times.

- When the setting has changed from disabled to enabled, the system will beep two times and the indicator light will flash three times.

NOTE

●The factory setting is “Enable automatic air conditioning control”.
●While the mode selection dial is set to the “” position, the air conditioning will run automatically, even if the system is set to “Disable automatic air conditioning control”, in order to prevent windows from fogging up.

Comfort controls

Operating the air conditioning system (automatic mode)

N00731700286

5

In normal conditions, use the system in the AUTO mode and follow these procedures:

1. Set the blower speed selection dial to the "AUTO" position.
2. Select the temperature control dial to the desired temperature. The temperature can be set within a range of around 18 to 32. The temperature will increase as the dial is turned to the right.
3. Set the mode selection dial to the "AUTO" position.

The vents (except “”, recirculation/outside air, blower speed, and ON/OFF of air conditioning will be controlled automatically.

NOTE

●Set the temperature at about 25 under normal conditions.
●While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial. To prevent the windshield and windows from fogging up, the vent mode will be changed to “” or
and the blower speed will be reduced.

Comfort controls

Operating the air conditioning system (manual mode)

N00731800098

Blower speed and vent mode may be controlled manually by setting the blower speed selection dial and the mode selection dial to the desired positions. To return to automatic operation, set the dials to the "AUTO" position.

Defrosting or defogging (windshield, door windows)

N00732400453

CAUTION

●For safety, make sure you have a clear view through all the windows.

To remove frost or mist from the windshield and door windows, use the mode selection dial ("or")

For ordinary defrosting

Use this setting to keep the windshield and door windows clear of mist, and to keep the leg area heated (when driving in rain or snow).

1. Set the mode selection dial to the “position.”
2. Set the air selection switch (A) to the outside air position.
3. Select your desired blower speed by turning the blower speed selection dial.
4. Select your desired temperature by turning the temperature control dial.

Comfort controls

For quick defrosting

1. Set the mode selection dial to the “position.”
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.

NOTE

●While the mode selection dial is set to the “” position, the air conditioning compressor will run automatically. The outside air position will also be selected automatically.
●While the “Y” position is selected, you cannot turn the air conditioning off or select the recirculation position. This prevents the windows from fogging up.
●To defog quickly, direct the air flow from the side vents toward the door windows.
- When defrosting, do not set the temperature control dial to the maximum cool position. This will blow cool air on the window glass and fog it up.

Important air conditioning operating tips

N00733700280

1. Park the vehicle in the shade whenever possible. Parking in the hot sun makes the vehicle interior extremely hot which then requires more time to cool. If it is necessary to park in the sun, open the windows for the first few minutes of air conditioning to expel the hot air.
2. Afterwards, keep the windows closed when the air conditioning is in use. The entry of outside air through open windows will reduce cooling efficiency.
3. When running the air conditioning, make sure the air intake, which is located in front of the windshield, is free of obstructions such as leaves. Leaves collected in the air-intake chamber may reduce air flow and plug the water drains.

Air conditioning system refrigerant and lubricant recommendations

If the air conditioning seems less effective than usual, the cause might be a refrigerant leak.

Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of your choice.

CAUTION

●The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a and the lubricant SUN-PAG56.
Use of any other refrigerant or lubricant will cause severe damage and may require replacing your vehicle's entire air conditioning system.
The release of refrigerant into the atmosphere is not recommended.
The new refrigerant HFC-134a in your vehicle is designed not to harm the earth's ozone layer. However, it may contribute slightly to global warming.
It is recommended that the old refrigerant be saved and recycled for future use.

During a long period of disuse

The air conditioning should be operated for at least five minutes each week, even in cold weather. This includes the quick defrosting mode. Operating the air condition system weekly maintains lubrication of the compressor internal parts to keep the air conditioning in the best operating condition.

Comfort controls

Air purifier

N00733800151

The air conditioning system is equipped with an air filter to remove pollen and dust.

The air filter's ability to collect pollen and dirt is reduced as it becomes dirty, so replace it periodically. For the maintenance interval, refer to the “WARRANTY AND MAINTENANCE MANUAL”.

NOTE

●Operation in certain conditions such as driving on a dusty road and frequent use of the air conditioning can lead to reduction of service life of the filter. When you feel that the air flow is lower than normal or when the windshield or windows start to fog up easily, replace the air filter. Contact your Mitsubishi Motors dealer or a repair facility of your choice for assistance.

AM/FM electronically tuned radio with CD player (RBDS and MP3 compatible) (if so equipped)

N00734300919

The audio system can only be used when the ignition switch is in the "ON" or "ACC" position.

NOTE

●To listen to the audio system while the engine is not running, turn the ignition switch to the "ACC" position.
If the ignition switch is left in the “ACC” position, the accessory power will automatically turn off after a certain period of time and you will no longer be able to use the audio system. The accessory power comes on again if the ignition switch is turned from the “ACC” position. Refer to “ACC power auto-cutout function” on page 3-83.
- If a cellular phone is used inside the vehicle, it may create noise in the audio equipment. This does not mean that anything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.
- If foreign objects or water get into the audio equipment, or if smoke or a strange odor comes from it, immediately turn off the audio system and have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice. Never try to repair it yourself. Avoid using the audio system until it is inspected by a qualified person.
- If the audio system is damaged by foreign objects, water, or fire, have the system checked by a qualified Mitsubishi Motors technician.

SIRIUS™ Satellite Radio (if so equipped)

N00760100080

Satellite radio uses direct satellite to receiver broadcasting technology to provide clear digital sound, coast to coast. The subscription service provider is SIRIUS Satellite Radio. This service offers over 100 channels of music, sports, news, entertainment, and programming for listeners, directly from its satellites and broadcasting studios.

System activation

To activate your SIRIUS Satellite Radio service, call the toll-free number 888-539-SIRIUS (7474), or visit the Sirius web site at www.sirius.com. Please have the following information available when activating your system:

1. The Sirius Identification Number (SIRIUS ID). Refer to the section "SIRIUS ID indication" on page 5-59.
2. Credit card information.
3. Your Vehicle Identification Number. Refer to "Vehicle identification number plate" on page 9-2.

"SIRIUS," the SIRIUS dog logo and channel names and logos are trademarks of SIRIUS Satellite Radio, Inc.

Comfort controls

Volume and tone control panel

ND1711900615

AF1001212

1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4- SOUND (Sound control) switch

To adjust the volume

N00712000365

Turn the VOL knob (2) clockwise to increase the volume; counterclockwise to decrease the volume.

The status will be displayed in the display (3).

NOTE

●The volume control mode will shut off automatically if either the radio or CD is selected, or if no adjustment is made within about 2 seconds.

Comfort controls

To adjust the tone

N00712100568

1. Press the SOUND switch (4) repeatedly to select the tone or balance control to change. The order is: TYPE → FIELD → BASS → MID → TREBLE → FADER → BALANCE → Audio adjust mode OFF.

QUICK ACCESS MODE

To access the sound customization features quickly, push and hold the SOUND switch (4), then turn the switch clockwise or counterclockwise to access your desired sound customization setting. Release the switch to adjust the setting.

Comfort controls

1. Turn the SOUND switch (4) either clockwise or counterclockwise to change the tone/balance setting. The status will be displayed in the display (3).

A-Adjust mode B-Adjust level

Adjust mode	Adjust level	Sound control switch operation
		Counterclock-wise turn	Clockwise turn
TYPE	NORMAL ↔ POP ↔ ROCK ↔ HIP-HOP ↔ COUNTRY
FIELD	NORMAL ↔ STAGE ↔ LIVE ↔ HALL
BASS	-6 to 6 Weaker StrongerMID
TREBLE
FADER F11	to R11	R(Rear) increases	F(Front) increases
BALANCE L	11 to R11	L(Left) increases	R(Right)increases

TYPE (Acoustic characteristic selection)

To select the desired acoustic characteristic.

Acoustic characteristic	Description
NORMAL Sounds	good for all types of music.
POP Tight bass	and high frequency sound.
ROCK	Tuned for hard rock and heavy metal with powerful drums, guitars, and vocals.
HIP-HOP	Deep bass punch and well-defined vocals.
COUNTRY Enhanced main vocals.

Comfort controls

FIELD (Sound field selection)

To select the desired sound field.

Sound field type Description
NORMAL	Allows the listeners to enjoy an image of a sound stage where music is performed so that the instrumental sound surrounds them, while keeping the vocalist in front.
STAGE	Places the image of a sound stage in front of the driver with the vocalist in the center (for driver only).
LIVE	Front seat occupants are surrounded by sound from front and rear speakers.
HALL	Places the image of a sound stage in front of the driver with the vocalist in the center (for driver only). Sound reflections are added to the rear speakers to simulate the experience of being at a concert hall. Best with classical or vocalist music.

Comfort controls

BASS (Bass tone control)

To select the desired bass level.

MID (Midrange tone control)

To select the desired midrange level.

TREBLE (Treble tone control)

To select the desired treble level.

FADER (Front/Rear balance control)

To balance the volume from the F (front) and the R (rear) speakers.

BALANCE (Left/Right balance control)

To balance the volume from the L (left) and the R (right) speakers.

NOTE

• When set to “0”, it will beep.
• When TYPE or FIELD is changed, the sound will cut out briefly, but this does not indicate a malfunction.
  ●The audio adjust mode will automatically shut off when either the radio or CD is selected, or if no adjustment is made within about 10 seconds.
• If the SOUND switch (4) is pushed and held for more than 2 seconds during the audio adjust mode, it will change to "Hold" mode. The selected audio mode will be held until the SOUND switch (4) is pushed for more than 2 seconds again.

Speed Compensated Volume function

ND0752200239

Speed Compensated Volume function is a feature that automatically adjusts the VOLUME, BASS, MIDDLE, and TREBLE settings in accordance with the vehicle speed. It is possible to turn this function ON-OFF using the following methods:

1. If you are presently pushing the SOUND switch (4) and making a tone adjustment, finish making the tone adjustment.
2. Push the SOUND switch (4) for at least about 2 seconds. The system will switch to MENU mode and the characters "SCV ON" will be shown on the display.
3. Turn the SOUND switch (4) clockwise to the turn the function ON. Turn it counterclockwise to turn the function OFF.

NOTE

●The factory setting for the Speed Compensated Volume function is ON.
●The MENU mode will automatically shut off when either the radio or CD is selected or the user does not move any of the switches for 10 seconds.

Radio control panel and display

N00734900726

1- RADIO (AM/FM selection) button
2-PWR (On-Off) switch
3-PAGE button
4- DISP (Display) button
5- SEEK (Down-seek) button
6- SEEK (Up-seek) button
7- TUNE switch
8- PTY (Program Type) button
9- SCAN button
10- Memory select buttons
11-FM (FM1/FM2) display
12- ST (Stereo) indicator
13- RBDS (Radio Broadcast Data System) indicator
14- PTY (Program Type) indicator

Comfort controls

To listen to the radio

N00735001782

1. Press the PWR switch (2) to turn the audio system ON and OFF. The system turns on in the last mode used. Press the RADIO button (1) to turn ON the radio.

2. Press the RADIO button (1) to select the desired band (AM/FM1/FM2).

3. Press the SEEK button (5 or 6) to tune to a station, or press one of the Memory select buttons (10) to recall a station memorized for that button.

Refer to "Automatic tuning", "Manual tuning" or "To enter frequencies into the memory".

Automatic tuning

After pressing the SEEK button (5 or 6), a receivable station will be automatically selected and reception of the station will begin.

SCAN function

Press the SCAN button (9). The radio will tune consecutively to each available station for about 5 seconds per station. If you want to stop scanning, press the SCAN button again.

The frequency display of the current station flashes once per second during SCAN.

Manual tuning

The frequency changes every time the TUNE switch (7) is turned.

Turn the switch to select the desired station.

To enter frequencies into the memory

As many as 6 AM and 12 FM stations can be entered into the memory.

To store a frequency in the memory, follow these steps:

1. Press the SEEK button (5 or 6), or turn the TUNE switch (7) to tune to the frequency you wish to keep in the memory.

2. Press one of the Memory select buttons (10) until it beeps. The sound will be momentarily interrupted while the frequency is being entered into the memory. The number of the button matching the entry in the memory as well as the frequency are displayed.

1. To recall a frequency that has been saved in memory, press the corresponding button briefly for no longer than about 1 second.

NOTE

●Disconnecting the battery cables erases all the radio station settings stored in the memory.

Radio broadcast data system (RBDS)

N00751800094

RBDS features are available for use only on FM stations that broadcast RBDS information.

This RBDS radio can search for stations broadcasting the selected type of programming and display messages from radio stations.

PTY (Program Type)

RBDS broadcasts are classified according to program type (PTY) as follows.

1. ROCK
2. COUNTRY
3. EASY LIS
4. CLASSICL
5. JAZZ
6. Top 40
7. R&B
8. INFORM
9. RELIGION
10. MISC

To search for a broadcast of desired PTY

1. To enter PTY (Program Type) mode, press the PTY button (8) during FM reception.
2. Press the PTY button repeatedly until your desired PTY is reached.
   You can press one of the Memory select buttons (10) for about 2 seconds to save the currently displayed PTY to that Memory select button. Thereafter, you can easily call up your desired PTY by pressing the corresponding Memory select button.
3. Press the SEEK button (5 or 6), and the radio will begin to search for a broadcast of the selected PTY. During search, the selected PTY on the display blinks and the sound will be momentarily interrupted.
4. When the radio picks up a station with your desired PTY, the PTY and the frequency will each appear on the display for 2 seconds. Then the PTY and the station name will alternately appear on the display for 6 seconds.
5. The frequency will appear on the display. Then the radio will start receiving the program and exit the PTY mode.

Comfort controls

NOTE

• If you wish to listen to another station of the same PTY as currently selected, repeat the previous procedure from step 2.
  ●To display the station name and the PTY, press the DISP button (4) and the PTY button (8) respectively.
• If no station is found with your desired PTY, "EMPTY" will appear on the display for 5 seconds. Then the radio will return to the previous station and exit the PTY mode.
• If the radio cannot read the station name, the PTY and the frequency will alternately appear on the display for 6 seconds. Then the radio will start receiving the program and exit the PTY mode.

Scan function

1. After selecting your desired PTY, press the SCAN button (9). The radio will tune consecutively to each available station of the selected PTY for about 5 seconds per station.
2. To stop the scan mode, press the SCAN button again.

Text message

The radio can receive text messages broadcast by some RBDS stations.

1. While tuning in to an RBDS station, press the DISP button (4).
2. A text message will appear on the display. If a station name appears, press the DISP button again, then the text message will be displayed.
3. To cancel the text message display, press the DISP button again.

NOTE

• When there is no text message to be displayed, the display shows "NO MESSAGE" and then shows the frequency.
  ●The display can show up to 12 characters. If a text message has more than 12 characters, press the PAGE button (3) to view the next 12 characters.

Comfort controls

SIRIUS satellite radio control panel and display

ND1700200197

1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3-PAGE button
4- DISP (Display) button
5- Channel selection down button
6- Channel selection up button
7- TUNE/SOUND (Category selection) switch
8- PTY button
9- SCAN button
10- Memory select buttons
11- SAT ( S AT1/ S AT2/S AT 3 /S AT 4 ) display
12- PTY indicator

To listen to the SIRIUS satellite radio

N00760500169

1. Press the PWR switch (2) to turn the audio system ON and OFF. The system turns on in the last mode used. Press the RADIO button (1) to turn ON the radio.
2. Press the RADIO button (1) to select the desired band (SAT1/SAT2/SAT3/SAT4). Each time you push the button, the display will change in the following order: AM→FM1→FM2→SAT1→SAT2→SAT3→SAT4. Once the display shows “SIRIUS,” satellite radio reception will begin.

Category selection

1. Pressing the PTY button (8) will cause the category of the channel that is currently being received to be displayed for around 2 seconds.
2. If the TUNE/SOUND switch (7) is turned, the system will change to the category selection mode, the current category will be shown in the display, and the PTY indicator (12) will light up.
3. Turning the TUNE/SOUND switch (7) while in the category selection mode, the next category will be shown.

NOTE

• Selecting a different category will not change the channel. During category selection, the original channel will continue to be received. Use a channel selection button (5 or 6) to change the channel.
• If you do not use the satellite radio again before 15 seconds have elapsed, the category selection mode will be canceled. (The PTY indicator (12) will go out.)

Comfort controls

- Pressing the PTY button (8) while in the category selection mode will cause the current channel to be displayed for around 2 seconds.

Channel selection

You can select a channel by pressing a channel selection button (5 or 6).

NOTE

●While in the category selection mode, only channels in the category can be selected.

Scan function

1. Pressing the SCAN button (9) will cause the satellite radio to tune consecutively to each available channel for about 7 seconds per channel.
2. To stop the scan mode, press the SCAN button (9) again.

NOTE

●While in the category selection mode, only channels in the category can be scanned.

Comfort controls

To enter channels into the memory

You can save one channel to each Memory select button (10), for a maximum of 24 channels in memory.

To store a channel in the memory, follow these steps:

1. Press a channel selection button (5 or 6) and select the channel that you wish to keep in the memory.
2. Press one of the Memory select buttons (10) until it beeps, indicating that the channel has been stored in memory.

NOTE

- If you store a channel in the memory, you can call up your desired channel immediately by simply pushing the corresponding Memory select button (10).

SIRIUS ID indication

If you press a channel selection button (5 or 6) to select "CH 0," the SIRIUS ID will be displayed.

1. If you select "CH 0," the SIRIUS ID (12 digits) will be displayed.
2. To stop the SIRIUS ID indication, press a channel selection button (5 or 6) and select a channel other than "CH 0."

To skip or lock a desired channel - MENU mode

You can set the satellite radio so that it locks a desired channel or skips the channel during channel selection.

1. While the satellite radio is tuned in to the channel, press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode.
2. In the MENU mode, the satellite radio channel SKIP setting and LOCK setting are possible.
   Each time you press the TUNE/SOUND switch (7), the status will change in the following sequence.
   “SKIP SETTING” (SKIP setting mode) → “LOCK SETTING” (LOCK setting mode) → “SCV ON” → “PHONE OFF” → MENU mode off.

NOTE

●The MENU mode will automatically shut off when either the radio or CD is selected, when the TUNE/SOUND switch (7) is pressed for about 2 seconds or longer, or when the radio is left alone for 10 seconds.
●The SKIP settings, LOCK settings and lock cancellation code are stored in memory.
Disconnecting the battery cable will erase these settings. (The lock cancellation code will reset to the factory setting: "1111.")
- For more information on the SCV function, refer to "Speed Compensated Volume function" on page 5-52.
●“PHONE OFF” is displayed but the function is not enabled.
- If the vehicle is equipped with a Mitsubishi Motors authorized hands-free phone system, "PHONE OFF" will not be displayed.

"SKIP SETTING" (SKIP Setting Mode)

You can set any channel to be skipped during channel selection. You can also cancel a skip setting.

You can turn the TUNE/SOUND switch (7) and select "SKIP CH" or "UNSKIP ALL."

These functions are described below.

SKIP CH: Sets the satellite radio so that it skips

the channel that is currently being received.

UNSKIP ALL: Cancels skip setting on all channels.

"LOCK SETTING" (LOCK Setting Mode)

You can lock any channel of your choice or unlock a locked channel.

You can turn the TUNE/SOUND switch (7) and select “LOCK CH” (or “UNLOCK CH”), “UNLOCK ALL” or “CODE EDIT.”

These functions are described below.

LOCK CH: Locks the channel that is currently being received.

UNLOCK CH: Unlocks the channel that is currently being received.

UNLOCK ALL: Cancels lock setting on all channels.

CODE EDIT: Changes the lock cancellation code.

NOTE

- If the channel that is currently being received is not locked, you can select "LOCK CH"; if it is locked, you can select "UNLOCK CH."

Comfort controls

To skip a desired channel

You can set any channel to be skipped during channel selection.

1. Select the channel that you want to skip.
2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the SKIP setting mode.
3. In the SKIP setting mode, turn the TUNE/SOUND switch (7) and select "SKIP CH."
4. Press the TUNE/SOUND switch (7). "STORED" will be shown for 2 seconds and then the channel that is currently being received will be set to be skipped.
5. After the skip setting is made, the radio will tune into the next channel after the channel that was set to be skipped. If you want to this channel to be skipped as well, press the TUNE/SOUND switch (7) again.

NOTE

●The channel that was set to be skipped will be skipped automatically during channel selection.
●Channels that are stored in the preset memory can also be set to be skipped. When the corresponding memory select button (10) is pushed to call up the channel, “SKIP CHANNEL” will appear on the display and the audio will be muted.

To cancel skip settings

You can cancel skip settings on channels.

1. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the SKIP setting mode.
2. In the SKIP setting mode, turn the TUNE/SOUND switch (7) and select "UNSKIP ALL."
3. Press the TUNE/SOUND switch (7). "STORED" will be shown for 2 seconds and then skip settings on all channels will be cancelled. After you cancel the setting, the satellite radio will return to the SKIP setting mode. (The display will show "SKIP SETTING.")

To lock a desired channel

You can lock any channel of your choice.

1. Select the channel that you want to lock.
2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "LOCK CH."
4. Press the TUNE/SOUND switch (7). "LOCKED" will be displayed for 2 seconds and then the channel that is currently being received will be locked. The satellite radio then returns to the LOCK setting mode.

NOTE

• If you attempt to select a locked channel, the display will show “LOCKED” or “PARENTAL LOCK.”
  ●Channels that are stored in the preset memory can also be locked.

Comfort controls

To unlock locked channels

There are two ways to unlock a locked channel. One way is to unlock a single locked channel of your choice. The other way is to unlock all locked channels.

To unlock a locked channel, you must enter the lock cancellation code.

1. To unlock a single locked channel of your choice, select the locked channel that you want to unlock. (If you want to unlock all locked channels, it doesn't matter which locked channel you have selected.)

2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.

3. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "UNLOCK CH" when you want to unlock one locked channel of your choice or "UNLOCK ALL" when you want to unlock all locked channels.

4. When you press the TUNE/SOUND switch (7), the code entry window will be shown in the display.

5. Use the Memory select buttons (10) to enter the code (1111 to 6666) and then press the TUNE/SOUND switch (7).

1. If the entered code is correct, "UNLOCKED" will be shown and the locked channel(s) will be unlocked. The satellite radio will then return to the LOCK setting mode. If the entered code is incorrect, a warning sound will be emitted and "CODE ERROR" will be displayed. The code entry window will then be shown again. You can try to enter the code again, no matter how many times an incorrect code has been entered.

Comfort controls

NOTE

●The default factory setting for the code is "1111."
- You can change the code to any number you want with the "CODE EDIT" function.
- To cancel a code entry, turn the TUNE/SOUND switch (7) while the code entry window is displayed. The code entry will be cancelled and then the setting menu will be switched.

To change the lock cancellation code

You can change the code for unlocking channel(s) to any number you want.

1. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "CODE EDIT."
3. When you press the TUNE/SOUND switch (7), the code entry window will be shown in the display.
4. Use the memory select buttons (10) to enter the current code and then press the TUNE/SOUND switch (7).
5. If the correct code is entered, the code entry window will be shown again. Enter your desired code.

If the entered code is incorrect, a warning sound will be emitted and "CODE ERROR" will be displayed. The code entry window will then be shown again.

You can try to enter the code again, no matter how many times an incorrect code has been entered.

1. After you enter the new code, press the TUNE/SOUND switch (7). The code entry window will be shown again for confirmation. Enter the new code again and press the TUNE/SOUND switch (7).

2. "STORED" will be displayed for 2 seconds, the code will be changed and the satellite radio will return to the LOCK setting mode.

NOTE

●The SKIP settings, LOCK settings and lock cancellation code are stored in memory. Disconnecting the battery cable will erase these settings.

(The lock cancellation code will reset to the default factory setting: "1111.")

To reset the lock cancellation code

In case you forget the code, it is possible to reset the code to the factory setting (1111).

1. With the audio power OFF, press the PWR switch (2) and the TUNE/SOUND switch (7) at the same time. The display will show "CODE INITIAL."
2. Press the TUNE/SOUND switch (7). "YES" will be displayed. To reset the code, press the TUNE/SOUND switch (7) again. "STORED" will be shown for 2 seconds and the code will be reset.

If you do not want to reset the code, turn the TUNE/SOUND switch (7) to display “CANCEL” and then press the TUNE/SOUND switch (7) again.

Text message

You can change what is shown on the display when the satellite radio tunes into a channel.

Press the DISP button (4) repeatedly to change to your desired display mode. The order is: Channel Number + Channel Name → Category Name → Artist Name → Song Title → Composer Name.

NOTE

• Category name can also displayed by pressing the PTY button (8).
  ●The display can show up to 12 characters. If there are more than 12 characters, press the PAGE button (3) to view the next 12 characters.

Comfort controls

CD control panel and display

ND1735300626

1- RADIO (AM/FM selection) button
2- CD (CD mode changeover) button
3-PWR (On-Off) switch
4-PAGE button
5- DISP (Display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- Fast-reverse button
9- Fast-forward button
10- SCAN button
11- Eject button
12- Disc loading slot
13- FOLDER switch
14- TRACK (Track up/down) button

15- Display

To listen to a CD

N00735500934

To set discs

1. Press the PWR switch (3) to turn the audio system ON and OFF. The system turns on in the last mode used.
2. Insert the disc with the label facing up.

When a disc is inserted, the CD player will begin playing even if the radio is being used. The CD player will also begin playing when the CD button (2) is pressed with a disc set in the CD player or in the disc loading slot (12), even if the radio is being used.

NOTE

• For information concerning the adjustment of volume and tone, refer to "To adjust the volume" on page 5-49 and "To adjust the tone" on page 5-49.
  ●For information concerning the handing of the compact discs, refer to "Handling of compact discs" on page 5-138.

To eject discs

When the eject button (11) is pressed, the disc automatically stops and is ejected. The system automatically switches to radio mode.

NOTE

- If you do not remove an ejected disc before 15 seconds have elapsed, the disc will be reloaded.

Comfort controls

To listen to a music CD

Push the CD button (2) if the discs are already in the CD player. The audio system will enter CD mode and start playback. The track number and the playing-time will appear on the display. The discs in the unit will be played consecutively and continuously.

Comfort controls

To listen to an MP3 CD

This CD player allows you to play MP3 (MPEG Audio Layer-3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and CD-RWs (rewritable CDs) in ISO9660 Level 1/ Level 2, Joliet, and Romeo formats. Each disc may have a maximum of 16 trees, 100 folders and 255 files. During MP3 playback, the unit can display ID3 tag information. For information concerning ID3 tag, refer to "CD text and MP3 title display" on page 5-73.

Push the CD button (2) if a disc is already in the CD player. The display shows "READING", then playback begins. The folder number, the track number, the playing-time, and "MP3" indicator will appear on the display.

NOTE

●While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of the CD-DA, reading of the MP3 files, and the external audio input mode by pressing the CD button for 2 seconds or longer (until you hear a beep).
●With a disc that contains both CD-DA and MP3 files, the CD-DA files are automatically played first.
●The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
●Depending on file/folder configurations on a disc, it may take some time before playback starts.
●MP3 encode software and writing software are not supplied with this CD player.
●You may encounter trouble in playing an MP3 or displaying the information of MP3 files recorded with certain writing software or CD recorders (CD-R/RW drivers).
- If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
●This unit does not record MP3 files.
- For information concerning CD-Rs/RWs, refer to “Notes on CD-Rs/RWs” on page 5-140.

CAUTION

- Attempting to play a file not in the MP3 format which has the “.mp3” file name may produce noise from the speakers and speaker damage, and can damage your hearing.

Folder selection order/MP3 file playback order (Example)

Folder selection

In the order

File selection

In the order

Comfort controls

To fast forward/reverse the disc

To fast forward or fast reverse the disc, press the fast-forward button (9) or the fast-reverse button (8).

Fast forward

You can fast forward the disc by pressing the fast-forward button (9). While the button is kept pressed, the disc will be fast-forwarded.

Fast reverse

You can fast reverse the disc by pressing the fast-reverse button (8). While the button is kept pressed, the disc will be fast-reversed.

Comfort controls

To select a desired folder (MP3 CDs only)

You can select your desired folder by turning the FOLDER switch (13).

5

Folder up

Turn the FOLDER switch (13) clockwise until the desired folder number appears on the display.

Folder down

Turn the FOLDER switch (13) counterclockwise until the desired folder number appears on the display.

To select a desired track

You can select your desired track by using the TRACK button (14).

Track up

Press the ▶side of the TRACK button (14) repeatedly until the desired track number appears on the display.

When listening to a MP3 CD, keep pressing the button to continue to move up tracks.

Track down

Press the side of the TRACK button (14) repeatedly until the desired track number appears on the display.

When listening to a MP3 CD, keep pressing the button to continue to move down tracks.

NOTE

- Pressing the side of the TRACK button (14) once during the song will cause the player to restart playback from the beginning of the song.

To repeat a track

To repeat a track

Press the RPT button (6) briefly while the track is playing. "RPT" will appear on the display. To exit the repeat mode, press the RPT button again.

To repeat songs in the same folder (MP3 CDs only)

While a song is playing, press the RPT button (6) for 2 seconds or longer (until you hear a beep). "D-RPT" will appear on the display. The player will repeat all the songs in the same folder that contains the song currently playing. To exit the repeat mode, briefly press the RPT button again.

NOTE

●The single track repeat mode will be canceled by pressing the TRACK button (14) or the eject button (11).
●With a disc that contains both CD-DA and MP3 files, the repeat mode causes only files of the same format (CD-DA only or MP3 files only) to be repeated.

Comfort controls

To change the order of tracks for playback

Random playback for a disc (music CDs only)

Press the RDM button (7) briefly. "RDM" will appear on the display. Tracks on the currently selected disc will be played in a random sequence.

To exit the random mode, press the RDM button again.

Random playback for a folder (MP3 CDs only)

Press the RDM button (7) briefly. "RDM" will appear on the display. Tracks in the currently selected folder will be played in a random sequence.

To exit the random mode, press the RDM button again.

Comfort controls

Random playback for all folders on a disc (MP3 CDs only) Press the RDM button (7) for 2 seconds or longer (until you hear a beep). "D-RDM" will appear on the display. Tracks from all the folders on the currently selected disc will be played in a random sequence. To exit the random mode, briefly press the RDM button again.

NOTE

- With a disc that contains both CD-DA and MP3 files, the random mode causes only files of the same format (CD-DA only or MP3 files only) to be played in a random sequence.

To find the start of each track on a disc for playback

Press the SCAN button (10). “SCAN” will appear on the display and the autochanger will play back the first 10 seconds of each track on the selected disc.

The track number will blink while the scan mode is selected. To stop the scan mode, press the SCAN button again.

NOTE

●Once all tracks on the disc have been scanned, playback of the disc will restart from the beginning of the track that was playing when scanning started.
●The scan mode will be canceled when radio or CD operation is selected.
- With a disc that contains both CD-DA and MP3 files, the scan mode causes only files of the same format (CD-DA only or MP3 files only) to be played.

CD text and MP3 title display

N00752100111

This CD player can display CD text and MP3 titles including ID3 tag information.

CD text

The CD player can display disc and track titles for discs encoded with disc and track title information. Press the DISP button (5) repeatedly to make selections in the following sequence: disc name → track name → normal display mode.

NOTE

●The display can show up to 12 characters. If a disc name or track name has more than 12 characters, press the PAGE button (4) to view the next 12 characters.
- When there is no title information to be displayed, the display shows "NO TITLE".
●Characters that the CD player cannot display are shown as “.”

Comfort controls

MP3 title

The CD player can display folder and track titles for discs encoded with folder and track information. Press the DISP button (5) repeatedly to make selections in the following sequence: folder name → track name → normal display mode.

Comfort controls

ID3 tag information

The CD player can display ID3 tag information for files that have been recorded with ID3 tag information.

1. Press the DISP button (5) for 2 seconds or longer to switch to the ID3 tag information. "TAG" indicator will appear on the display.

2. Press the DISP button (5) repeatedly to make selections in the following sequence: album name → track name → artist name → normal display mode.

NOTE

●To return from ID3 tag information to the folder name, press the DISP button (5) again for 2 seconds or longer.
- When there is no title information to be displayed, the display shows “NO TITLE”.
●The display can show up to 12 characters. If a folder name, track name, or item of ID3 tag information has more than 12 characters, press the PAGE button (4) to view the next 12 characters.
●Folder names and track names can each be displayed up to a length of 32 characters. Items of ID3 tag information can each be displayed up to a length of 30 characters.
●Characters that the CD player cannot display are shown as “.”

AM/FM electronically tuned radio with 6 CD autochanger (RBDS and MP3 compatible) (if so equipped)

N00734301004

The audio system can only be used when the ignition switch is in the "ON" or "ACC" position.

NOTE

• To listen to the audio system while the engine is not running, turn the ignition switch to the “ACC” position. If the ignition switch is left in the “ACC” position, the accessory power will automatically turn off after a certain period of time and you will no longer be able to use the audio system. The accessory power comes on again if the ignition switch is turned from the “ACC” position. Refer to “ACC power auto-cutout function” on page 3-83.
• If a cellular phone is used inside the vehicle, it may create noise in the audio equipment. This does not mean that anything is wrong with your audio equipment. In such a case, use the cellular phone at a place as far as possible from the audio equipment.
• If foreign objects or water get into the audio equipment, or if smoke or a strange odor comes from it, immediately turn off the audio system and have it checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice. Never try to repair it yourself. Avoid using the audio system until it is inspected by a qualified person.
• If the audio system is damaged by foreign objects, water, or fire, have the system checked by a qualified Mitsubishi Motors technician.

●The audio amplifier (if so equipped) is located under the front left seat. Do not subject the amplifier to a strong impact. It could damage the amplifier or malfunctioning could result.

SIRIUS™ Satellite Radio (if so equipped)

N00760100107

Satellite radio uses direct satellite to receiver broadcasting technology to provide clear digital sound, coast to coast. The subscription service provider is SIRIUS Satellite Radio. This service offers over 100 channels of music, sports, news, entertainment, and programming for listeners, directly from its satellites and broadcasting studios.

System activation

To activate your SIRIUS Satellite Radio service, call the toll-free number 888-539-SIRIUS (7474), or visit the Sirius web site at www.sirius.com. Please have the following information available when activating your system:

1. The Sirius Identification Number (SIRIUS ID). Refer to the section "SIRIUS ID indication" on page 5-87.
2. Credit card information.
3. Your Vehicle Identification Number. Refer to "Vehicle identification number plate" on page 9-2.

"SIRIUS," the SIRIUS dog logo and channel names and logos are trademarks of SIRIUS Satellite Radio, Inc.

Comfort controls

Volume and tone control panel

ND1711900628

AF1001212

1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Display
4- SOUND (Sound control) switch

To adjust the volume

N00712000378

Turn the VOL knob (2) clockwise to increase the volume; counterclockwise to decrease the volume. The status will be displayed in the display (3).

NOTE

●The volume control mode will shut off automatically if either the radio or CD is selected, or if no adjustment is made within about 2 seconds.

Comfort controls

To adjust the tone

N00712100571

1. Press the SOUND switch (4) repeatedly to select the tone or balance control to change. The order is: SUB PUNCH → TYPE → FIELD → BASS → MID → TREBLE → FADER → BALANCE → Audio adjust mode OFF.

NOTE

- SUB PUNCH can be adjusted only on vehicles equipped with a premium sound system. On other vehicles, pressing the SOUND switch (4) will display TYPE first.

QUICK ACCESS MODE

To access the sound customization features quickly, push and hold the SOUND switch (4), then turn the switch clockwise or counterclockwise to access your desired sound customization setting. Release the switch to adjust the setting.

Comfort controls

1. Turn the SOUND switch (4) either clockwise or counterclockwise to change the tone/balance setting. The status will be displayed in the display (3).

A- Adjust mode B- Adjust level

Adjust Mode	Adjust Level	Sound control switch operation
		Counterclock-wise turn	Clockwise turn
SUB PUNCH	1 to 6 W	Weaker Stronger
TYPE	NORMAL ↔ POP ↔ ROCK ↔ HIP-HOP ↔ COUNTRY
FIELD	NORMAL ↔ STAGE ↔ LIVE ↔ HALL
BASS	-6 to 6 W	Weaker StrongerMID
TREBLE
FADER	F11 to R11	R (Rear) increases	F (Front) increases
BALANCE	L11 to R11	L (Left) increases	R (Right) increases

SUB PUNCH (subwoofer volume control)

To select the desired deep bass level.

TYPE (acoustic characteristic selection)

To select the desired acoustic characteristic.

Acoustic characteristic	Description
NORMAL Sounds	good for all types of music.
POP Tight bass	and high frequency sound.
ROCK	Tuned for hard rock and heavy metal with powerful drums, guitars, and vocals.
HIP-HOP	Deep bass punch and well-defined vocals.
COUNTRY Enhanced main vocals.

Comfort controls

FIELD (Sound field selection)

To select the desired sound field.

Sound field type Description
NORMAL	Optimized for the Rockford Fosgate high bass output.
STAGE	Places the image of a sound stage in front of the driver with the vocalist in the center (for driver only).
LIVE	Front seat occupants are surrounded by sound from front and rear speakers.
HALL	Places the image of a sound stage in front of the driver with the vocalist in the center (for driver only). Sound reflections are added to the rear speakers to simulate the experience of being at a concert hall. Best with classical or vocalist music.

BASS (Bass tone control)

To select the desired bass level.

MID (Midrange tone control)

To select the desired midrange level.

TREBLE (Treble tone control)

To select the desired treble level.

FADER (Front/Rear balance control)

To balance the volume from the F (front) and the R (rear) speakers.

Comfort controls

BALANCE (Left/Right balance control)

To balance the volume from the L (left) and the R (right) speakers.

NOTE

●When set to “0”, it will beep.
- When PUNCH LEVEL, MUSIC TYPE or SOUND FIELD is changed, the sound will cut out briefly, but this does not indicate a malfunction.
●The audio adjust mode will automatically shut off when either the radio or CD is selected, or if no adjustment is made within about 10 seconds.
- If the SOUND switch (4) is pushed and held for more than 2 seconds during the audio adjust mode, it will change to "Hold" mode. The selected audio mode will be held until the SOUND switch (4) is pushed for more than 2 seconds again.

Speed Compensated Volume function

N00752200242

Speed Compensated Volume function is a feature that automatically adjusts the VOLUME, BASS, MIDDLE, and TREBLE settings in accordance with the vehicle speed. It is possible to turn this function ON-OFF using the following methods:

1. If you are presently pushing the SOUND switch (4) and making a tone adjustment, finish making the tone adjustment.

2. Push the SOUND switch (4) for at least about 2 seconds. The system will switch to MENU mode and the characters "SCV ON" will be shown on the display.

NOTE

• When you enter the MENU mode while listening to satellite radio (if so equipped), “SKIP SETTING” will be shown on the display and you will enter the satellite radio setting mode. Every time you press the SOUND switch (4), the display will change in the following order: “SKIP SETTING” → “LOCK SETTING” → “SCV ON.” Press the SOUND switch (4) until “SCV ON” is shown on the display, to switch to the setting mode for the Speed Compensated Volume function.
• Turn the SOUND switch (4) clockwise to the turn the function ON. Turn it counterclockwise to turn the function OFF.

NOTE

●The factory setting for the Speed Compensated Volume function is ON.
●The MENU mode will automatically shut off when either the radio or CD is selected or the user does not move any of the switches for 10 seconds.

Radio control panel and display

N00734900739

1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3-PAGE button
4- DISP (Display) button
5- SEEK (Down-seek) button
6- SEEK (Up-seek) button
7- TUNE switch
8- PTY (Program Type) button
9- SCAN button
10- Memory select buttons
11-FM (FM1/FM2) display
12- ST (Stereo) indicator
13- RBDS (Radio Broadcast Data System) indicator
14- PTY (Program Type) indicator

Comfort controls

To listen to the radio

N007350X1795

1. Press the PWR switch (2) to turn the audio system ON and OFF. The system turns on in the last mode used. Press the RADIO button (1) to turn ON the radio.

2. Press the RADIO button (1) to select the desired band (AM/FM1/FM2).

3. Press the SEEK button (5 or 6) to tune to a station, or press one of the Memory select buttons (10) to recall a station memorized for that button.

Refer to "Automatic tuning", "Manual tuning" or "To enter frequencies into the memory".

Automatic tuning

After pressing the SEEK button (5 or 6), a receivable station will be automatically selected and reception of the station will begin.

SCAN function

Press the SCAN button (9). The radio will tune consecutively to each available station for about 5 seconds per station. If you want to stop scanning, press the SCAN button again.

The frequency display of the current station flashes once per second during SCAN.

Manual tuning

The frequency changes every time the TUNE switch (7) is turned.

Turn the switch to select the desired station.

To enter frequencies into the memory

As many as 6 AM and 12 FM stations can be entered into the memory.

To store a frequency in the memory, follow these steps:

1. Press the SEEK button (5 or 6), or turn the TUNE switch (7) to tune to the frequency you wish to keep in the memory.

2. Press one of the Memory select buttons (10) until it beeps. The sound will be momentarily interrupted while the frequency is being entered into the memory. The number of the button matching the entry in the memory as well as the frequency are displayed.

1. To recall a frequency that has been saved in memory, press the corresponding button briefly for no longer than about 1 second.

NOTE

●Disconnecting the battery cables erases all the radio station settings stored in the memory.

Radio broadcast data system (RBDS)

N00751800108

RBDS features are available for use only on FM stations that broadcast RBDS information.

This RBDS radio can search for stations broadcasting the selected type of programming and display messages from radio stations.

PTY (Program Type)

RBDS broadcasts are classified according to program type (PTY) as follows.

1. ROCK
2. COUNTRY
3. EASY LIS
4. CLASSICL
5. JAZZ
6. Top 40
7. R&B
8. INFORM
9. RELIGION
10. MISC

To search for a broadcast of desired PTY

1. To enter PTY (Program Type) mode, press the PTY button (8) during FM reception.
2. Press the PTY button repeatedly until your desired PTY is reached.
   You can press one of the Memory select buttons (10) for about 2 seconds to save the currently displayed PTY to that Memory select button. Thereafter, you can easily call up your desired PTY by pressing the corresponding Memory select button.
3. Press the SEEK button (5 or 6), and the radio will begin to search for a broadcast of the selected PTY. During search, the selected PTY on the display blinks and the sound will be momentarily interrupted.
4. When the radio picks up a station with your desired PTY, the PTY and the frequency will each appear on the display for 2 seconds. Then the PTY and the station name will alternately appear on the display for 6 seconds.
5. The frequency will appear on the display. Then the radio will start receiving the program and exit the PTY mode.

Comfort controls

NOTE

• If you wish to listen to another station of the same PTY as currently selected, repeat the previous procedure from step 2.
  ●To display the station name and the PTY, press the DISP button (4) and the PTY button (8) respectively.
• If no station is found with your desired PTY, "EMPTY" will appear on the display for 5 seconds. Then the radio will return to the previous station and exit the PTY mode.
• If the radio cannot read the station name, the PTY and the frequency will alternately appear on the display for 6 seconds. Then the radio will start receiving the program and exit the PTY mode.

Scan function

1. After selecting your desired PTY, press the SCAN button (9). The radio will tune consecutively to each available station of the selected PTY for about 5 seconds per station.
2. To stop the scan mode, press the SCAN button again.

Text message

The radio can receive text messages broadcast by some RBDS stations.

1. While tuning in to an RBDS station, press the DISP button (4).
2. A text message will appear on the display. If a station name appears, press the DISP button again, then the text message will be displayed.
3. To cancel the text message display, press the DISP button again.

NOTE

• When there is no text message to be displayed, the display shows "NO MESSAGE" and then shows the frequency.
  ●The display can show up to 12 characters. If a text message has more than 12 characters, press the PAGE button (3) to view the next 12 characters.

Comfort controls

SIRIUS satellite radio control panel and display

ND1700200201

1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3-PAGE button
4- DISP (Display) button
5- Channel selection down button
6- Channel selection up button
7- TUNE/SOUND (Category selection) switch
8- PTY button
9- SCAN button
10- Memory select buttons
11- SAT ( S AT1/ S AT2/S AT 3 /S AT 4 ) display
12- PTY indicator

To listen to the SIRIUS satellite radio

N00760500172

1. Press the PWR switch (2) to turn the audio system ON and OFF. The system turns on in the last mode used. Press the RADIO button (1) to turn ON the radio.
2. Press the RADIO button (1) to select the desired band (SAT1/SAT2/SAT3/SAT4). Each time you push the button, the display will change in the following order: AM→FM1→FM2→SAT1→SAT2→SAT3→SAT4. Once the display shows “SIRIUS,” satellite radio reception will begin.

Category selection

1. Pressing the PTY button (8) will cause the category of the channel that is currently being received to be displayed for around 2 seconds.
2. If the TUNE/SOUND switch (7) is turned, the system will change to the category selection mode, the current category will be shown in the display, and the PTY indicator (12) will light up.
3. Turning the TUNE/SOUND switch (7) while in the category selection mode, the next category will be shown.

NOTE

• Selecting a different category will not change the channel. During category selection, the original channel will continue to be received. Use a channel selection button (5 or 6) to change the channel.
• If you do not use the satellite radio again before 15 seconds have elapsed, the category selection mode will be canceled. (The PTY indicator (12) will go out.)

Comfort controls

- Pressing the PTY button (8) while in the category selection mode will cause the current channel to be displayed for around 2 seconds.

Channel selection

You can select a channel by pressing a channel selection button (5 or 6).

NOTE

●While in the category selection mode, only channels in the category can be selected.

Scan function

1. Pressing the SCAN button (9) will cause the satellite radio to tune consecutively to each available channel for about 7 seconds per channel.
2. To stop the scan mode, press the SCAN button (9) again.

NOTE

●While in the category selection mode, only channels in the category can be scanned.

Comfort controls

To enter channels into the memory

You can save one channel to each Memory select button (10), for a maximum of 24 channels in memory.

To store a channel in the memory, follow these steps:

1. Press a channel selection button (5 or 6) and select the channel that you wish to keep in the memory.
2. Press one of the Memory select buttons (10) until it beeps, indicating that the channel has been stored in memory.

NOTE

- If you store a channel in the memory, you can call up your desired channel immediately by simply pushing the corresponding Memory select button (10).

SIRIUS ID indication

If you press a channel selection button (5 or 6) to select "CH 0," the SIRIUS ID will be displayed.

1. If you select "CH 0," the SIRIUS ID (12 digits) will be displayed.
2. To stop the SIRIUS ID indication, press a channel selection button (5 or 6) and select a channel other than "CH 0."

To skip or lock a desired channel - MENU mode

You can set the satellite radio so that it locks a desired channel or skips the channel during channel selection.

1. While the satellite radio is tuned in to the channel, press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode.
2. In the MENU mode, the satellite radio channel SKIP setting and LOCK setting are possible.
   Each time you press the TUNE/SOUND switch (7), the status will change in the following sequence.
   “SKIP SETTING” (SKIP setting mode) → “LOCK SETTING” (LOCK setting mode) → “SCV ON” → “PHONE OFF” → MENU mode off.

NOTE

●The MENU mode will automatically shut off when either the radio or CD is selected, when the TUNE/SOUND switch (7) is pressed for about 2 seconds or longer, or when the radio is left alone for 10 seconds.
●The SKIP settings, LOCK settings and lock cancellation code are stored in memory.
Disconnecting the battery cable will erase these settings. (The lock cancellation code will reset to the factory setting: "1111.")
- For more information on the SCV function, refer to "Speed Compensated Volume function" on page 5-52.
●“PHONE OFF” is displayed but the function is not enabled.
- If the vehicle is equipped with a Mitsubishi Motors authorized hands-free phone system, "PHONE OFF" will not be displayed.

"SKIP SETTING" (SKIP Setting Mode)

You can set any channel to be skipped during channel selection. You can also cancel a skip setting.

You can turn the TUNE/SOUND switch (7) and select “SKIP CH” or “UNSKIP ALL.”

These functions are described below.

SKIP CH: Sets the satellite radio so that it skips

the channel that is currently being received.

UNSKIP ALL: Cancels skip setting on all channels.

"LOCK SETTING" (LOCK Setting Mode)

You can lock any channel of your choice or unlock a locked channel.

You can turn the TUNE/SOUND switch (7) and select “LOCK CH” (or “UNLOCK CH”), “UNLOCK ALL” or “CODE EDIT.”

These functions are described below.

LOCK CH: Locks the channel that is currently being received.

UNLOCK CH: Unlocks the channel that is currently being received.

UNLOCK ALL: Cancels lock setting on all channels.

CODE EDIT: Changes the lock cancellation code.

NOTE

- If the channel that is currently being received is not locked, you can select "LOCK CH"; if it is locked, you can select "UNLOCK CH."

Comfort controls

To skip a desired channel

You can set any channel to be skipped during channel selection.

1. Select the channel that you want to skip.
2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the SKIP setting mode.
3. In the SKIP setting mode, turn the TUNE/SOUND switch (7) and select "SKIP CH."
4. Press the TUNE/SOUND switch (7). "STORED" will be shown for 2 seconds and then the channel that is currently being received will be set to be skipped.
5. After the skip setting is made, the radio will tune into the next channel after the channel that was set to be skipped. If you want to this channel to be skipped as well, press the TUNE/SOUND switch (7) again.

NOTE

●The channel that was set to be skipped will be skipped automatically during channel selection.
●Channels that are stored in the preset memory can also be set to be skipped. When the corresponding memory select button (10) is pushed to call up the channel, “SKIP CHANNEL” will appear on the display and the audio will be muted.

To cancel skip settings

You can cancel skip settings on channels.

1. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the SKIP setting mode.
2. In the SKIP setting mode, turn the TUNE/SOUND switch (7) and select "UNSKIP ALL."
3. Press the TUNE/SOUND switch (7). "STORED" will be shown for 2 seconds and then skip settings on all channels will be cancelled. After you cancel the setting, the satellite radio will return to the SKIP setting mode. (The display will show "SKIP SETTING.")

To lock a desired channel

You can lock any channel of your choice.

1. Select the channel that you want to lock.
2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "LOCK CH."
4. Press the TUNE/SOUND switch (7). "LOCKED" will be displayed for 2 seconds and then the channel that is currently being received will be locked. The satellite radio then returns to the LOCK setting mode.

NOTE

• If you attempt to select a locked channel, the display will show “LOCKED” or “PARENTAL LOCK.”
  ●Channels that are stored in the preset memory can also be locked.

Comfort controls

To unlock locked channels

There are two ways to unlock a locked channel. One way is to unlock a single locked channel of your choice. The other way is to unlock all locked channels.

To unlock a locked channel, you must enter the lock cancellation code.

1. To unlock a single locked channel of your choice, select the locked channel that you want to unlock. (If you want to unlock all locked channels, it doesn't matter which locked channel you have selected.)

2. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.

3. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "UNLOCK CH" when you want to unlock one locked channel of your choice or "UNLOCK ALL" when you want to unlock all locked channels.

4. When you press the TUNE/SOUND switch (7), the code entry window will be shown in the display.

5. Use the Memory select buttons (10) to enter the code (1111 to 6666) and then press the TUNE/SOUND switch (7).

1. If the entered code is correct, "UNLOCKED" will be shown and the locked channel(s) will be unlocked. The satellite radio will then return to the LOCK setting mode. If the entered code is incorrect, a warning sound will be emitted and "CODE ERROR" will be displayed. The code entry window will then be shown again. You can try to enter the code again, no matter how many times an incorrect code has been entered.

Comfort controls

NOTE

●The default factory setting for the code is "1111."
- You can change the code to any number you want with the "CODE EDIT" function.
- To cancel a code entry, turn the TUNE/SOUND switch (7) while the code entry window is displayed. The code entry will be cancelled and then the setting menu will be switched.

To change the lock cancellation code

You can change the code for unlocking channel(s) to any number you want.

1. Press the TUNE/SOUND switch (7) for about 2 seconds or longer to enter the MENU mode. Then select the LOCK setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND switch (7) and select "CODE EDIT."
3. When you press the TUNE/SOUND switch (7), the code entry window will be shown in the display.
4. Use the memory select buttons (10) to enter the current code and then press the TUNE/SOUND switch (7).
5. If the correct code is entered, the code entry window will be shown again. Enter your desired code.

If the entered code is incorrect, a warning sound will be emitted and "CODE ERROR" will be displayed. The code entry window will then be shown again.

You can try to enter the code again, no matter how many times an incorrect code has been entered.

1. After you enter the new code, press the TUNE/SOUND switch (7). The code entry window will be shown again for confirmation. Enter the new code again and press the TUNE/SOUND switch (7).

2. "STORED" will be displayed for 2 seconds, the code will be changed and the satellite radio will return to the LOCK setting mode.

NOTE

●The SKIP settings, LOCK settings and lock cancellation code are stored in memory. Disconnecting the battery cable will erase these settings.

(The lock cancellation code will reset to the default factory setting: "1111.")

To reset the lock cancellation code

In case you forget the code, it is possible to reset the code to the factory setting (1111).

1. With the audio power OFF, press the PWR switch (2) and the TUNE/SOUND switch (7) at the same time. The display will show "CODE INITIAL."
2. Press the TUNE/SOUND switch (7). "YES" will be displayed. To reset the code, press the TUNE/SOUND switch (7) again. "STORED" will be shown for 2 seconds and the code will be reset.

If you do not want to reset the code, turn the TUNE/SOUND switch (7) to display “CANCEL” and then press the TUNE/SOUND switch (7) again.

Text message

You can change what is shown on the display when the satellite radio tunes into a channel.

Press the DISP button (4) repeatedly to change to your desired display mode. The order is: Channel Number + Channel Name → Category Name → Artist Name → Song Title → Composer Name.

NOTE

• Category name can also displayed by pressing the PTY button (8).
  ●The display can show up to 12 characters. If there are more than 12 characters, press the PAGE button (3) to view the next 12 characters.

Comfort controls

CD control panel and display

ND1735300639

1- RADIO (AM/FM selection) button
2- CD (CD mode changeover) button
3-PWR (On-Off) switch
4- LOAD indicator
5- LOAD button
6-PAGE button
7- DISP (Display) button
8- RPT (Repeat) button
9- RDM (Random) button
10- Fast-reverse button
11- Fast-forward button
12- DISC (Disc down) button
13- DISC (Disc up) button
14- SCAN button
15- Eject button

16- Disc loading slot
17- FOLDER switch
18- TRACK (Track up/down) button
19- Display

To listen to a CD

N00735500947

The compact disc (CD) can be loaded or ejected by pressing the LOAD button (5) or the eject button (15) even if the audio system power is OFF.

1. Press the PWR switch (3) to turn the audio system ON and OFF. The system turns on in the last mode used.

2. Press the CD button (2) to enter CD mode. The autochanger will start playback if the CD is already in the autochanger.

3. To stop the CD, turn off the power by pressing the PWR switch (3) or change over to radio mode by pressing the RADIO button (1), or eject the disc by pressing the eject button (15).

NOTE

●For information concerning the adjustment of volume and tone, refer to “To adjust the volume” on page 5-77 and “To adjust the tone” on page 5-77.

●As many as 6 CDs can be inserted into the CD autochanger.

●For information concerning the handing of the compact discs, refer to "Handling of compact discs" on page 5-138.

Comfort controls

To set discs

To set a single disc

1. Press the LOAD button (5) briefly.
2. The autochanger will show "WAIT" on the display and start making itself ready for disc loading.
3. When the autochanger is ready for disc loading, the LOAD indicator (4) will illuminate and the display will show "LOAD DISC No. (1-6)".
4. When a disc is inserted into the CD slot, the disc will begin to play.

NOTE

• If there are multiple empty slots, you can select your desired slot by pressing the DISC buttons (12 or 13).
• If you do not insert a disc for about 15 seconds after the autochanger starts standing by for loading, the loading standby mode will be canceled.

Comfort controls

To set all the discs

1. Press the LOAD button (5) for 2 seconds or longer (until you hear a beep).

2. The autochanger will select the lowest-numbered empty slot and switch to loading standby mode.

3. When the display shows "LOAD DISC No. (1-6)", insert a disc. The autochanger will then automatically select the next empty slot and enter loading standby mode.

4. Repeat the above-described steps until every slot contains a disc. Playback will then begin with the disc that you inserted last.

NOTE

- If you press the LOAD button (5) again while the autochanger is in loading standby mode, the loading standby mode will be canceled.

To eject discs

To eject a single disc

Press the eject button (15) briefly to eject the currently selected disc.

NOTE

- If you press the eject button (15) while the display is showing "LOAD DISC No. (1-6)", the loading standby mode will be canceled and the next disc will be ejected.

- If you do not remove an ejected disc before 15 seconds have elapsed, the disc will be reloaded and the eject mode will be canceled. The reloaded disc will not be played.

To eject all the discs

1. Press the eject button (15) for 2 seconds or longer (until you hear a beep).
2. The currently selected disc will be ejected. When you remove the ejected disc, the next disc will automatically be ejected.
3. Repeat the above-described steps until all of the discs have been ejected. The autochanger will then enter loading standby mode.

NOTE

- If you do not remove an ejected disc before 15 seconds have elapsed, the disc will be reloaded and the eject mode will be canceled. The reloaded disc will not be played.

To select a desired disc

You can select your desired disc by using the DISC button (12 or 13). The active disc will be indicated by "On the display.

Disc up

Press the DISC button (13) repeatedly until the desired disc number appears on the display.

Disc down

Press the DISC button (12) repeatedly until the desired disc number appears on the display.

To listen to a music CD

Push the CD button (2) if the discs are already in the autochanger. The autochanger will enter CD mode and start playback. The disc number, the track number, and the playing-time will appear on the display. The discs in the unit will be played consecutively and continuously.

Comfort controls

To listen to an MP3 CD

This autochanger allows you to play MP3 (MPEG Audio Layer-3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet, and Romeo formats. Each disc may have a maximum of 16 trees, 100 folders and 255 files. During MP3 playback, the unit can display ID3 tag information. For information concerning ID3 tag, refer to "CD text and MP3 title display" on page 5-102.

Push the CD button (2) if the discs are already in the autochanger.

The display shows "READING", then playback begins. The folder number, the track number, the playing-time, and "MP3" indicator will appear on the display.

NOTE

●While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of the CD-DA, reading of the MP3 files, and the external audio input mode by pressing the CD button for 2 seconds or longer (until you hear a beep).
●With a disc that contains both CD-DA and MP3 files, the CD-DA files are automatically played first.
●The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
●Depending on file/folder configurations on a disc, it may take some time before playback starts.
●MP3 encode software and writing software are not supplied with this unit.
●You may encounter trouble in playing an MP3 or displaying the information of MP3 files recorded with certain writing software or CD recorders (CD-R/RW drivers).
- If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
●This unit does not record MP3 files.
- For information concerning CD-Rs/RWs, refer to “Notes on CD-Rs/RWs” on page 5-140.

CAUTION

- Attempting to play a file not in the MP3 format which has the “.mp3” file name may produce noise from the speakers and speaker damage, and can damage your hearing.

Folder selection order/MP3 file playback order (Example)

Folder selection

In the order

File selection

In the order

Comfort controls

To fast forward/reverse the disc

To fast forward or fast reverse the disc, press the fast-forward button (11) or the fast-reverse button (10).

Fast forward

You can fast-forward the disc by pressing the fast-forward button (11). While the button is kept pressed, the disc will be fast-forwarded.

Fast reverse

You can fast reverse the disc by pressing the fast-reverse button (10). While the button is kept pressed, the disc will be fast-reversed.

Comfort controls

To select a desired folder (MP3 CDs only)

You can select your desired folder by turning the FOLDER switch (17).

5

Folder up

Turn the FOLDER switch (17) clockwise until the desired folder number appears on the display.

Folder down

Turn the FOLDER switch (17) counterclockwise until the desired folder number appears on the display.

To select a desired track

You can select your desired track by using the TRACK button (18).

Track up

Press the ▶side of the TRACK button (18) repeatedly until the desired track number appears on the display.

When listening to a MP3 CD, keep pressing the button to continue to move up tracks.

Track down

Press the side of the TRACK button (18) repeatedly until the desired track number appears on the display.

When listening to a MP3 CD, keep pressing the button to continue to move down tracks.

NOTE

- Pressing the side of the TRACK button (18) once during the song will cause the player to restart playback from the beginning of the song.

To repeat a track

To repeat a track

Press the RPT button (8) briefly while the track is playing. "RPT" will appear on the display. To exit the repeat mode, press the RPT button again.

To repeat a disc (music CDs only)

While a song is playing, press the RPT button (8) for 2 second or longer (until you hear a beep). "D-RPT" will appear on the display. You can listen to the music CD repeatedly. To exit the repeat mode, briefly press the RPT button again.

To repeat songs in the same folder (MP3 CDs only)

While a song is playing, press the RPT button (8) for 2 seconds or longer (until you hear a beep). "D-RPT" will appear on the display. The player will repeat all the songs in the same folder. To exit the repeat mode, briefly press the RPT button again.

NOTE

●The single track repeat mode will be canceled by pressing the TRACK button (18) or the eject button (15).
●The disc or folder repeat mode will be canceled by pressing the DISC button (12 or 13) or the eject button.
- With a disc that contains both CD-DA and MP3 files, the repeat mode causes only files of the same format (CD-DA only or MP3 files only) to be repeated.

To change the order of tracks for playback

Random playback for a disc (music CDs only)

Press the RDM button (9) briefly. "RDM" will appear on the display. Tracks on the currently selected disc will be played in a random sequence.

To exit the random mode, press the RDM button again.

Random playback for a folder (MP3 CDs only)

Press the RDM button (9) briefly. "RDM" will appear on the display. Tracks in the currently selected folder will be played in a random sequence. To exit the random mode, press the RDM button again.

Random playback for all discs in the autochanger (music CDs only)

Press the RDM button (9) for 2 seconds or longer (until you hear a beep). "D-RDM" will appear on the display. Tracks from all the discs loaded in the autochanger will be played in a random sequence. To exit the random mode, briefly press the RDM button again.

Comfort controls

Random playback for all folders on a disc (MP3 CDs only) Press the RDM button (9) for 2 seconds or longer (until you hear a beep). "D-RDM" will appear on the display. Tracks from all the folders on the currently selected disc will be played in a random sequence. To exit the random mode, briefly press the RDM button again.

NOTE

●In the all discs random mode, if an MP3 CD has been loaded in the autochanger, the autochanger will skip over it to the next music CD.
- With a disc that contains both CD-DA and MP3 files, the random mode causes only files of the same format (CD-DA only or MP3 files only) to be played in a random sequence.

To find the start of each track on a disc for playback

Press the SCAN button (14). “SCAN” will appear on the display and the autochanger will play back the first 10 seconds of each track on the selected disc.

The track number will blink while the scan mode is selected. To stop the scan mode, press the SCAN button again.

NOTE

●Once all tracks on the disc have been scanned, playback of the disc will restart from the beginning of the track that was playing when scanning started.
●The scan mode will be canceled when radio or CD operation is selected.
- With a disc that contains both CD-DA and MP3 files, the scan mode causes only files of the same format (CD-DA only or MP3 files only) to be played.

CD text and MP3 title display

N00752100124

This autochanger can display CD text and MP3 titles including ID3 tag information.

CD text

The autochanger can display disc and track titles for discs with converted disc and track title information. Press the DISP button (7) repeatedly to make selections in the following sequence: disc name → track name → normal display mode.

NOTE

●The display can show up to 12 characters. If a disc name or track name has more than 12 characters, press the PAGE button (6) to view the next 12 characters.
- When there is no title information to be displayed, the display shows "NO TITLE".
●Characters that the autochanger cannot display are shown as “•”.

Comfort controls

MP3 title

The autochanger can display folder and track titles for discs with converted folder and track information. Press the DISP button (7) repeatedly to make selections in the following sequence: folder name → track name → normal display mode.

Comfort controls

ID3 tag information

The autochanger can display ID3 tag information for files that have been recorded with ID3 tag information.

1. Press the DISP button (7) for 2 seconds or longer to switch to the ID3 tag information. "TAG" indicator will appear on the display.
2. Press the DISP button repeatedly to make selections in the following sequence: album name → track name → artist name → normal display mode.

NOTE

●To return from ID3 tag information to the folder name, press the DISP button (7) again for 2 seconds or longer.
- When there is no title information to be displayed, the display shows "NO TITLE".
●The display can show up to 12 characters. If a folder name, track name, or item of ID3 tag information has more than 12 characters, press the PAGE button (6) to view the next 12 characters.
●Folder names and track names can each be displayed up to a length of 32 characters. Items of ID3 tag information can each be displayed up to a length of 30 characters.
- Characters that the autochanger cannot display are shown as “•”.

To play tracks from USB device (if so equipped)

ND0762200027

You can connect your iPod or USB memory device to the USB input terminal and play music files stored in the iPod or USB memory device.

See the following section for the types of connectable devices and supported files.

Refer to "Types of connectable devices and supported file specifications" on page 3-274.

See the following sections for the connecting methods, “How to connect an iPod” on page 3-272 and “How to connect a USB memory device” on page 3-270.

If your vehicle is equipped with a Bluetooth ^® 2.0 interface, you can play music files in your iPod or USB memory device via voice operation.

Refer to “To play iPod tracks via voice operation” on page 5-109 and “To play USB memory device tracks via voice operation” on page 5-120.

iPod control panel and display

N(01762300)57

1- RADIO button
2- CD (Mode change) button
3- PWR (On-Off) button
4- PAGE (Title scroll) button
5- DISP (Title display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-reverse) button
9- (Fast-forward) button
10- DISC UP button
11-FOLDER switch
12- TRACK (Track up/down) button
13- i (iPod) indicator
14- TRACK indicator

15- RPT/RDM/D-RDM indicator

Comfort controls

To play from an iPod

N007624001074

1. Press the PWR button (3) to turn on the audio system. The system turns on in the last mode used.
2. Connect your iPod to the USB input terminal. Refer to "How to connect an iPod" on page 3-272.
3. Press the CD button (2) several times to switch to the iPod mode. The input mode changes every time the CD button is pressed.

CD mode → iPod mode → Bluetooth® mode (if so equipped)

NOTE

• If your vehicle is equipped with audio/video input RCA terminals, pressing and holding the CD button for 2 seconds or more switches the system to the AUX mode.
• Once the device is selected, playback starts and "i" appears on the display.

NOTE

●Depending on the condition of your iPod, it may take a longer time before the playback starts.

1. To stop the playback, press the RADIO button (1) or CD button (2) to switch to a different mode.

NOTE

●Buttons on the iPod are disabled while the iPod is connected to the audio system.
●To adjust the volume and tone, refer to “To adjust the volume” on page 5-49, 5-77 and “To adjust the tone” on page 5-49, 5-77.

To fast-forward/reverse the track

N00762500017

To fast-forward/reverse the current track, press the ▶button (9) or ◀button (8).

Fast-forward

To fast-forward the current track, press the ▶button (9). While the button is pressed, the track will be fast-forwarded.

Fast-reverse

To fast-reverse the current track, press the <button (8). While the button is pressed, the track will be fast-reversed.

To select a desired track

N00762600018

Press the TRACK button (12) to select the desired track number.

Press ▶▶1

: The track number increases by one.

Press

: The track number decreases by one.

Press ▶ for a long period (approx. 2 seconds or more)

: The track number increases continuously while the button is pressed.

Press 1 for a long period (approx. 2 seconds or more)

: The track number decreases continuously while the button is pressed.

If the 1-side of the button is pressed once while a track is playing, playback returns to the start of that track.

NOTE

●Every time the track selection button is pressed, the track number in the display changes.

To find a track from the iPod menu

N(07627001)64

You can select desired tracks from the “Playlists”, “Artists”, “Albums”, “Songs” or “Genre” (vehicles with Bluetooth® 2.0 interface) menus on your iPod.

Operate the following switch to select desired tracks.

The selected menu or category or track is shown in the display.

Turn the FOLDER switch (11)

: To show the menu or category or track.

Press the FOLDER switch (11)

: To select the menu or category or track.

NOTE

●To cancel the selection, press the DISC UP button (10) to return to the previous step.
- If no operation is performed for 10 seconds or more or another button is operated after the FOLDER button has been pressed, searching of the desired tracks is canceled.
- If no operation is performed for 5 seconds or more after the track is displayed, playback starts.

Comfort controls

To play the same track repeatedly

N007628X010

Press the RPT button (6) during playback to show "RPT" in the display.

To exit this mode, press the button again.

To play tracks in random order

N00762900011

Press the RDM button (7) to show "RDM" in the display.

The iPod randomly selects tracks from the current category and plays the selected tracks.

To exit this mode, press the button again.

To play tracks in each album in random order

NDD7630X1019

Press and hold the RDM button (7) until you hear a beep to show "D-RDM" in the display.

The iPod randomly selects tracks in the album from the current category and play the selected tracks.

To exit this mode, press the button again.

To switch the display

ND1763100010

You can display the track titles, artist names and album titles recorded in the iPod.

The display changes as follows every time the DISP button (5) is pressed during playback.

Album title → Track name → Artist name → Normal display

NOTE

●Up to 10 characters are shown in the display at once. If the title is cut off in the middle, press the PAGE button (4). The next characters are displayed every time this button is pressed.
- If no title is stored, "NO TITLE" is shown in the display.
●Characters that cannot be displayed are substituted by “•”.

Comfort controls

To play iPod tracks via voice operation (vehicles with Bluetooth ^® 2.0 interface)

N00763200024

Desired tracks can be selected and played from your iPod by "Artist", "Album", "Playlist" and "Genre" using voice commands.

For information concerning the voice recognition function or speaker registration function, refer to "Bluetooth® 2.0 interface" on page 3-243.

The following explains how to prepare for voice operation and play the tracks.

Preparation for voice operation

N00763300054

To use the voice operation, press the SPEECH button (1) first.

Type 1

Diagram of a car steering wheel with labeled components (no text or symbols present)

AA0099792

Comfort controls

To search by artist name

N00763400068

1. Say "Play" on the main menu.

NOTE

●The Bluetooth ^® 2.0 interface starts recognizing the connected device.
If the connected device cannot be recognized or a connection error occurs, the Bluetooth ^® 2.0 interface starts an appropriate voice guide. Follow the voice guide.
2. After the voice guide says "Would you like to play by Artist, Album, Playlist or Genre?," say "Artist".

NOTE

• If you say “Artist ,” you can skip step 3.
• After the voice guide says "What Artist would you like to play?," say the artist name.

• If there is only one match, the system proceeds to step 6.

• If there are two or more matches, the voice guide will say "More than one match was found, would you like to play ?" If you say "Yes," the system proceeds to step 6.
  If you say "No," the next matching artist is uttered by the system.

NOTE

• If you say “No” to three or all artist names uttered by the system, the voice guide will say “Artist not found, please try again” and the system returns to step 2.
• Search time depends on the number of songs on your connected device. Devices containing a large number of songs may take longer to return search results.
• After the voice guide says "Playing ," the system creates a playlist index for the artist.

NOTE

• If the confirmation function is active, the voice guide confirms if the artist name is correct. If the artist name is correct, say "Yes". If not, say "No". After the voice guide says "Artist not found, please try again," the system returns to step 2.
• The system exits the voice recognition mode and starts playback.

To search by album title

N01763500069

1. Say "Play" on the main menu.

NOTE

●The Bluetooth ^® 2.0 interface starts recognizing the connected device.
If the connected device cannot be recognized or a connection error occurs, the Bluetooth ^® 2.0 interface starts an appropriate voice guide. Follow the voice guide.
2. After the voice guide says "Would you like to play by Artist, Album, Playlist or Genre?," say "Album".

NOTE

• If you say "Album
