PANDUAN PENGGUNA Woodburn KBF416C Karran
karran®
INSTALLATION GUIDE


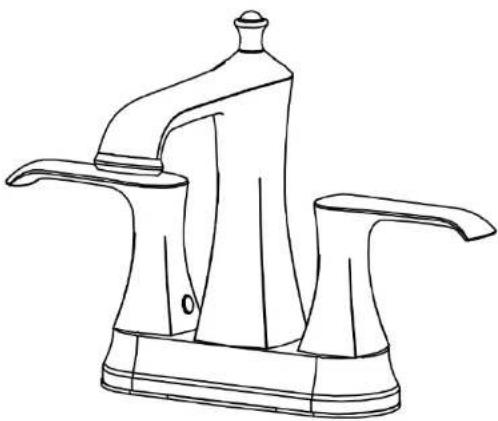

Line drawing of a mechanical device with handle and base (no text or symbols)Woodburn
Models: KBF416C
KBF416MB
KBF416ORB
KBF416SS

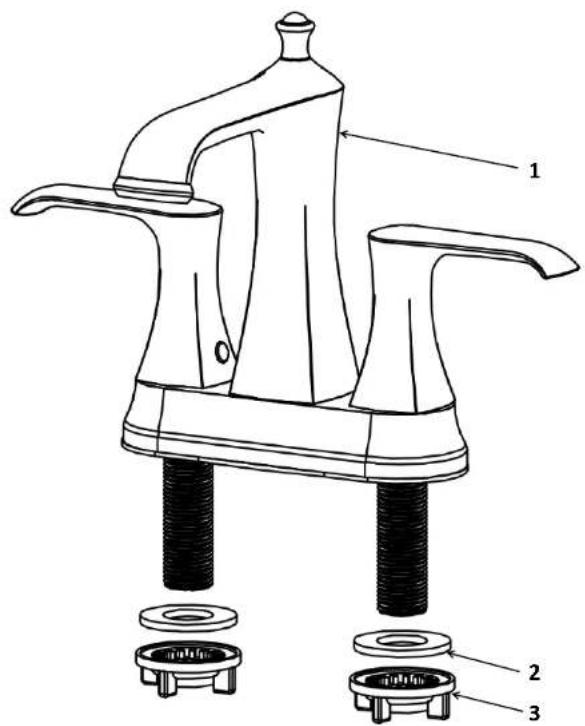

| COMPONENT LIST QTY | |
| 1 - Faucet Body 1 | |
| 2 - Rubber Washer 2 | |
| 3 - Mounting Hardware 2 | |
Karran USA Tel: 866.452.7726 www.karran.com info@karran.com

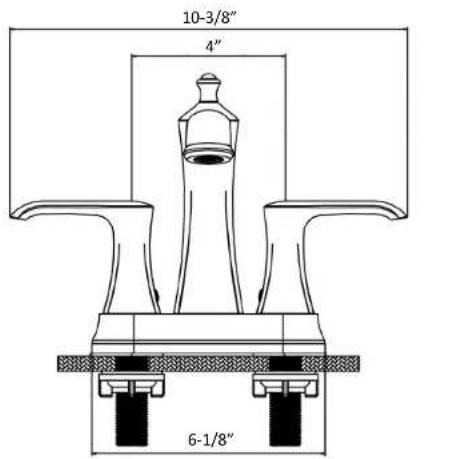

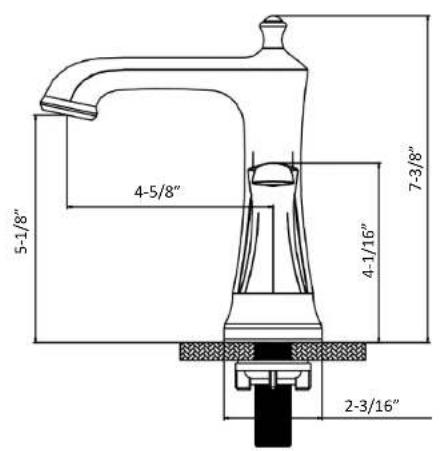

2


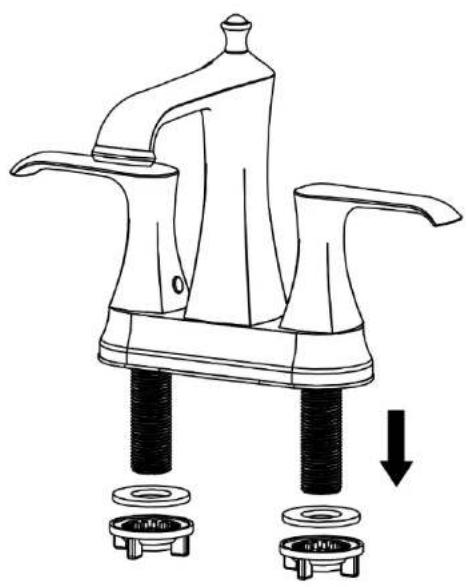

Line drawing of a hairdryer with base and seat components, showing mechanical assembly (no text or symbols)
3


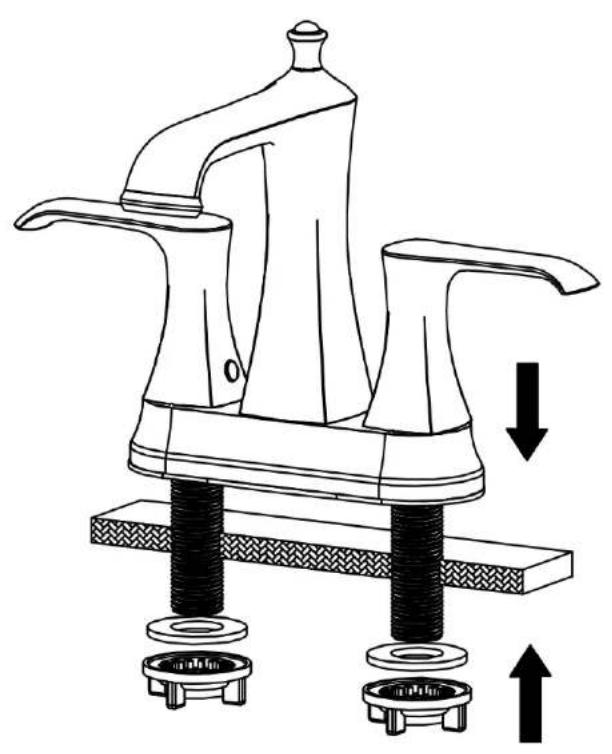

Technical line drawing of a mechanical device with base and mounting feet, showing internal components and directional arrows (no text or symbols)4


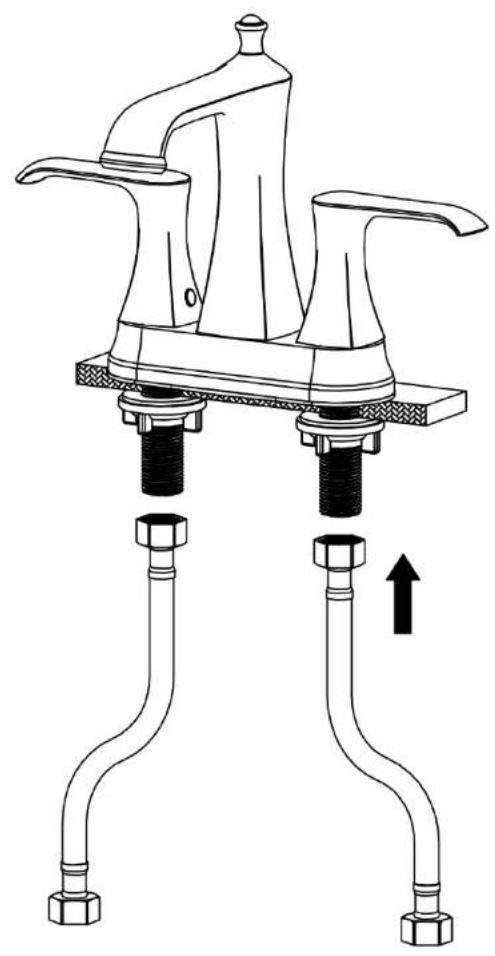

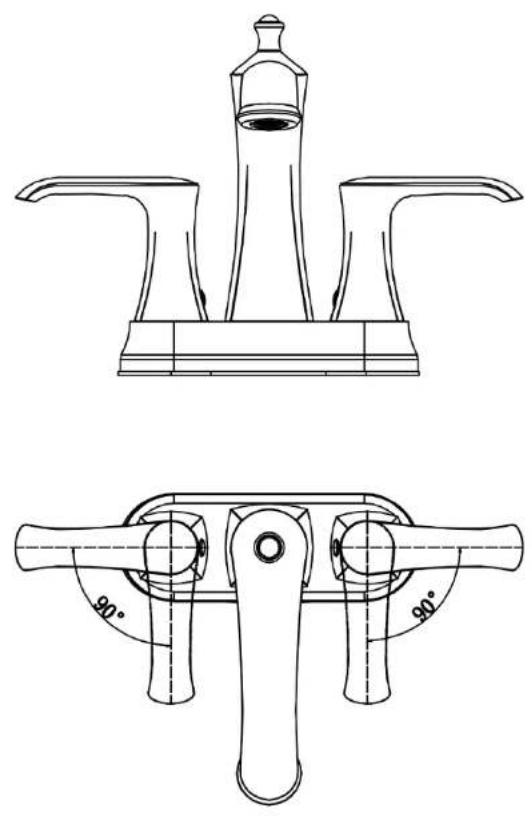

Technical line drawing of a bathroom sink with handle and angle annotations (no text or symbols)6
7

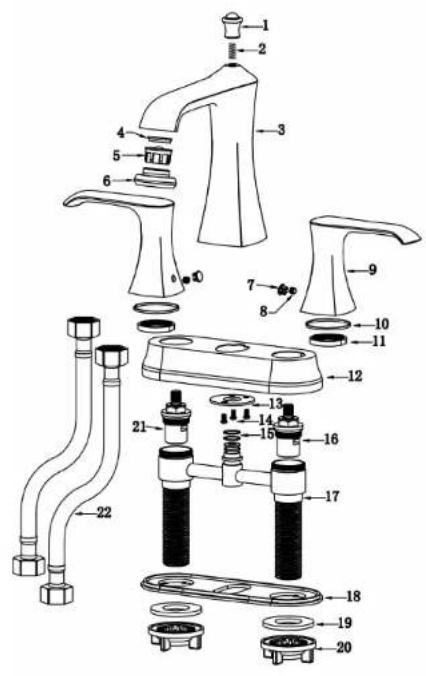

1 - Cover
2 - Screw
3 - Faucet Body
4 - Gasket
5 - Aerator
6 - Aerator Cover
7 - Color Button
8 - Screw
9 - Handle
10 - O-Ring
11 - Nut
12 - Body Base
13 - Gasket
14 - Screw
15 - O-Ring
16 - Cartridge
17 - Cartridge Base
18 - Base Plate
19 - Washer
20 - Mounting Hardware
21 - Cartridge
22 - Water Lines
