PANDUAN PENGGUNA IMC-3600S Imarflex

SPECIFICATION

MODEL NO. : IMC-3600S

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 1300 Watts

CAPACITY : 2.5 Liters

IMPORTANT SAFEGUARDS

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated in this unit corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

4. Do not allow cord to touch hot surface of the Multi-cooker.

5. Do not place on or near gas stove or electric stove.

6. Do not use the Multi-cooker without the Inner Pot.

7. Do not move the Multi-cooker while cooking is in progress.

8. While the Multi-cooker is in use, do not touch metal surface.

9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

10. Children should be supervised to ensure that they do not play with the appliance.

11. CAUTION: Never leave the Multi-cooker unattended while cooking.

12. Keep curtains, furniture, flammable materials, etc. away from the Multi-cooker.

13. Do not loop the cord around the Multi-cooker after use.

14. Keep the Multi-cooker in a dry and cool place.

15. In case of malfunctions, please bring the Multi-cooker to the nearest Authorized Imarflex Service Center.

16. Save this instruction for future reference.

- THIS MULTI-COOKER IS FOR HOUSEHOLD USE ONLY, NOT INTENDED FOR COMMERCIAL USE.

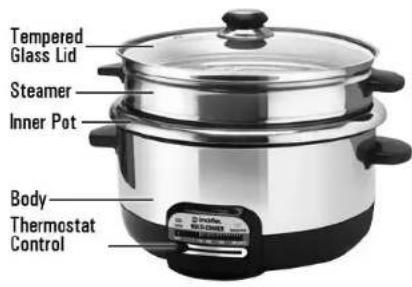

DESCRIPTION OF PARTS

HOW TO USE

Your Multi-cooker is designed to do almost all of the methods in cooking. All you have to do is to follow your usual recipes and adjust the Thermostat Control to your desired cooking requirement (stew, stir-fry, deep fry, etc).

NOTE: When the unit reaches the set temperature, the power light indicator will turn to WARM/PWR and will return to COOK once the temperature has decreased.

DEEP FRYING

1. Plug the unit into the convenience outlet.
2. Adjust the Thermostat Control to 220°C.
3. Put oil inside the inner pot. Do not mix new oil with used oil.
4. Prepare the ingredients.
5. When the Multi-cooker reaches the required temperature, put the food inside.
6. Once the food is cooked, remove from the Multi-cooker and drain excess oil.
7. Turn OFF and unplug after use.

STIR FRYING

1. Plug the unit into the convenience outlet.
2. Adjust the Thermostat Control to 150°C.

3. Put small amount of oil inside the Inner Pot.

4. When the Multi-cooker reaches the required temperature, put the food inside. Frequently stir the ingredients for even cooking.

5. Once the food is cooked, remove from the Multi-cooker.
6. Turn OFF and unplug after use.

STEWING/SLOW COOKING

1. Prepare the ingredients.
2. Plug the unit into the convenience outlet.
3. Adjust the Thermostat Control to 70°C.
4. Put all the ingredients inside the Multi-cooker. Stir occasionally.
5. Once the food is cooked, remove from the Multi-cooker.
6. Turn OFF and unplug after use.

STEAMING

1. Prepare the ingredients.
2. Put desired amount of water inside the Inner Pot.
3. Plug the unit into the convenience outlet.
4. Adjust the Thermostat Control to 100°C
5. Line up the food on the Steamer. Set aside.
6. Once the water boils, put the Steamer on top of the Multi-cooker.
7. After steaming, remove the Steamer from the Multi-cooker.
8. Turn OFF and unplug after use.

FOOD WARMING

1. Once the food is cooked, adjust the Thermostat Control to lowest temperature. It keeps the food warm for a long period of time.

GRILLING

1. Plug the unit into the convenience outlet.
2. Adjust the Thermostat Control to 220°C.
3. When the Multi-cooker reaches the required temperature, line up the barbecue/food inside the Inner Pot. Turn the food once in a while.
4. Once the food is cooked, remove from the Multi-cooker.
5. Turn OFF and unplug after use.

SHABU-SHABU

1. Place Inner Pot inside the Multi-cooker.
2. Fill the pot with the desired amount of water or soup base for SHABU-SHABU.
3. Adjust the Thermostat Control to 100°C.
4. Let it boil.
5. Put all the desired ingredients and seasoning.
6. Enjoy.
7. Turn OFF and unplug after use.

CLEANING AND MAINTENANCE

1. Always unplug and allow the Multi-cooker to cool off before cleaning.
2. Wash the Inner Pot and Lid with soap and water using sponge. Do not use abrasive materials to avoid scratches. Wipe it dry.
3. Do not immerse the Multi-cooker in water.
4. Wipe the body with damp cloth.

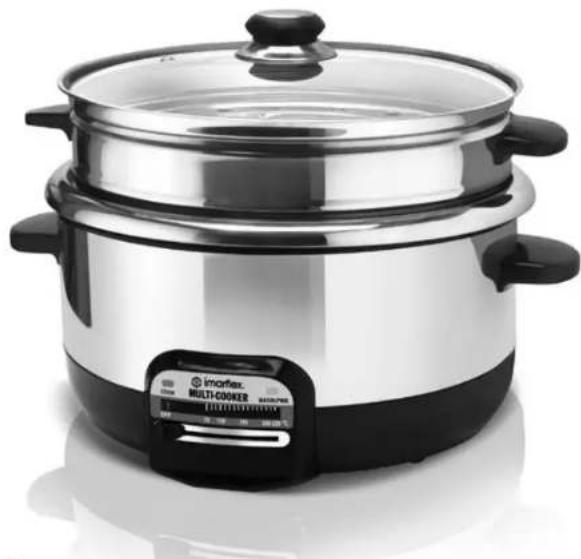

8in1 STAINLESS STEEL MULTI-COOKER

Deep Fryer • Stir Fryer • Griller • Slow Cooker Stew • Steamer • Food Warmer • Shabu-shabu

Exterior view of a modern multi-coke rice cooker (no signage or text visible)

imarflex

In Every Home. www.imarflex.com

IMC-3600S
