CyberPower CSN30U12V-20 INDOOR CYBERSHIELD FTTx SYSTEM
Indoor power source with battery backup for telecom applications
The CSN30U12V-20 Indoor CyberPower CyberShield FTTx System provides cable telephony, wireless local loop (WLL) and fiber to the premise (FTTx) suppliers with a dependable, cost effective, local battery backup and power supply for customer premise(s).
Designed for interior installation, the CSN30U12V-20 provides a durable casing to protect the model and keyhole slots for wall-mounting in locations such as basements, mudrooms, utility closets and garages.
The unit supplies surge protection and continuous 12vdc during power surges and outages, keeping local power network interface units up and running.


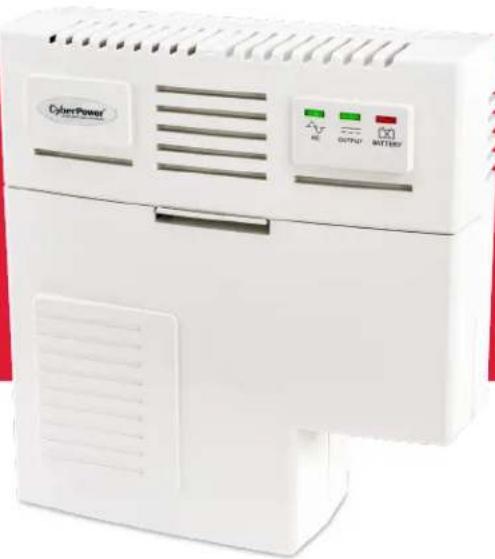

White industrial device with ventilation grilles and control buttons (no readable text or symbols)TYPICAL APPLICATIONS
- Cable Telephony
- Wireless Local Loop
- VoIP and VoDSL
- Fiber to the Home
- MTU/MDU
• SOHO Network Communication
FEATURES
- Microprocessor Based Intelligent Control
- Telemetry Interface
• Audible and LED Indicators - Optional Extenable Runtime
• User-Replaceable Battery
• Cold Start Functionality
SPECIFICATIONS
AC INPUT
| Input Voltage Range 90-264Vac |
| Input Frequency Range 47-70Hz |
| Input Power Cord IEC320 C7 2-Prong Cord |
DC OUTPUT
| On Battery Output Voltage 12Vdc | |
| Continuous Power Capability | 30W |
| Output Power Max 30W<5 seconds | |
| Efficiency >83% | |
BATTERY
| Battery Type Sealed Lead-Acid | |
| Number of Batteries (1) 12V/20Ah | |
| Typical Recharge Time <42 Hours | |
| User-Replaceable Yes | |
SURGE PROTECTION AND FILTERING
| Lightning/Surge Protection | Yes |
SPECIFICATIONS CONT.
WARNING DIAGNOSTICS
| Audible Indicator Utility Failure, Low Battery | |
| LED Indicators AC, Output, Battery | |
| MANAGEMENT | |
| Auto-Charge Yes | |
| Communication Interface | On Battery, Replace Battery,Battery Missing, Low Battery |
| PHYSICAL | |
| Maximum Dimensions(LxWxD) (cm) | 30 x 28 x 9.9 |
| Weight (kg) 7.7 (Including Battery) | |
| Cord Length 10' | |
ENVIRONMENTAL
| Operating Temperature -4°-122°F (-20°-50°C) | |
| Operating Relative Humidity | 0-95% (Non-condensing) |
| Storage Temperature -4°-122°F (-20°-50°C) | |
| Maximum Operating Elevation | 10,000 feet (3,000 meters) |
| Maximum Storage Elevation | 50,000 feet (15,000 meters) |
| CERTIFICATIONS | |
| Compliance UL62368, FCC Part 15 Class B | |
| WARRANTY | |
| Product Warranty | Three-Years Limited |
