PANDUAN PENGGUNA ABM 160 I Arçelik

Arçelik ABM 160 I - 1

natural_image Black icon of a crossed wrench and screwdriver (no text or symbols)

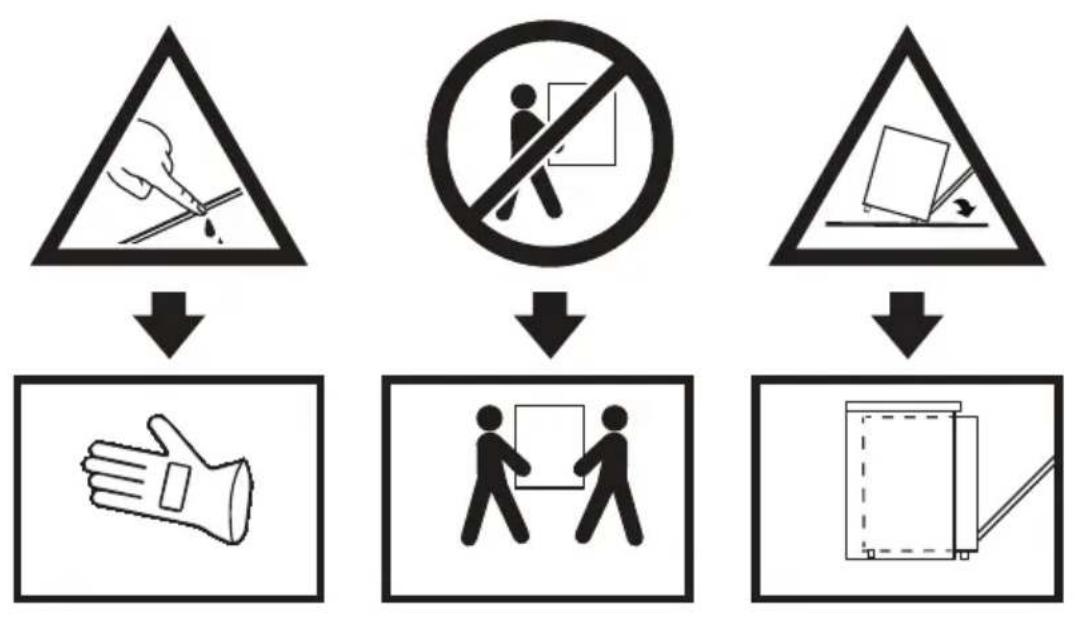

Arçelik ABM 160 I - 2

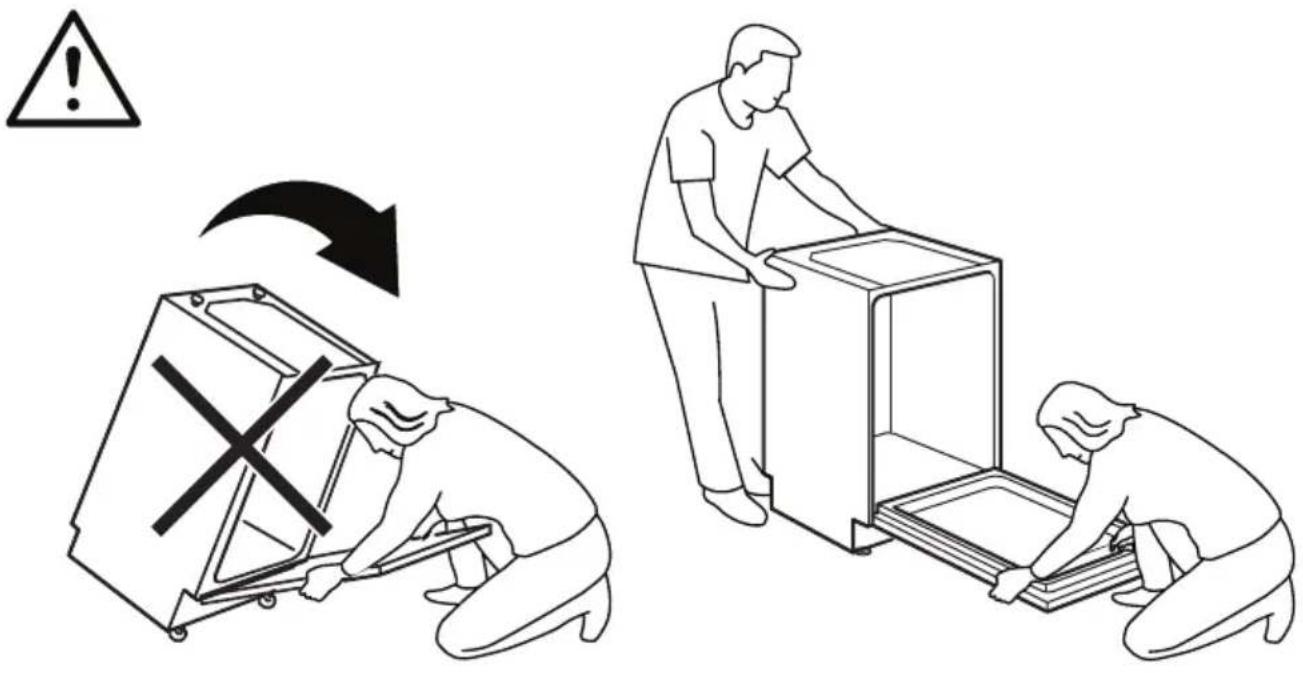

Diagram illustrating two steps to install a box, with warning symbols and a cross symbol indicating disassembly or repair.

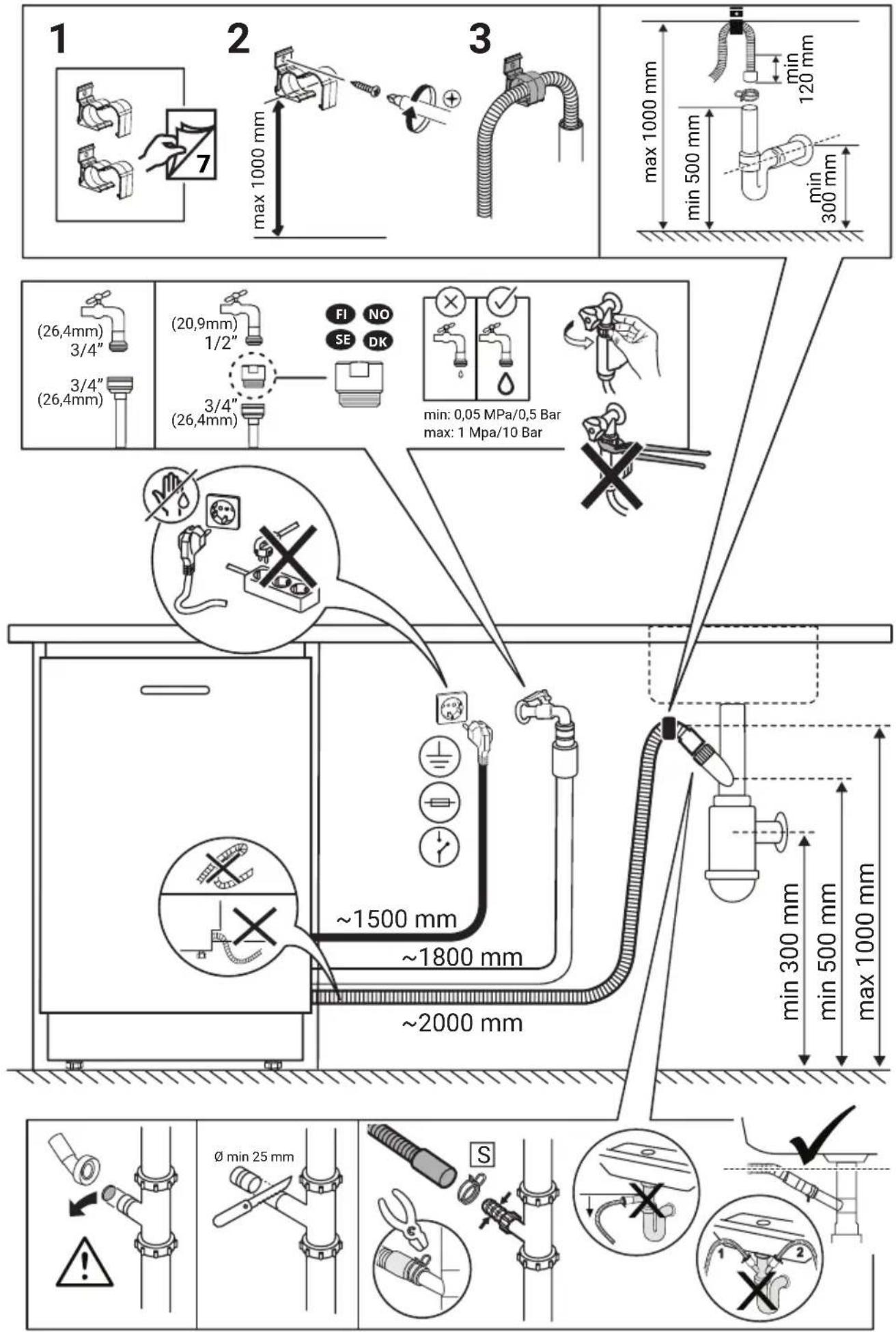

1 2 3 max 1000 mm max 1000 mm min 500 mm min 120 mm min 300 mm (26,4mm) 3/4" (26,4mm) (20,9mm) 1/2" 3/4" (26,4mm) FI NO SE DK min: 0,05 MPa/0,5 Bar max: 1 Mpa/10 Bar ~1500 mm ~1800 mm ~2000 mm min 300 mm min 500 mm max 1000 mm Ø min 25 mm S

Arçelik ABM 160 I - 5

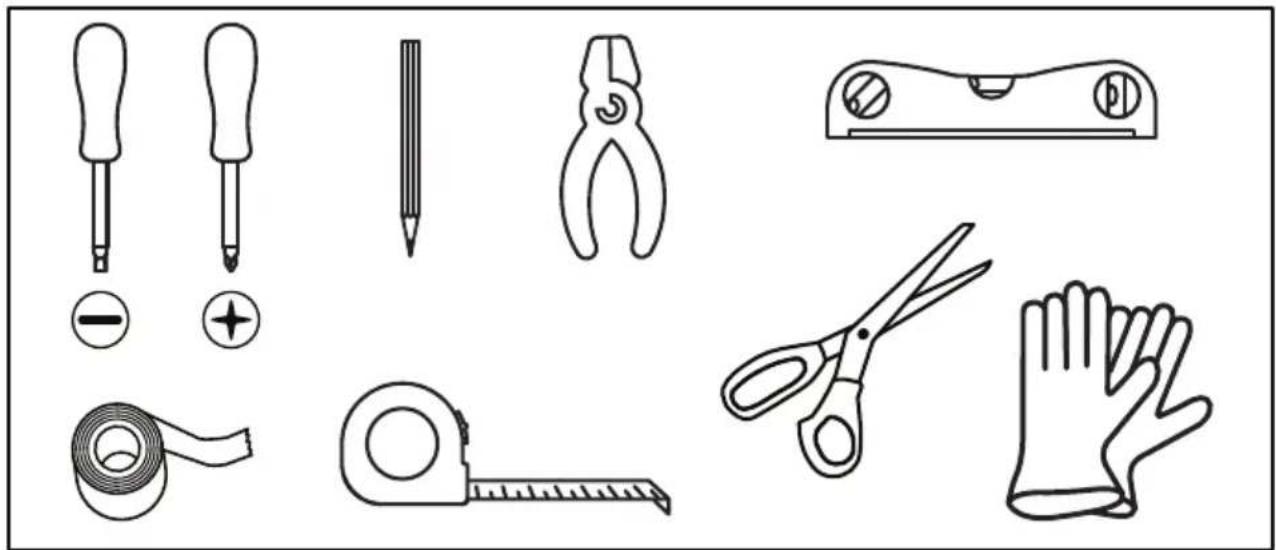

natural_image Collection of hand tools including screwdriver, pliers, tape measure, and gloves (no text or labels)
∅ 4 x 13 mmArçelik ABM 160 I - 64x∅ 4 x 36 mmArçelik ABM 160 I - 74x2x2x∅ 3,5 x 14 mmArçelik ABM 160 I - 82x∅ 4 x 6 mm[IMAGE]Arçelik ABM 160 I - 9]
Arçelik ABM 160 I - 101xArçelik ABM 160 I - 111xArçelik ABM 160 I - 121x4xArçelik ABM 160 I - 13]Arçelik ABM 160 I - 142x
Arçelik ABM 160 I - 151xArçelik ABM 160 I - 161x1xArçelik ABM 160 I - 17

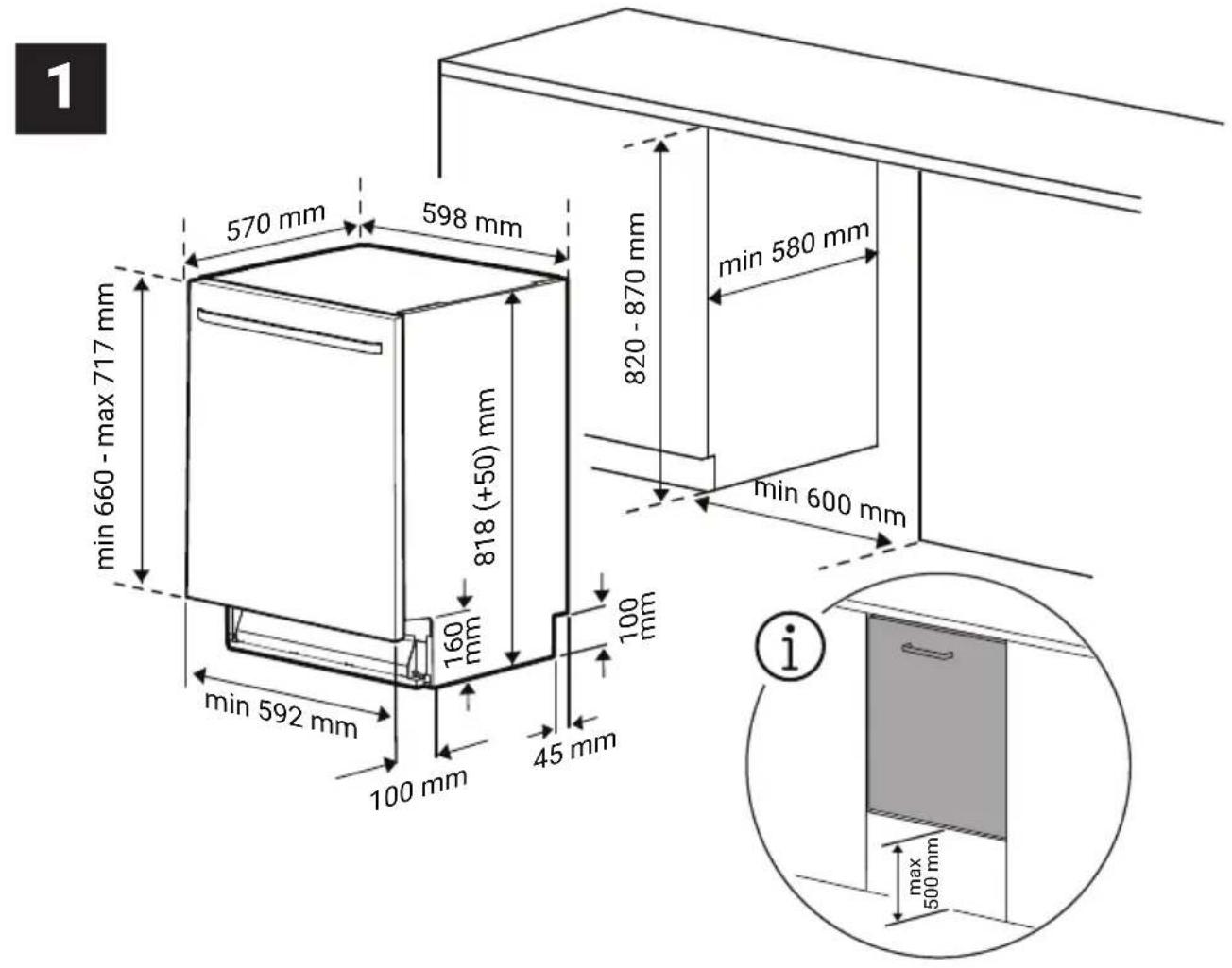

1 570 mm 598 mm min 660 - max 717 mm 818 (+50) mm 160 mm 100 mm 45 mm 100 mm min 592 mm 100 mm 820 - 870 mm min 580 mm min 600 mm max 500 mm i

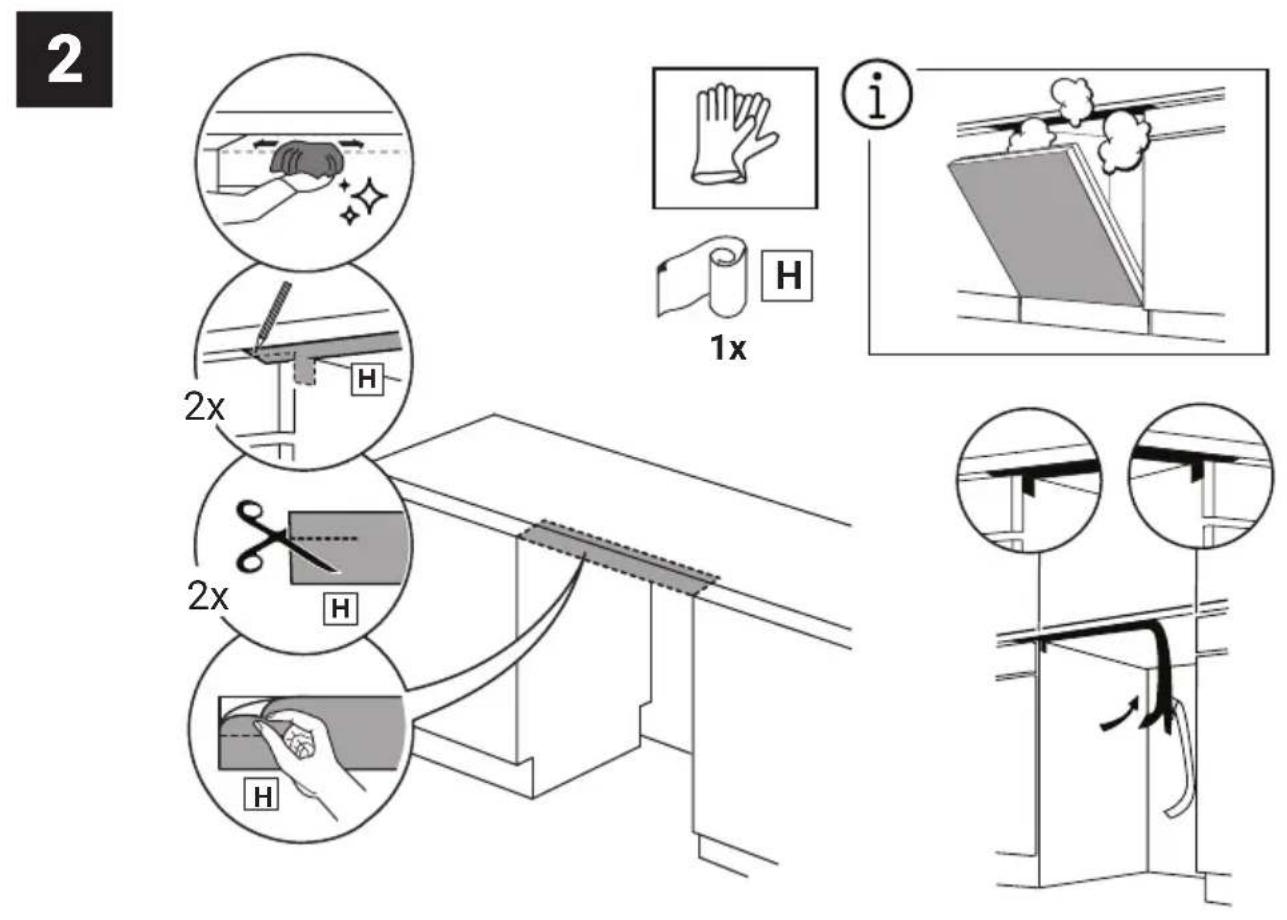

2 2x 2x H 1x i H 2x H H

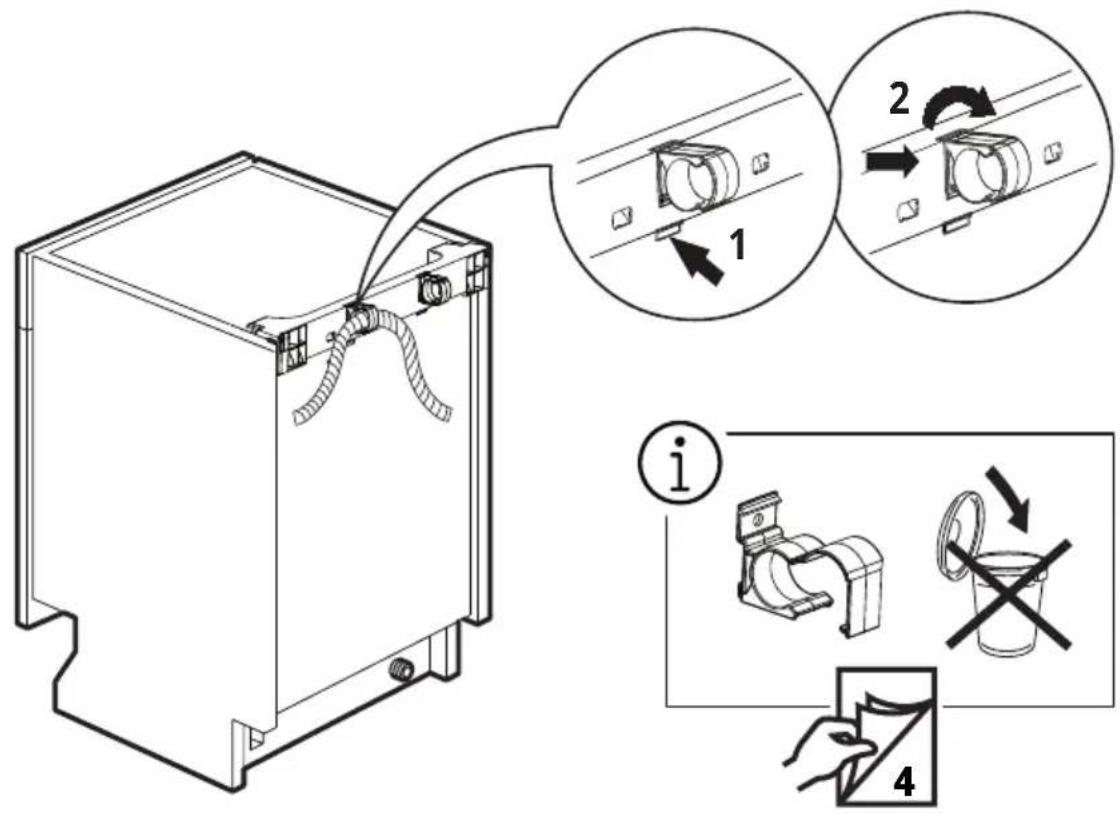

3
Technical diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

4

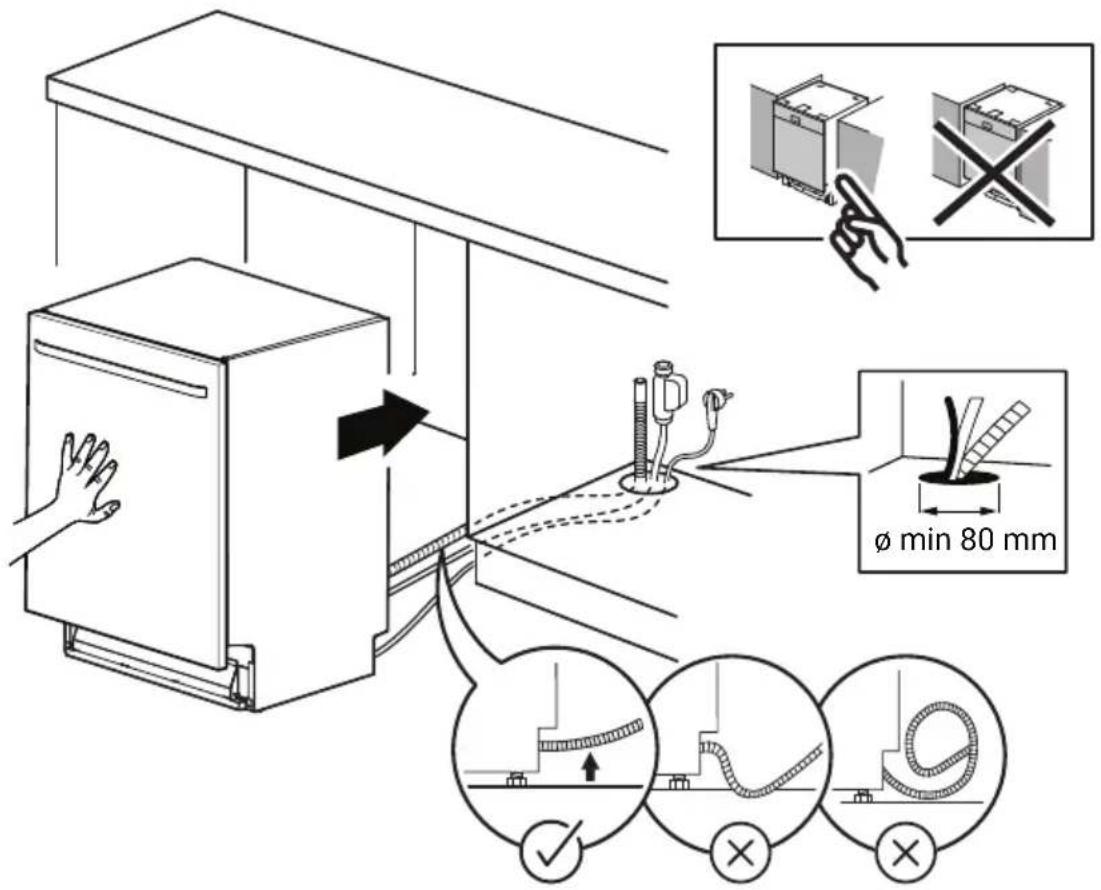

Diagram illustrating a hand operating a washing machine with a close-up of the device's wire and a 80 mm minimum diameter requirement.

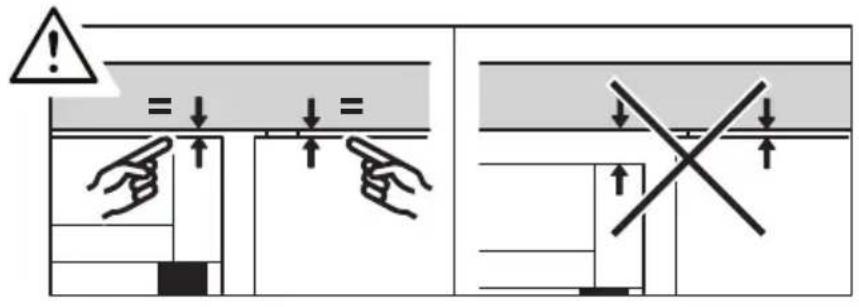

5

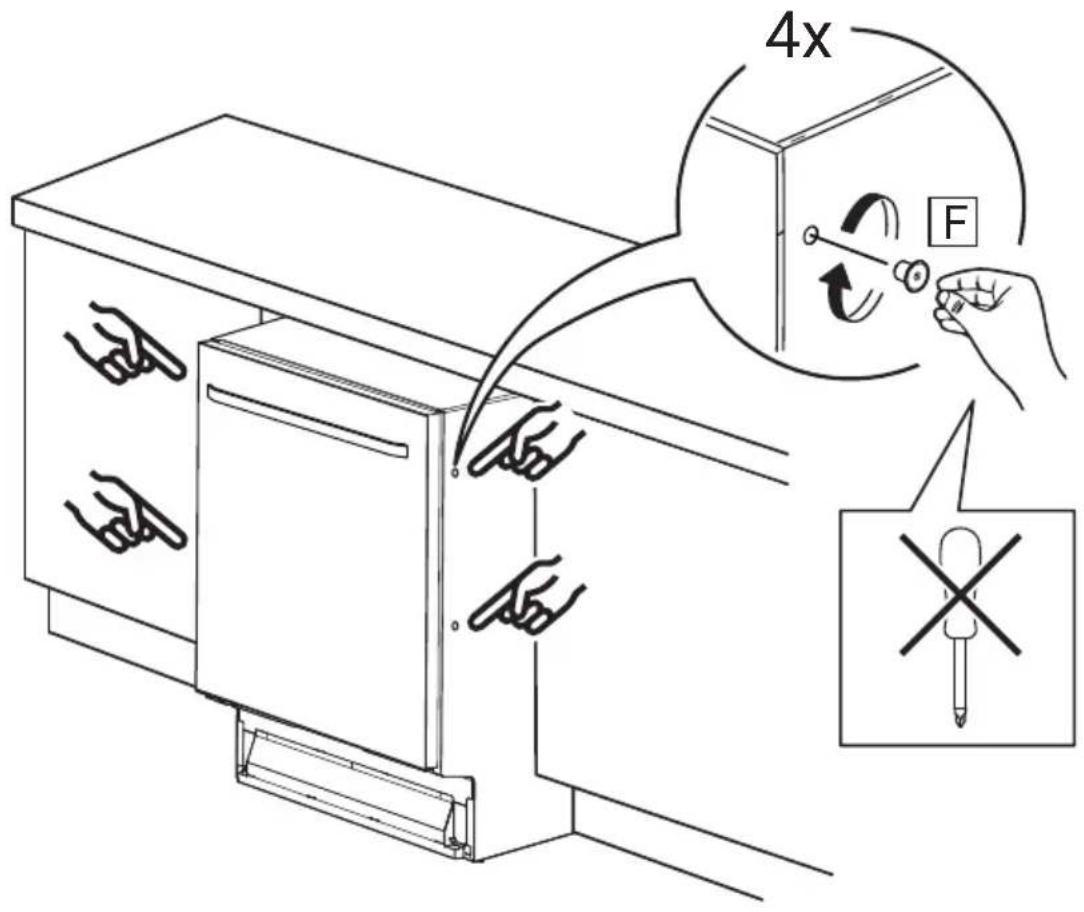

Diagram illustrating safety warning and hand gesture in a liquid container with labeled arrows and symbols

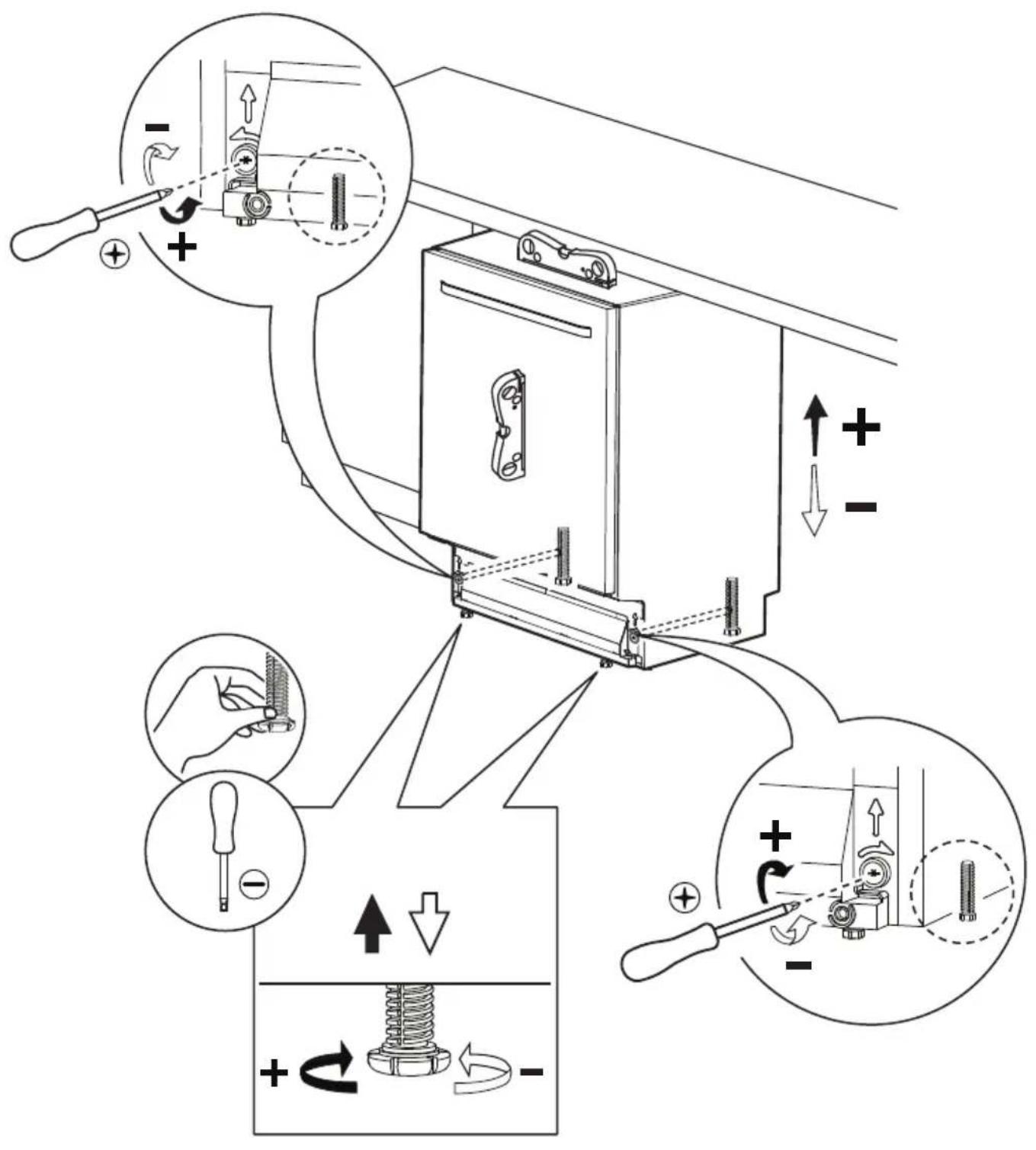

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating movement or force.

6

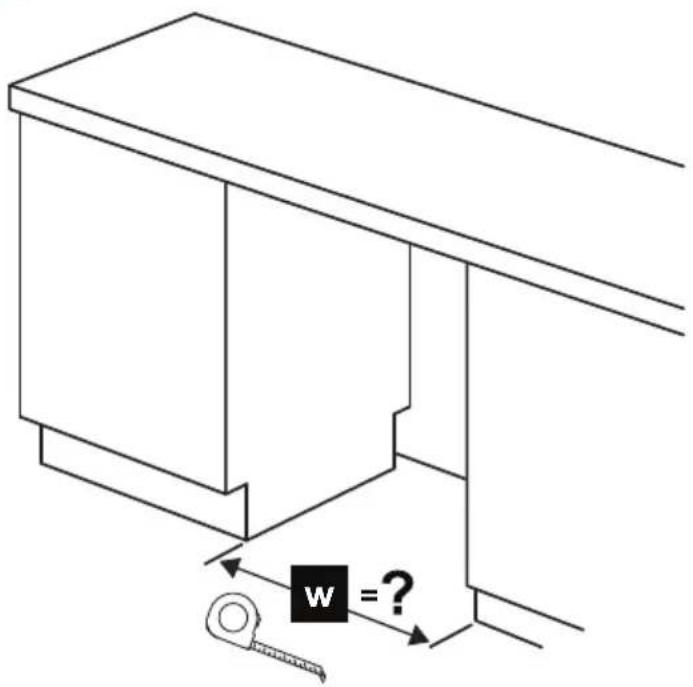

w = ?

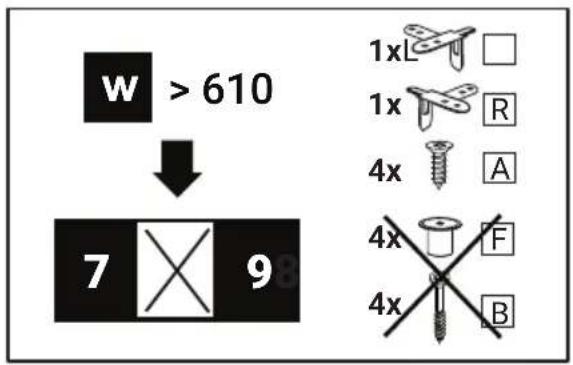

w > 610 ↓ 7 9 1xL □ 1x R 4x A 4x F 4x B

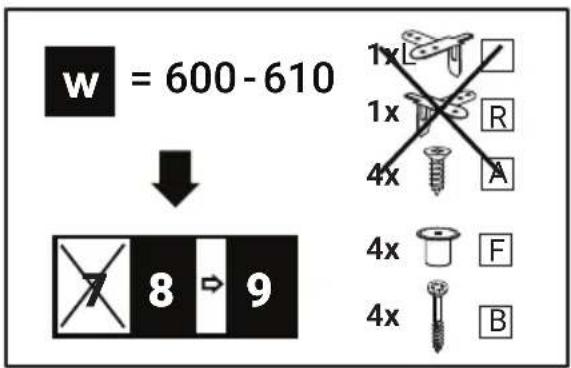

W = 600 - 610 ↓ 8 ⇌ 9 1x 1x R 4x A 4x F 4x B

7/a

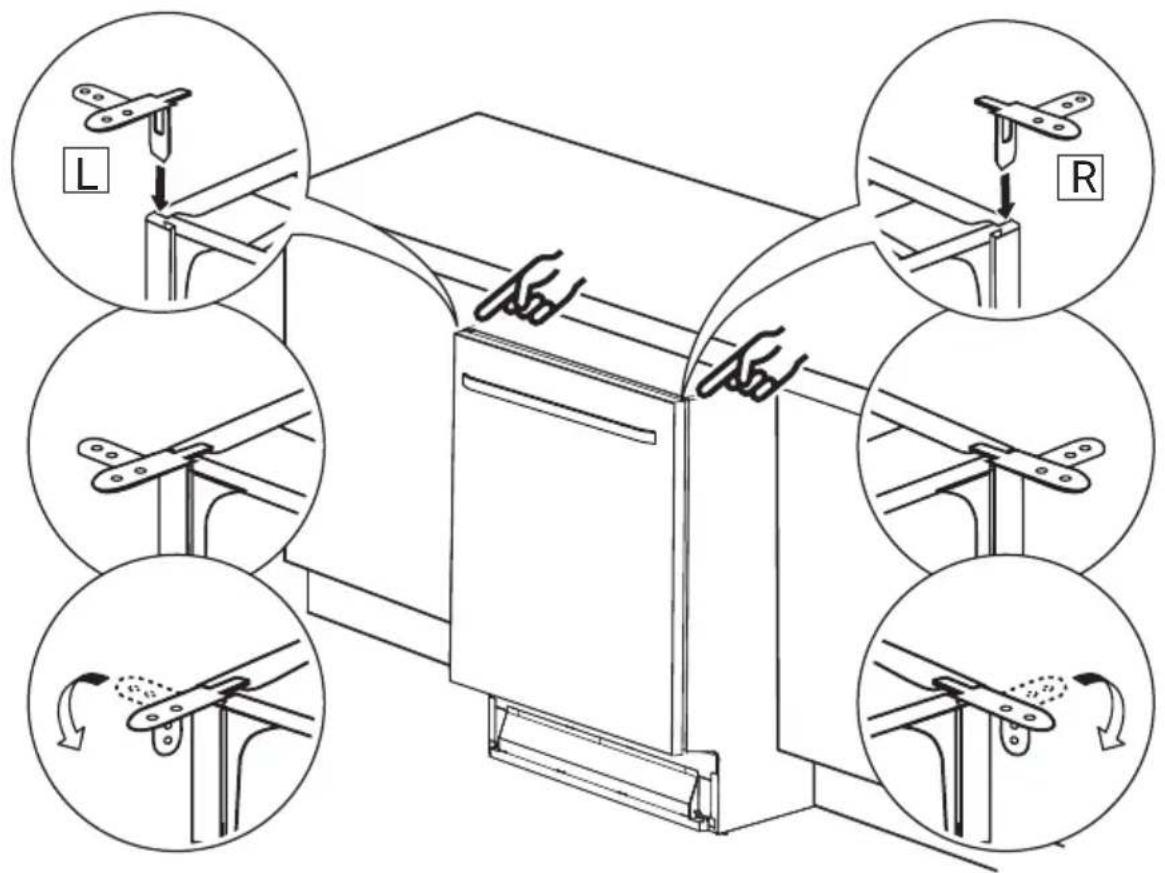

Diagram illustrating four different types of hand tool application (L, R, and a separate step) on a device or assembly, with arrows indicating movement.

7/b

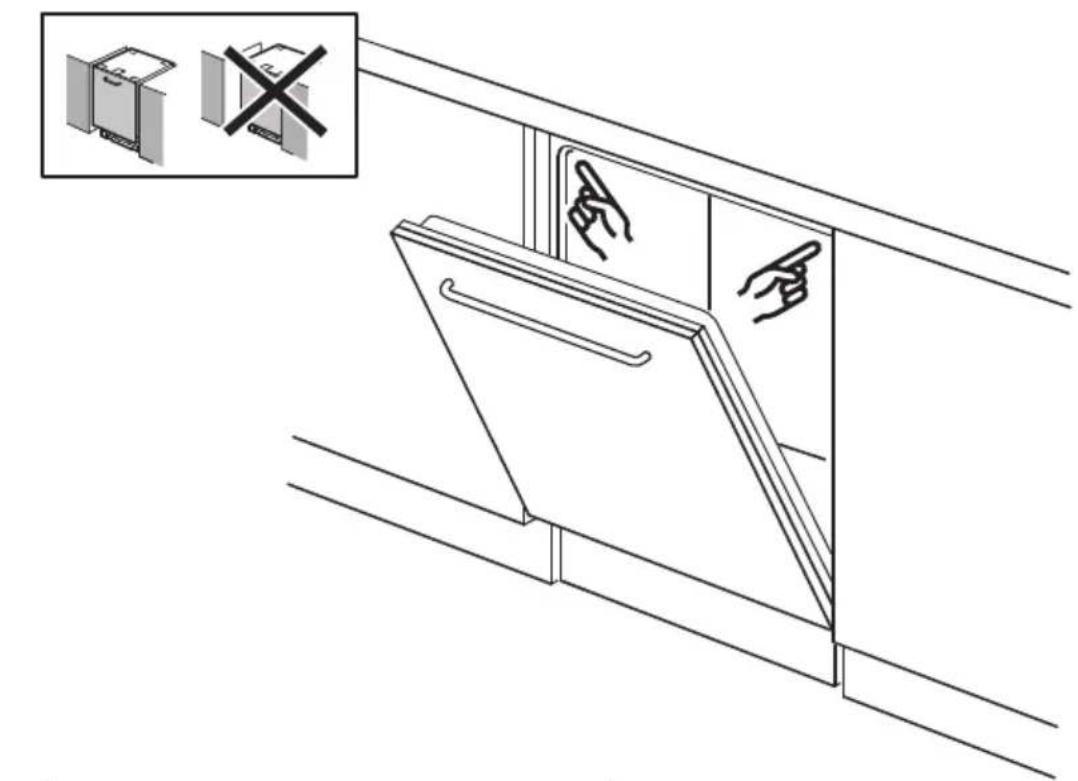

Diagram illustrating a door lock mechanism with hand gestures and a warning symbol, accompanied by an inset image showing two labeled components.

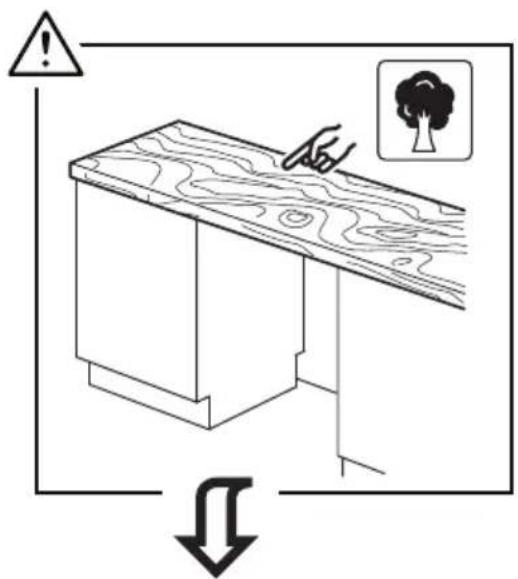

Diagram showing a wooden desk with warning symbols and an icon of a tree, indicating safety or hazard.

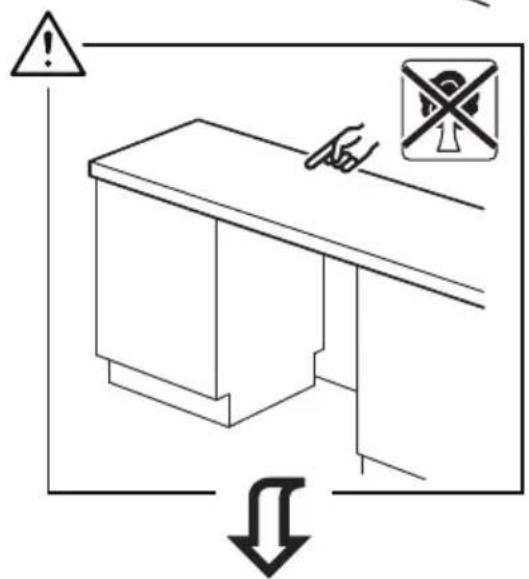

Diagram showing a hand pressing down on a desk with warning symbols and directional arrows indicating safety or hazard.

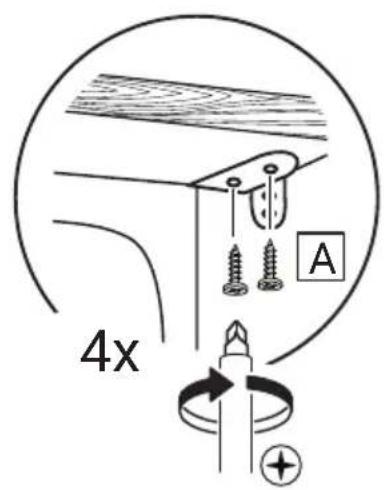

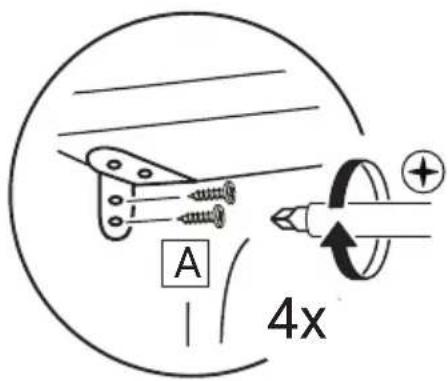

4x A

A 4x

8/a
4x F

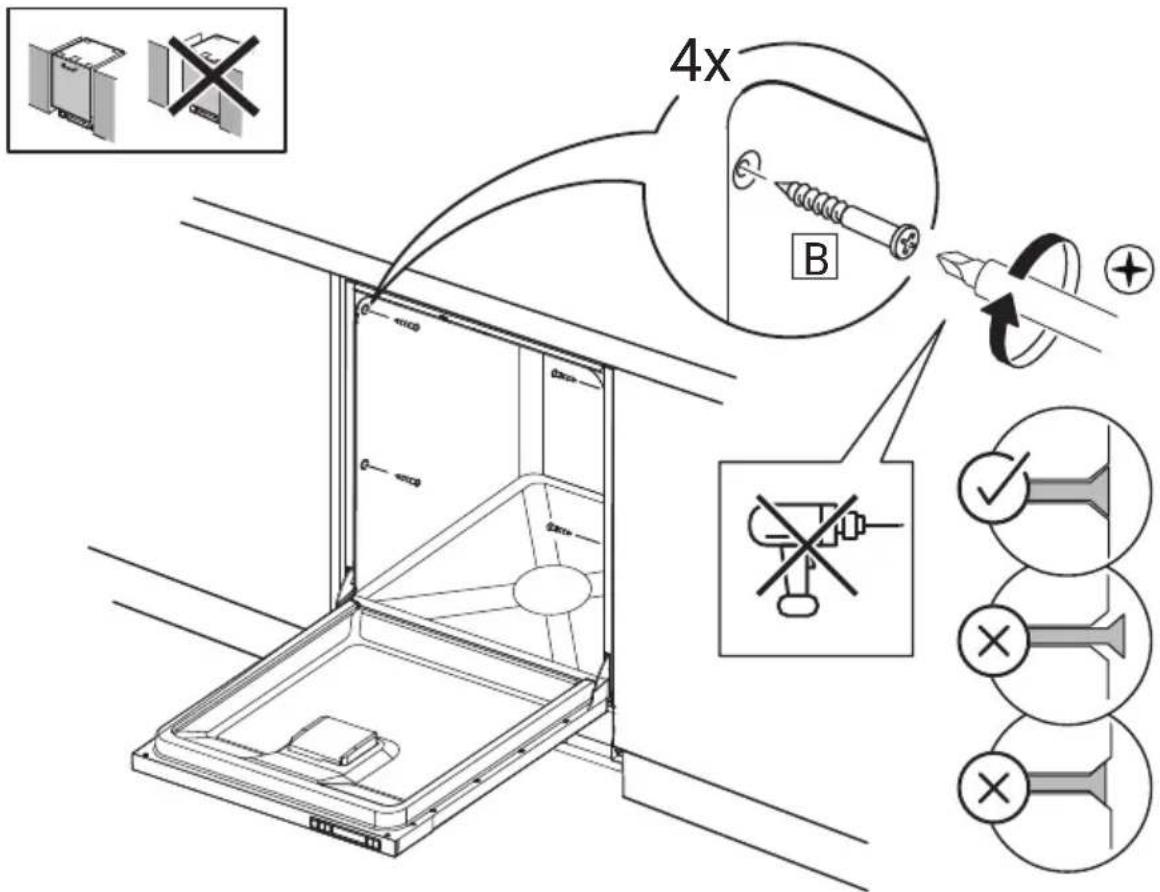

8/b
4x B

9

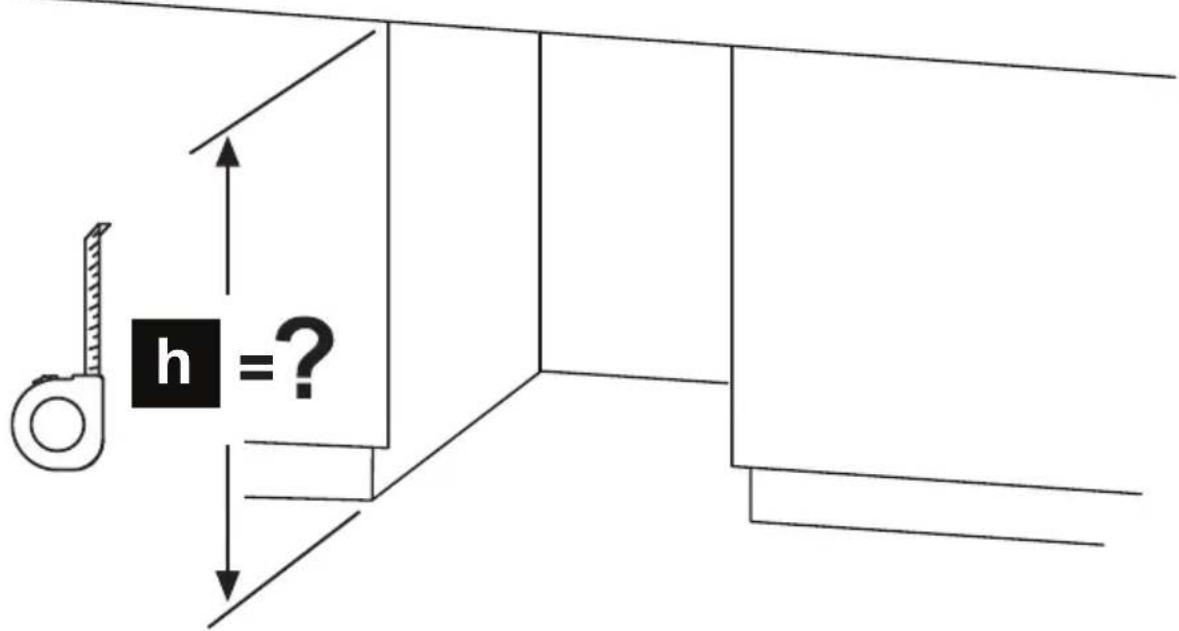

h = ?

N P I

h = 820 - 840 mm → 10 → 11 h = 841 - 870 mm → 10

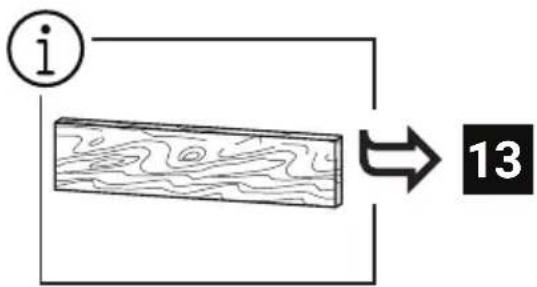

i 13

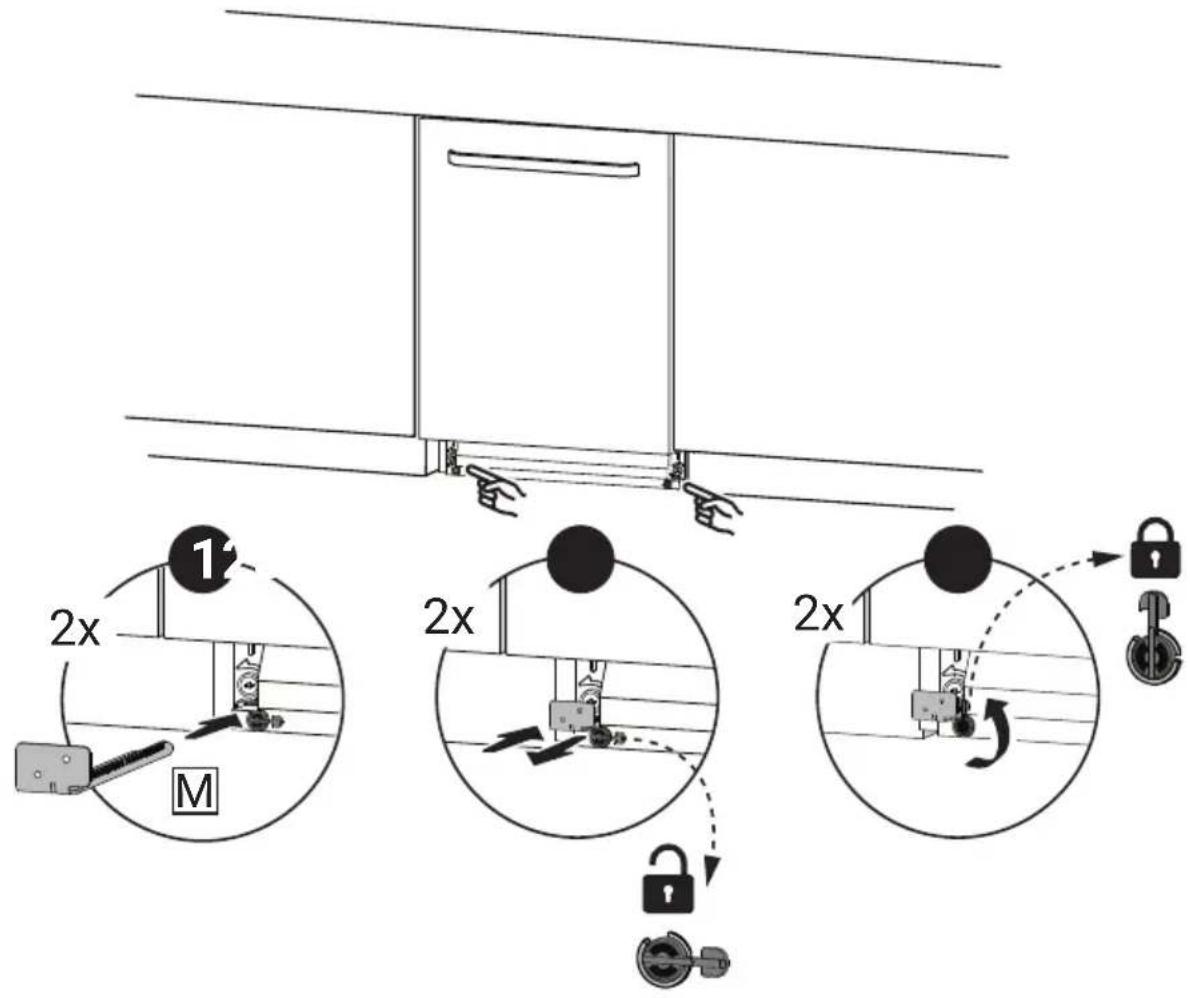

10
1 2x M 2x 2x 2x

11

Arçelik ABM 160 I - 40

natural_image Diagram of a magnetic bar mounted on a vertical pole with two hands holding it, no text or symbols present

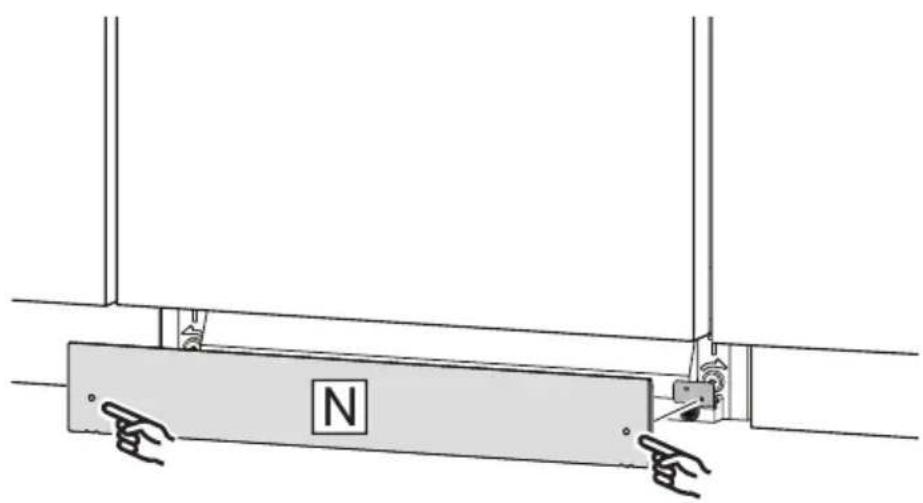

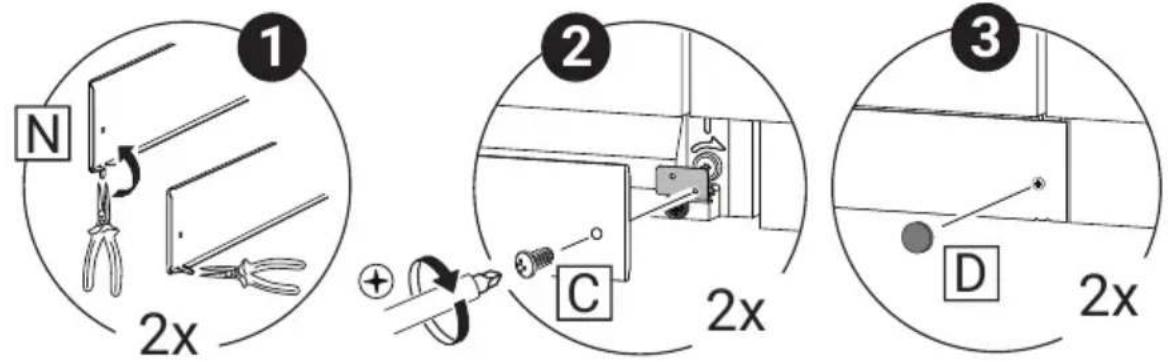

N 2x ① ② C 2x ③ D 2x

12

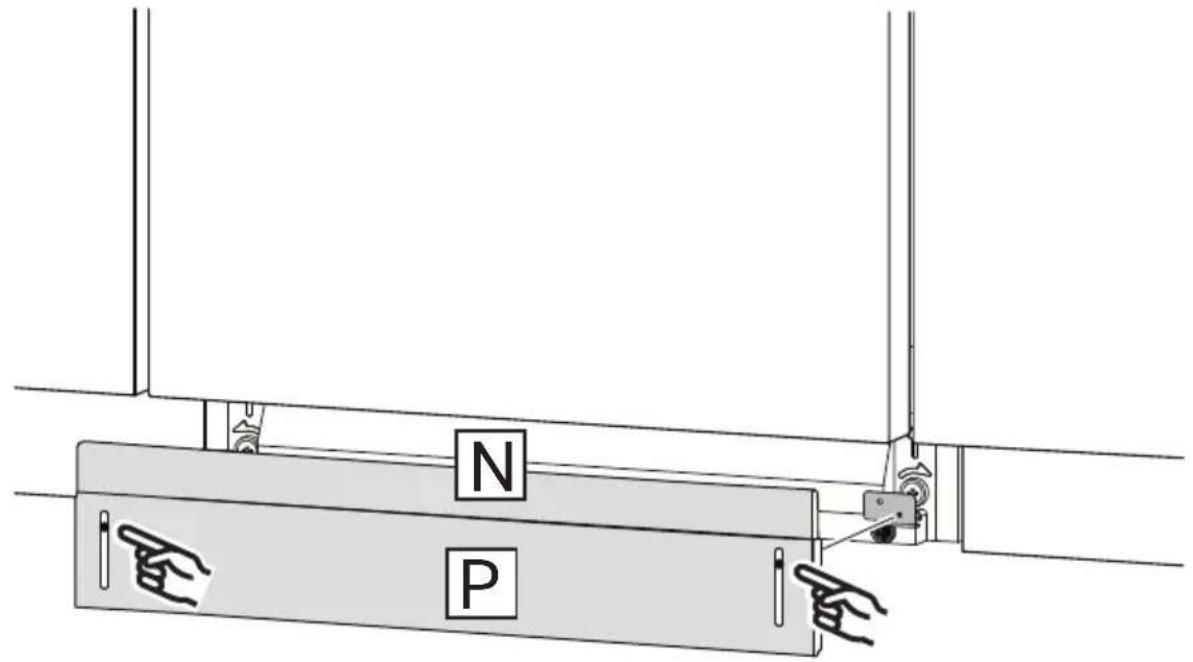

N P

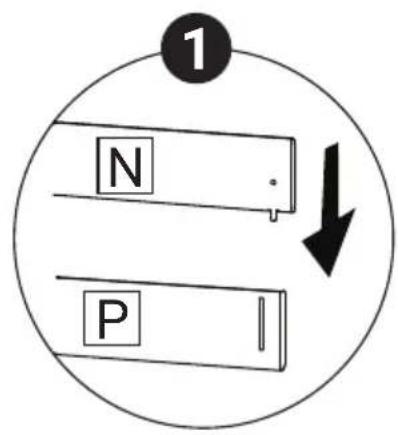

1 N P

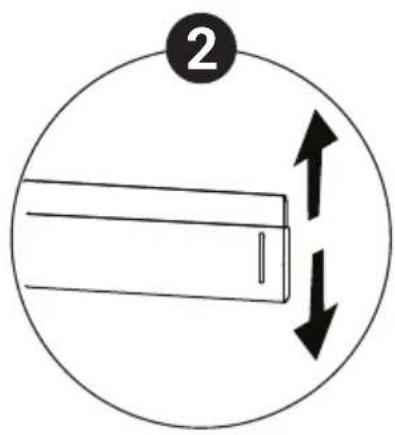

②

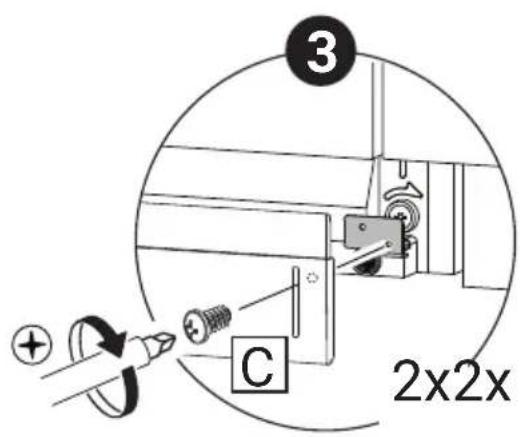

3 C 2x2x

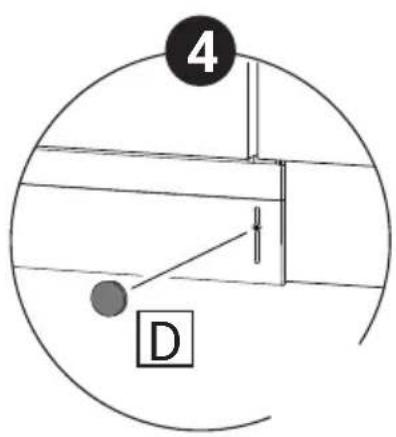

4 D

13

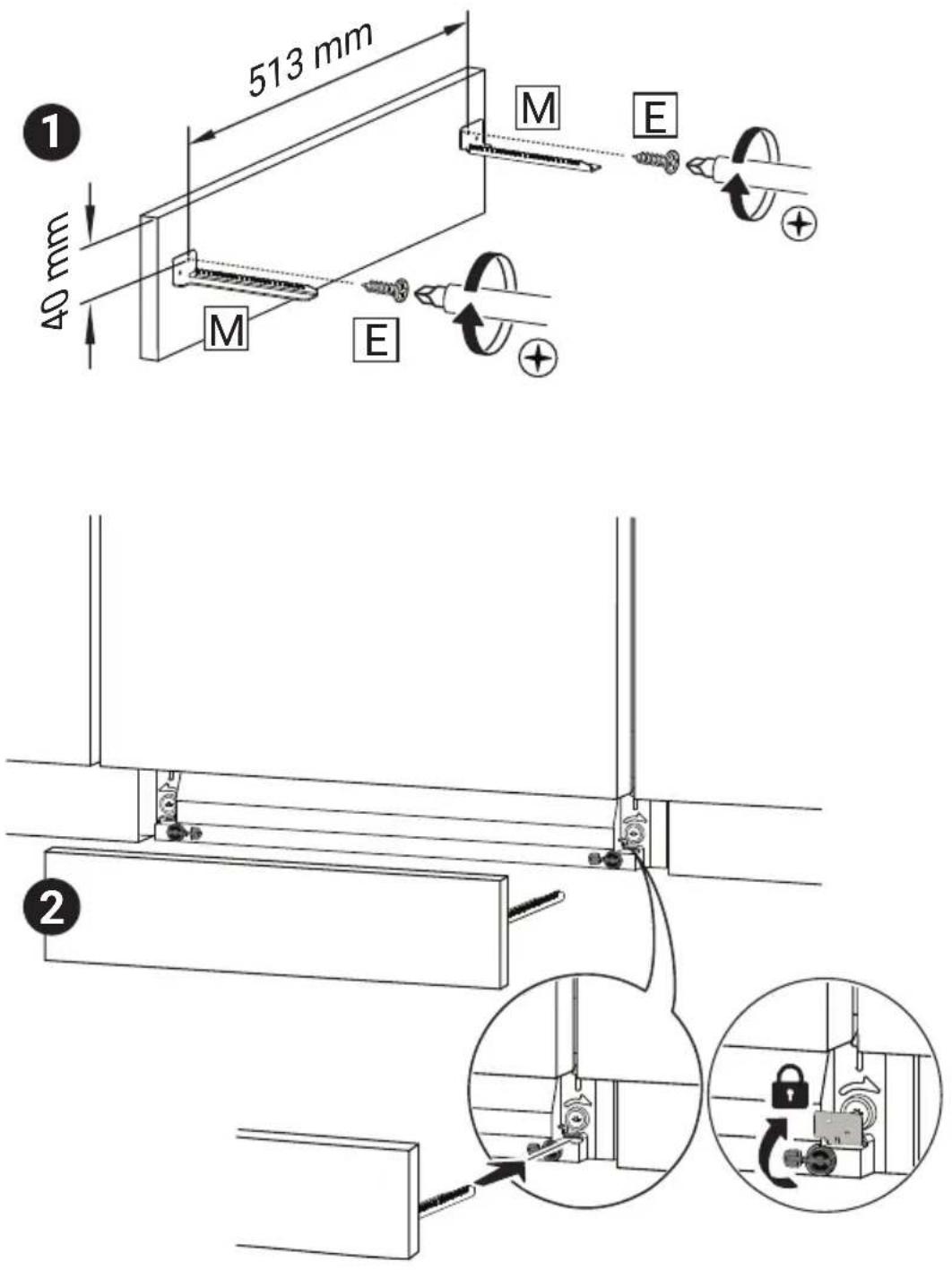

Arçelik ABM 160 I - 47
