PANDUAN PENGGUNA Barrier Free Dormakaba
BF
Barrier-free Exit Devices
dormakaba


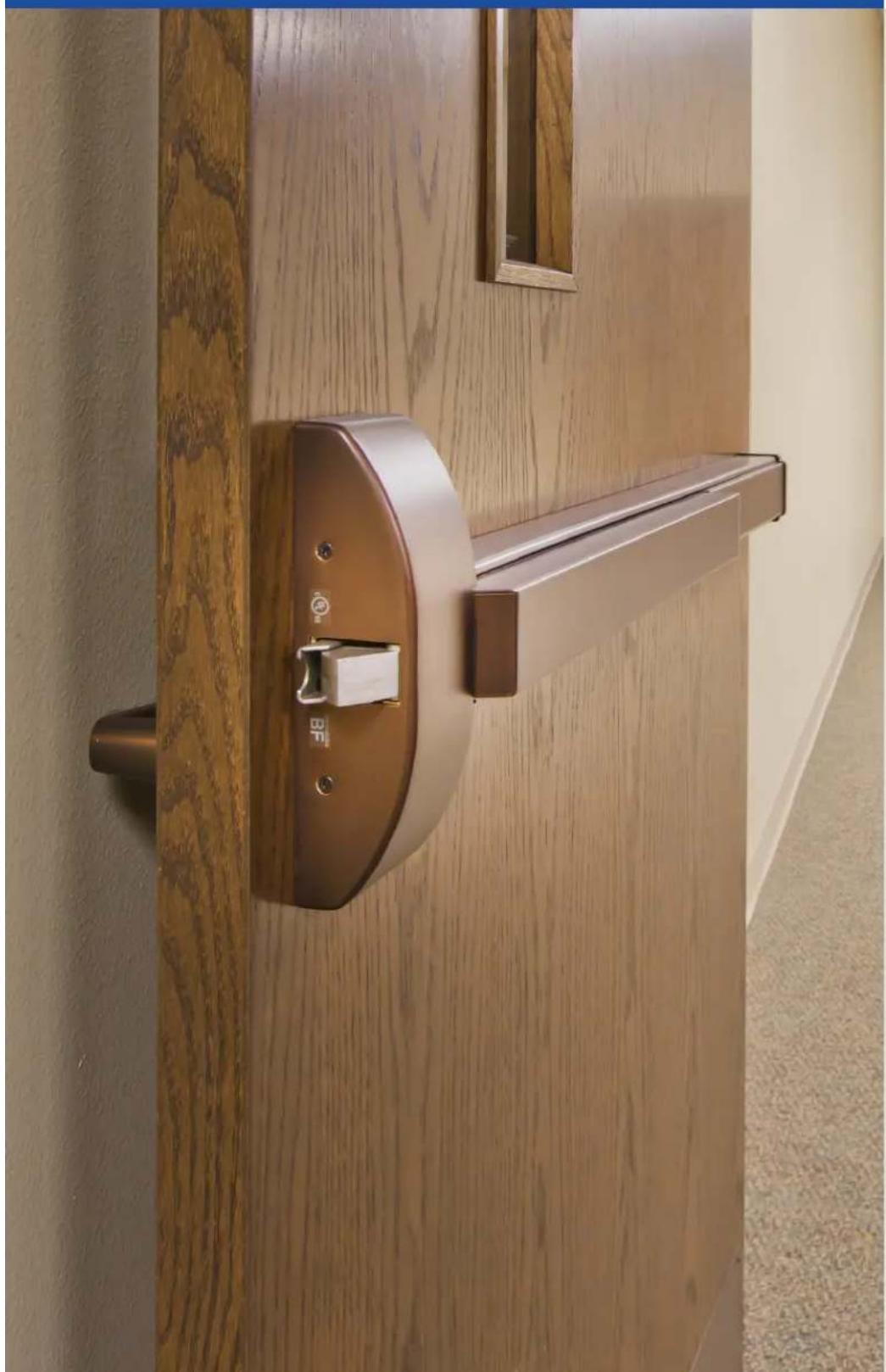

Close-up of a wooden door with a metallic handle and lock, showing wood grain and a small window (no text or symbols visible)Smart design is operating under pressure.
Available option for applications requiring easier operation.
dormakaba continues to meet the evolving needs of our customers. The new BF barrier-free exit device provides a UL/CUL certified solution to meet ADA Standards and California Department of State Architect requirements for maximum 5 lb operating force and conforms to standard UL10C 3 hour fire rating.
Door Hardware
GRADE 1
Barrier Free Exit Devices
Public Accessibility
dormakaba BF exit hardware meets the needs of openings requiring 5 lb maximum operating force.
- UL/CUL listed under their continuing reinspection programs and conforms to standard UL10C 3-hour rated positive pressure testing.
• Complies with NFPA 101 life safety code.
• Available in architectural finishes - Limited warranty
Trust dormakaba to meet life safety and compliance challenges with opening solutions that make access in life – smart and secure.

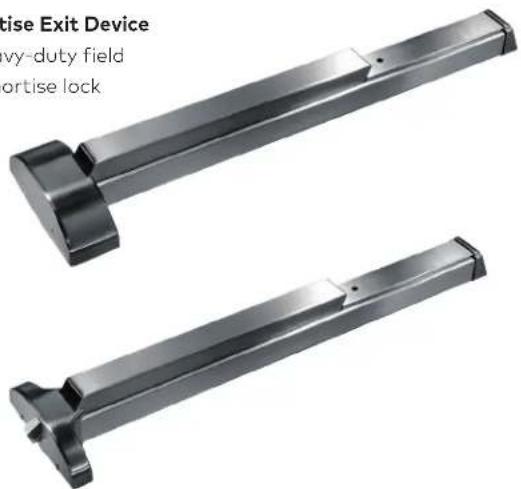

TYPE 3 Mortise Exit Device
Includes heavy-duty field reversible mortise lock


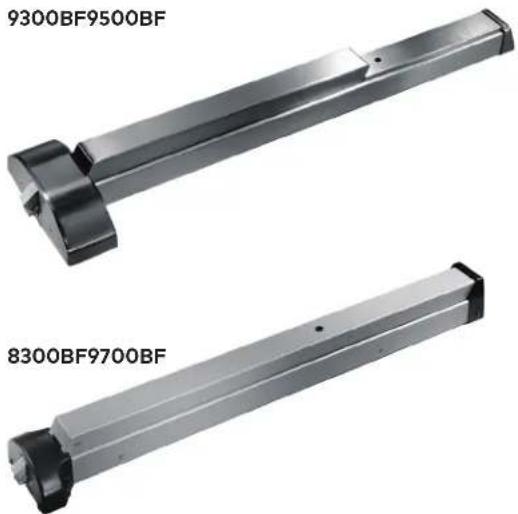

Two metallic cylindrical mechanical components with mounting holes, labeled 9300BF9500BF and 8300BF9700BF (no additional text or symbols visible)| ANSI Exit Device Type | dormakabaExit Device Model | Functions Electric Options Device Lengths Ratings | |||
| Type 1 - Rim | 8300BF | 01, 02,03, 05,08, 23 | ES, BPA, BPAR, LM,MS, LM/MS | 36" & 48" Panic & Fire | |
| 9300BF | ES, ESB, BPA, BPAR,LM, MS, LM/MS,LM/MS/BP | ||||
| Type 3 - Mortise 9500BF | |||||
| Type 4 - Narrow Rim 9700BF | |||||
