PANDUAN PENGGUNA RMG-18 Royal Range
Royal Series
Models: □ RMG-12 □ RMG-18 □ RMG-24 □ RMG-36 □ RMG-48
□ RMG-60 □ RMG-72

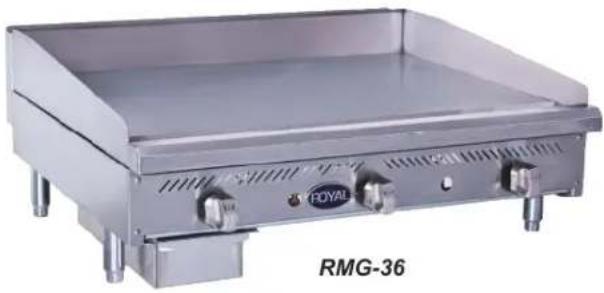

Elevation (if above 2000 ft.): ____
Standard Features
■ 11" high, Low Profile
■ Large 1½ gallon capacity stainless steel grease can
■ Compact heavy gauge chassis for long life
■ Stainless steel sides, front valve cover and ledge
■ Double wall panels for cooler sides
■ Aeration panels between the burners for added efficiency
■ Stainless Steel "U" shaped burner every 12" rated at 30,000 BTU/hr
■ 3/4" thick griddle plate with polished cooking surface
■ Manual control for each burner
■ 4" wide S/S grease trough with large drain opening for easy cleaning
■ Stainless steel tubing for pilots
■ 4" high adjustable heavy duty legs included
Options and Accessories
☐ 1" thick griddle plate
☐ Grooved griddle (specify width: ____)
Chrome griddle plate
□ Stainless Steel Equipment Stand
☐Knock Down ☐All Welded Size
□12"□8"24"30"36"□48"60"72"□
☐ 5" swivel casters (set of four - 2 locking)
☐ 5" swivel casters (set of six - 3 locking) (60" and 72" models)

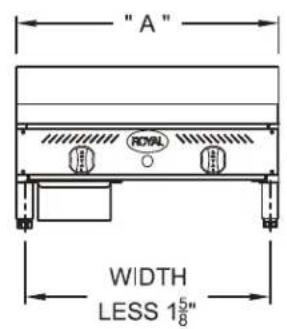

| Model Number W | Width (A) Number of Burners | Total BTU Ship Weight | |
| RMG-12 12” 1 | 30,000 140 lbs. | ||
| RMG-18 18” 1 | 30,000 165 lbs. | ||
| RMG-24 24” 2 | 60,000 210 lbs. | ||
| RMG-36 36” 3 | 90,000 290 lbs. | ||
| RMG-48 48” 4 | 120,000 390 lbs. | ||
| RMG-60 60” 5 | 150,000 485 lbs. | ||
| RMG-72 72” 6 | 180,000 580 lbs. | ||
Notes:
■ Each burner is rated at 30,000 BTU/hr

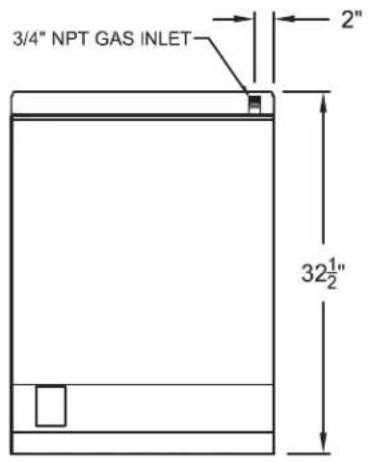

Gas Connection:
3/4" NPT on the right hand rear of the appliance.
The pressure regulator (supplied) is to be connected by the installer.
Specify type of gas and altitude, if over 2,000 feet, when ordering.
Gas Pressure:
| 5” W.C. Natural | Gas |
| 10” W.C. Propane |
Clearances:
| Combustible Non-Combustible | |
| Rear 4” 0” | |
| Sides 15” 0” |
Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.
