Line drawing of an office chair with adjustable armrest and seat (no text or symbols)

T40 Series

Assembly Instructions 조립 설명서

sidiz

준비

Ready

Backrest

고형상 훨판미 Fixed Armrest

- 제품 코드 에 下가 보는된 제품에 한함 - A model whose code includes 下

파인 Seal

조절형 빌런이 Adjustable Armrest

- 캐플 코드의 A가 포함된 캐플에 한함 - A model whose code includes 有

泰信莱 Gas Lift

발레비 조립설트 Bolta for Armrest Assembly

베이스 & 레스터 Star Base & Casters

등단 & 발결이 조립에서 Backrest and Armrest Allen Wrench

Bolts for Seat and Backrest Assembly

화판-등반 조합 가이드 텐 Guide pin for Seat and Backrest Assembly

해 받점대 Headrest

Headrest Nut Cap

Logo Cap

비 망침대 조립볼트 Bolts for Headrest Assembly

베 망징대 조립배치 Headrest Allen Wrench

- 빐질 코드에 H가 포함된 제공에 환항 - A model whose code includes H

01

베이스-중심봉 조립

Star Base and Gas Lift Assembly

1. 제품이 손상되지 않도록 부드러운 곳에서 조립해주세요.

2. 평평한 면 위에 베이스 1 름 바르게 놀이도록 뒤집고, 중심봉 2 을 위에서부터 결합시켜 주세요

3. Assemble on the smooth surface in order not to scratch the parts.

4. Turn the Star Base 3 upright and insert the Gas Lift 2 into the center hole of Star Base.

02

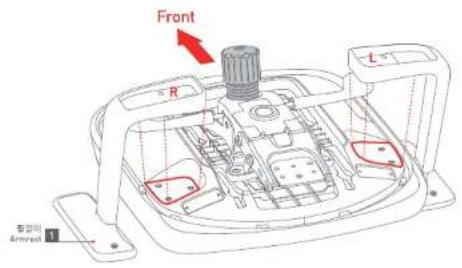

좌판 - 팔걸이 조립 Seat and Armrest Assembly

1.그림과 같이 팔견이 하단1의 L/R표시를 확인해주세요.

1. Check the L/R mark on the bottom of the armrests as shown.

1. 푸jang이 L/R을 그림과 같은 위치에 둔니다.
2. Referring to the image above, Put the armrests,

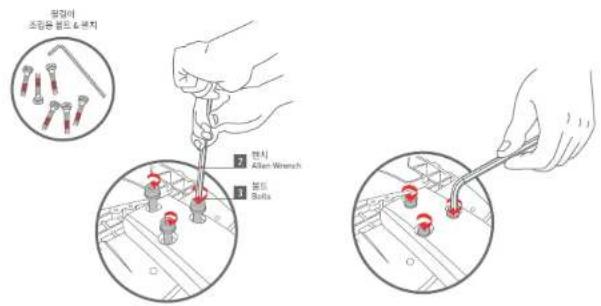

1. 팔걸이 조림홈에 맞추어 몰트를 끼으후 펜치의 길 분을 이용해 가법계 조여 주세요. (조립시 몰트가 수직 방향을 유지해야 끝까지 조립이 가능하니 연결 홍을 잘 맞준 상태에서 조립해주세요.)
2. 렌치 2. 반대쪽의 귀자 부분을 이용해 몰트가 돕지 않을 때까지 조여주세요.
3. Insert the Bolts 3 in accordance with the groove accurately, and tighten lightly with a longer side of Allen Wrench 2. (Adjust the groove thoroughly and maintain the Bolts 3 straight to assemble completely.)
4. Tighten the Bolts 3 with the L shaped side of Allen Wrench 2 until the bolts stop turning.

03-A

좌판-등판조립T400(SMARTSYNC)

Seat and Backrest Assembly T400(SMART SYNC)

1. 등판 조립부?의 흔으로 좌판 조립부를 끼 Oh Minnesota.

1. Insert the groove of the backrest assembly into the seat assembly 1.

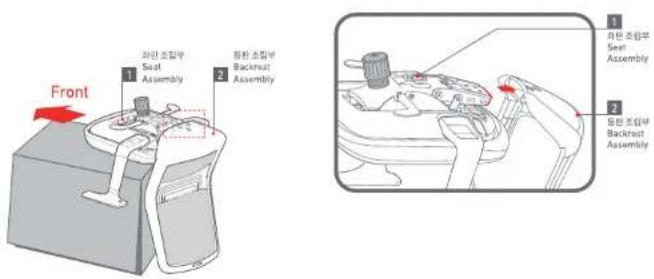

03-B

좌판-등판조립T402(STEPSYNC)

Seat and Backrest Assembly T402(STEP SYNC)

1. 등판 조립부의 품으로 좌판 조립부를 기え니다.
2. Insert the groove of the backrest assembly into the seat assembly.

03

좌판-등판조립

Seat and Backrest Assembly

1. 좌판 조립부1와 등판 조립부2의 연결홈을 절 잊춘 후 그림과 같이 가운데 위치한 구멍에 가이드판3을 꽃아 등판을 고정합니다.
2. 등판 조립홈에 맞추어 등판 조립 봄트4를 기운 후 펜치로 조립해주세요.
3. 가이드판3을 제거하고 마지막 봄트까지 조립해주세요. (팔걸이 조립시와 같은 방법으로 렌치를 사용하여 봄트5를 조입니다.)

1. Align the connection groove between the seat assembly 1 and the backrest assembly 2, and then insert the guide pin 3 into the center hole.
2. Tighten Seat assembly with the Backrest assembly using the bolts 6 (same way as assembling the armrests)
3. Remove the guide pin 7 and assemble to the last bolt.

04

베이스 조립

Star Base Assembly

Illustration of a mechanical device with a lever and base, no text or symbols present

1. 의자의 상부를 여러 조립한 하부와 질합합니다.
2. 팔트 중심에 있는 구멍에 중심봉을 잘 맞춰 꼼입니다.
3. 조립 직후에는 일정 무게 이상으로 좌판을 잘 놀러주어야 높낮이 조절이 작동 훌 수 있습니다. 의자 좌판 중심에 앉아서 놓이 조절 손잡이가 잘 적동하는지 확인합니다.

1. Combine the pre-assembled seat with the backrest. 2. Insert Gas lift into central hole of seat plate. 3. After the assembly, press the seat with weight to function height adjustment. Check the height adjustment lever works properly.

05

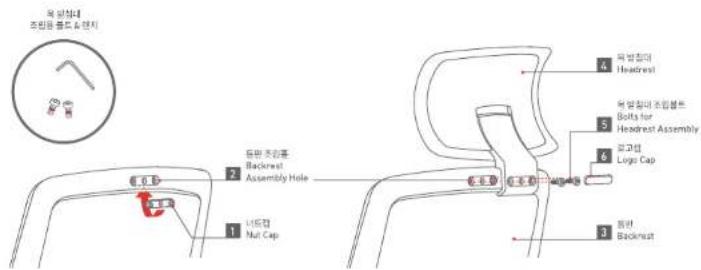

목받침대 조립

Headrest Assembly

1. 네트caps 1 을 등판 조립출 2 에 맞춰 등판 속으로 캡입니다.
2. 헤드레스트 3 을 등판 조립출 2 에 맞춰 캘워넣으세요.
3. 박스에 농봉된 볼트 4 을 사용하여 네트caps 1, 등판 1.
4. 헤드레스트 6 을 고정해추세요. (발결이 조립시와 같은 방법으로 랜치를 사용하여 볼트 3 을 조입니다.)
5. 마지막으로 로고업 6 을 확상표 방향으로 놀러서 조립하세요.
6. Insert the nut cap 1 into the backrest assembly hole 2 inside the backrest.
7. Align headrest 4 and the groove of the backrest assembly hole 5
8. Assemble the nut cap 1, backrest 3, and the headrest 6 with two bolts 5 packaged in a box.(Use the Alien Wrench)
9. Press the cover 6 of headrest in the direction of the arrow.

06

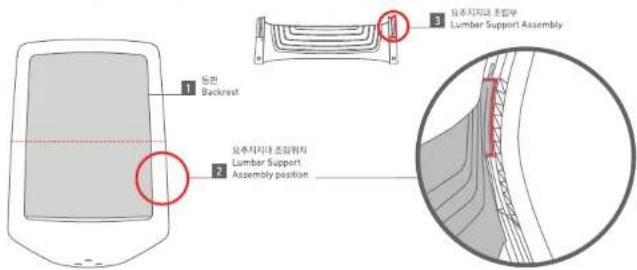

요추지지대 조립

Lumbar Support Assembly

1. 그림과 같이 등판 1의 랄버서포트 조립위치 2를 확인해주세요. (그림과 같이 등판 2의 점선 아래 부분에 조립해주세요)
2. 랄버서포트의 조립부 3를 랄버서포트 조립위치 2에 끼워주세요. (림바시포트 조립 끼지 3는 중앙에 위치된 몸입니다. 위치에 주의해주세요.)
3. 반대쪽도 응월하게 조립해주세요.
4. 랄버서포트 분리시에는 랄버서포트를 구부려 한쪽씩 분리하세요. (과도한 힘을 주면 변형 될 수 있으나 주의해주세요.)
5. Check the lumbar support assembly position 2 of the backrest 3 (assemble under th guideline of the backrest.)
6. Insert the lumbar support assembly 3 into the lumbar support assembly position 2. (The lumbar support assembly position 2 is the groove located in the center of the backrest.)
7. Same way as assembling the other side.
8. When removing the lumbar support, separate one by one after bending the lumbar support.
