KORISNIČKI PRIRUČNIK ANT70-0800 D-LINK
Dual-Band Omni-Directional Antenna
Electrical Specification
| Frequency range | 2400-2500 MHz 5 | 100-5900 MHz |
| Peak gain | 7.5~8 dBi 7~10 dBi | |
| Average gain | 6.5~7 dBi 5 ~7.5 dBi | |
| VSWR | 2.0 : 1 (max.) | |
| Polarization | Linear, Vertical | |
| Horizontal HPBW | 360° | |
| Vertical HPBW | 13° | 7~10° |
| Input impedance | 50 Ohm | |
| Connector | N Jack | |
Environmental & Mechanical Characteristics
| Survival wind speed | 216 km/hr |
| Temperature | -40°C to +80°C |
| Humidity | 95% @ 55°C |
| Radome color | White |
| Radome material | Fiber Glass, UV Resistant |
| Weight | 0.394kgs |
| Dimensions | 80x78x1175 mm |
| Dustproof/Waterproof | IP67 |


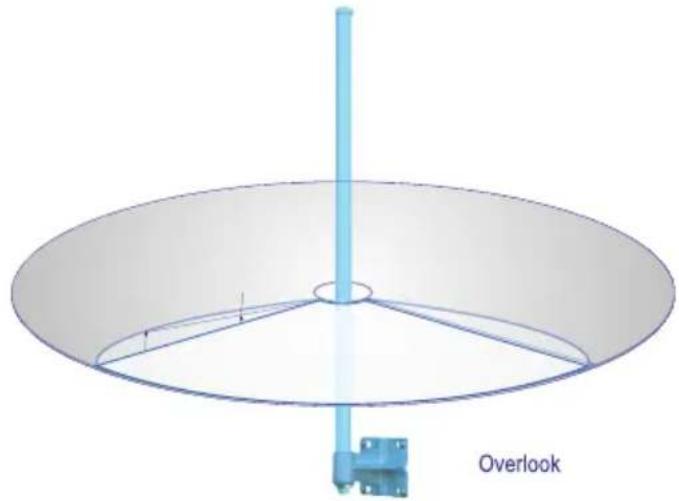

3D diagram of a circular fan or dome structure with a vertical pole and a blue mechanical component labeled 'Overlook' (no other text or symbols)2.4GHz
Horizontal coverage
5GHz
Horizontal coverage
Vertical coverage
Vertical coverage
Pole-Mounting
- M5 - 0.8 nut
- M5 Washer
- M5 U - Type Screw
- Screw
- Anchor
Wall-Mounting
- ANT 70-0800 Antenna
- 50cm extension cable
- Mounting Kit
- Waterproof tape
- Quick Installation Guide
H-plane Co-polarization Pattern
2.4GHz
radar
| Angle | 2400 MHz | 2450 MHz | 2500 MHz | |---|---|---|---| | 0 | 6.0 | 6.0 | 6.0 | | 30 | 6.0 | 6.0 | 6.0 | | 60 | 6.0 | 6.0 | 6.0 | | 90 | 6.0 | 6.0 | 6.0 | | 120 | 6.0 | 6.0 | 6.0 | | 150 | 6.0 | 6.0 | 6.0 | | 180 | 6.0 | 6.0 | 6.0 | | 210 | 6.0 | 6.0 | 6.0 | | 240 | 6.0 | 6.0 | 6.0 | | 270 | 6.0 | 6.0 | 6.0 | | 300 | 6.0 | 6.0 | 6.0 | | 330 | 6.0 | 6.0 | 6.0 | The chart displays a single data series with three distinct frequency bands (2400 MHz, 2450 MHz, and 2500 MHz) plotted against angular positions (radial axis). The values for each band are estimated based on the provided code.
radar
| Frequency | Value | | --------- | ----- | | 5100 MHz | 12.0 | | 5300 MHz | 10.0 | | 5500 MHz | 8.0 | | 5700 MHz | 6.0 | | 5900 MHz | 4.0 |V-plane Co-polarization Pattern
2.4GHz
radar
| Frequency | Angle (°) | Value | | --------- | --------- | ----- | | 2400 MHz | 0 | -10 | | 2400 MHz | 30 | -8 | | 2400 MHz | 60 | -6 | | 2400 MHz | 90 | -4 | | 2450 MHz | 0 | -10 | | 2450 MHz | 30 | -8 | | 2450 MHz | 60 | -6 | | 2450 MHz | 90 | -4 | | 2500 MHz | 0 | -10 | | 2500 MHz | 30 | -8 | | 2500 MHz | 60 | -6 | | 2500 MHz | 90 | -4 |
