KORISNIČKI PRIRUČNIK VF104TT HAGER

6VF10600.c

Technical line drawing of a door with horizontal slats and metal frame (no text or symbols)

golf

GB Mounting instructions FR Notice d'instructions
DE Montageanleitung
NL Montage instructie
DK Monteringsvejledning
FI Asennusohje
NO Montasjeanvisning
SE Monterings instruktioner
IT Istruzioni di montaggio
ES Instrucciones de montaje
PT Instruçõesde montagem
CZ Montážní návod
⑧ BA Uputstvo za montažu
UK Інструкції з установки

HR Upute za montažu
HU Szerelési útmutató
LT Montavimo instrukcija
LV Montāžas instrukcija
PL Instrukcja montażowa
RO Instructiuni de montare
SK Návod na montáž
RU Указания по установке
BG Инструкции за монтаж
GR Οδηγίες χώνευσης
SI Navodilo za montažo
EE Paigaldusjuhised
IS Leiðbeiningar
AR دليل الركيب

Black-and-white hexagonal sign with a stylized human figure wearing a helmet and lightning bolt, no text or symbols present.

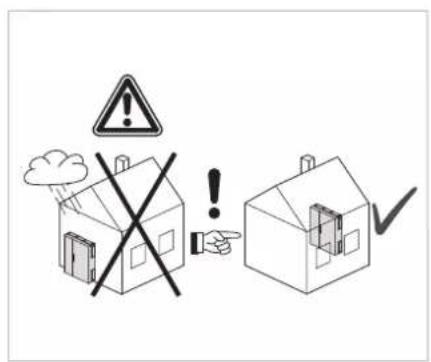

Safety warning sign with exclamation mark and checkmark, indicating incorrect safety rules for households

PZ2


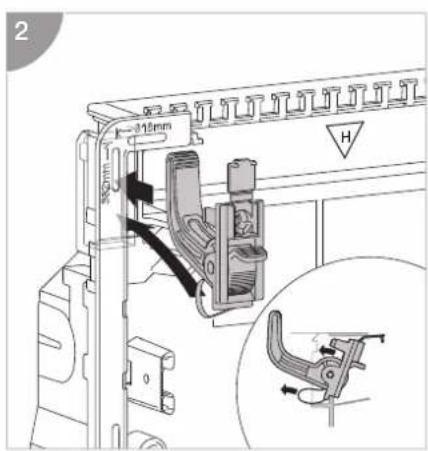

2 30mm 15mm H

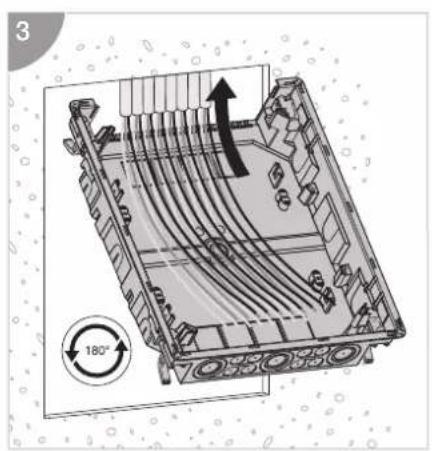

3 180°

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating movement or assembly.

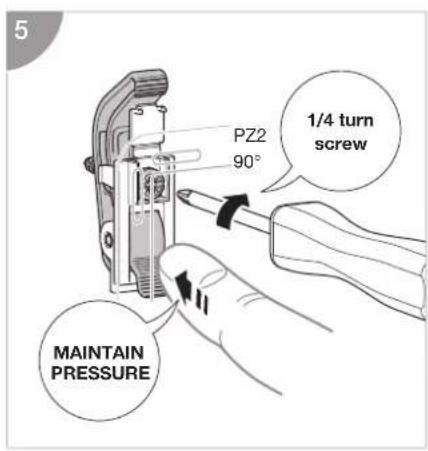

5 PZ2 90° 1/4 turn screw MAINTAIN PRESSURE

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Isometric view of a mechanical component with mounting holes and a side bracket, labeled 'x4' (no text or symbols on the diagram itself)

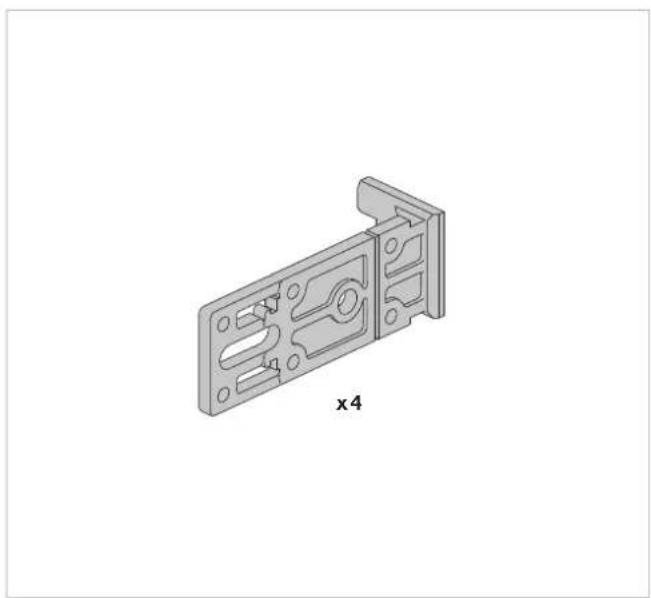

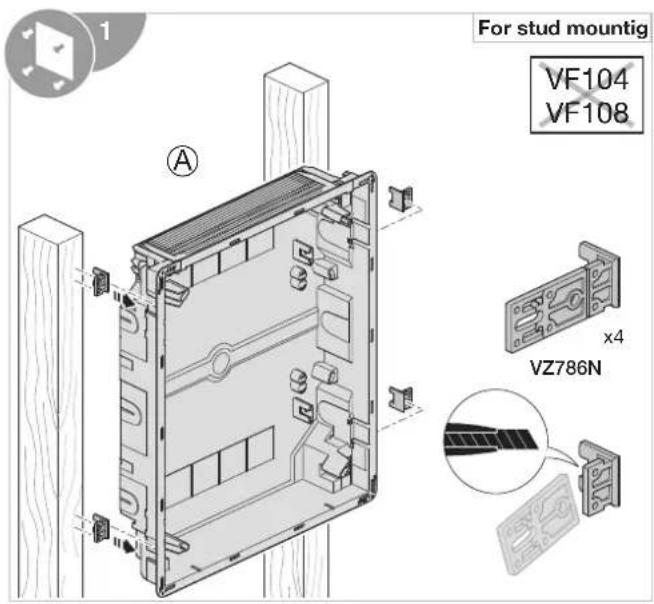

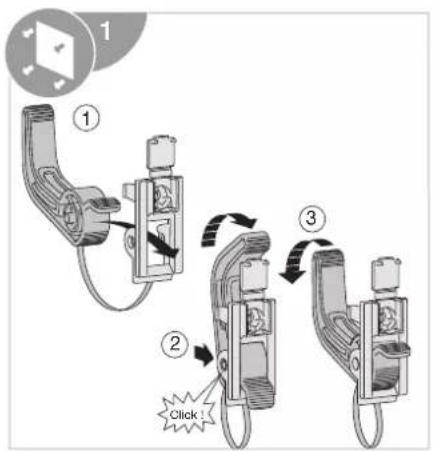

For stud mountig VF104 VF108 A x4 VZ786N

2 ① X = 10 mm X = 20 mm ② X X

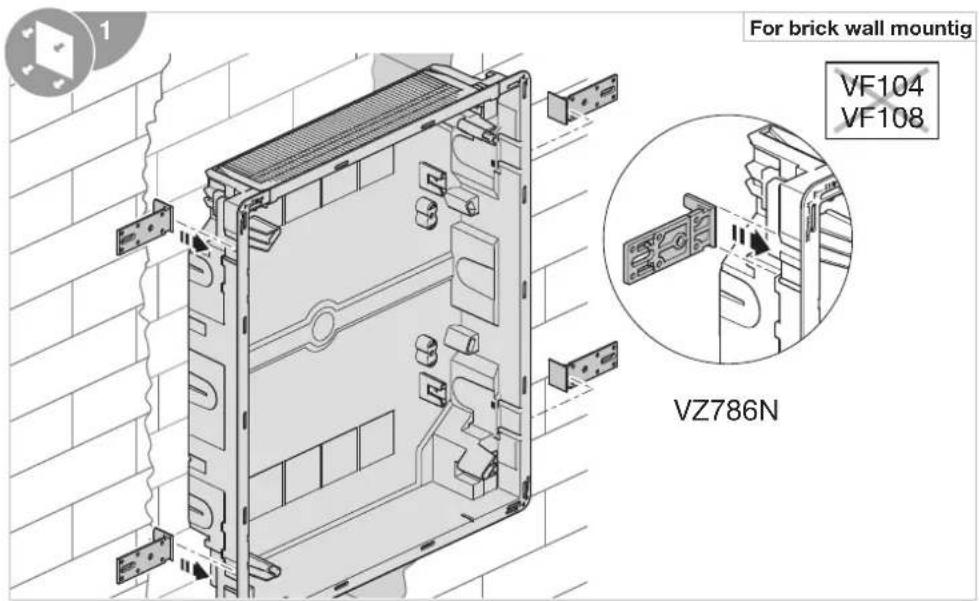

For brick wall mountig VF104 VF108 VZ786N

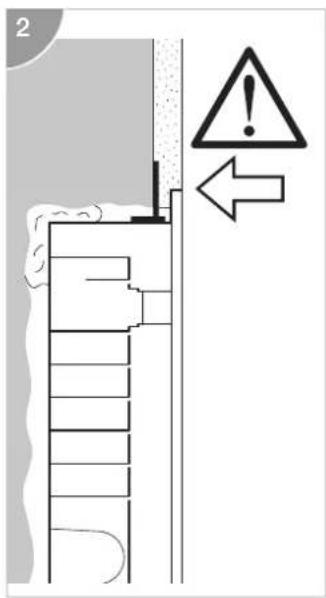

2
