KORISNIČKI PRIRUČNIK V-5330105 Valcom
UNI VERSAL VOI CE COI L BI - DI RECTI ONAL CABI NET SPEA K ER (V-5330105)
The Universal Bi-directional Voice Coil Cabinet Speaker is a 1/4 watt speaker.
The Universal Bi-directional Voice Coil Cabinet Speaker can be used as a wall, ceiling or corridor speaker.
Dimensions/Weight
- 10.5"SQ x 4.0"D (26.7cm x 10.2cm)
- 7.0 lbs. (3.2kg)
Mounting
The U ni versal C abi net S peaker should be mounted indoors on a suitable flat surface, such as a wall or ceiling, using the bracket provided.
1 Use the bracket as a template and mark a screw location in the center of each key
2 Install screws in the locations marked. Use anchors if necessary to provide a solid (screws and anchors are provided). Leave enough room so the bracket can be slipped over the screw heads.


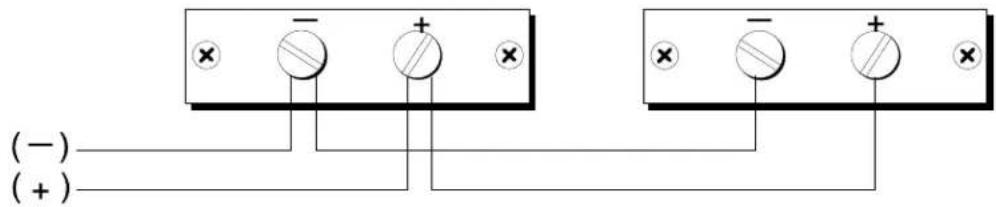

ATTENUATOR VOLUME CONTROL CONNECT SPEAKER WRES HERE SCREW MOUNTING BRACKET3 Maintain proper speaker phasing. Each conductor in the speaker wire must be connected to the same terminal on each speaker, as shown below.
When calling, have a VOM and a test set and call from the job site. Call (540) 427-3900 and ask for PagePac Technical Support, or call (540) 427-6000 for Valcom 24-hour Automated Support or visit our websites at http://www.pagepac.com and www.valcom.com.
Should repairs be necessary, attach a tag to the unit clearly stating company name, add phone number, contact person, and the nature of the problem. Send the unit to:
V a l c o m, In c.
PagePa€ Repair Dept.
5614 Hollins Road
R oanoke, VA 24019-5056
