KÄYTTÖOHJE CA-BC-UNI.002 PIONEER
CA-BC-UNI.002
The CA-BC-UNI.002 video interface is made to be used with a multiple camera setup.
This kit allows multiple cameras to operate on a single video input monitor when the camera is activated.
Specifications
Working Voltage: +12v Working
Current: 30mA System: PAL / NTSC / SECAM
Video Output: 1.0 VPP / 75Ω
Working Temperature: -20° to +80°C
Installation
1) Connect the RED wire to the +12 volt accessory wire.
2) Connect the BLACK wire to a ground (a metal, non-painted surface).
3) Plug yellow RCA cable into video 1/2 output then plug the other end of the rca cable to the input of the video monitor.
4) Plug the video switch into the harness (3.5mm plug), this will turn on/off front video camera from being displayed.
5) Plug the 6 pin harness into the control box.
6) Connect the YELLOW wire to the +12 volt right turn signal wire.
7) Connect the GRAY wire to the +12 volt left turn signal wire.
8) Connect the BLUE wire to the +12 volt reverse light wire.
9) Connect the WHITE wire to the monitor's reverse trigger wire.
10) Plug the 4 pin harness into the control box.
11) Run the camera's video output and power to the camera harness and plug it in to the control harness box (make sure left camera in plugged into left input on the control box, right to right, etc...).
NOTE: The control box will supply power to the cameras as long as power is being supplied to the control box (extending power from control box might be needed, unless power to camera is locally used)


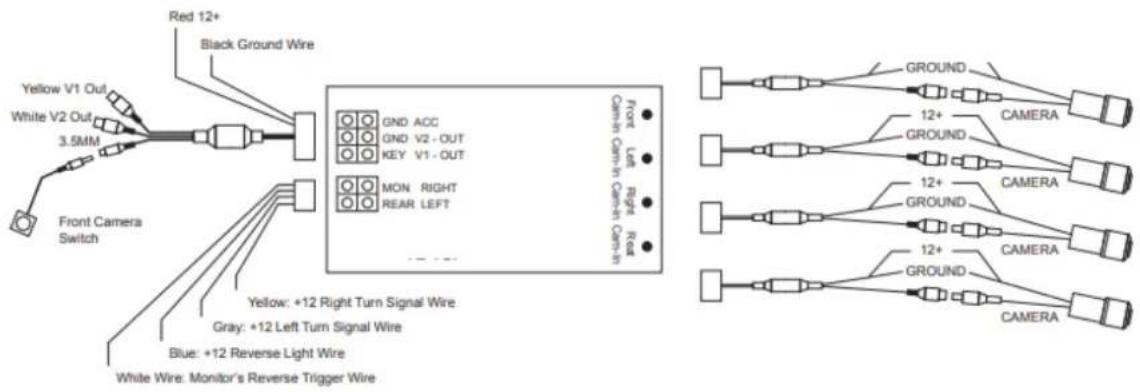

Red 12+ Black Ground Wire Yellow V1 Out White V2 Out 3.5MM Front Camera Switch Yellow: +12 Right Turn Signal Wire Gray: +12 Left Turn Signal Wire Blue: +12 Reverse Light Wire White Wire: Monitor's Reverse Trigger Wire GND ACC GND V2 - OUT KEY V1 - OUT MON RIGHT REAR LEFT Front Left Right Right GROUND CAMERA 12+ GROUND CAMERA 12+ GROUND CAMERA 12+ GROUND CAMERADistributed by PIONEER EUROPE N.V.
Keetberglaan 1 - Haven 1087
B-9120 Melsele, België
URL: PIONEER-CAR.EU
