KÄYTTÖOHJE QA85QN90BAS SAMSUNG
5
6


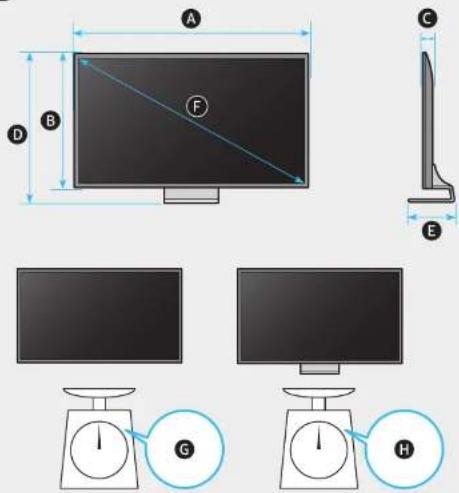

| A | B | C | D | E | F | G | H | |
| 43QN9*B43QNB9* | 37.8 inches(960.8 mm)(96.08 cm) | 22.0 inches(558.9 mm)(55.89 cm) | 1.1 inches(26.9 mm)(2.69 cm) | 24.5 inches(623.4 mm)(62.34 cm) | 8.8 inches(223.0 mm)(22.30 cm) | 42.5 inches(108 cm) | 20.3 lbs(9.2 kg) | 30.4 lbs(13.8 kg) |
| 50QN9*B50QNB9* | 43.8 inches(1113.6 mm)(111.36 cm) | 25.4 inches(644.1 mm)(64.41 cm) | 1.1 inches(26.9 mm)(2.69 cm) | 27.9 inches(708.9 mm)(70.89 cm) | 8.8 inches(223.0 mm)(22.30 cm) | 49.5 inches(125 cm) | 30.9 lbs(14.0 kg) | 41.0 lbs(18.6 kg) |
| 55QN9*B55QNB9* | 48.3 inches(1227.4 mm)(122.74 cm) | 27.8 inches(705.6 mm)(70.56 cm) | 1.0 inches(25.9 mm)(2.59 cm) | 30.2 inches(768.0 mm)(76.80 cm) | 9.3 inches(235.6 mm)(23.56 cm) | 54.6 inches(138 cm) | 39.0 lbs(17.7 kg) | 48.2 lbs(21.9 kg) |
| 65QN9*B65QNB9* | 56.9 inches(1446.3 mm)(144.63 cm) | 32.6 inches(828.7 mm)(82.87 cm) | 1.0 inches(25.9 mm)(2.59 cm) | 35.1 inches(891.4 mm)(89.14 cm) | 11.2 inches(285.7 mm)(28.57 cm) | 64.5 inches(163 cm) | 53.8 lbs(24.4 kg) | 69.2 lbs(31.4 kg) |
| 75QN9*B | 65.7 inches(1670.0 mm)(167.00 cm) | 37.7 inches(957.4 mm)(95.74 cm) | 1.1 inches(26.7 mm)(2.67 cm) | 40.2 inches(1020.0 mm)(102.00 cm) | 12.5 inches(317.9 mm)(31.79 cm) | 74.5 inches(189 cm) | 77.2 lbs(35.0 kg) | 98.8 lbs(44.8 kg) |
| 85QN9*B | 74.5 inches(1892.2 mm)(189.22 cm) | 42.6 inches(1081.9 mm)(108.19 cm) | 1.1 inches(27.2 mm)(2.72 cm) | 45.1 inches(1144.3 mm)(114.43 cm) | 14.4 inches(365.5 mm)(36.55 cm) | 84.5 inches(214 cm) | 98.1 lbs(44.5 kg) | 125.0 lbs(56.7 kg) |
^* :0-9,A-7

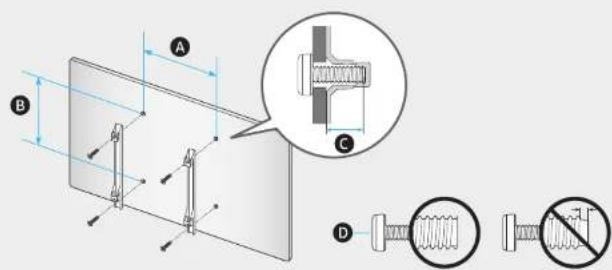

| VESA (m ) (mm) x 4 | C | D | |
| 43QN9*B43QNB9* | 200 x 200 | 11-13 MB | |
| 50QN9*B50QNB9* | |||
| 55QN9*B55QNB9* | |||
| 65QN9*B65QNB9* | 400 x 300 | ||
| 75QN9*B 400 x 400 | |||
| 85QN9*B 600 x 400 |
^* : 0-9, A-Z
SAMSUNG
QUICK SETUP GUIDE
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA DE CONFIGURACIÓN
GUIA RÁPIDO DE INSTALAÇÃO
KURZANLEITUNG ZUR KONFIGURATION
GUIDA DI INSTALLAZIONE RAPIDA
[Barcode]
BN68-15970P-00

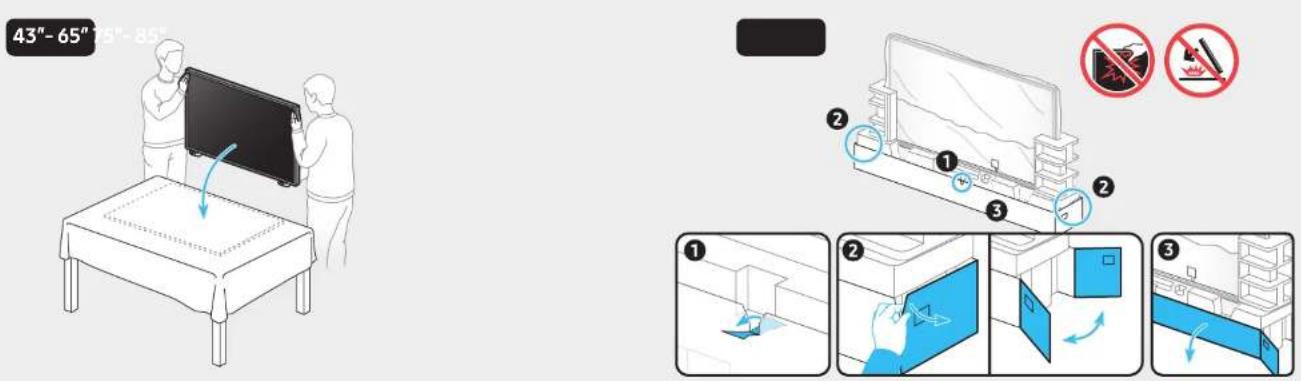

43" - 50"
▶
75"


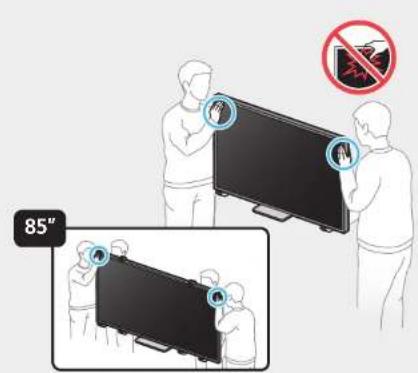

85"
1
2
3
3
4
