KÄYTTÖOHJE QA50Q61BAG SAMSUNG
5

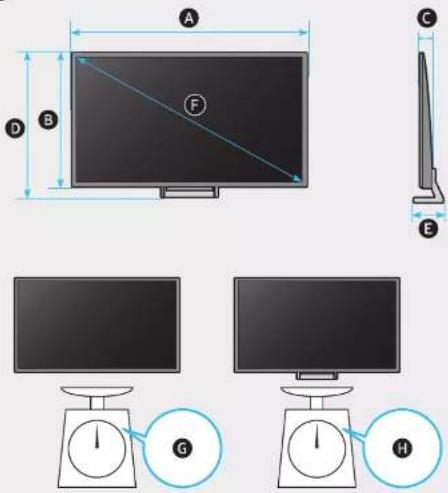

| A | B | C | D | E | F | G | H | |
| 43BU85** | 38.0 inches(966.3 mm)(96.63 cm) | 22.1 inches(560.3 mm)(56.03 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 24.6 inches(624.1 mm)(62.41 cm) | 7.4 inches(187.6 mm)(18.76 cm) | 42.5 inches(108 cm) | 18.5 lbs(8.4 kg) | 19.8 lbs(9.0 kg) |
| 50BU85** | 44.1 inches(1119.1 mm)(111.91 cm) | 25.4 inches(645.0 mm)(64.50 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 27.9 inches(709.8 mm)(70.98 cm) | 7.8 inches(199.1 mm)(19.91 cm) | 49.5 inches(125 cm) | 25.4 lbs(11.5 kg) | 26.7 lbs(12.1 kg) |
| 43Q6*B | 38.0 inches(965.5 mm)(96.55 cm) | 22.0 inches(559.4 mm)(55.94 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 24.6 inches(623.7 mm)(62.37 cm) | 7.4 inches(187.6 mm)(18.76 cm) | 42.5 inches(108 cm) | 18.5 lbs(8.4 kg) | 19.8 lbs(9.0 kg) |
| 50Q6*B | 44.0 inches(1118.3 mm)(111.83 cm) | 25.4 inches(644.1 mm)(64.41 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 28.0 inches(709.4 mm)(70.94 cm) | 7.8 inches(199.1 mm)(19.91 cm) | 49.5 inches(125 cm) | 25.4 lbs(11.5 kg) | 26.9 lbs(12.2 kg) |
| 43Q7*B | 38.0 inches(965.5 mm)(96.55 cm) | 22.0 inches(559.4 mm)(55.94 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 24.6 inches(623.7 mm)(62.37 cm) | 7.4 inches(187.6 mm)(18.75 cm) | 42.5 inches(108 cm) | 18.5 lbs(8.4 kg) | 19.8 lbs(9.0 kg) |
| 50Q7*B | 44.0 inches(1118.3 mm)(111.83 cm) | 25.4 inches(644.1 mm)(64.41 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 28.0 inches(709.4 mm)(70.94 cm) | 7.8 inches(199.1 mm)(19,91 cm) | 49.5 inches(125 cm) | 25.4 lbs(11.5 kg) | 26.7 lbs(12.1 kg) |
| 75BU85** | 66.0 inches(1677.5 mm)(167.75 cm) | 37.8 inches(960.7 mm)(96.07 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 40.4 inches(1026.9 mm)(102.69 cm) | 13.3 inches(338.9 mm)(33.89 cm) | 74.5 inches(189 cm) | 69.2 lbs(31.4 kg) | 71.7 lbs(32.5 kg) |
| 75Q6*B | 66.0 inches(1676.7 mm)(167.67 cm) | 37.8 inches(959.8 mm)(95.98 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 40.4 inches(1026.5 mm)(102.65 cm) | 13.3 inches(338.9 mm)(33.89 cm) | 74.5 inches(189 cm) | 69.2 lbs(31.4 kg) | 72.1 lbs(32.7 kg) |
| 75Q7*B | 66.0 inches(1677.5 mm)(167.75 cm) | 37.8 inches(960.2 mm)(96.02 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 40.4 inches(1026.9 mm)(102.69 cm) | 13.3 inches(338.9 mm)(33.89 cm) | 74.5 inches(189 cm) | 73.6 lbs(33.4 kg) | 76.5 lbs(34.7 kg) |
| 85Q6*B | 74.8 inches(1900.9 mm)(190.09 cm) | 42.7 inches(1085.7 mm)(108.57 cm) | 1.1 inches(26.9 mm)(2.69 cm) | 45.4 inches(1152.6 mm)(115.26 cm) | 14.5 inches(368.3 mm)(36.83 cm) | 84.5 inches(214 cm) | 91.5 lbs(41.5 kg) | 95.0 lbs(43.1 kg) |
* : 0-9, A-7

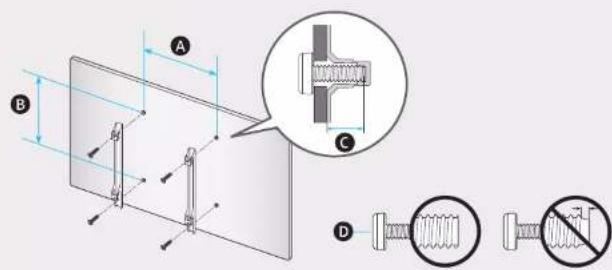

| VESA A x B m) (mm) x 4 | C | D | |
| 43BU85** | 200 x 200 | 11-13 M8 | |
| 50BU85** | |||
| 43Q6*B | |||
| 50Q6*B | |||
| 43Q7*B | |||
| 50Q7*B | |||
| 75BU85** | 400 x 40075Q6*B | ||
| 75Q7*B | |||
| 85Q6*B 600 x 400 |
*:0-9,A-Z
SAMSUNG
QUICK SETUP GUIDE
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA DE CONFIGURACIÓN
GUIA RÁPIDO DE INSTALAÇÃO
KURZANLEITUNG ZUR KONFIGURATION
GUIDA DI INSTALLAZIONE RAPIDA
BN68-15970C-00
50"
▶
85Q6*B

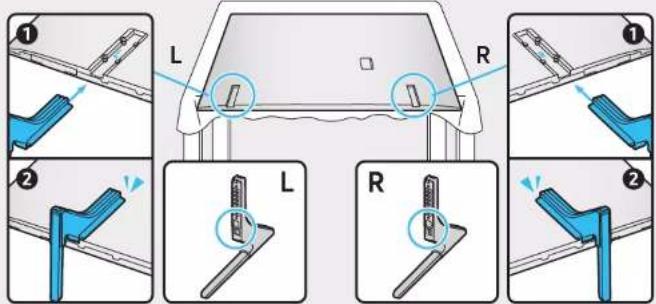

1
43"-50"
2

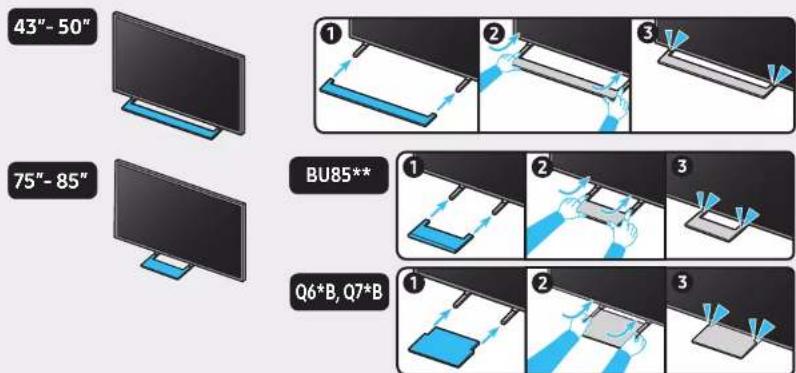

43"-50"

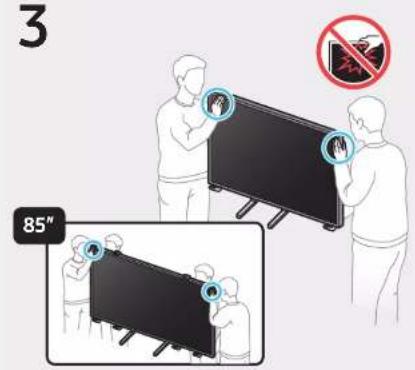

3
4
