KÄYTTÖOHJE QA65Q65BAK SAMSUNG
3


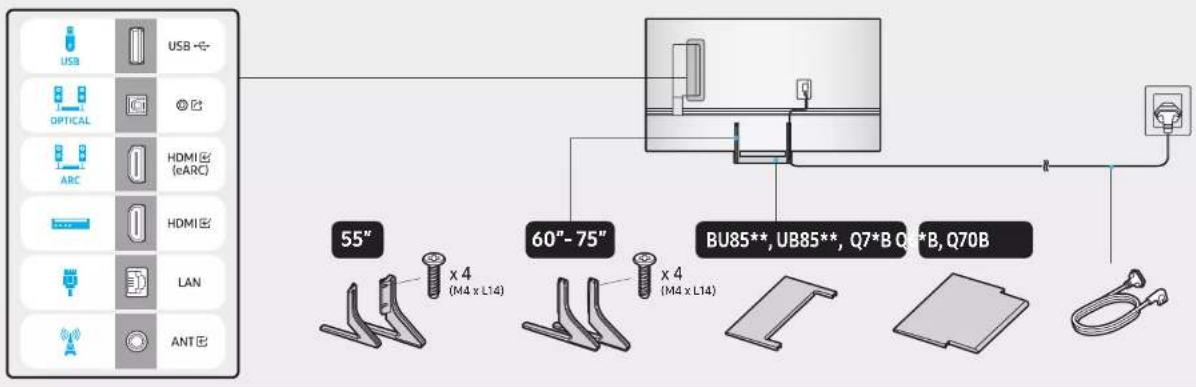

BU85**, UB85**, Q7*B
Q6*B, Q70B
5

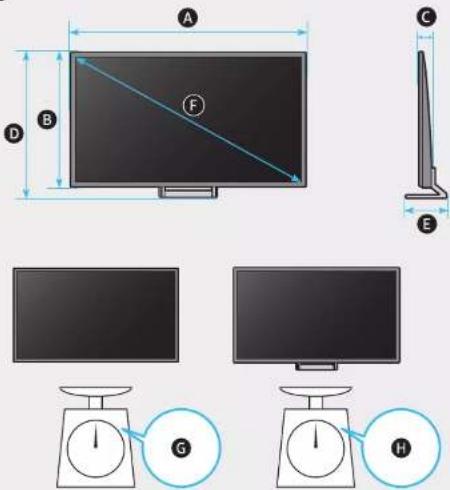

| A | B | C | D | E | F | G | H | |
| 55BU85**5SUB85** | 48.5 inches(1232.9 mm)(123.29 cm) | 27.9 inches(709.2 mm)(70.92 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 30.5 inches(774.1 mm)(77.41 cm) | 9.8 inches(249.1 mm)(24.91 cm) | 54.6 inches(138 cm) | 34.2 lbs(15.5 kg) | 35.7 lbs(16.2 kg) |
| 65BU85**65UB85** | 57.2 inches(1451.7 mm)(145.17 cm) | 32.7 inches(832.3 mm)(83.23 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 35.3 inches(897.5 mm)(89.75 cm) | 11.4 inches(290.2 mm)(29.02 cm) | 64.5 inches(163 cm) | 46.1 lbs(20.9 kg) | 47.8 lbs(21.7 kg) |
| 55Q6*B | 48.5 inches(1232.1 mm)(123.21 cm) | 27.9 inches(708.3 mm)(70.83 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 30.5 inches(773.8 mm)(77.38 cm) | 9.8 inches(249.1 mm)(24.91 cm) | 54.6 inches(138 cm) | 34.2 lbs(15.5 kg) | 35.9 lbs(16.3 kg) |
| 60Q6*B | 53.3 inches(1353.0 mm)(135.30 cm) | 30.6 inches(776.3 mm)(77.63 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 33.2 inches(842.1 mm)(84.21 cm) | 11.4 inches(290.2 mm)(29.02 cm) | 60.1 inches(152 cm) | 41.0 lbs(18.6 kg) | 43.0 lbs(19.5 kg) |
| 65Q6*B | 57.1 inches(1450.9 mm)(145.09 cm) | 32.7 inches(831.4 mm)(83.14 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 35.3 inches(897.1 mm)(89.71 cm) | 11.4 inches(290.2 mm)(29.02 cm) | 64.5 inches(163 cm) | 46.1 lbs(20.9 kg) | 48.1 lbs(21.8 kg) |
| 70Q6*B | 61.4 inches(1559.7 mm)(155.97 cm) | 35.5 inches(902.1 mm)(90.21 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 38.1 inches(968.7 mm)(96.87 cm) | 13.3 inches(338.9 mm)(33.89 cm) | 69.5 inches(176 cm) | 62.8 lbs(28.5 kg) | 65.7 lbs(29.8 kg) |
| 55Q70B | 48.5 inches(1232.9 mm)(123.29 cm) | 27.9 inches(708.7 mm)(70.87 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 30.5 inches(774.1 mm)(77.41 cm) | 9.8 inches(249.1 mm)(24.91 cm) | 54.6 inches(138 cm) | 35.5 lbs(16.1 kg) | 37.3 lbs(16.9 kg) |
| 65Q70B | 57.2 inches(1451.7 mm)(145.17 cm) | 32.7 inches(831.8 mm)(83.18 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 35.3 inches(897.5 mm)(89.75 cm) | 11.4 inches(290.2 mm)(29.02 cm) | 64.5 inches(163 cm) | 47.2 lbs(21.4 kg) | 49.2 lbs(22.3 kg) |
| 55Q7*B | 48.5 inches(1232.9 mm)(123.29 cm) | 27.9 inches(708.7 mm)(70.87 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 30.5 inches(774.1 mm)(77.41 cm) | 9.8 inches(249.1 mm)(24. 91 cm) | 54.6 inches(138 cm) | 35.5 lbs(16.1 kg) | 37.0 lbs(16.8 kg) |
| 65Q7*B | 57.2 inches(1451.7 mm)(145.17 cm) | 32.7 inches(831.8 mm)(83.18 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 35.3 inches(897.5 mm)(89.75 cm) | 11.4 inches(290.2 mm)(29,02 cm) | 64.5 inches(163 cm) | 47.2 lbs(21.4 kg) | 48.9 lbs(22.2 kg) |
| 75Q7*B | 66.0 inches(1677.5 mm)(167.75 cm) | 37.8 inches(960.2 mm)(96.02 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 40.4 inches(1026.9 mm)(102.69 cm) | 13.3 inches(338.9 mm)(33.89 cm) | 74.5 inches(189 cm) | 73.6 lbs(33.4 kg) | 76.1 lbs(34.5 kg) |
^k : 0\~9, A\~Z

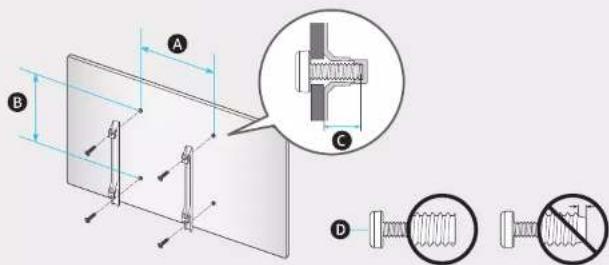

| VESA (A x B m) (mm) x 4 | C | D | |
| 55BU85**55UB85** | 200 x 200 | 11-13 M8 | |
| 65BU85**65UB85** | 400 x 300 | ||
| 55Q6*B 200 x 200 | |||
| 60Q6*B | 400 x 30065Q6*B | ||
| 70Q6*B | |||
| 55Q70B 200 x 200 | |||
| 65Q70B 400 x 300 | |||
| 55Q7*B 200 x 200 | |||
| 65Q7*B 400 x 300 | |||
| 75Q7*B 400 x 400 |
^* : 0\~9, A\~Z
SAMSUNG
QUICK SETUP GUIDE
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA DE CONFIGURACIÓN
GUIA RÁPIDO DE INSTALAÇÃO
KURZANLEITUNG ZUR KONFIGURATION
GUIDA DI INSTALLAZIONE RAPIDA
BN68-15970G-00
55BU85** 55UB85** 55Q7*B
55Q6*B 55Q70B
65BU85** 65UB85** 65Q7*B 75Q7*B


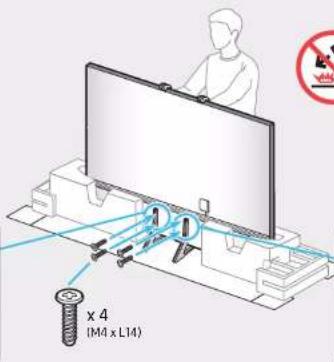

1
55"-70"
75"


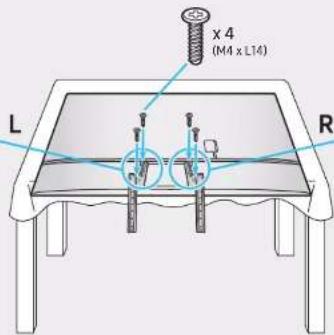

2
55"
60" - 70"
75"

