KÄYTTÖOHJE QA75Q70AAG SAMSUNG
9

10


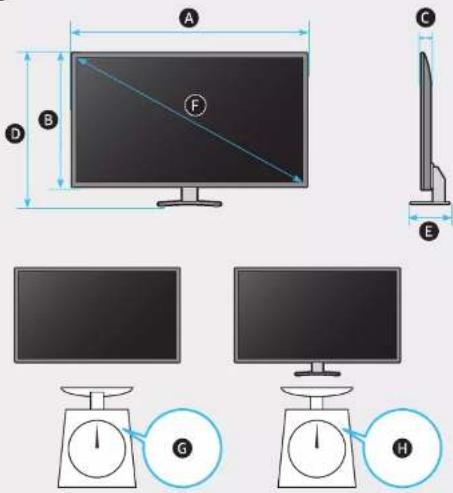

| A | B | C | D | E | F | G | H | |
| 75Q7*A75QA7* | 66.0 inches(1677.5 mm)(167.75 cm) | 37.8 inches(960.7 mm)(96.07 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 40.4 inches(1025.9 mm)(102.59 cm) | 12.6 inches(320.6 mm)(32.06 cm) | 74.5 inches(189 cm) | 75.2 lbs(34.1 kg) | 86.6 lbs(39.3 kg) |
| 85Q7*A85QA7* | 74.9 inches(1901.7 mm)(190.17 cm) | 42.8 inches(1086.5 mm)(108.65 cm) | 1.1 inches(26.9 mm)(2.69 cm) | 45.5 inches(1156.6 mm)(115.66 cm) | 13.2 inches(335.8 mm)(33.58 cm) | 84.5 inches(214 cm) | 96.6 lbs(43.8 kg) | 112.2 lbs(50.9 kg) |
^* :0-9,A-Z

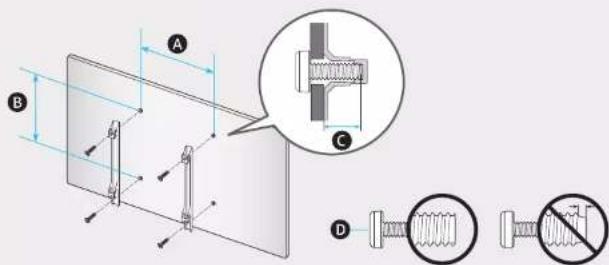

| VESA A x E m) (mm) x 4 | C | D | |
| 75Q7*A75QA7* | 400 x 400 | 11-13 M8 | |
| 85Q7*A85QA7* | 600 x 400 |
*:0\~9,A\~Z
SAMSUNG
QUICK SETUP GUIDE
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA DE CONFIGURACIÓN
GUIA RÁPIDO DE INSTALAÇÃO
KURZANLEITUNG ZUR KONFIGURATION
GUIDA DI INSTALLAZIONE RAPIDA


BN68-12879B-02


75"




1

2

3

4

5

6

7

8
