KÄYTTÖOHJE VT-713S V-TAC

WEEE Number: 80133970

INSTRUCTION MANUAL

LED STRING LIGHT

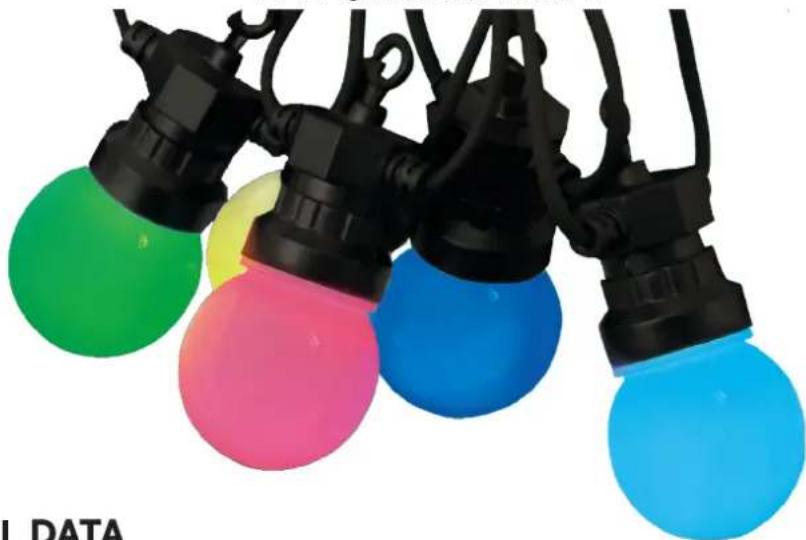

Four colorful spherical objects with black and green lighting, suspended by black clips (no text or symbols visible)

IP44

RATING

02 YEAR

WARRANTY*

TECHNICAL DATA

MODEL VT-713S

SKU 23159

LUMENS 15x2 Lm

WATTS 15x0.5W

LENGTH 13 M

BULB TYPE G50 RGB

NO. OF BULBS 15 pcs

BEAM ANGLE 270°

MATERIAL	PVC Wire, Plastic Bulb
PLUG TYPE EU Plug
INPUT VOLTAGE	AC: 220-240V,50/60Hz

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

WARNING

1. Please make sure to turn off the power before starting the installation.

2. Installation must be performed by a qualified electrician.

3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

REMOTE CONTROLLER INSTRUCTIONS

ON: Turn on the lights (start with the last setting before OFF)

OFF: Turn off the lights and also the timer

AUTO: Run automatically from JUMP, FADE, IN WAVES, STROBE, TWINKLE, ASYN JUMP to ASYN FADE

SPEED: Four adjustable speeds for dynamic mode "AUTO, FADE, JUMP, ASYN FADE, or ASYN JUMP, IN WAVES, per click circularly (1-2-3-4-1). The default speed is the third speed STROBE, and TWINKLE", from slow to faster once turn on the lights. There are 16 single colors, 1 multi-color and 1 triple-color to select, by pressing color representing keys.

FADE: Lights fade in synchronous mode

JUMP: Lights jump in synchronous mode. mode

ASYN FADE: Lights fade in asynchronous modemode

ASYN JUMP: Lights jump in asynchronous mode.

IN WAVES: Lights change from dim to bright, then from bright to dim.

STROBE: Strobe light flash on one or two background colors, press key to change.

TEINKLE: Two or three colors flash, press key to change.

4H: Lights work in 4 hours, then rest for remain 20 hours.

6H: Lights work in 6 hours, then rest for remain 18 hours.

8H: Lights work in 8 hours, then rest for remain 16 hours.

24H: Lights work for all day long.

The light will flash white once when timer key is pressed.

PACKAGE CONTENT

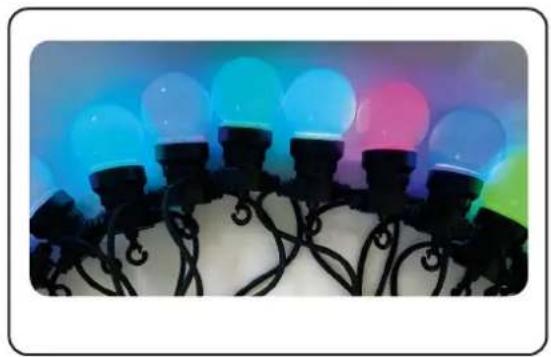

Close-up of black decorative light bulbs with blue and pink hues against a blurred background (no text or symbols)

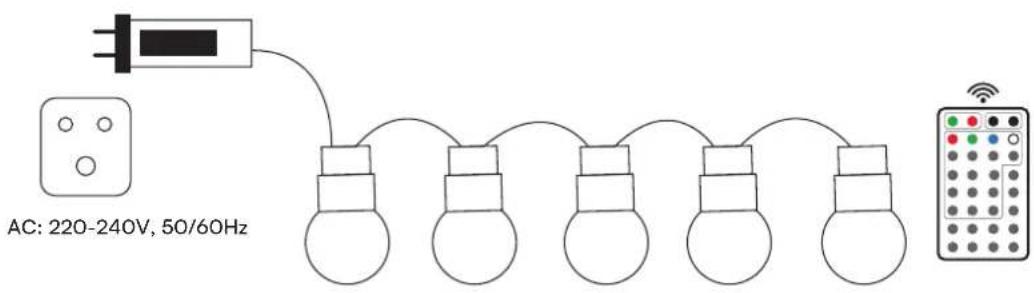

INSTALLATION DIAGRAM
